| Model Series | SR-30/50/100/150/250/500KW-HY |
| Certification | ISO, CB, CE, IEC, CEC, INMETRO, SGS |

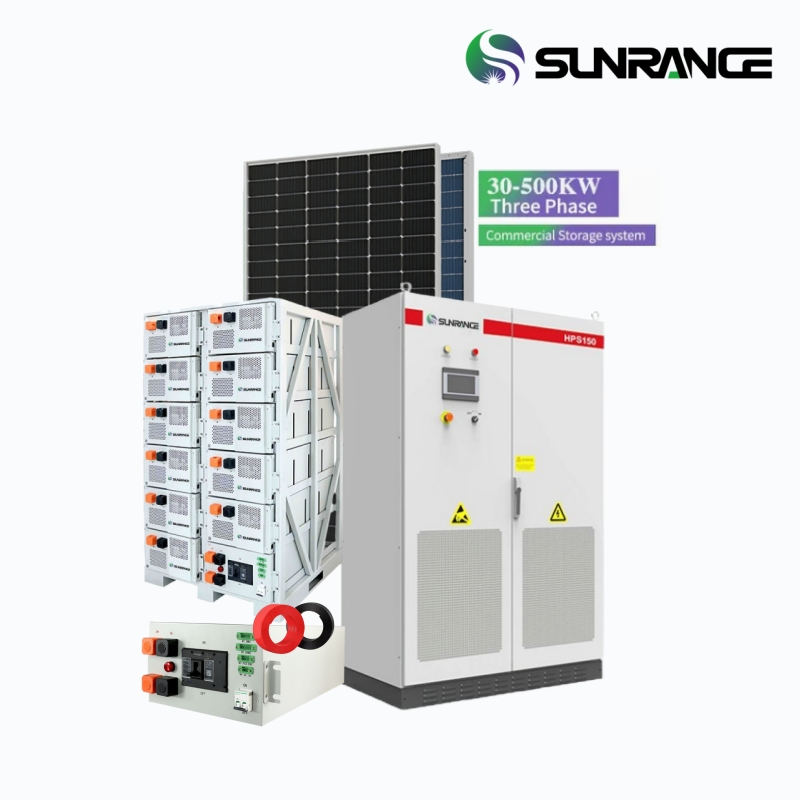

| Application | Commercial & Industrial Solar Energy Storage |
| System Type | Hybrid Solar PV System (On/Off-Grid) |
| Battery Type | LiFePO4 Lithium Ion / GEL Battery |
| Solar Panel | Monocrystalline N-Type Topcon 400-700W |
| Model No. | SR-30KW-HY | SR-50KW-HY | SR-100KW-HY | SR-150KW-HY | SR-250KW-HY | SR-500KW-HY |
|---|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| Max. Output (KVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Solar Panel Qty | 60 PCS | 90 PCS | 180 PCS | 270 PCS | 450 PCS | 900 PCS |
| Solar Total Power | 34.8KW | 52.2KW | 104.4KW | 156.6KW | 261KW | 522KW |
| Battery Capacity | 40.96KWH | 100.35KWH | 202.75KWH | 304.12KWH | 473.08KWH | 946.17KWH |
| Grid Voltage | 380/400VAC, 50/60HZ | |||||

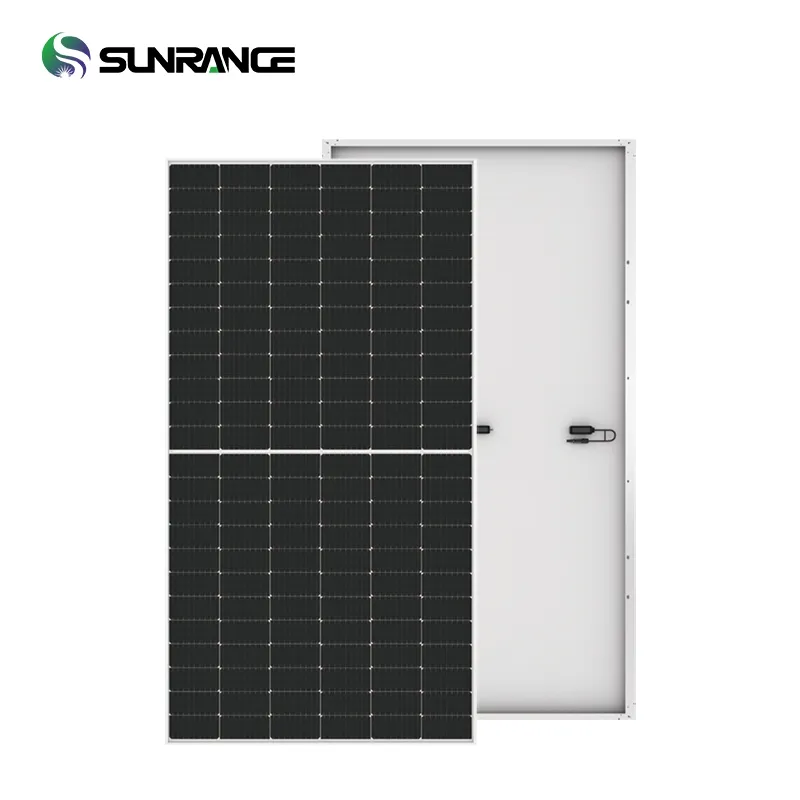

High-efficiency SR72P-580N modules with 22.44% efficiency. Engineered for maximum power density and durability in commercial environments.

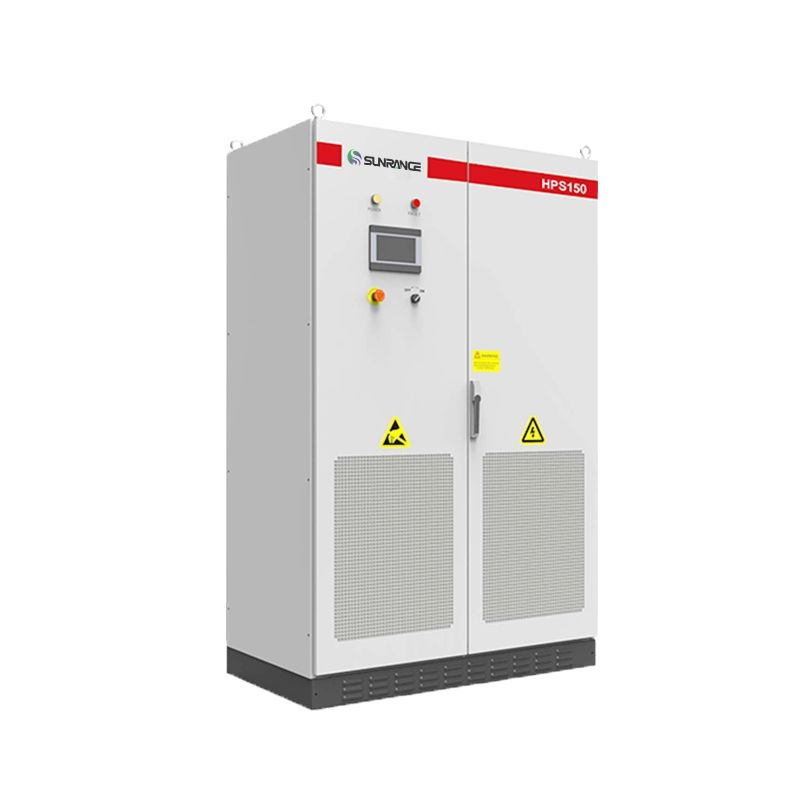

Supports PV, battery, DG, grid, and load connections. Features seamless switching within 6ms and dynamic power distribution.

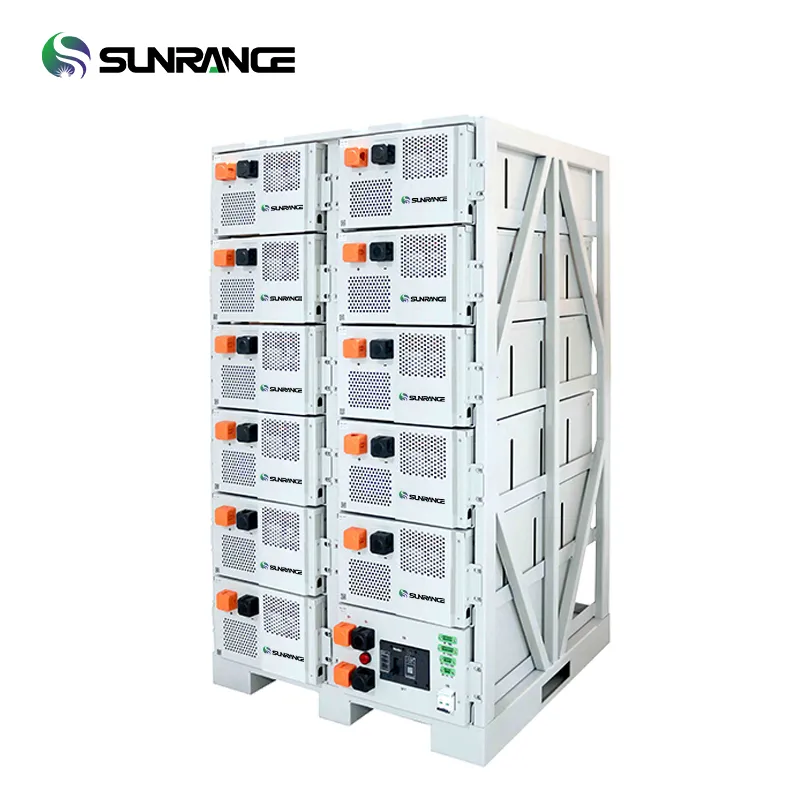

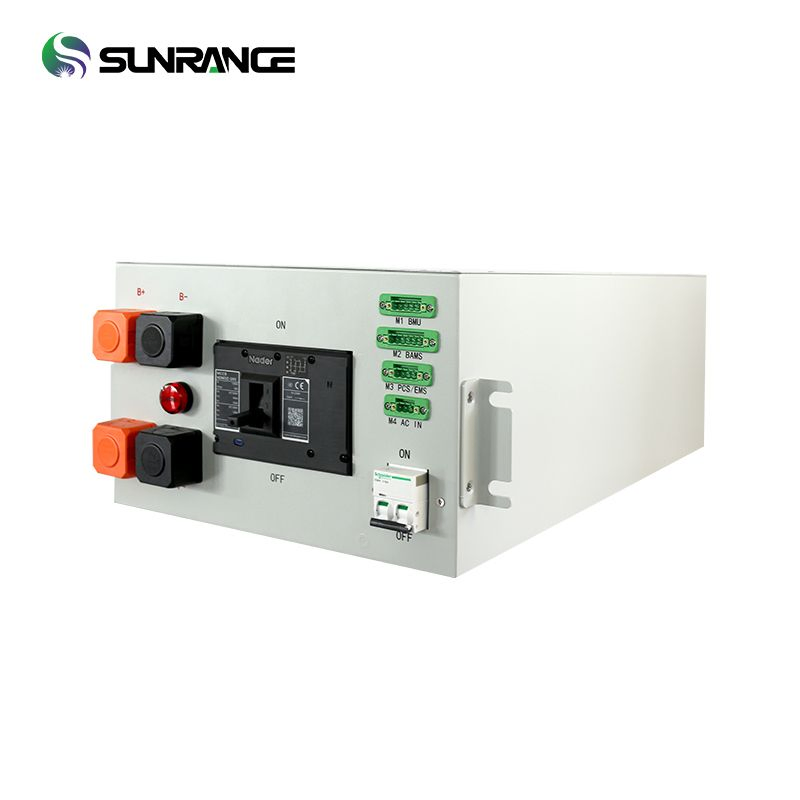

Rack-mounted LiFePO4 design with over 6000 cycles at 90% DOD. High discharge performance and wide ambient temperature suitability.

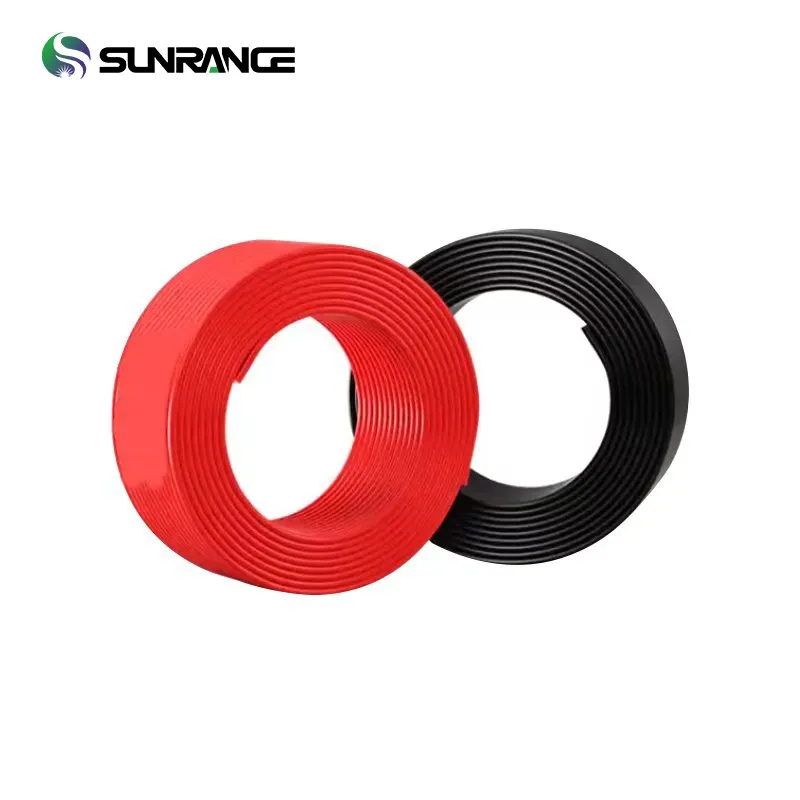

DC Cables & MC4
Online Monitoring

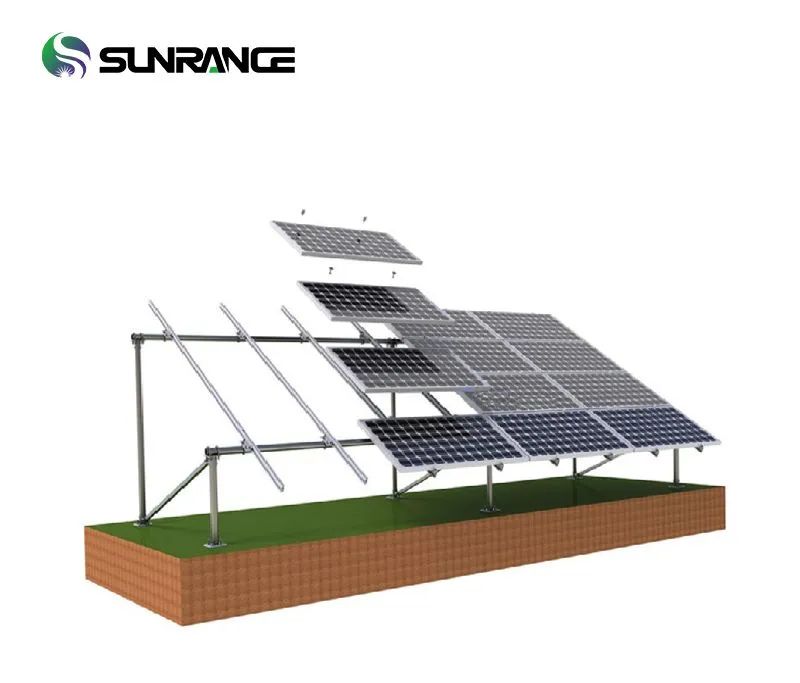

PV Mounting System
We are an emerging brand in the photovoltaic industry serving customers across all continents. Our focus is on providing high-quality products and professional engineering services. We offer tailored design solutions for large, medium, and small-scale commercial applications, continuously improving our technology for a superior user experience.
A: We offer residential solar energy systems from 5-30KW, and commercial/industrial systems ranging from 30KW up to 1MW+.
A: Yes, we provide On-Grid, Off-Grid, and Hybrid solar power systems to meet various energy requirements.
A: Our products are certified by CE, IEC, CEC, ISO, INMETRO, and SGS to ensure international quality standards.
A: Most system products come with a 10-year guarantee, while our high-performance solar panels feature a 25-30 year warranty.

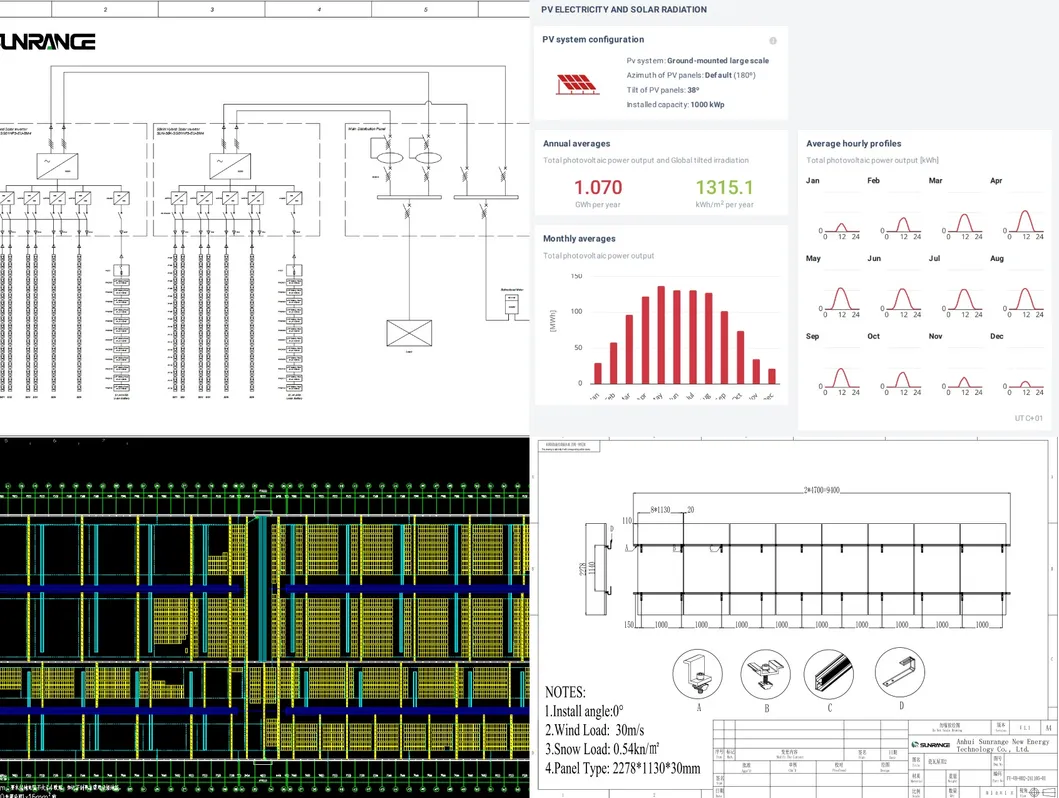

A: Absolutely. We provide professional design solutions tailored to different site requirements, including indoor/outdoor options and varied mounting systems.
A: Yes, our systems support online monitoring with one-click registration, traceable logs, and full lifecycle data security.
