Overview
⚡

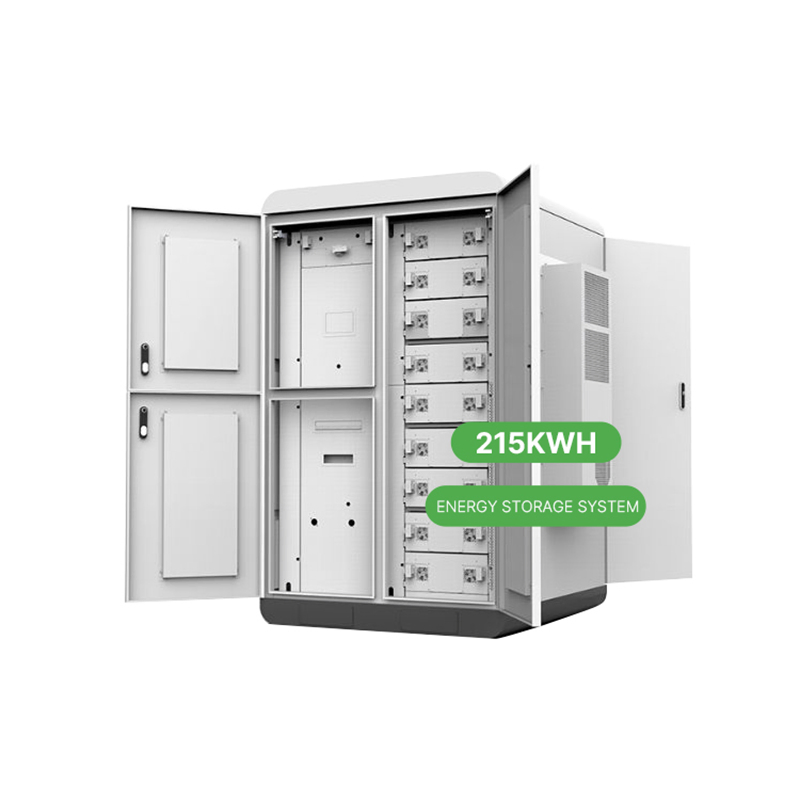

The 215 commercial & industrial energy storage system adopts the all in one design concept. The cabinet is integrated with a battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system.
The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start (the ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).
Model NO.
SWS-215kWh
Nominal Voltage
768V
Nominal Capacity
215 Kwh
Cycle Life
> 8000 cycles
Protection Degree
IP 55
Communication Port
RS485
Grid Connection
Hybrid Grid
Cooling
Air Cooling
DoD
95%
OEM/ODM
Acceptable
Rated Grid Frequency
50/60 Hz
Specification
Lithium Ion
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 300.00cm
Package Gross Weight
2000.000kg
Product Display

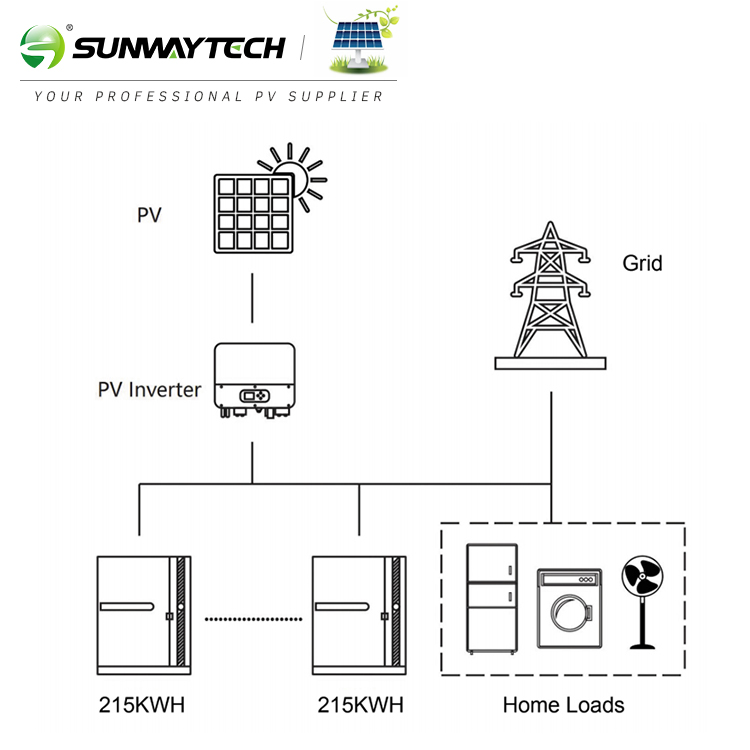

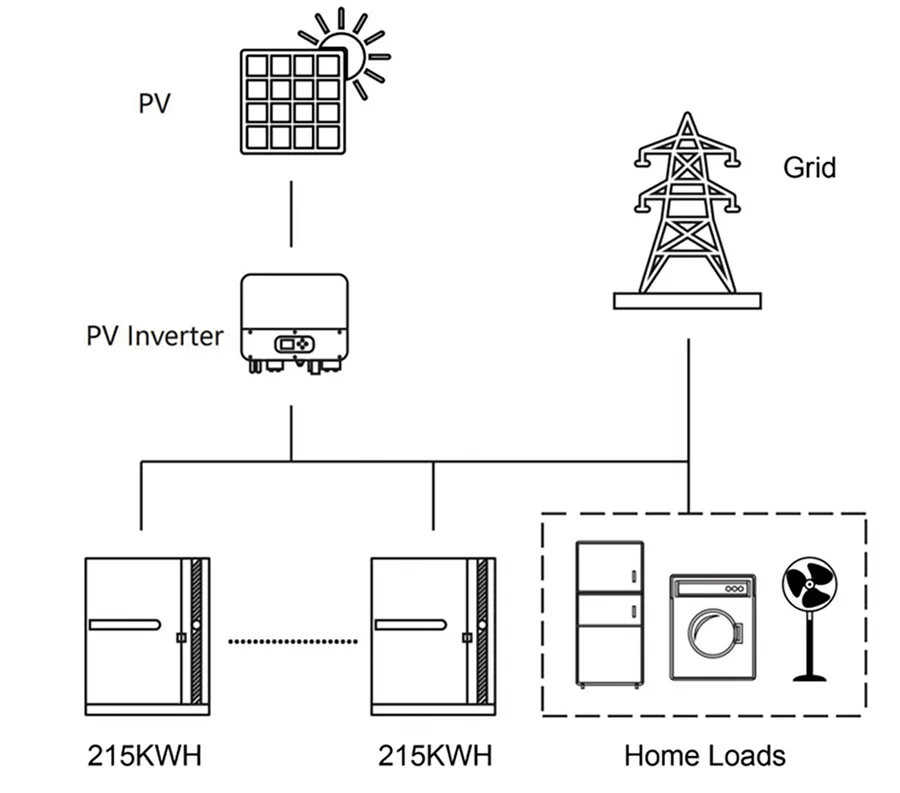

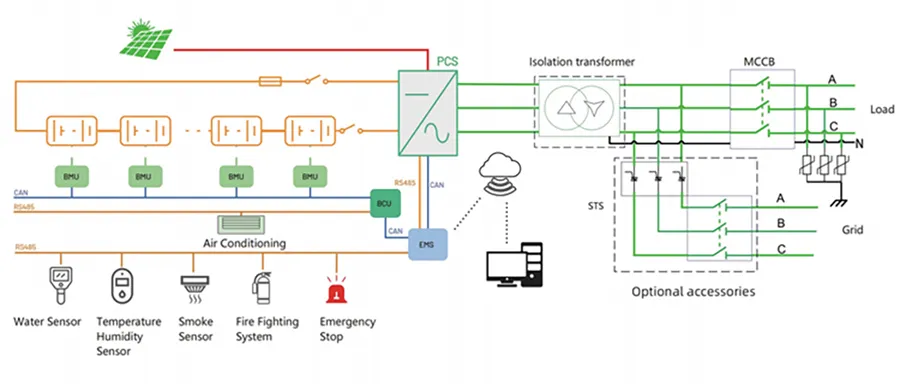

A commercial energy storage system works by storing excess energy generated by the solar panels during the day in a battery storage system. This stored energy can then be used during times when the sun is not shining, such as at night or during cloudy weather. The power conditioning system (PCS) is responsible for converting the direct current (DC) electricity generated by the solar panels into alternating current (AC) electricity that can be used by household appliances. The isolation transformer is used to isolate the AC output of the PCS from the grid, ensuring that the system is safe and compliant with regulations. The MCB is used to connect the system to the grid and the load. The optional accessories are used to monitor the system and ensure that it is operating safely and efficiently.
Frequently Asked Questions
❓ What is the capacity and power of this commercial energy storage system?
The system features a rated capacity of up to 215 kWh and a rated power output of up to 100 kW, making it ideal for various commercial and industrial applications.
❓ What components are integrated into the all-in-one cabinet design?
The all-in-one cabinet integrates a Battery Management System (BMS), an Energy Management System (EMS), a modular Power Conversion System (PCS), and a dedicated fire protection system.
❓ What is the expected cycle life and Depth of Discharge (DoD) of the battery?
The system uses high-quality lithium-ion technology offering a cycle life of over 8,000 cycles (at EOL 80%) and supports a Depth of Discharge (DoD) of up to 95%.
❓ How is the system cooled and protected from environmental factors?
The system utilizes an industrial air conditioning cooling strategy and features an IP55 enclosure protection rating, allowing it to operate safely in temperatures ranging from -20°C to +55°C.
❓ What fire safety measures are built into the system?
The cabinet is equipped with an integrated Perfluorohexanone fire fighting system to ensure rapid and effective fire suppression for maximum safety.
❓ What communication protocols and interfaces does the system support?
It supports RS485 and Ethernet communication interfaces, utilizing standard protocols such as Modbus RTU, Modbus TCP, and IEC 104 for seamless integration.
