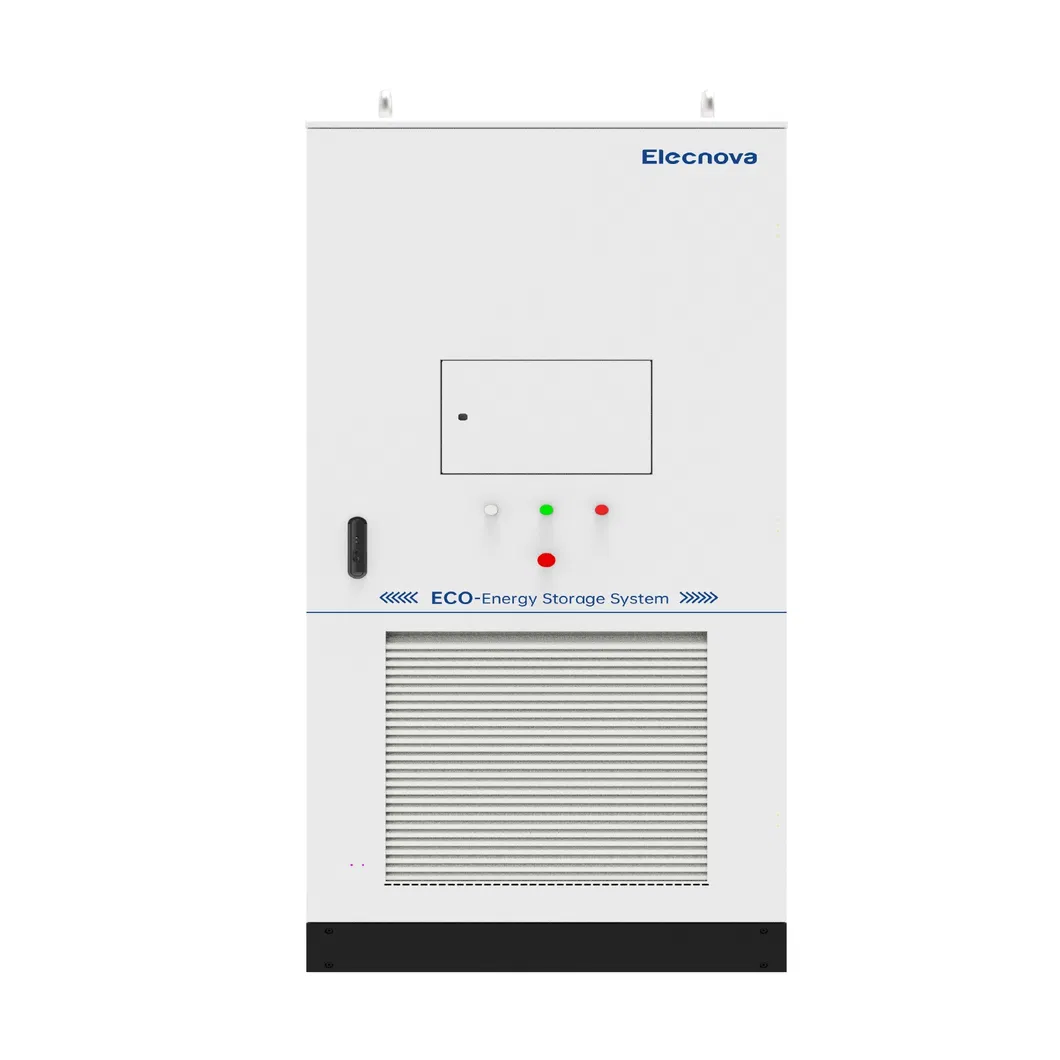

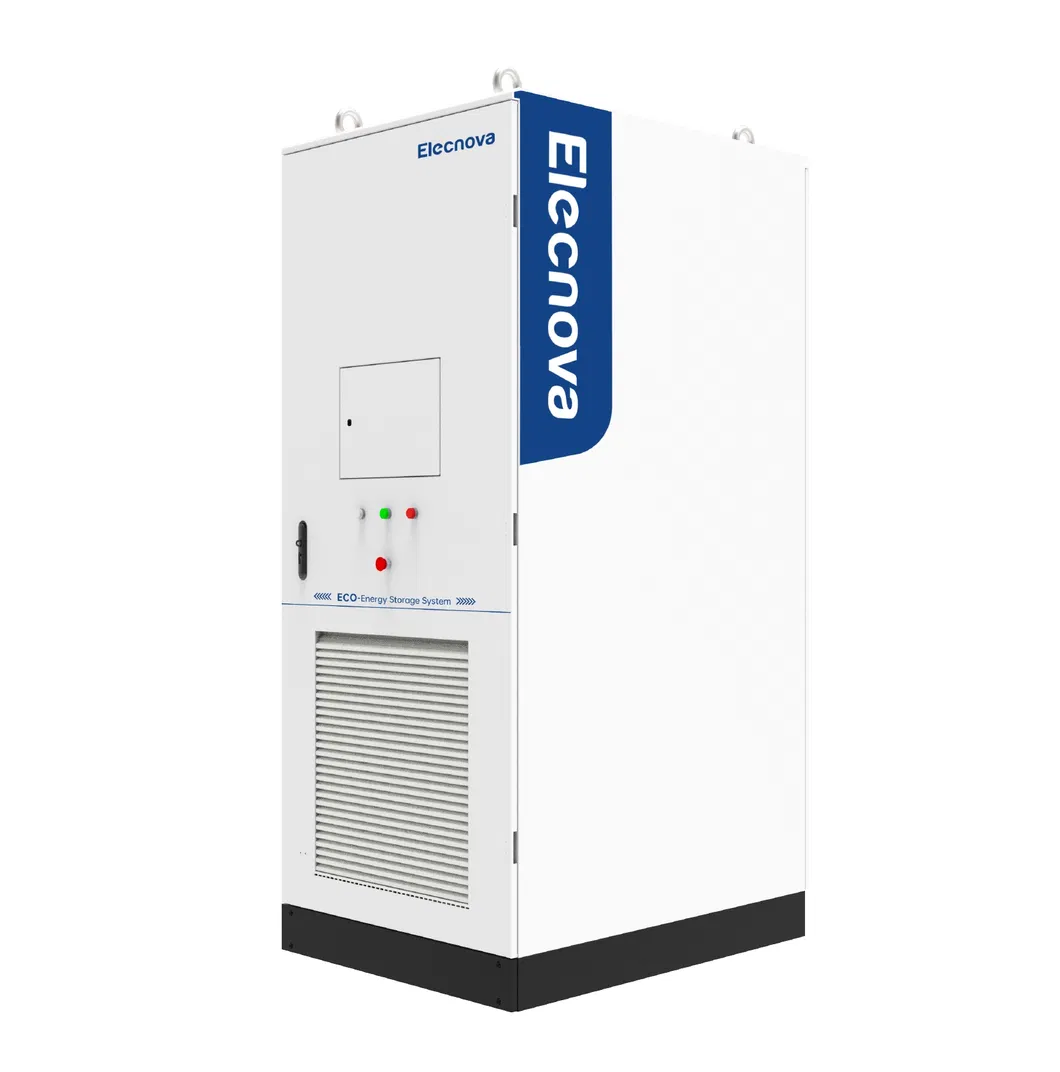

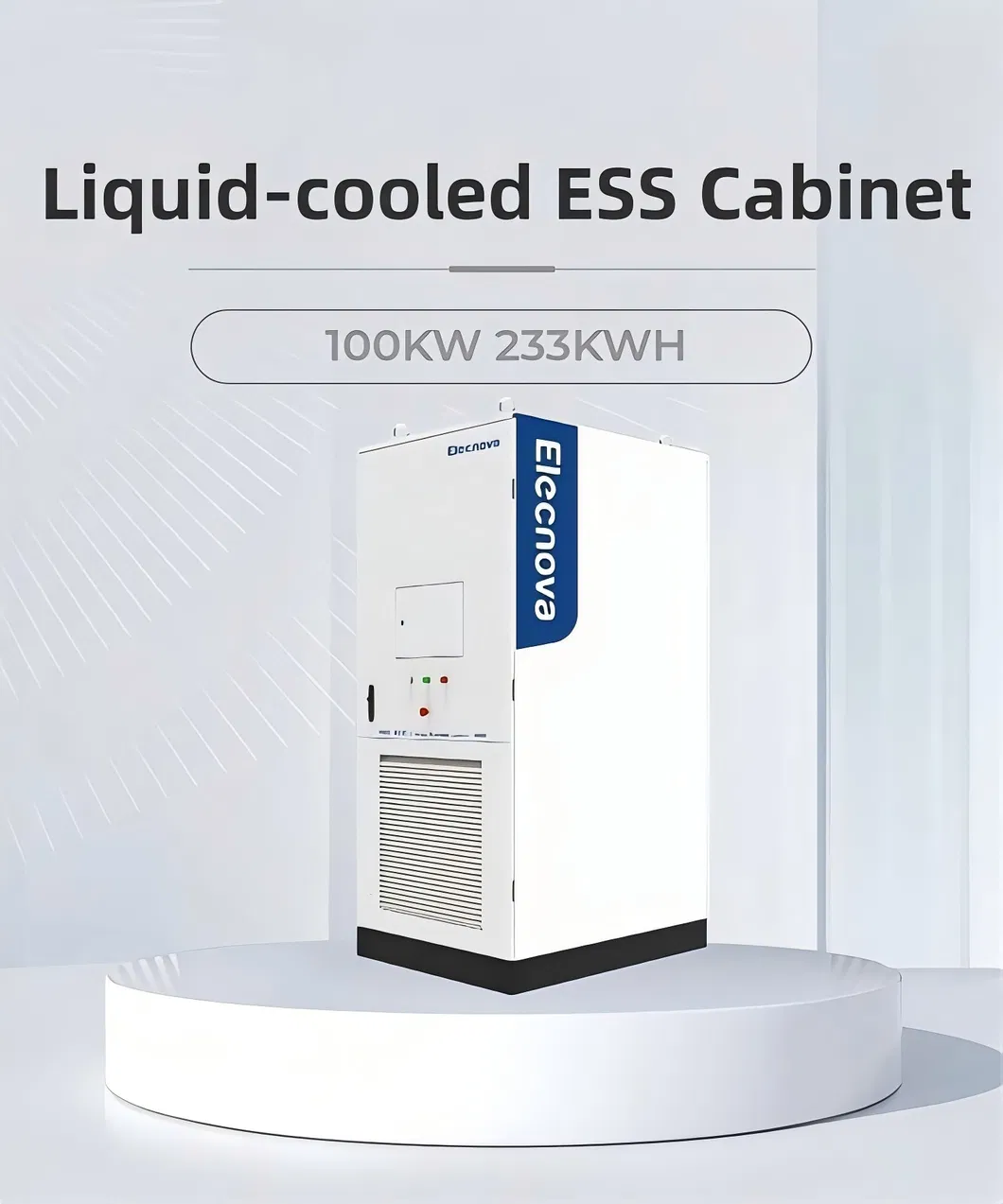

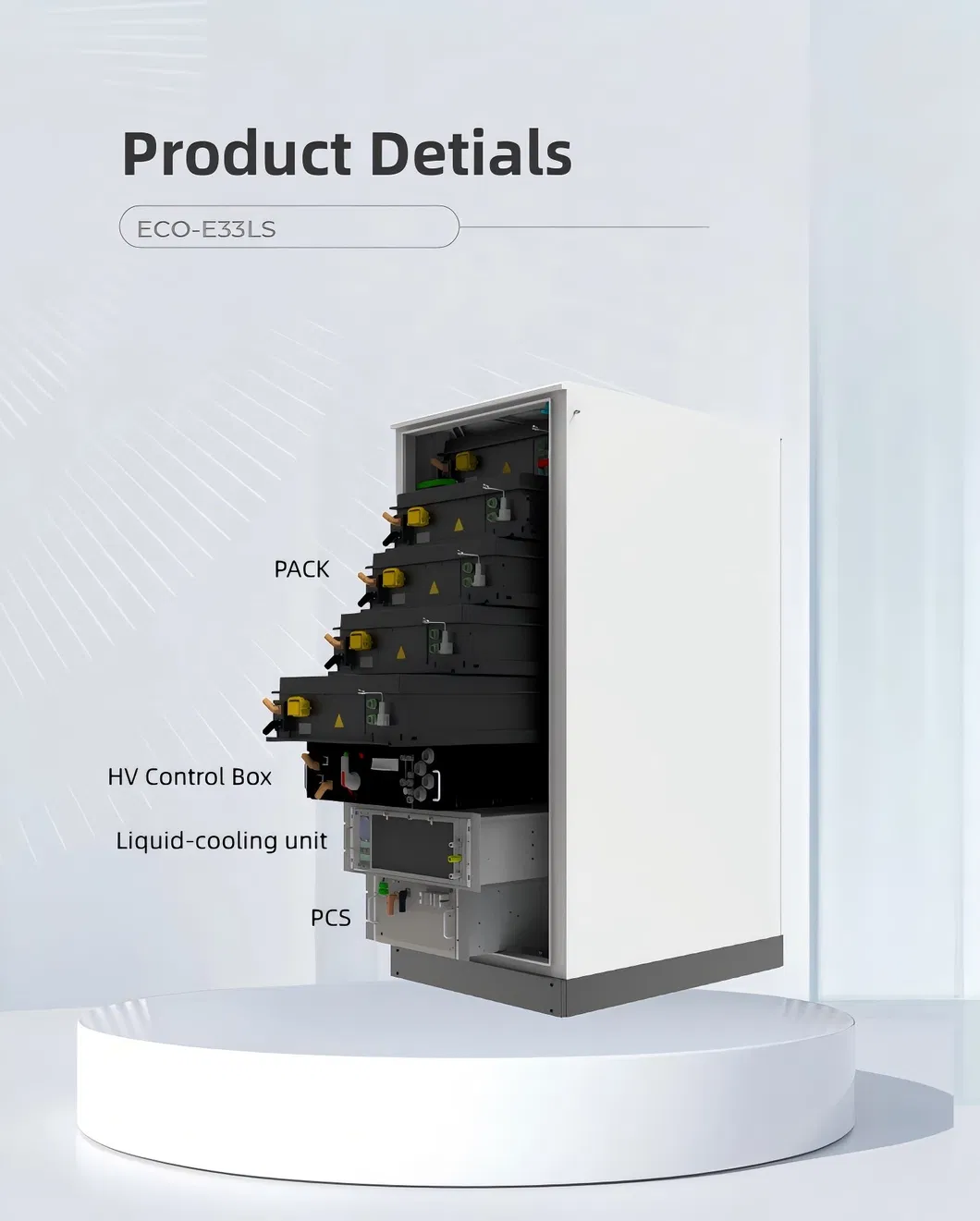

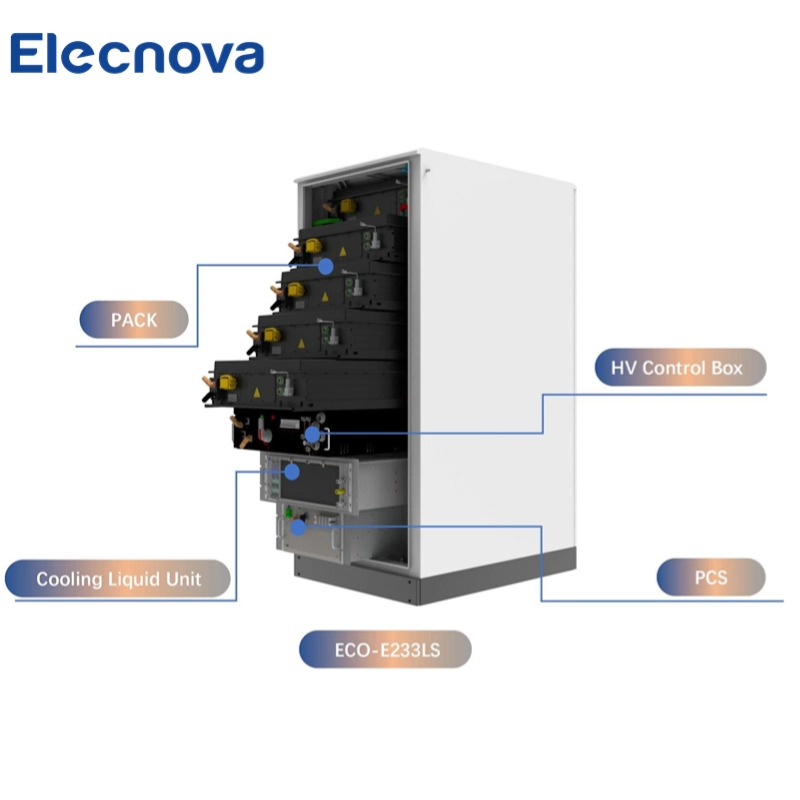

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Conversion efficiency: 99%
Protection: IP65, ms-level on-/off-grid switching
Application: Suitable for various scenarios such as C&I ESS, microgrid energy storage, PV-plus ESS.

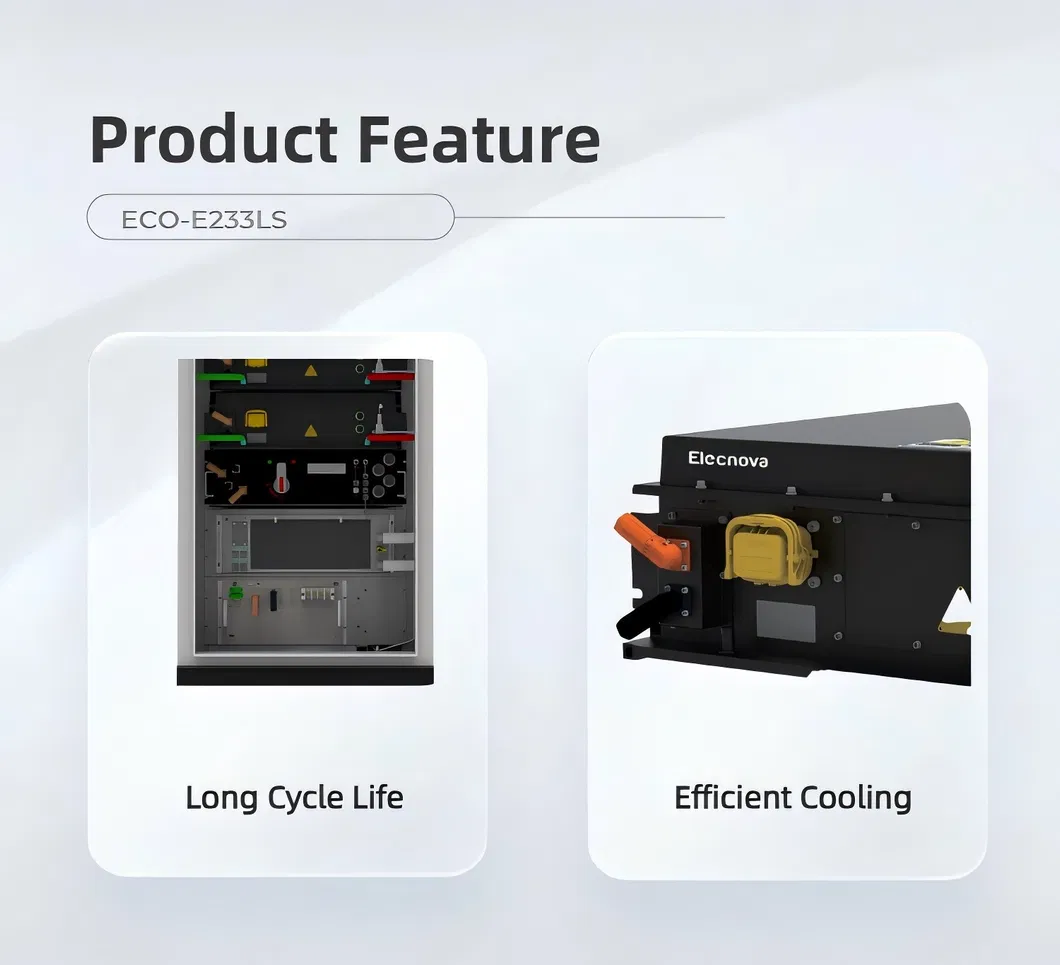

Thermal Management: Active thermal management system
Cycle Life: Over 8,000 times cycle life
Lifespan: 10 years designated lifespan
SOC Estimation Accuracy Error: < 5%
Sampling Interval: 100ms sampling interval to ensure timeliness of data
Interfaces: Multiple types of DI/DO interfaces

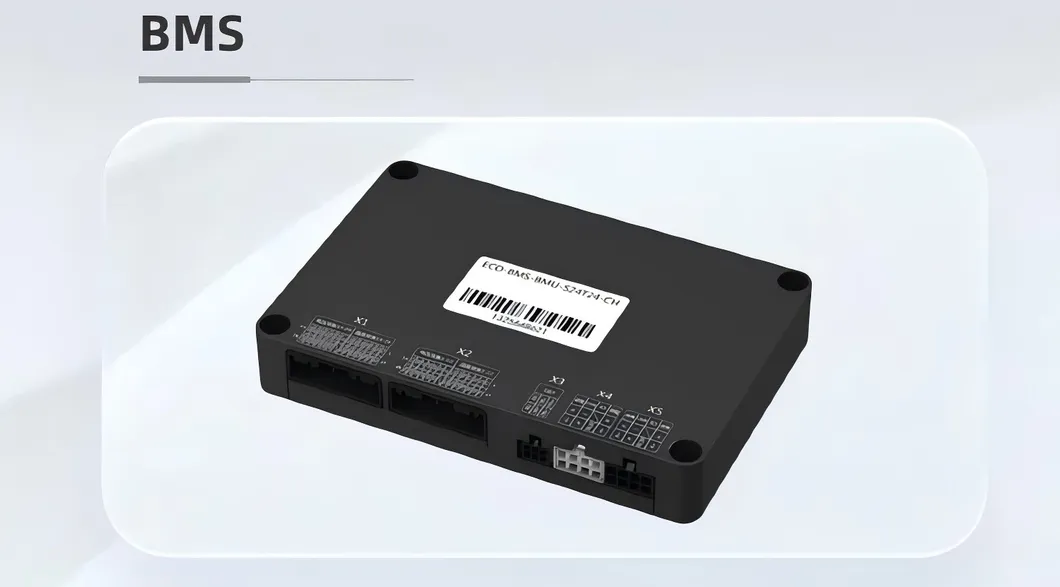

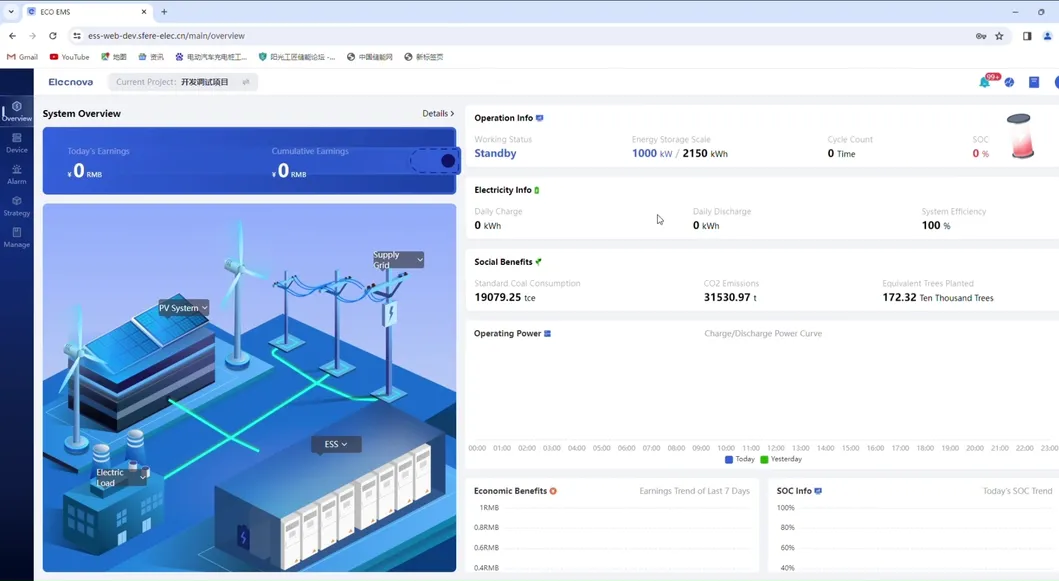

Monitoring: Monitoring of PCS, BMS, air conditioning and so on
Arbitrage: Adapt charge and discharge strategies to achieve energy arbitrage
Cost Reduction: Reducing customer electricity costs
| DC Side | |
|---|---|

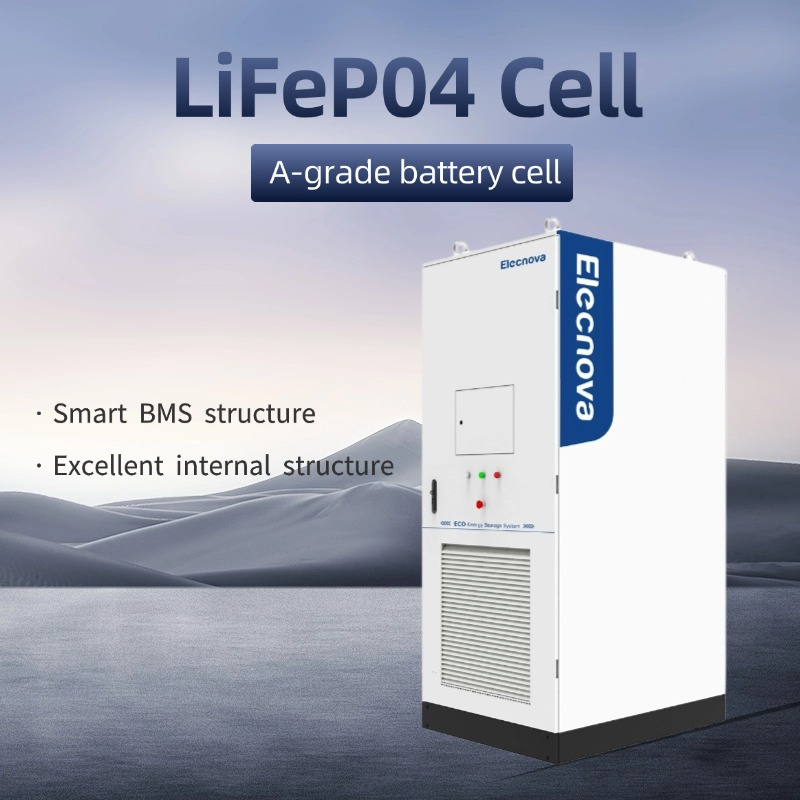

| Cell Type | LFP280Ah |

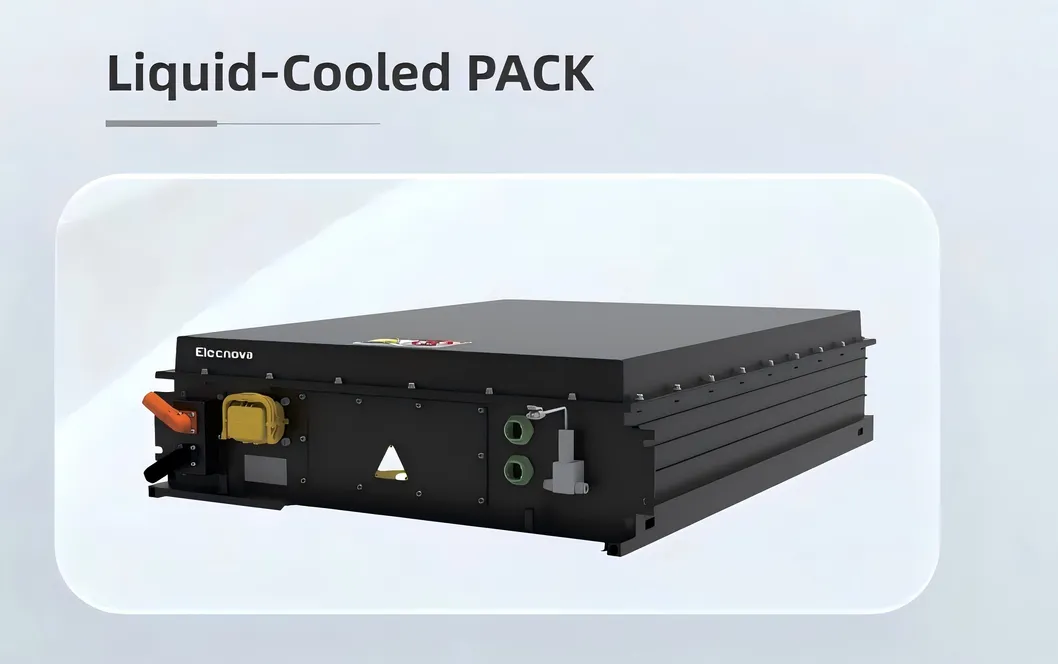

| PACK | 46.592kWh/1P52S |

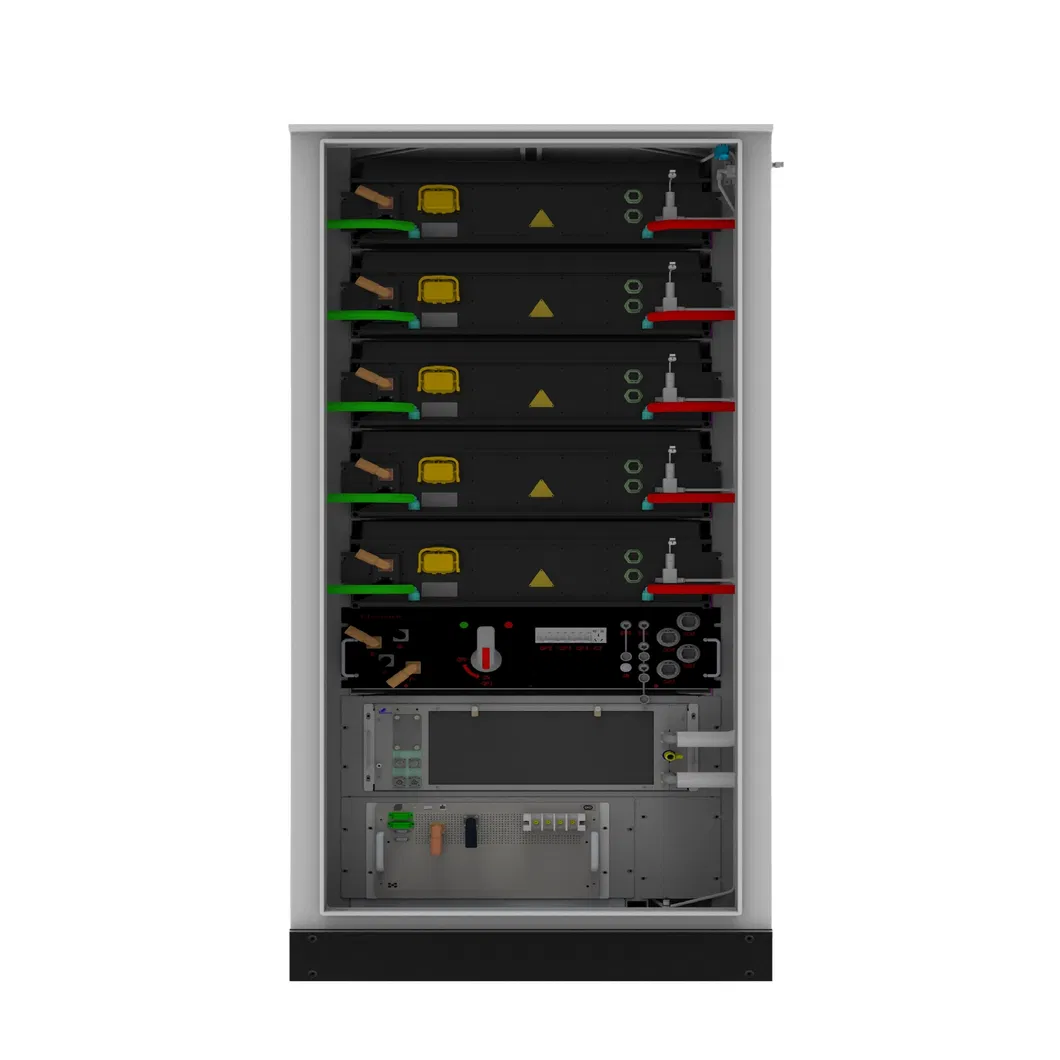

| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | <3% |
| DC Ratio | <0.5%Ip |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General | |

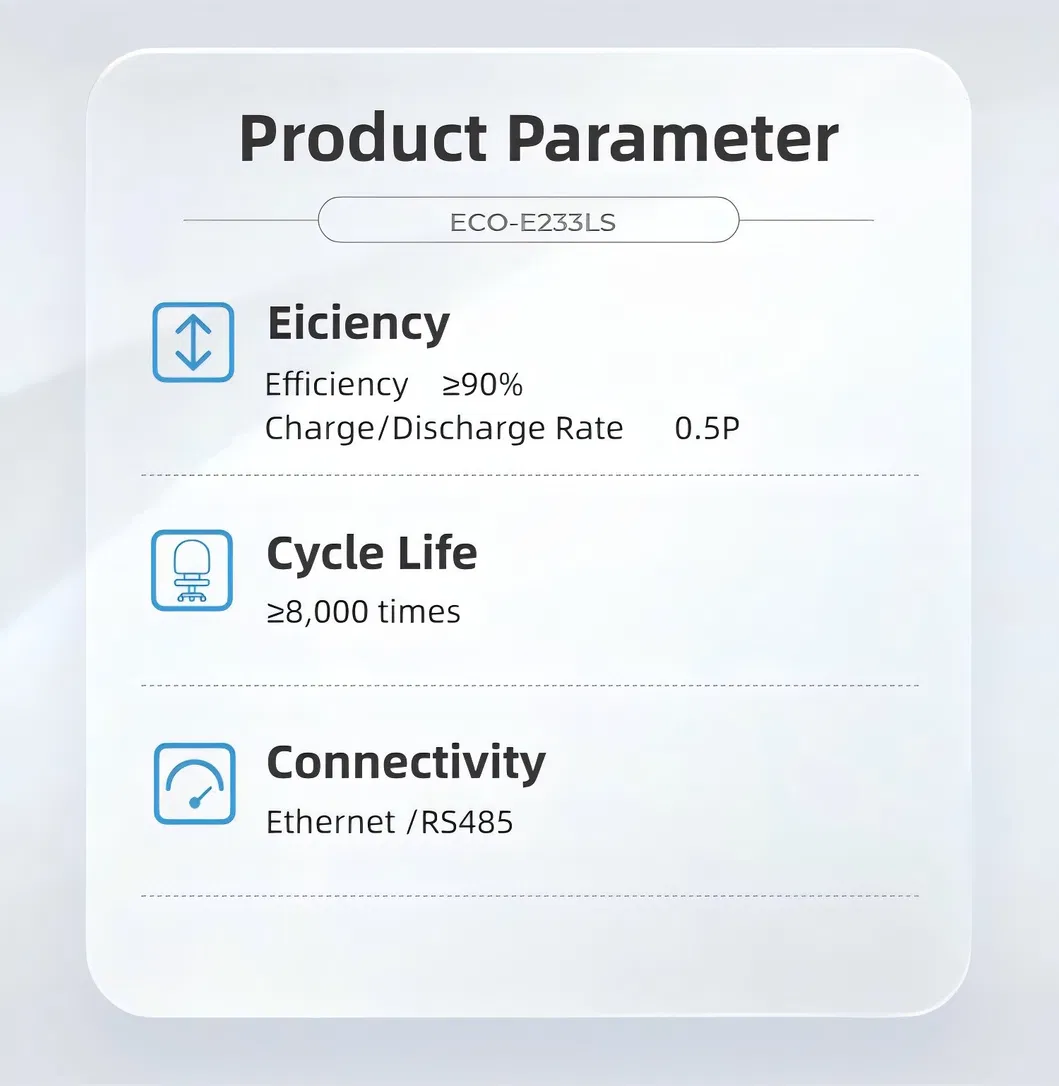

| System Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | <3% |
| Cycle Life | ≥8,000 times |
| Switching Time | <100ms |
| Connectivity | Ethernet /RS485 |
| Ingress Rating | IP55 |
| Cooling | Active liquid cooling |
| Operating Temperature | -25ºC~55ºC |
| Humidity | 0-95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | Aerosol |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

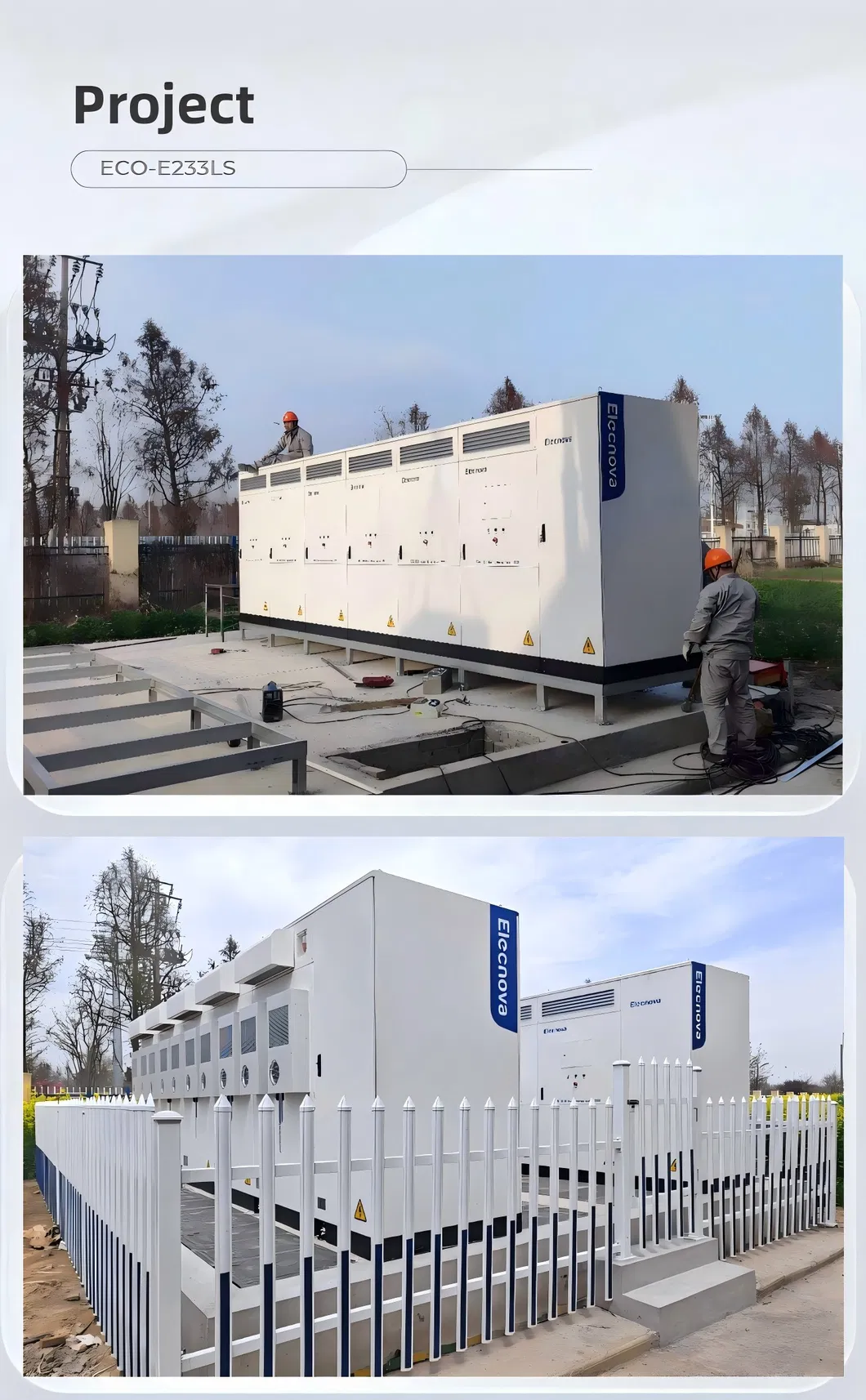

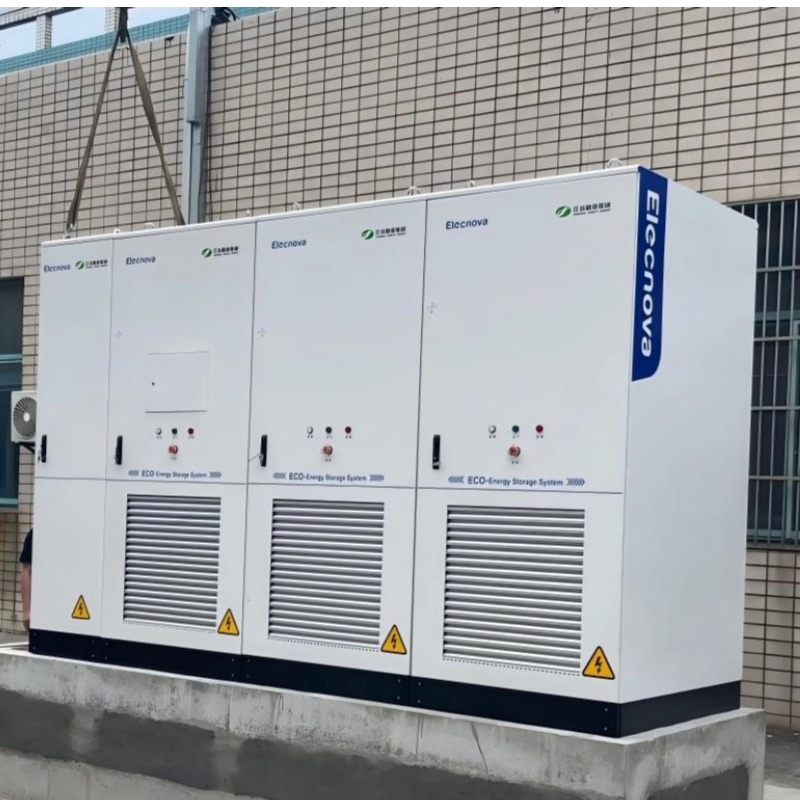

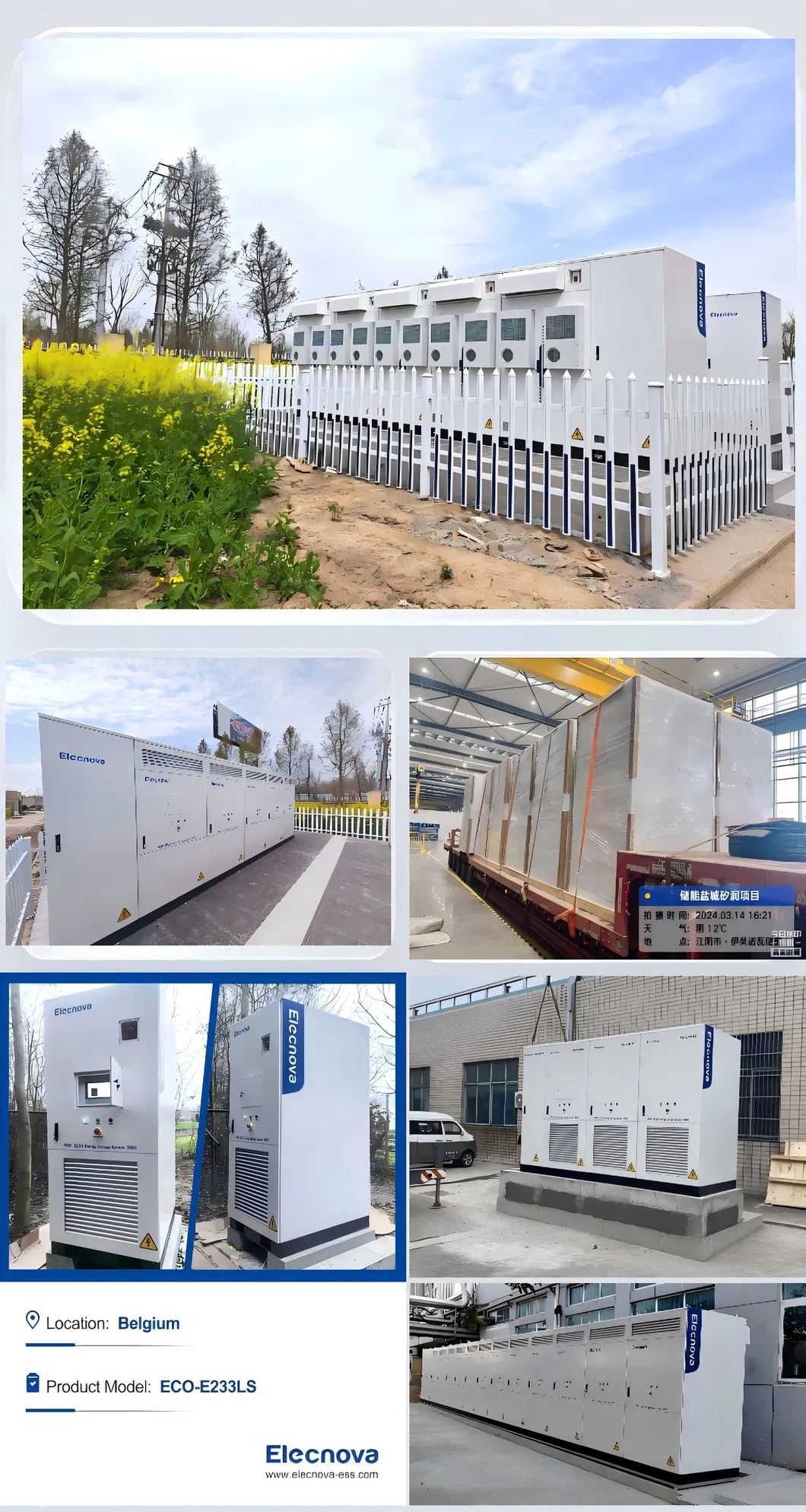

Energy storage 2.4MWh energy storage project successfully connected to the grid! The project adopts advanced energy storage technology and equipment, which has the characteristics of high efficiency, stability and safety.
We are a technology-based enterprise who focus on overall solutions for energy storage systems. Our company have the overall supporting capability for the system integration of PACK, PCS, BMS. We aim to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products and services in various energy consumption scenarios on the power generation side, grid side, and user side.
