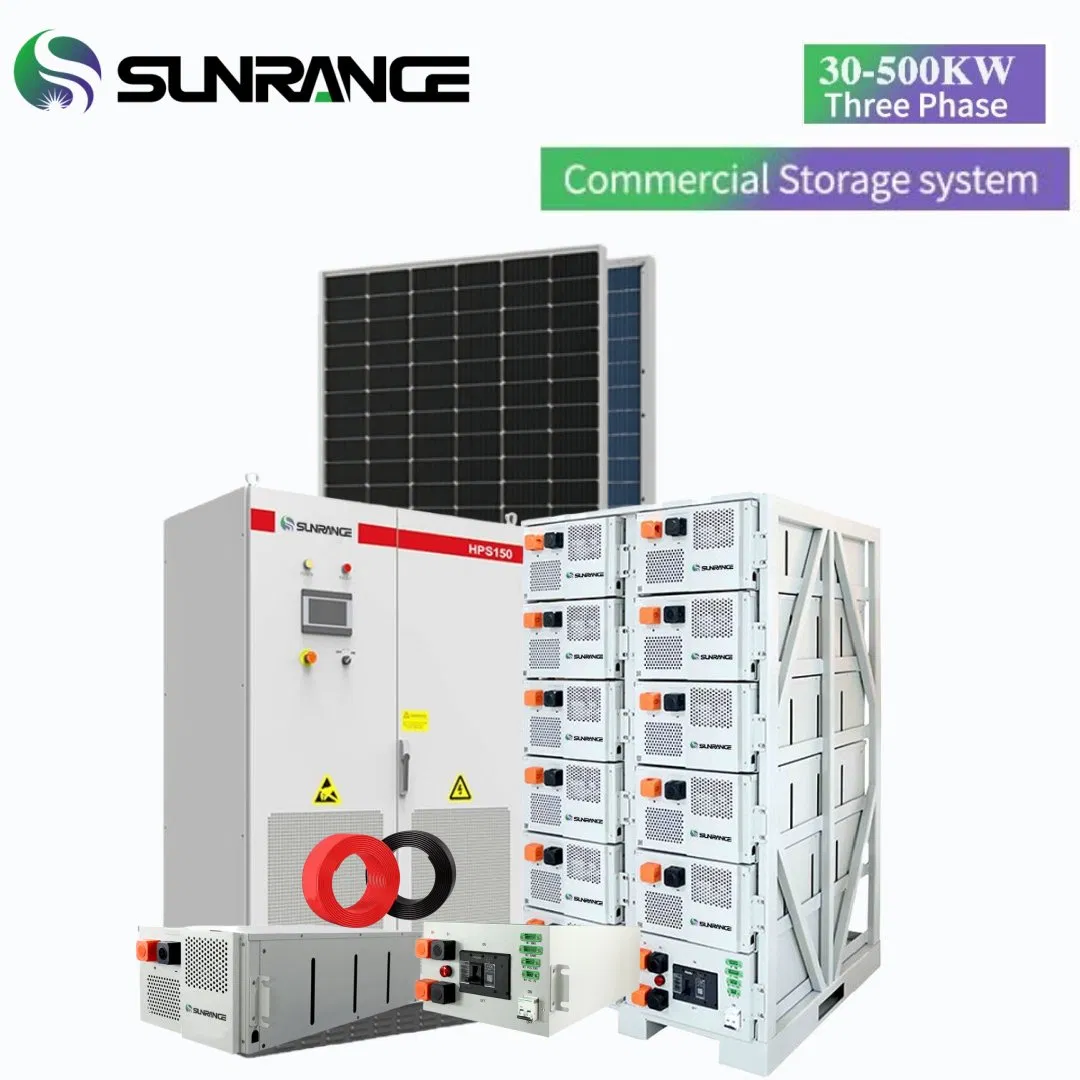

COMMERCIAL ENERGY STORAGE SYSTEM
| Model No. | SR-30KW-HY | SR-50KW-HY | SR-100KW-HY | SR-150KW-HY | SR-250KW-HY | SR-500KW-HY |
|---|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| Grid Voltage | 380/400VAC | |||||
| Solar Panel Power | 34.8KW | 52.2KW | 104.4KW | 156.6KW | 261KW | 522KW |
| Battery Capacity | 40.96KWH | 100.352KWH | 202.752KWH | 304.128KWH | 473.088KWH | 946.176KWH |

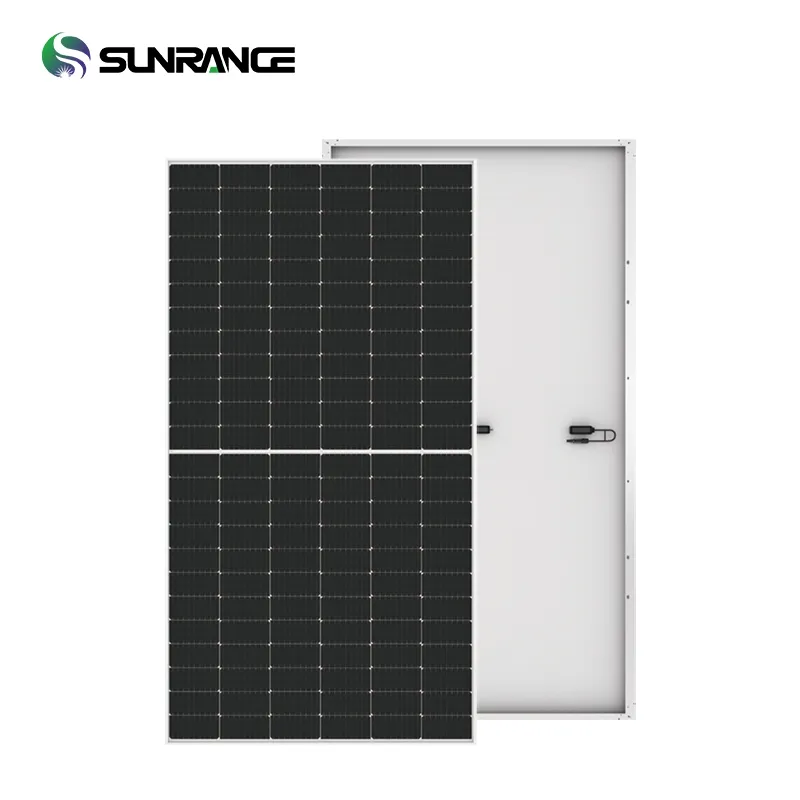

N-Type Topcon Solar Panel
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Module Efficiency: 22.44%

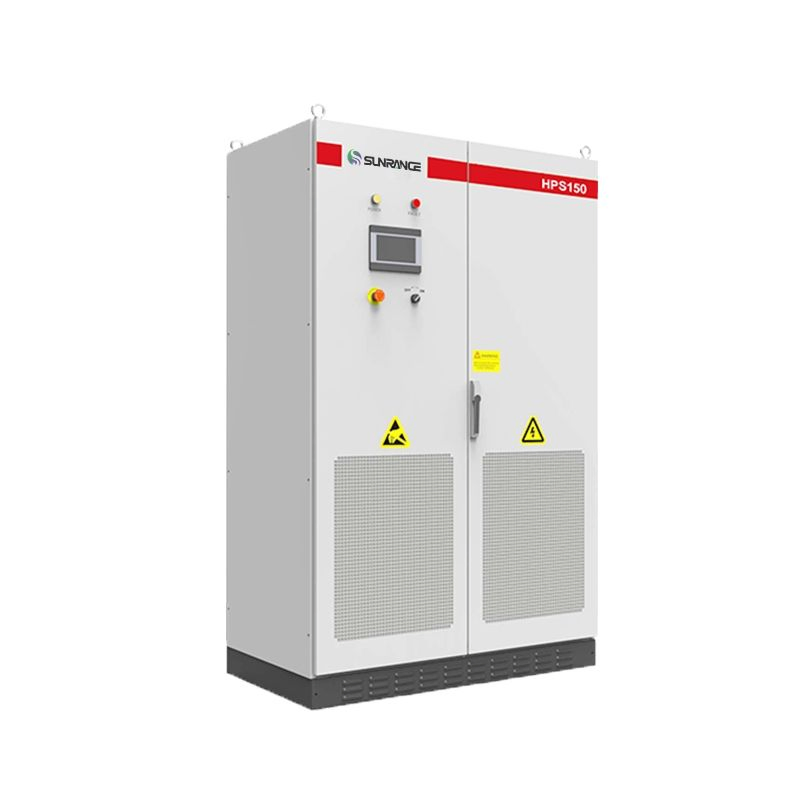

All-in-one Hybrid Inverter
Supports PV, battery, DG, grid, and load connections.
Seamless switch within 6ms.
Dynamic power distribution.

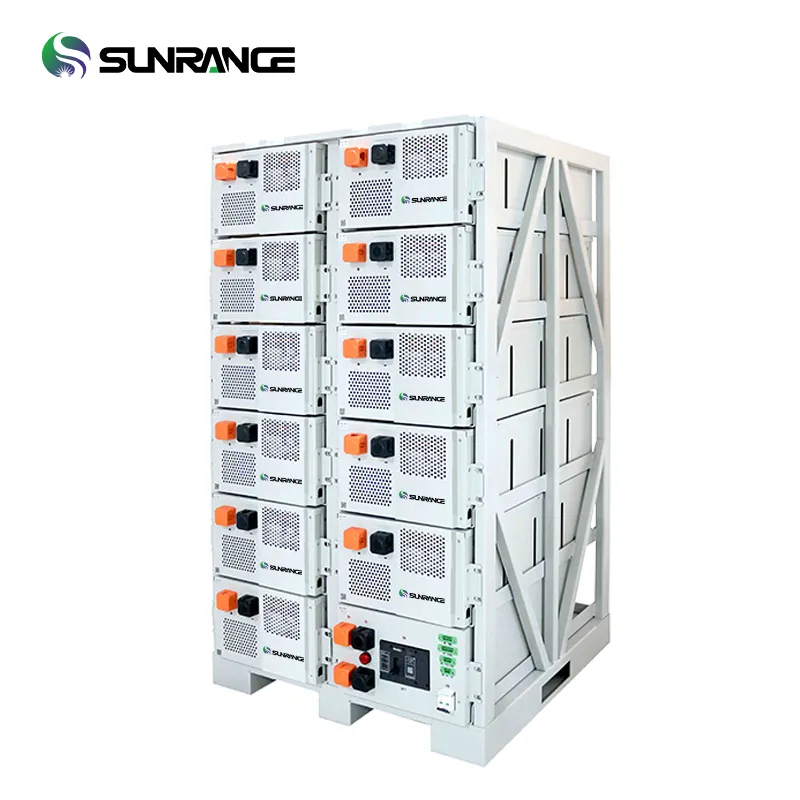

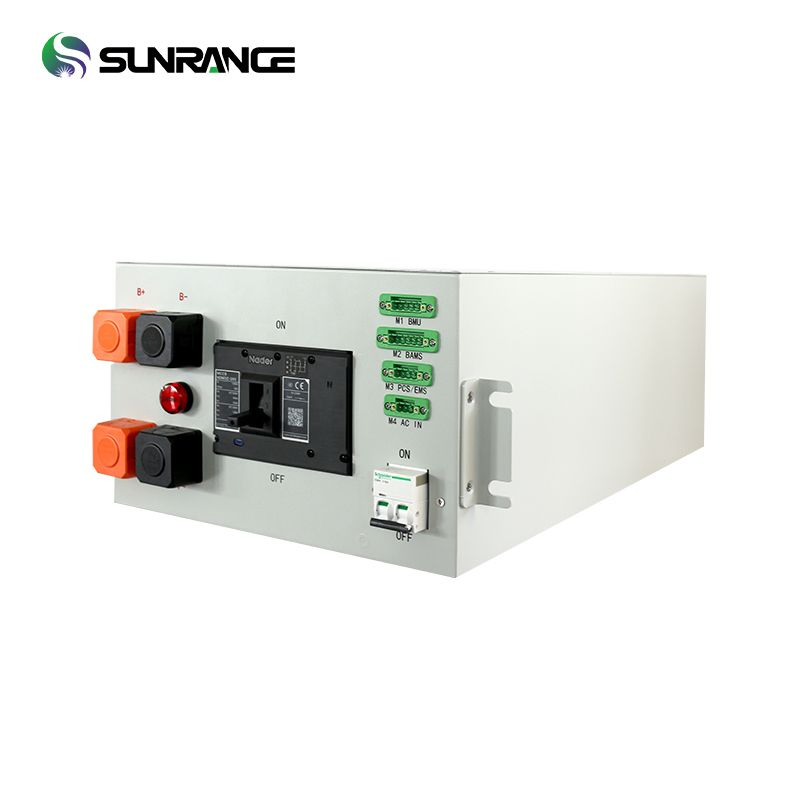

Solar Battery Packs
Deep Cycle LiFePO4 Lithium Ion
6000+ Cycle Life
90% Depth of Discharge (DOD)
Online Monitoring System
Safe operation with traceable logs.
Full lifecycle data storage.
One-click installation and registration.
We provide high-quality photovoltaic products and professional services globally. Our team delivers customized design solutions for large, medium, and small-scale customers. We continuously improve our technology to ensure the best user experience and energy efficiency.
