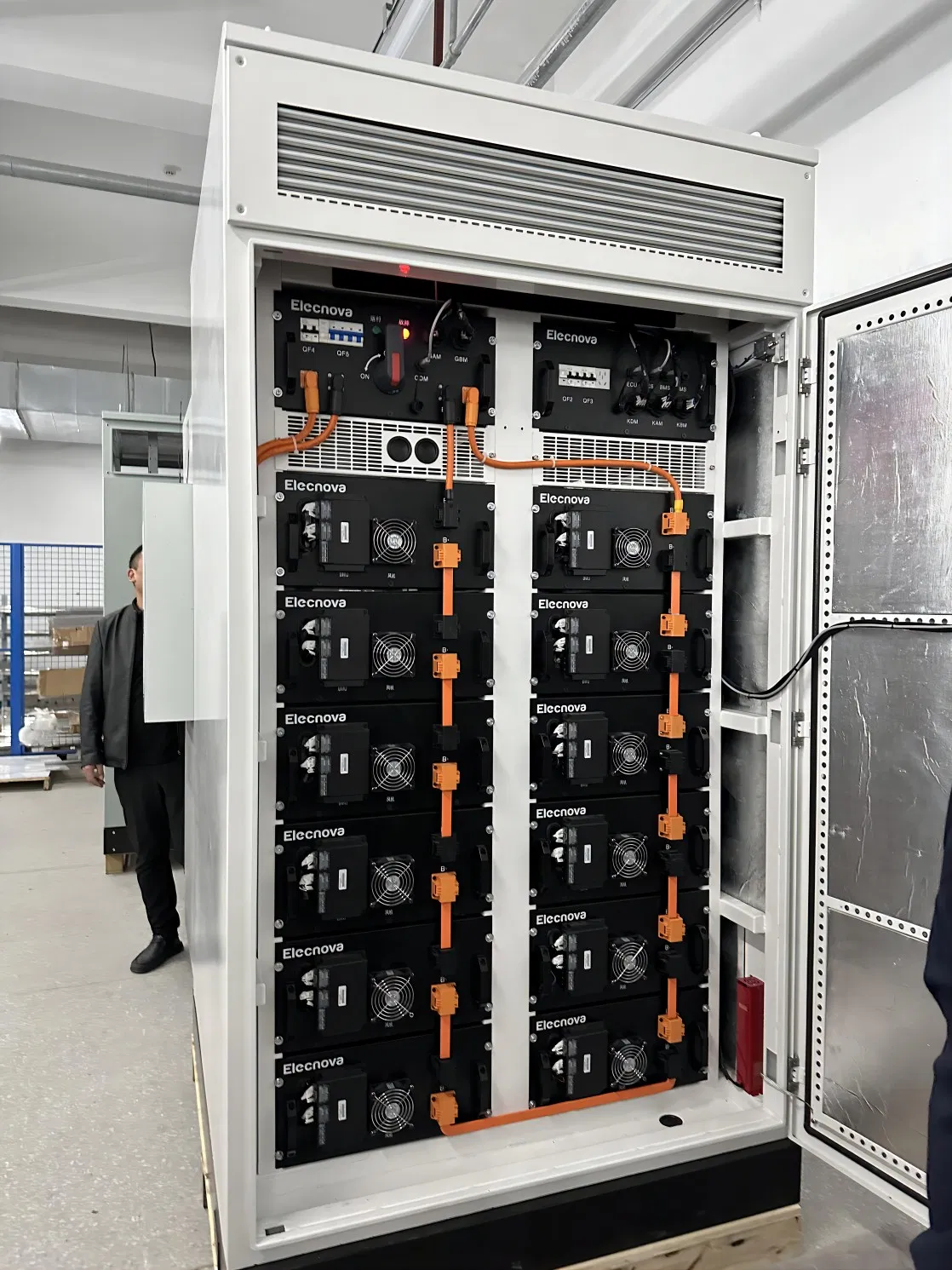

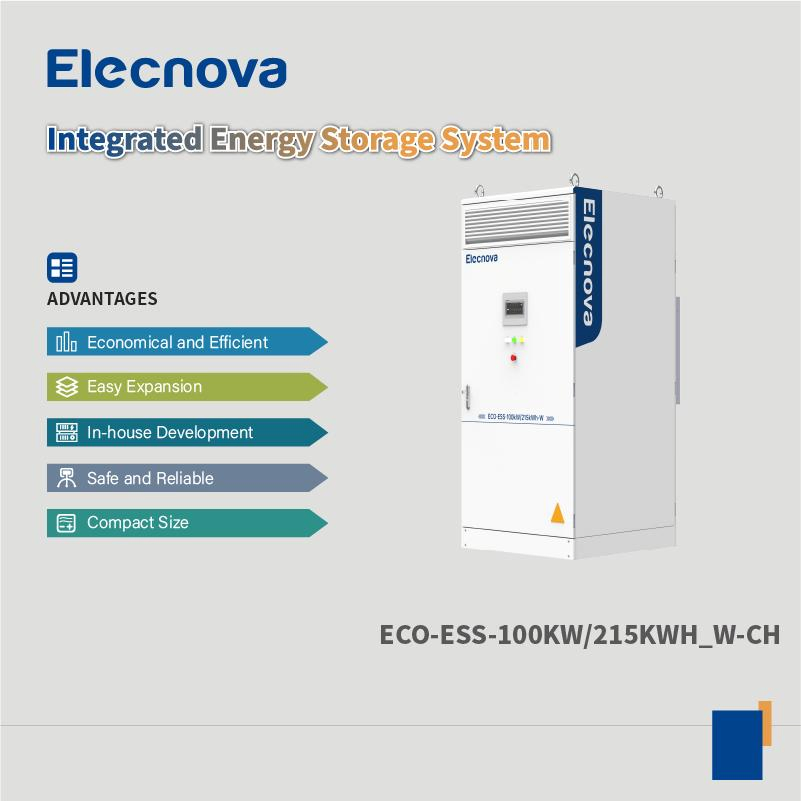

| DC Battery Parameters | |
|---|---|

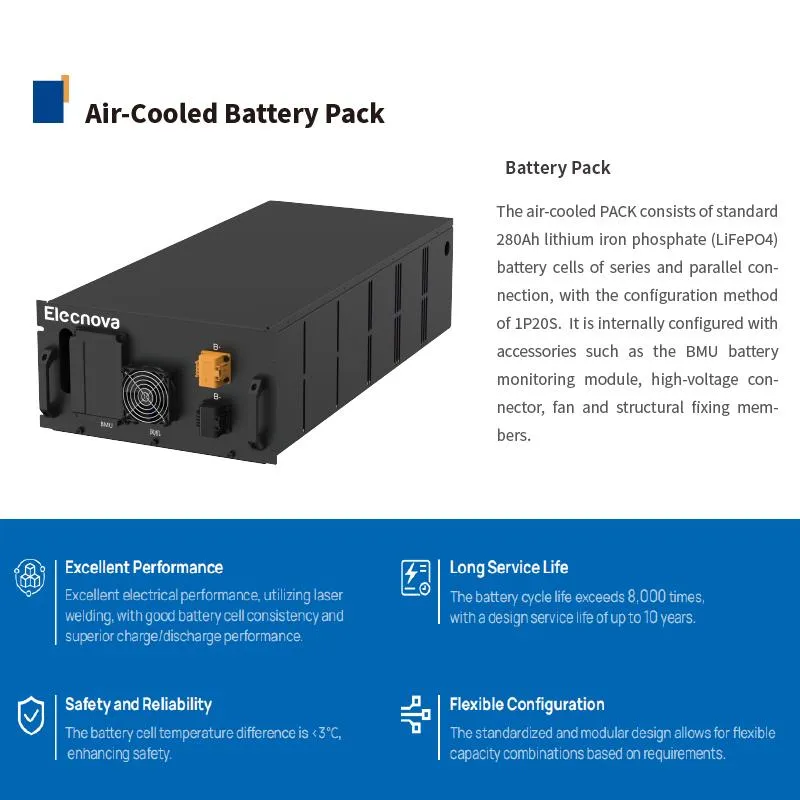

| Battery Cell Type | LFP 280Ah |
| Battery Pack Configuration | 17.92kWh/1P20S |
| Battery System Configuration | 215kWh/1P240S |
| Battery Voltage Range | 600~876V DC |
| System Rated Voltage | 768V DC |
| AC Side Parameters | |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW (continuous for 1min) |
| AC Current Distortion Rate | <3% |
| DC Component | <0.5%Ipn |
| Grid Rated Voltage | 400V AC |
| System Parameters | |
| Energy Conversion Efficiency | ≥90% |
| Number of Cycles | ≥8,000 times |
| Protection Level | IP55 |
| Operating Temperature | -25~55ºC |
| Fire Suppression System | Aerosol + Active Warning |

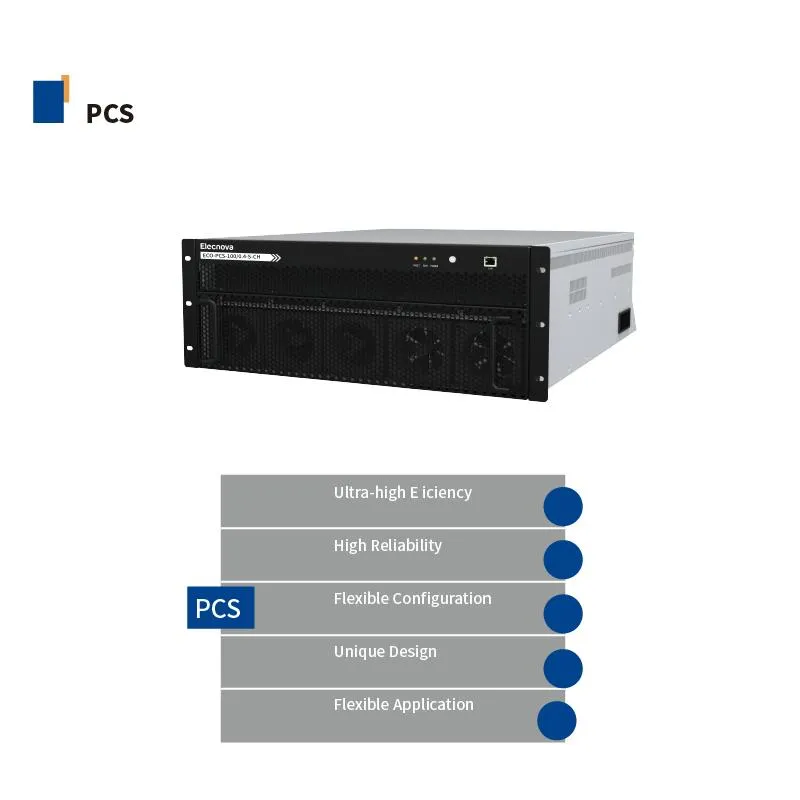

The ECO-PCS series product is a modular converter designed specifically for small-sized energy storage systems. It has a maximum rated power of 200kW and serves as a bidirectional energy converter within the entire energy storage system. It can meet the demands of various application scenarios, such as the industrial and commercial energy storage, substation area energy storage, photovoltaic energy storage micro-grid, etc.
