⚙️ Industrial & Commercial ESS
System Configuration
| Equipment |
Model |
30KW/46kWh |
50KW/100kWh |
100KW/201kWh |
| N type Solar Panel |
WV-72KUN605-H8NS |
51pcs |
96pcs |
170pcs |
| Hybrid Inverter |
220/380/480VAC |
30KW |
50KW |
100KW |
| Lithium Ion Battery |
WV51280H |
46kWh |
100kWh |
201kWh |
| Connector |
MC4 |
20 pairs |
30 pairs |
40 pairs |
| PV cable |
PV1-F 1*4/6mm2 |
300m |
600m |
1000m |
| ATS (Optional) |
ATS**KW |
ATS30KW |
ATS50KW |
ATS100KW |
| Remote Control |
WIFI/Enterlog/BR300 |
1 |
1 |
1 |
| Mounting Structure |
Roof/Ground |
1 |
1 |
1 |
| Equipment |
Model |
150KW/286kWh |
250KW/559kWh |
500KW/1075kWh |
| N type Solar Panel |
WV-72KUN605-H8NS |
255pcs |
420pcs |
840pcs |
| Hybrid Inverter |
220/380/480VAC |
150KW |
250KW |
500KW |
| Lithium Ion Battery |
WV51280H |
286kWh |
559kWh |
1075kWh |
| Connector |
MC4 |
50 pairs |
80 pairs |
160 pairs |
| PV cable |
PV1-F 1*4/6mm2 |
1500m |
2500m |
5000m |
| ATS (Optional) |
ATS**KW |
ATS150KW |
ATS250KW |
ATS500KW |
| Remote Control |
WIFI/Enterlog/BR300 |
1 |
1 |
1 |
| Mounting Structure |
Roof/Ground |
1 |
1 |
1 |
Core Components Description
☀️

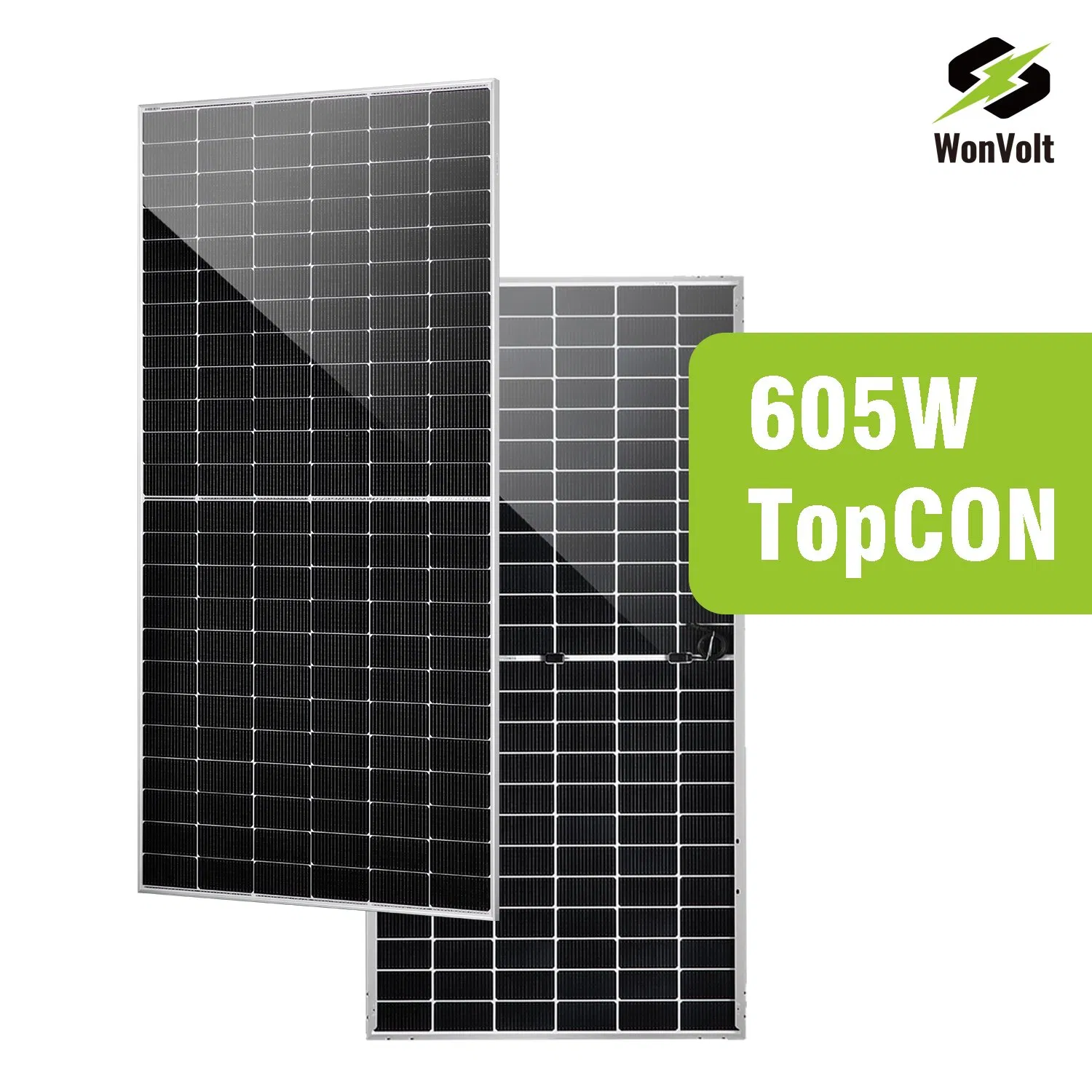

Solar Panel: N type Monofacial or Bifacial dual glasses solar PV panel 420W-750W optional, black frame or silver frame.
🔌

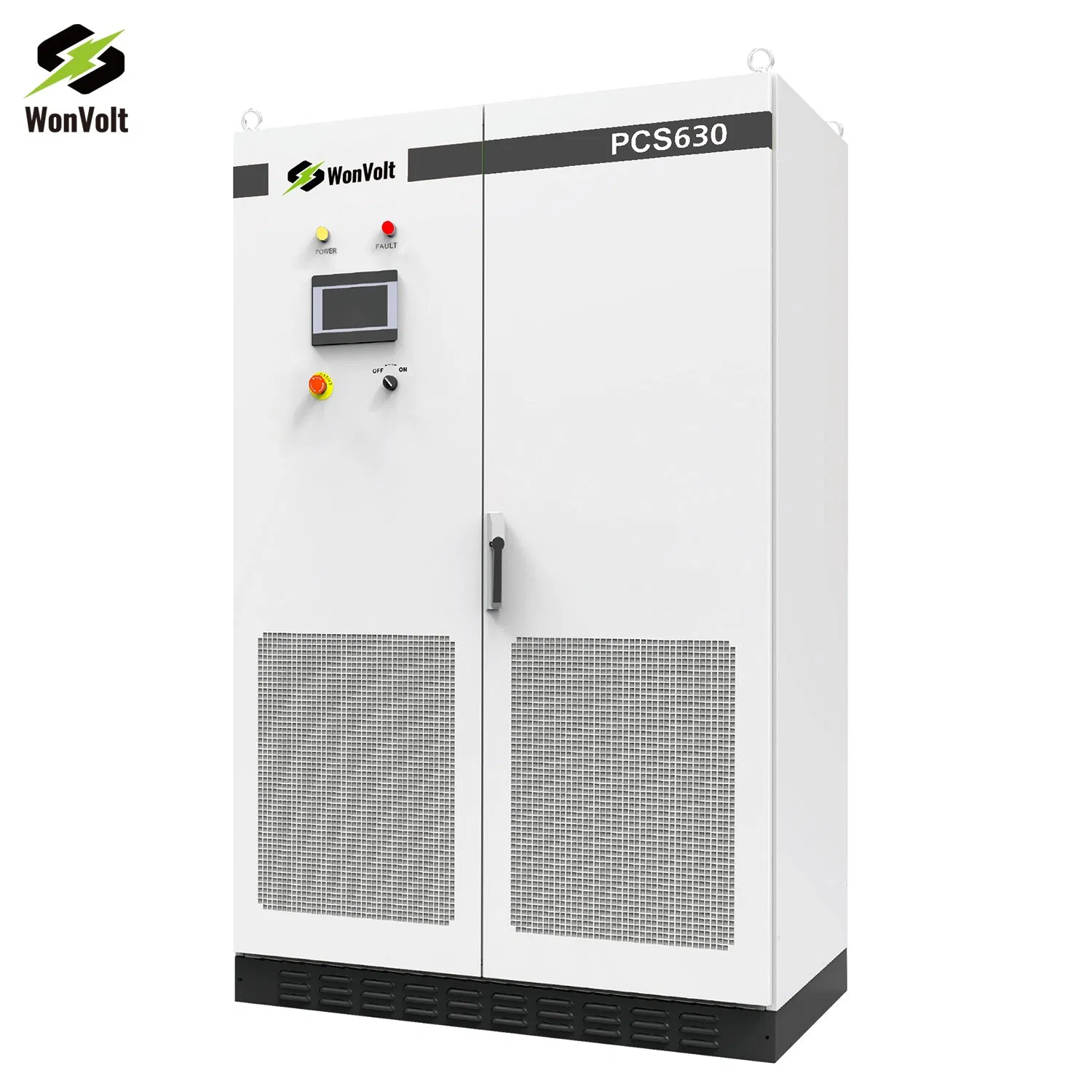

Solar Inverter: On-grid systems can include PCS battery inverters and lithium batteries. Supports stand-alone off-grid and hybrid systems (1KW-100MWH). Voltage options: single phase 220V-230V, split phase 110V/220VAC, or three phases 208V/220V/380V/480VAC for residential, commercial, and industrial use.
🔋
Battery Storage System: 0.5C or 1C lithium battery solutions, featuring battery clusters with BMS, specialized cables, and optional EMS.
📦

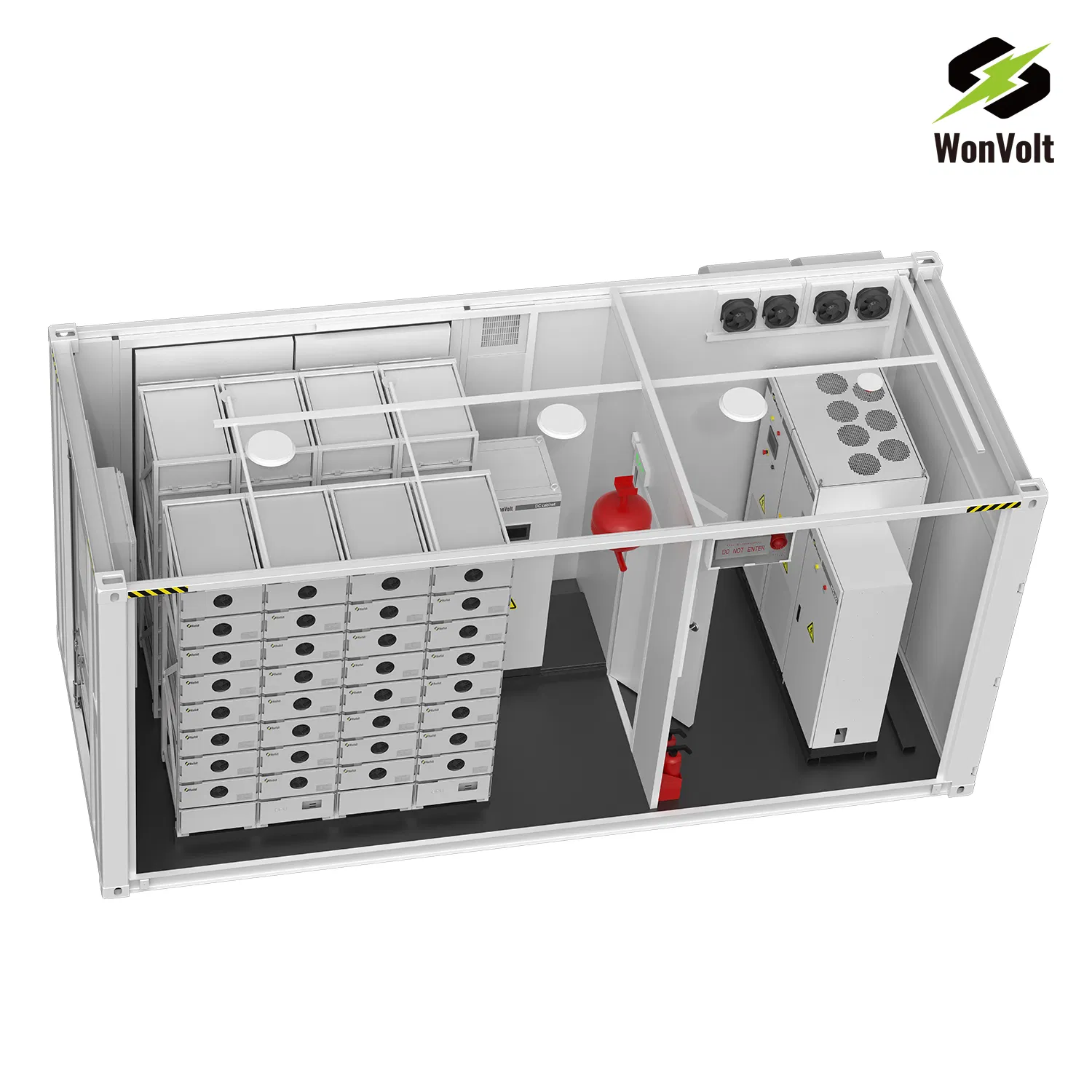

BESS Container & Outdoor Cabinet: IP65 rated, fire protection, and ventilation systems. Available in 10ft, 20ft, or 40ft. Integrated solutions include 100KW/215KWH and 100KW/260KWH outdoor ESS.
🏗️

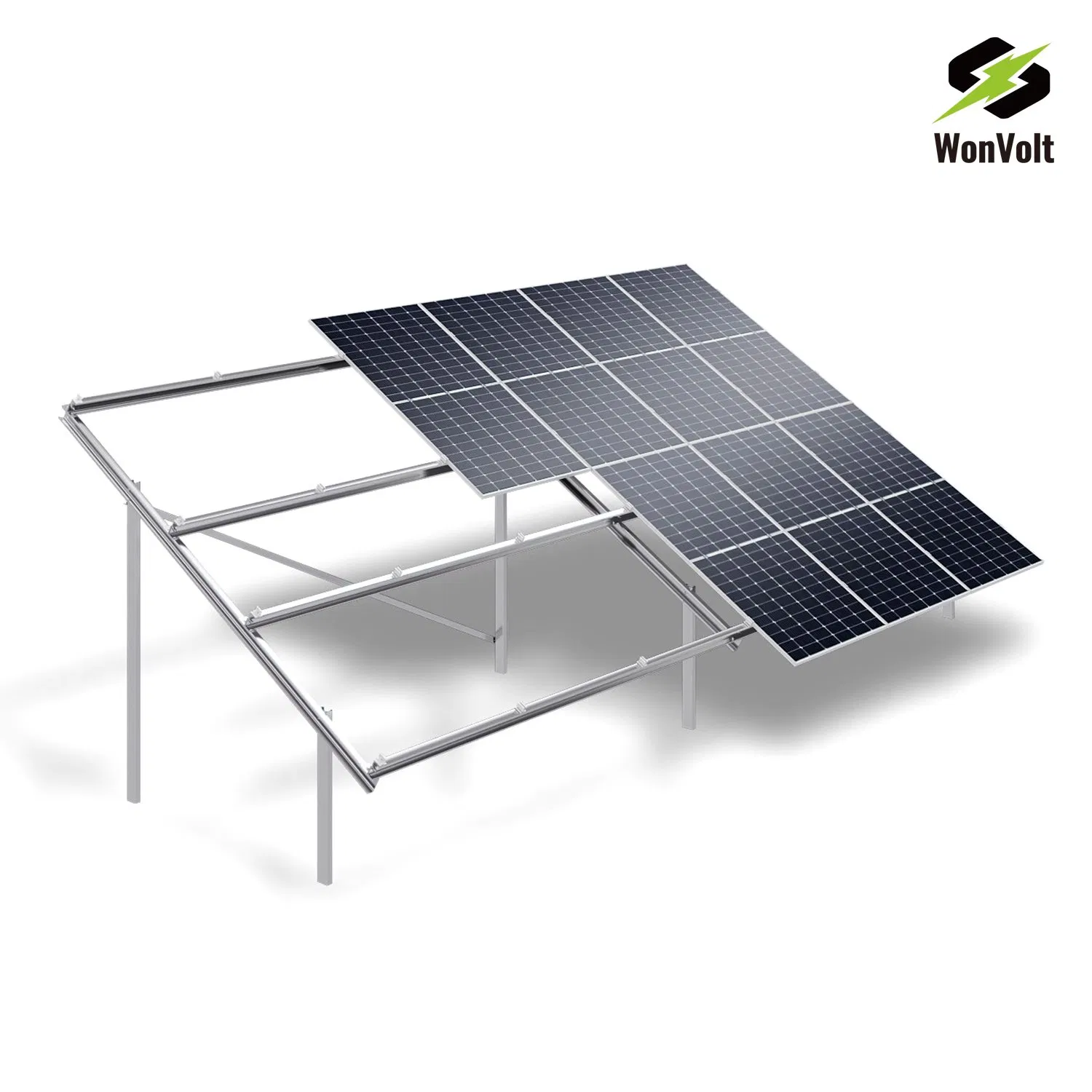

Mounting Structure: Roof mounting (Aluminum), ground mounting, adjustable brackets, screw piles, and customized solutions.

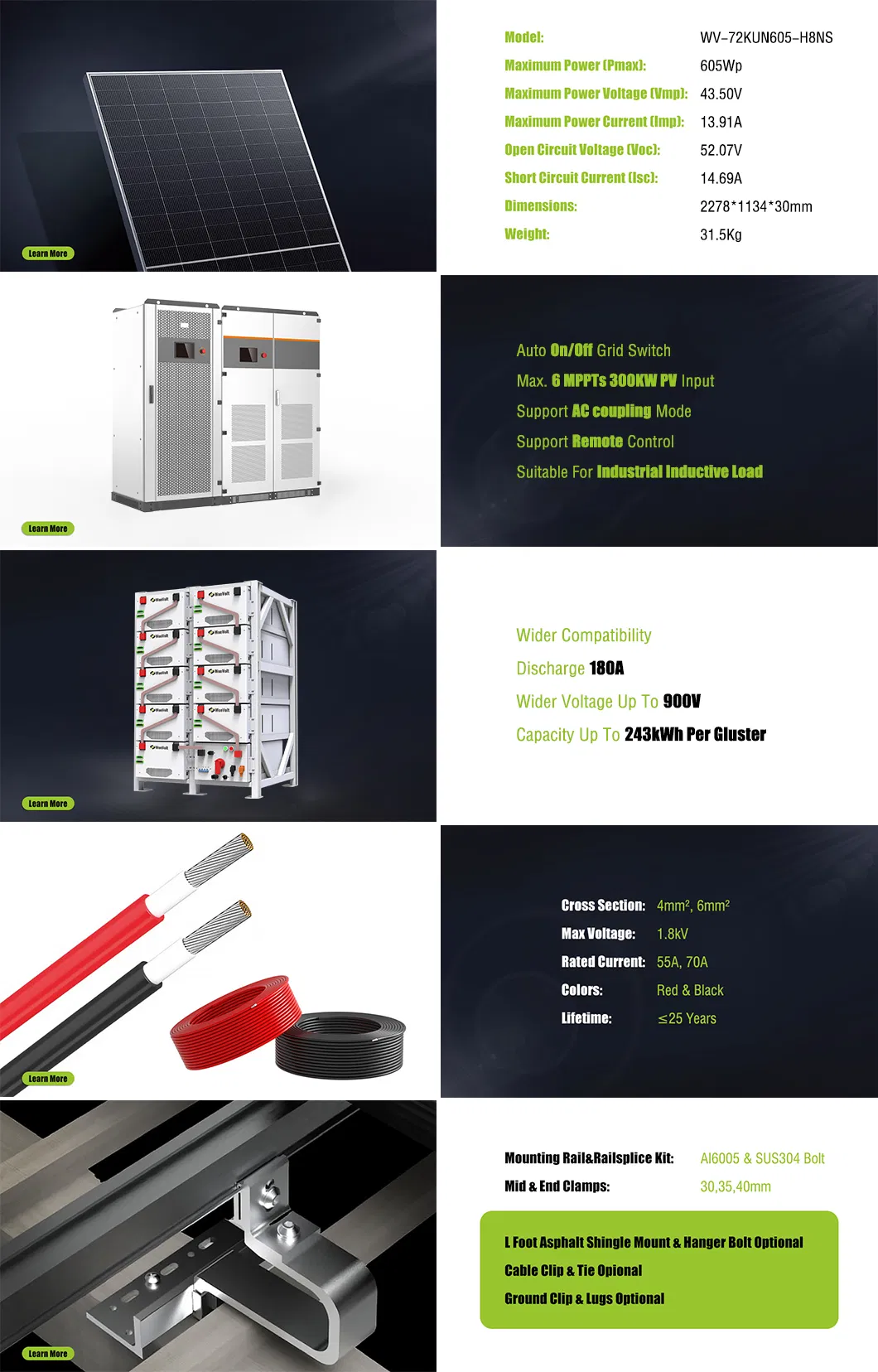

📋 Detailed Product Specifications

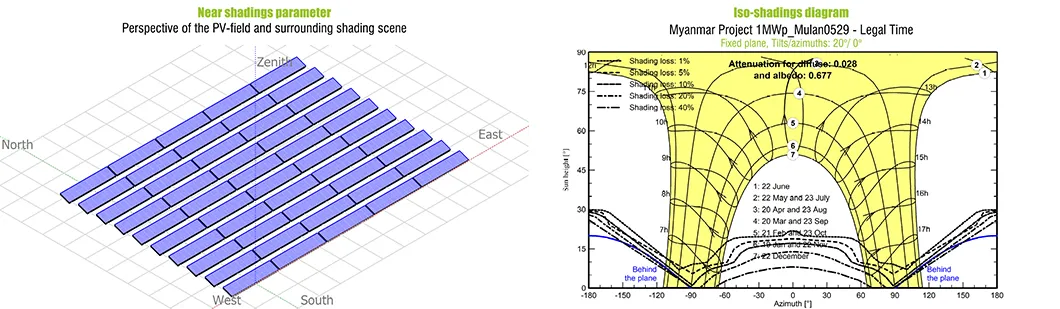

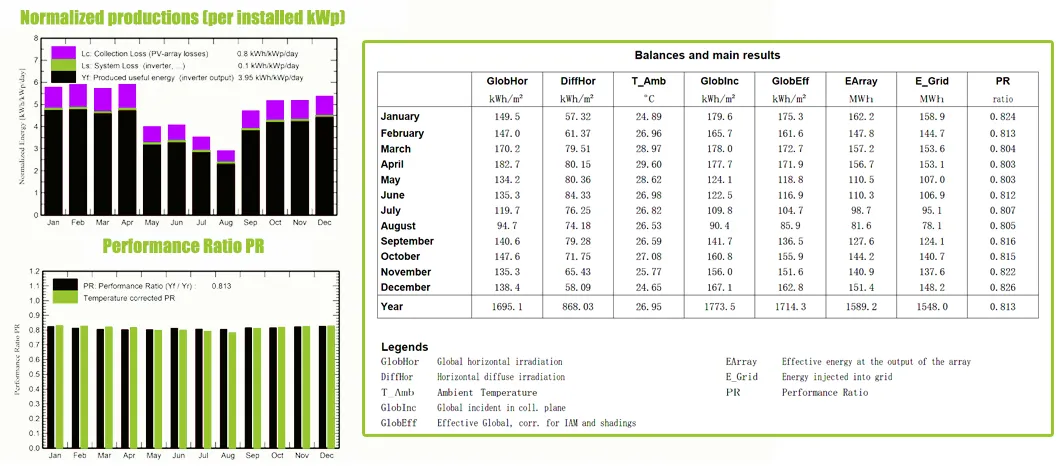

Technical Support & Engineering

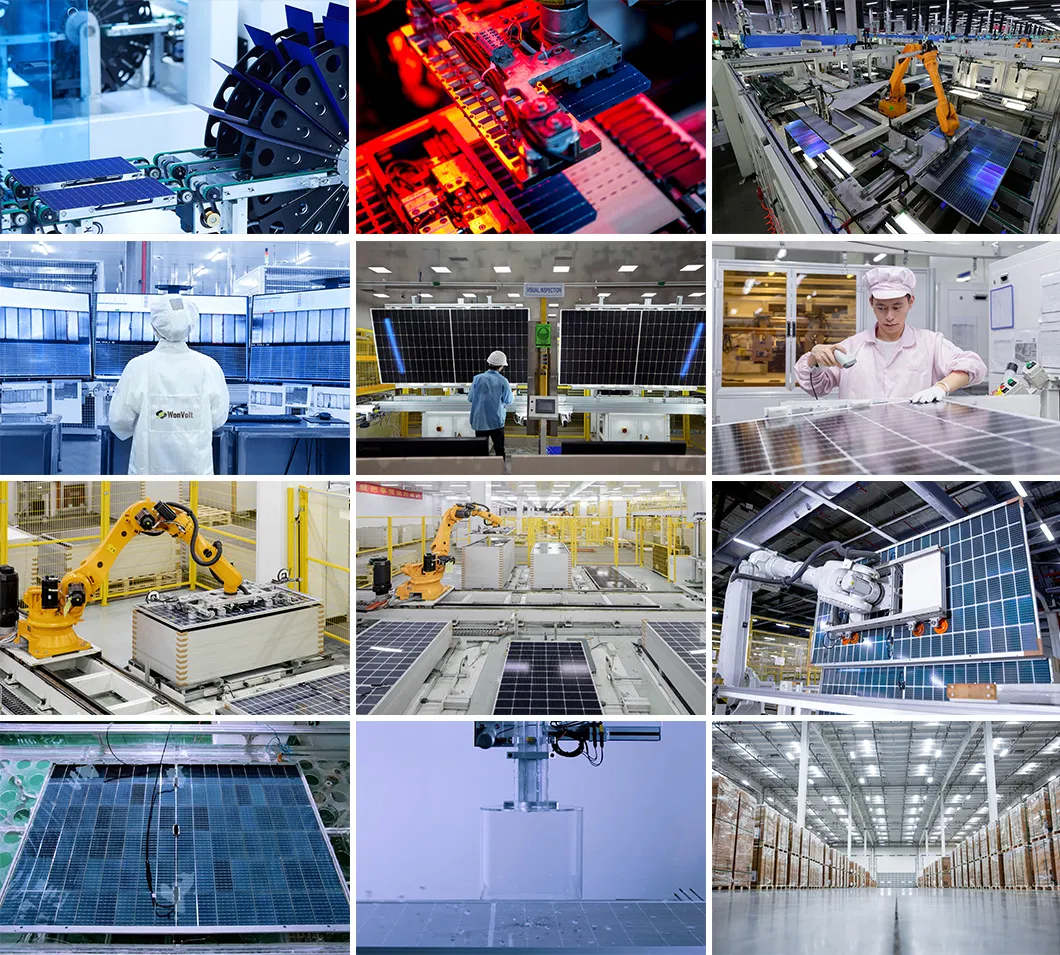

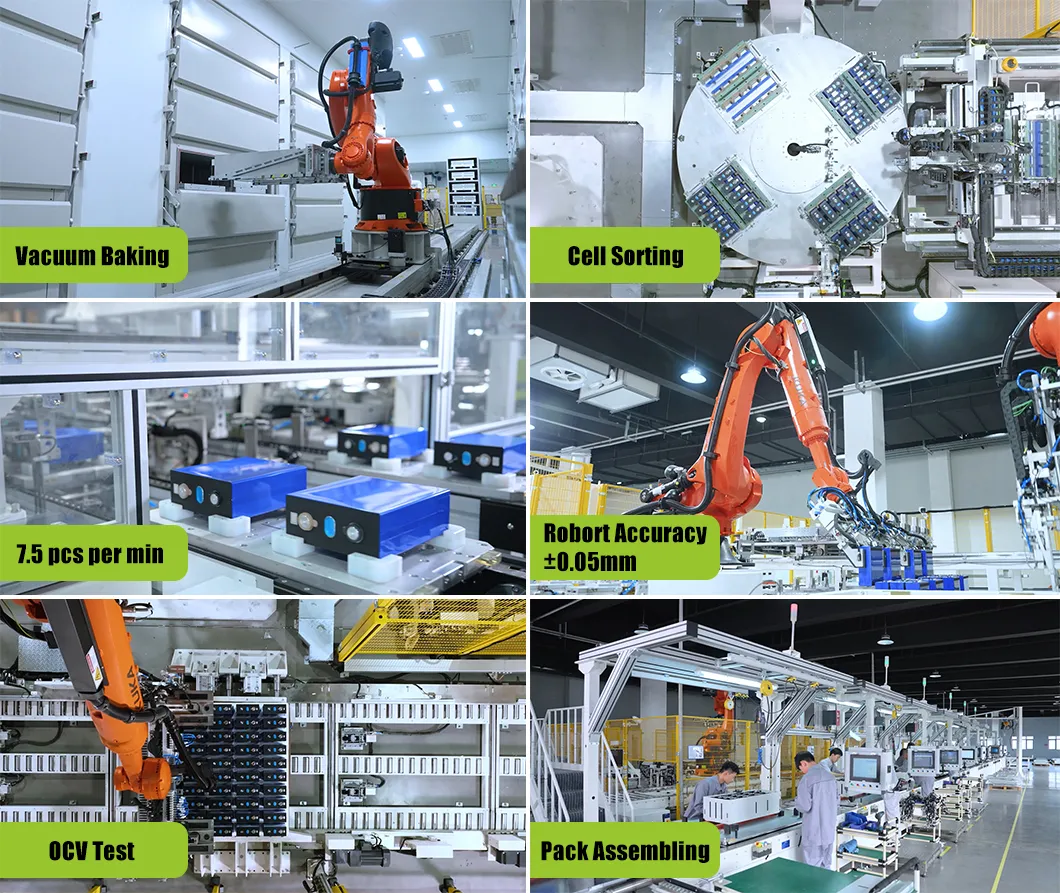

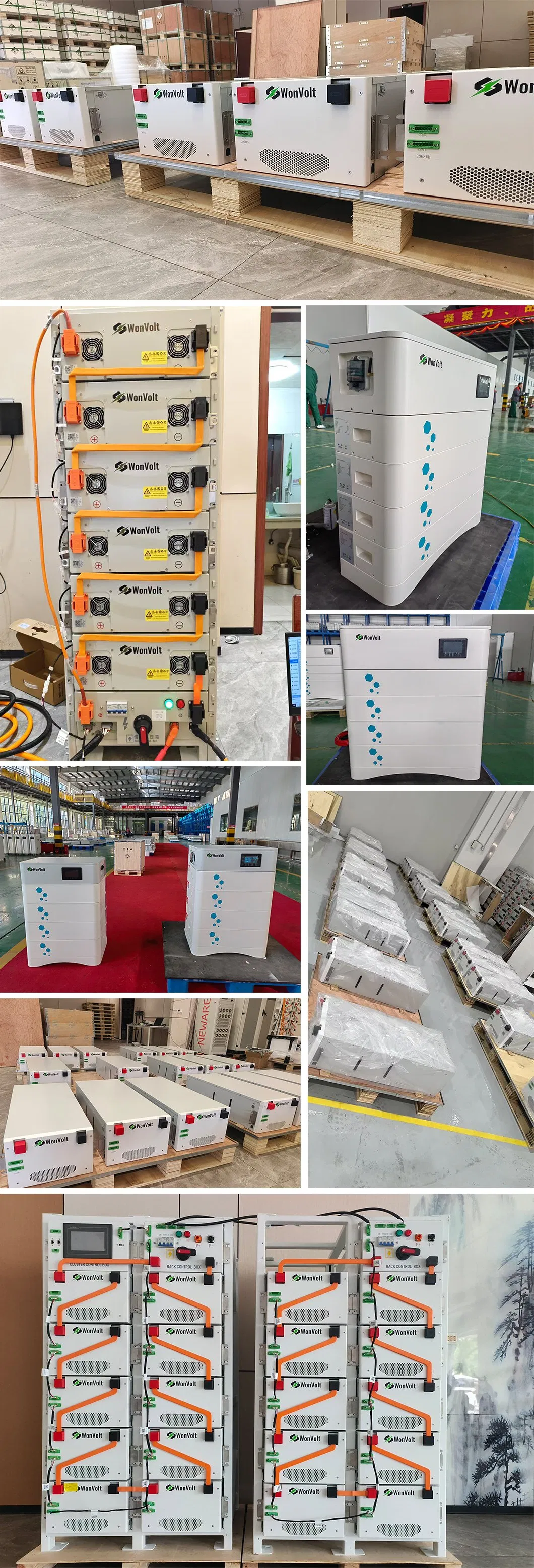

Production & Factory Overview

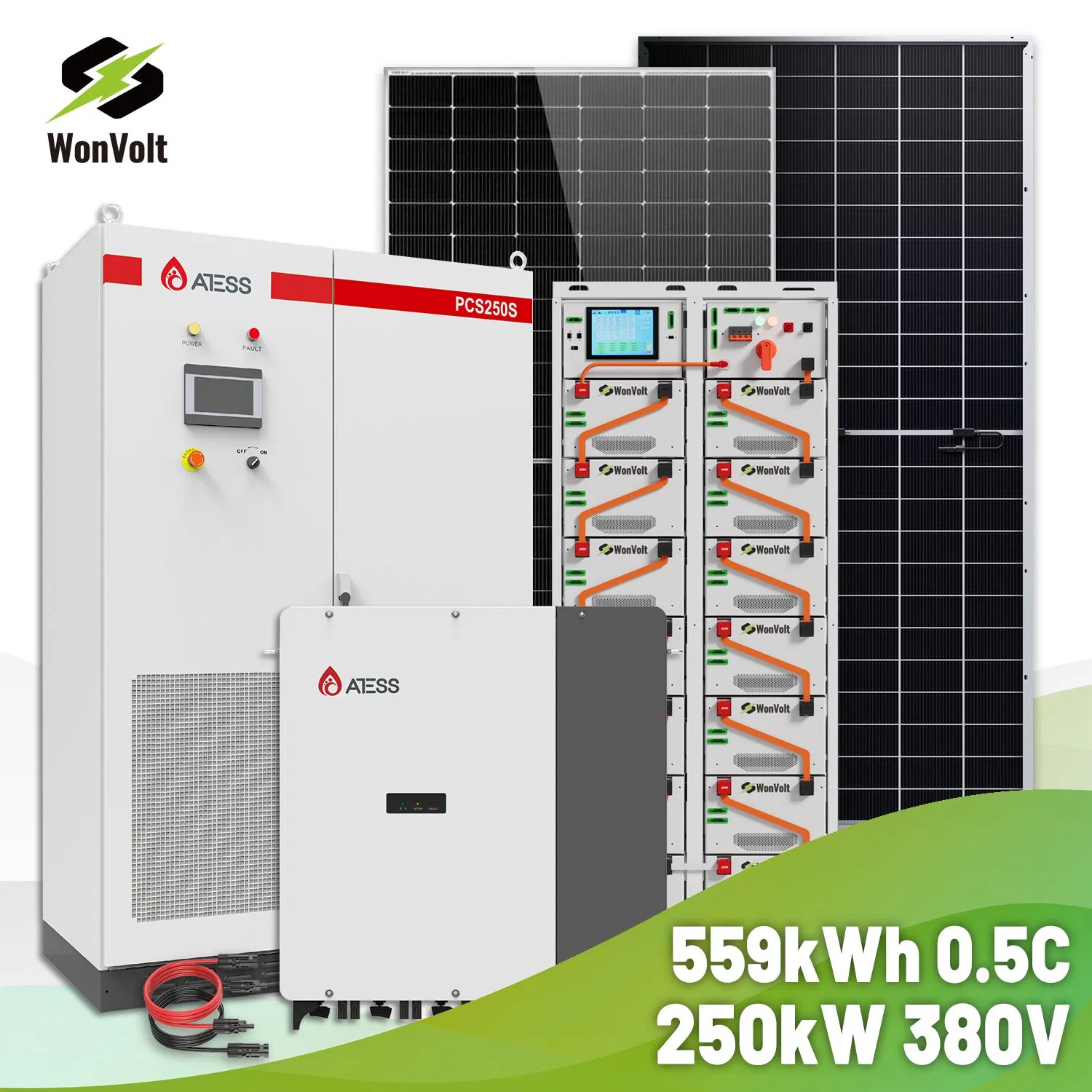

Microgrid Solar System 60KW 80KW 100KW 150KW 250KW Battery Storage System For Remote Areas
Frequently Asked Questions

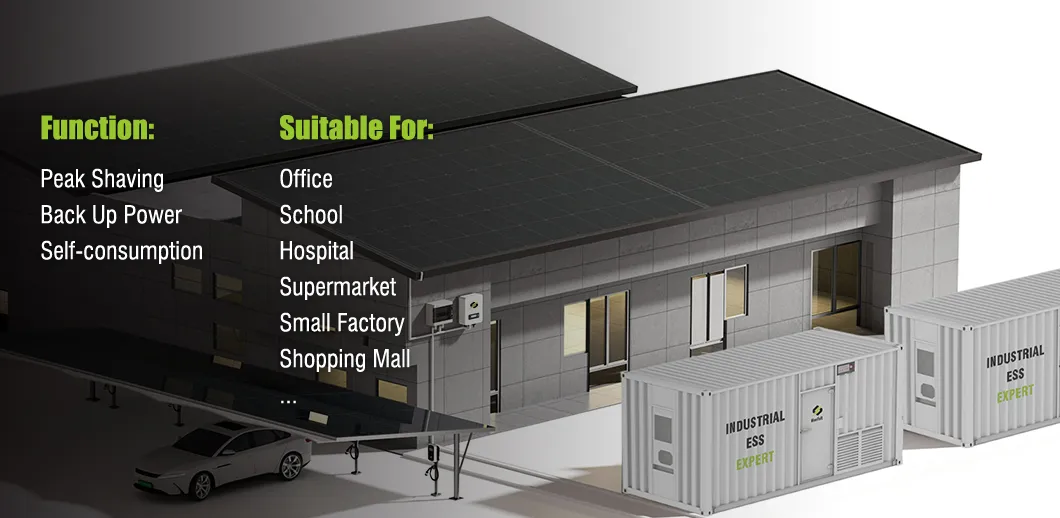

1. What are the primary applications for this Microgrid Solar System?
This system is designed for remote areas, schools, hotels, hospitals, factories, and commercial buildings that require stable off-grid or hybrid energy storage.
2. Can the battery capacity be expanded in the future?
Yes, our lithium-ion battery storage systems are modular and can be customized or expanded to meet growing energy demands, ranging from 46kWh to over 1000kWh.
3. Does the system support remote monitoring?
Absolutely. The system includes remote control options via WIFI, Enterlog, or BR300 modules, allowing users to monitor performance and system status in real-time.
4. What is the protection rating for the outdoor BESS containers?
Our outdoor cabinets and BESS containers are rated IP65, featuring integrated fire protection and ventilation systems to ensure safety in harsh environments.
5. Is the system compatible with different global voltage standards?
Yes, our hybrid inverters support a wide range of voltages including 208V, 220V, 380V, and 480VAC in single-phase, split-phase, or three-phase configurations.
6. What type of solar panels are included in the configuration?
The system utilizes high-efficiency N-type Monofacial or Bifacial dual-glass solar PV panels, with power outputs ranging from 420W to 750W.
