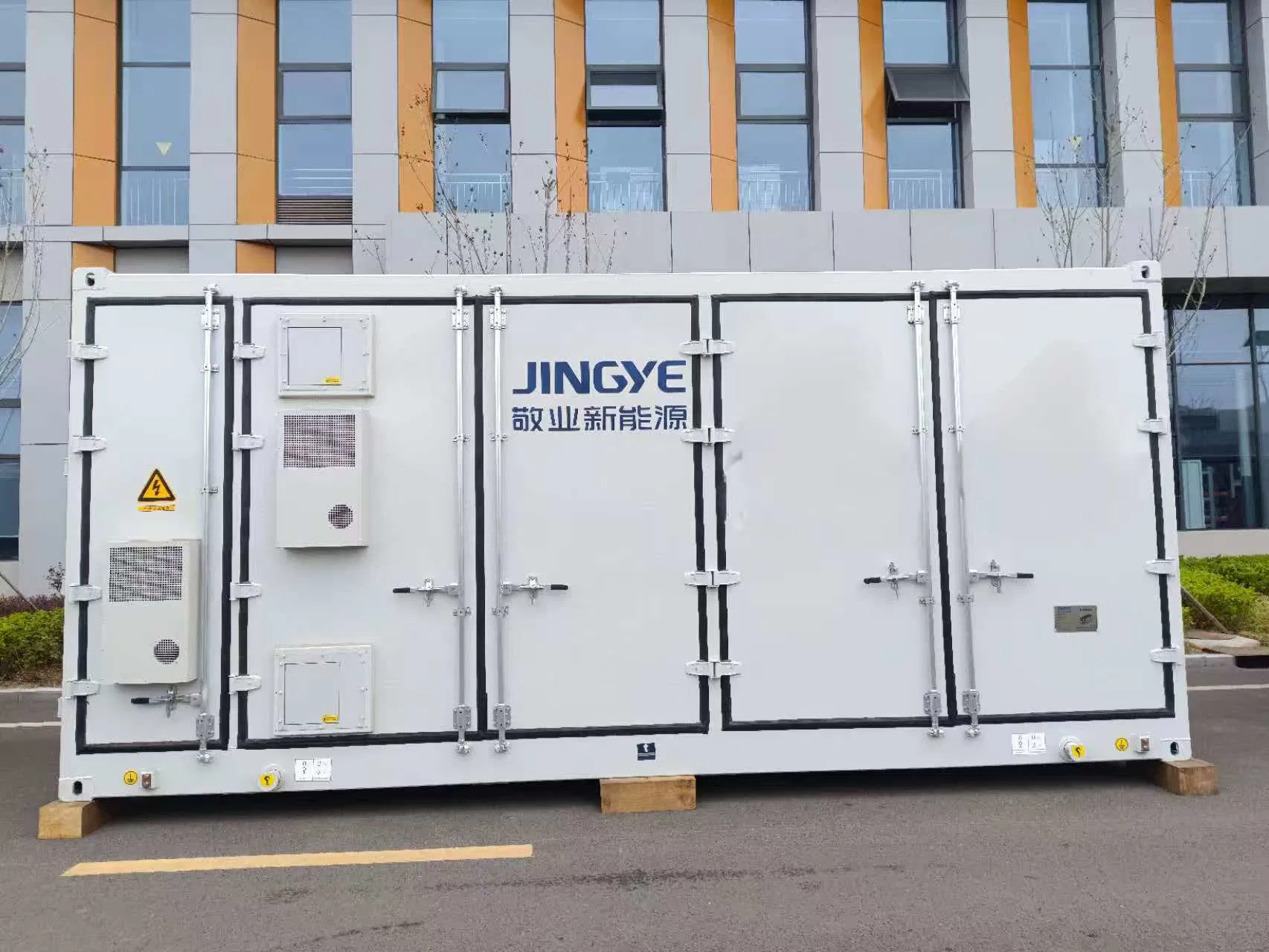

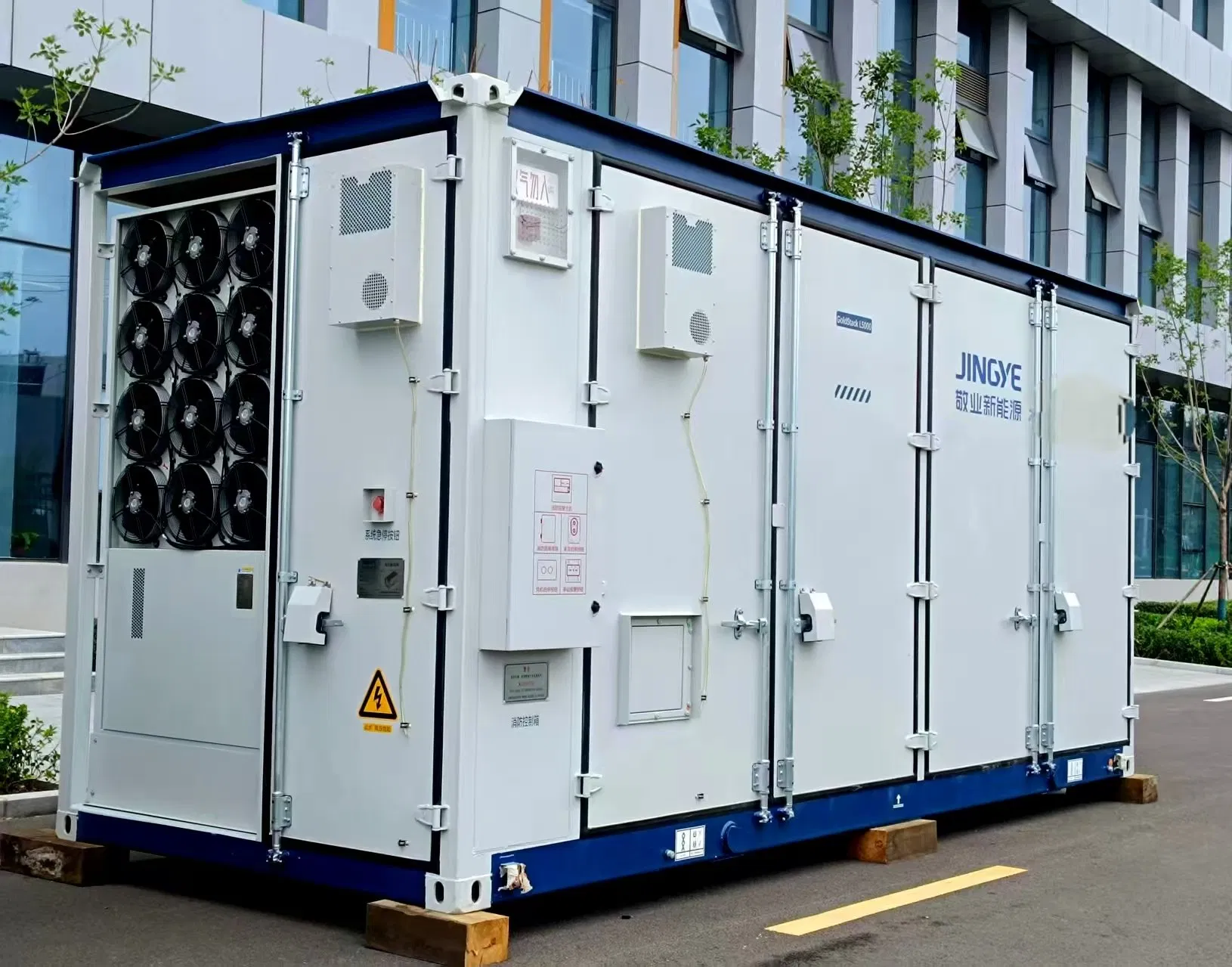

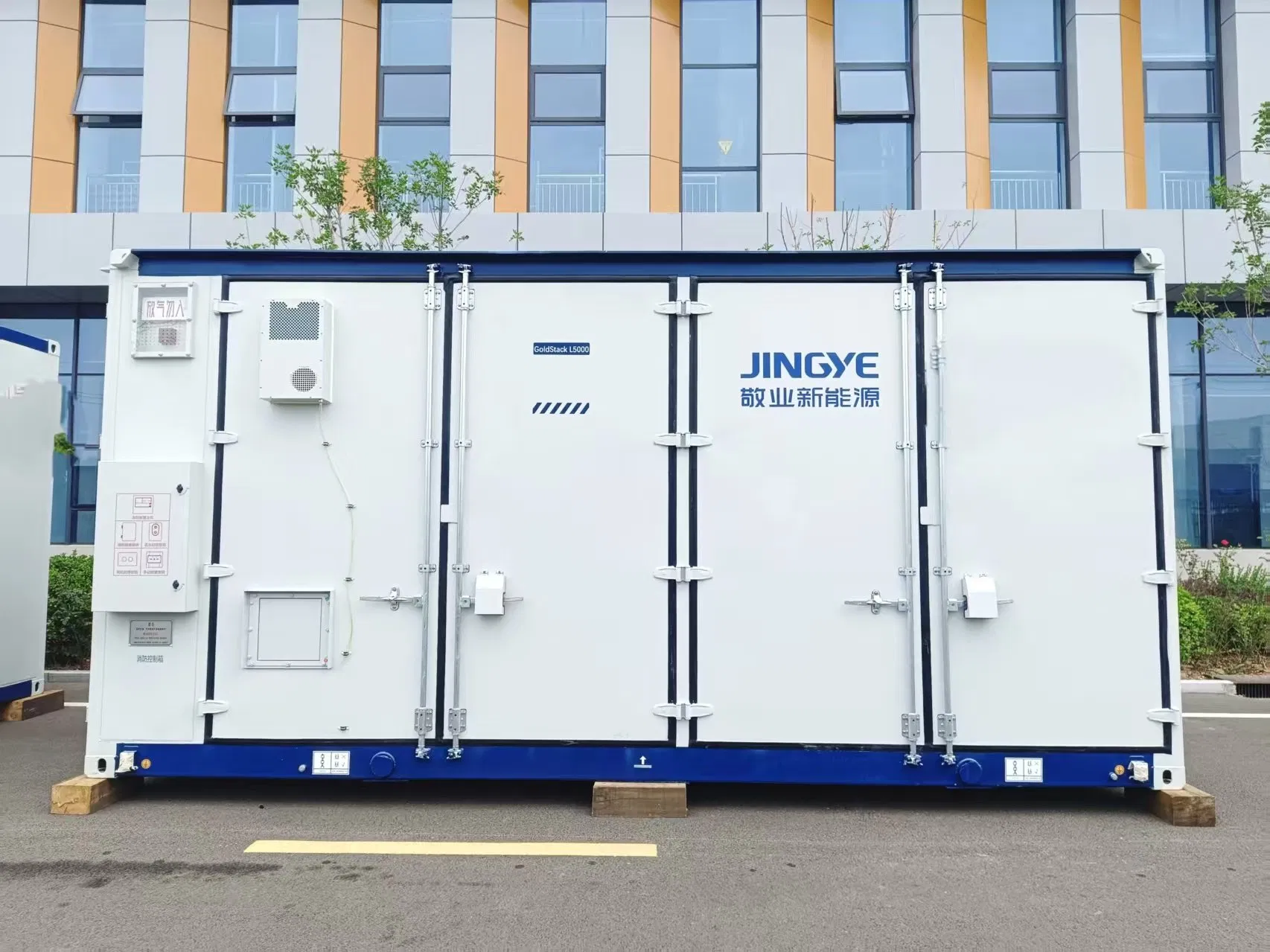

5mwh Containerized Bess Solar Microgrid Battery Storage System Solution

1 / 5

5mwh Containerized Bess Solar Microgrid Battery Storage System Solution

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

5.015MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5015kWh

Cycle Life

10 Years

IP Rating

IP54

Rated Power

5mwh

Cooling System

Liquid Cooling

🔋

Energy Storage System Solution

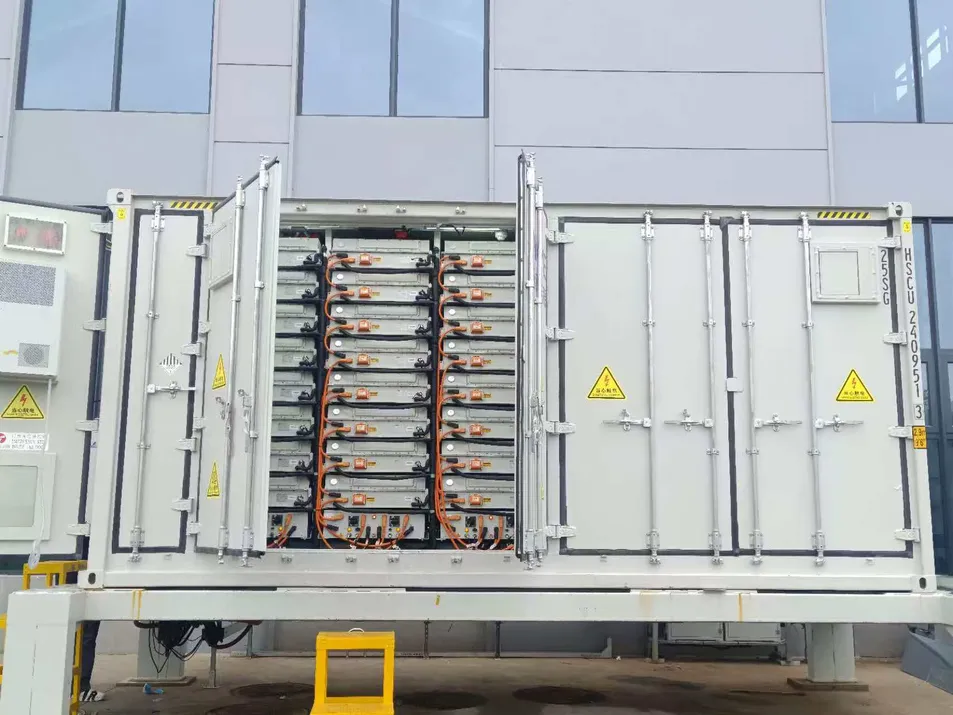

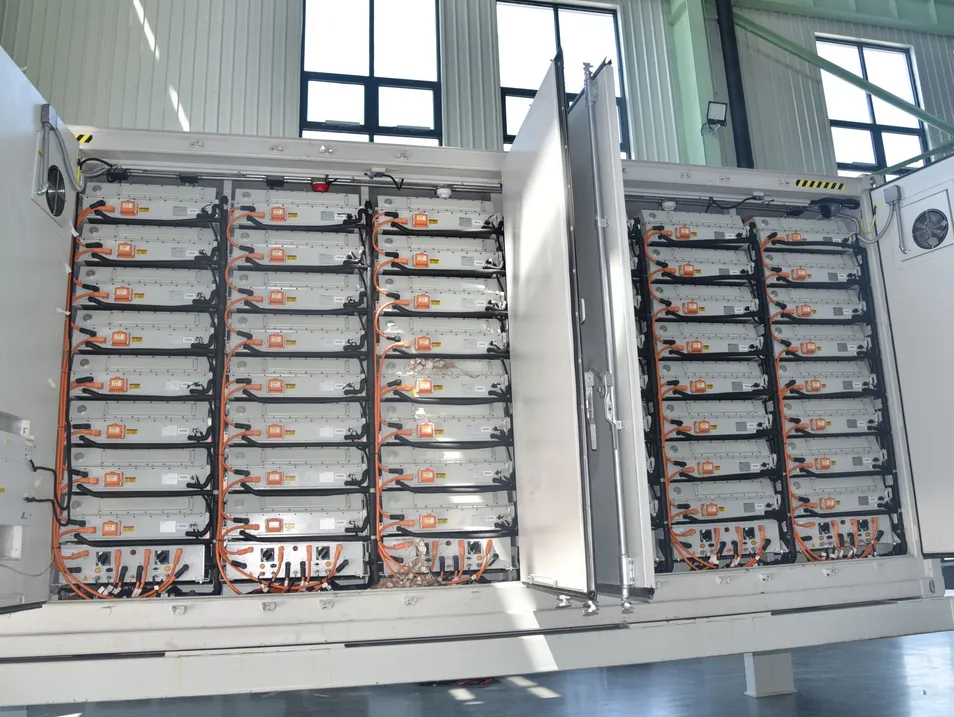

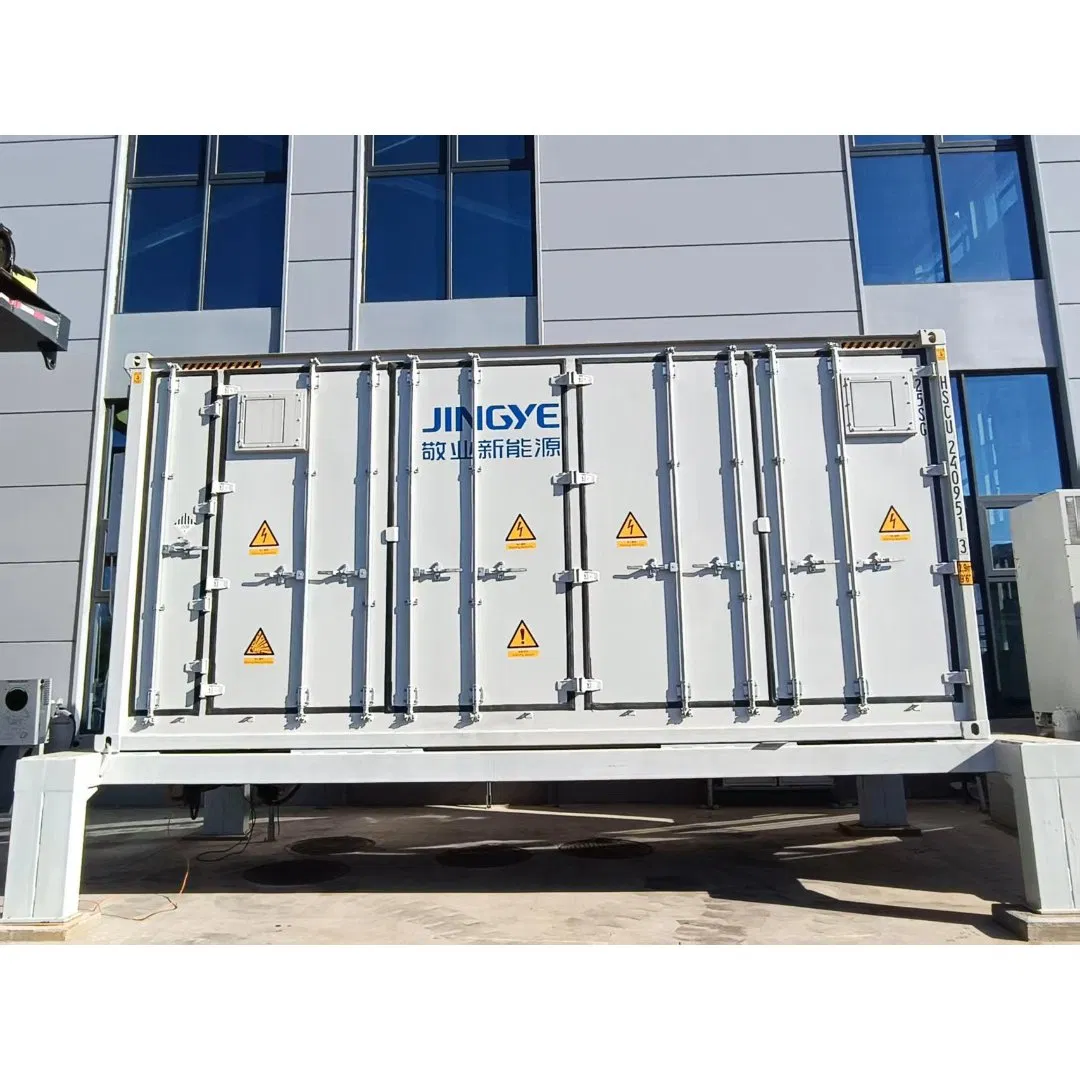

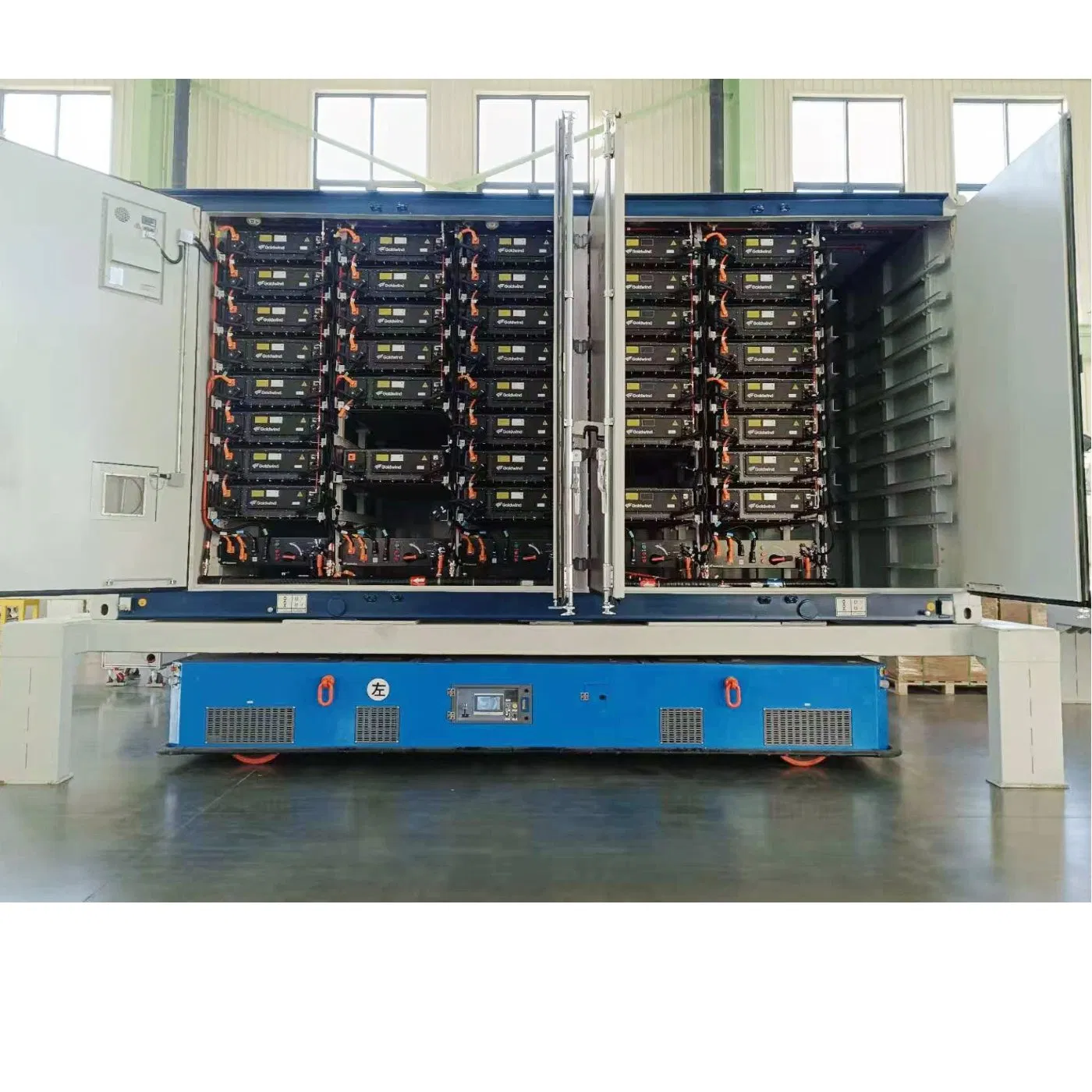

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection, and thermal management systems. The system utilizes simplified integration technology within a standard 20-foot container (L6058mm x W2438mm x H2896mm), ensuring safety control while remaining suitable for various transportation and site designs.

✅

Key Product Features

◈

Battery Technology: High-efficiency, long-life large-capacity lithium iron phosphate batteries.

◈

Thermal Management: Industrial-grade cooling ensures a temperature difference of ≤3℃ inside PACKs and ≤5℃ in cabinets.

◈

Safety Protection: Multi-level automatic fire extinguishing system (perfluorohexane or aerosol options).

◈

Intelligent Monitoring: Real-time tracking of temperature, humidity, smoke, and video access.

◈

Modular Design: Highly modular structure for easy transportation, rapid installation, and maintenance.

📋

Technical Specifications

Item	Specification
Configuration	12(1P104S4)
Rated Power / Capacity	5MWh / 5015kWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Max Charging/Discharge Power	≤ 2.5MW
Dimensions (LWH)	6058 x 2438 x 2896mm
Operating Temperature	-30℃ to 60℃ (Discharge)
Communication Protocol	Ethernet, CAN, ModbusRTU

🏭

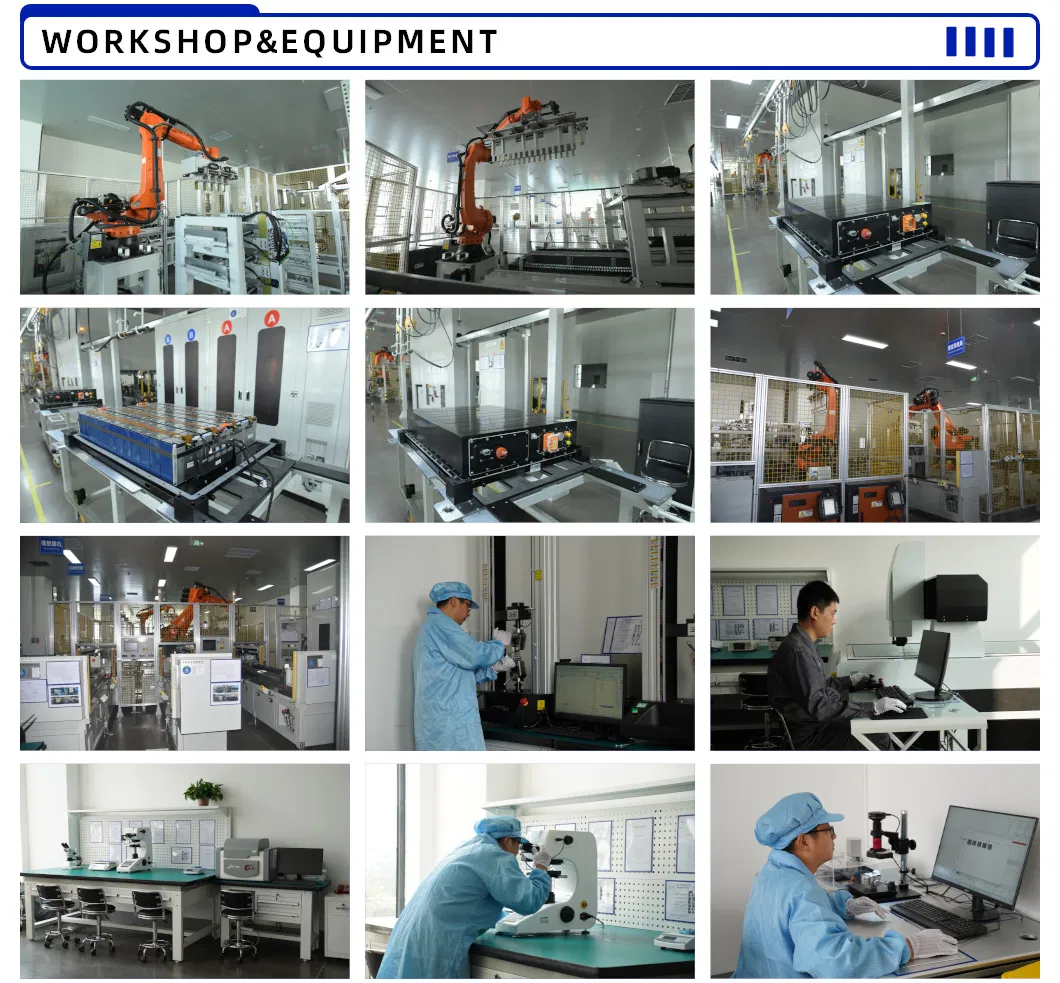

Production & Equipment

The facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These solutions are widely applied in smart grids, wind/solar storage, and industrial energy sectors.

🏆

Certifications & Global Presence

❓

Frequently Asked Questions

Q1: What are the primary energy products available?

A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Can the storage systems be customized?

A: Yes, we provide flexible customization services to meet diverse process types and specific project requirements.

Q3: How is the quality and delivery timeline managed?

A: With fully automated production lines and expert technical staff, we ensure stable manufacturing processes and strictly adhere to on-time delivery schedules.

Q4: Are you a manufacturer or a trading company?

A: We are a formal source factory with standardized production processes, allowing us to offer competitive pricing and high-quality product control.

Q5: What is the cooling method used in the 5MWh container?

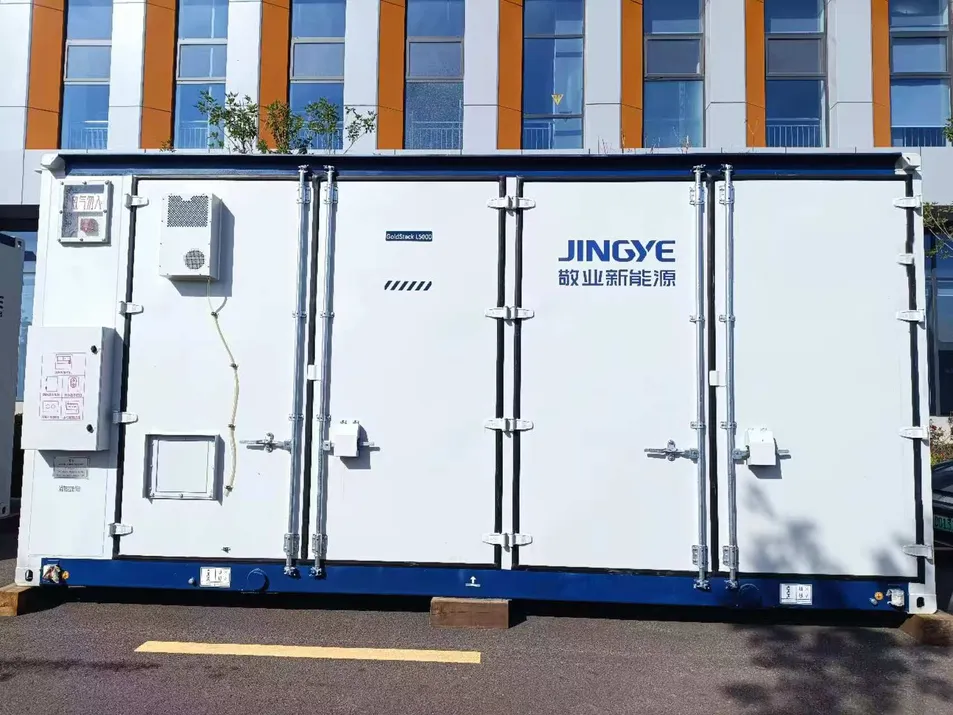

A: The system utilizes an advanced Liquid Cooling method with a 50% ethylene glycol aqueous solution to maintain optimal battery temperatures.

Q6: How can I request a formal quotation?

A: You can contact our support team directly through the website interface, and we will provide a detailed technical quotation promptly.
