| Model NO. | SLPO51.2-200WM |
| Battery Material | LiFePO4 |
| Cycle Times | Over 6000 Times @ 80% Dod |
| Design Service Life | 12 Years at 25ºC |

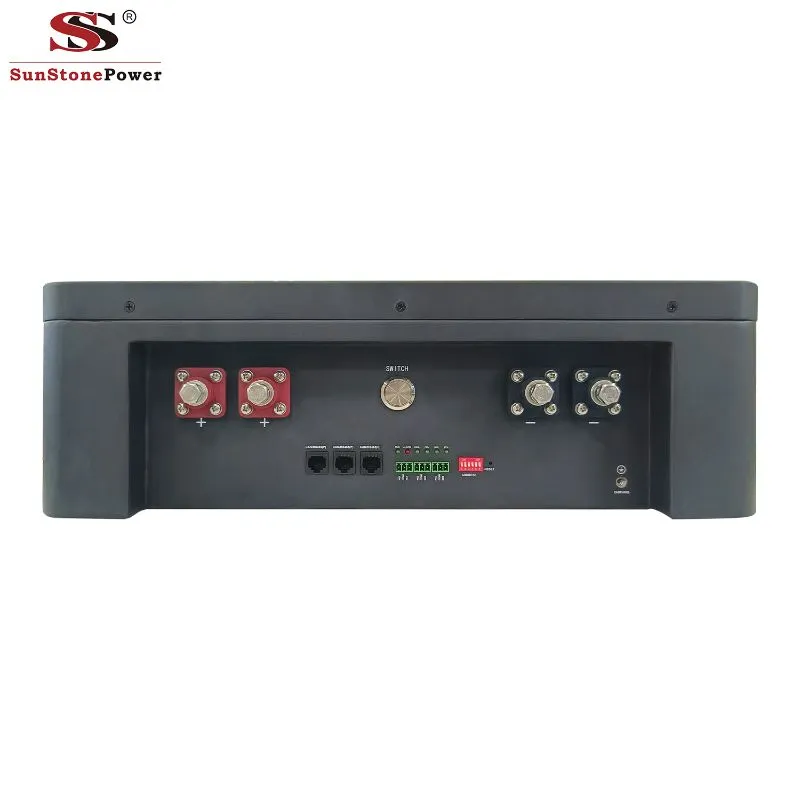

| Communication Port | Includes 3 Ports, CAN and RS485 |
| Low Self Discharge | <1% Per Month @20ºC |
| Max. Charge Current | 100A |
| Circuit Breaker | 125A DC Circuit Breaker |
| Operating Temp | Charge: 0~60°C | Discharge: -20~60°C |
| Weight / Size | 85kg / 900*500*180mm |
| Certification | UN38.3, CE, IEC |

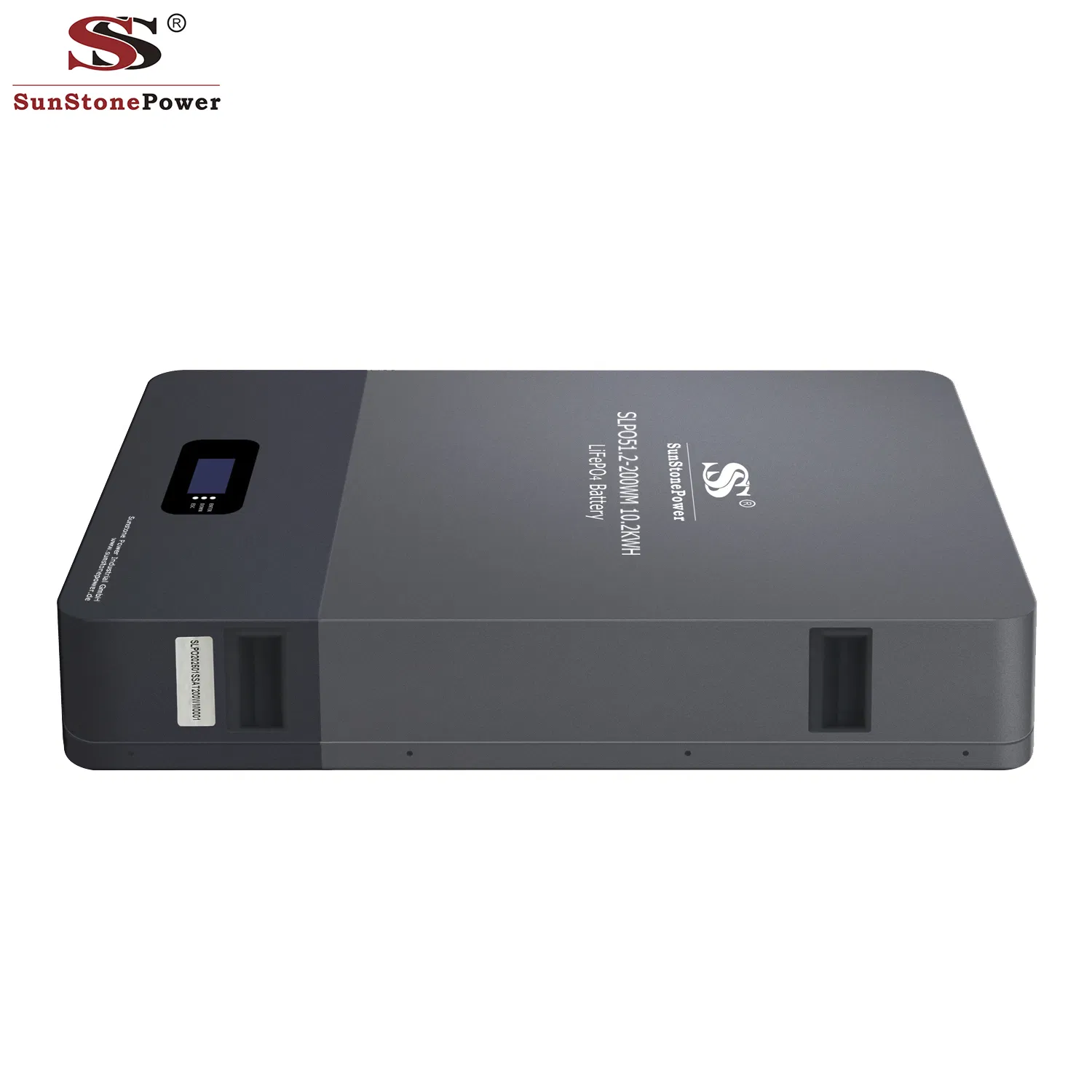

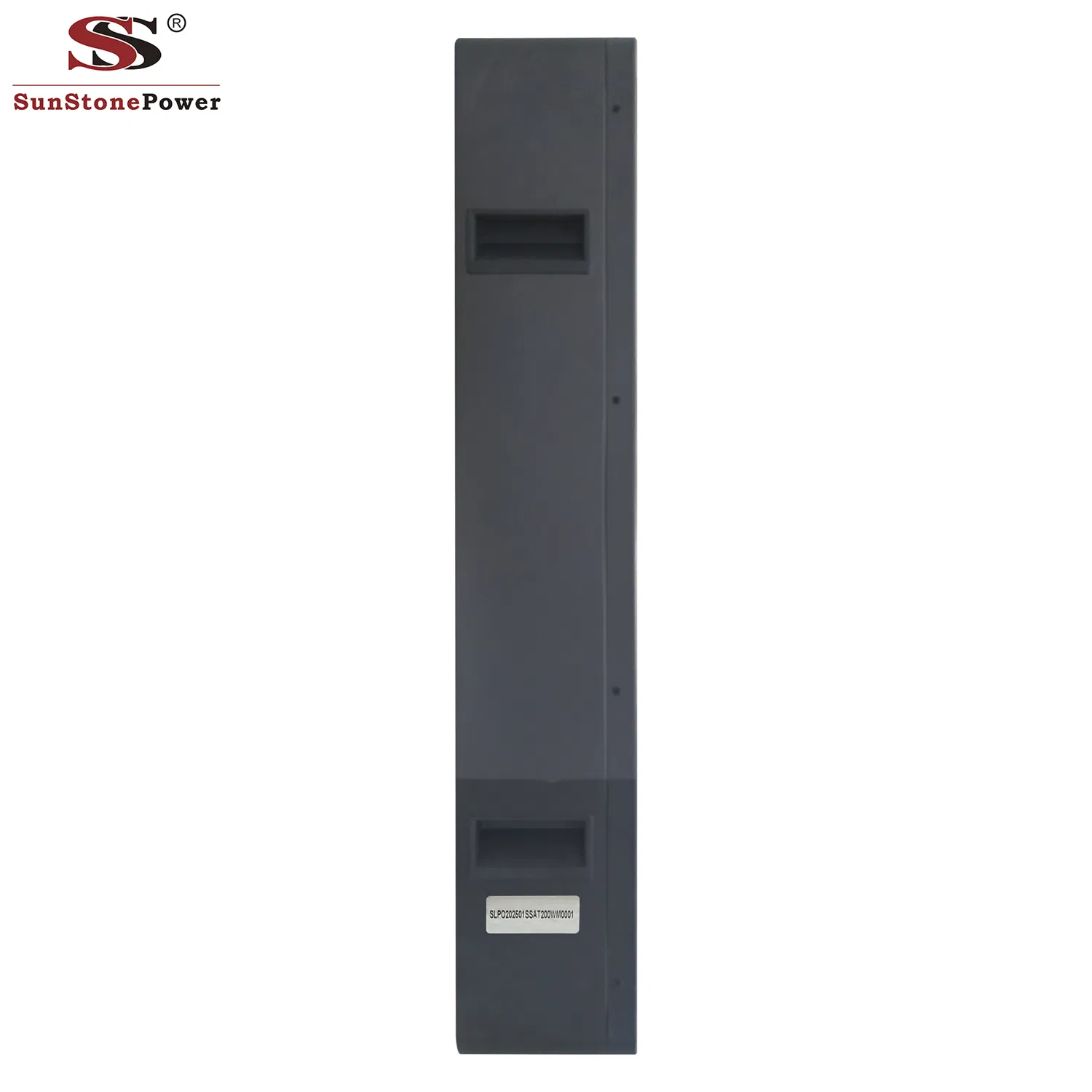

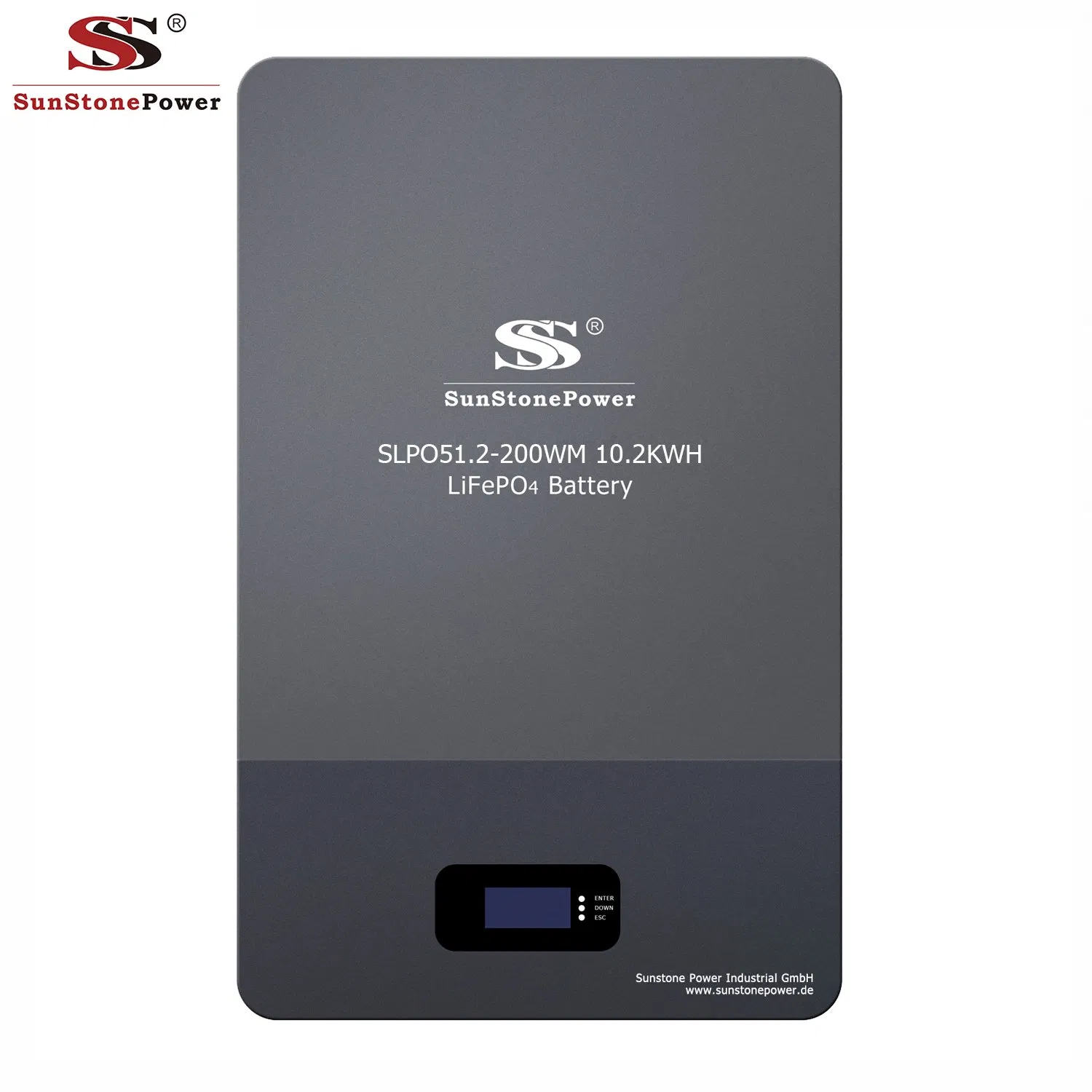

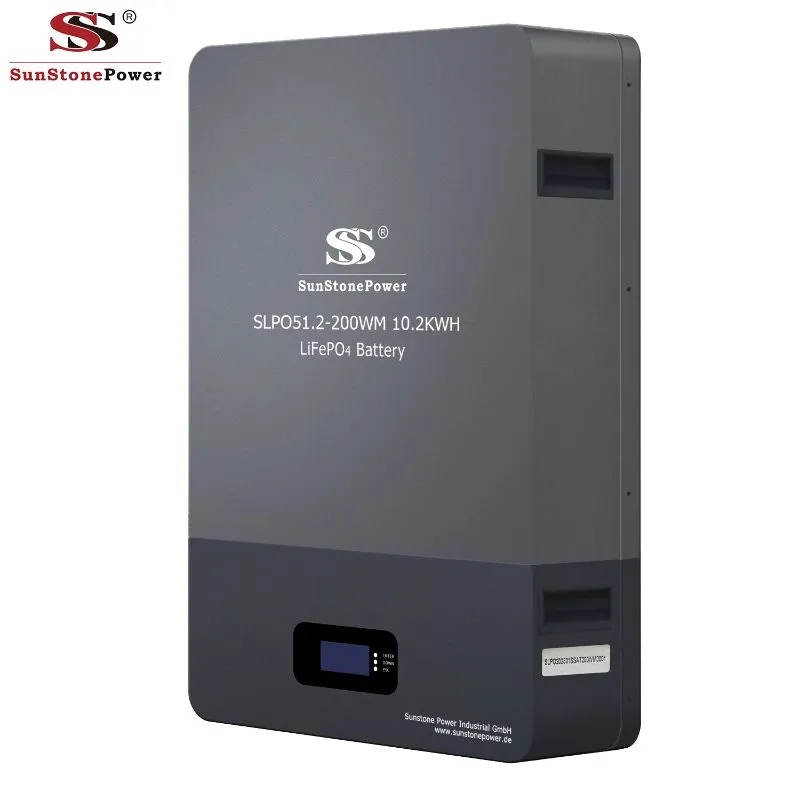

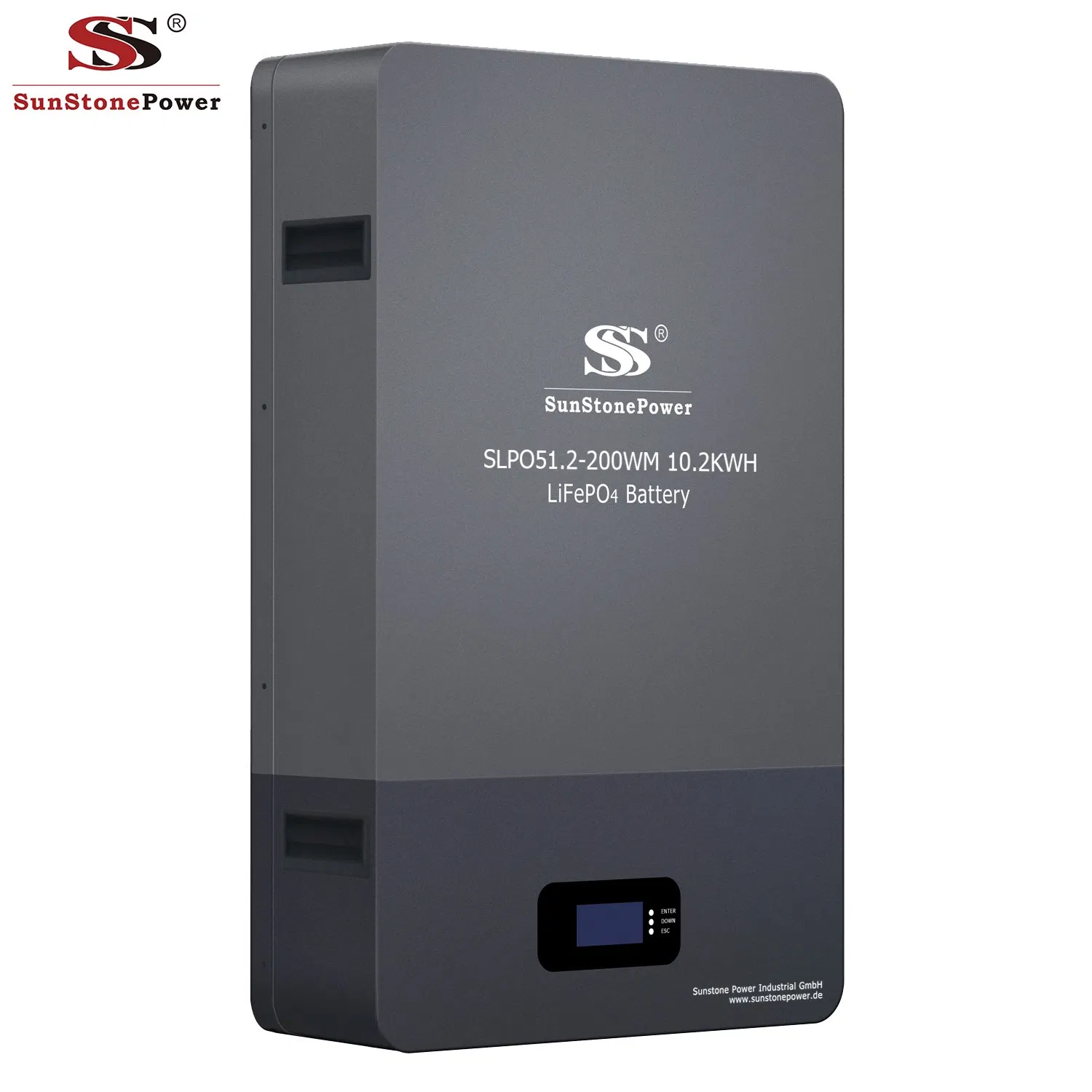

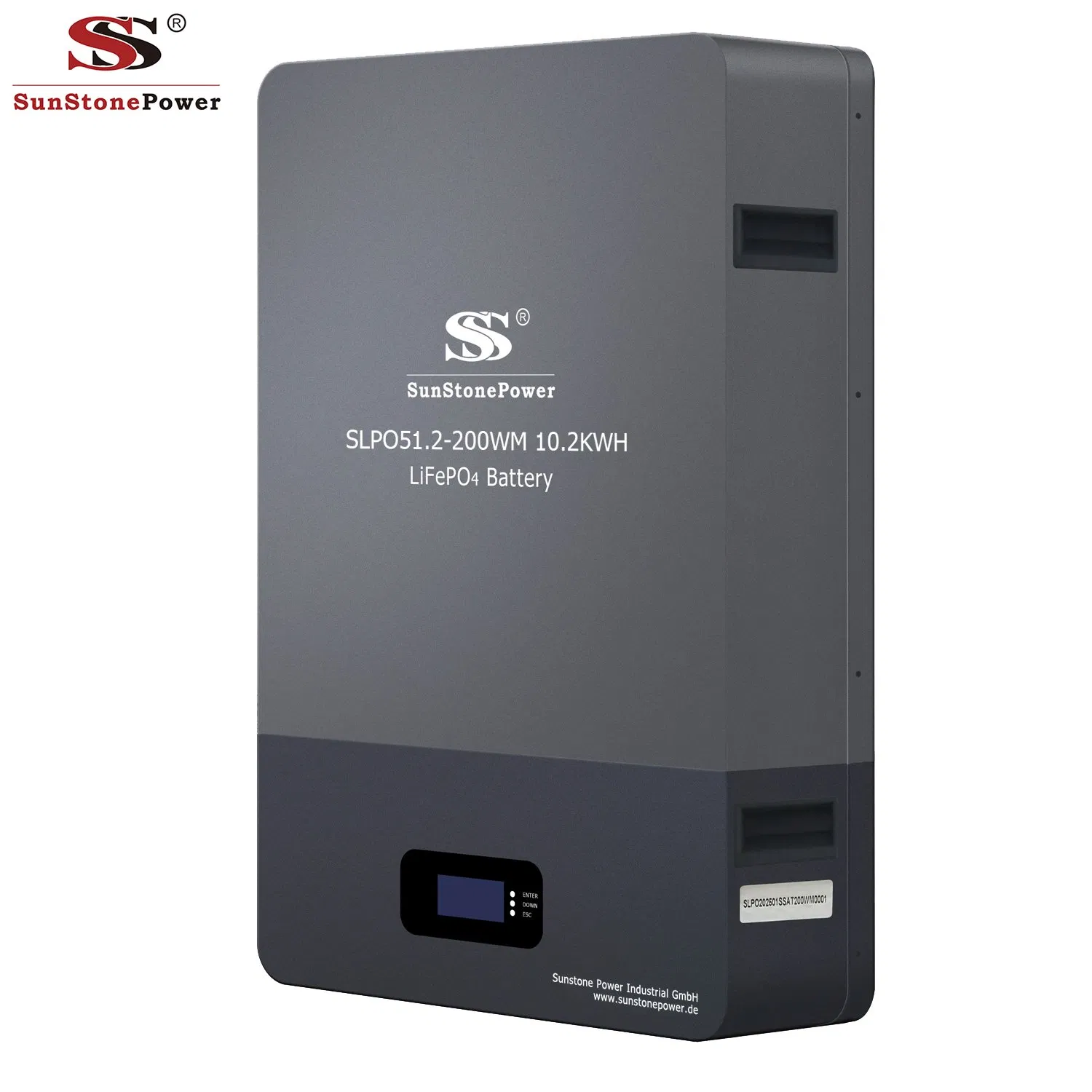

51.2V 200AH 10.2kwh Wall-mounted LiFePO4 Battery Pack
The SLPO series is a lithium iron phosphate battery pack designed for communications standby applications. Adopting advanced LiFePO battery technology, it offers long cycle life, lightweight structure, safety, and strong environmental adaptability, making it ideal for harsh outdoor environments.
Integrated with a smart battery management (BMS) and monitoring module, it supports remote centralized monitoring and maintenance to satisfy the demands of unattended sites.

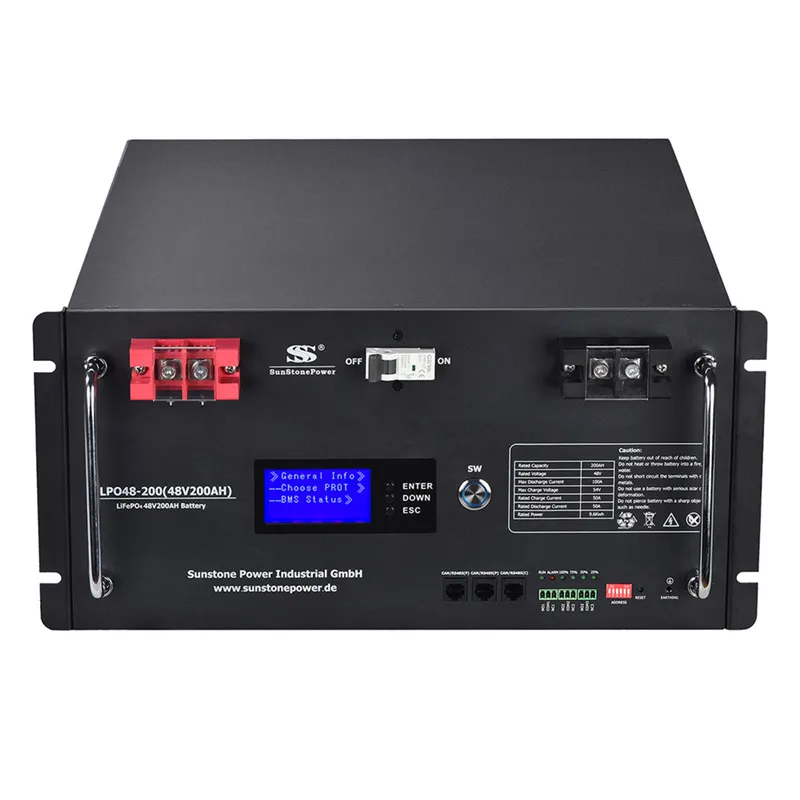

SLPO48-200 (48V 200AH)

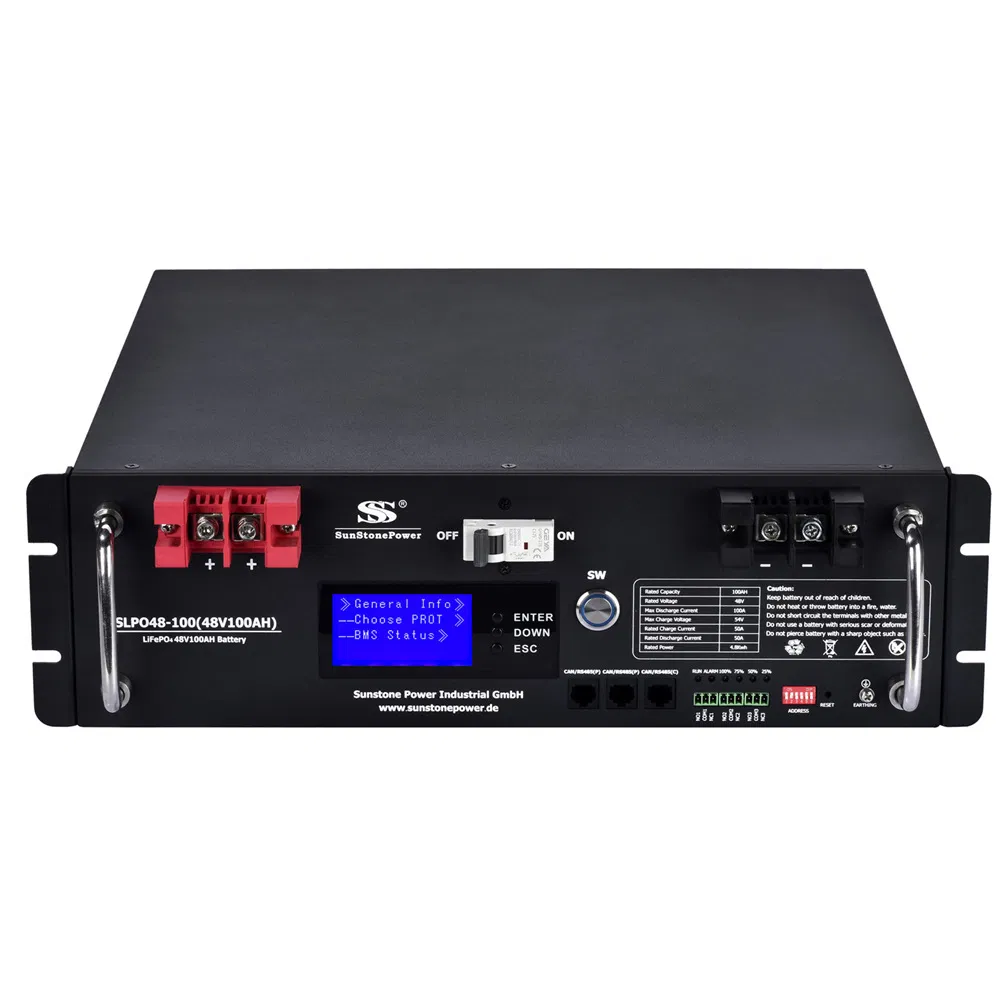

SLPO48-100 (48V 100AH)

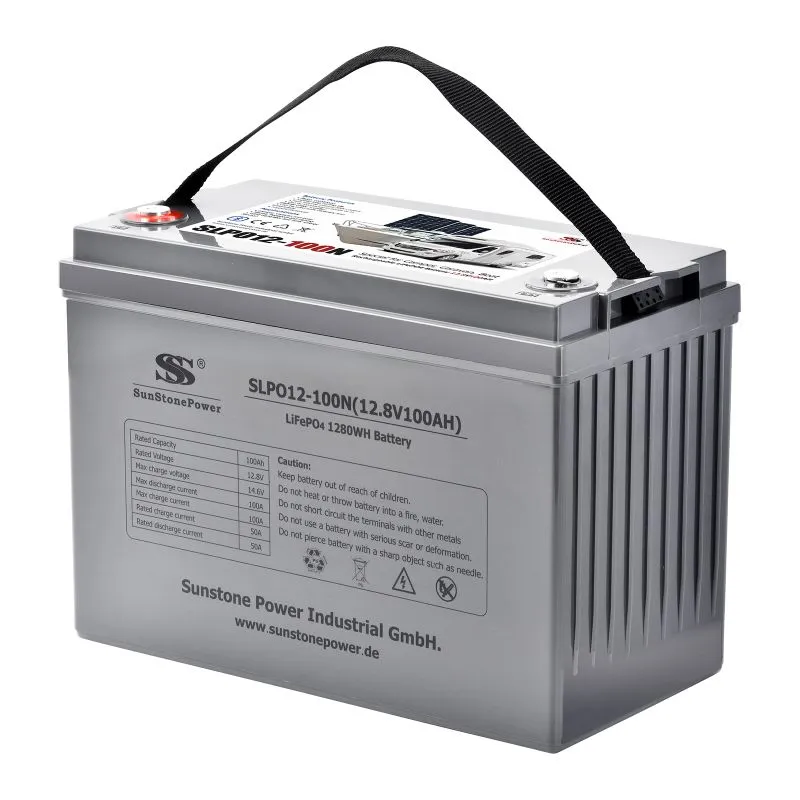

SLPO12-100N (12V 100AH)

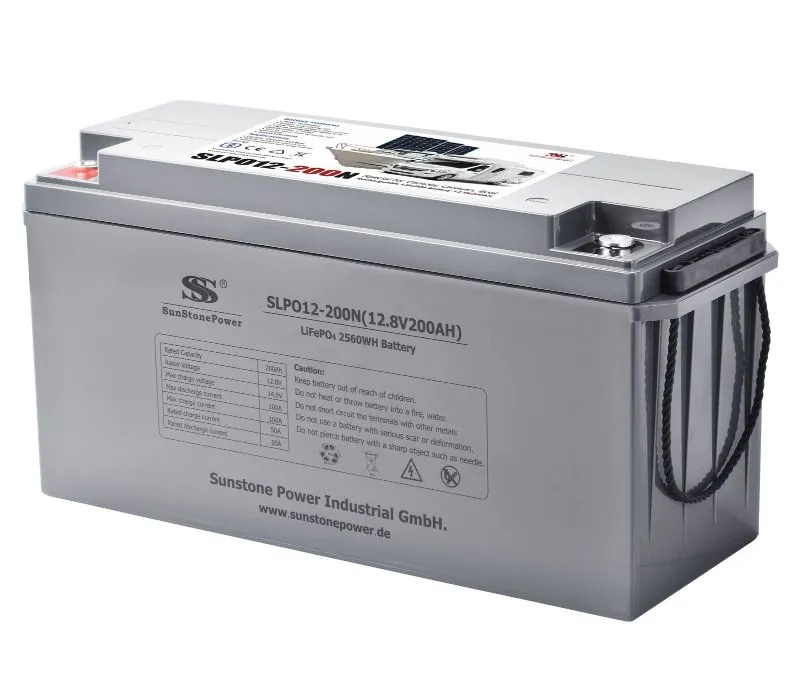

SLPO12-200N (12V 200AH)
1. Check voltage data on BMS display against actual battery voltage (error < 10mV).
2. Verify temperature data accuracy (error < 3°C).
3. Monitor BMS current data (error < 1%).
4. Ensure all contact points are clean and free from dust or metal chips.
