Strategic warehouse locations allow for processed and confirmed orders with rapid logistics support, ensuring reliable supply and project execution for installers and distributors.
This energy storage solution is focused on sustainable technologies designed for residential and small commercial applications. Engineered to meet strict quality standards, these products comply with international regulatory requirements, ensuring high performance for EPCs across global markets.

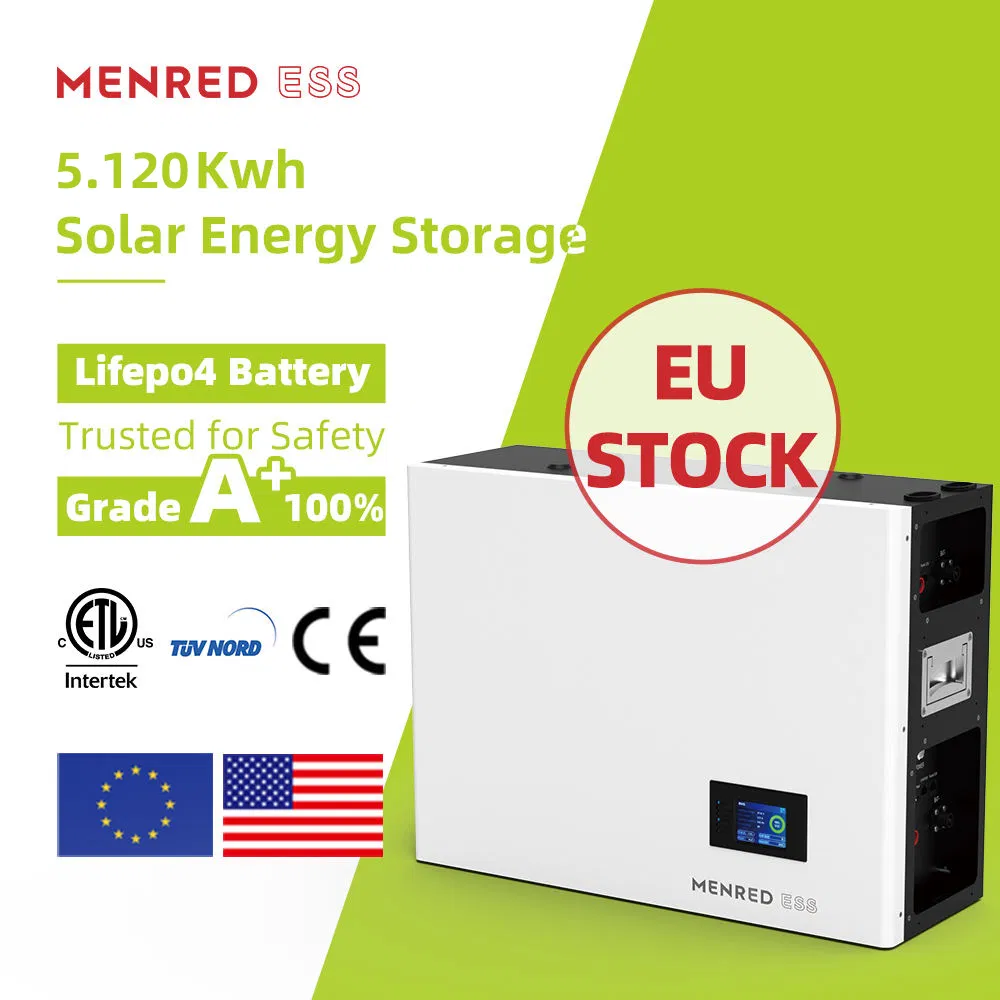

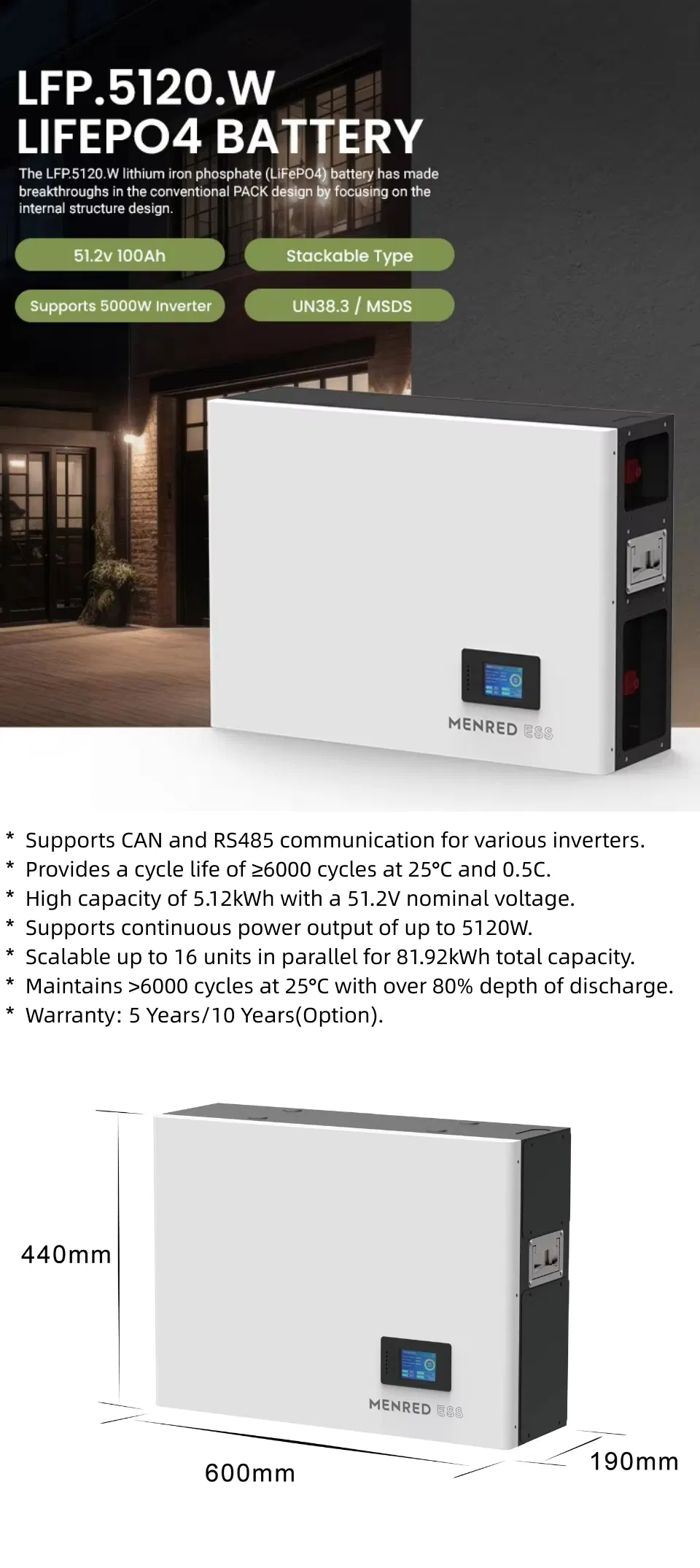

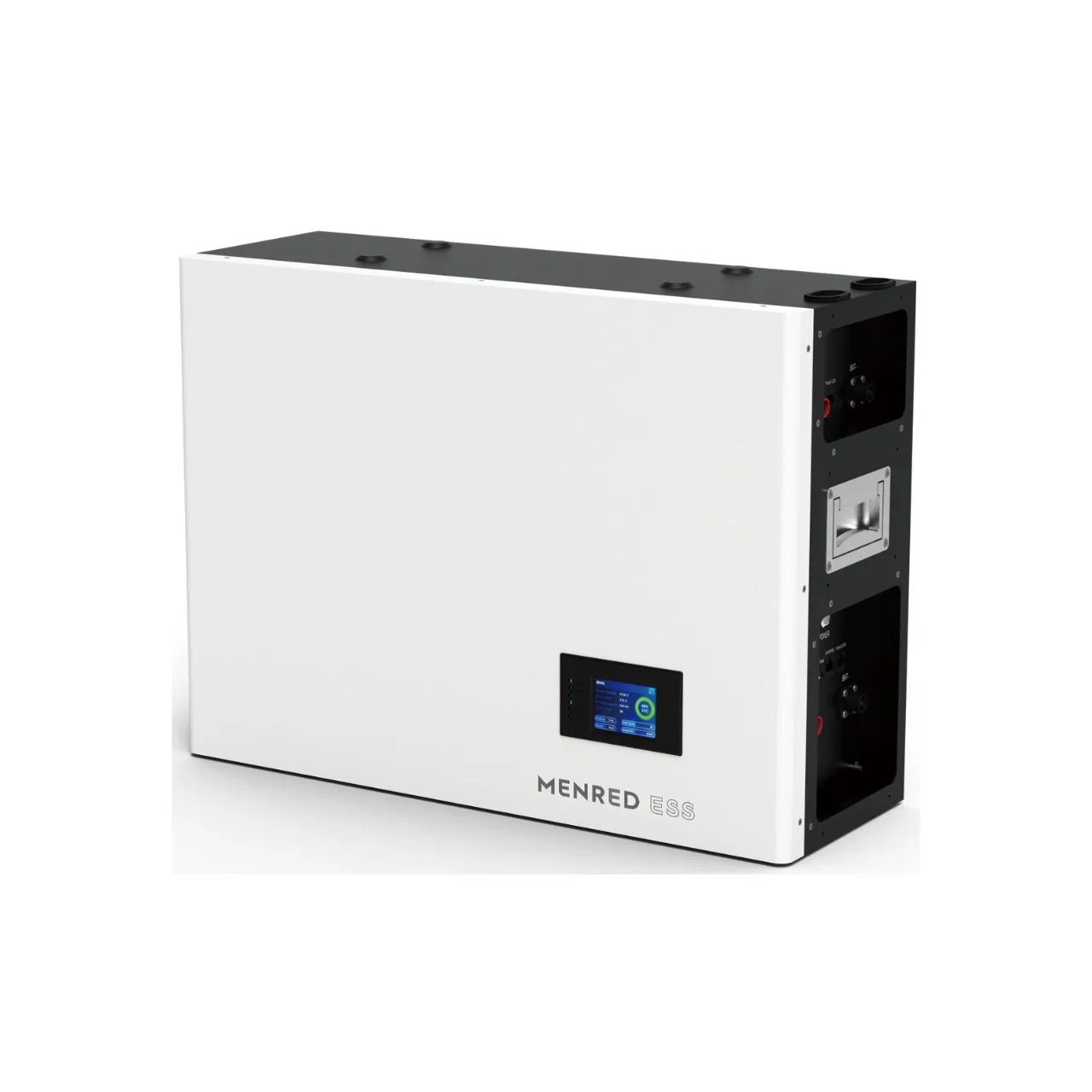

Product Parameters
Model
LFP.5120.W
Battery Cell
Lithium Iron Phosphate (LiFePO4)
Energy Capacity
5.120kWh
Usable Capacity
4.86kWh
Operate Voltage Range
44.8Vdc-57.6Vdc
Max Charge/Discharge
100Amp
Communication Port
CAN / RS485
BMS Monitoring
SOC, Voltage, Current, Cell Temp, Fault Codes
IP Grade
IP21
Size / Weight
600*440*190 mm / 55kg
The battery system is equipped with a multi-protocol communication module, supporting communication protocols of over 95% of mainstream inverter brands worldwide, including Victron, SMA, Goodwe, Solis, Deye, and more.
Future Smart Living Ecosystem
Integration of R&D with manufacturing delivers full-spectrum smart building technologies. By combining solar storage with climate systems and HVAC, we create homes that are energy-efficient, comfortable, and intelligent.
Frequently Asked Questions
What is the lifespan of this LiFePO4 battery?
The battery offers a standard cycle life of ≥6000 times at 25°C, ensuring over 10 years of reliable service under normal operating conditions.
Can I expand the storage capacity later?
Yes, the system supports parallel connection of up to 16 units, allowing you to scale your total capacity up to 81.92kWh.
Which hybrid inverters are compatible with this system?
Our BMS supports multi-protocol communication (CAN/RS485) and is compatible with 95% of mainstream brands including Victron, Deye, Growatt, Goodwe, and Solis.
What type of installation is required?
The unit is designed for flexibility; it can be either floor-standing or wall-mounted depending on your space requirements.
What safety features are included in the BMS?
The integrated Battery Management System monitors SOC, system voltage, charging/discharging current, individual cell voltage, and temperature to prevent overcharging or overheating.
What is the standard warranty period?
The product comes with a standard 5-year warranty, with an option to extend coverage up to 10 years for long-term peace of mind.
