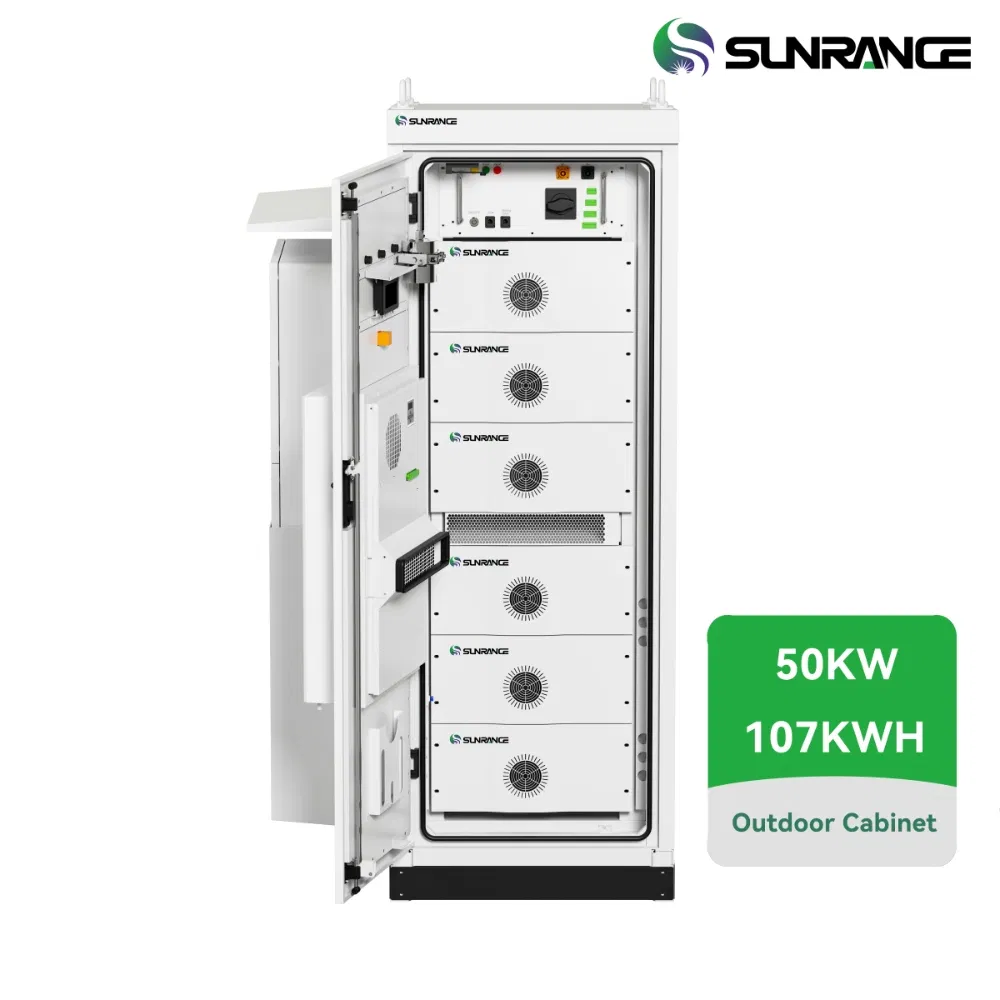

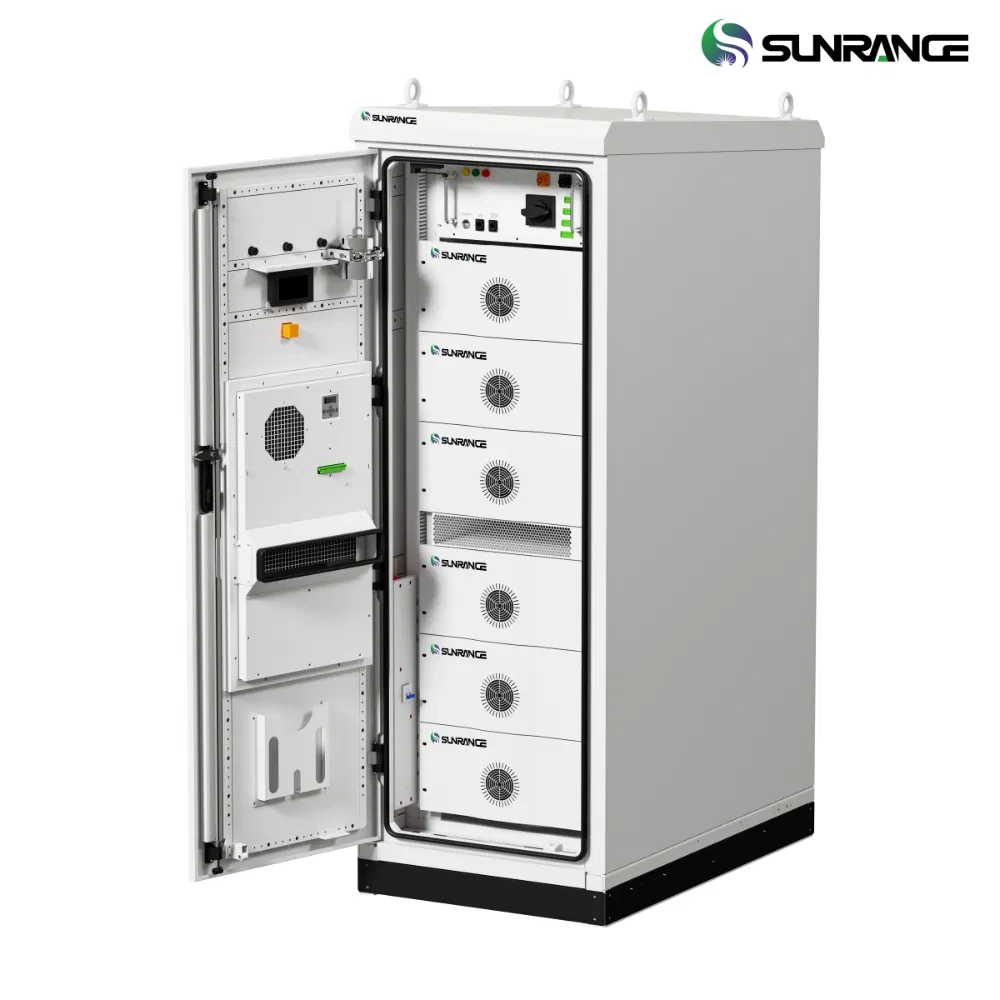

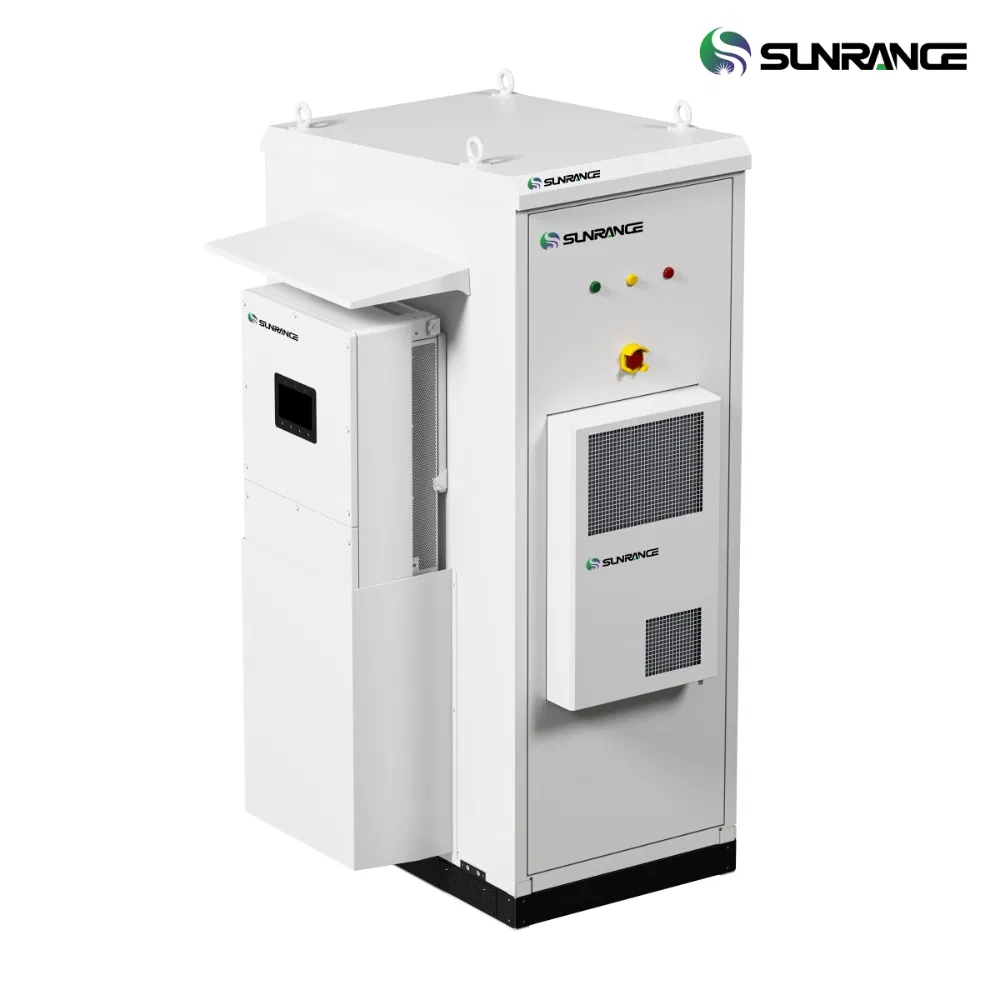

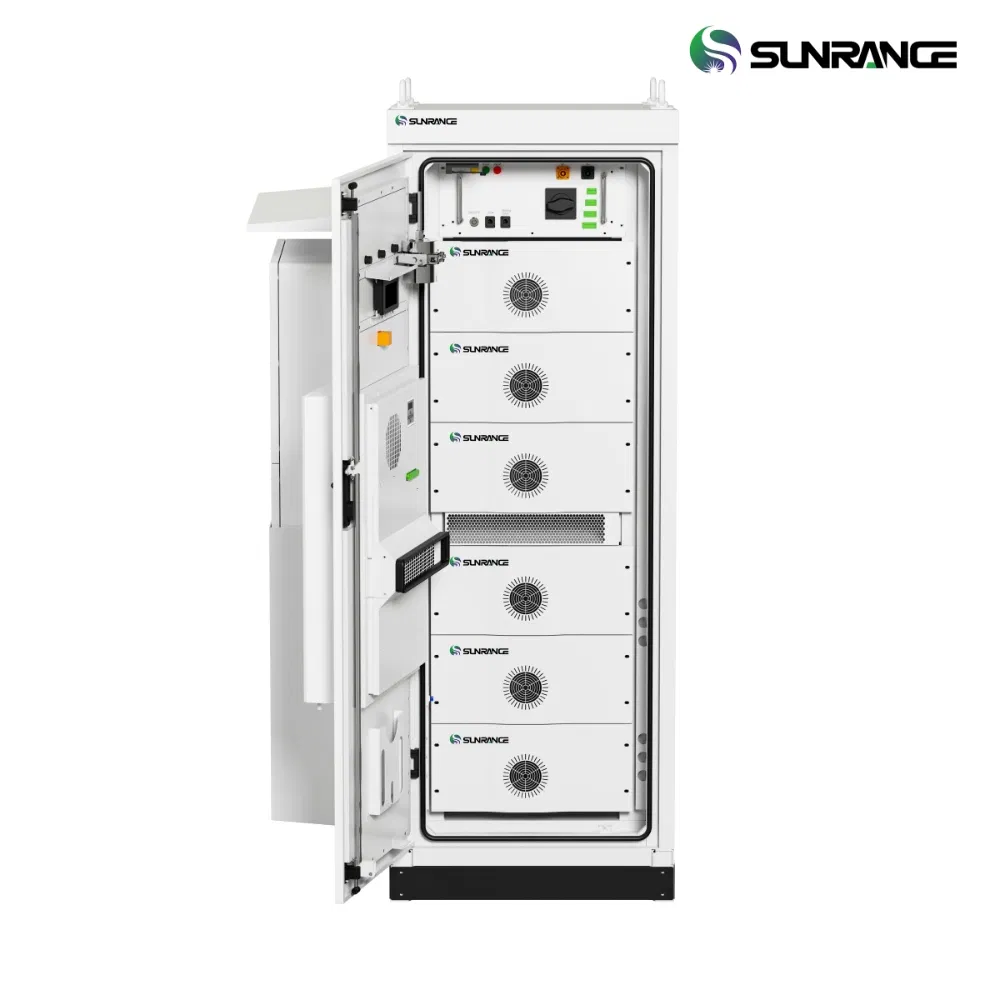

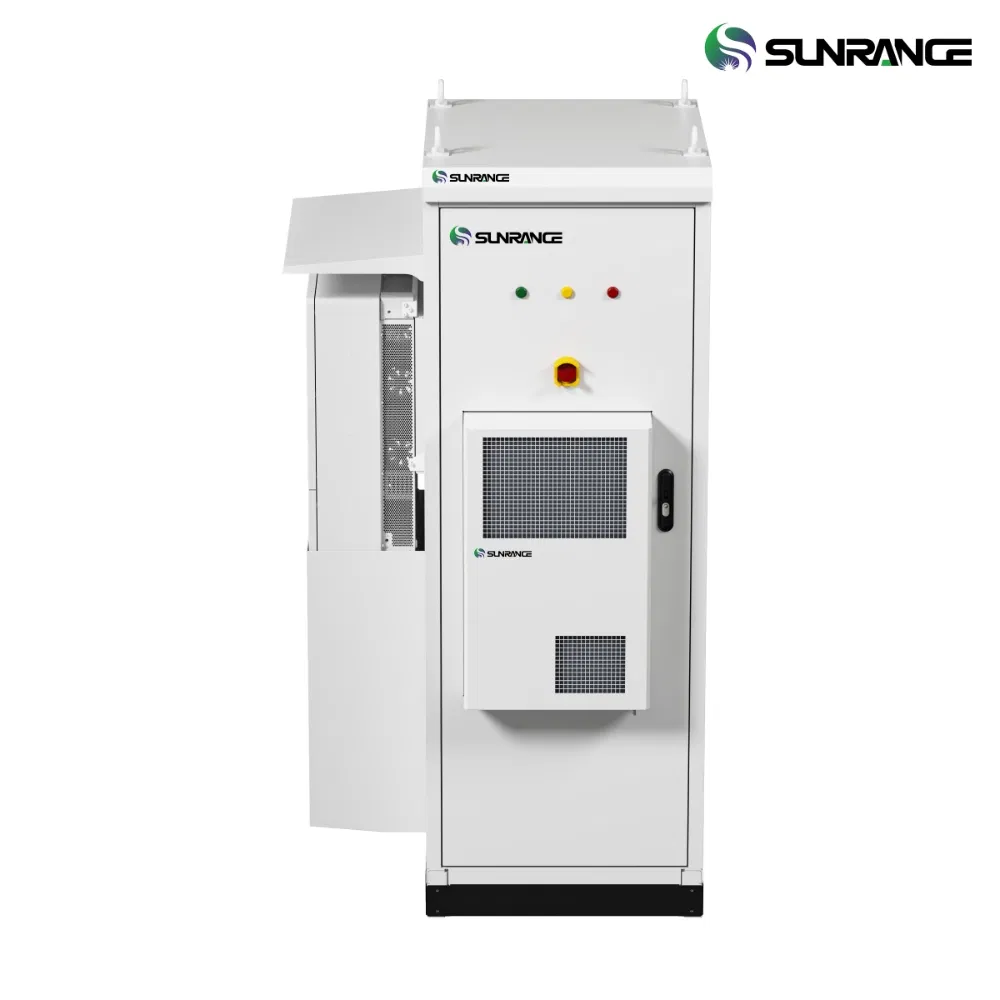

Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
1 / 5
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions

Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
SR-eBank-50120F
Condition
New
Certification
ISO, CB, CE
Application
Industrial, Commercial
Rated Voltage
384V
Rated Energy
107.5kwh
Cycle Life
8000 Times
Max.PV Input
96 Kw
Dimension
W750*H2000*D1100mm
Protection
IP54
🌟

Product Description

Mobile Solar Container System Overview
📋

Technical Specification

Module: SR-eBank-50120F
Battery Parameters
Number of battery packs6
Rated voltage384V
Voltage range336~438V
Rated energy107.5kWh
Max. continuous current140A
Discharge Depth90%
Cycle life8000 times
PV Parameters
Max. PV input power96kW
Max. input voltage1000VDC
MPPT voltage range150~850VDC
AC Side Parameters
AC rated output power50kVA
AC Max. output power55KVA
Voltage3L/N/PE; 230/400V
Frequency50/60Hz
System Parameters
CommunicationCAN/RS485/WiFi/ETH
Design Life10 years+
ExpansionSupport parallel up to 90kW/252.9kWh
CoolingAir cooling
Environment temp-30~50℃
📸

Product Detail Photos

Detail Photo 1
Detail Photo 2
⚙️

System Overview

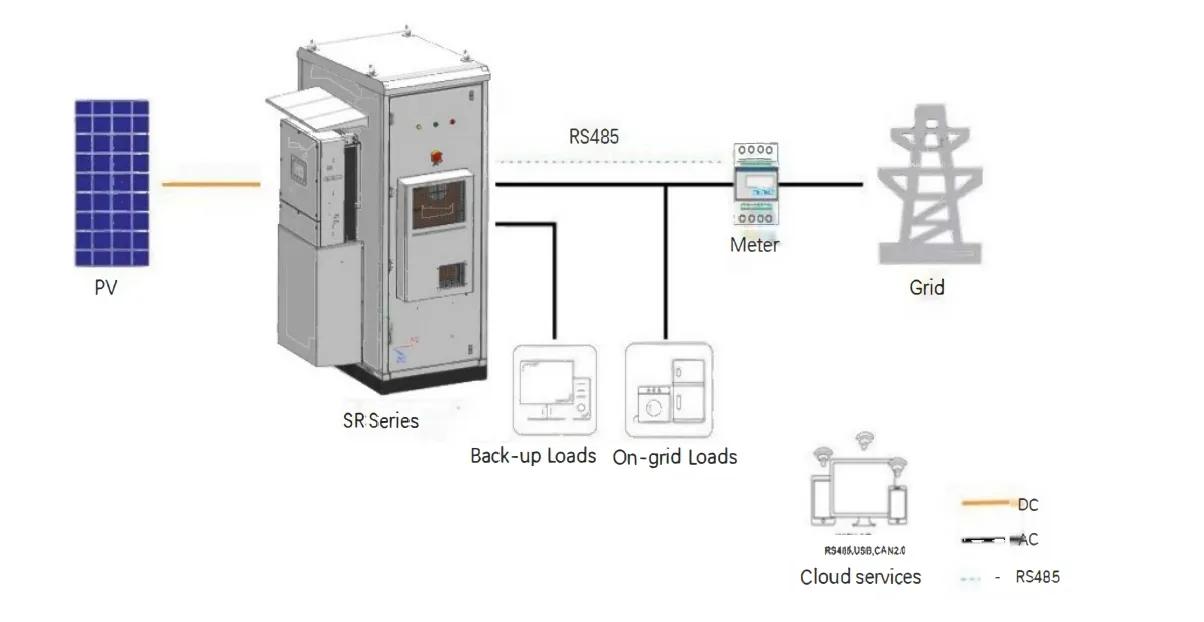

System Flow
The small-scale optical storage integrated outdoor cabinet energy storage system adopts modular design, featuring easy integration, easy deployment, and easy expansion. It guarantees system security and is ideal for peak shaving, valley filling, self-consumption, demand management, and off-grid power backup.

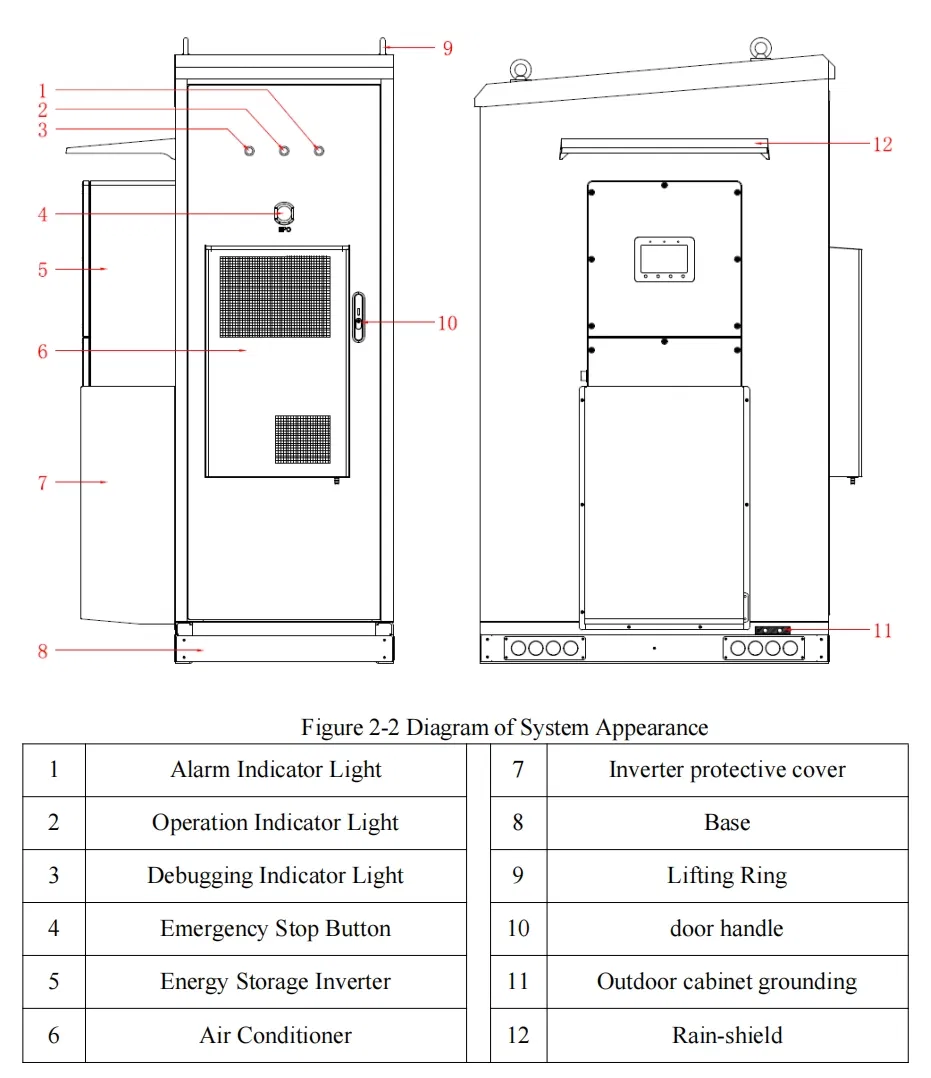

System Component 1

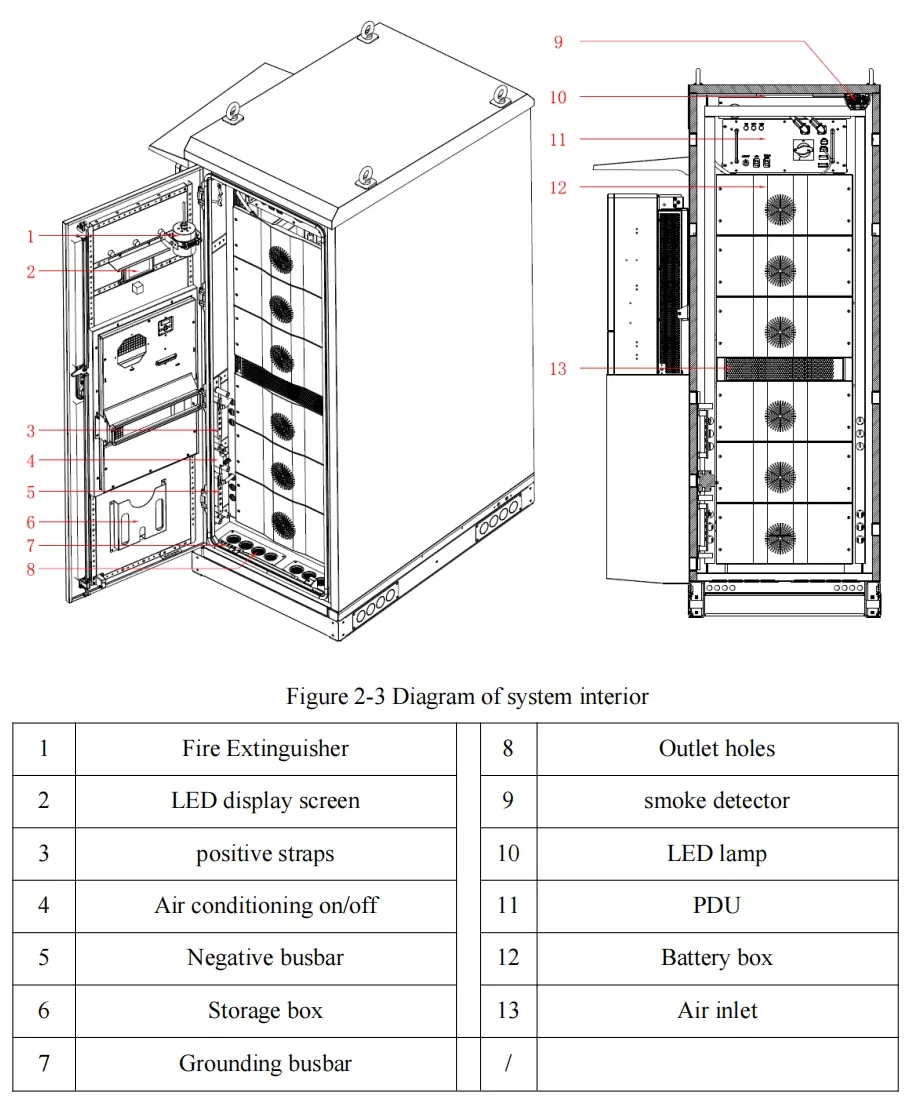

System Component 2

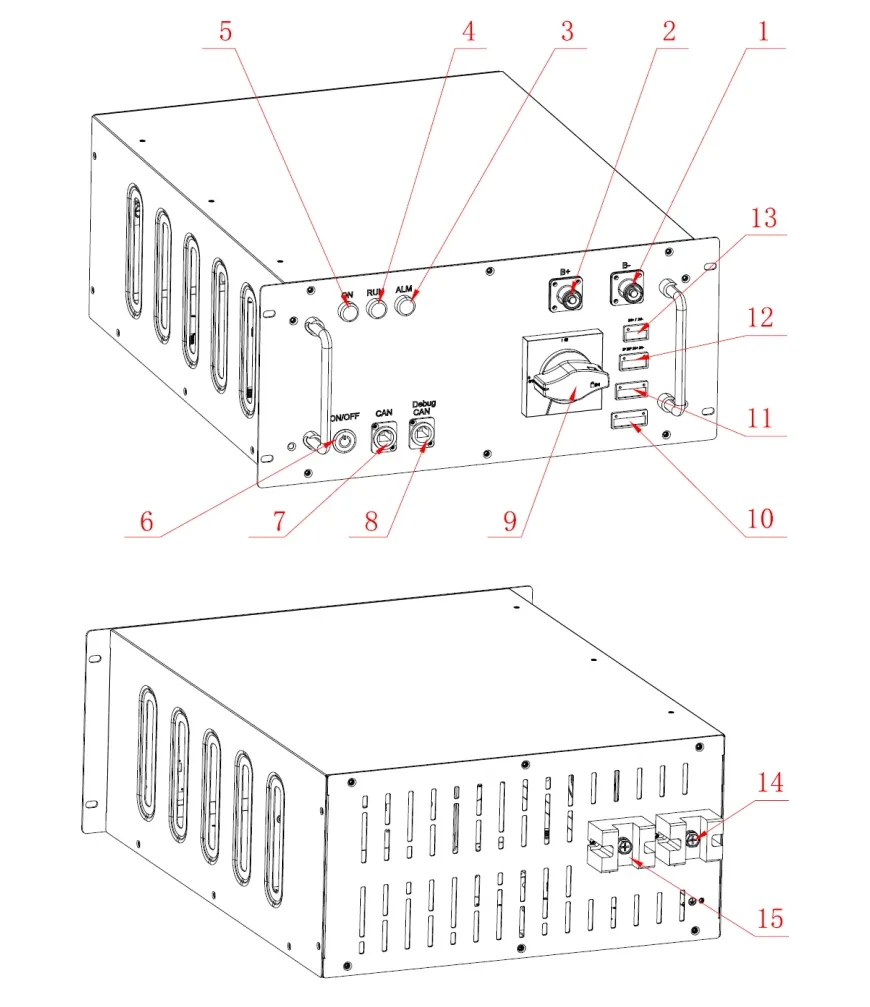

System Component 3

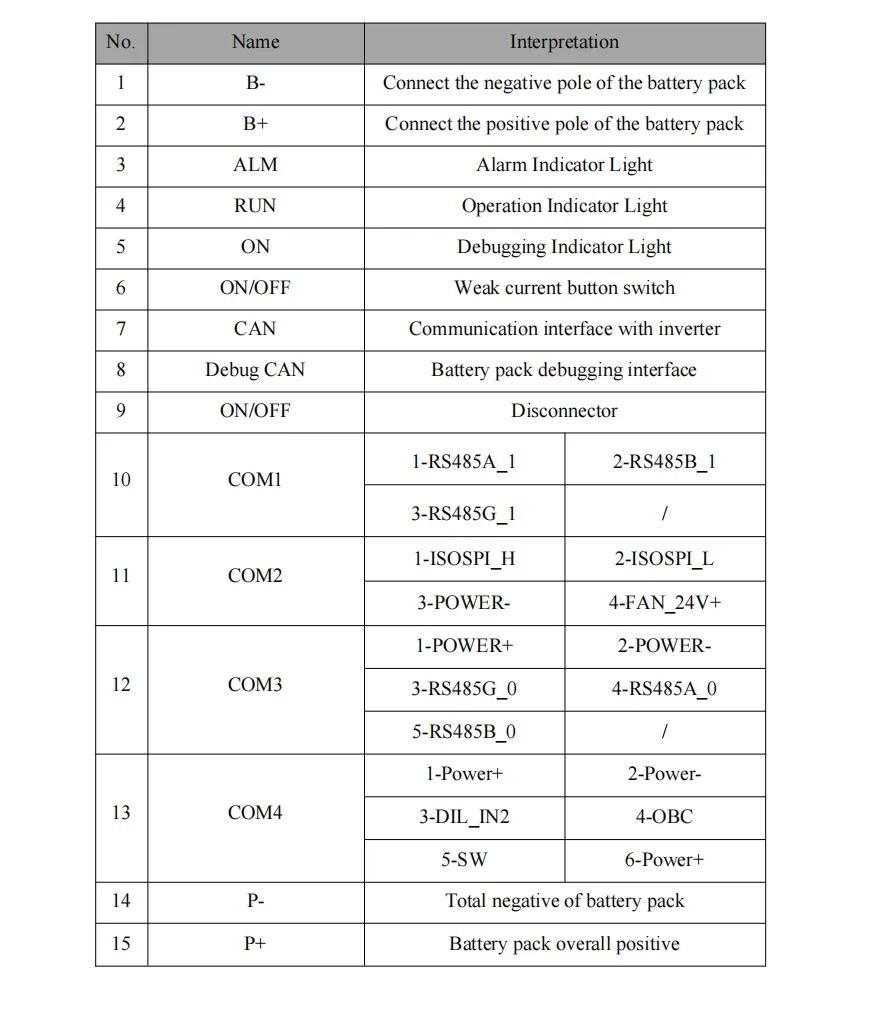

System Component 4
🛠️

Technical Support & Project Case

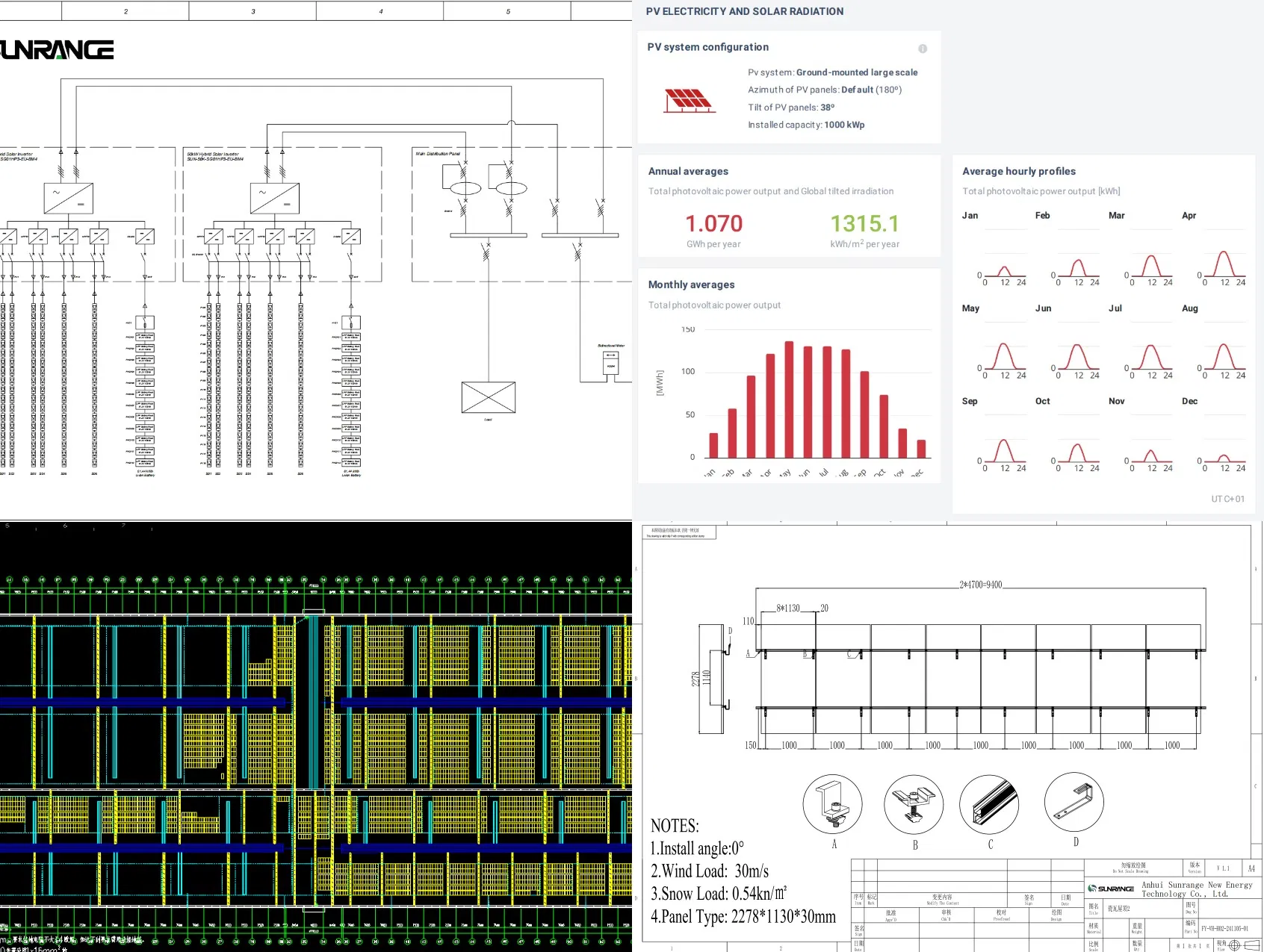

Technical Support

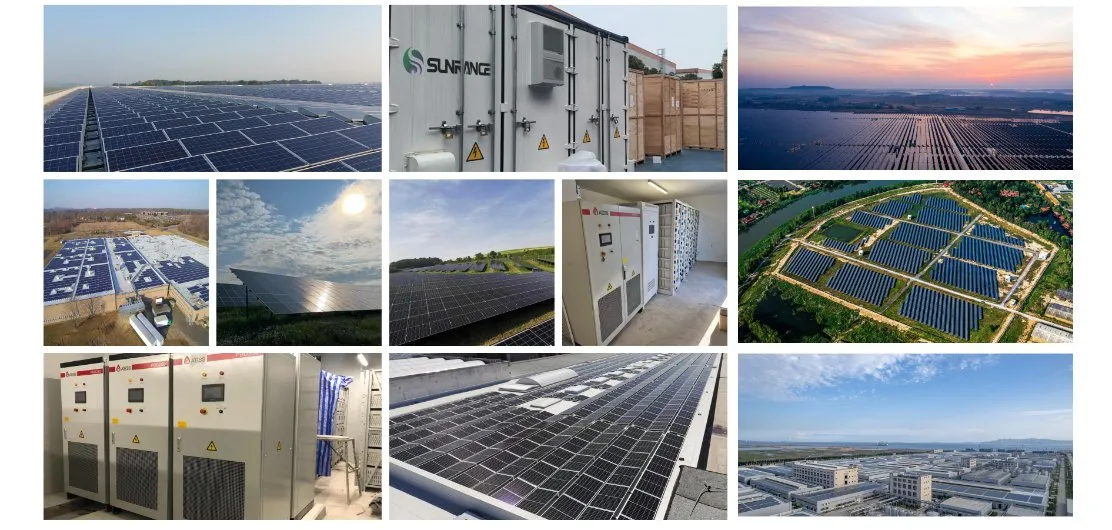

Project Case
📜

Certifications

Certifications Display
❓

Frequently Asked Questions

What is the storage capacity of this system?
The system provides a rated energy capacity of 107.5kWh with 6 battery packs.
How many cycles can the batteries withstand?
The battery system is designed for a long cycle life of up to 8000 times.
Is the system expandable for larger energy needs?
Yes, it supports parallel expansion up to a total capacity of 90kW / 252.9kWh.
What is the environment protection rating?
The system has an IP54 enclosure protection rating, making it suitable for various outdoor environments.
What are the supported communication protocols?
The system supports CAN, RS485, WiFi, and Ethernet (ETH) for monitoring and management.
In what temperature range can the system operate?
The system is designed to operate efficiently in environment temperatures ranging from -30℃ to 50℃.
