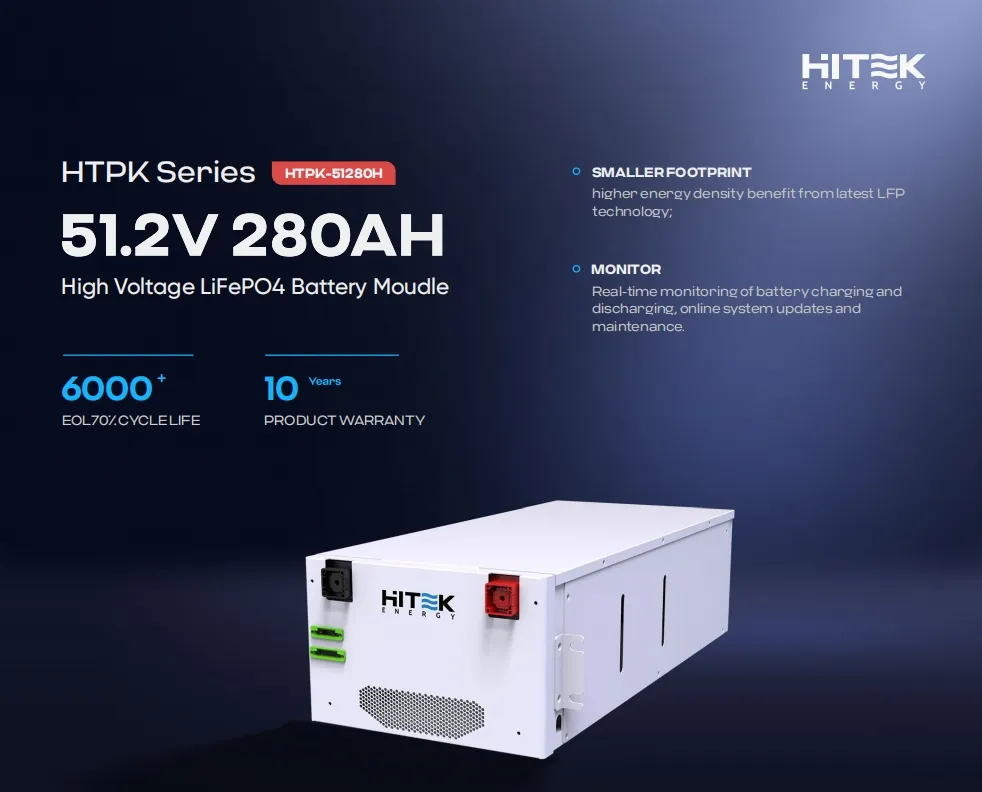

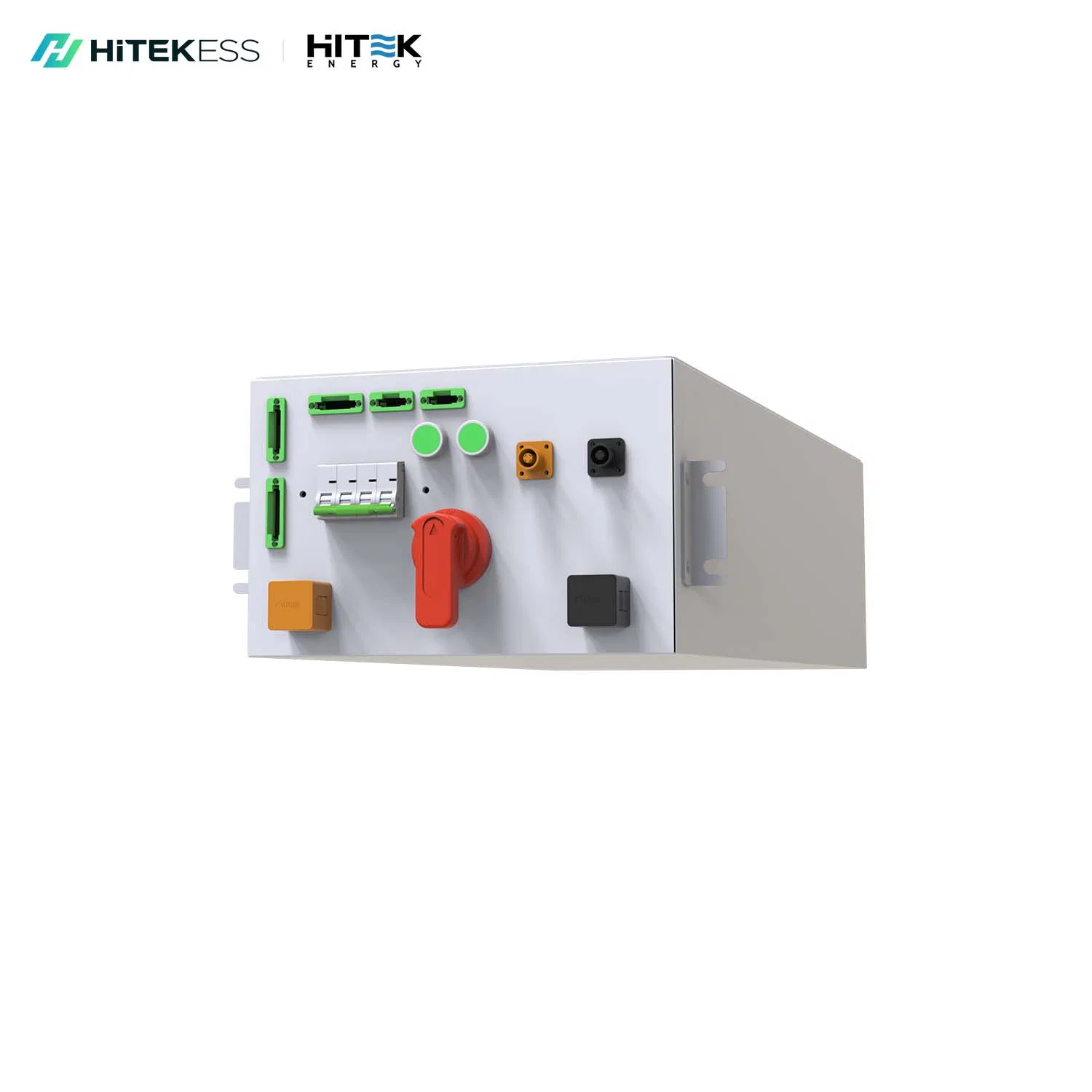

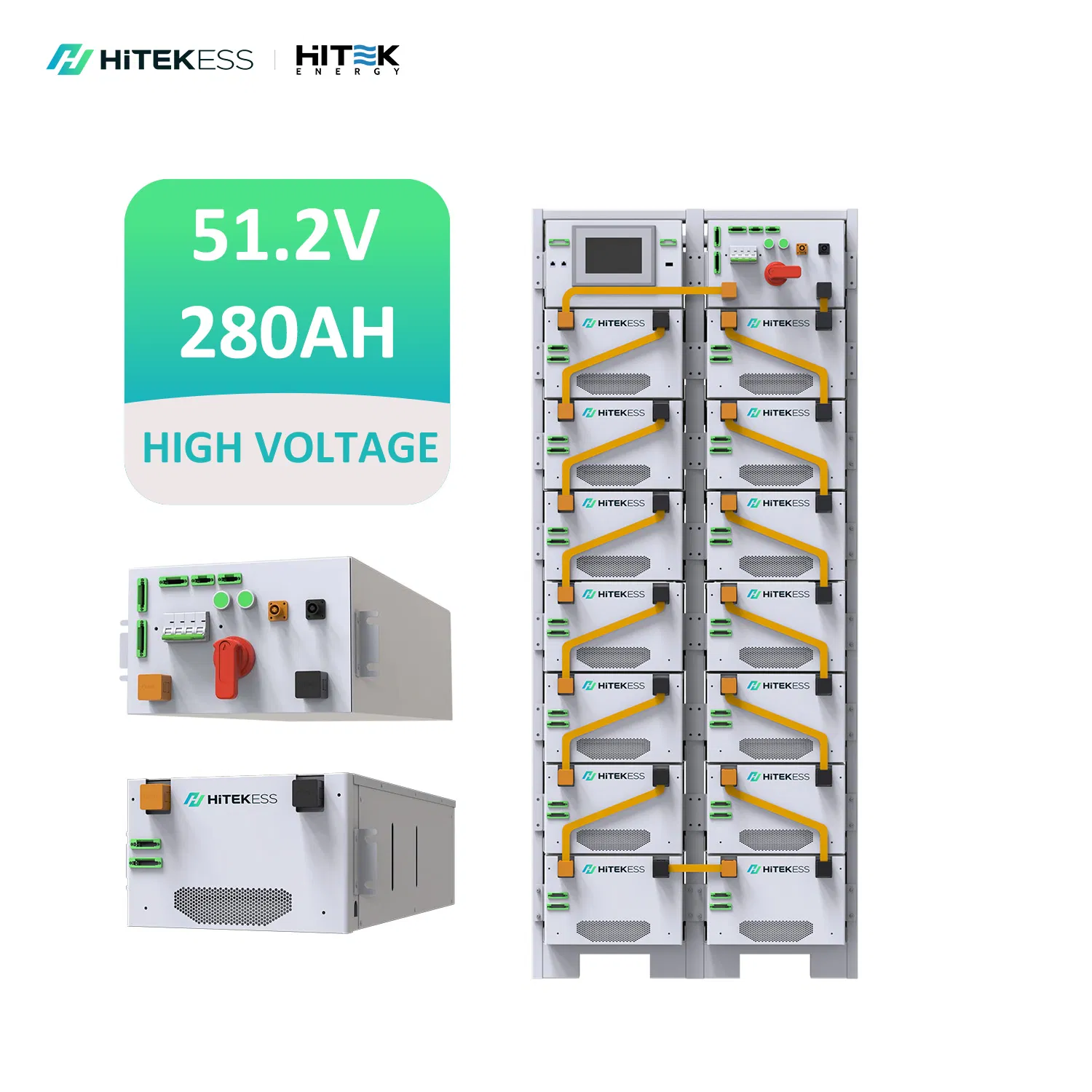

Commercial LFP Battery Pack - HV 51.2V 280AH

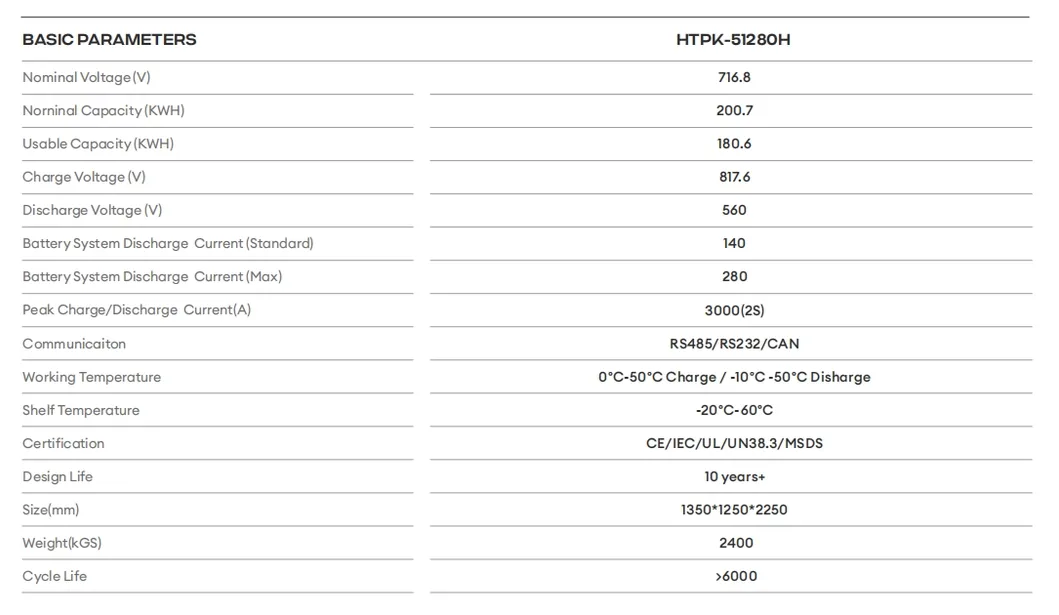

| Parameter | Specifications |
|---|---|
| Model | HTPK-51280H |

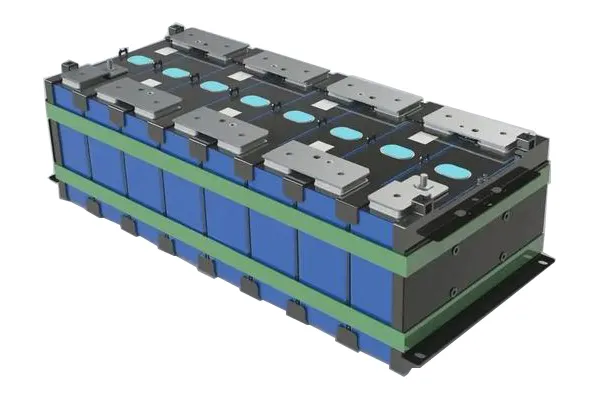

| Cell Connection | 1P16S |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280AH |
| Nominal Energy | 14.336KWH |
| Recommended Current | 100A (Charge/Discharge) |
| Max Current | 200A (Charge/Discharge) |
| Cooling | Smart Air Cooling |
| Operating Voltage | 44.8V ~ 57.6V |
| Dimensions | 505 x 500 x 235 mm |
| Weight | 116.30 KGS |
Our lithium battery packs are designed for longevity, offering over 6000+ cycles with a 10-year warranty based on 80% Depth of Discharge (DOD).

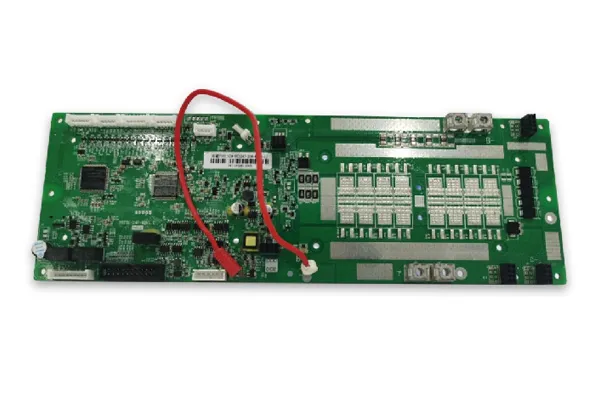

Yes, each pack features a Built-in Smart BMS (Battery Management System) that monitors temperature, voltage, and current to ensure safe and efficient operation.

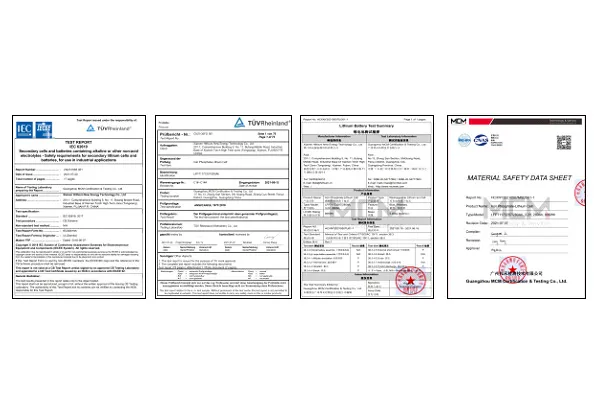

The products are fully certified with UN38.3, MSDS, CE, and IEC standards, ensuring compliance for international transport and industrial safety requirements.

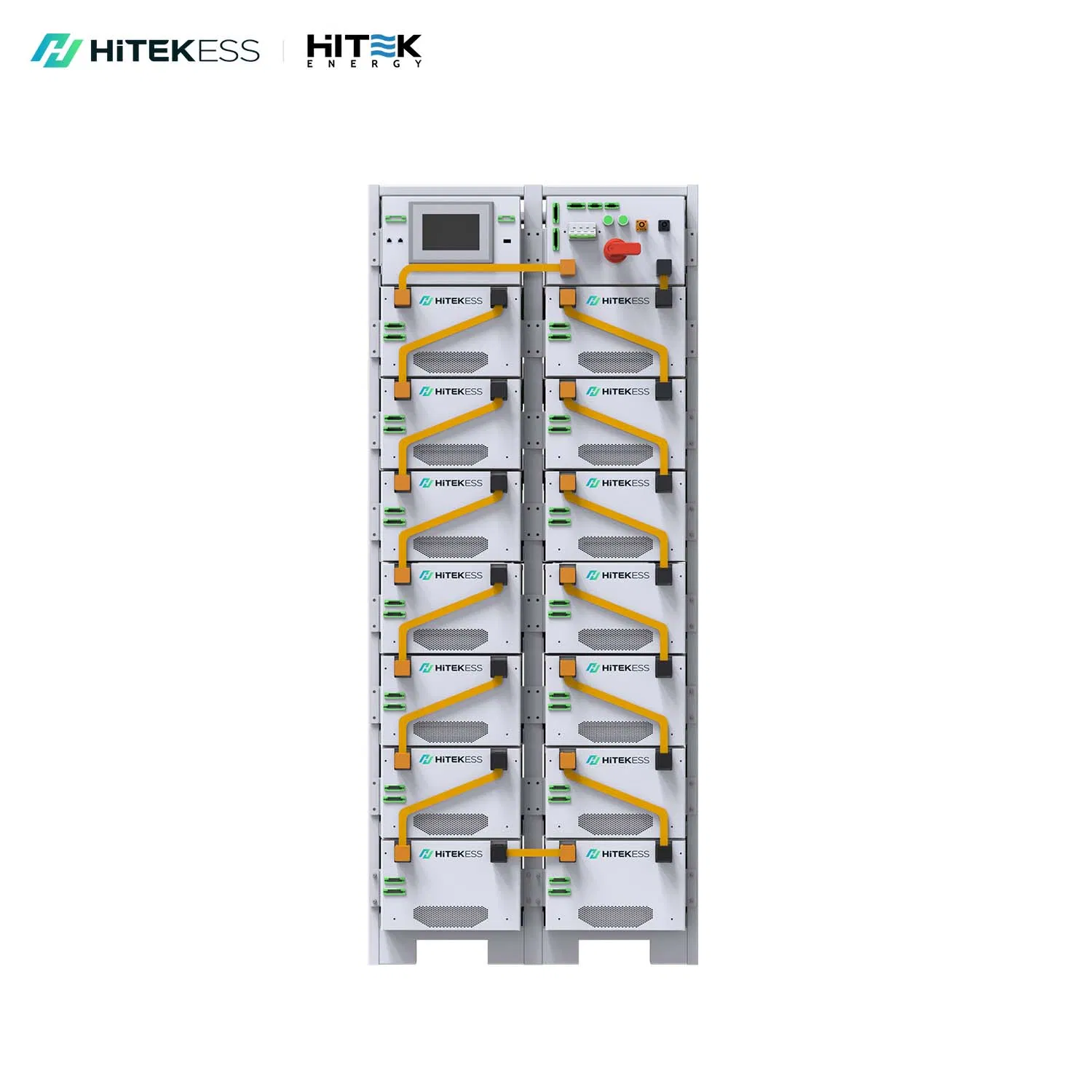

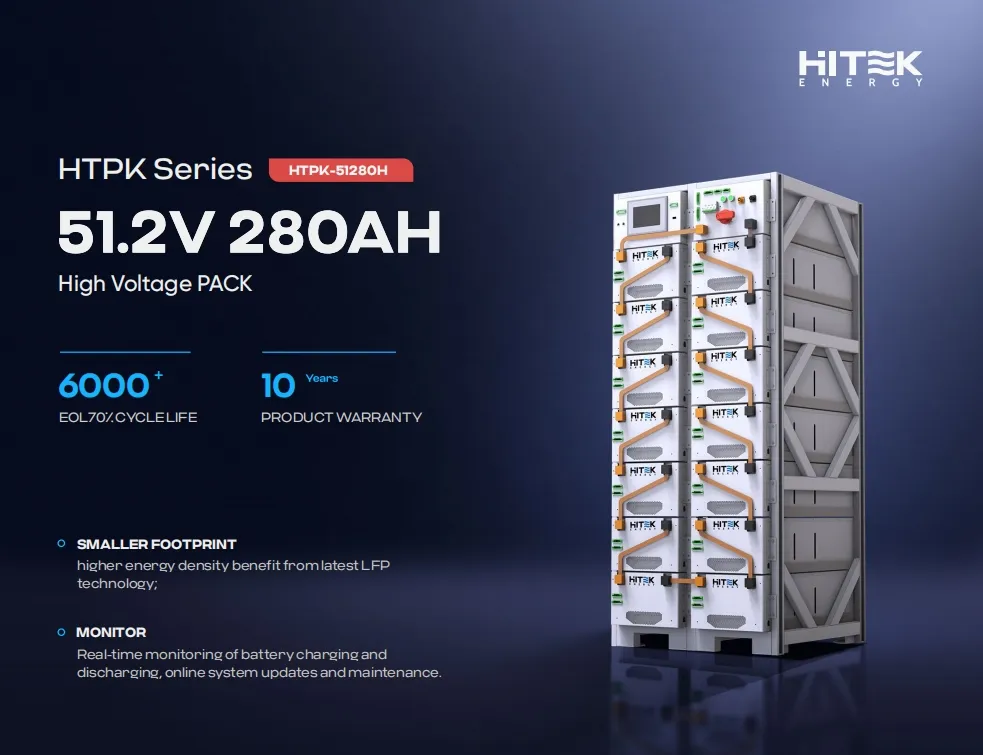

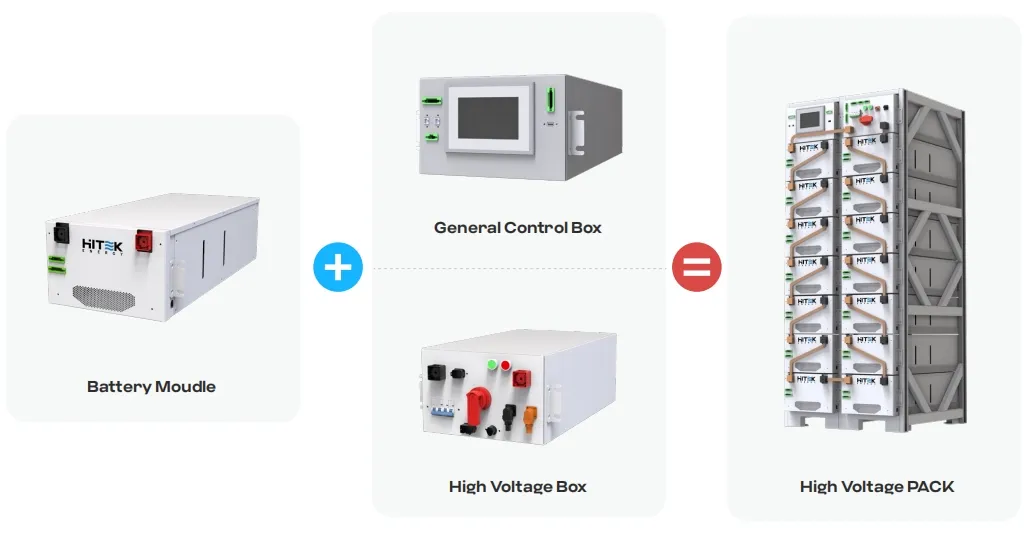

Absolutely. We support flexible customization. You can choose from standard modules or scale up to 100kWh, 200kWh, 300kWh, or even MWH-level systems.
Yes, we offer IP65-rated options, making the battery pack suitable for both indoor and outdoor commercial and industrial environments.
The system utilizes Smart Air Cooling or advanced Liquid Cooling methods depending on the specific model and application requirements to maintain optimal thermal stability.
