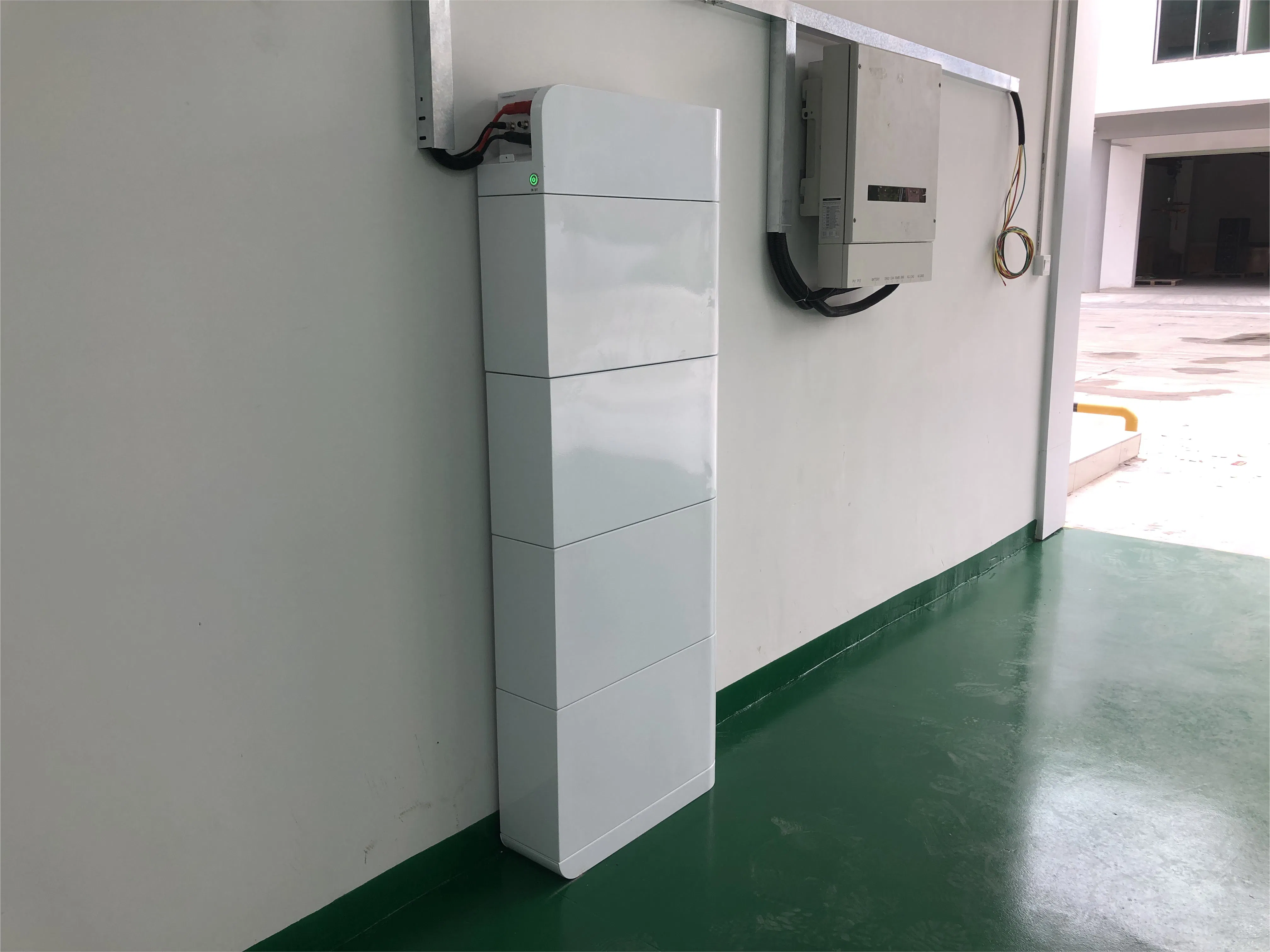

Energy System Solution Solar Power Storage 100kwh 50kw 30kw 20kw 10kw off Grid Large Industrial Energy Storage Systems Lithium Battery

1 / 5

Energy System Solution Solar Power Storage 100kwh 50kw 30kw 20kw 10kw off Grid Large Industrial Energy Storage Systems Lithium Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SPHB10KWH-25KWH

Installation Mode

Stack

IP Grade

IP65

Safety(Pack)

Un38.3, MSDS, IEC62619(CB), CE

Protection

BMS, Breaker

Cell Mode

3.2V 50ah

Voltage Range

180V-560V

Pack Weight

49kg

PDU Base Weight

15kg

Capacity

50ah

Type

Lithium Battery

Specification

630*185*345mm

★

Product Description

PERFORMANCE SPECIFICATIONS
Model	SP-HB-10000W	SP-HB-15000W	SP-HB-20000W	SP-HB-25000W
Nominal Voltage	204.8V(64series)	307.2V(96series)	409.6V(128series)	512V(160series)
Cell model	3.2V 50Ah(ANC)/32S1P
Capacity(Ah)	50AH
Rated Energy(KWH)	5.12KWH
Usable Energy(KWH)	4.6KWH
Max. Charge/Discharge Current	25A / 50A
Voltage Range(Vdc)	180-228V	270-340V	350-450V	440-560V

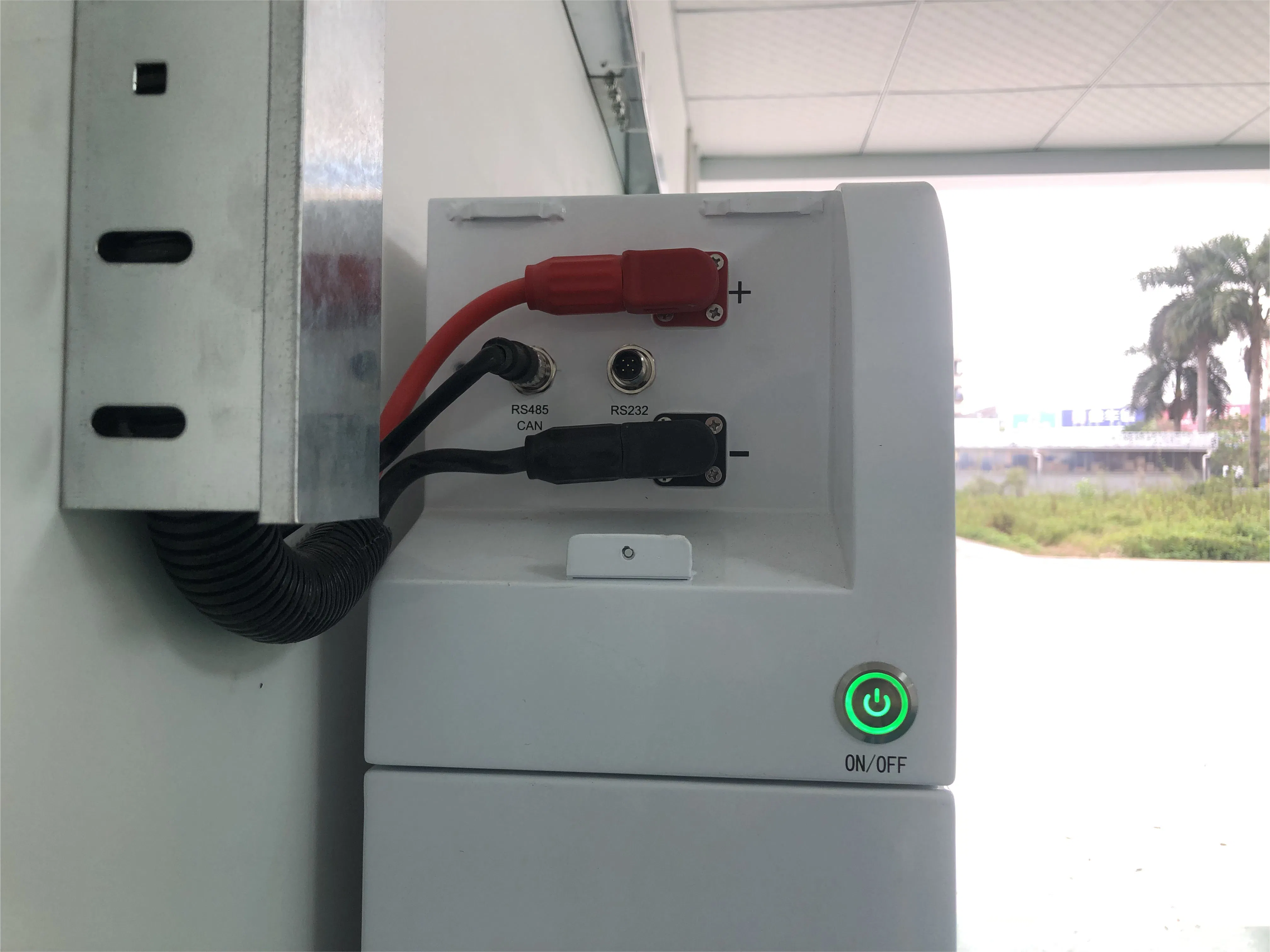

Communication	RS232-PC, RS485-Inverter, Canbus-Inverter
Cycle Life	≥6000 cycles @ 25ºC, 90% DOD, 60% EOL

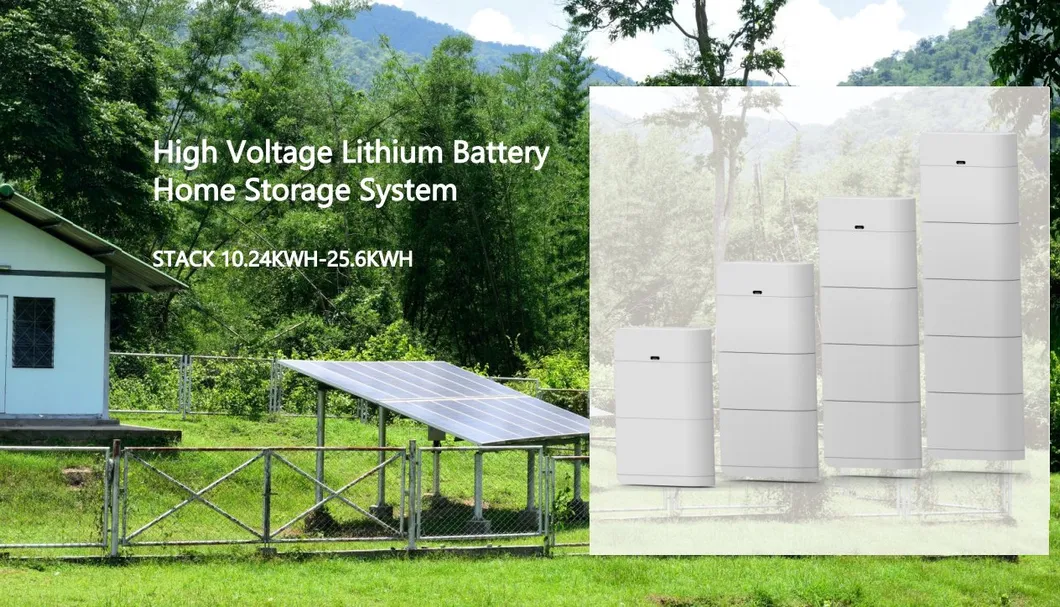

SP-HB-box Series

Capacity range can be expanded from 10.24kWh to 25.6kWh.
Easier and faster installation/maintenance with cable-free modules.
Long life technology ensures more than 6000 cycles with 90% DOD.

High Performance

High security technology ensures stable and excellent performance.
Compatible with multiple inverters including KSTAR, DEYE, GOODWE, Solis, Growatt, Voltronic.
Efficient energy solutions for household and small commercial scenarios.

✔

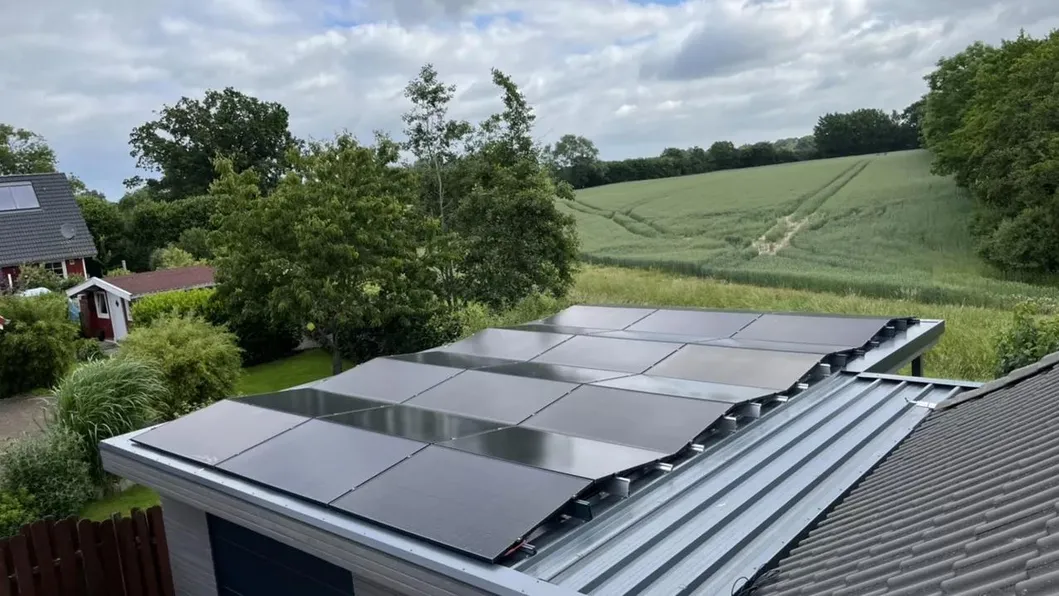

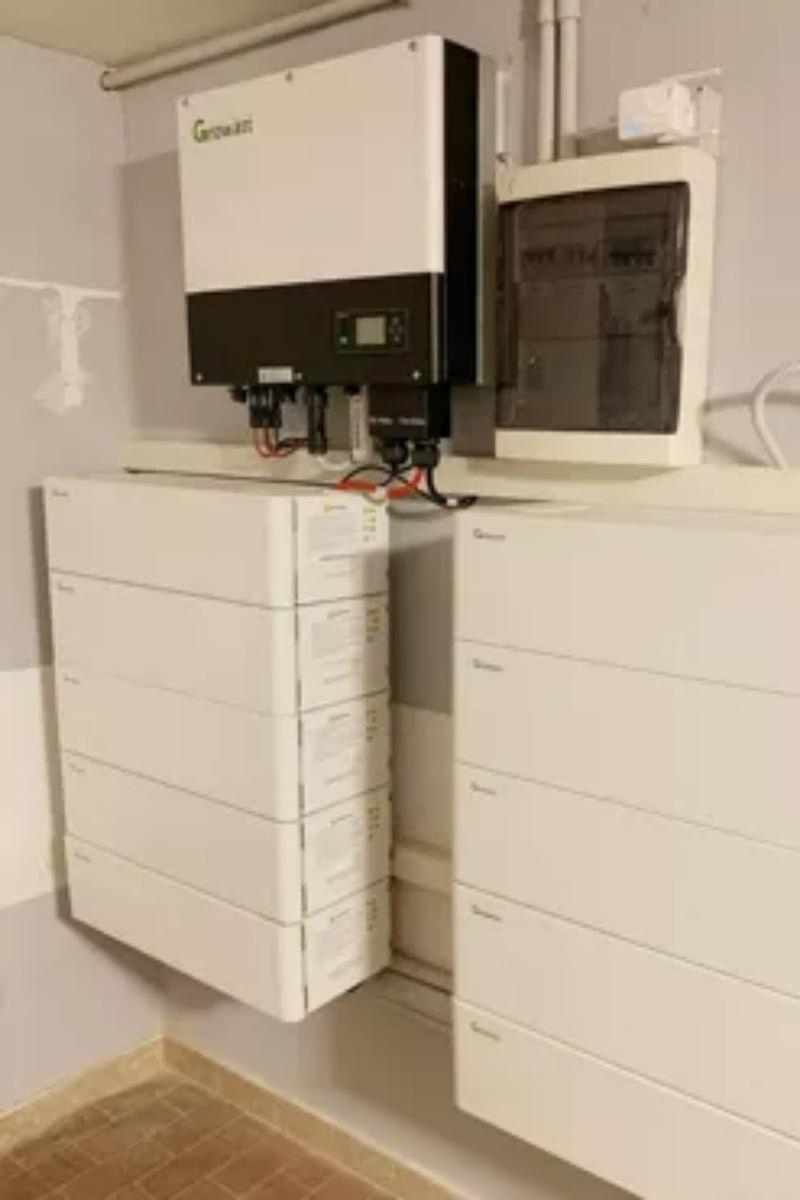

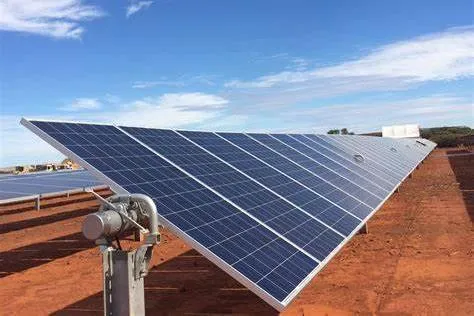

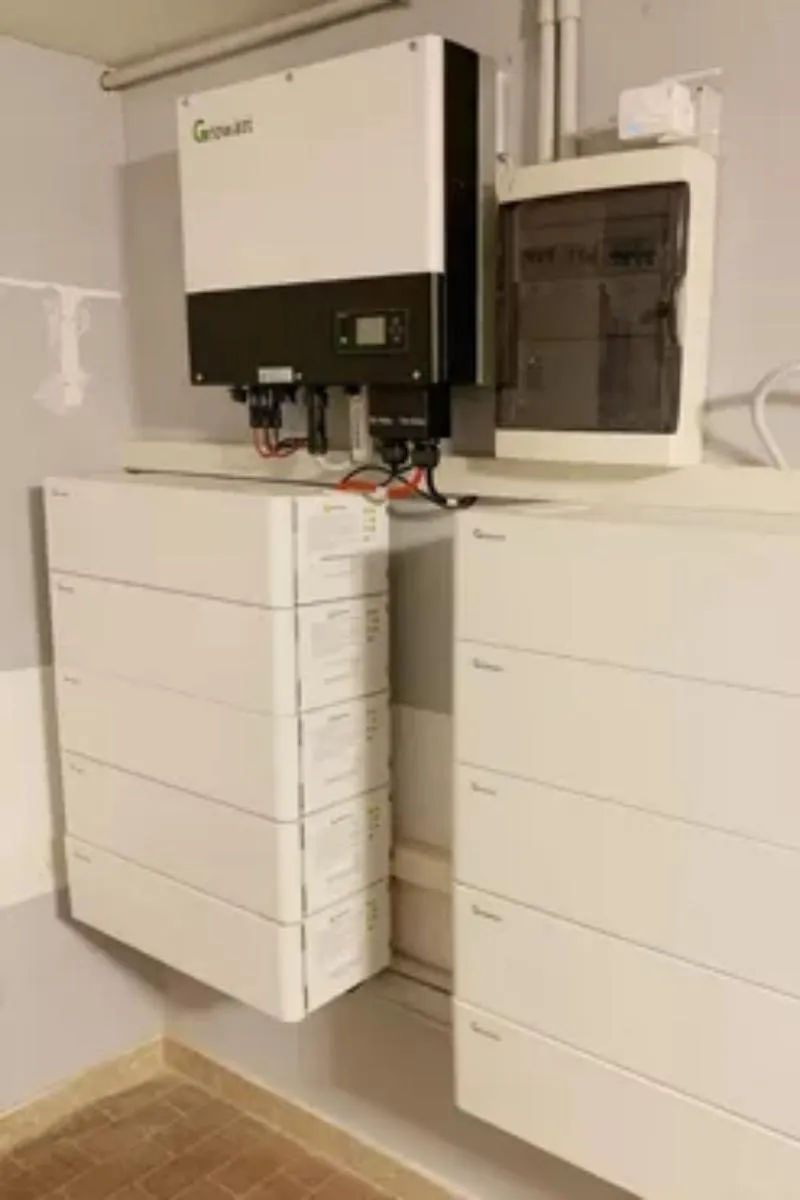

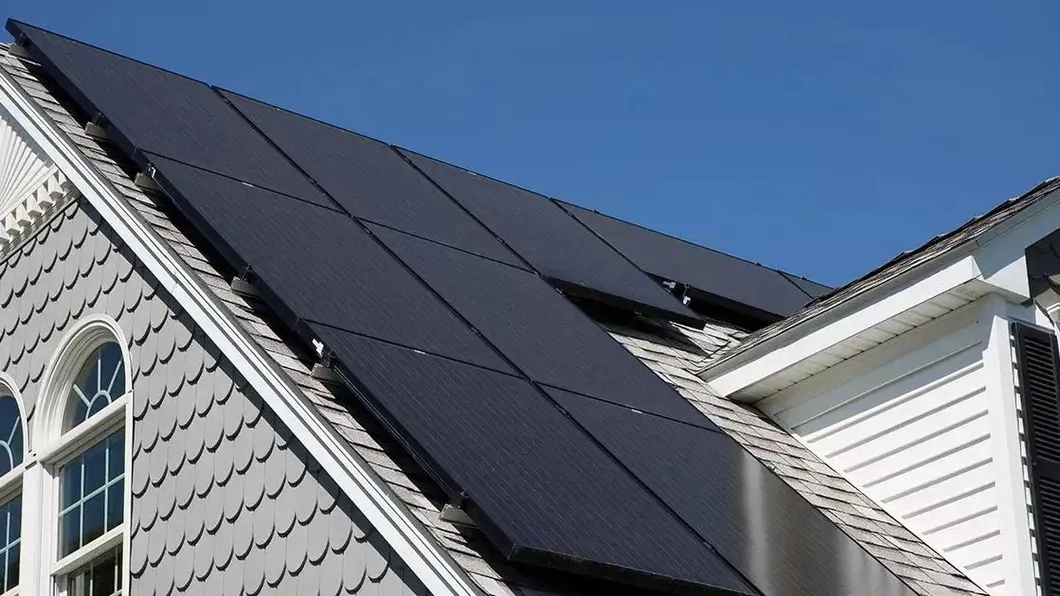

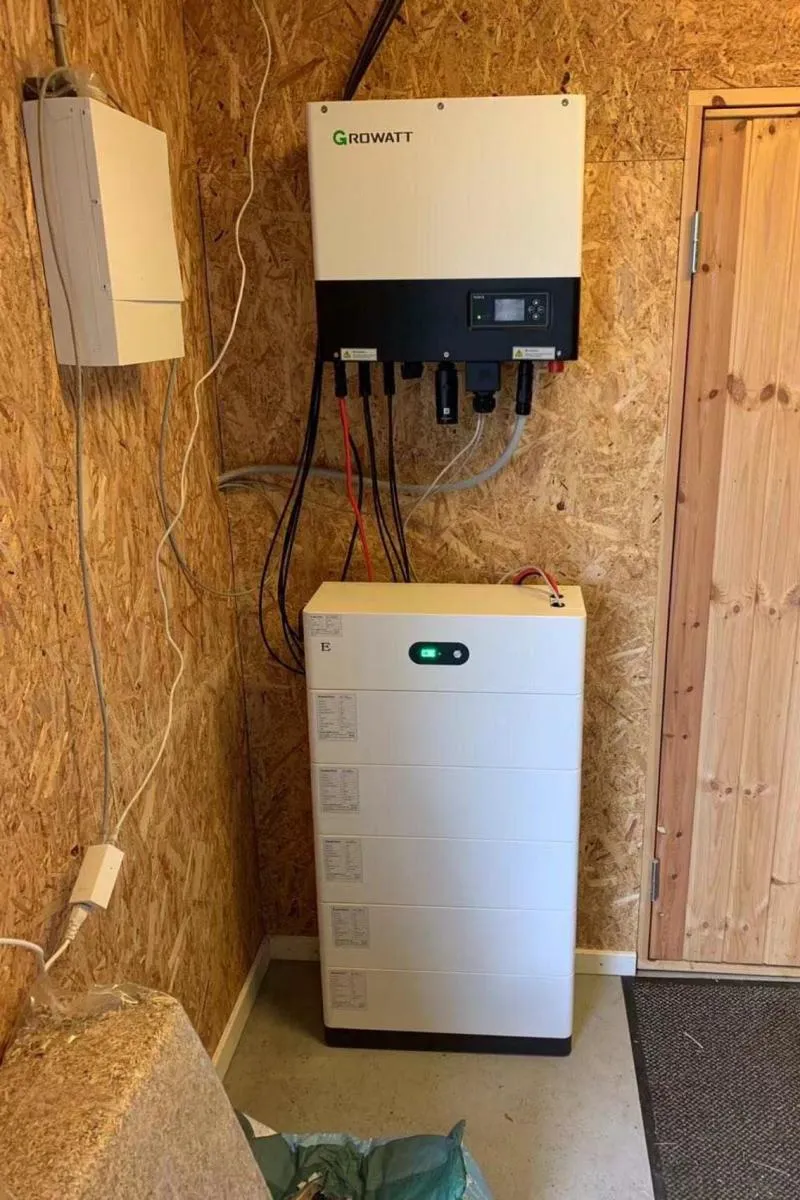

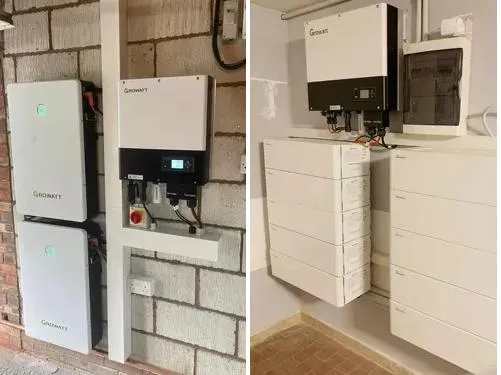

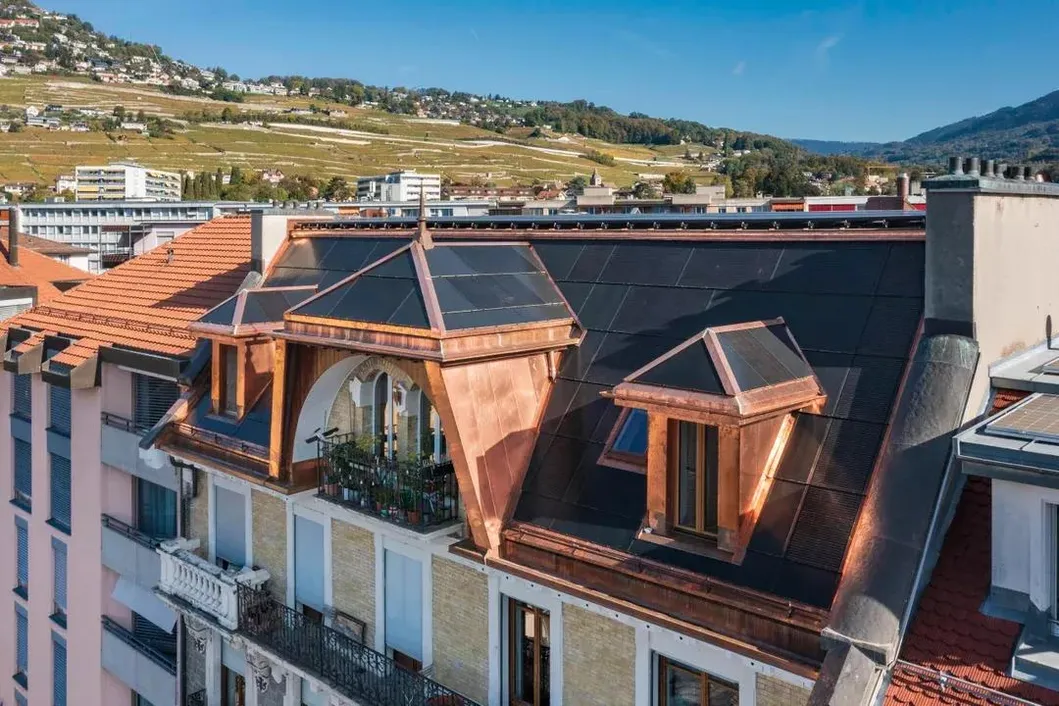

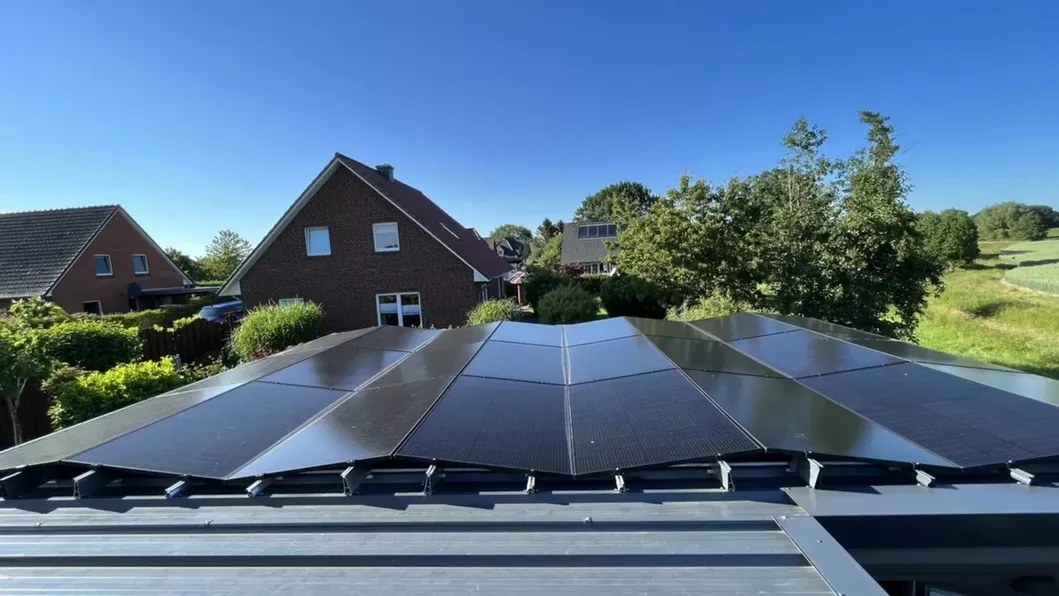

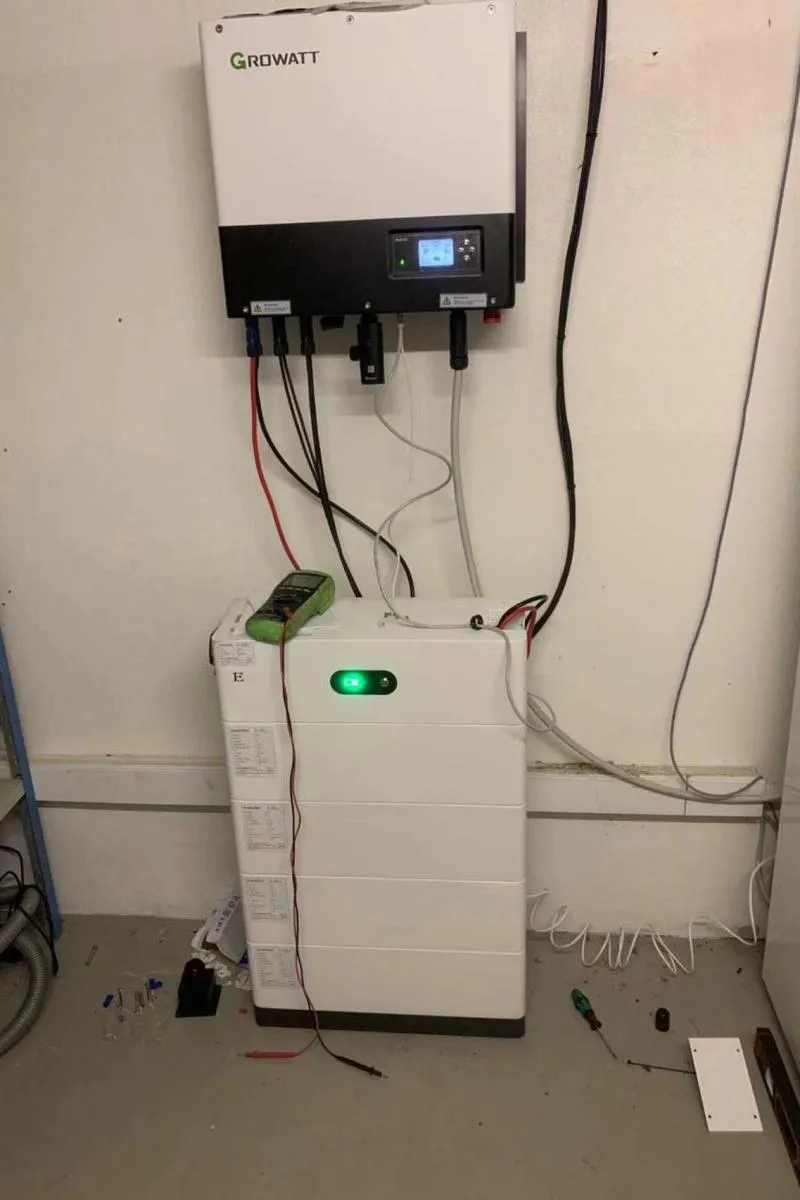

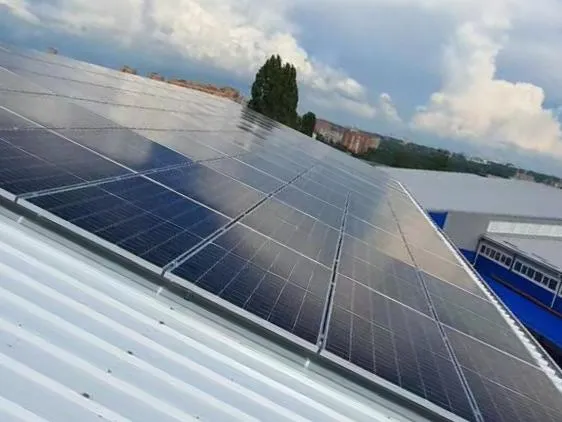

Project Cases

✈

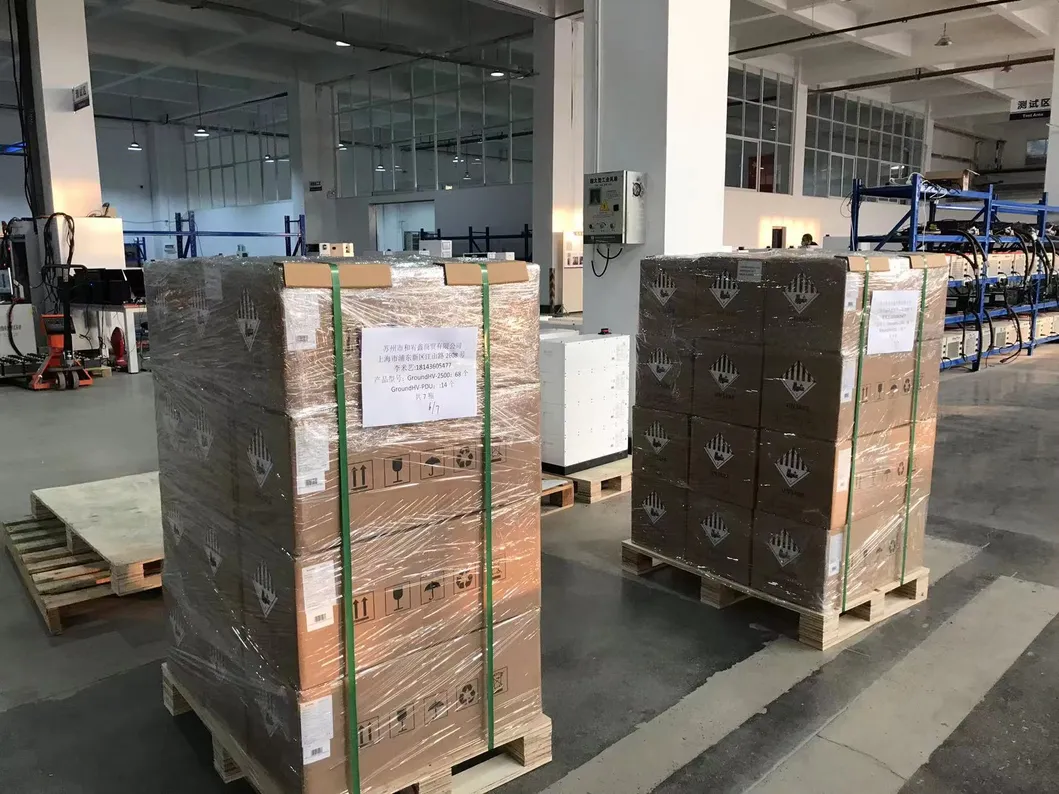

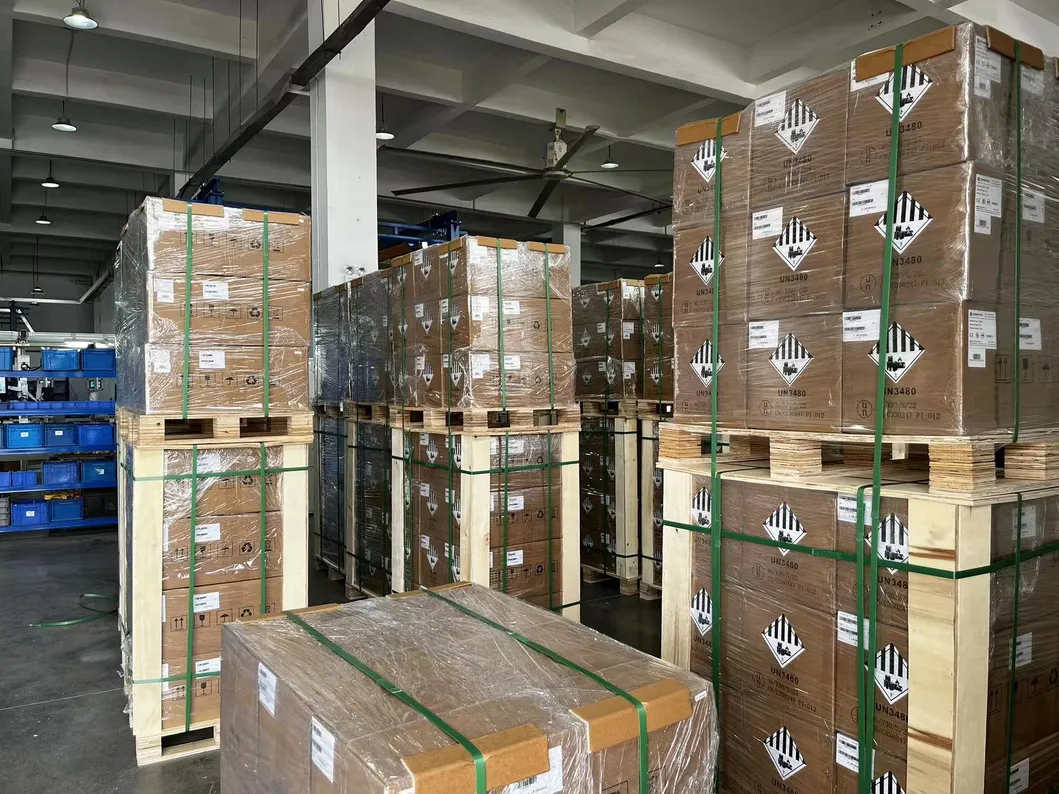

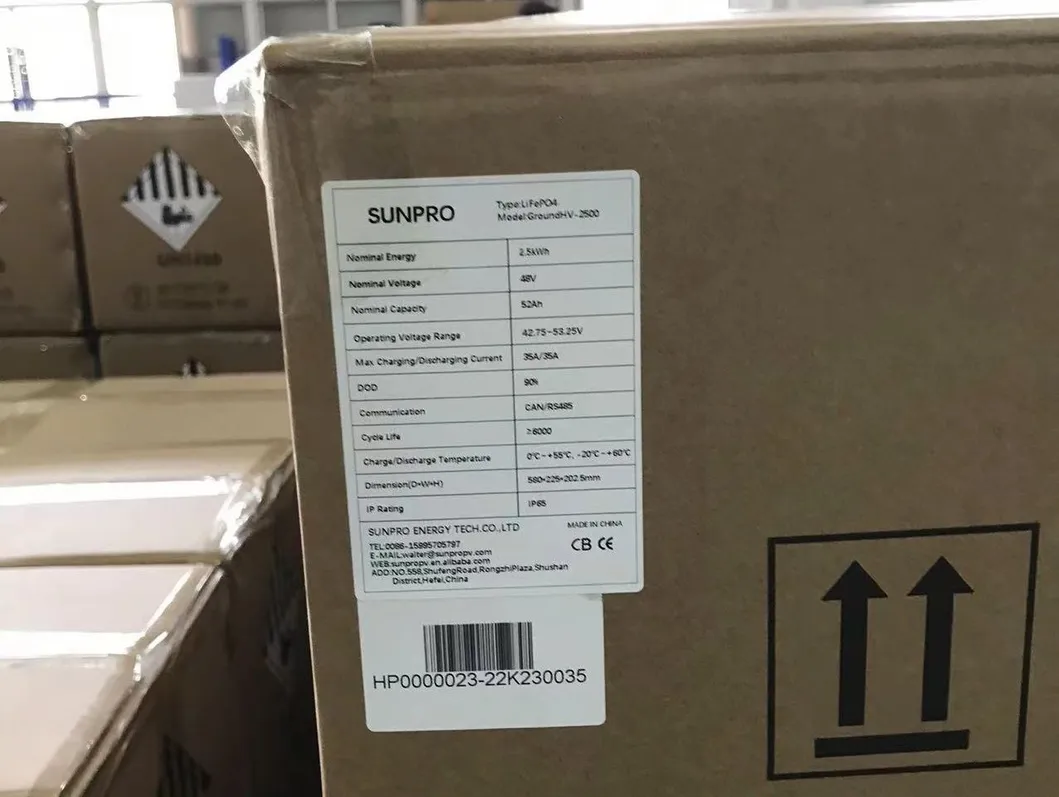

Packing and Delivery

Frequently Asked Questions

What is the cycle life of the SP-HB series battery?

The system provides a cycle life of ≥6000 cycles at 25ºC with 90% Depth of Discharge (DOD) before reaching 60% End of Life (EOL).

Which inverters are compatible with this energy storage system?

The system is compatible with several major inverter brands including KSTAR, DEYE, GOODWE, Solis, Growatt, and Voltronic via RS485 and Canbus communication.

Can the capacity be expanded later?

Yes, the stackable design allows for easy capacity expansion ranging from 10.24kWh up to 25.6kWh by adding modules.

Is this battery system safe for indoor/outdoor installation?

The system has an IP65 protection grade, making it highly resistant to dust and water. It also includes built-in BMS and circuit breakers for maximum safety.

What certifications does the product hold?

The battery pack is fully certified with UN38.3, MSDS, IEC62619 (CB), and CE-EMC, ensuring it meets international safety and transport standards.

What is the expected design life of the system?

Under standard operating conditions (25ºC), the system has a design life of 15 years or more.
