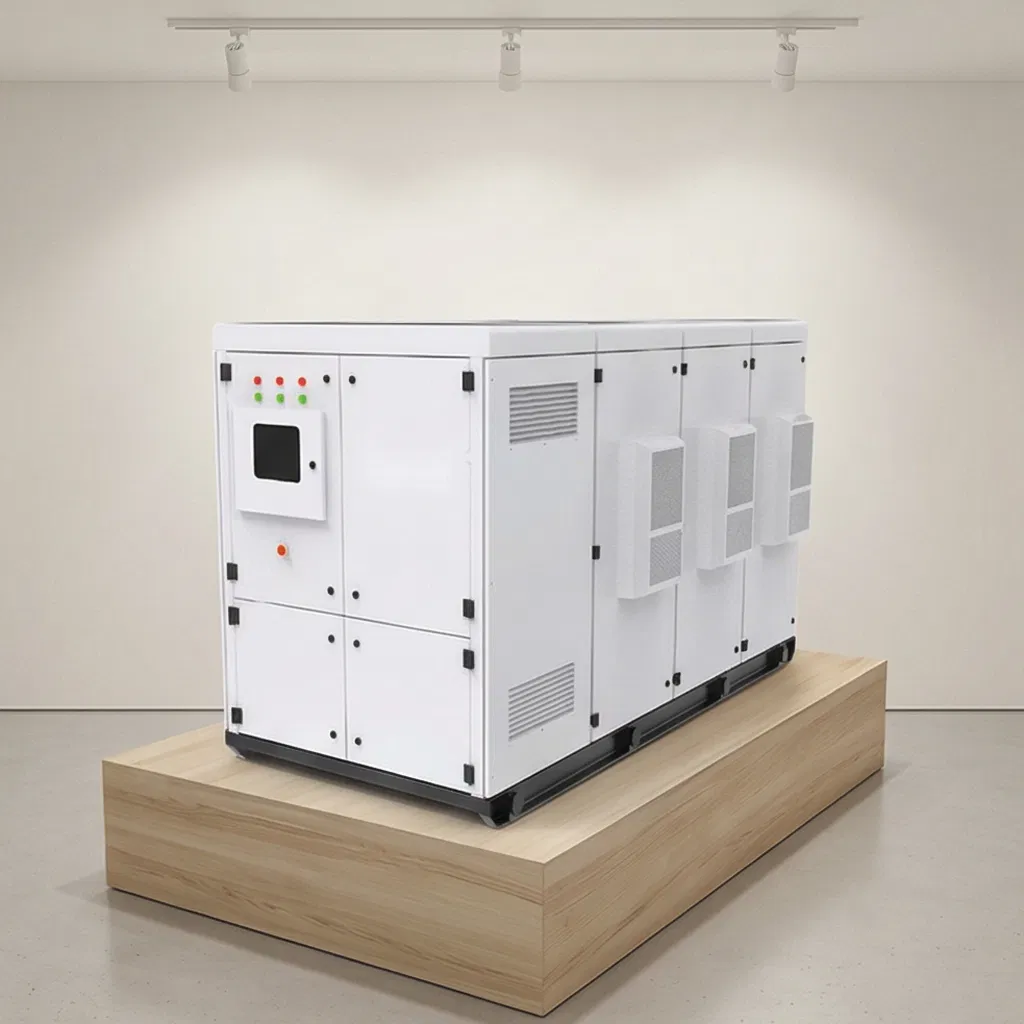

Ansar Energy
1 / 5

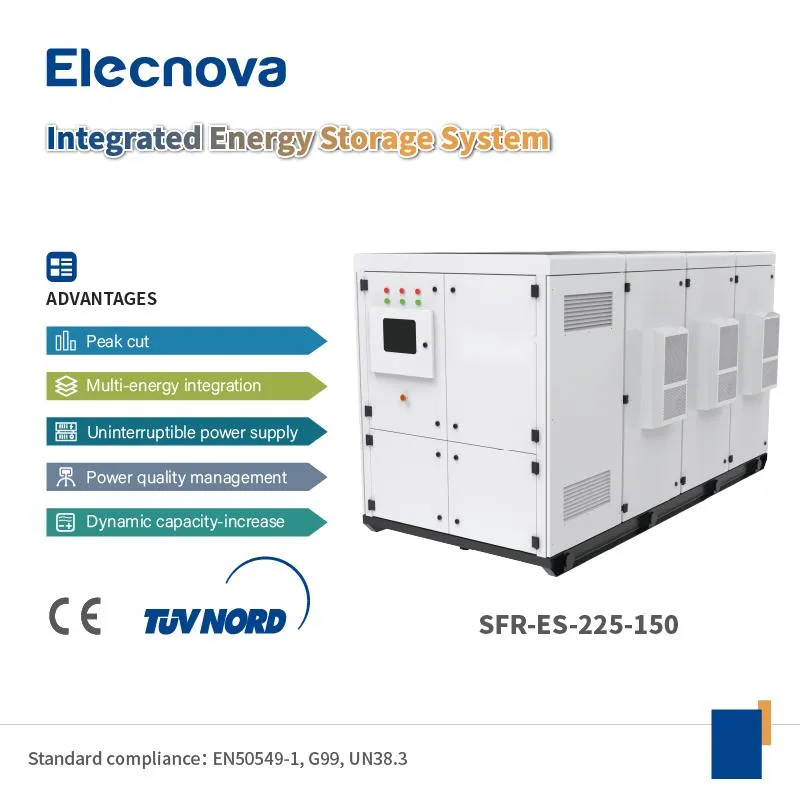

| Model NO. | SFR-ES-225-150 | Output Frequency | 50/60Hz |
| Controller Type | MPPT | Battery Type | Lithium Ion |
| The Charging Ratio | 2c | Battery | LiFePO4 Lithium Battery |
| Components | PCS, Lithium Battery System | Work Time (H) | 24/7 |
| Power Grid | 3W+N+PE | Rated Grid Voltage | AC 380/400V |
| Rated Output Power | 150kw | Application | Industrial, Solar Energy Systems |
Maximum system efficiency up to 95%.
IP54 rated for robust outdoor environmental use.
Over 4000 times at 100% DOD.

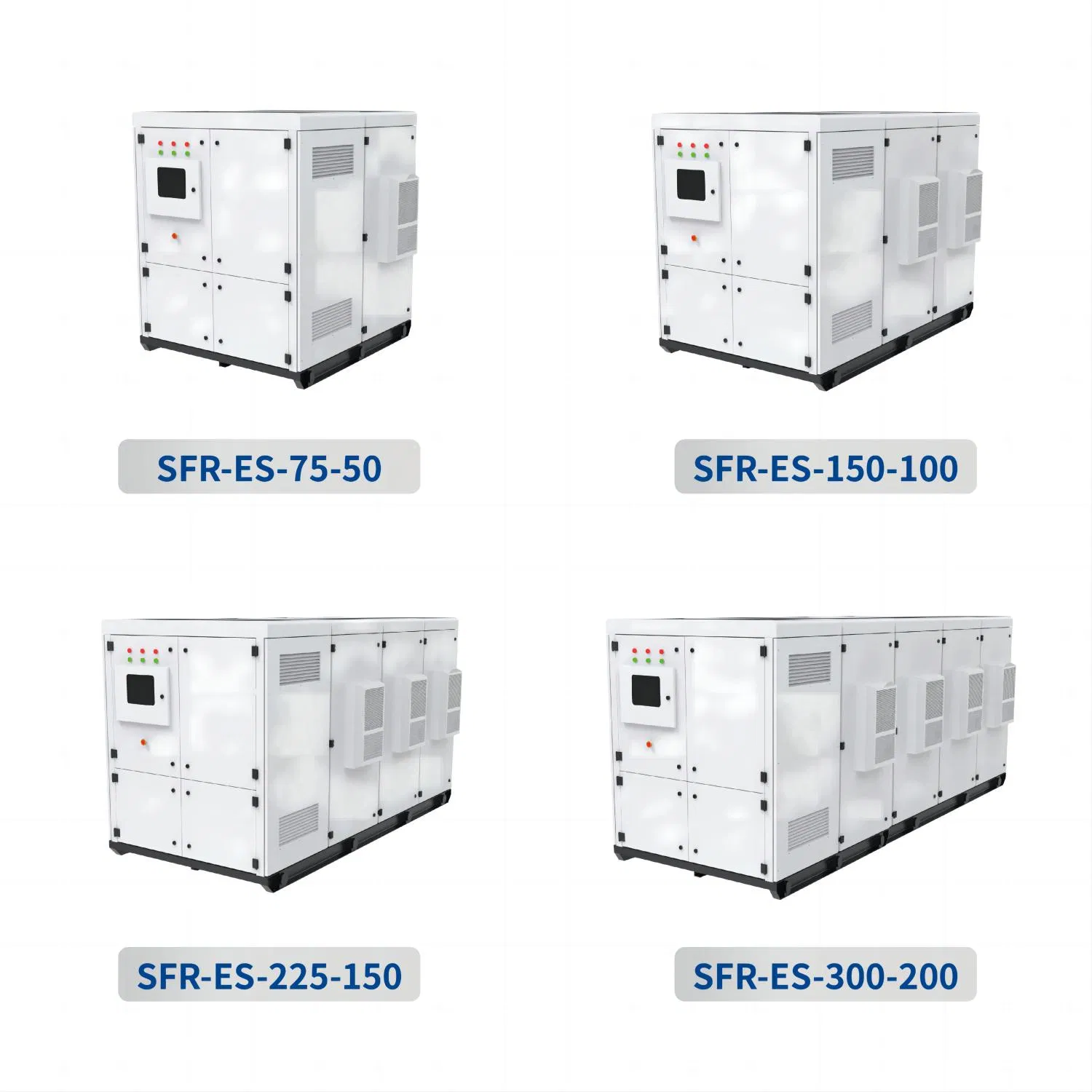

| Model | SFR-ES-75-50 | SFR-ES-150-100 | SFR-ES-225-150 | SFR-ES-300-200 |
|---|---|---|---|---|
| AC Parameters (Grid Connected) | ||||
| Rated Output Power (kW) | 50 | 100 | 150 | 200 |
| Max Output Power (kW) | 55 | 110 | 165 | 220 |
| Rated Grid Voltage (V) | 3W+N+PE, 380 | |||

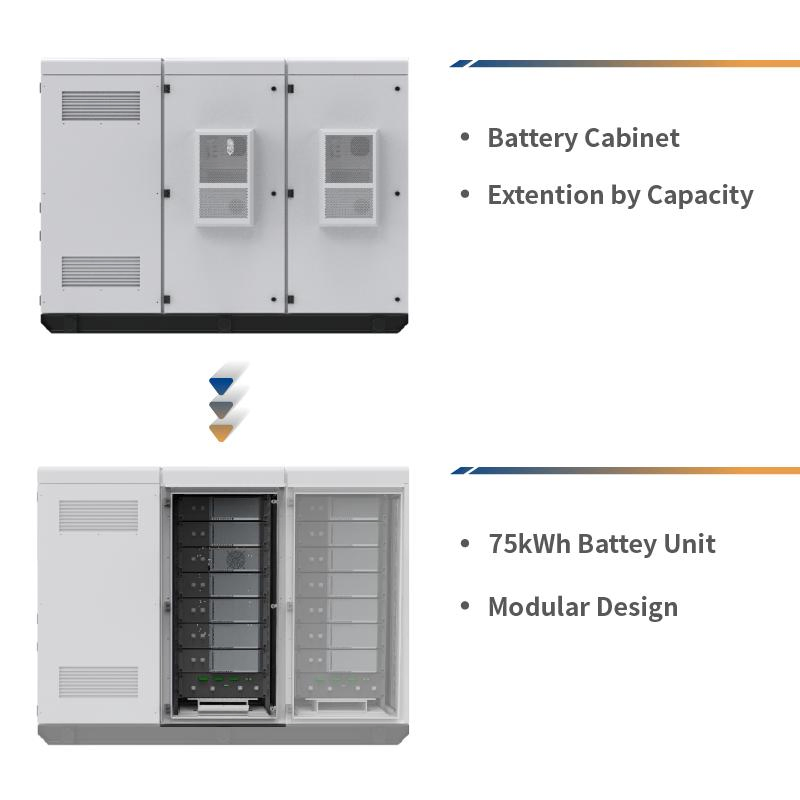

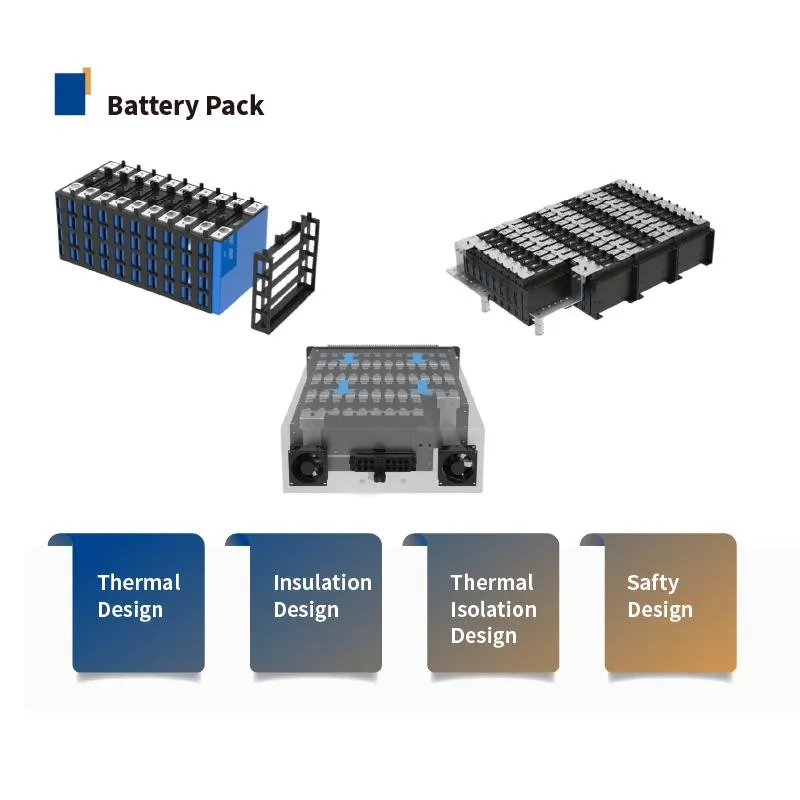

| Battery System | ||||
| Battery Type | Lithium Iron Phosphate | |||
| Module Qty | 15 | 30 | 45 | 60 |
| Total Power (kWh) | 76.8 | 153.6 | 230.4 | 307.2 |
| Basic Parameters | ||||
| Protection | Outdoor IP54 | |||

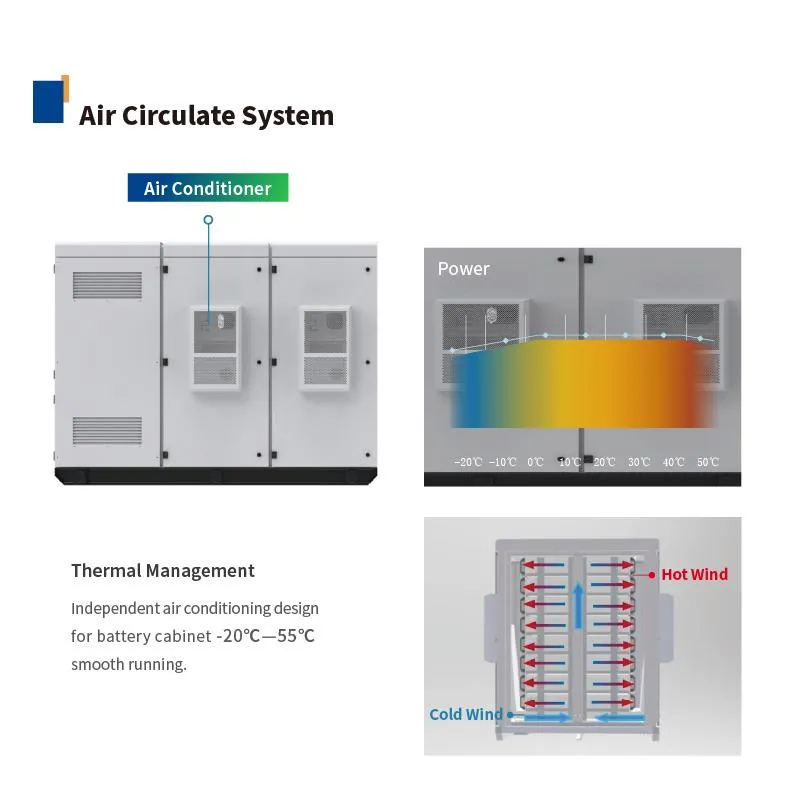

| Working Temp | -20 ~ 55°C (>45°C derating) | |||
| Communication | RS485, CAN, LAN (Modbus-RTU/TCP) | |||
