| Model NO. | YH-S-20 | Weight | 250kgs |
|---|---|---|---|
| Warranty | 30 Years | Transport Package | Wooden Case |
| Specification | 580W | Origin | China |
| HS Code | 85437099 | Production Capacity | 10000 units/Year |
| Package Size | 227.00cm * 114.00cm * 3.50cm |
|---|---|
| Package Gross Weight | 33.000kg |

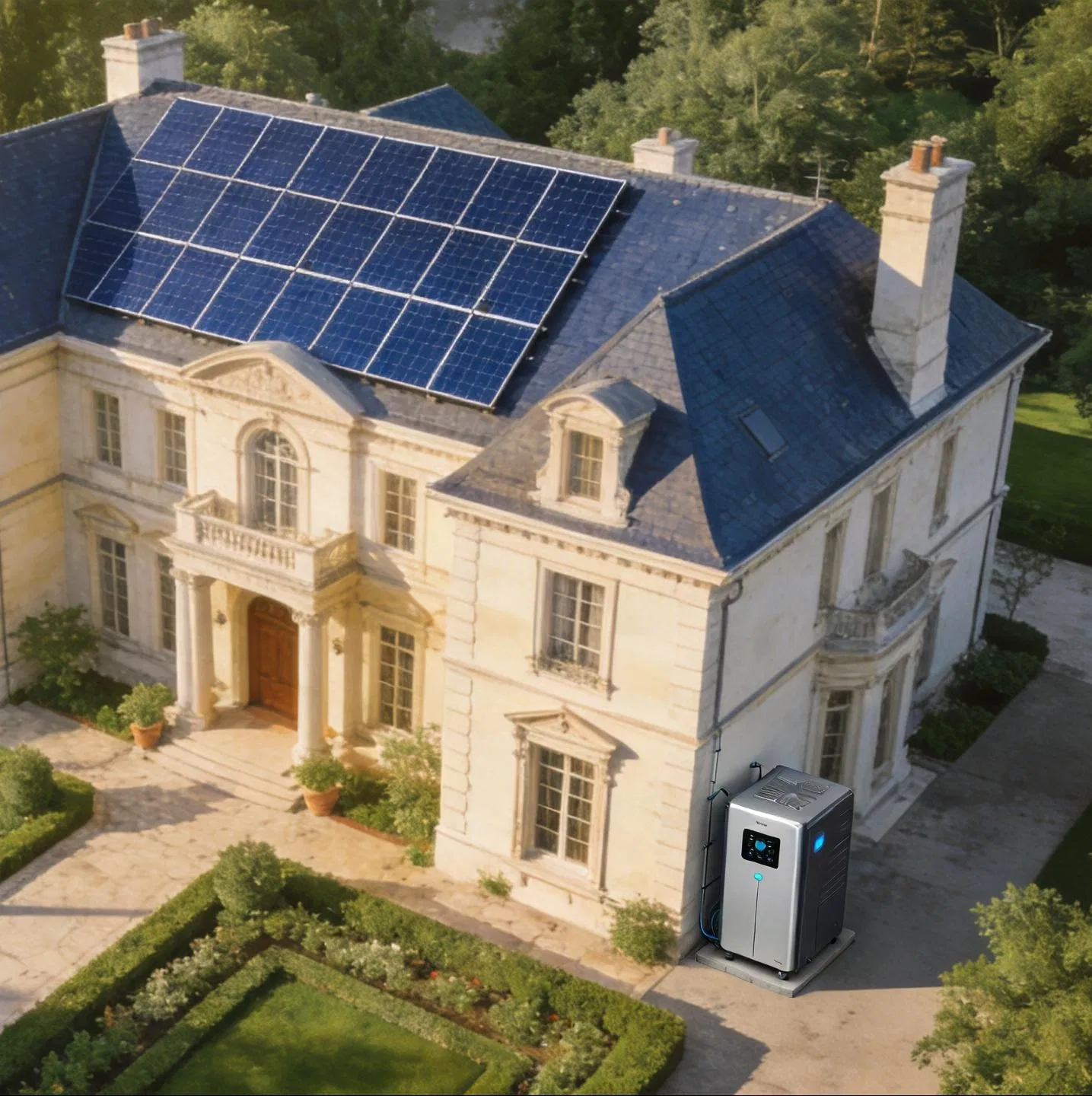

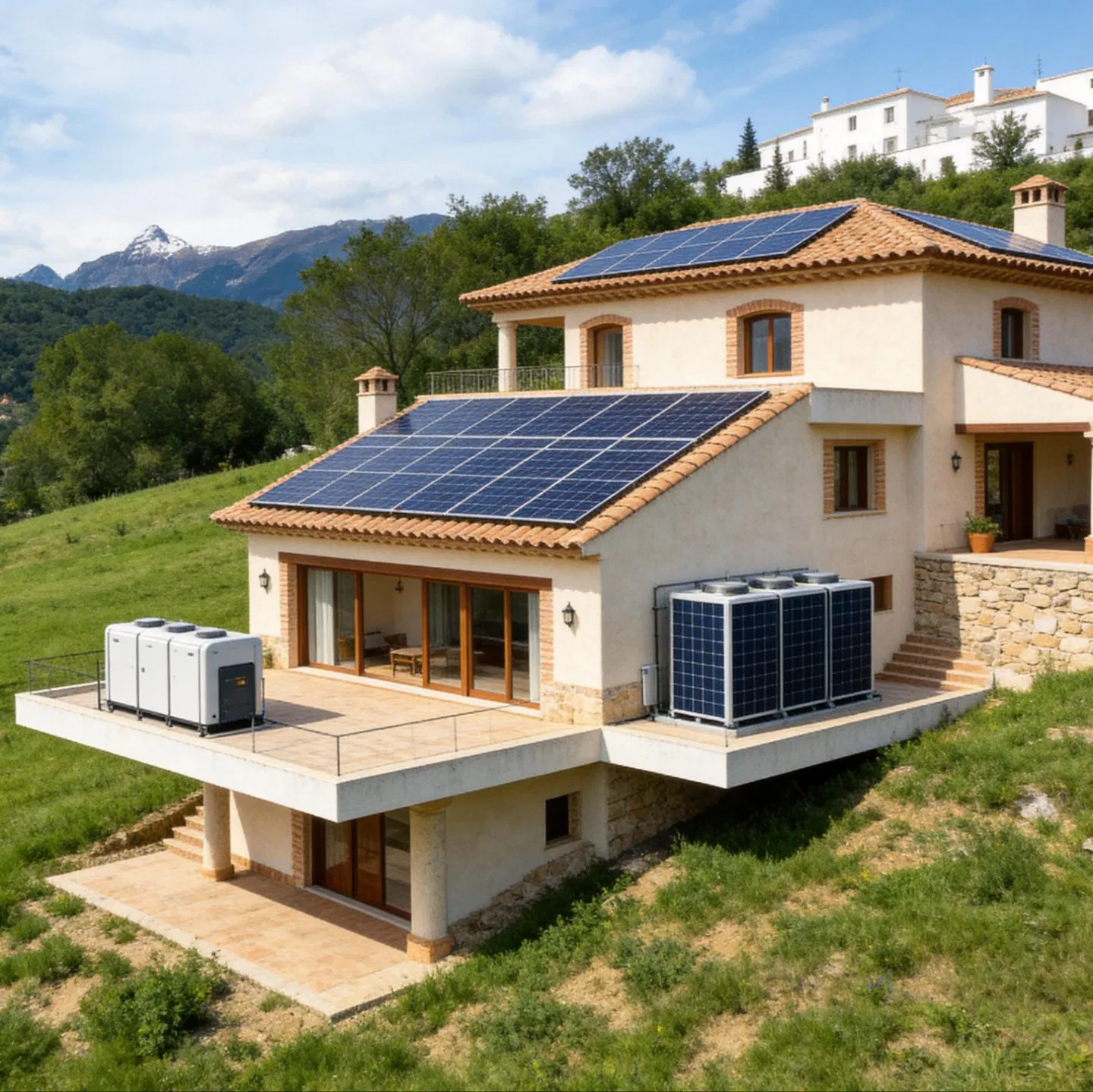

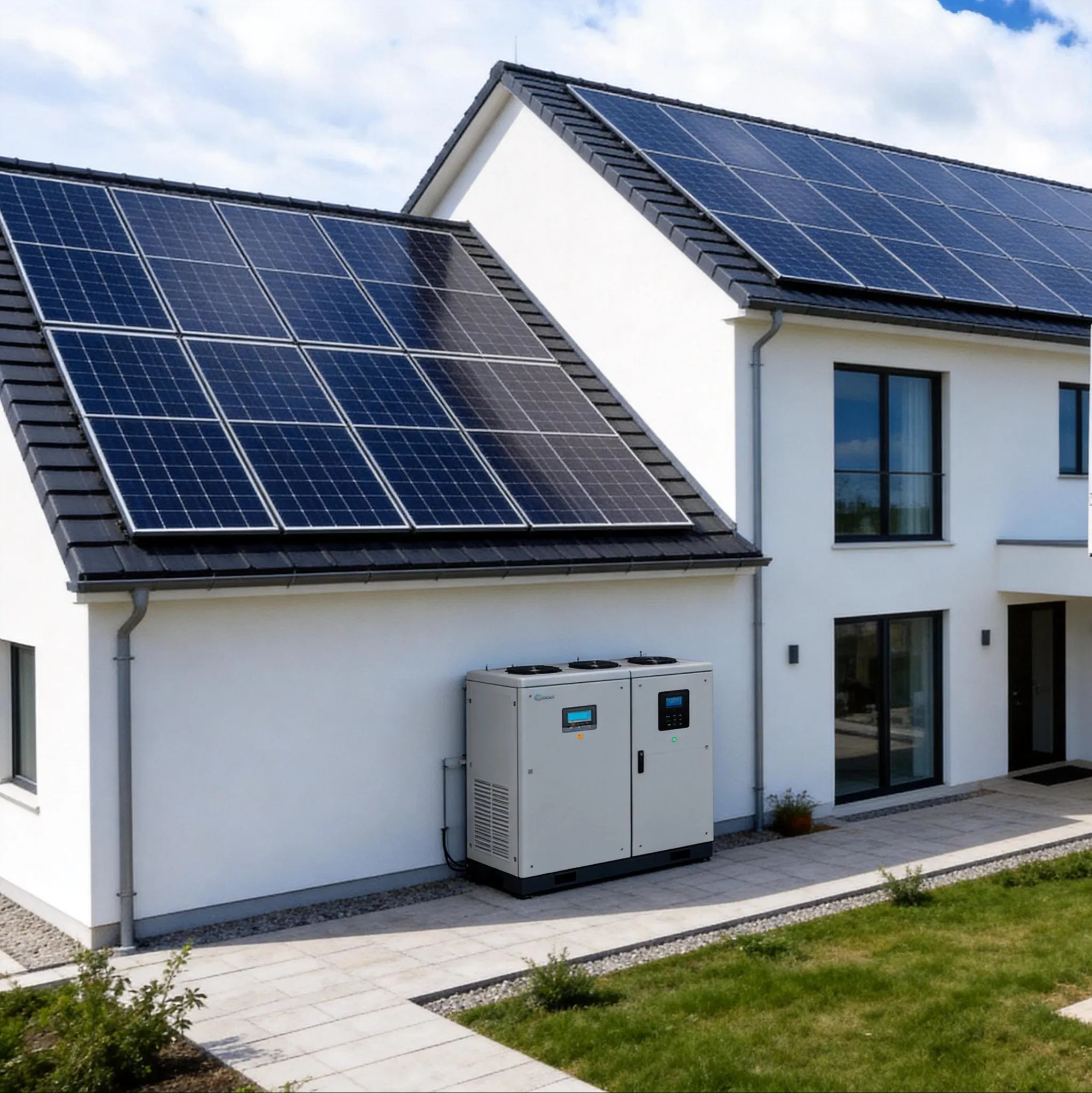

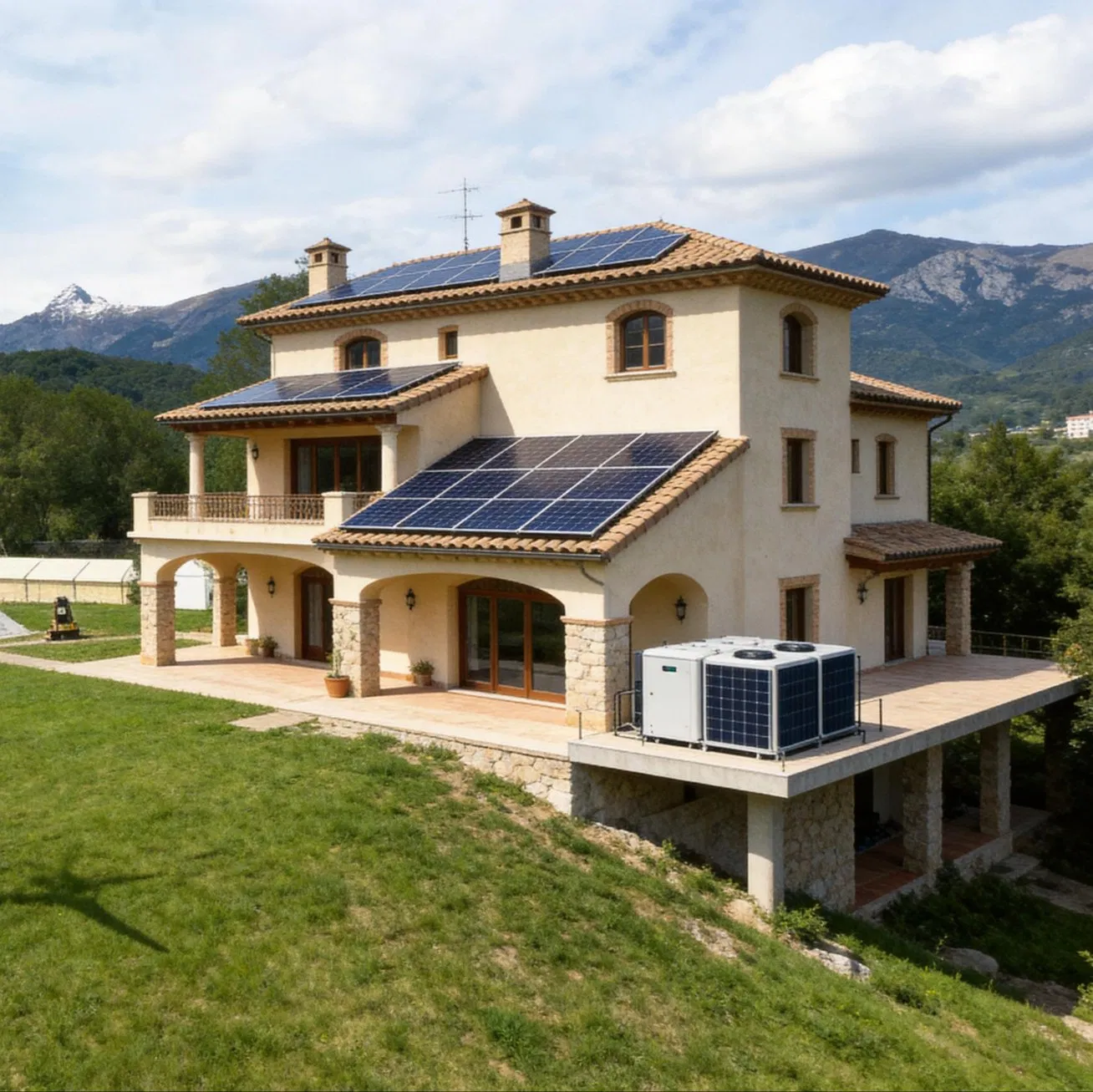

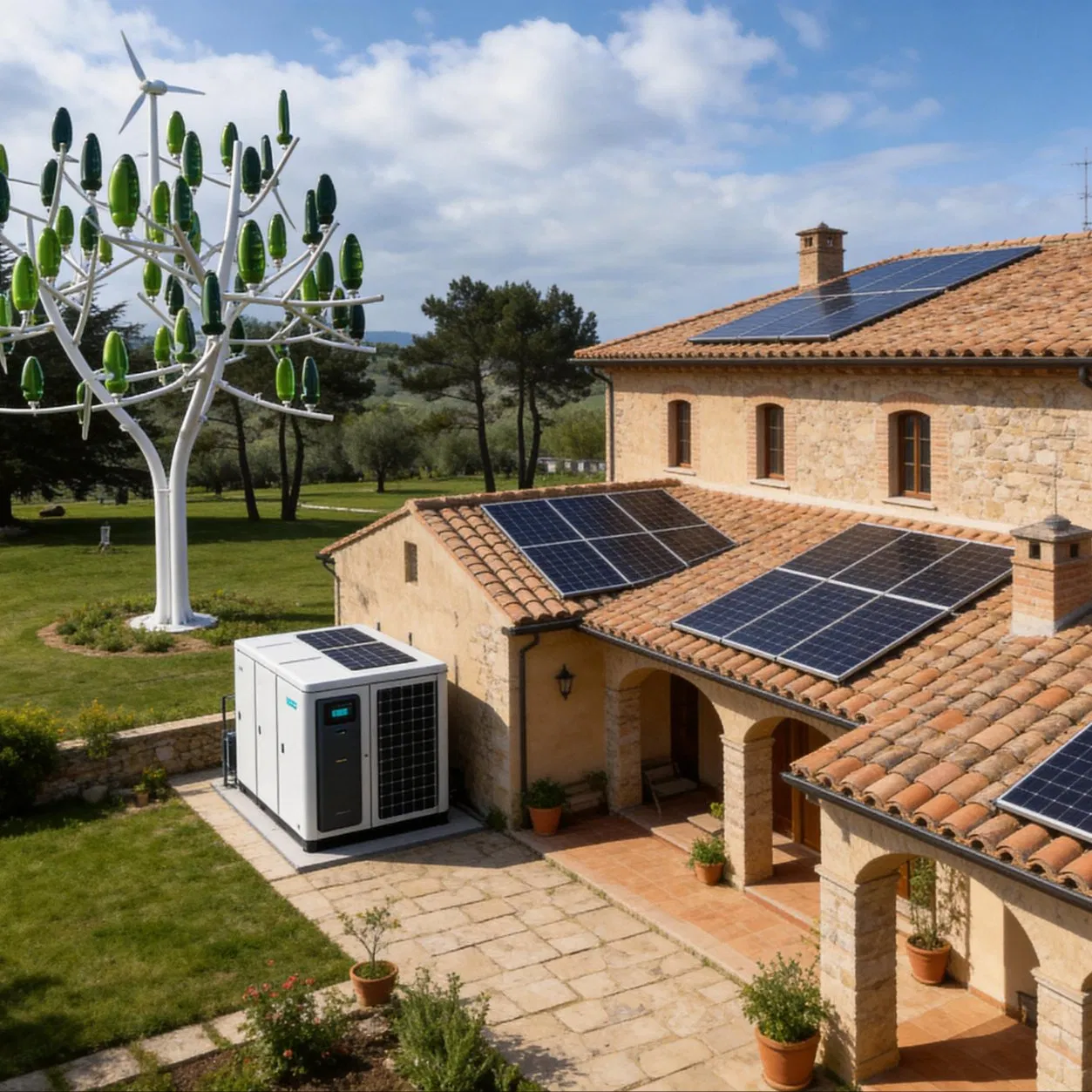

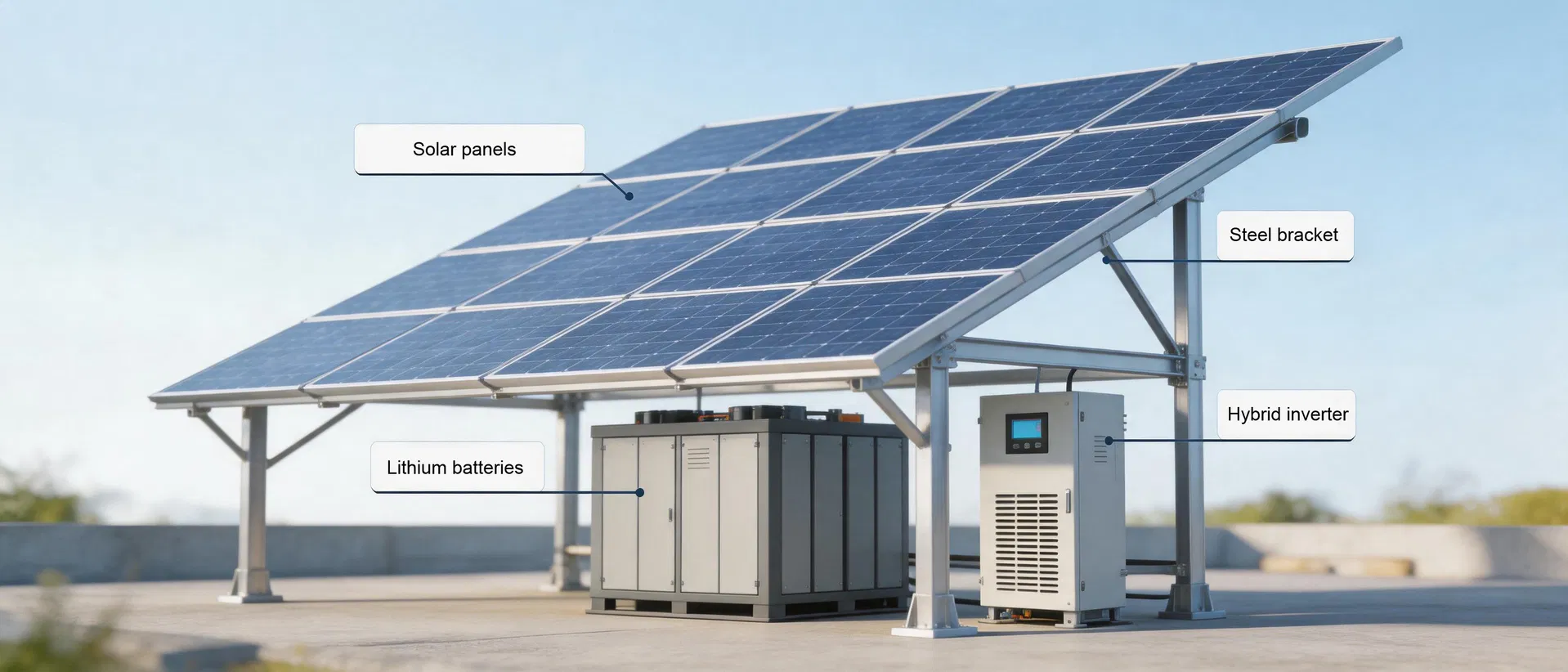

A home independent solar power system is a home microgrid that integrates solar panels, storage batteries, and power inverters to form an independent "energy cycle system."

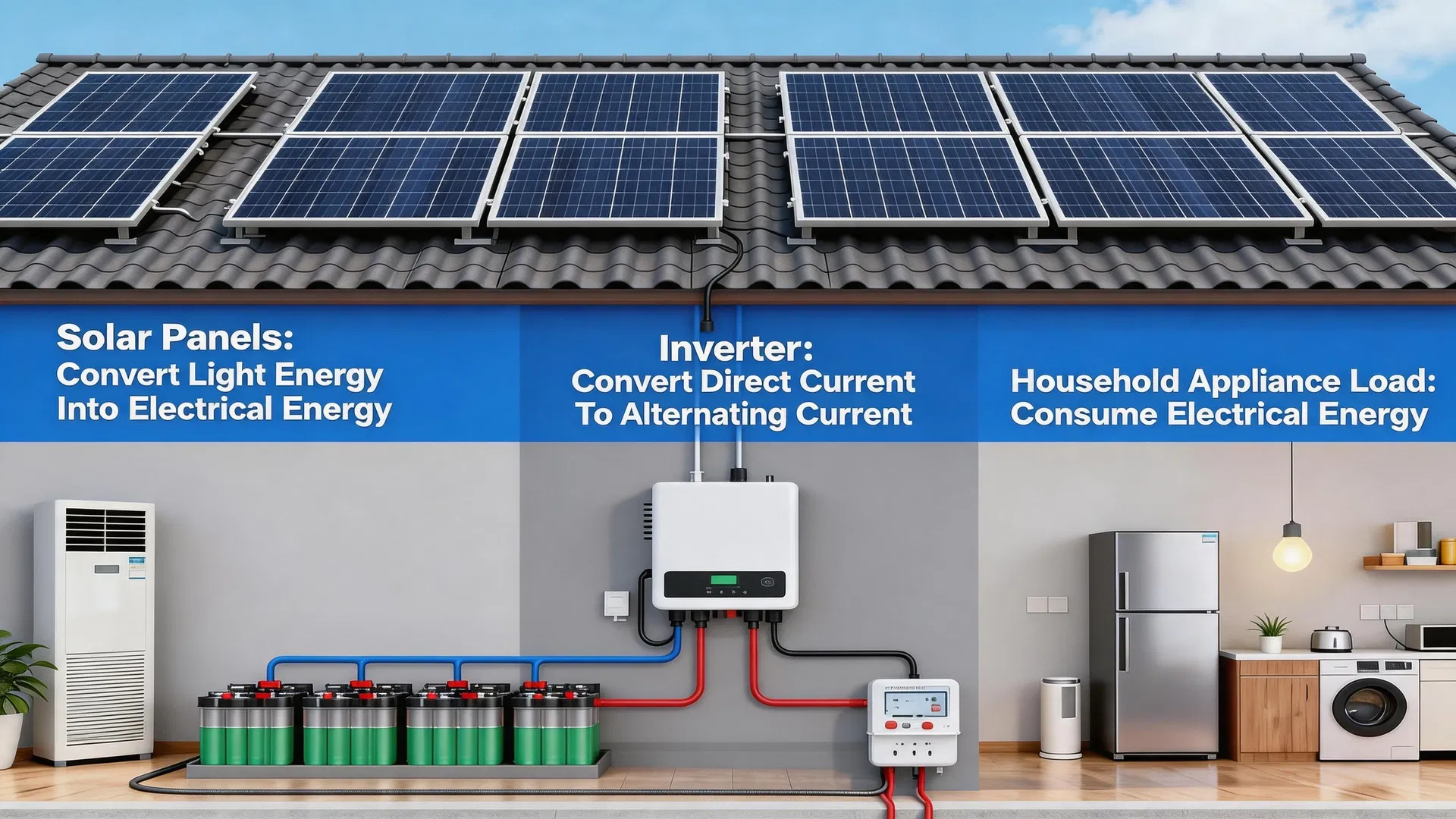

How it works: Solar panels generate DC power during the day. An inverter converts this to AC power for home appliance use, and extra power is stored in batteries for use at night or on cloudy days.
For clients living where the power grid is unavailable or unstable, this system provides stable, free, and continuous power in any environment. It represents a powerful trend in future home power solutions.
| Product Description | Home independent solar power system | Inverter Type | Reverse Control All-in-One |
|---|---|---|---|

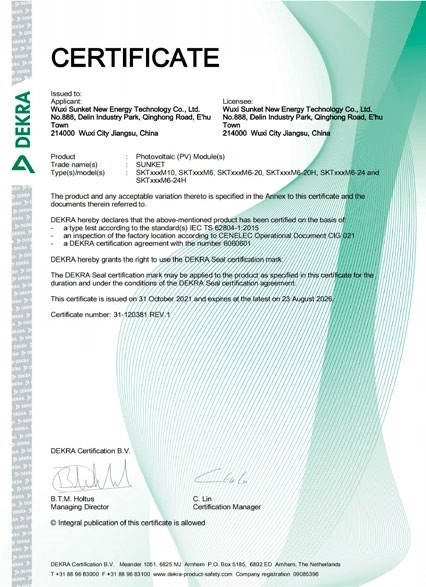

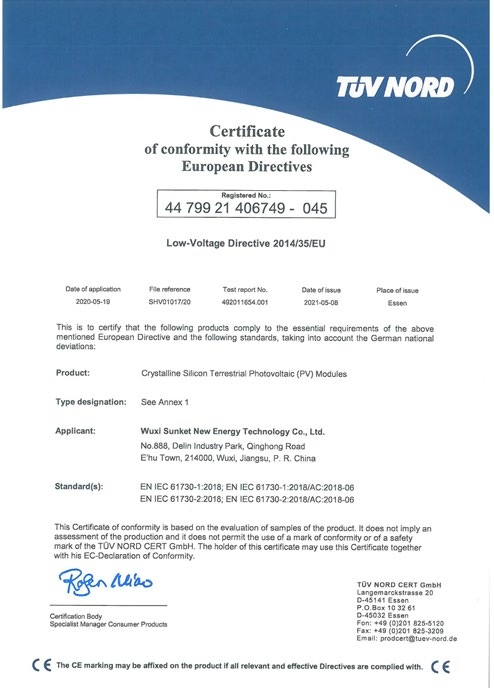

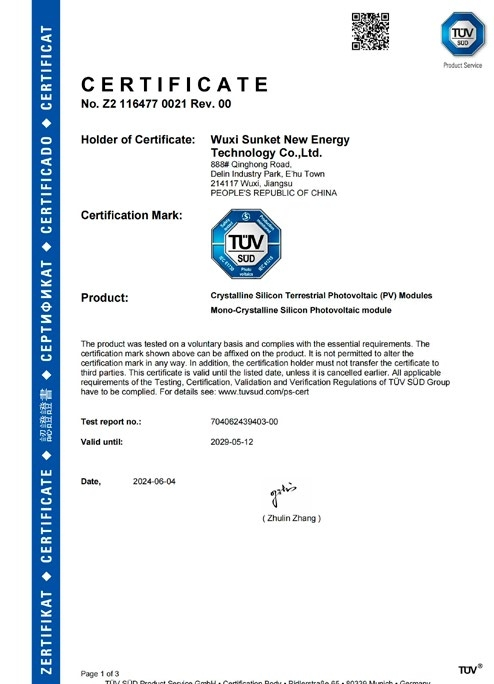

| Certification | ISO, CE, TUV/UL | Output Voltage | 110V/220V/230V AC |
| Specification | 10KWh~50KWh | Inverter Life Span | 10 Years |
| Solar Panel Type | Topcon N | Batteries | Lithium Ion, LiFePO4 Battery |
| System Life Span | 30 Years | Wind Resistance | Class 10 |
| Model | 10KWh | 20KWh | 30KWh | 50KWh |
|---|---|---|---|---|
| Solar Panels | 580W x 4pcs | 580W x 8pcs | 580W x 12pcs | 710W x 18pcs |
| Hybrid Inverter | 3 KW | 6.2KW | 11KW | 12 KW |
| Lithium Battery | 5 KWh | 10 KWh | 16 KWh | 32 KW |
| Target Family | 1~2 Persons | 2~3 Persons | 3~4 Persons | 4~6 Persons |
Prefabricated House Series

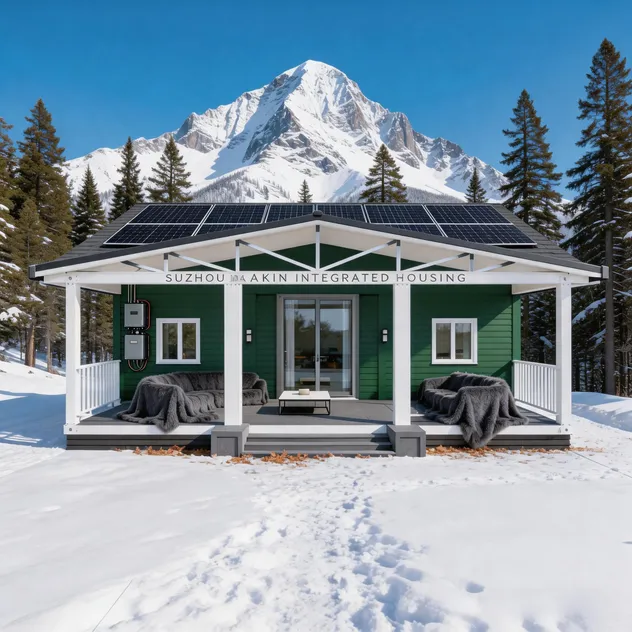

Module House with Solar
