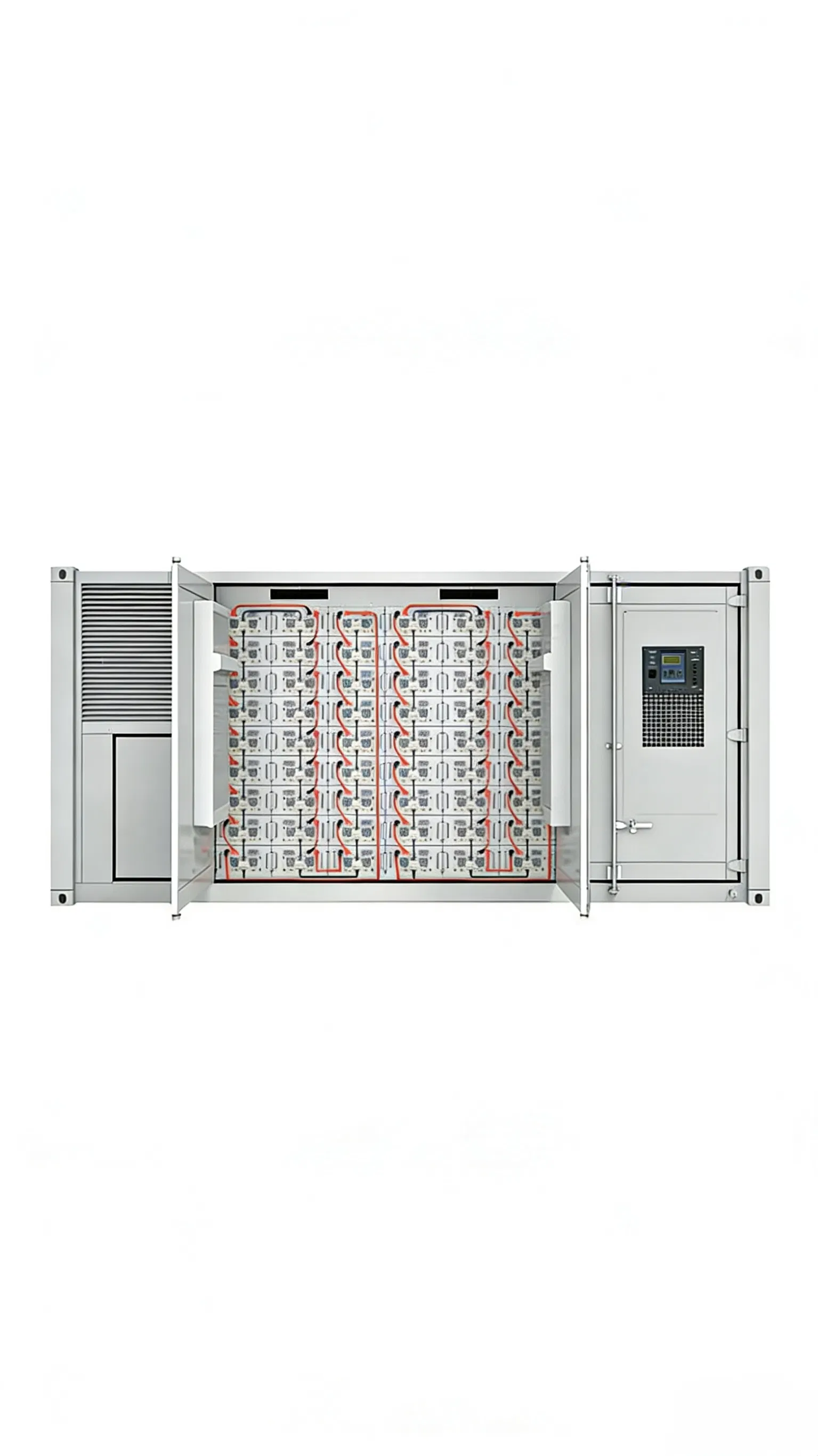

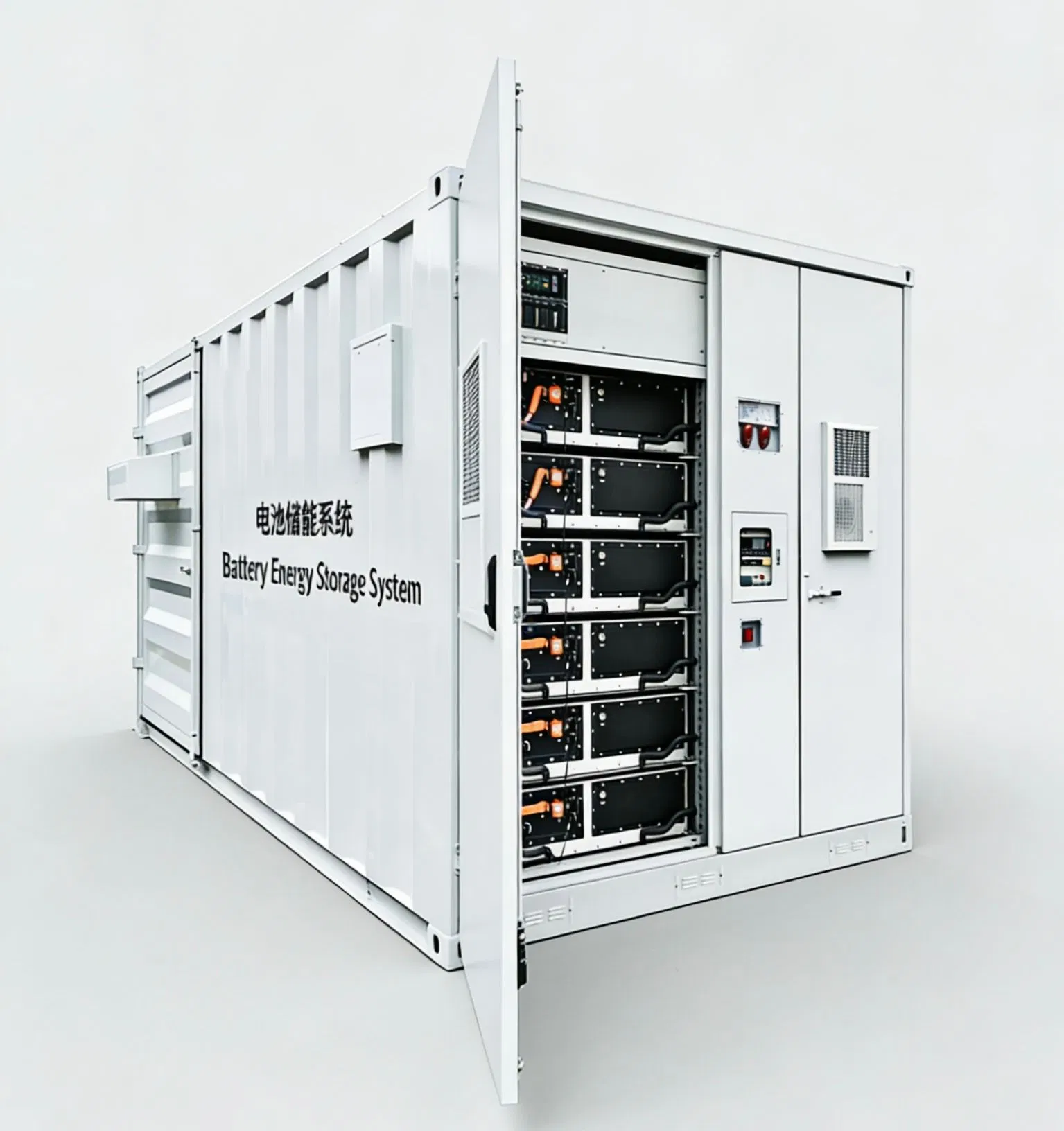

Introducing our 5000KWh high-capacity containerized energy storage system, a cutting-edge solution designed for industrial, commercial, and utility-scale energy needs. As a professional energy storage manufacturer with a large-scale production base, we deliver reliable, customizable, and cost-effective energy storage solutions that empower businesses to achieve energy independence, reduce electricity costs, and ensure stable power supply.

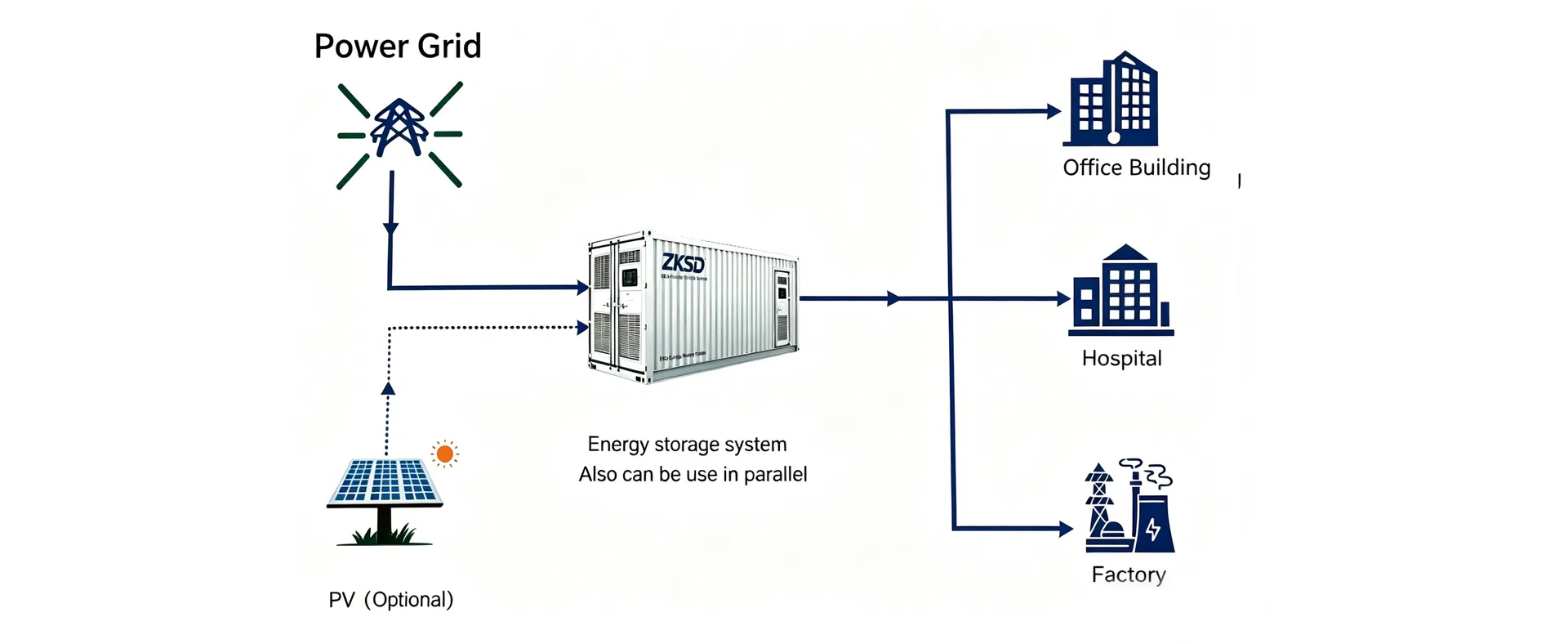

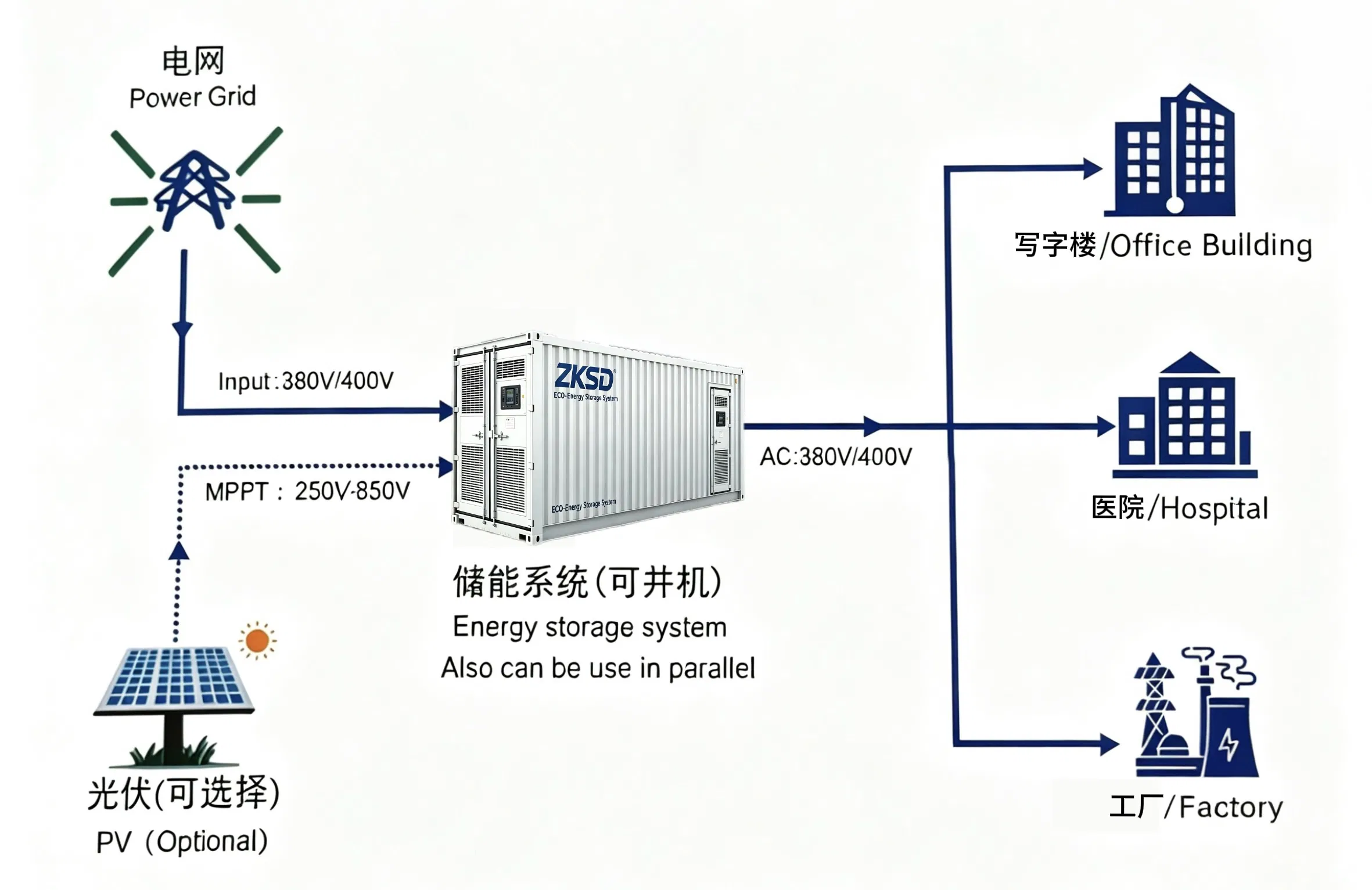

Grid-tied solar storage system connects to the public grid, stores solar power for peak shaving, cuts electricity bills, and supports feeding excess energy back to the grid.
Off-grid solar storage system runs independently without grid access, providing 24/7 stable power for remote areas, islands and off-grid sites.
Hybrid solar storage combines on-grid and off-grid functions, intelligently switches modes, ensures backup power during outages, and maximizes solar self-consumption.
| Model | 1044kWh-500kW | 1720kWh-800kW | 2610kWh-1250kW | 5015kWh-2500kW |
|---|---|---|---|---|
| Cell Type | LFP 3.2V 314Ah | LFP 3.2V 280Ah | LFP 3.2V 314Ah | LFP 3.2V 314Ah |
| System Capacity | 1044kWh | 1720kWh | 2610kWh | 5015kWh |
| Rated Power | 500kW | 800kW | 1250kW | 2500kW |
| Nominal Voltage | 832V | 768V | 832V | 1331.2V |
| Cycle Life | >8,000 Cycles @ 80% DOD, 25°C | |||
| Communication | CAN / RS485 / Ethernet / 4G (Modbus TCP/RTU) | |||

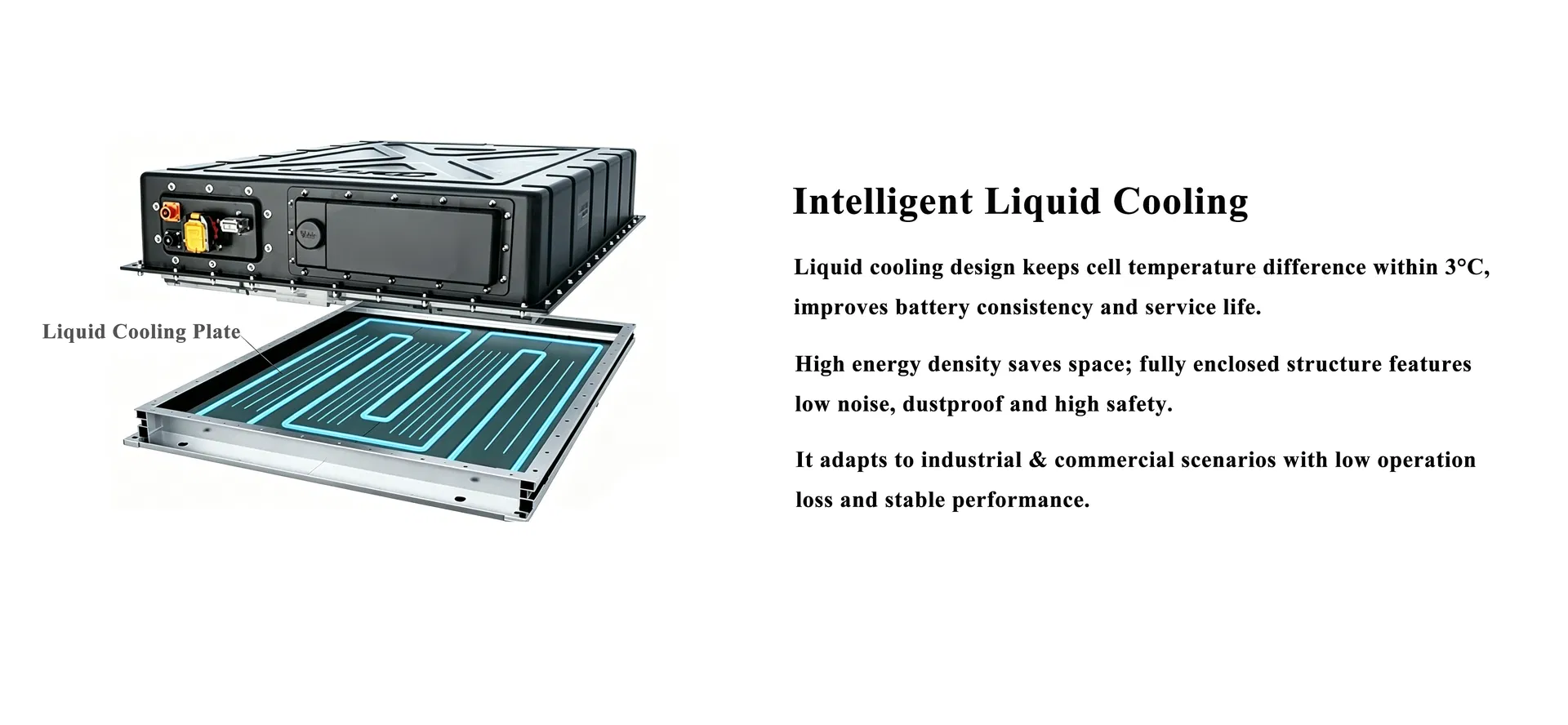

| Cooling Method | Intelligent Liquid Cooling | |||
| Protection Level | IP54 / C4 Anti-corrosion | |||
| Weight | 11T | 17T | 23T | 35T |
| Size (mm) | 6050 * 2438 * 2400mm | |||
We provide comprehensive OEM & ODM services to support your business growth in the energy storage market.
OEM (Original Equipment Manufacturing): We manufacture energy storage cabinets strictly in accordance with your technical specifications and brand requirements. leveraging our mature production lines and Grade A components.
ODM (Original Design Manufacturing): Our experienced R&D team partners with you from concept to finished product, offering full custom design, engineering optimization, and prototype testing.
A: Standard models typically ship in 20–30 days, while fully customized units require 40–55 days depending on specifications.
A: Yes, we have established partnerships with service centers in key regions to provide global technical support.
A: Absolutely! We offer tailored solutions to meet specific site requirements and capacity needs.
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, COC, and technical certifications.
A: You can reach out to our team for a detailed quote, and once technical specs are finalized, the order is confirmed via a Purchase Order (PO).
A: Our systems use premium LiFePO4 cells rated for over 8,000 cycles at 80% Depth of Discharge (DOD) under standard operating temperatures.
