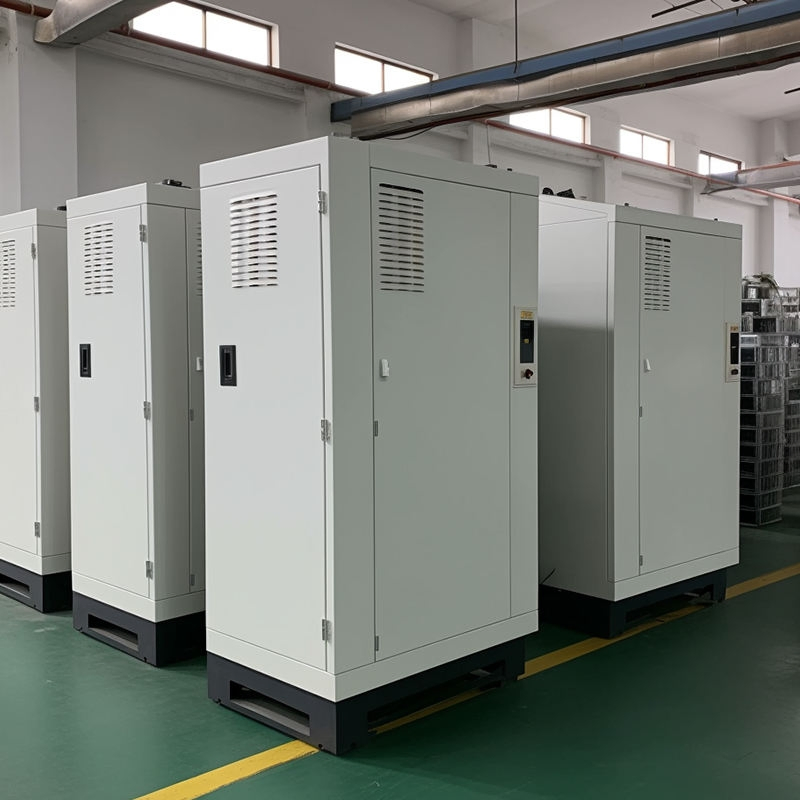

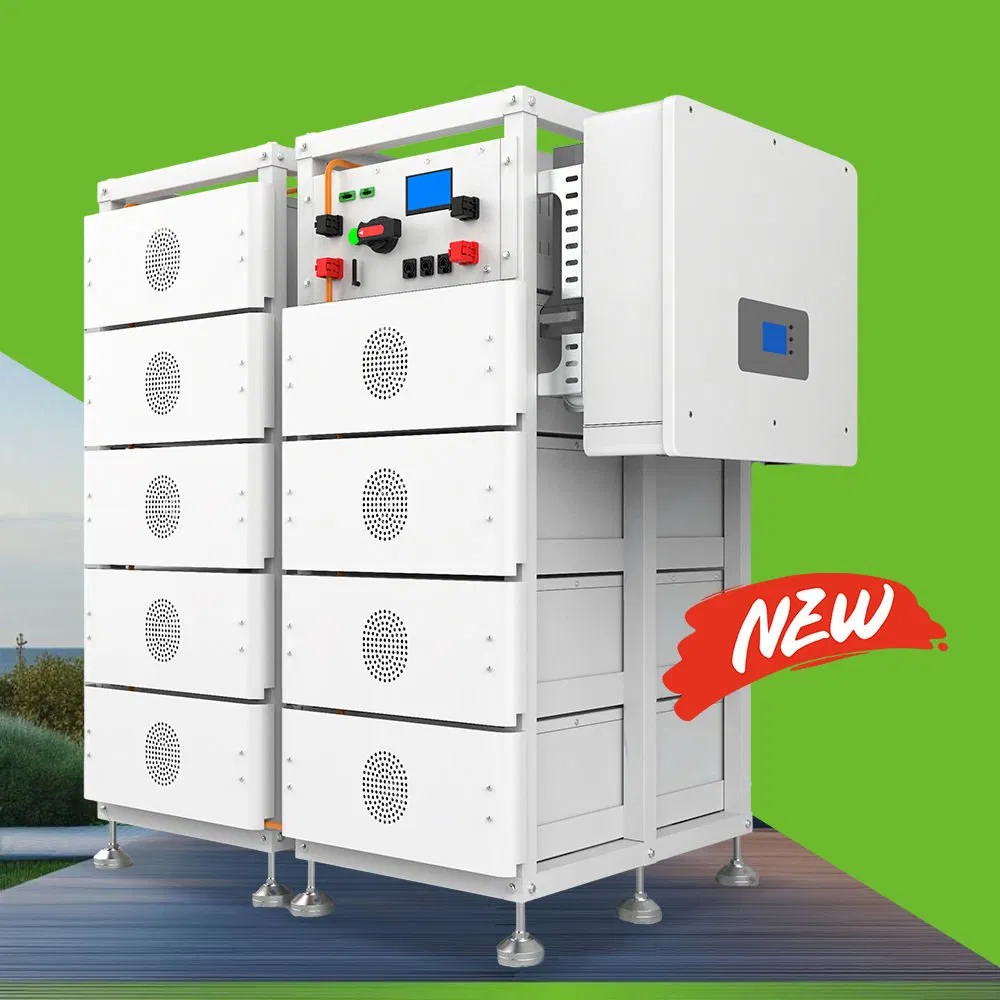

1mwh Energy Storage Cabinet Solar Battery for Industrial Commercial LiFePO4 Lithium Ion Battery Storage Air Container

Customization: Available
Color: Black
Durability: Scratch-resistant

Product Description

Basic Information
Model NO.
8-8
Inside Material
Iron
Lock Type
Key lock
Size
1174 × 814 × 400 mm
Capacity
215kwh 241kwh 261kwh
Type
Li-ion/Lithium/LiFePO4
BMS
Built-in BMS Protection
Dimensions
1120*1400*2340mm
Protection
IP54
HS Code
8507600090

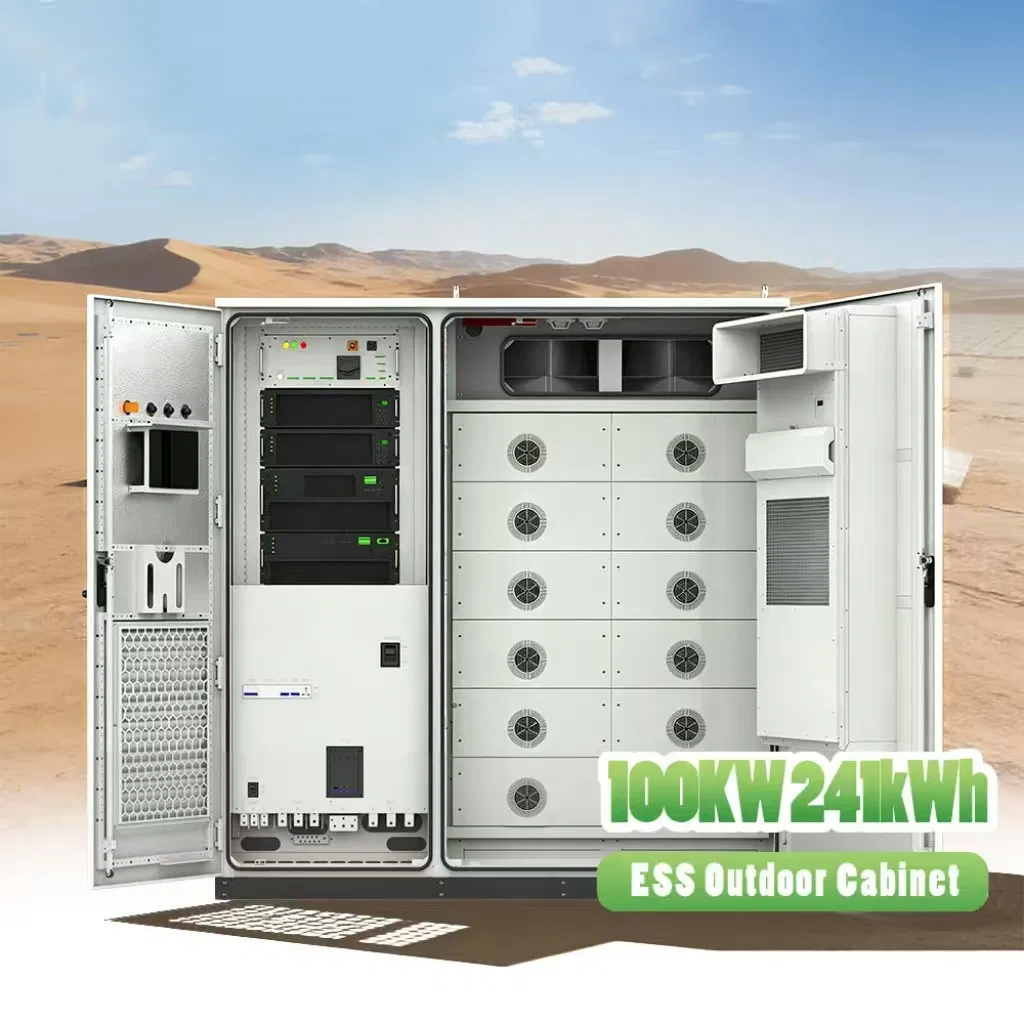

Energy Storage Cabinet
Product Advantages
  • Space Efficiency: Supports side-by-side installation with high space utilization, ensuring easy deployment and maintenance.
  • Modular Architecture: Unique modular design and flexible functional configuration allow customizable power and capacity ranges.
  • Multiple Operation Modes: Supports self-consumption, peak shaving, valley filling, and forced charge/discharge.
  • Advanced Switching: STS Module enables on/off-grid switching with ≤10 ms response time.
  • MPPT Configuration: Flexible options including 40kW×2, 50kW×2, or 60kW×2 modules.
  • Durable Design: IP67 waterproof rating (street light component), CE certified, suitable for diverse environments with 3-year warranty.

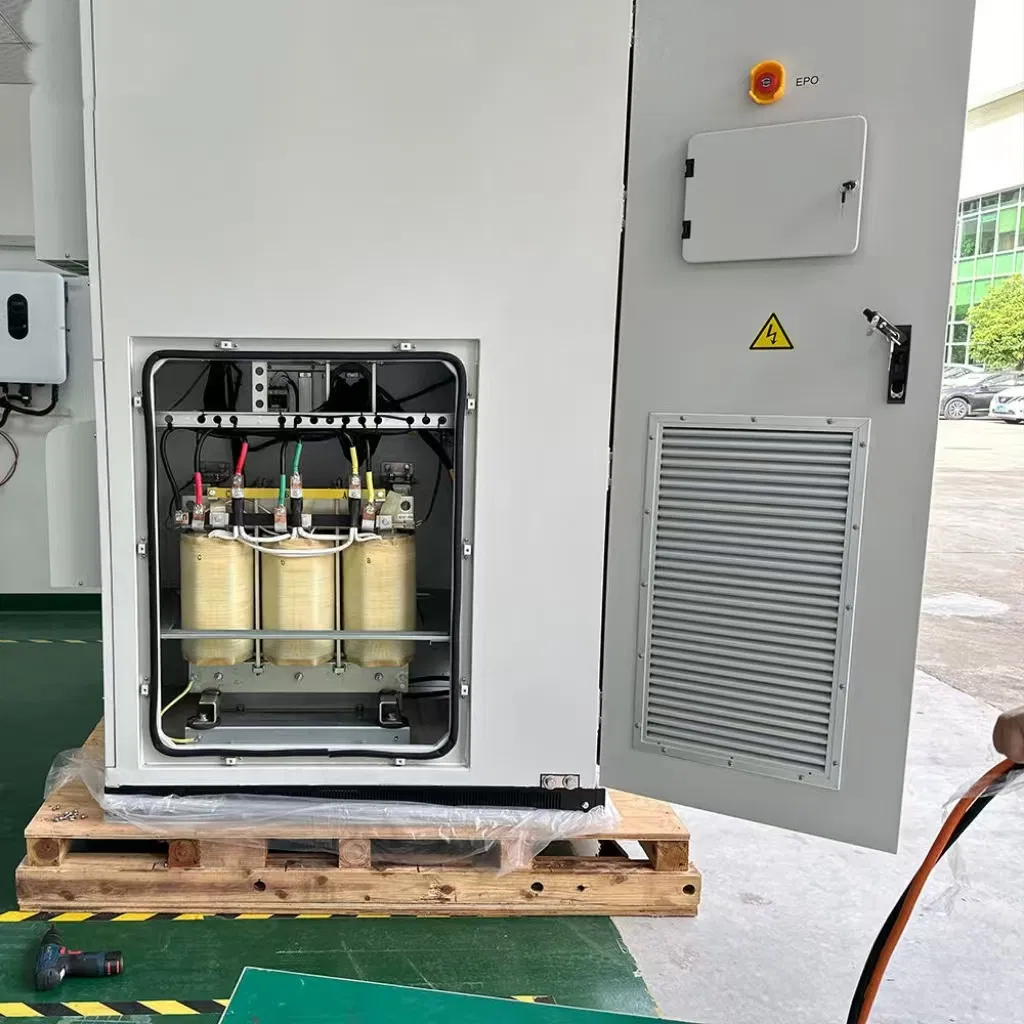

Technical Layout
Technical Specifications
Model WY-eBank-241LS WY-eBank-261LS
Battery Side Parameters
Battery module quantity5
Cell capacity314 Ah
Nominal voltage768 V832 V
Rated energy241 kWh261 kWh
Cycle life≥6000 cycles @25°C (90% DOD)
AC Side Parameters
Rated AC output power110 kW
Max efficiency98.90%
Grid voltage3/N/PE, 400 V
System Parameters
CommunicationCAN / RS485 / WiFi
Cooling methodPCS air cooling + battery liquid cooling
Operating temperature-20°C to +55°C
Component Detail 1

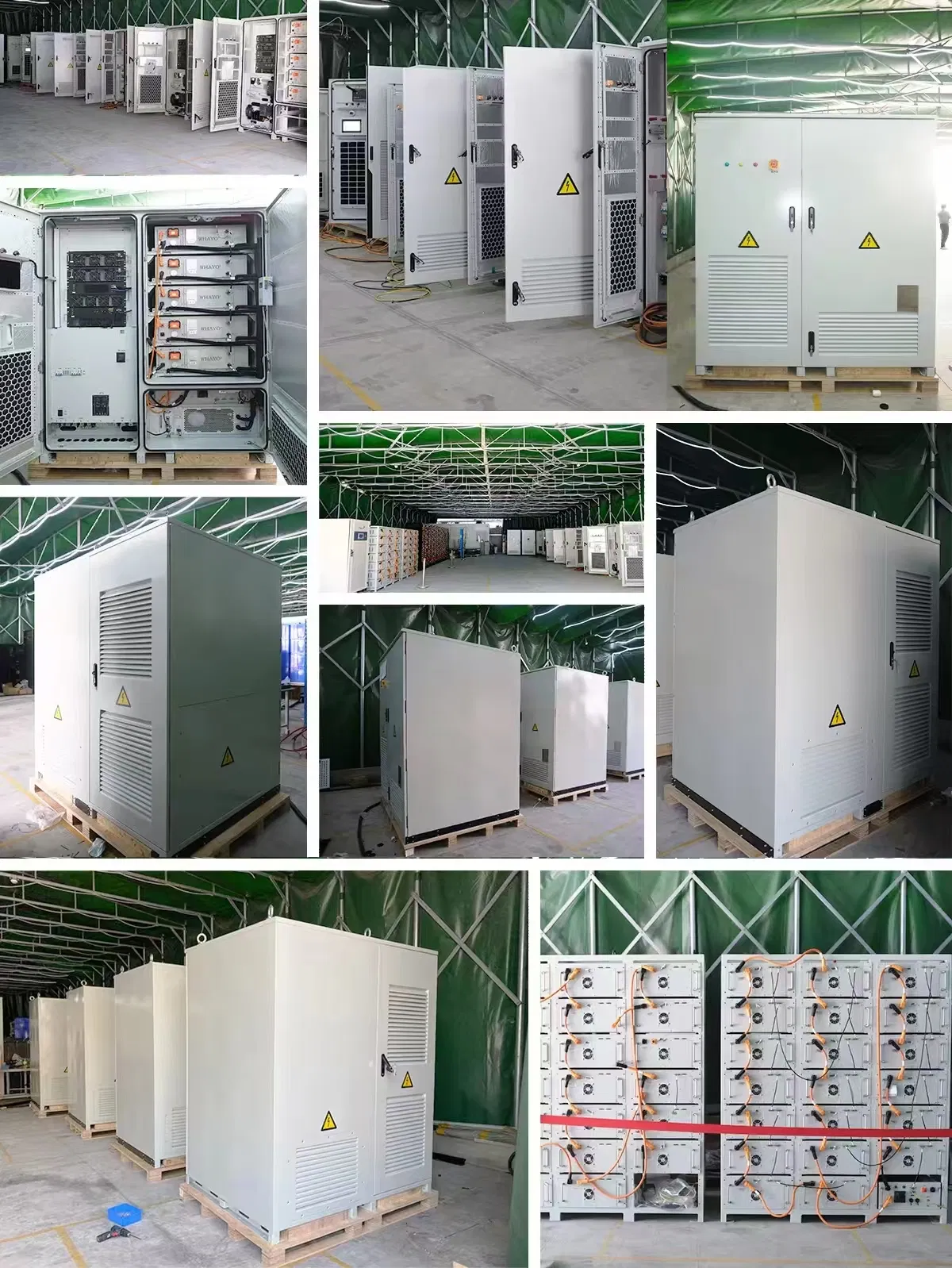

Component Detail 2
Packing & Delivery
Package Size
100.00cm * 187.00cm * 138.00cm
Gross Weight
650.000kg

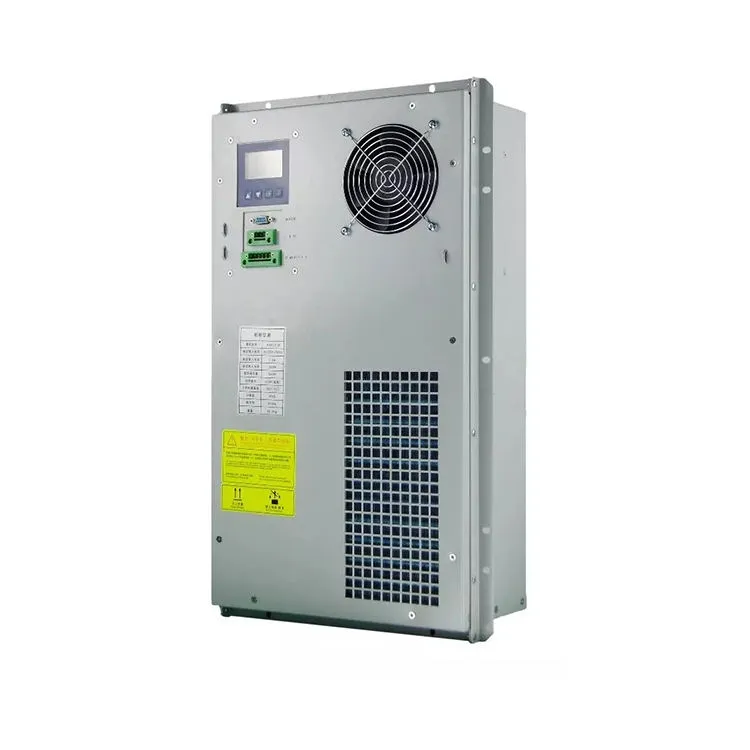

Package 1

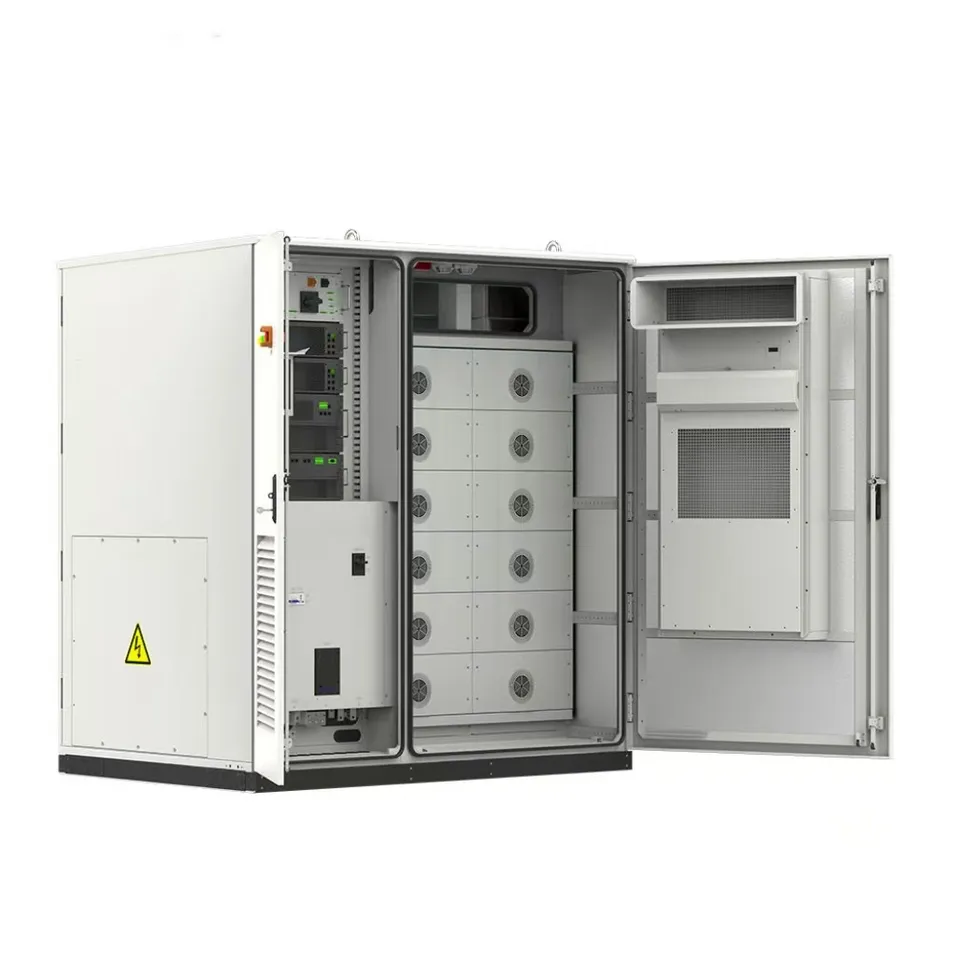

Package 2

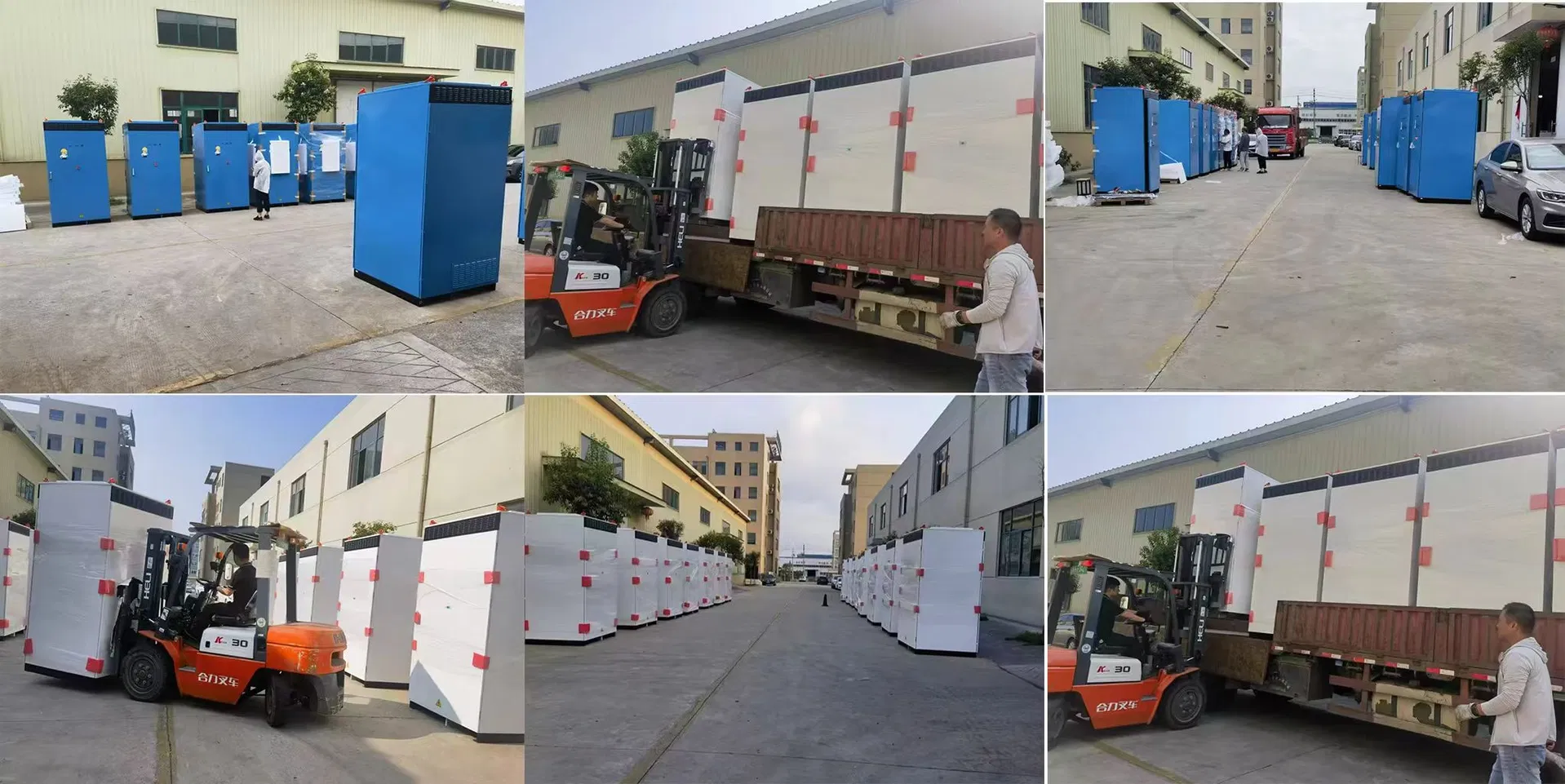

Logistics
About Us

We are a professional R&D and manufacturing enterprise specializing in renewable energy storage systems. Our focus covers home energy storage and all-in-one solar storage solutions, meeting CE, IEC, and FCC international standards for residential, commercial, and industrial applications across Europe, North America, and Oceania.

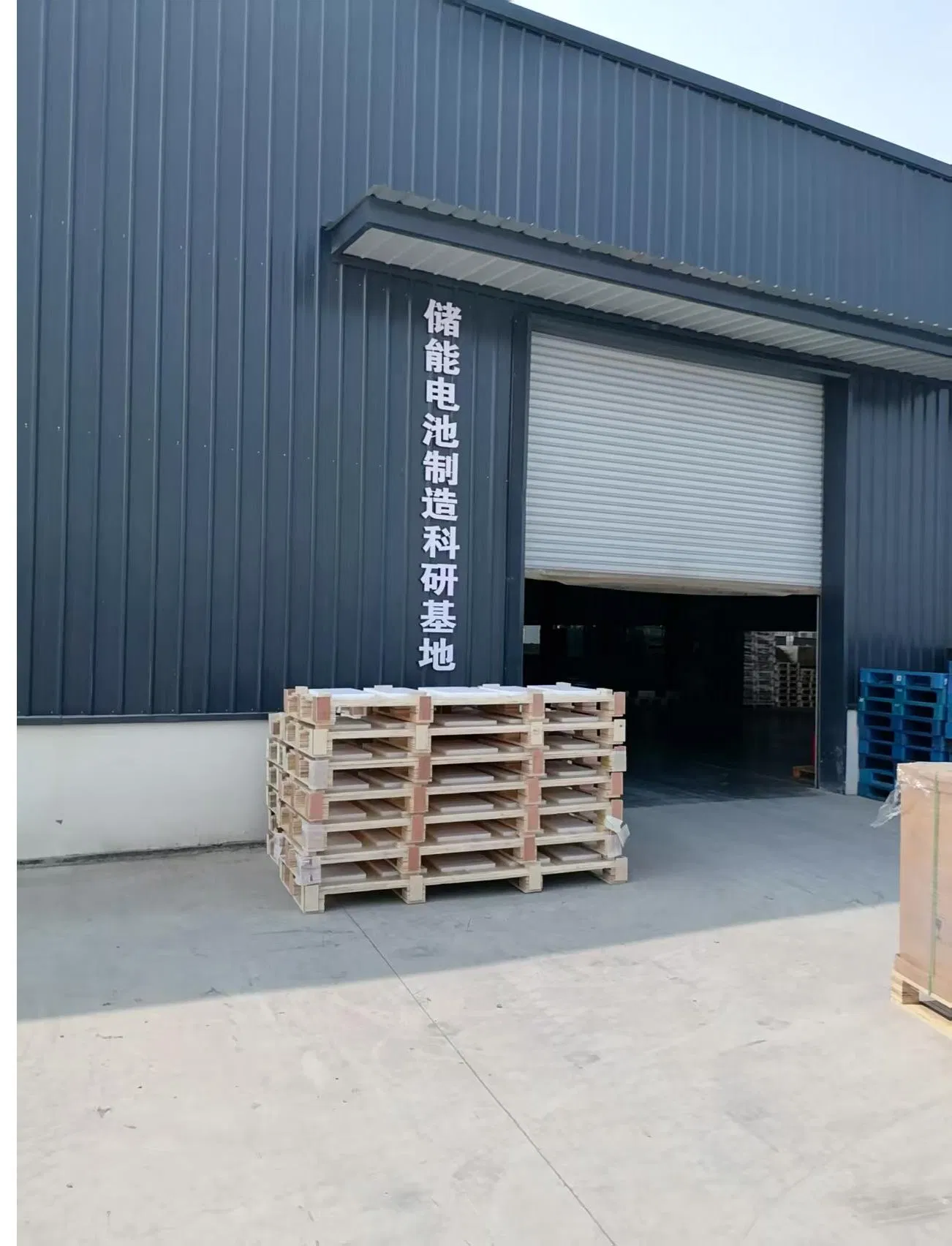

Production Facility
  • Global Standards: Products certified for global markets (CE, IEC, FCC).
  • Scalable Solutions: Modular designs allowing expansion from 5kWh to industrial-grade 241kWh+.
  • Durability: Utilizing high-grade LiFePO4 cells with ≥6000 charge-discharge cycles.
  • Warranty Support: Comprehensive global warranty including 5 years for the system and up to 10 years for battery cells.
Frequently Asked Questions
Are your batteries of real capacity?
Yes, all of our battery cells are Grade A, 100% new, and have real capacity. We guarantee top-grade quality.
Can the batteries be used in series or parallel?
Yes, you can connect these batteries in parallel. For series connection, we suggest a maximum of 3 units for optimal performance.
What kind of warranty is provided?
We offer a 3 to 5-year warranty depending on the model, providing repair or replacement for any quality issues during this period.
What certifications do your products hold?
Our products are certified with CE, ROHS, FCC, IEC62133, MSDS, and UN38.3 to ensure global safety and compliance.
Do you support OEM/ODM services?
Yes, OEM and ODM are welcomed. We have a dedicated team to design custom battery cases and configurations to meet your needs.
What is the typical lead time for samples?
The lead time for sample orders is typically around 7 days.
