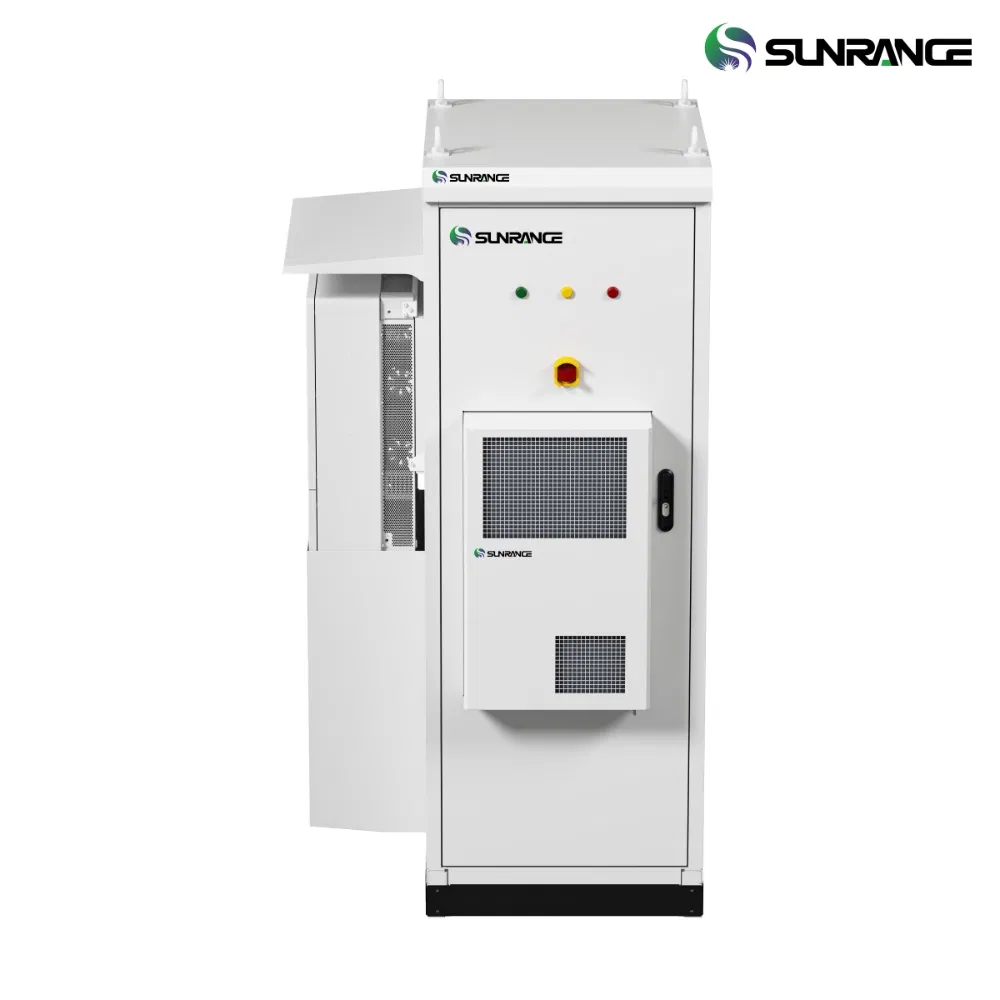

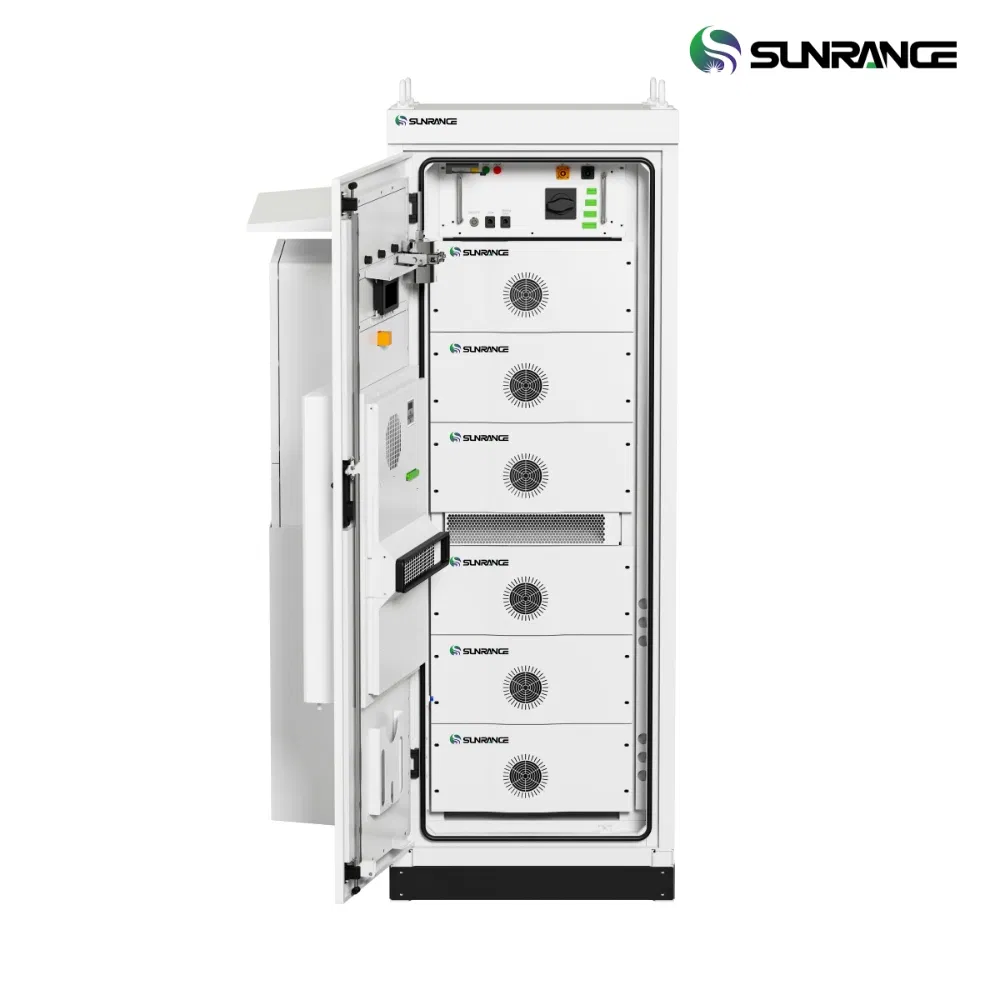

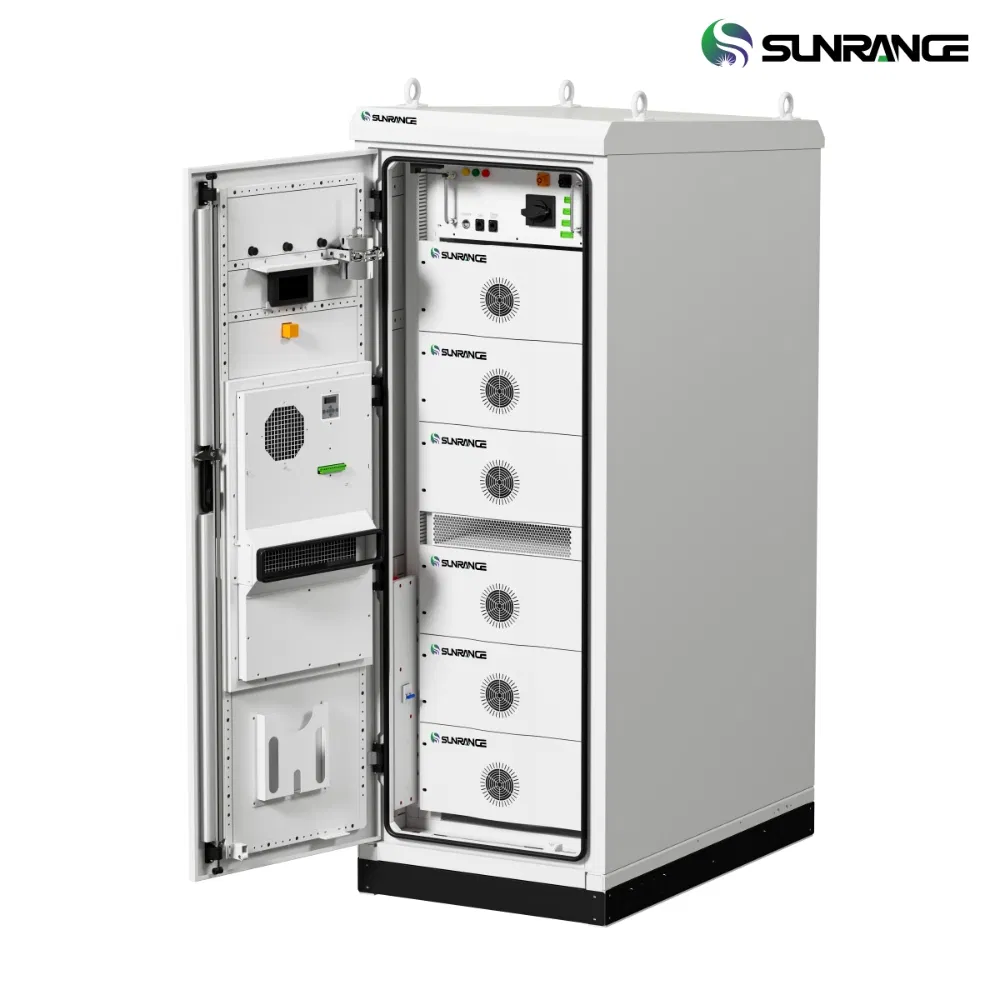

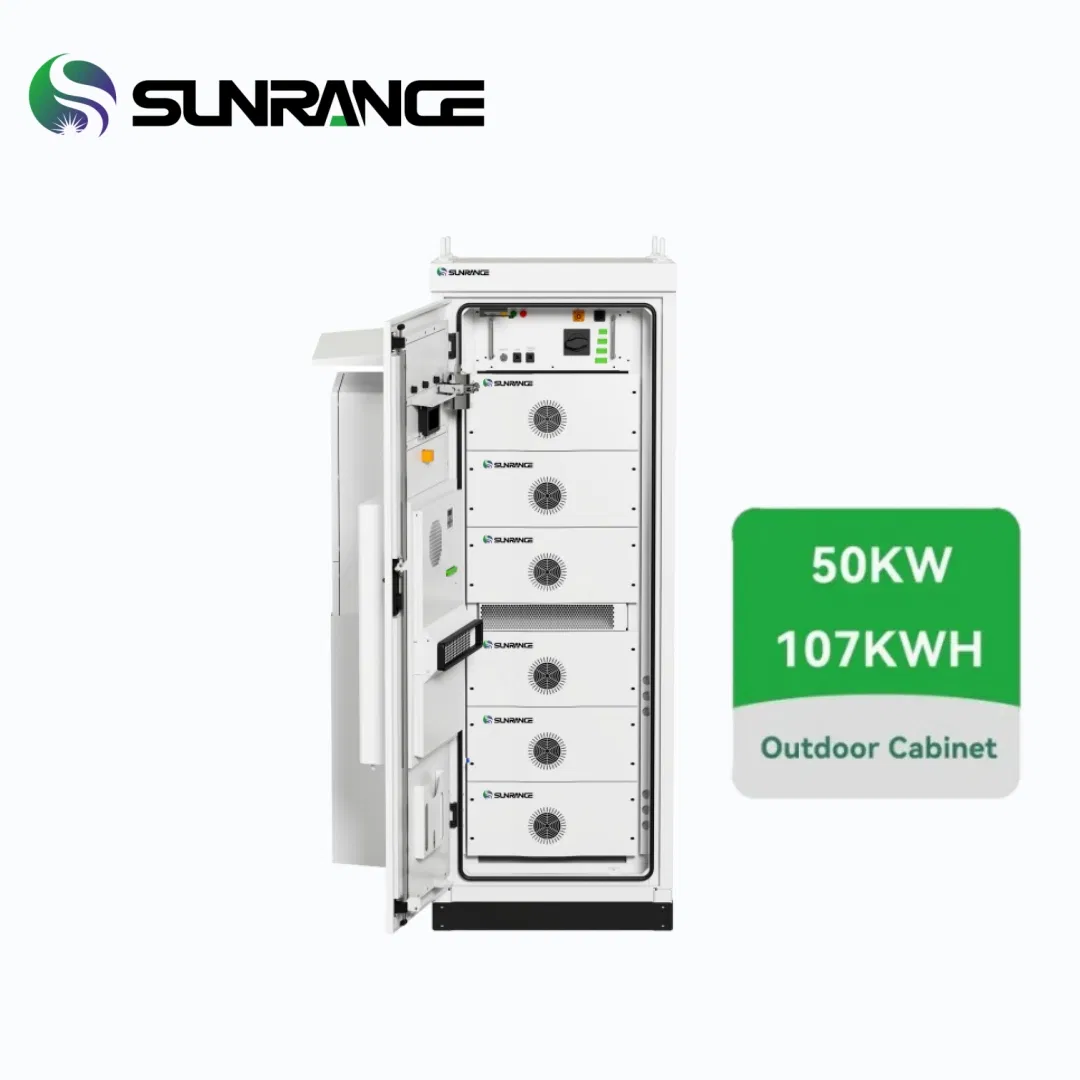

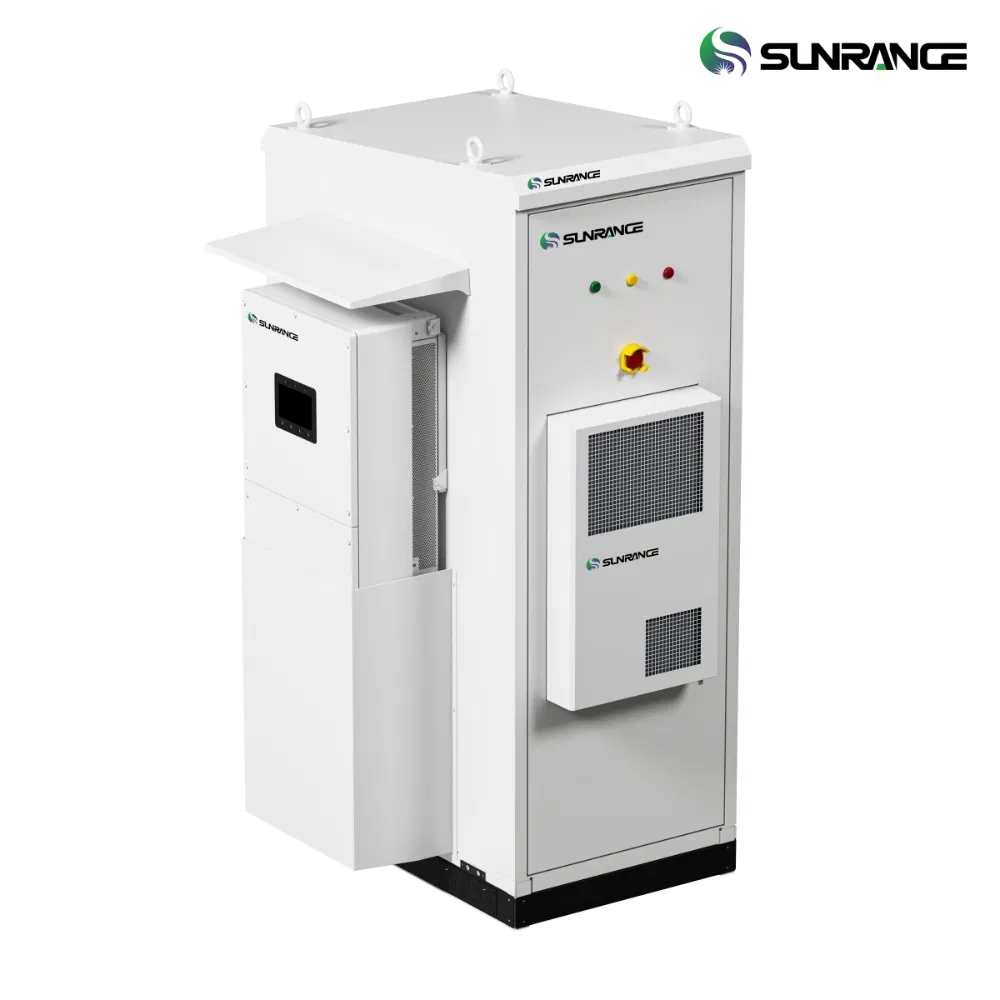

Sunrange 107kwh Outdoor Battery Cabinet Distributed Air Cooled Industrial & Commercial Use Lithium Battery Energy Storage Cabinet Solar Energy System

1 / 5

Sunrange 107kwh Outdoor Battery Cabinet Distributed Air Cooled Industrial & Commercial Use Lithium Battery Energy Storage Cabinet Solar Energy System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SR-eBank-50120F

Condition

New

Certification

ISO, CB, CE

Application

Industrial, Commercial

Number of Packs

Rated Voltage

384V

Rated Energy

107.5kwh

Cycle Life

8000 Times

Protection

IP54

Weight

About 1200kg

Product Description

Technical Specifications

Module: SR-eBank-50120F
Battery Parameters
Number of battery packs	6
Rated voltage	384V
Voltage range	336~438V
Rated energy	107.5kWh
Max. continuous charging/discharging current	140A
Discharge Depth	90%
Cycle life	8000 times
PV Parameters
Max. PV input power	96kW
Rated input voltage	600VDC
Max. input voltage	1000VDC
MPPT voltage range	150~850VDC
AC Side Parameters
AC rated input/output power	50kVA
AC Max. input/output power	55KVA
Voltage	3L/N/PE; 230/400V
Frequency	50/60Hz
System Parameters
Dimension (WHD)	75020001100mm
Communication	CAN/RS485/WiFi/ETH
Cooling	Air cooling
Environment temperature	-30~50℃

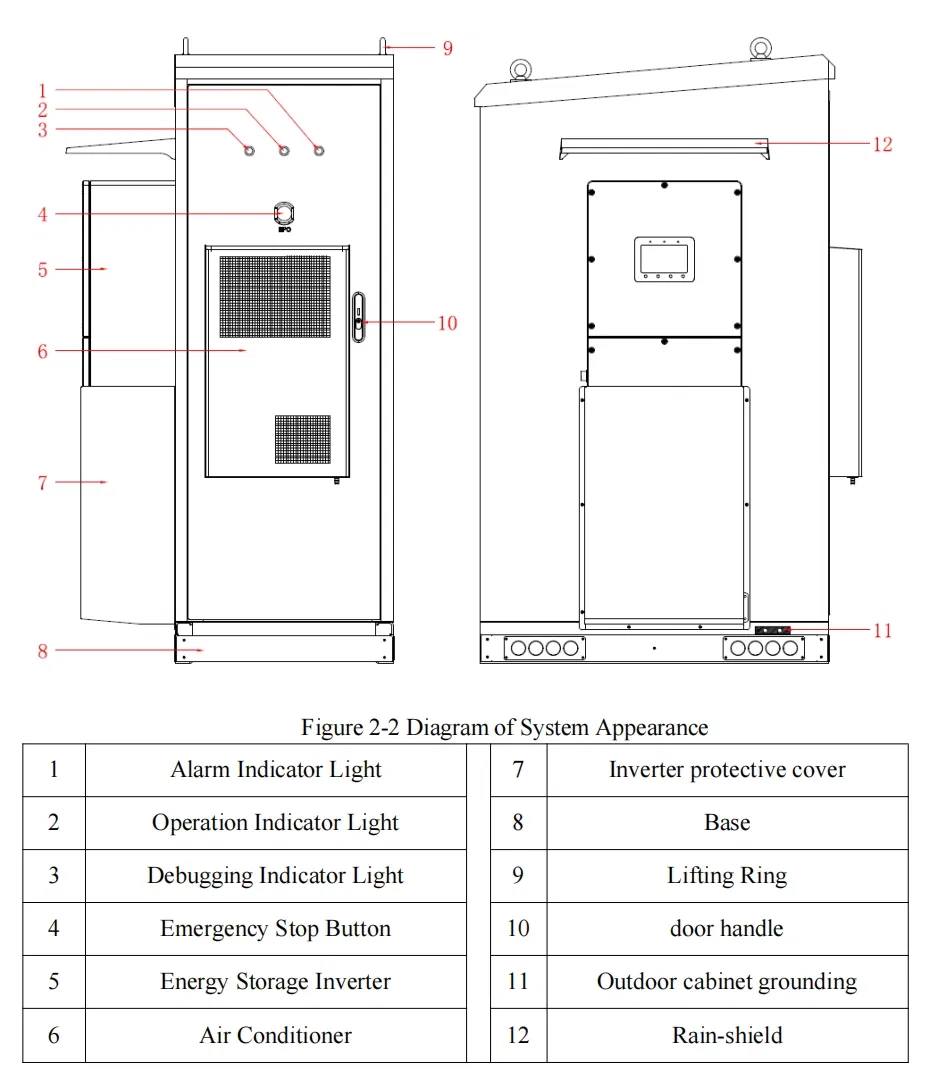

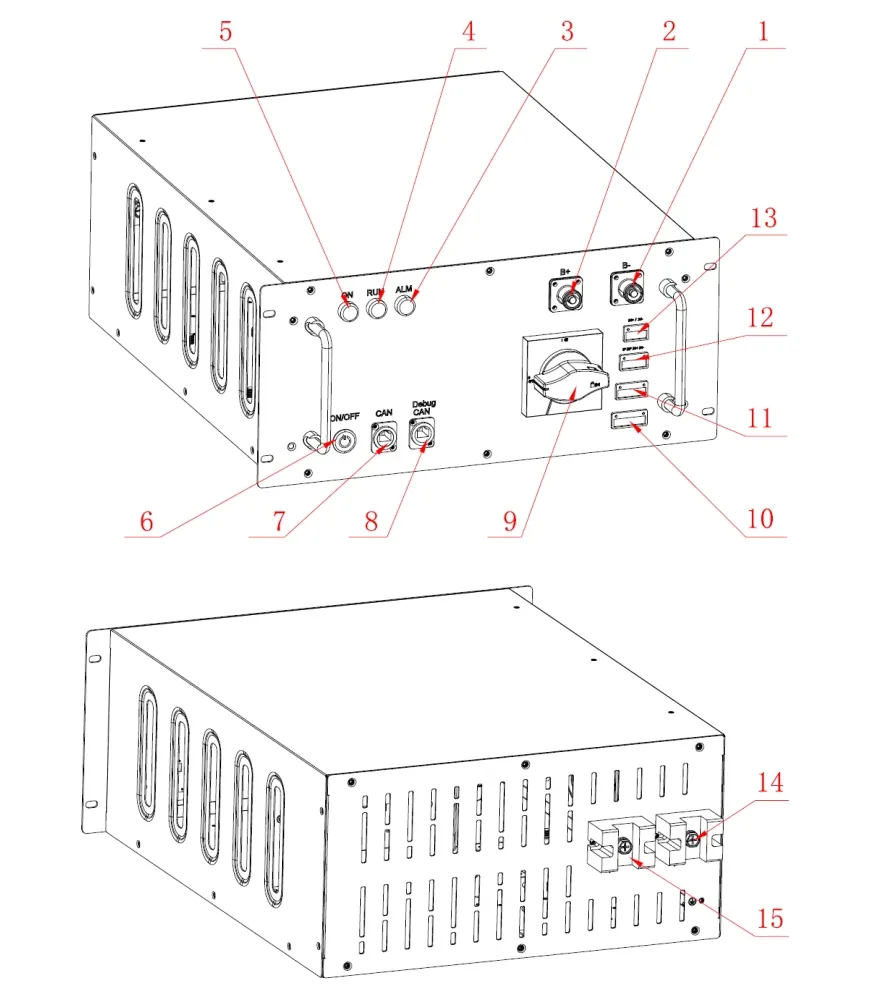

Product Detail Photos

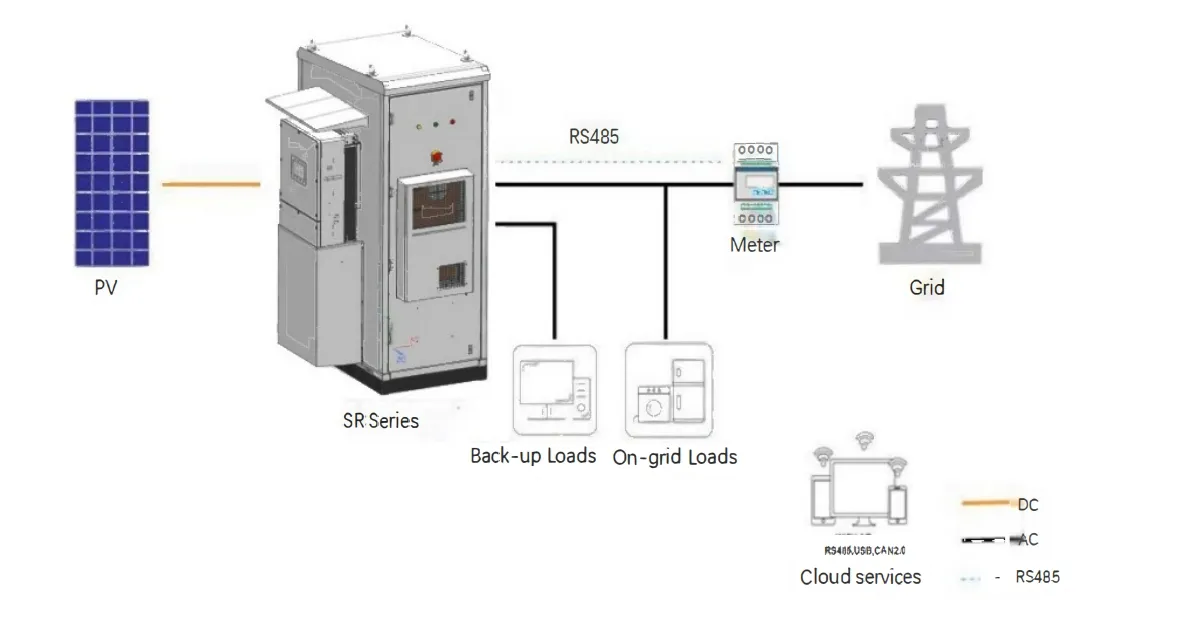

System Overview

SR series small-scale optical storage integrated outdoor cabinet energy storage system adopts modular design, featuring easy integration, easy deployment, and easy expansion. It guarantees user system security and can be used for peak shaving and valley filling, self-generation and self-consumption, demand management, off-grid power backup, and optical storage and charging scenarios.

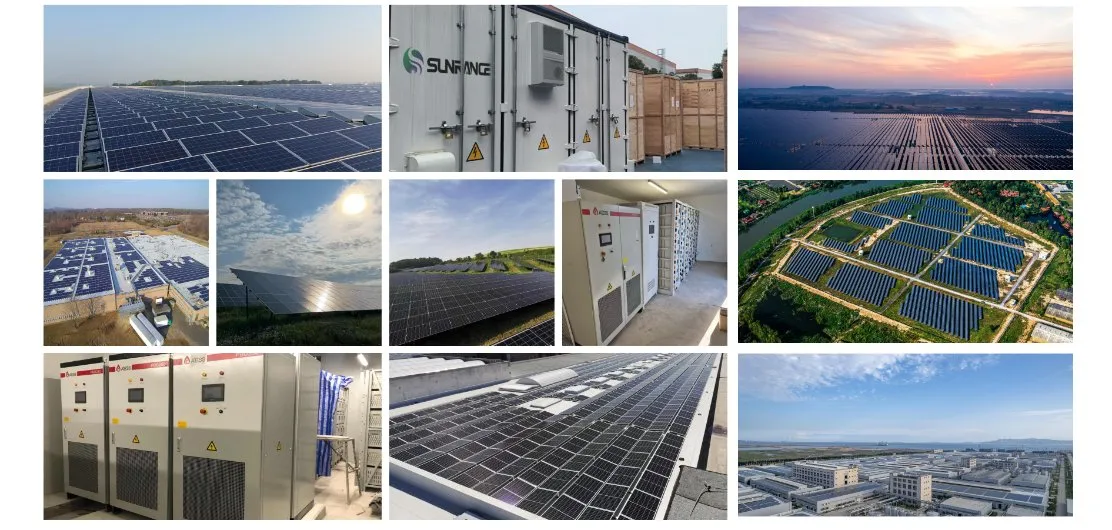

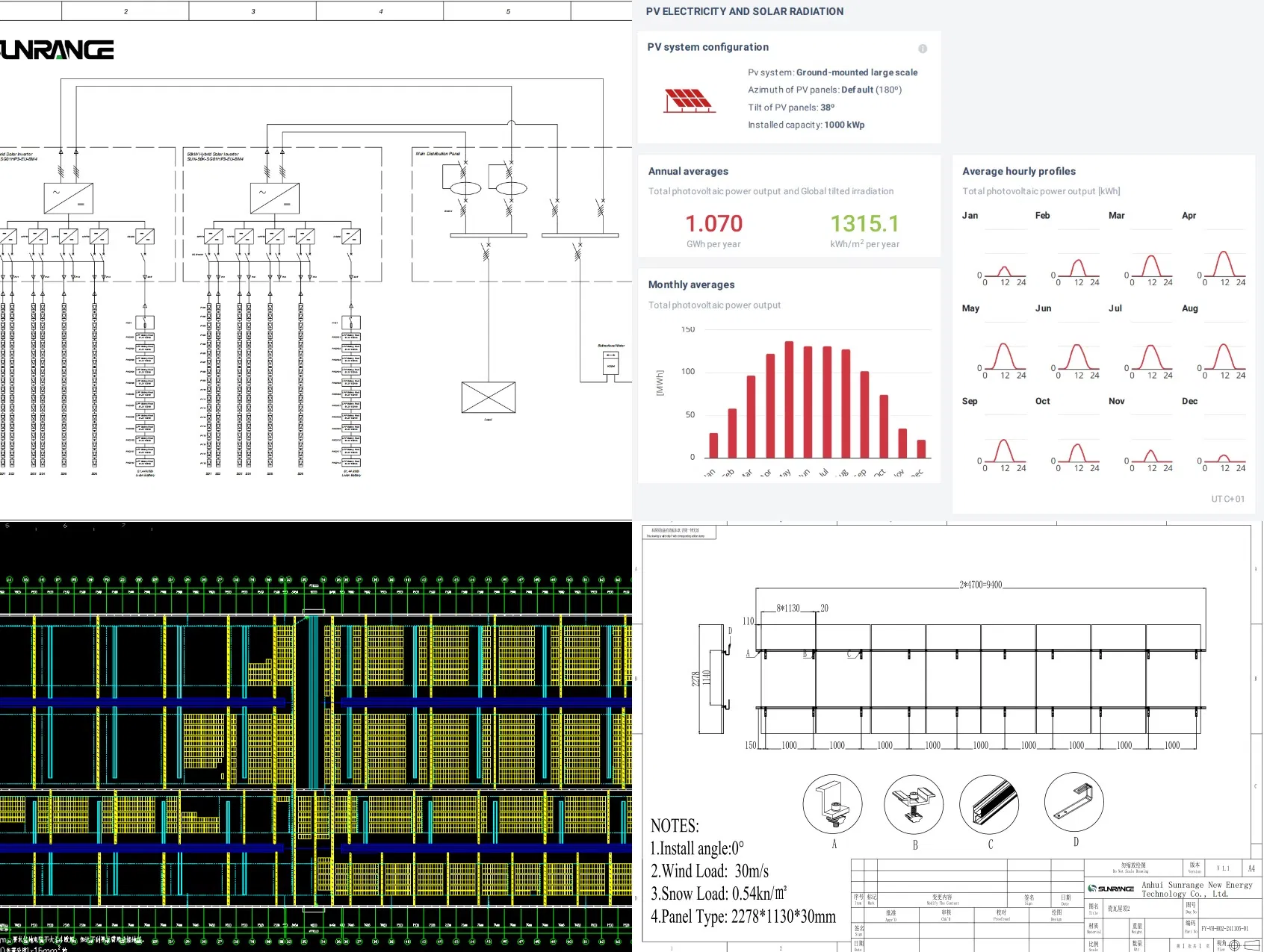

Technical Support & Project Case

Certifications

About Our Service

We are an emerging brand in the photovoltaic industry with customers located on all continents. We provide high-quality products and professional services, offering different design solutions for large, medium, and small-scale requirements. We continue to develop and improve technology to bring a better experience to our users.

Frequently Asked Questions

What is the total energy capacity of this battery cabinet?

The SR-eBank-50120F provides a rated energy capacity of 107.5kWh with 6 integrated battery packs.

What is the expected cycle life of the battery system?

The system is designed for high durability, offering a cycle life of up to 8000 times.

Is this energy storage system suitable for outdoor installation?

Yes, the cabinet has an IP54 enclosure protection rating and an operating environment temperature range of -30 to 50ºC, making it ideal for outdoor industrial and commercial use.

Can multiple units be connected in parallel?

The system supports parallel expansion up to a total of 90kW / 252.9kWh to meet larger energy demands.

What cooling method does the cabinet use?

The system utilizes a distributed air-cooled design to maintain optimal operating temperatures for the lithium batteries.

What are the primary applications for this system?

It is suitable for peak shaving, valley filling, self-consumption, demand management, and off-grid power backup for industrial and commercial sectors.
