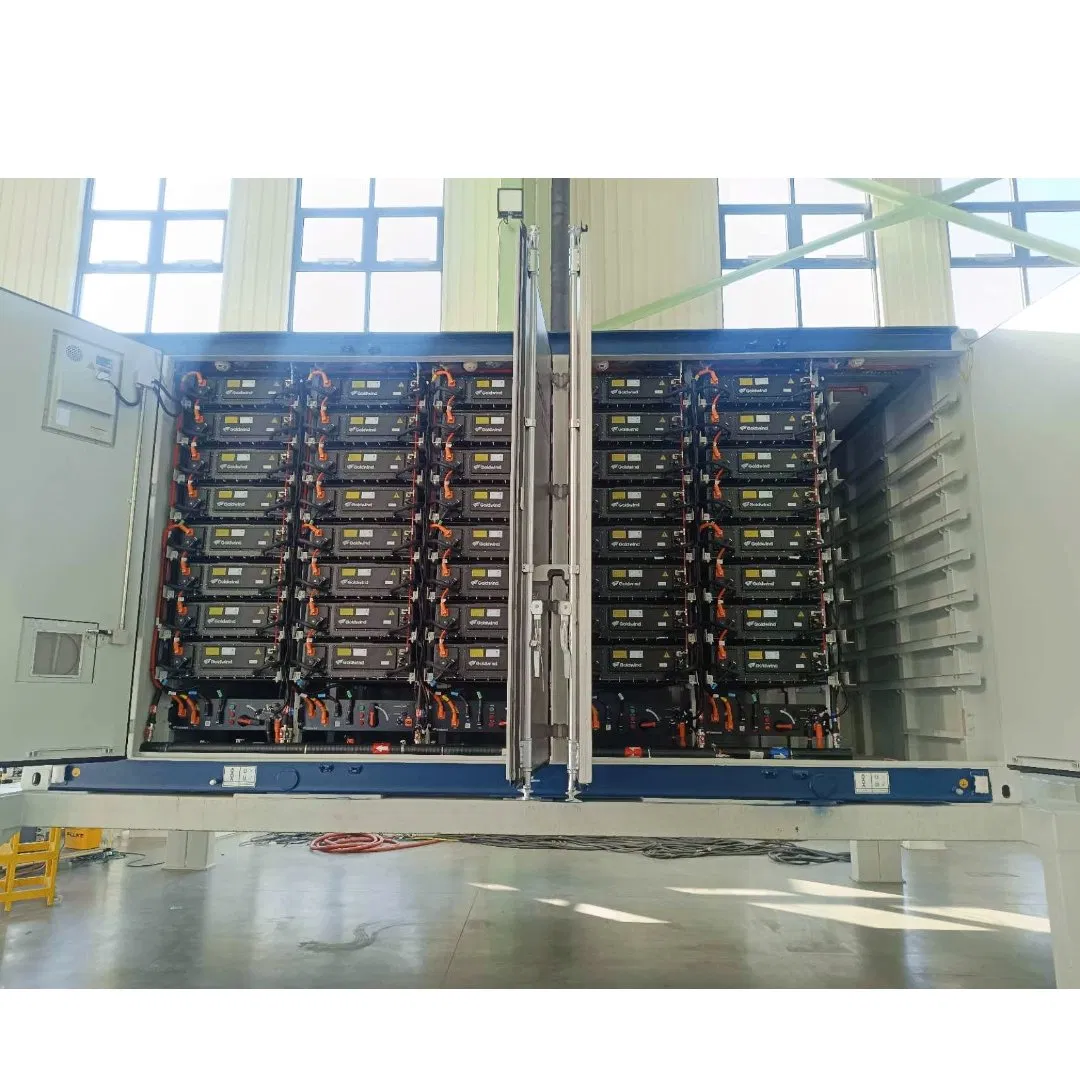

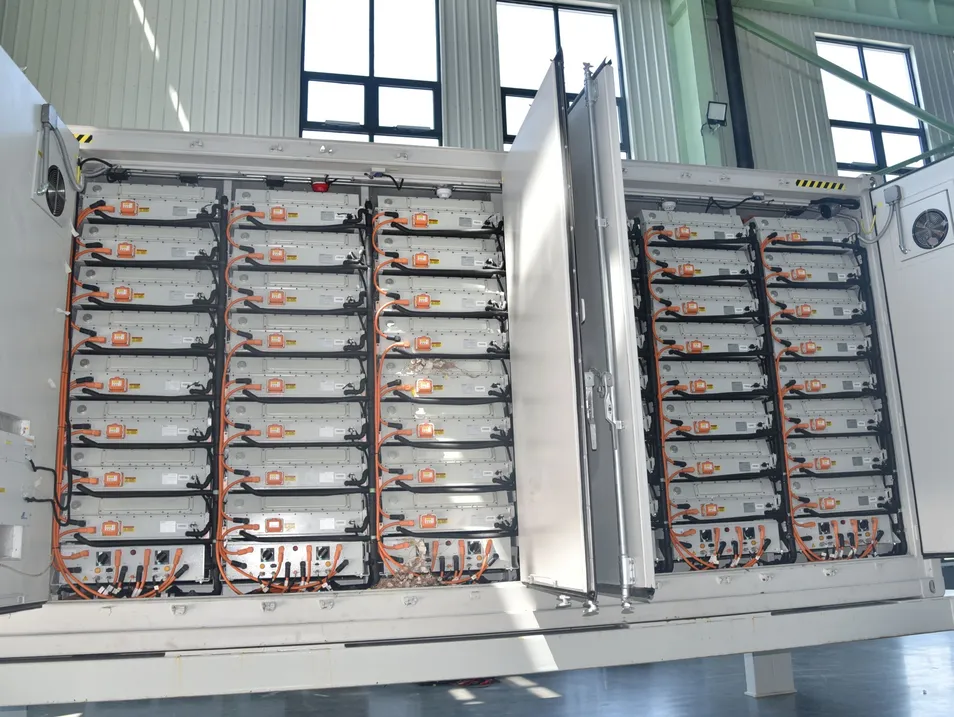

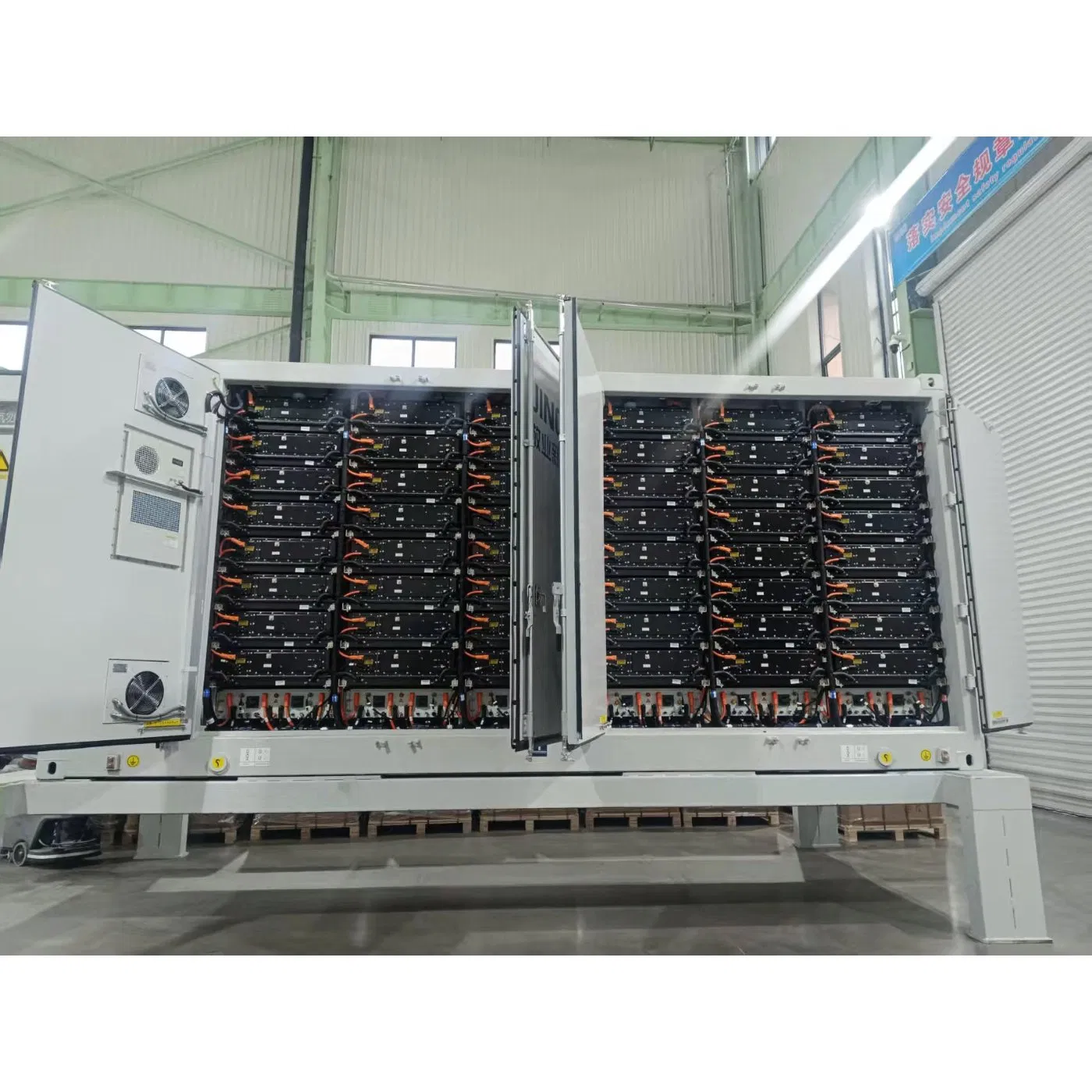

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

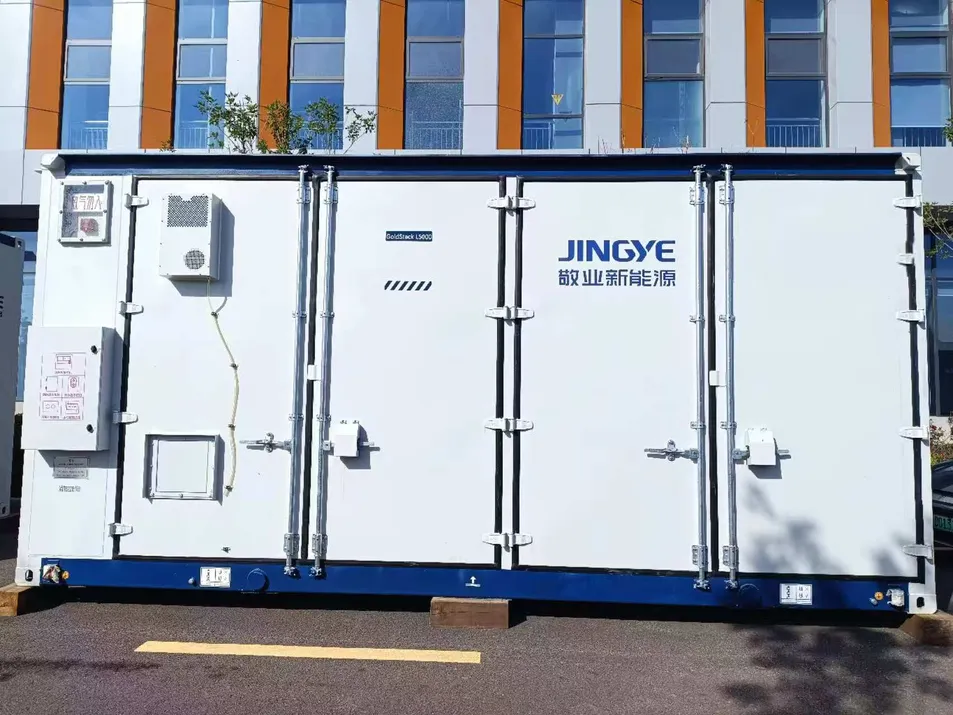

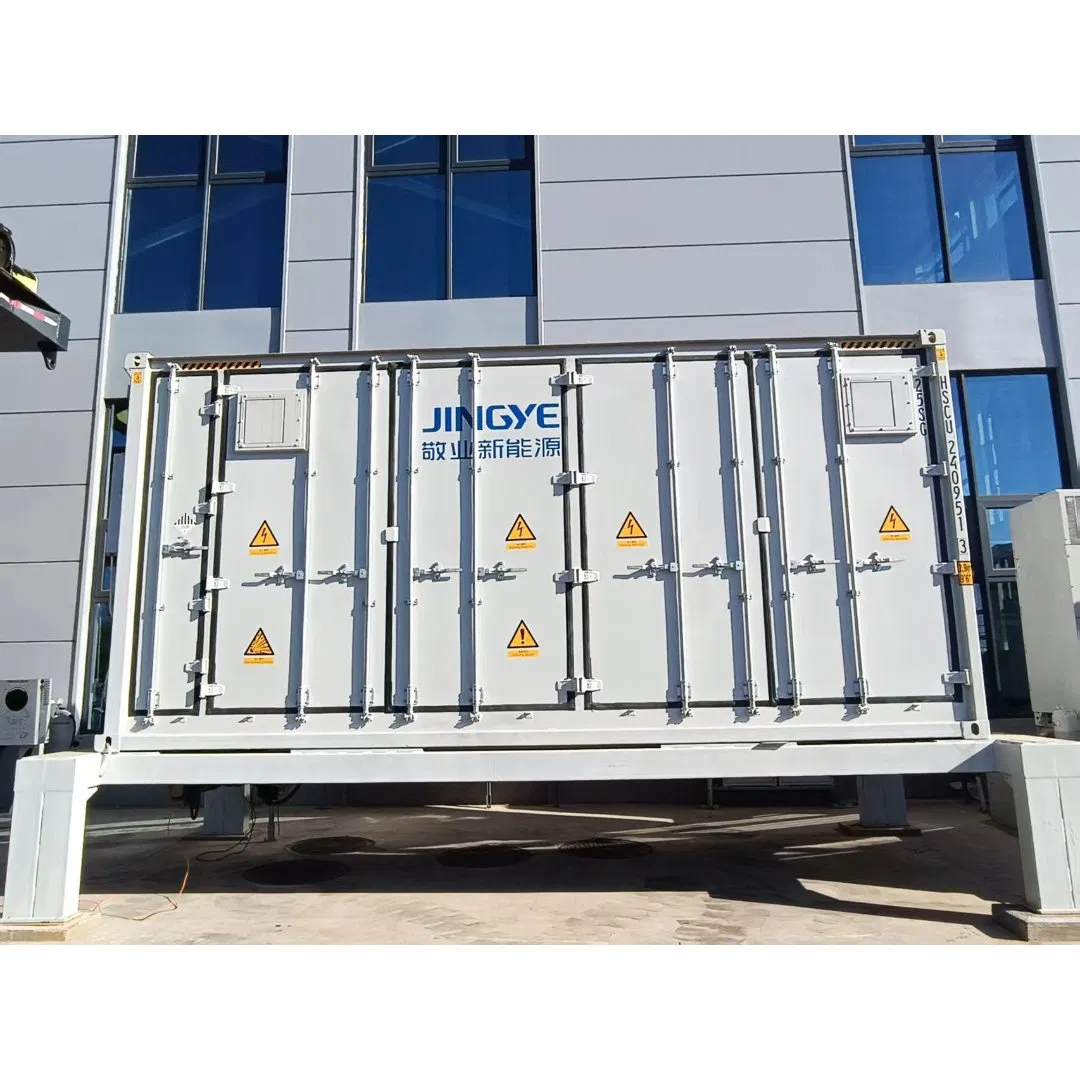

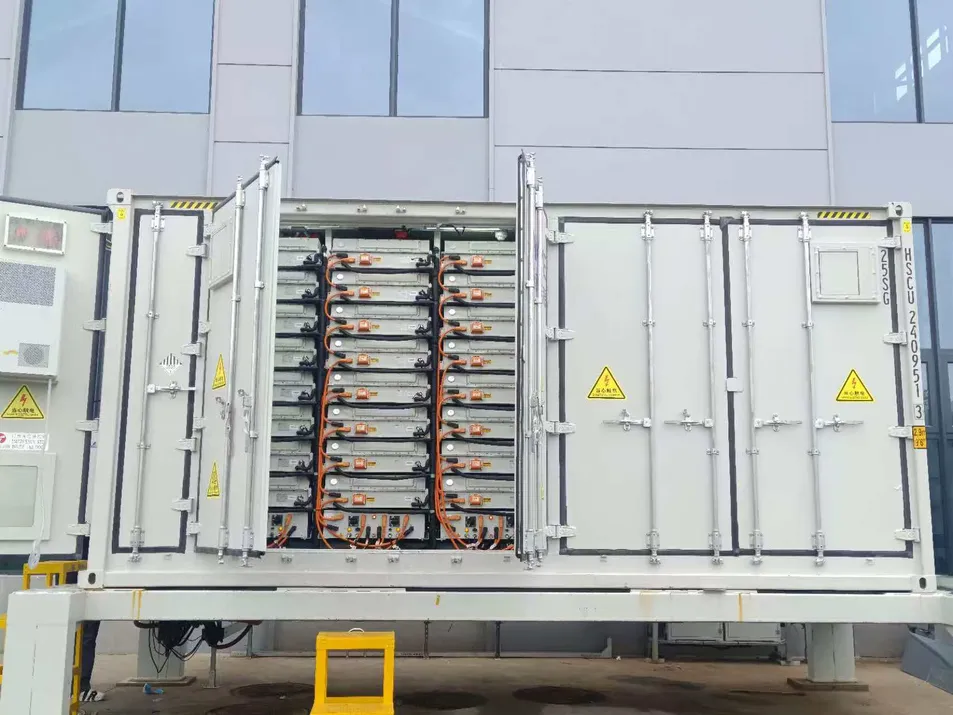

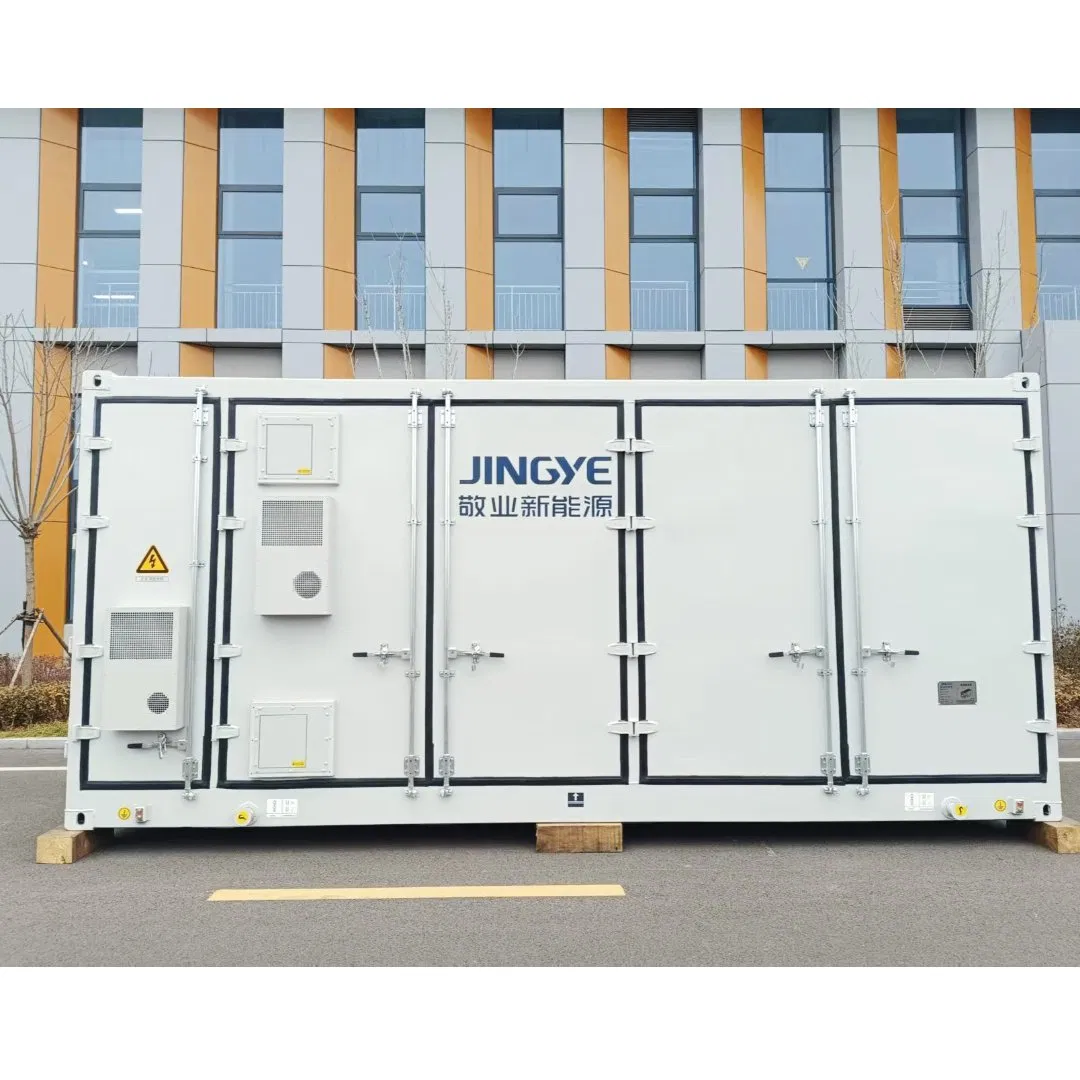

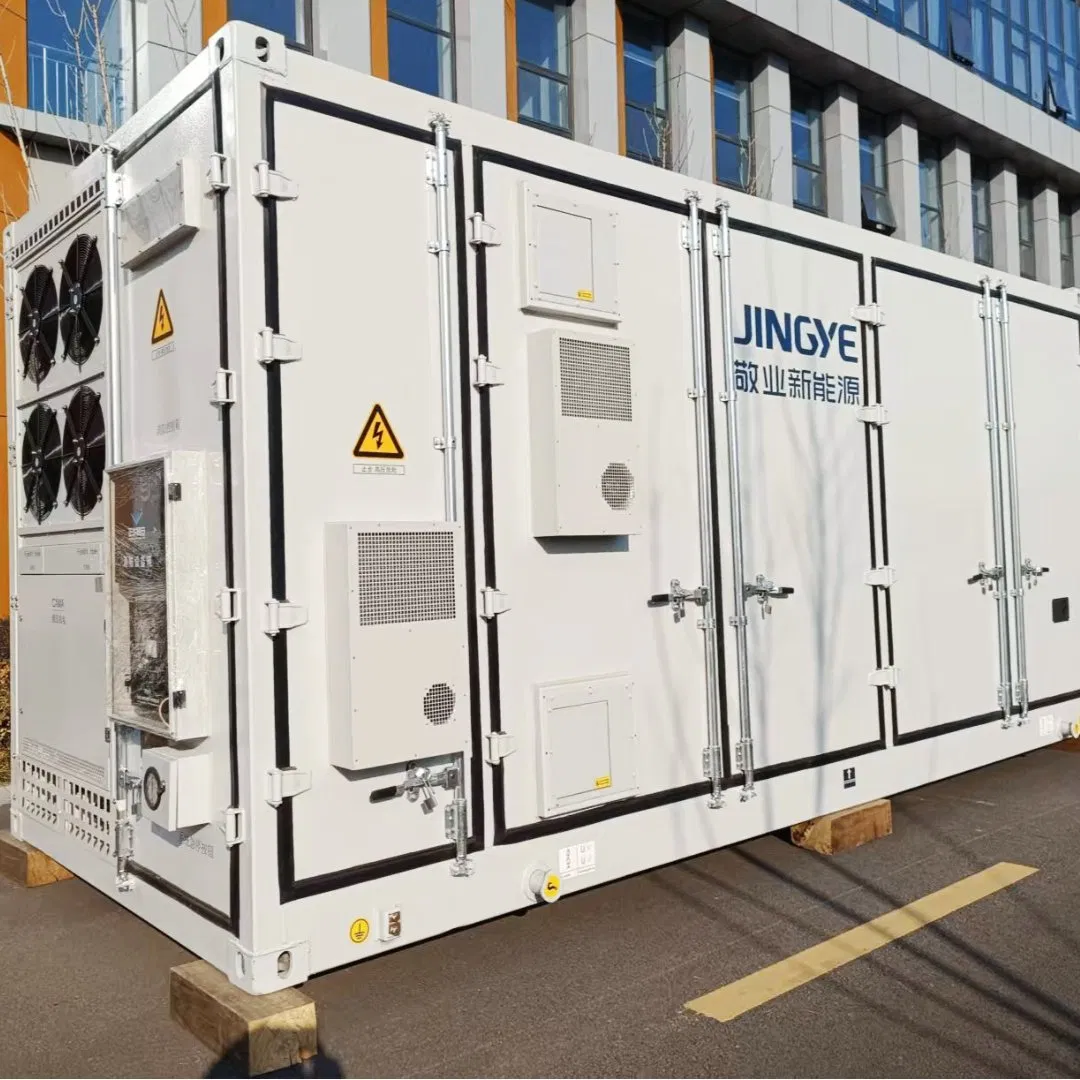

The system utilizes simplified integration technology, installing the PACK, distribution busbars, liquid cooling units, temperature control, and fire protection systems within a standard 20-foot container (2438mm x 2896mm x 6058mm). Arranged in three compartments, it ensures safety control while remaining suitable for various transportation conditions and site designs.
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V - 1497.6VDC |
| Rated Charging Power | ≤ 2.5MW |
| Rated Discharge Power | ≤ 2.5MW |
| Auxiliary Power Supply | 400VAC±5% 50Hz / 220VAC |
| Storage Temperature | 5℃ < T ≤ 35℃ |
| Working Temperature | 0℃ to 60℃ (Charge) / -30℃ to 60℃ (Discharge) |
| Altitude | ≤ 4000m (derating above 4000m) |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | Approx. 43t |
| IP Rating | IP54 |
| Cooling Method | Liquid Cooling |
| Communication | Ethernet, CAN, ModbusRTU |

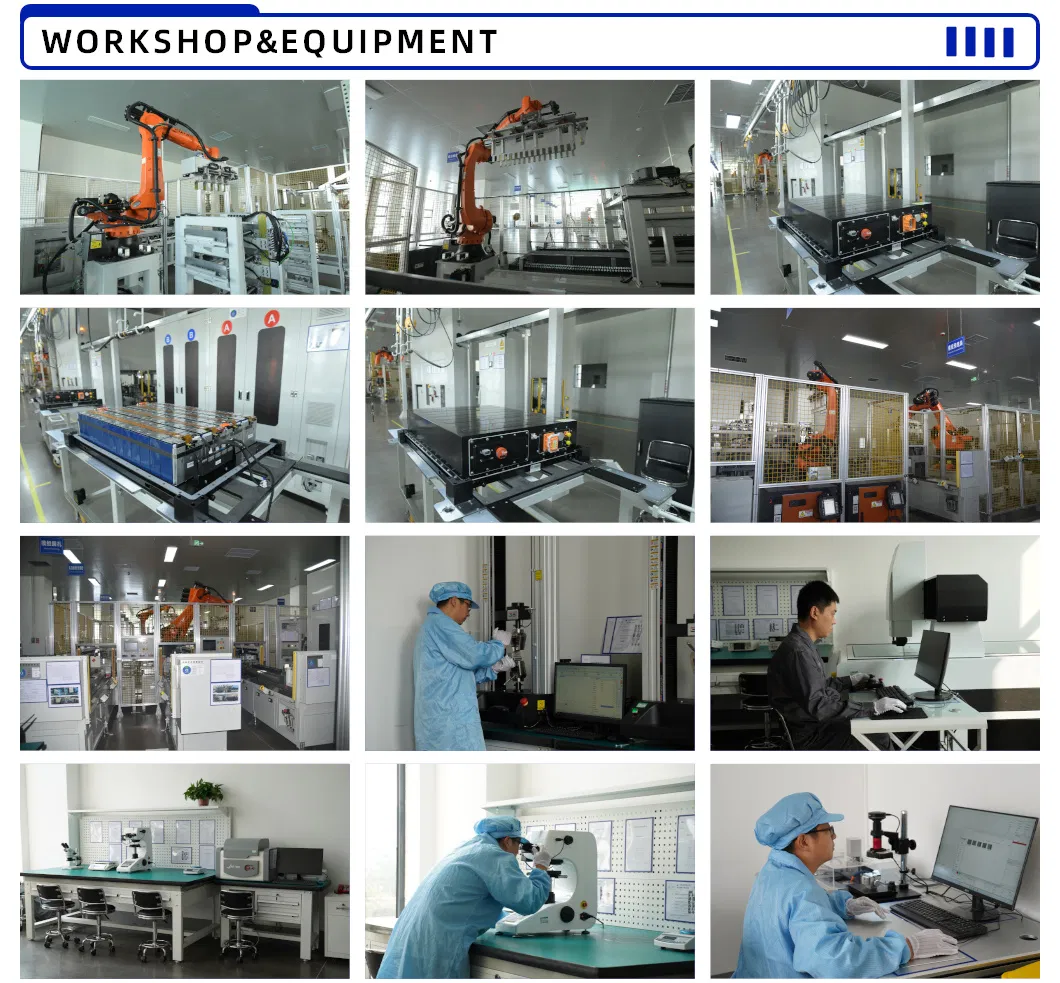

Our facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely used in smart grids, renewable energy distribution, industrial energy storage, and green transportation.
