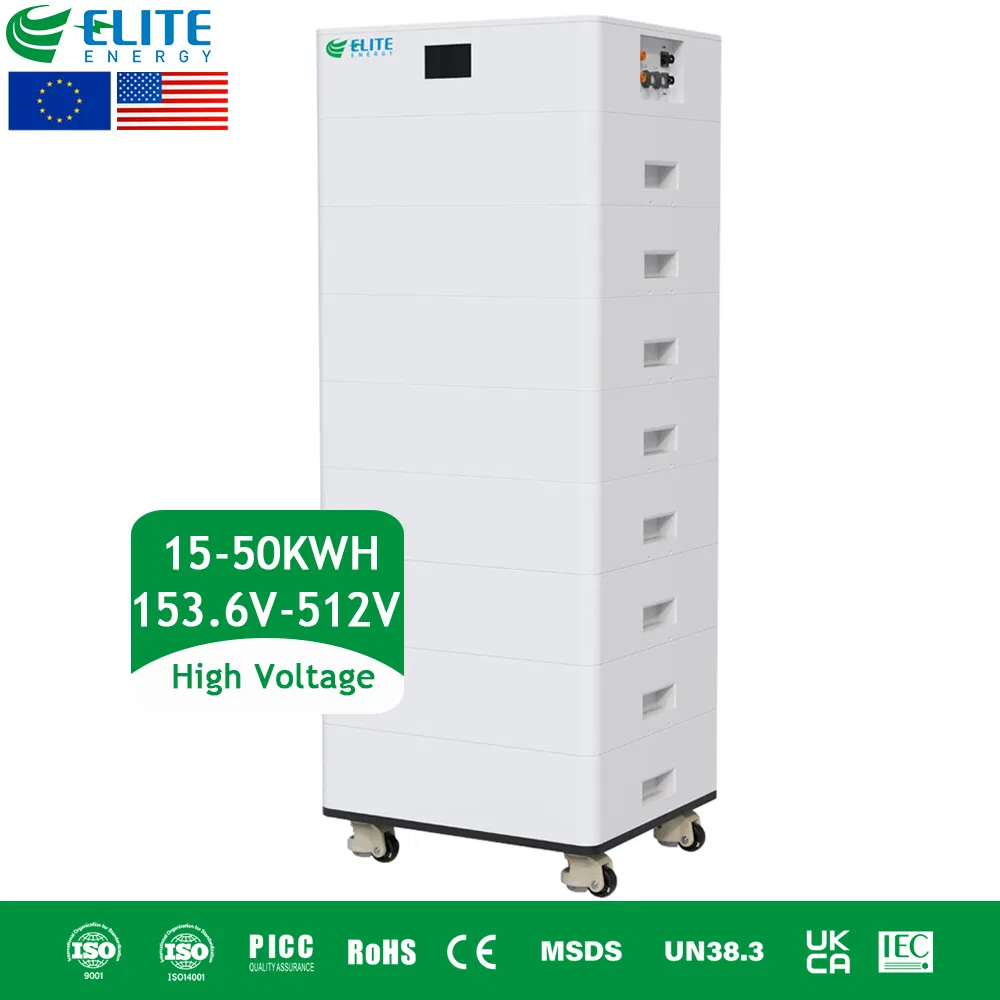

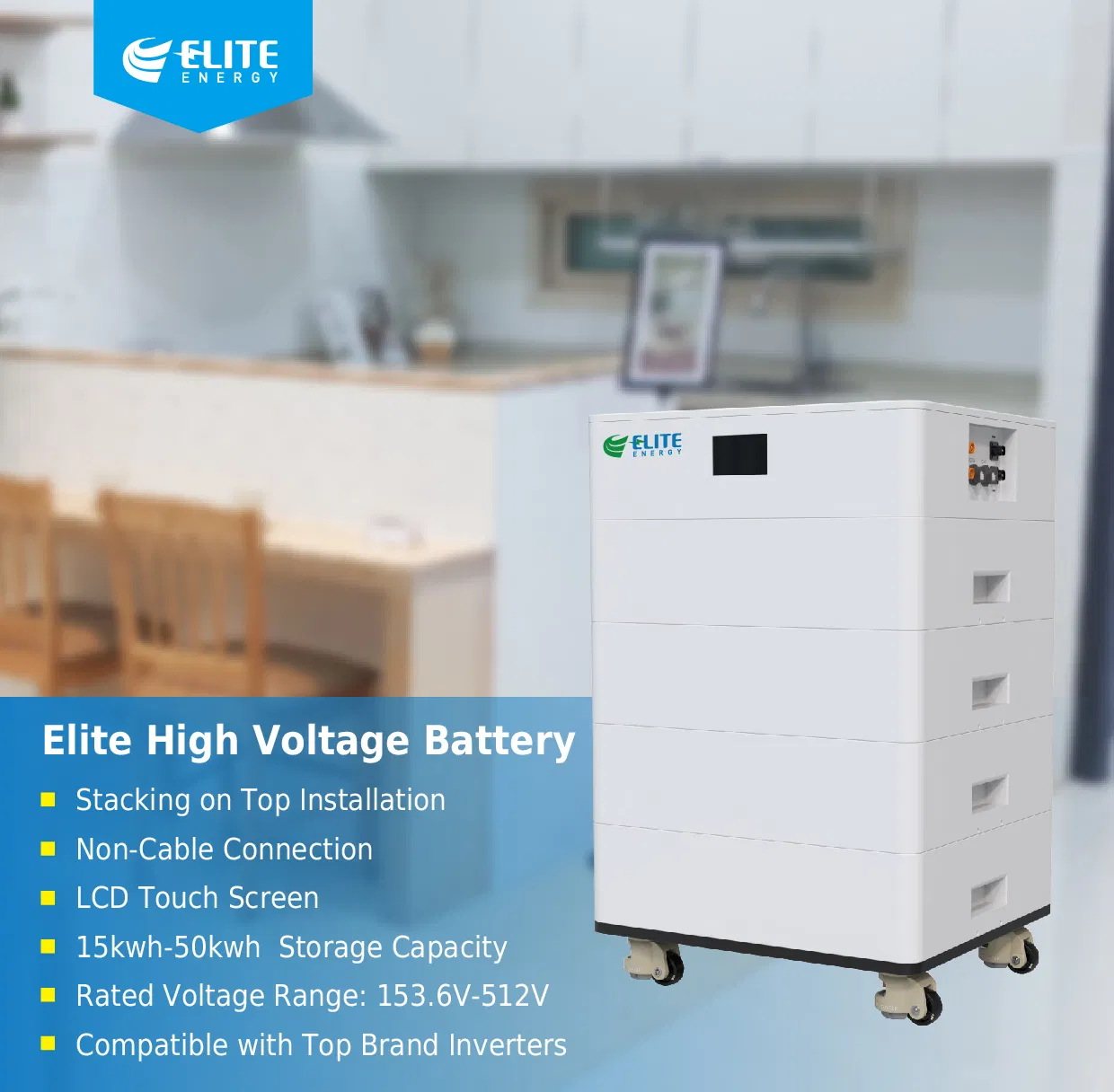

15Kwh 20Kwh 30Kwh 40Kwh 50Kwh High Voltage Energy Storage Battery System
Key Features
🔋
Adopts green, safe and reliable LiFePO4 battery cells.
⚙️
Flexible Investment, meet different energy requirements.
⚡
Highest energy efficiency for home storage.
🔄
Wide compatibility with market main inverter brands.
🛡️
Long-term reliability with five years warranty.
Technical Specifications
| Number of Modules |
3 |
4 |
5 |
6 |
8 |
| Battery Type |
LiFePO4 |
| Battery Module |
5120Wh, 51.2V 100Ah |
| Nominal Energy |
15.36kWh |
20.48kWh |
25.6kWh |
30.72kWh |
40.96kWh |
| Nominal Voltage |
153.6V |
204.8V |
256V |
307.2V |
409.6V |
| Operating Voltage |
120-175.2V |
160-233.6V |
200-292V |
240-350.4V |
320-467.2V |
| Rated DC Power |
15.36kWh |
20.48kWh |
25.6kWh |
30.72kWh |
40.96kWh |
| Rated Capacity |
100A |
| Max. Continuous Current |
80A (Charge/Discharge) |
| Peak Discharge Current |
150A |
| Communication / Display |
CAN / LCD Display Included |
| Weight (kg) |
167.6 |
214.2 |
260.8 |
307.4 |
400.6 |
| IP Standard |
IP54 |
| Mounting Method |
Floor stand (Indoor) |

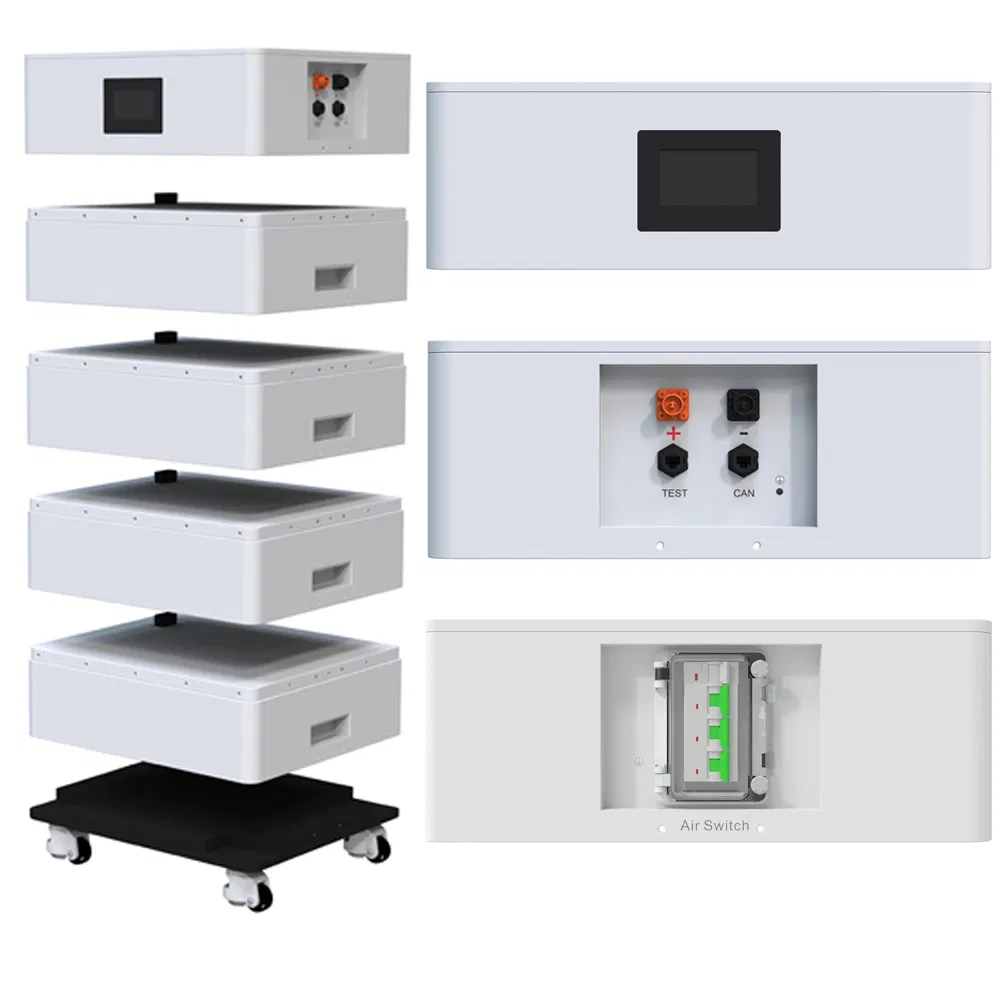

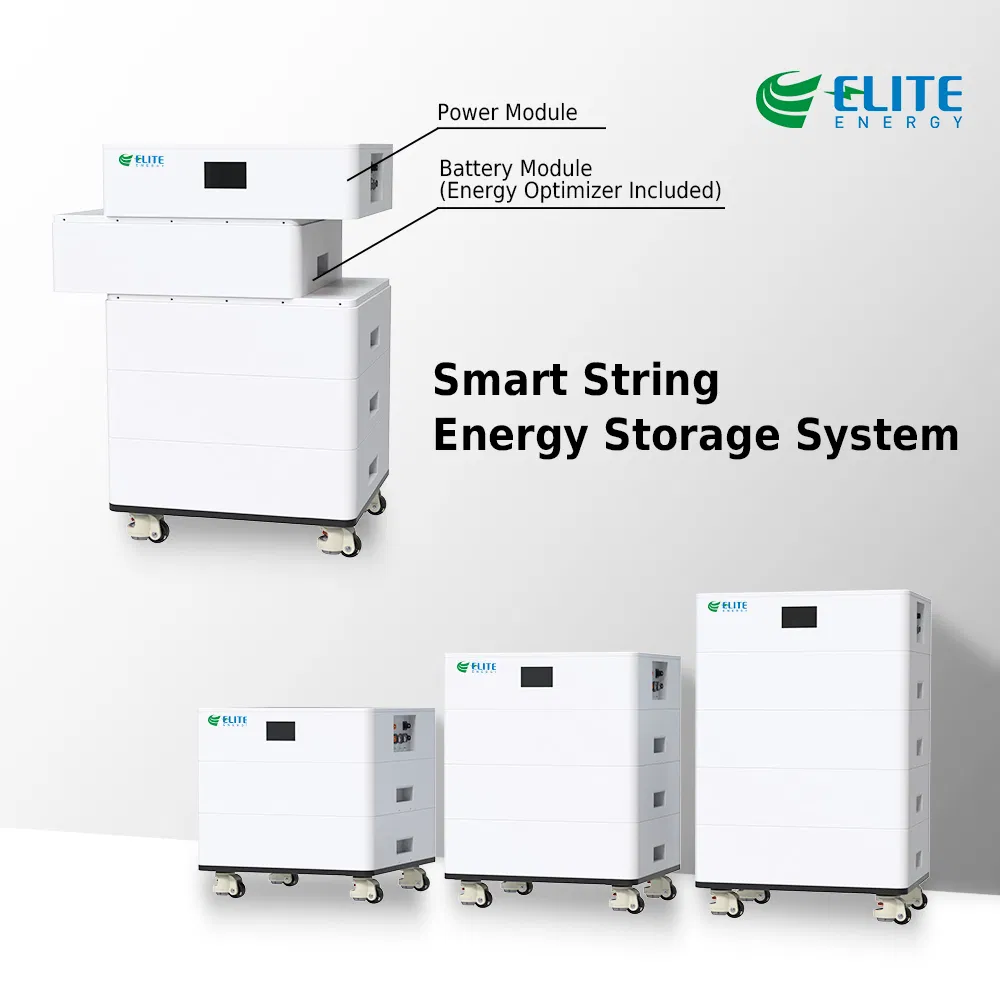

Product Gallery
Frequently Asked Questions
Q1. What is the typical lead time for orders?
A: Standard product samples take 3-5 days, while bulk orders take 3-4 weeks. Customized products typically require 3-4 weeks for both samples and bulk production.
Q2. How are the goods shipped and what is the estimated time?
A: We offer air door-to-door (6-12 days), sea door-to-door (25-50 days), and air-to-airport (3-5 days) shipping options depending on order urgency and volume.
Q3. Does the BMS include low-temperature protection?
A: Yes, the built-in Battery Management System (BMS) includes a low-temperature cutoff function to protect the battery from damage. Charge protection activates at 0ºC ± 4ºC and discharge protection at -20ºC ± 4ºC.
Q4. How long do these LiFePO4 batteries typically last?
A: Our LiFePO4 batteries provide 4000+ cycles, which is 8 to 10 times longer than standard lead-acid batteries that usually last only 300-500 cycles.
Q5. Are the batteries certified for safety?
A: Absolutely. Our batteries use automotive-grade cells and are CE certified. They include protection against overcharge, deep discharge, overload, overheating, and short circuits.
Q6. Can I customize the battery pack with my own logo?
A: Yes, we provide OEM services. We can print your logo on the case or create custom labels for the products to meet your branding requirements.
