| System Overview | |
|---|---|
| Solar Panel | 80W 18V Mono Solar Panel |
| Battery Type | Ternary Lithium Polymer Battery |
| Battery Capacity | 12V 40Ah |
| Controller Type | PWM |
| System Voltage | 12V |
| USB Output | 5V/2A |
| Package Weight | 17.5kg |

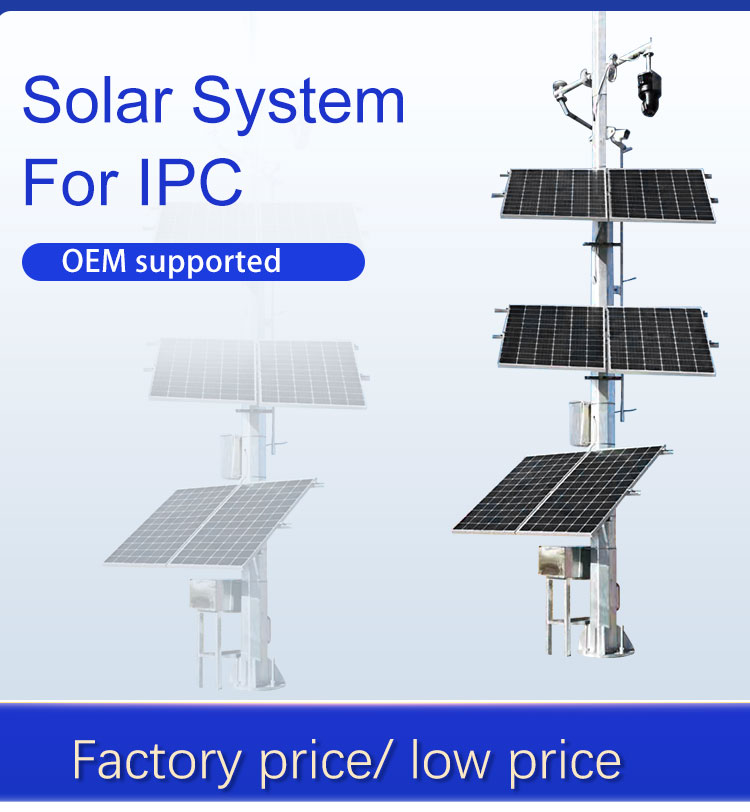

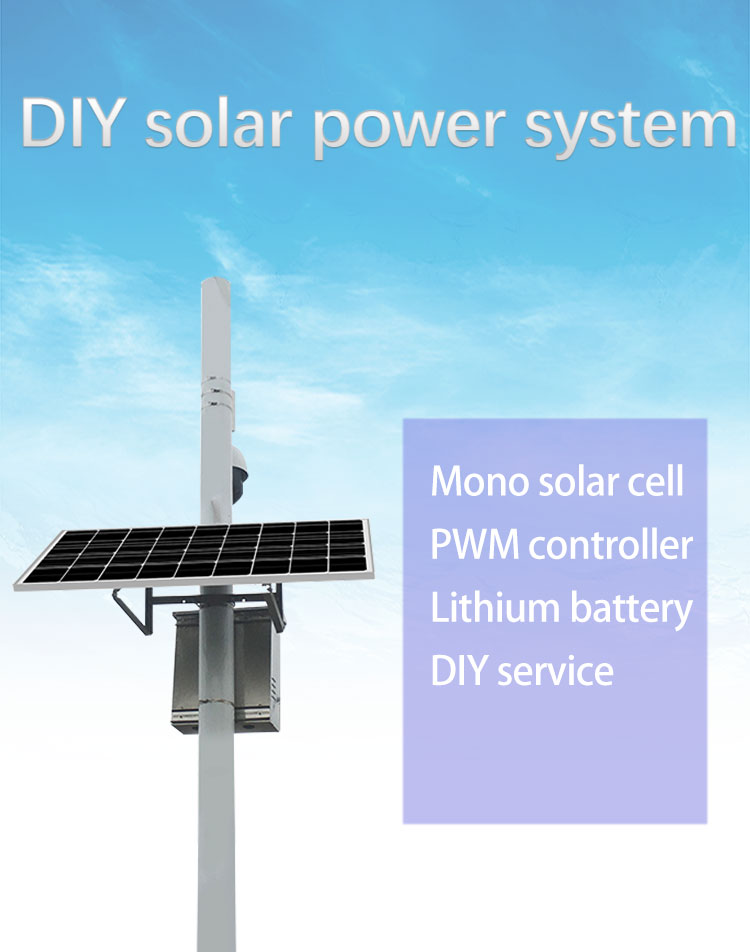

This low-cost solar system is equipped with an 80W solar panel, a 40AH lithium battery, and a PWM charge controller. The output is 12V DC, making it an ideal renewable energy system for security cameras, bullet PTZ, and other DC-powered devices.

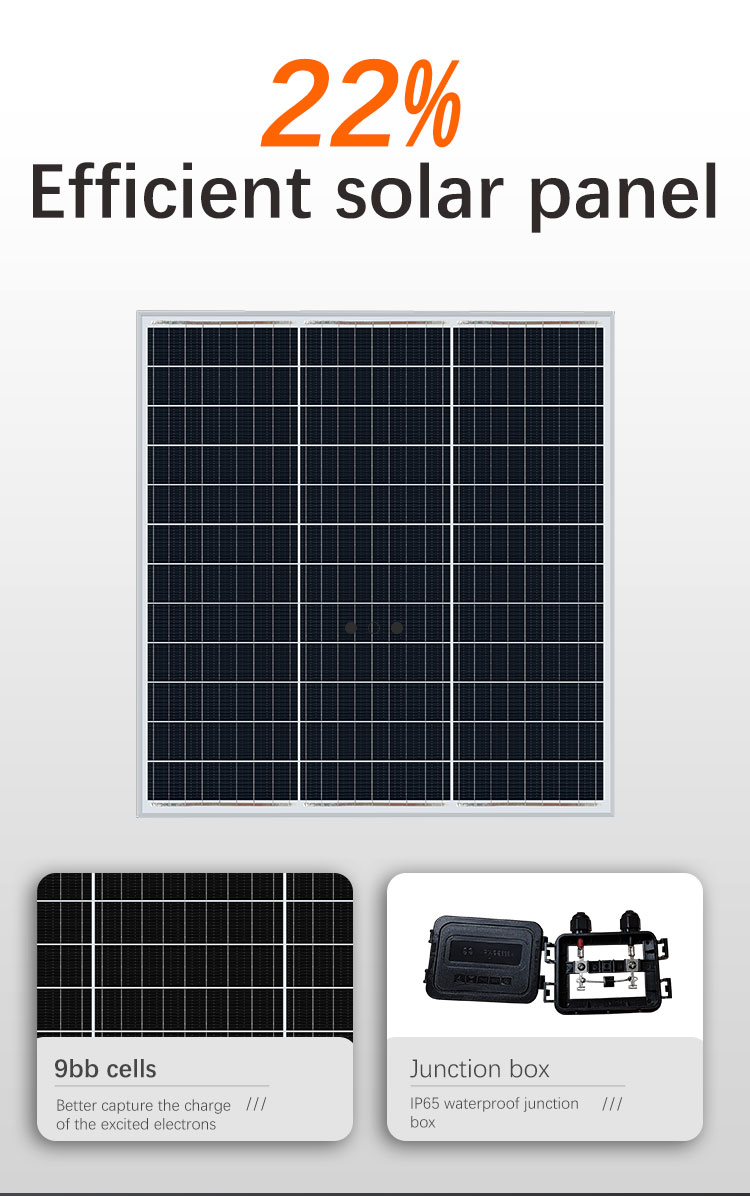

| Solar Panel Specifications | |
|---|---|
| Max Power Voltage (Vmp) | 18V |
| Max Power Current (Imp) | 4.45A |
| Open Circuit Voltage (Voc) | 21.6V |
| Module Efficiency | 22% |
| Number of Cells | 36pcs |
| Dimension | 700*670*30mm |

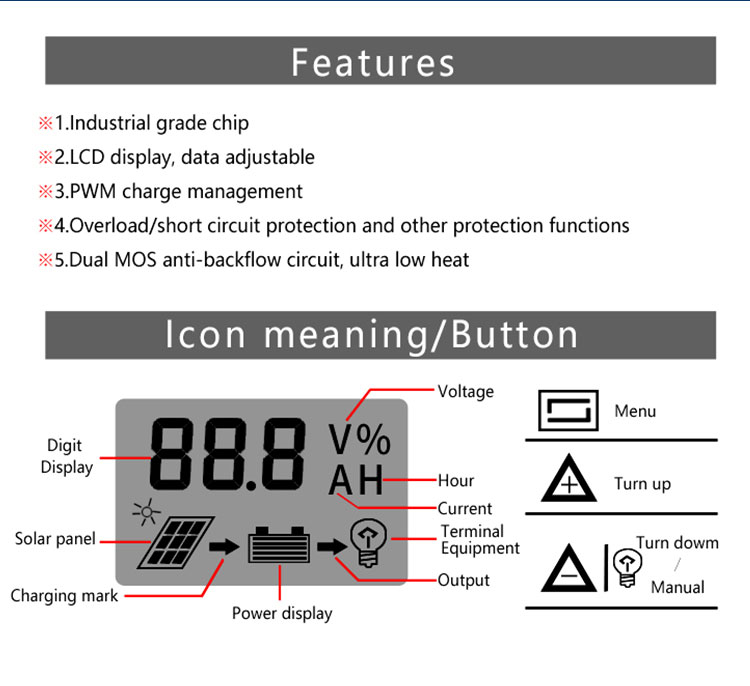

PWM Solar Controller
Supports 5V/2A USB Output & LCD Display

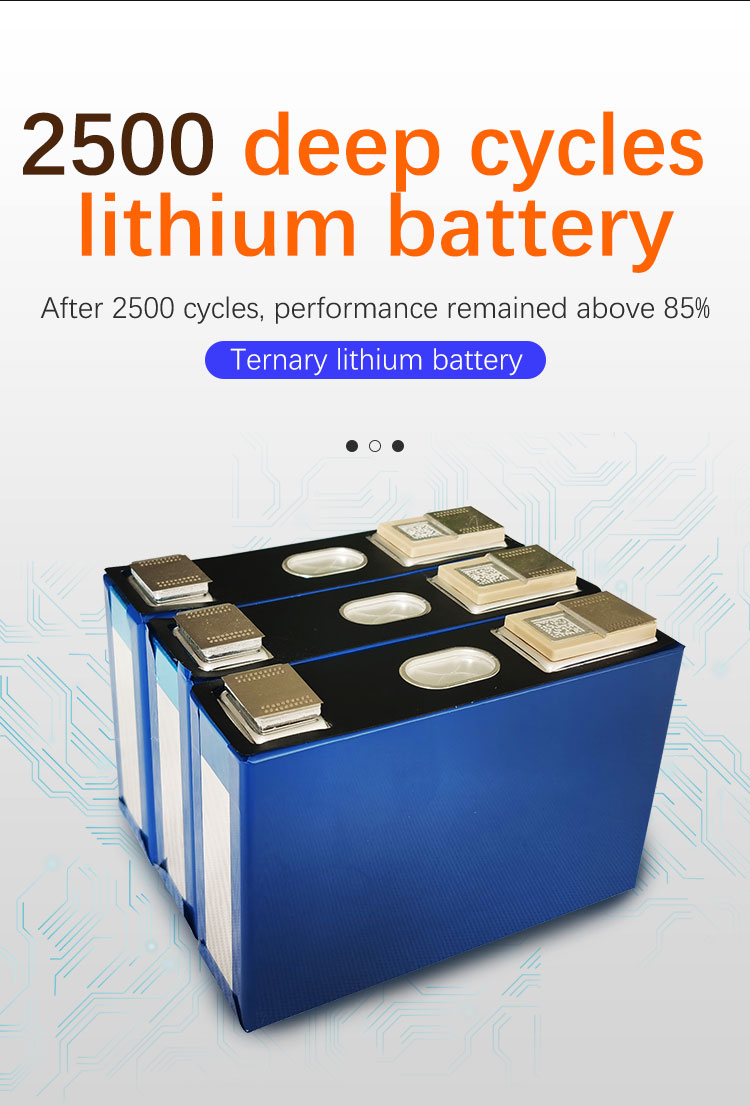

Lithium Battery
Long Cycle Life: ≥2500 cycles

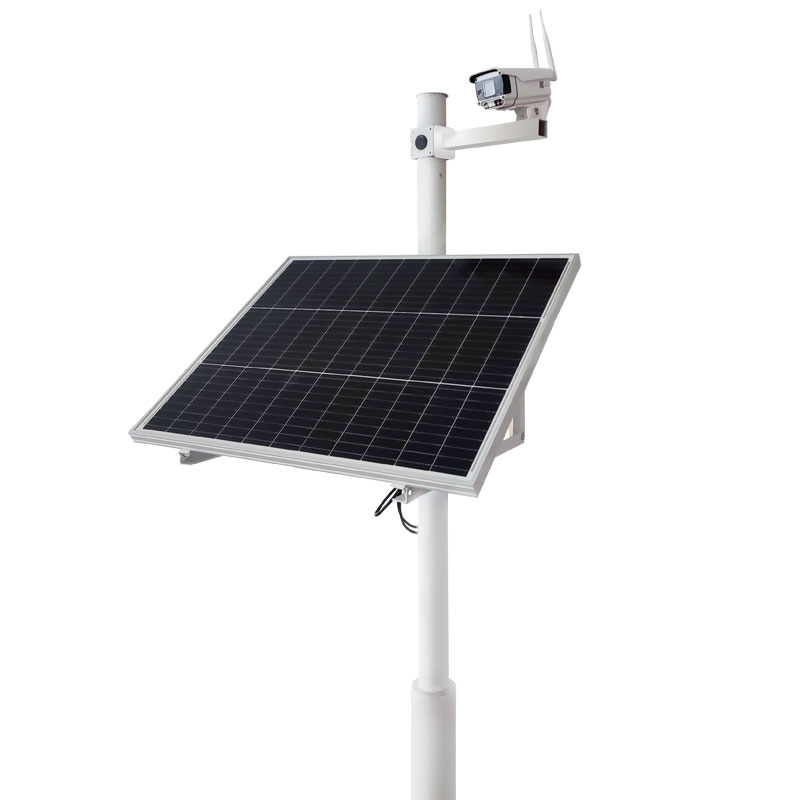

Mounting Bracket
Easy pole installation

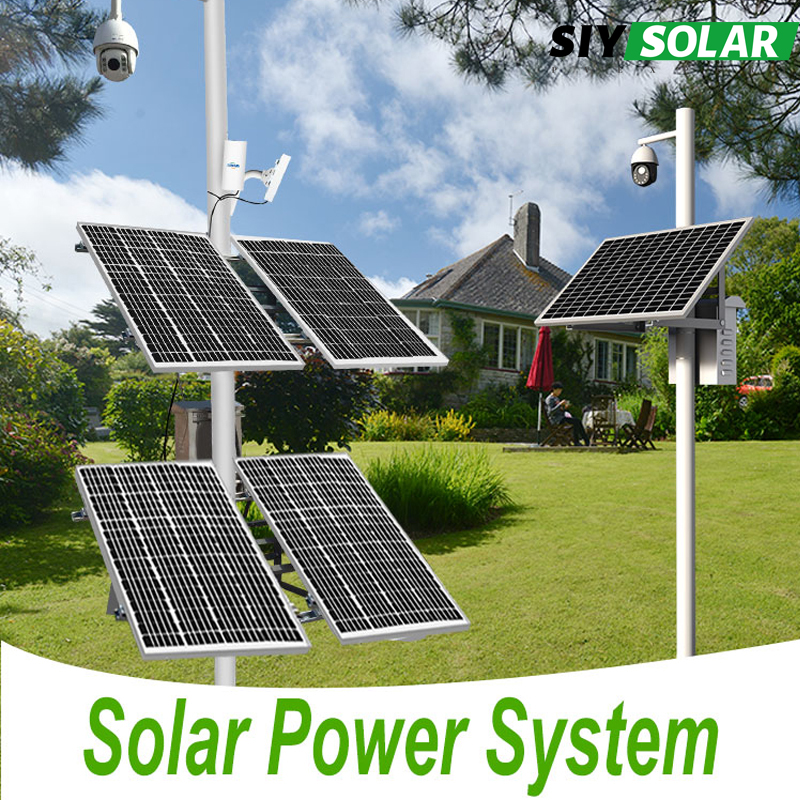

Our solar power system provides reliable energy for various IoT devices, including:

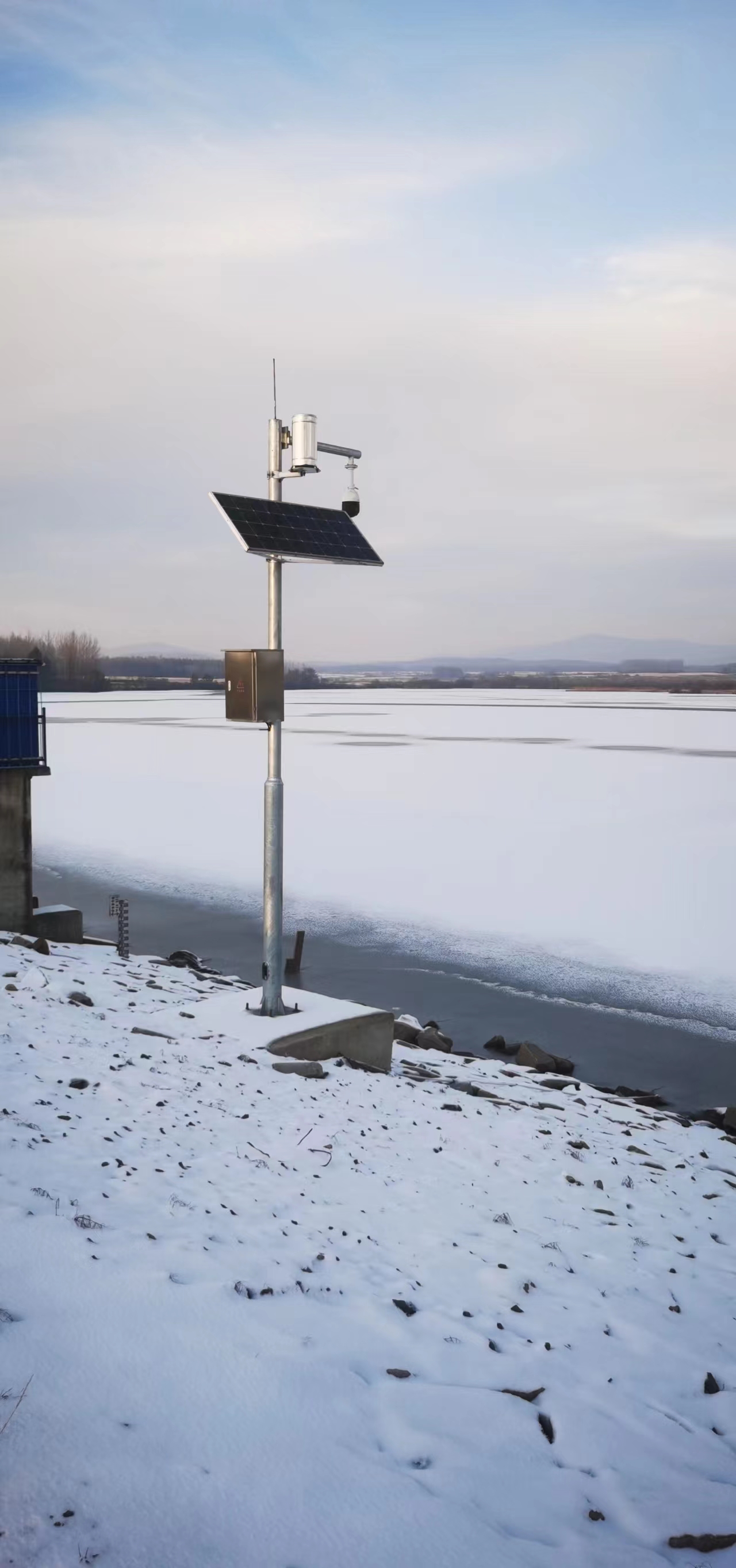

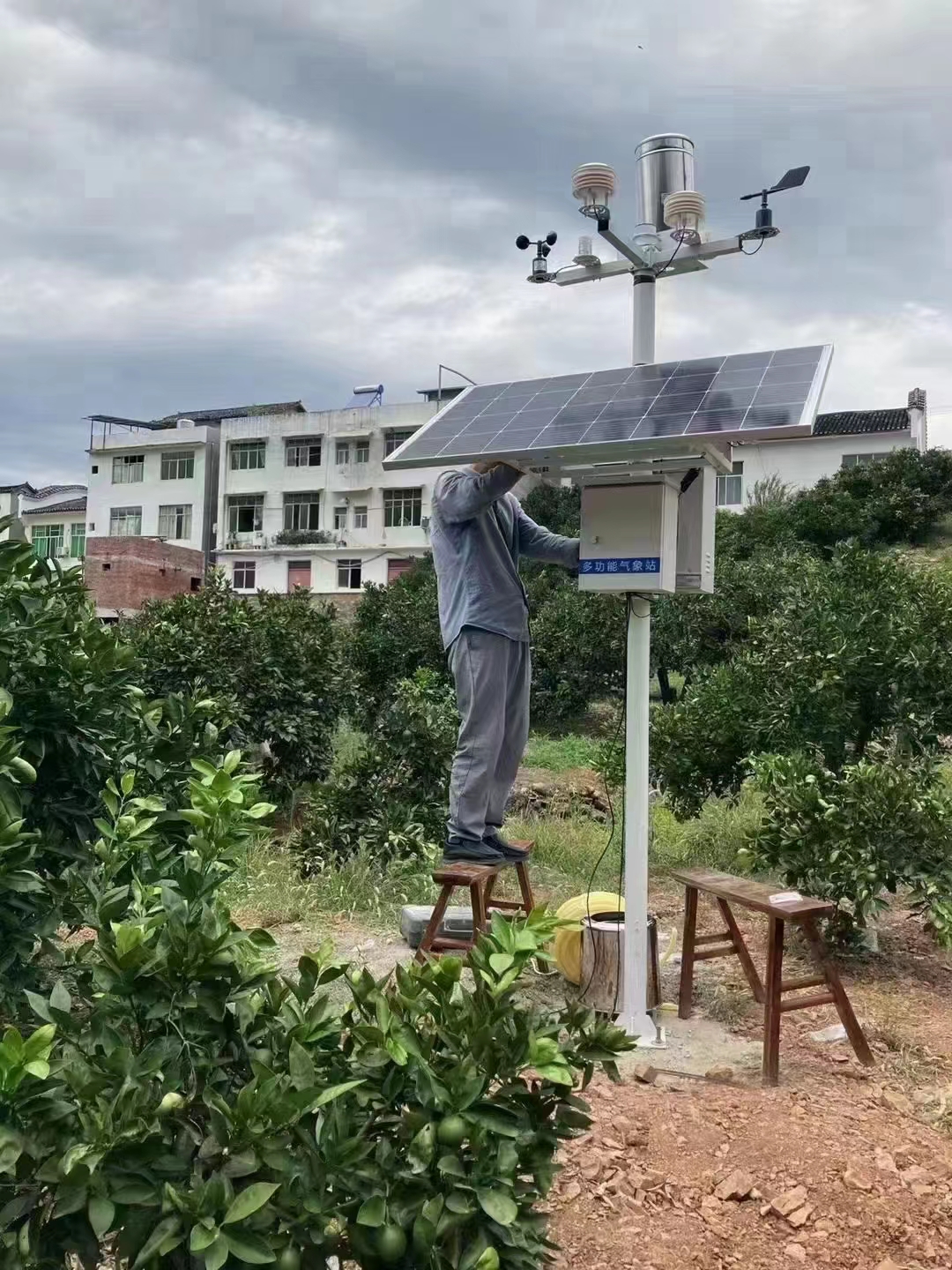

CCTV Cameras | WiFi Bridges | Wireless Access Points | Smart Weather Stations | Hydrological Monitoring
We are a high-tech enterprise integrating R&D and production of monocrystalline/polycrystalline photovoltaic modules, off-grid solar systems, and more. Our products are widely used globally, backed by professional technical support and comprehensive testing to ensure quality.
