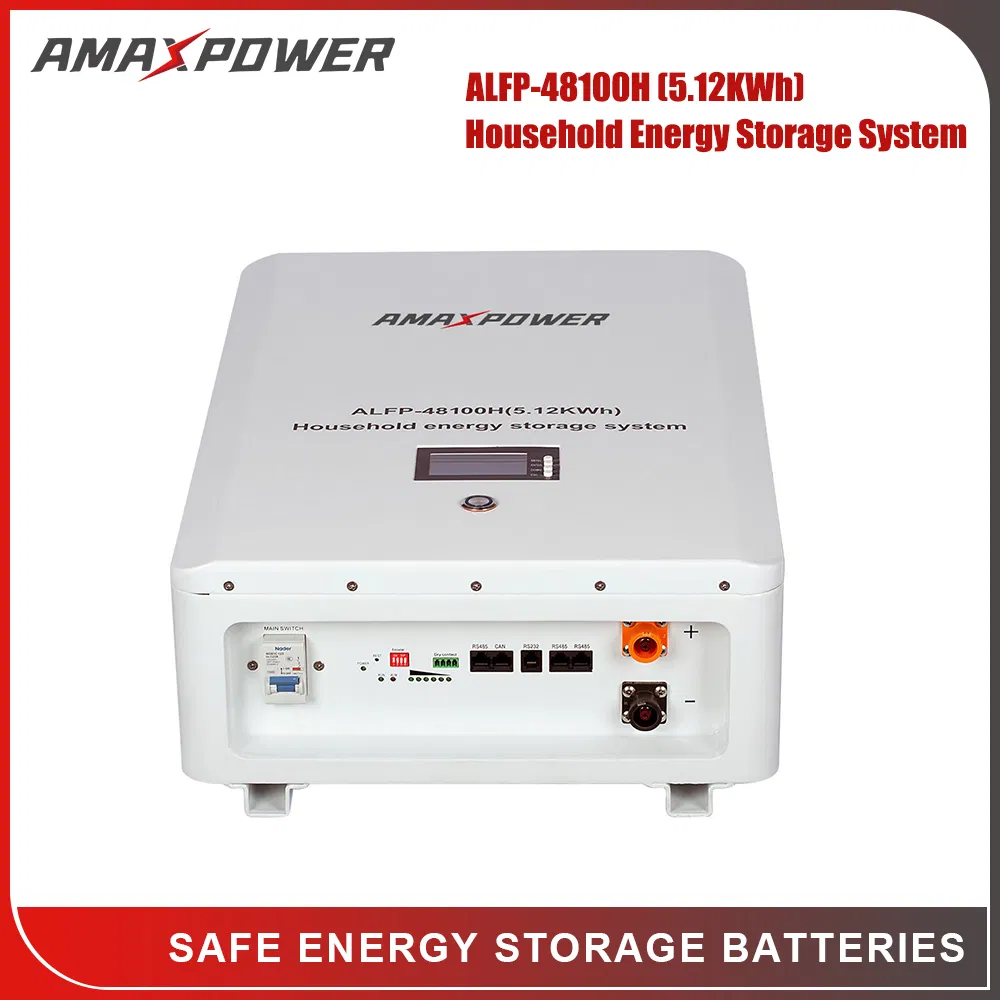

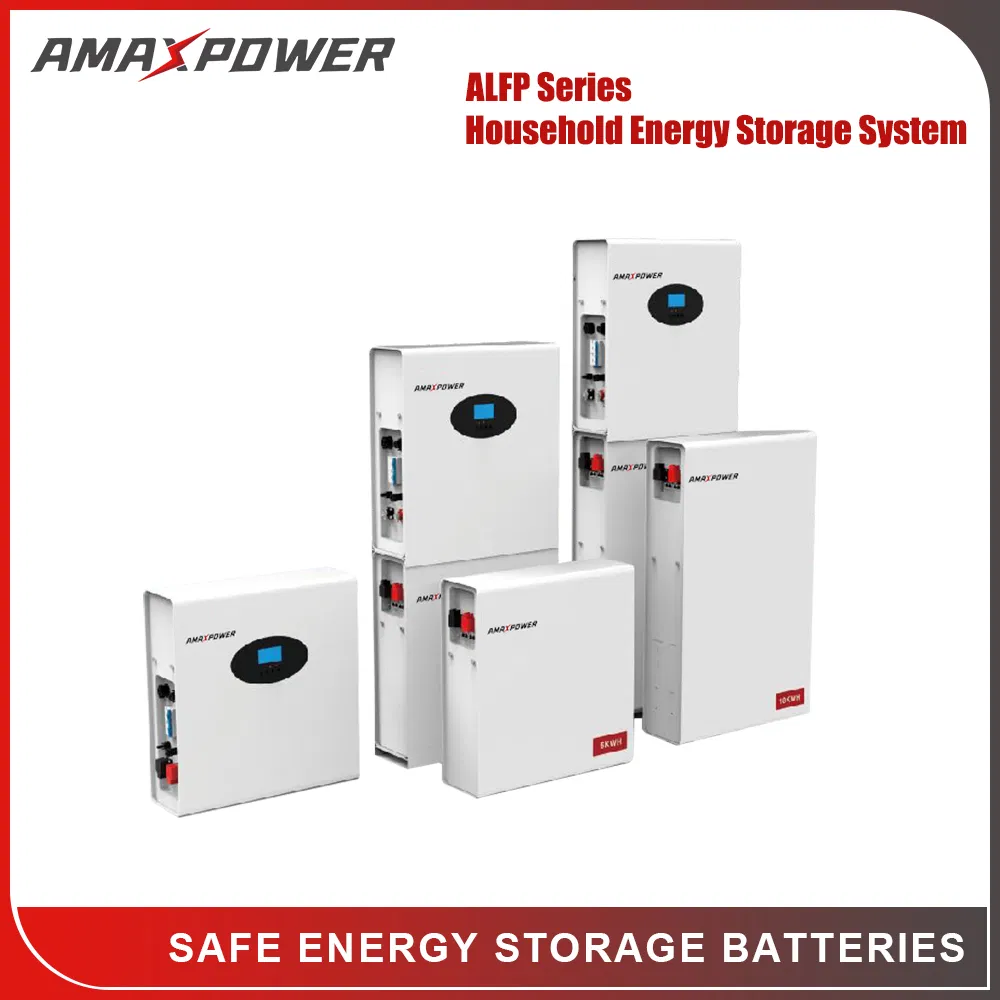

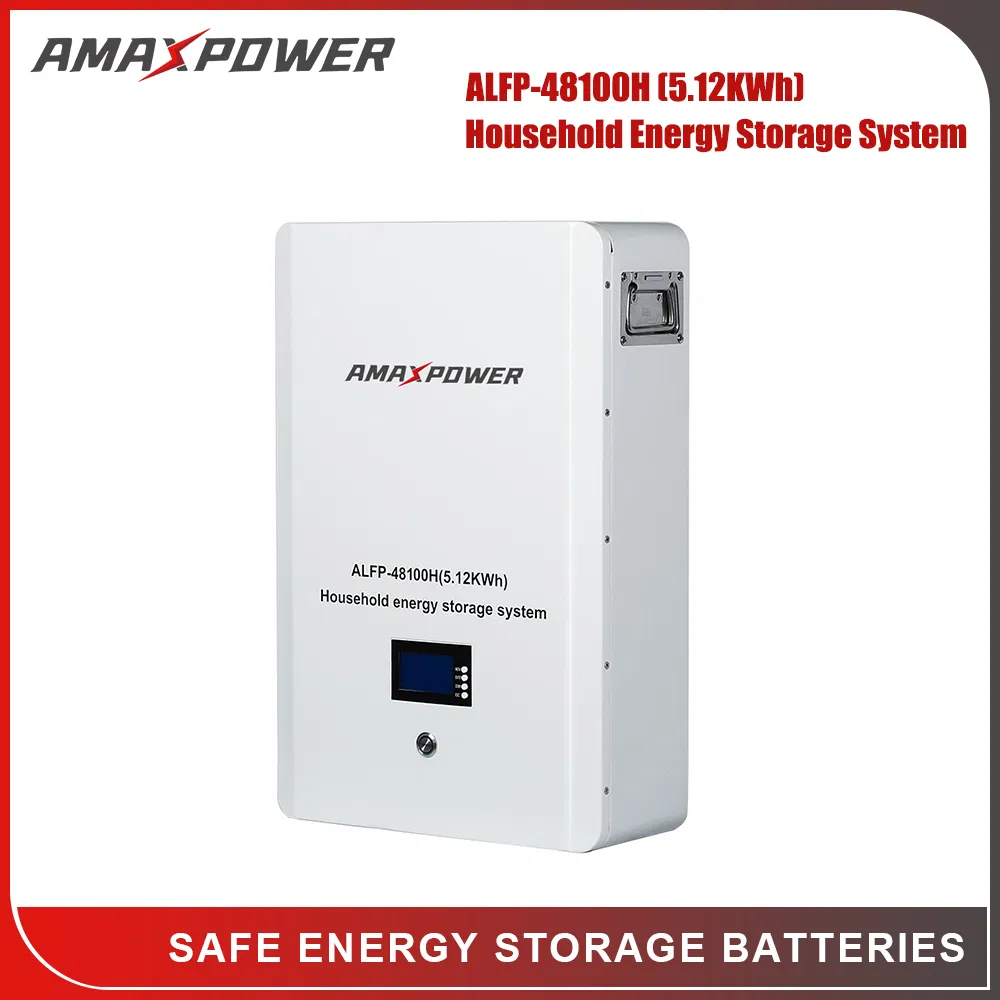

The Household Energy Storage System is designed for 5KWh, 10KWh, and 15KWh residential type LiFePO4 battery products. The lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations. It is compatible with most leading inverters through multiple port options. Utilizing high energy density and safety-tested lithium iron batteries, the string supports high-rate charge and discharge. It supports leading inverter BMS communication protocols including Deye, Growatt, Voltronic, Goodwe, Victron, and SMA.

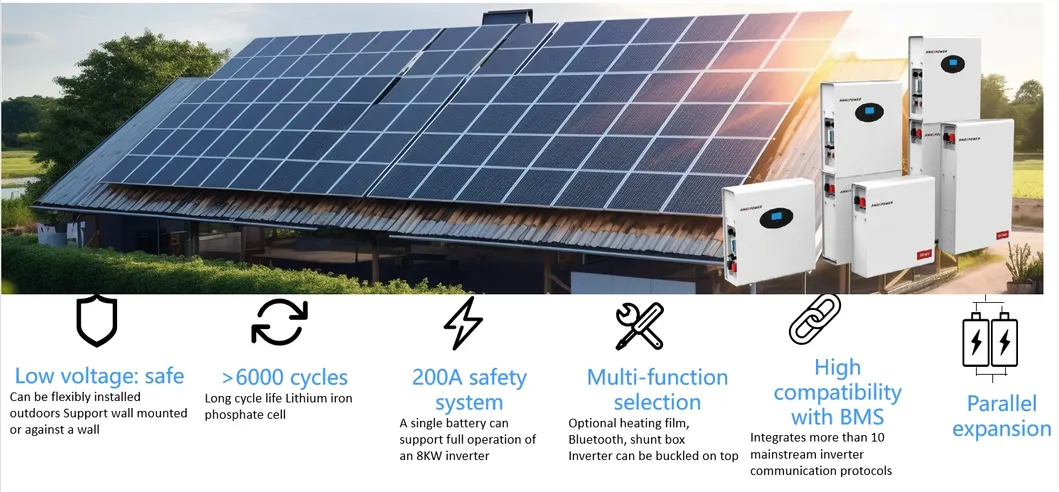

Long life prismatic LiFePO4 cells. Low voltage system for safe household application. Certified by UN38.3, MSDS, and CE.
IP65 waterproof design suitable for outdoor use. Maintenance-free with a wide operating temperature range of -20°C to +55°C.
Integrated hardware BMS with independent protection for charge/discharge. Supports RS485 and CAN communication.

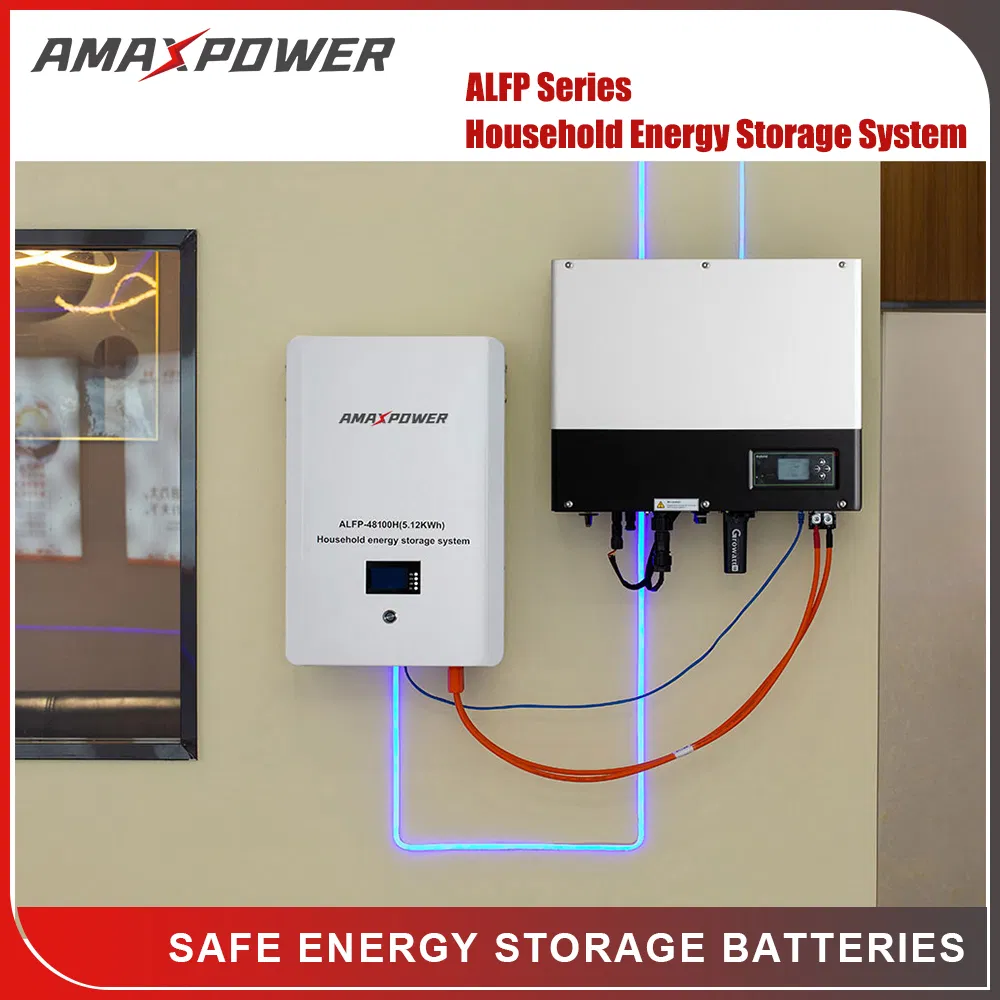

Parallel support for increased energy capacity. Max 200A larger current handling. Flexible wall-mounted installation.
| MODEL SPECIFICATION | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah | 51.2V 200Ah (F) | 51.2V 300Ah |
|---|---|---|---|---|---|
| Normal Capacity | 5.12kWh | 7.68kWh | 10.24kWh | 10.24kWh | 15.36kWh |
| Normal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Voltage Window | 51.2V-58.4V | 51.2V-58.4V | 51.2V-58.4V | 51.2V-58.4V | 51.2V-58.4V |
| Weight (NW Kg) | 50 | 65 | 85 | 91 | 118 |
| Max Charge/Discharge | 100A | 100A | 100A | 150A | 200A |
| Cycle Life | ≥6000 times @ 80% DOD | ||||
| IP Degree | IP54 | IP32 | |||

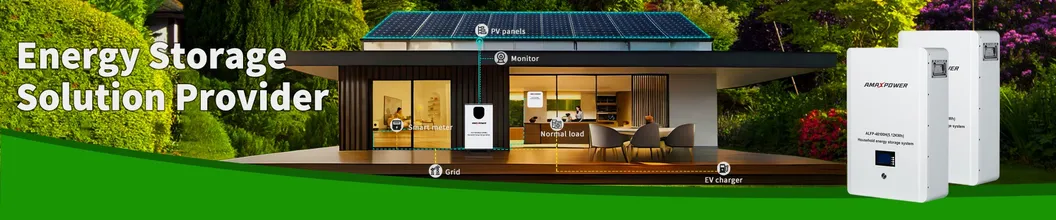

Our products are versatile and can be utilized across various sectors including: Household Solar Energy, RV/Marine Energy Storage, Low-speed Vehicles/Forklifts, Solar Street Lights, Communication Base Stations, UPS Backup Power, Off-grid Power Generation, and Mobile Energy Storage.

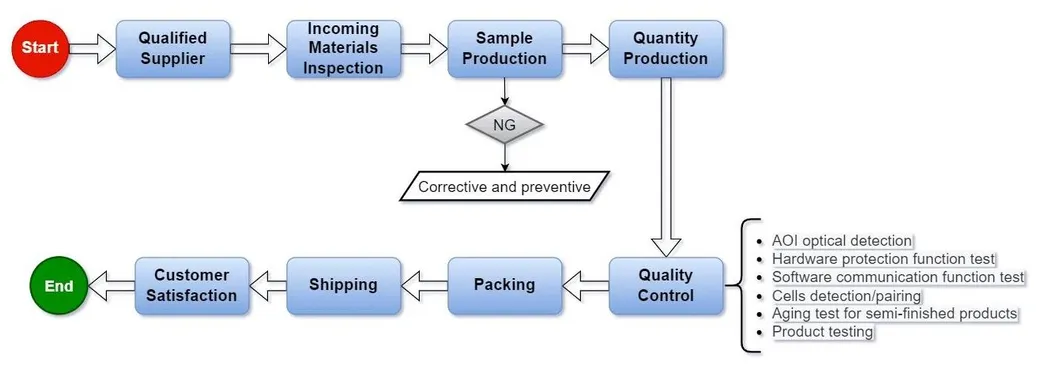

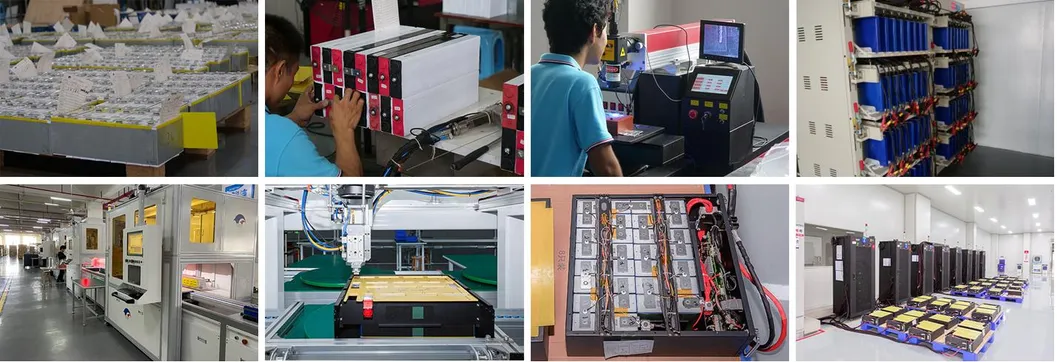

We adopt ISO 9001 quality systems. IQC tests raw materials, PQC handles in-process inspections, and OQC ensures no defective batteries leave the facility.

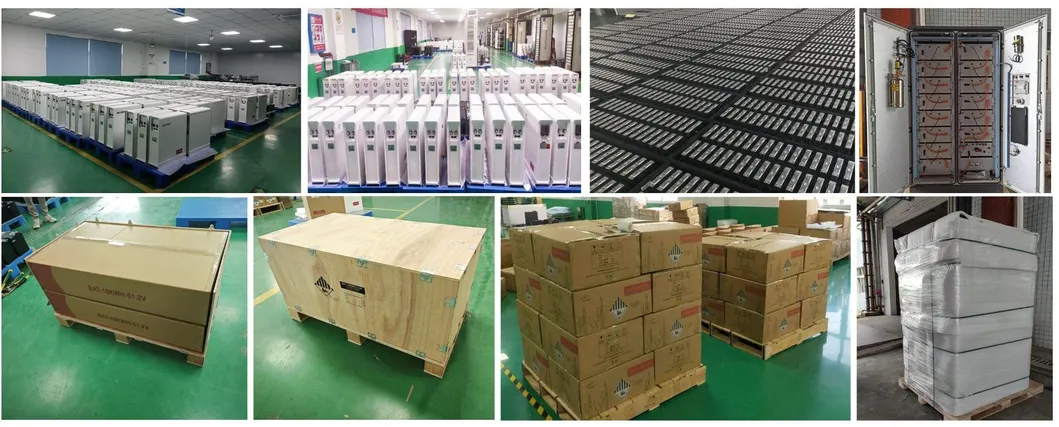

Hard carton and foam packaging ensure safe shipment. Every unit undergoes 100% full inspection before delivery.
