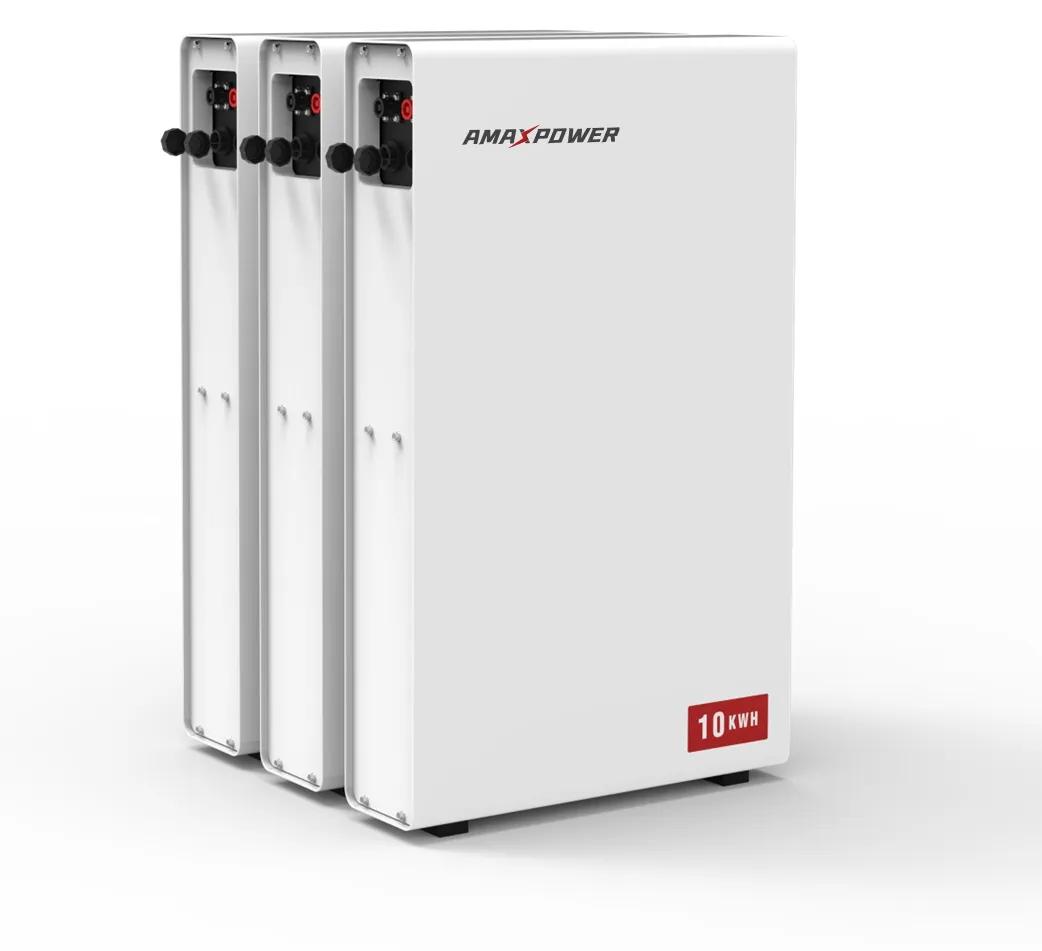

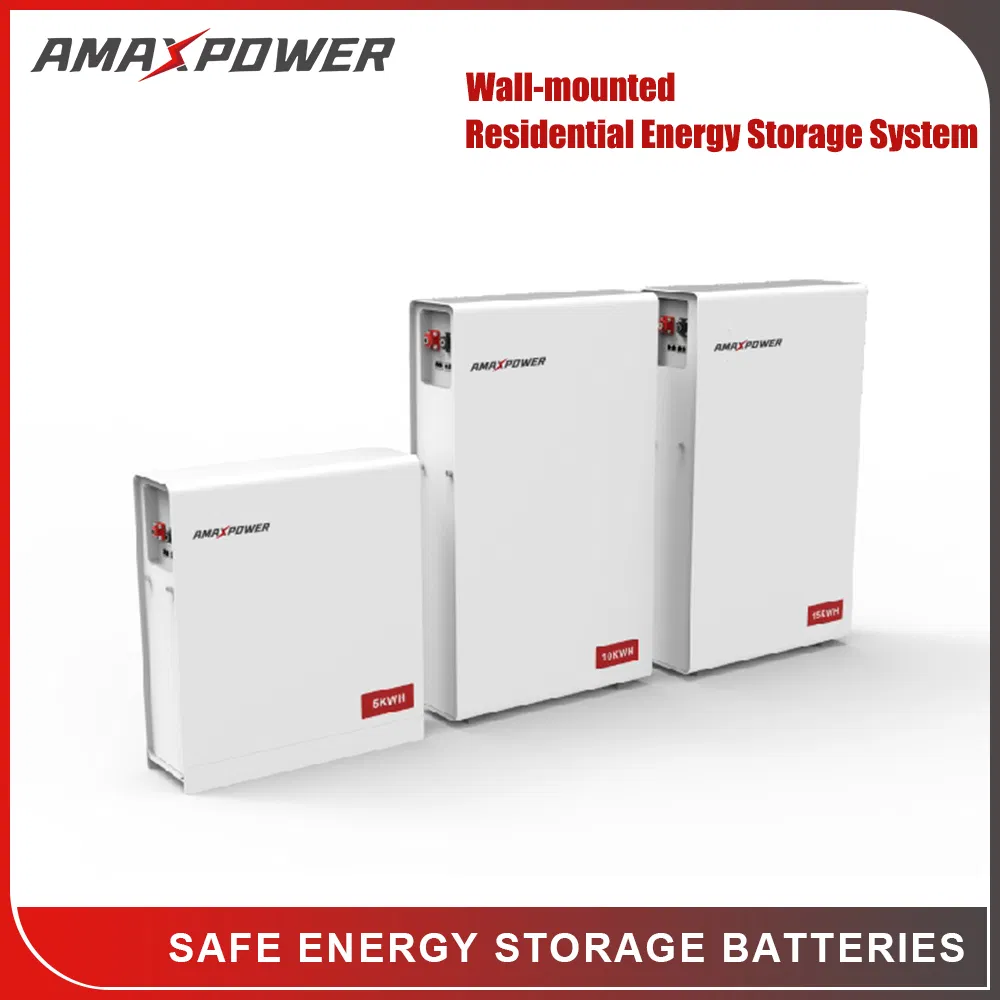

LiFePO4 Lithium Battery Wall-Mounted Residential Energy Storage System
Household Energy Storage System for 5KWh/10KWh/15KWh RESS type LiFePO4(lithium iron phosphate) battery products. The chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation. Supports high rate charge & discharge and compatible with leading inverter protocols like Deye, Growatt, Voltronic, Goodwe, Victron, SMA.
l Prismatic LiFePO4 cells suitable for storage.
l Low voltage system, safe for home use.
l IP65 water-proof for outdoor application.
l Maintenance free and flexible installation.
| MODEL | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah | 51.2V 200Ah(F) | 51.2V 300Ah(F) |
|---|---|---|---|---|---|
| Normal Capacity | 5.12kWh | 7.68kWh | 10.24kWh | 10.24kWh | 15.36kWh |
| Dimension (W/D/H) | 600*442*170mm | 600*500*150mm | 630*460*180mm | 740*450*260mm | 880*448*260mm |
| Weight (NW Kg) | 50 | 65 | 85 | 91 | 118 |
| Max Discharge Current | 100A | 100A | 100A | 150A | 200A |
| Cycle Life | ≥6000 times @80%DOD | ||||
| Communication | CANbus, Modbus | ||||

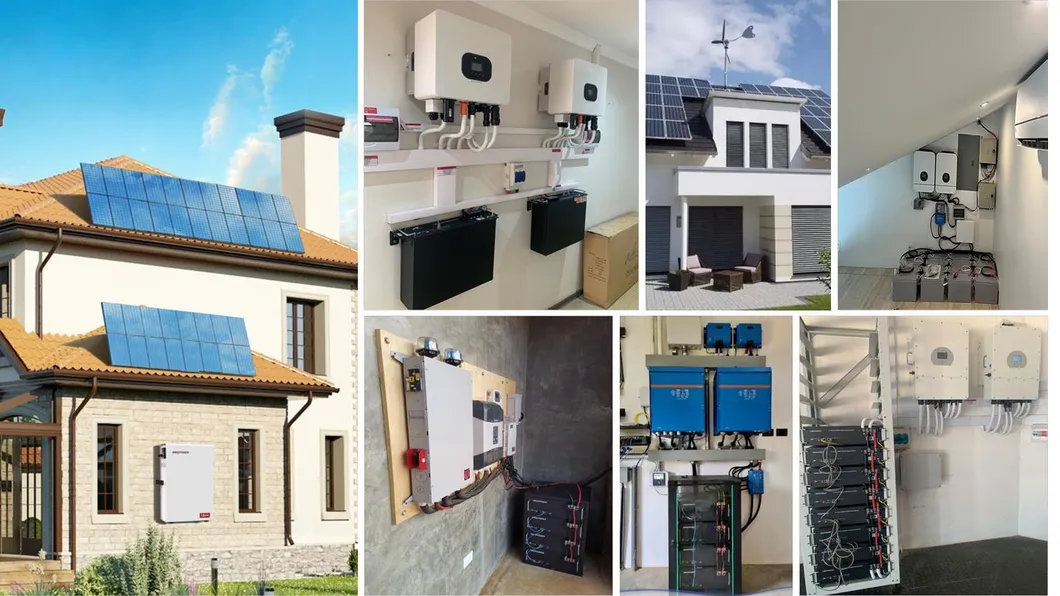

Ideal for household solar energy, RV/Marine energy storage, solar street lights, communication base stations, UPS backup power supply, off-grid power generation, and mobile energy storage.

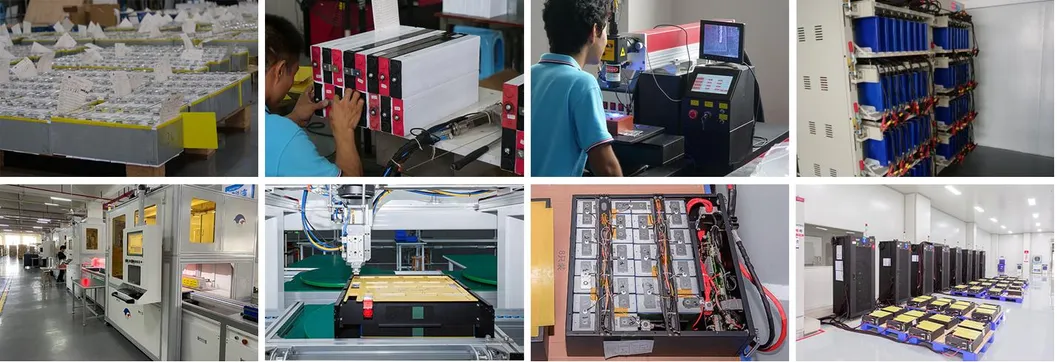

With 17+ years of industrial experience and advanced automated production lines, we ensure top-level quality through strict ISO management systems. Products have passed CE, IEC, and ROHS certifications.

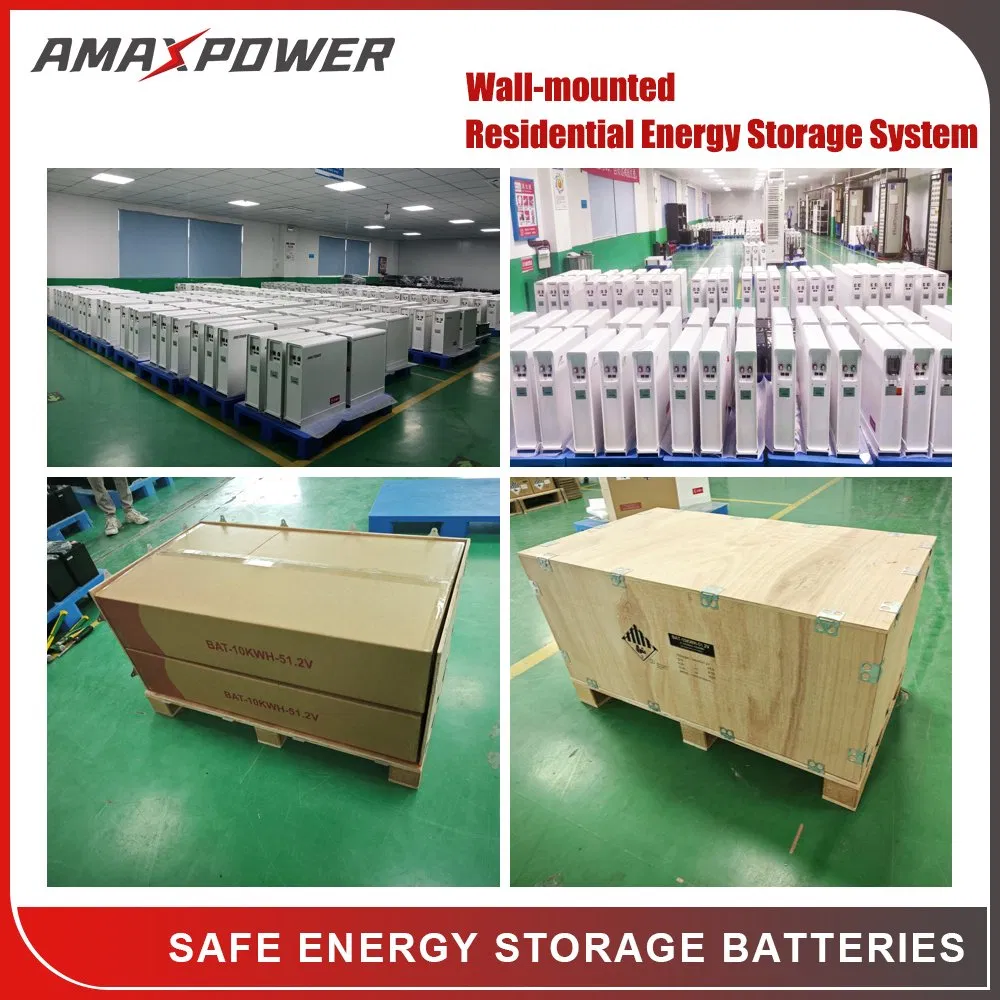

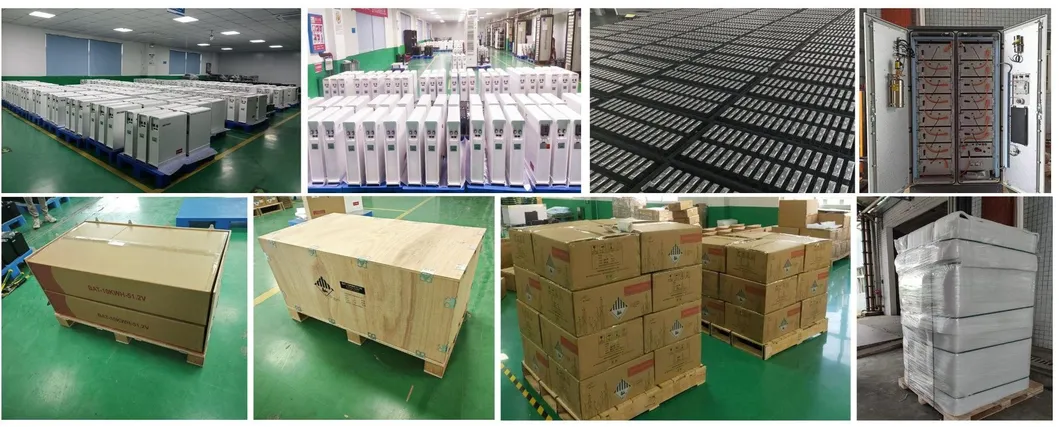

1. Hard carton and foam packaging, safe for shipment.

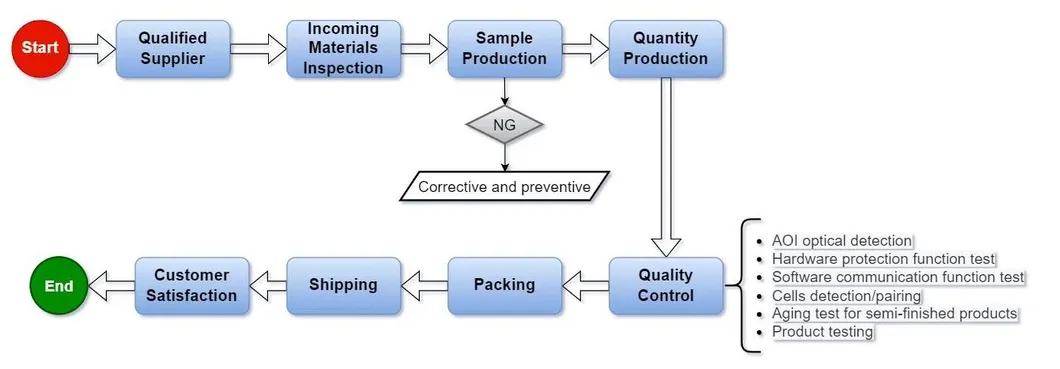

2. 100% full inspection before shipment.
3. MSDS and UN38.3 certifications for customs clearance.
