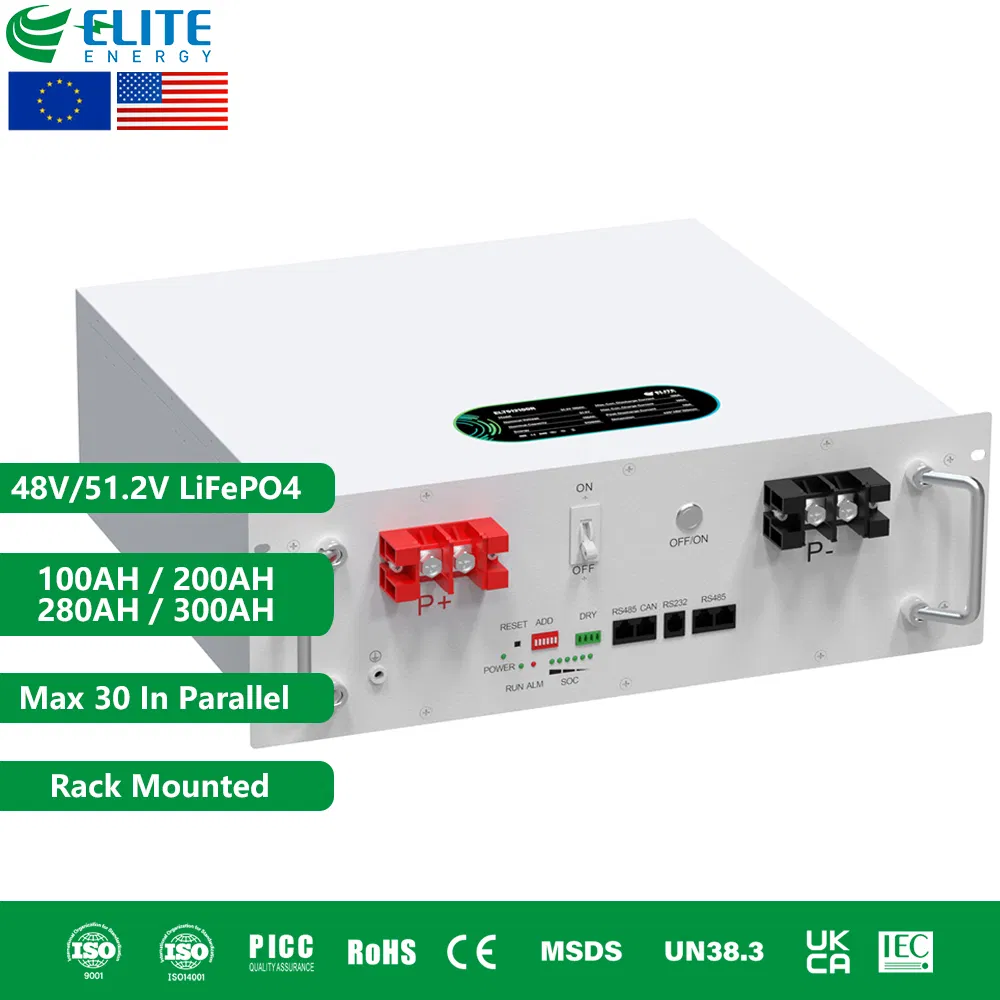

48V 51.2V 100ah 200ah 280ah 300ah Rack Mounted Lithium Solar System Battery

1 / 5

48V 51.2V 100ah 200ah 280ah 300ah Rack Mounted Lithium Solar System Battery

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.ELT512100R

Nominal Voltage51.2V

Rated Capacity100Ah, 200Ah, 280Ah, 300Ah

Energy5120Wh - 15360Wh

Cycle Life≥6000 Cycles

CommunicationCAN / RS232 / RS485

Parallel ConnectionMax. 30PCS

Warranty5 Years

CertificationCE/RoHS/Un38.3/MSDS

HS Code8507600090

🔋 Product Overview

Original Lithium Ion LiFePO4 Battery Pack with 15+ years experience in Energy Storage System (ESS) and Motivation Power System industry. Elite's products meet international standards with excellent performance and safety compliance, qualified for high-end markets.

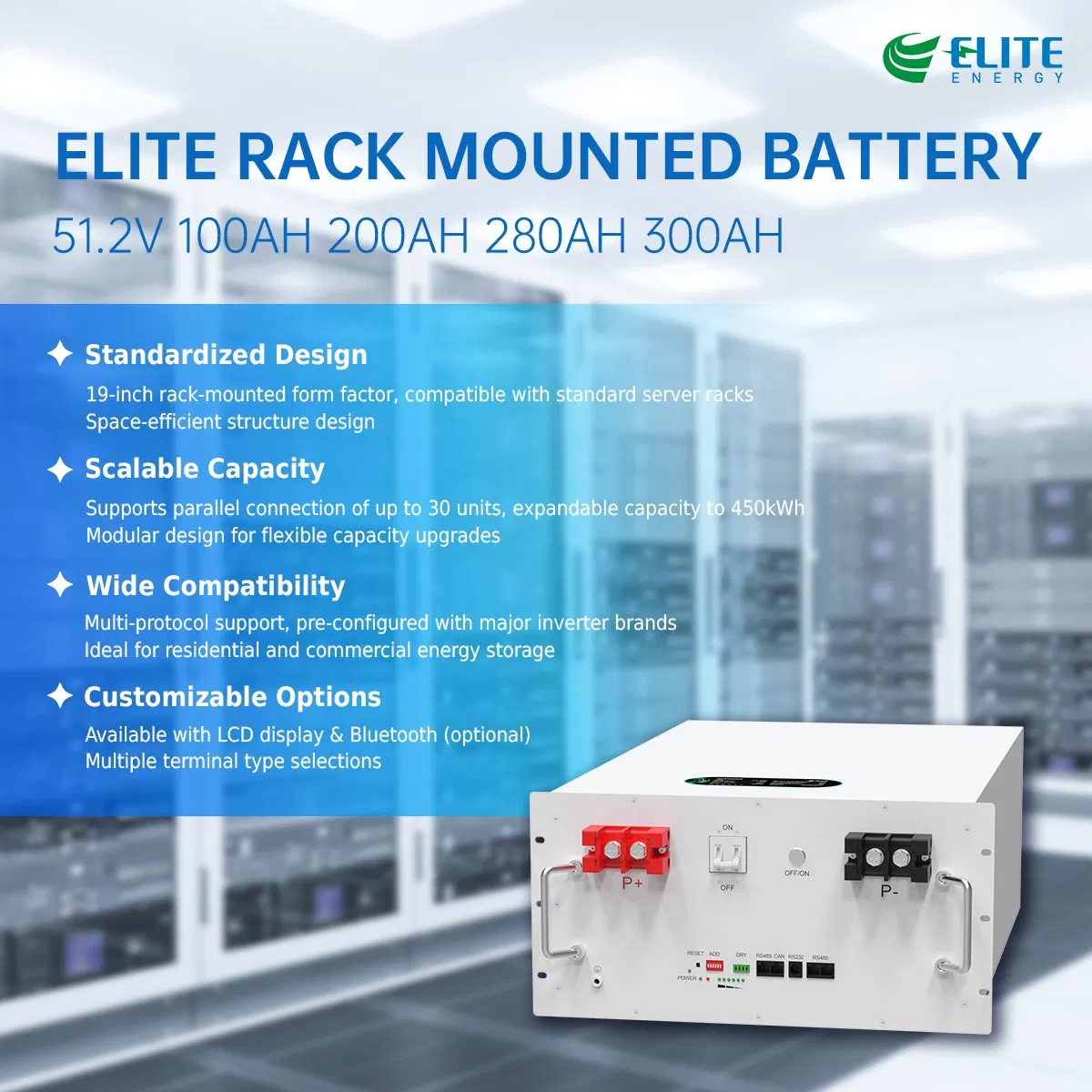

⚡ Standardized Design 19-inch rack-mounted form factor, compatible with standard server racks, Space-efficient structure design.

⚡ Scalable Capacity Supports parallel connection of up to 30 units, expandable capacity to 450kWh, Modular design for flexible upgrades.

⚡ Wide Compatibility Multi-protocol support, pre-configured with major inverter brands, Ideal for residential and commercial storage.

⚡ Customizable Options Available with LCD display & Bluetooth (optional), Multiple terminal type selections.

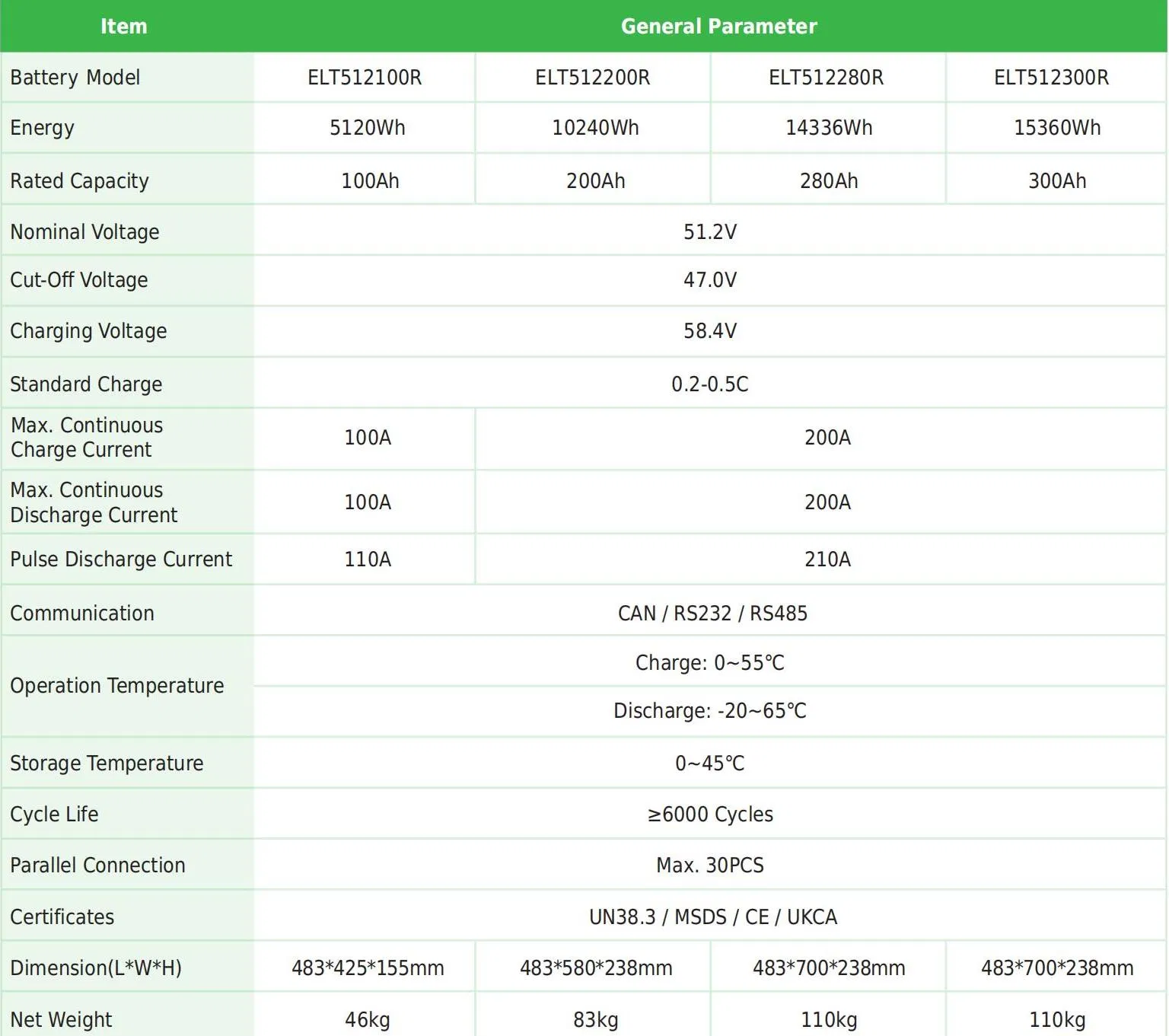

📊 Technical Data Sheet

Battery Model	ELT512100R	ELT512200R	ELT512280R	ELT512300R
Energy	5120Wh	10240Wh	14336Wh	15360Wh
Rated Capacity	100Ah	200Ah	280Ah	300Ah
Nominal Voltage	51.2V
Standard Charge	0.2-0.5C
Max. Continuous Charge	100A	200A
Max. Continuous Discharge	100A	200A
Communication	CAN / RS232 / RS485
Operation Temp (Charge)	0 ~ 55°C
Operation Temp (Discharge)	-20 ~ 65°C
Dimensions (WHD) mm	483425155	483580238	483700238	483700238
Net Weight (kg)	46	83	110	110

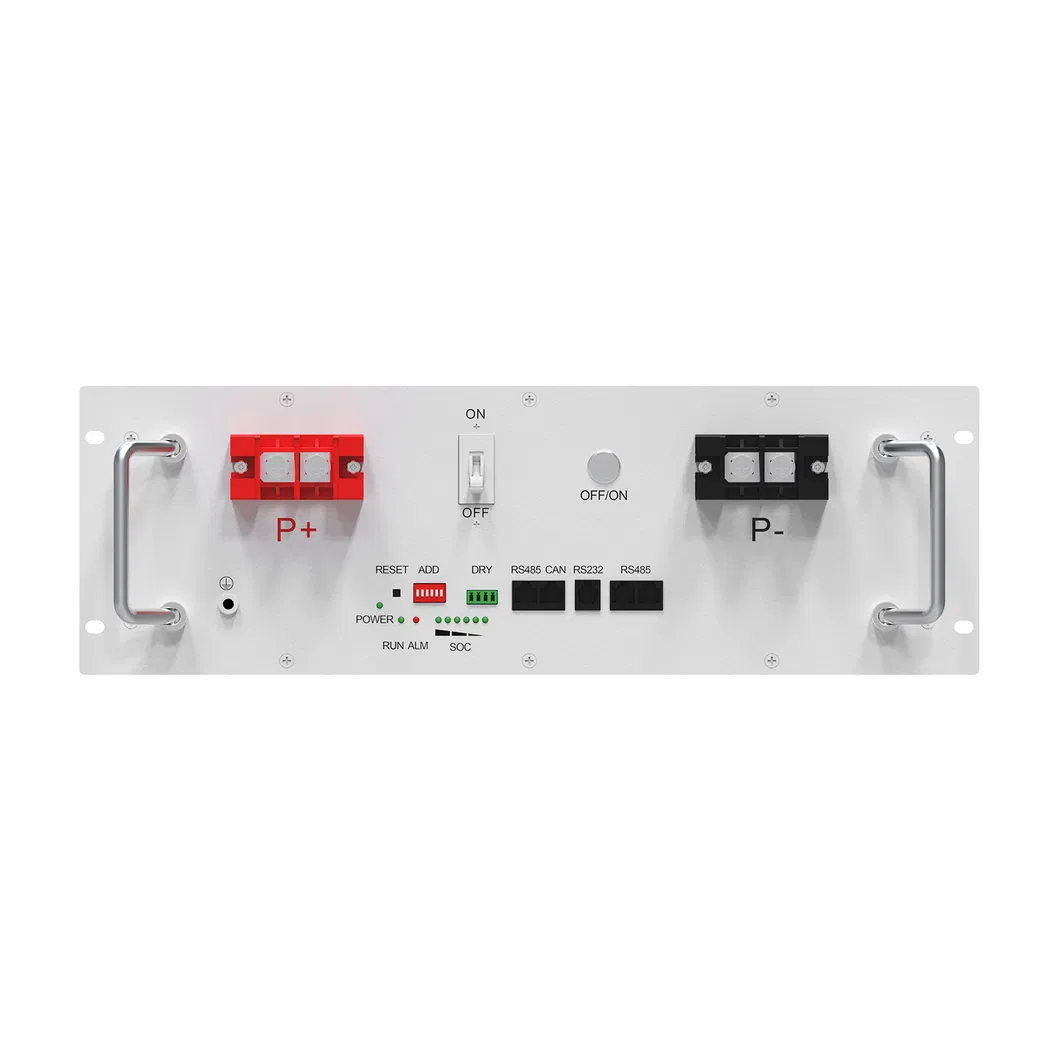

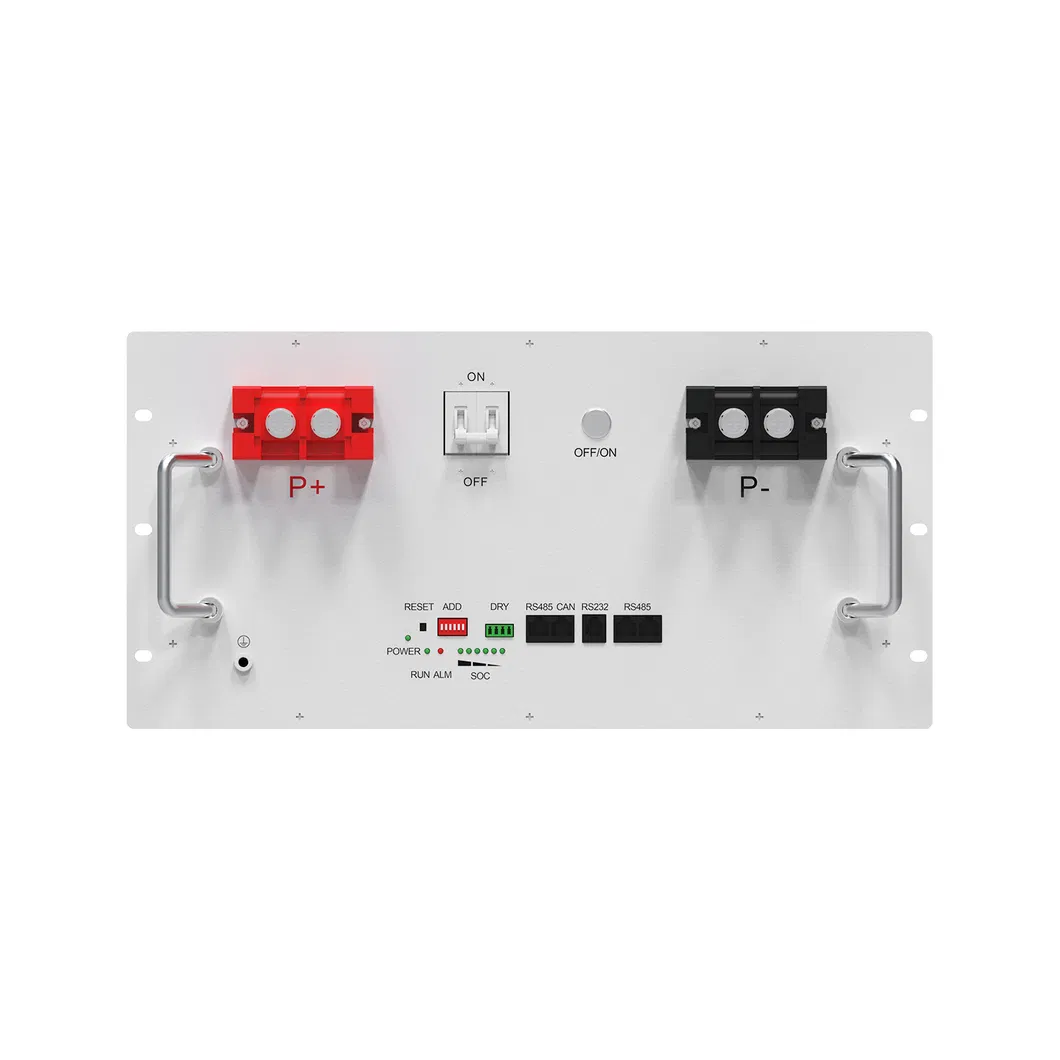

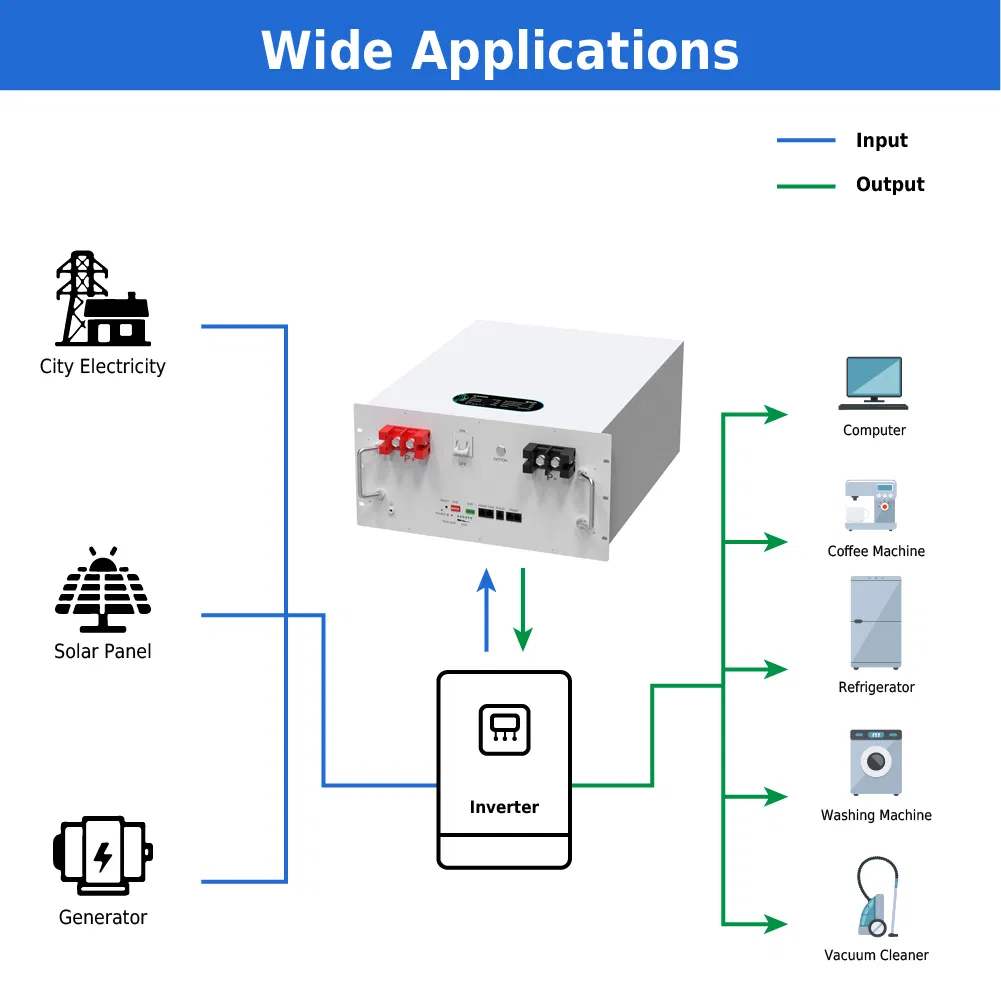

🖼️ Product Details & Application

📦 Packaging & Delivery

Package Size50.00cm * 45.00cm * 20.00cm

Package Gross Weight47.000kg

Transport PackageCarton Box

Production Capacity100,000 PCS/Month

❓ Frequently Asked Questions

Do you have MOQ (Minimum Order Quantity) Limit?

No, there is no MOQ limit. 1 piece sample order or small quantity is available.

What about the Lead time?

Standard samples: 3-5 days; Bulk order: 3-4 weeks. Customized products typically require 3-4 weeks.

How do you ship the goods and how long does it take?

By air (FEDEX/UPS/DHL): 6-12 days for urgent small orders. By sea: 25-50 days for door-to-door bulk orders.

Does the BMS have low temperature charging disconnect?

Yes. The BMS includes low-temperature protection cut-off (Charge: 0ºC ± 4ºC; Discharge: -20ºC ± 4ºC) to prevent battery damage.

How long do LiFePO4 batteries last?

Our LiFePO4 batteries provide 4000+ cycles, offering a service life 8 to 10 times longer than standard lead-acid batteries.

Are your batteries safe?

Yes. Using automotive-grade LiFePO4 cells, they are resistant to burning or exploding. The built-in BMS protects against overcharge, deep discharge, overheating, and short circuits.
