Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model NO.

CSAS solar system

Cycle Life

1000 Cycles

Nominal Capacity

1000W to 15kw Options

Certification

ISO, CE

Mounting Support

Roof or Ground Solar Mount Bracket

Inverter Type

Off Grid Inverter

Solar Panel

Monocrystalline Solar Panel

Capacity

4500 Sets/Month

Product Description

Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground/Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100m	200m	200m	200m	200m
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs

Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make the product changes from time to time, without prior notification.

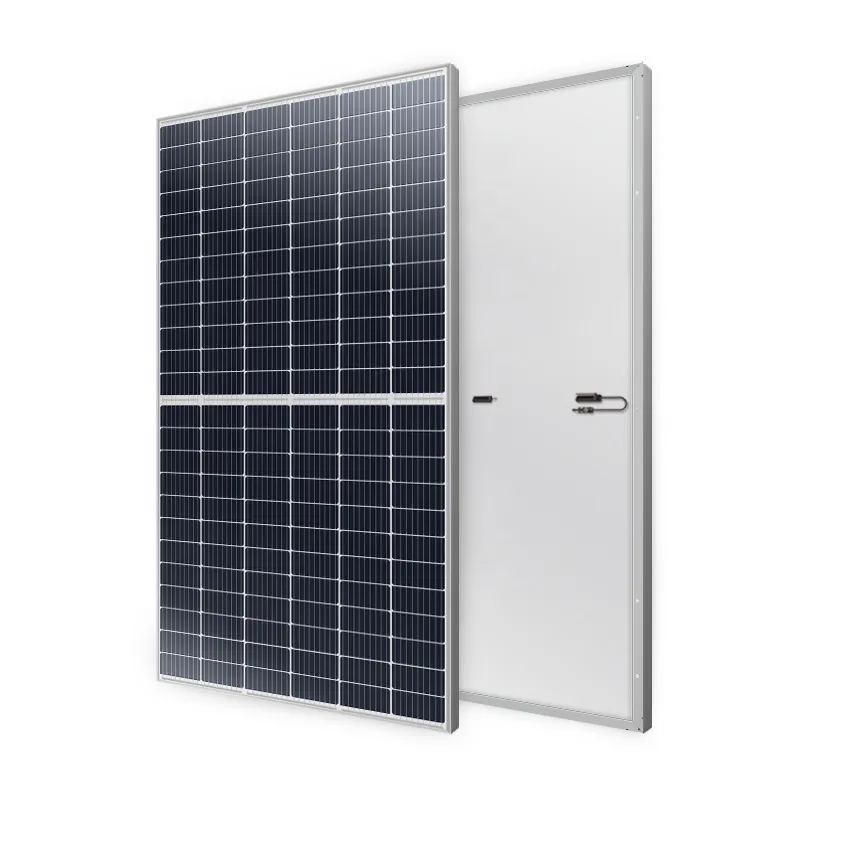

Mono Solar Panels

Peak Power Watts: 590W
Maximum Power Voltage: 41.5V
Maximum Power Current: 11.3A
Open Circuit Voltage: 48.5V
Dimensions: 2094*1038*35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ, Capacity 5.5KW
MPPT voltage range 70-450Vdc
Maximum open-circuit voltage 500Vdc
Maximum photovoltaic connection 5.5kwp
Packaging Dimensions: 600*180*420 mm

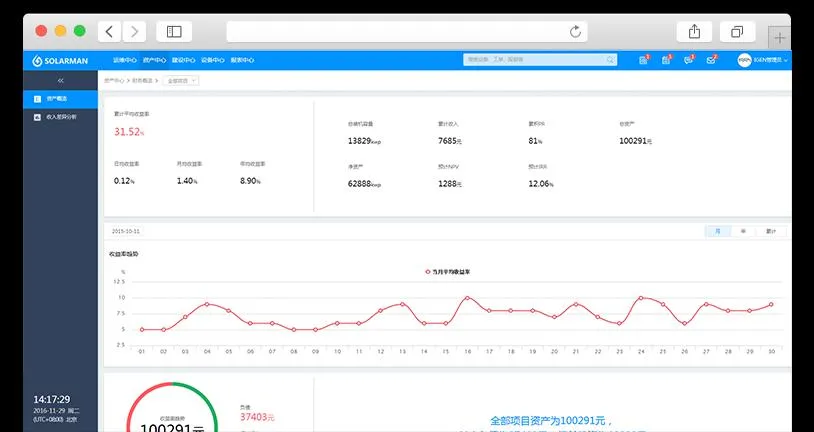

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system in real-time. Keep informed about the situation of your PV system and atmosphere conditions via web server or App.

Access via Wi-Fi, Lan or GPRS
App Available for PC, IOS & Android

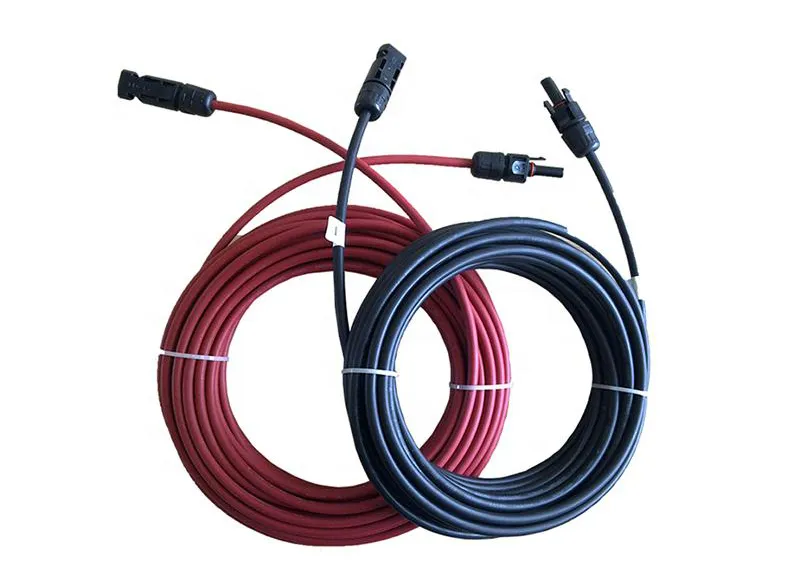

PV Mounting & DC Cables

Mounting Rail: AI6005 & SUS304 Bolt
Mid & End Clamps: 35-50mm
DC Cable Section: 4mm², 6mm² Optional
Rated Voltage: 600VDC/1000VDC
Cable Lifetime: ≤25 Years

Lithium Battery

Capacity: 4.8KWH
Including connection & communication cables
Gross Weight: 103 KG
Package Size: 710*500*310 mm

Frequently Asked Questions

What is the cycle life of the battery system?

The battery system is designed for a cycle life of 1000 cycles, ensuring long-term energy storage reliability.

Can I monitor my solar system while I am away?

Yes, the system includes a Data Logging Stick that supports remote monitoring via Wi-Fi, LAN, or GPRS, with apps available for PC, IOS, and Android.

What types of mounting supports are provided?

We provide customized brackets for both roof and ground installations, including mounting rails, clamps, and hanger bolts.

Are the solar panels high efficiency?

Yes, the system utilizes high-efficiency 590W Monocrystalline solar panels for maximum power generation.

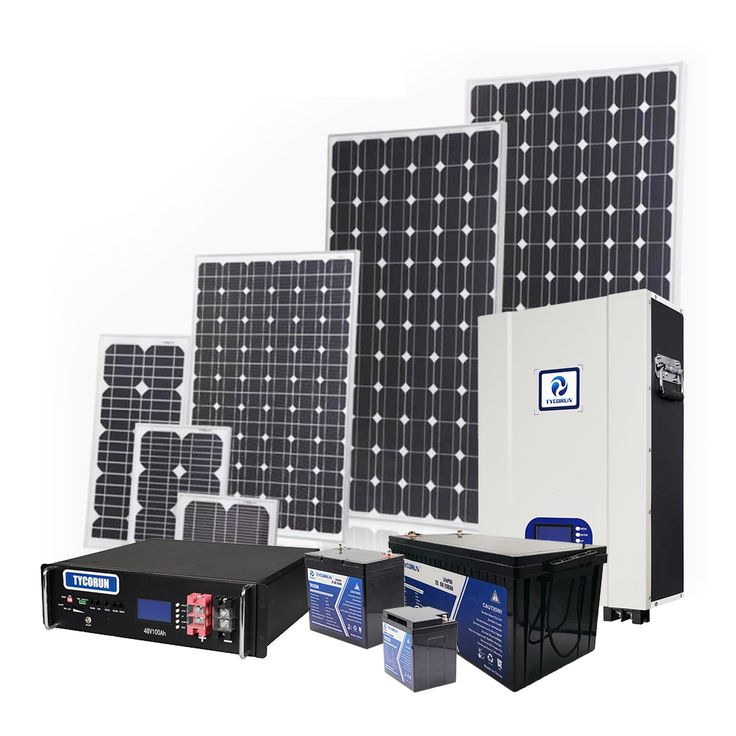

What is included in the complete solar package?

The complete set includes Mono solar panels, a hybrid inverter with MPPT, LiFePO4 batteries, mounting systems, PV cables, and MC4 connectors.

Is the system compatible with three-phase electricity?

Yes, our hybrid inverters are available in both Single Phase and Three Phase specifications to meet different industrial and home needs.
