As a leading lithium BESS manufacturer, we specialize in the R&D and production of Residential, Commercial, and Industrial energy storage systems (ESS), Energy Management Systems (EMS), and Battery Management Systems (BMS). We are committed to bringing world-leading battery systems to customers globally.
Our focus is on the Residential ESS market, with successful footprints in Germany, France, Czech Republic, Poland, UK, Netherlands, Portugal, Belgium, Hungary, South Africa, and more. Our annual production capacity is 1GWh, providing robust ODM and OEM services.

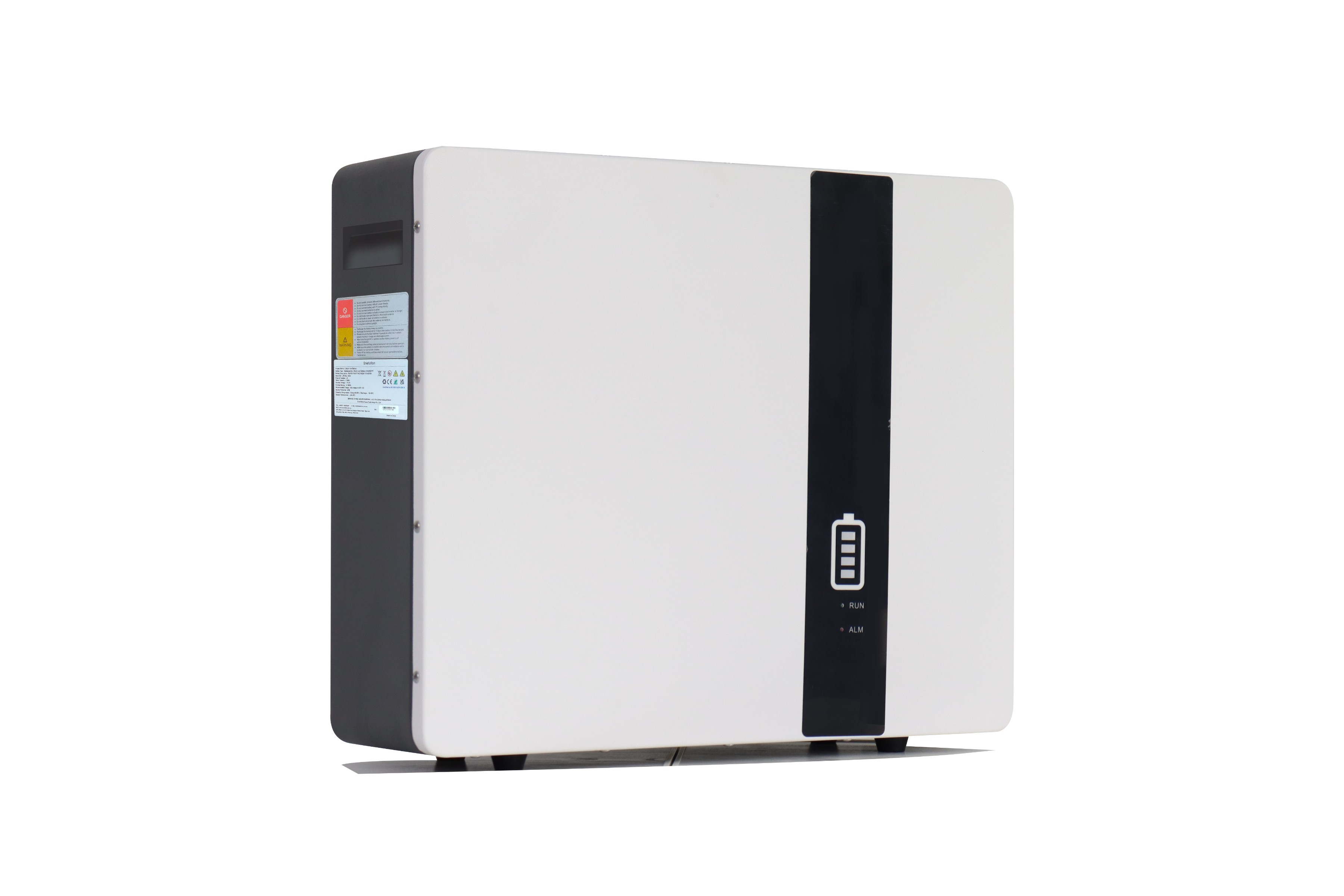

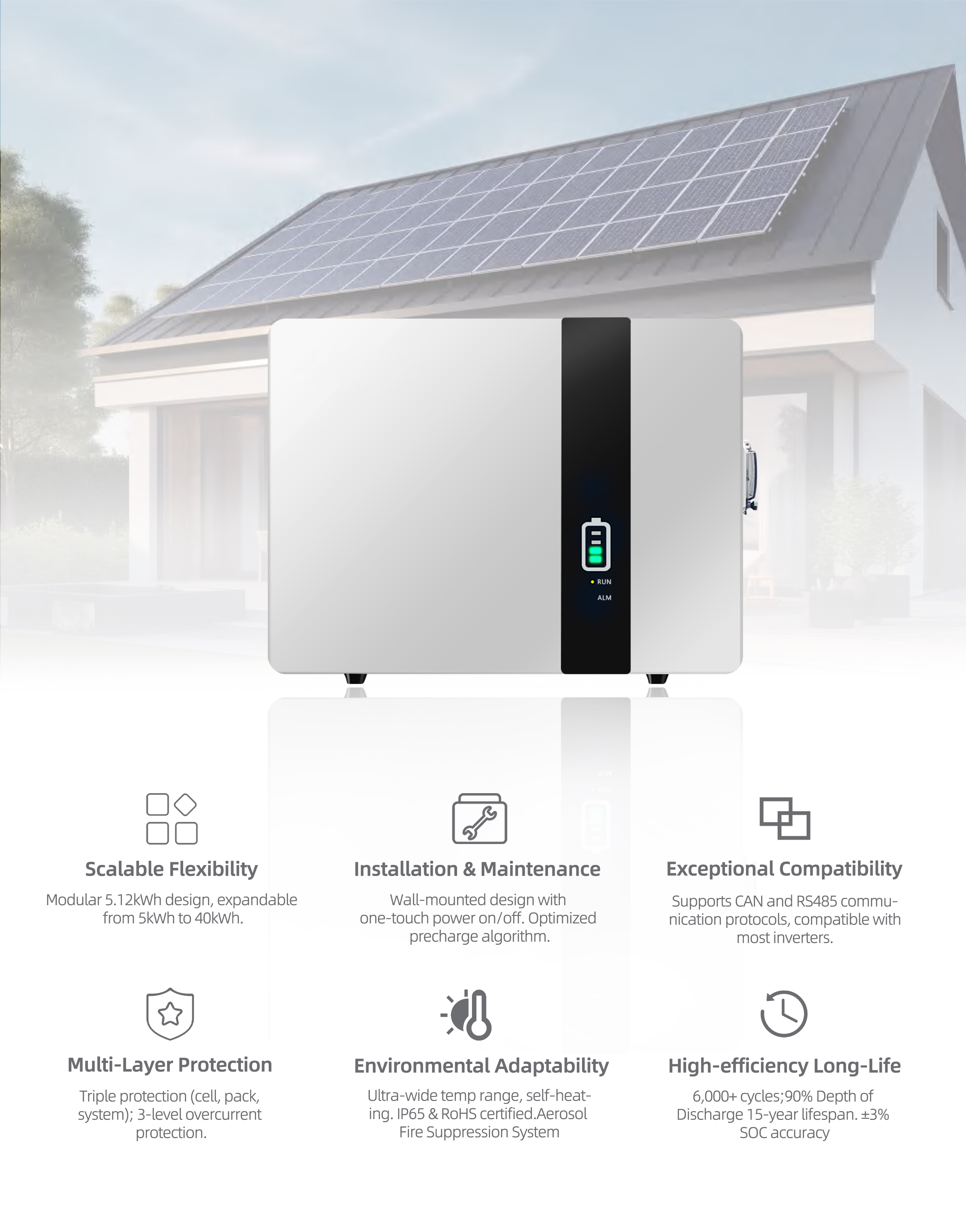

| MODEL | LFPWall-5000 | |||
| Battery type | LiFePO4 | |||
| Total energy capacity (kWh) | 5.12 | |||
| Battery modules voltage range (V) | 45~57 | |||
| Max. charging current (A) | 45 | |||
| Max. discharging current (A) | 75 | |||
| Weight (kg) | 48.5 | |||
| Dimensions (L / W / D) (mm) | 568*468*166 | |||
| Protection class | IP65 | |||
| DOD | 90% | |||
| Cycle life | ≥6000 @25°C 0.5C | |||
| PARALLEL SPECIFICATION | 1 Unit | 2 Units | 3 Units | 4 Units |
| Total energy capacity (kWh) | 5 | 10 | 15 | 20 |
| Nominal discharging power (kW) | 3.84 | 7.68 | 11.52 | 15.36 |
| Certificates | UN38.3, IEC 62619, IEC 60730, IEC 61000-6-1/-6-3, RoHS, REACH, CEI 021 | |||

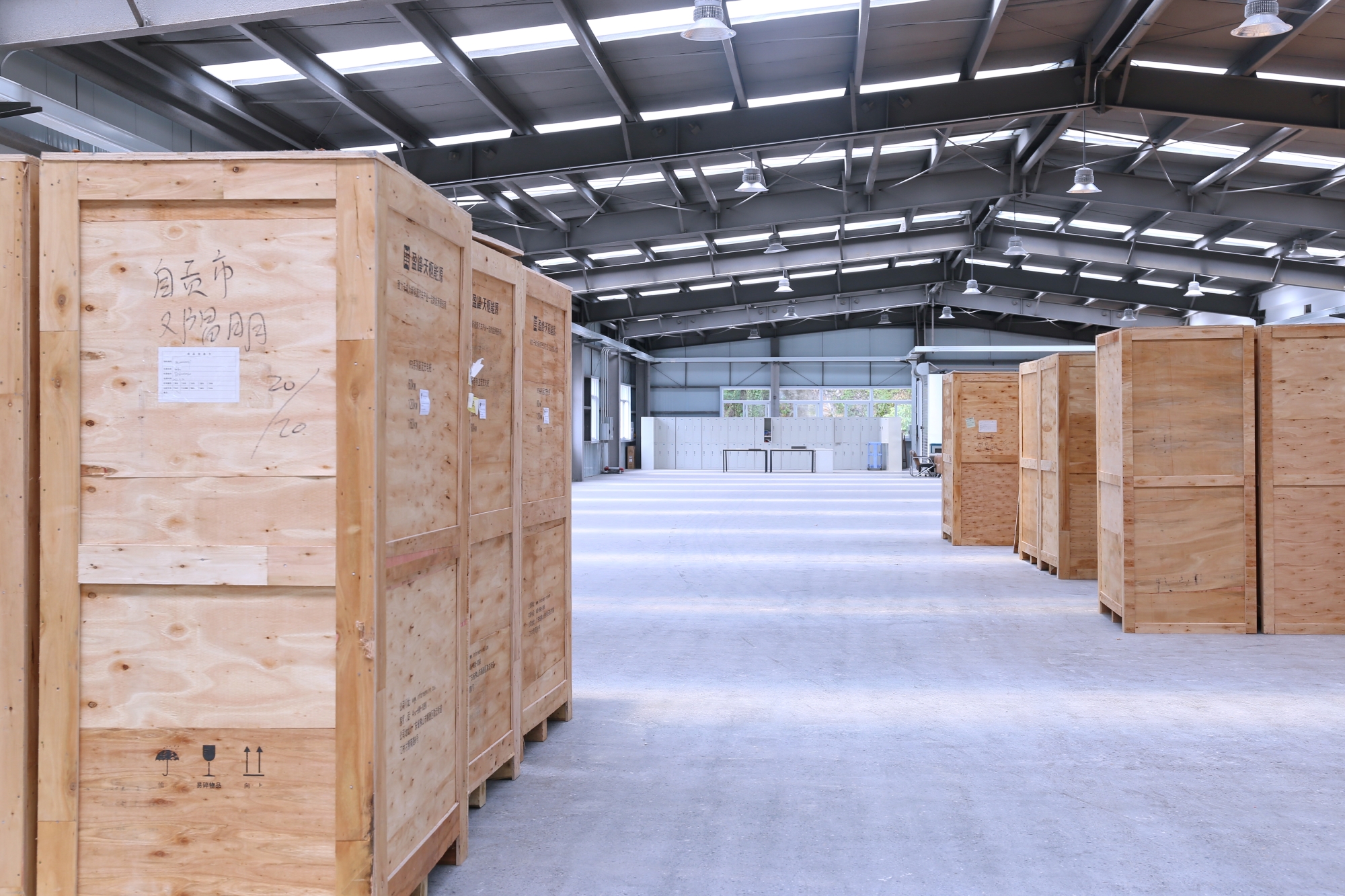

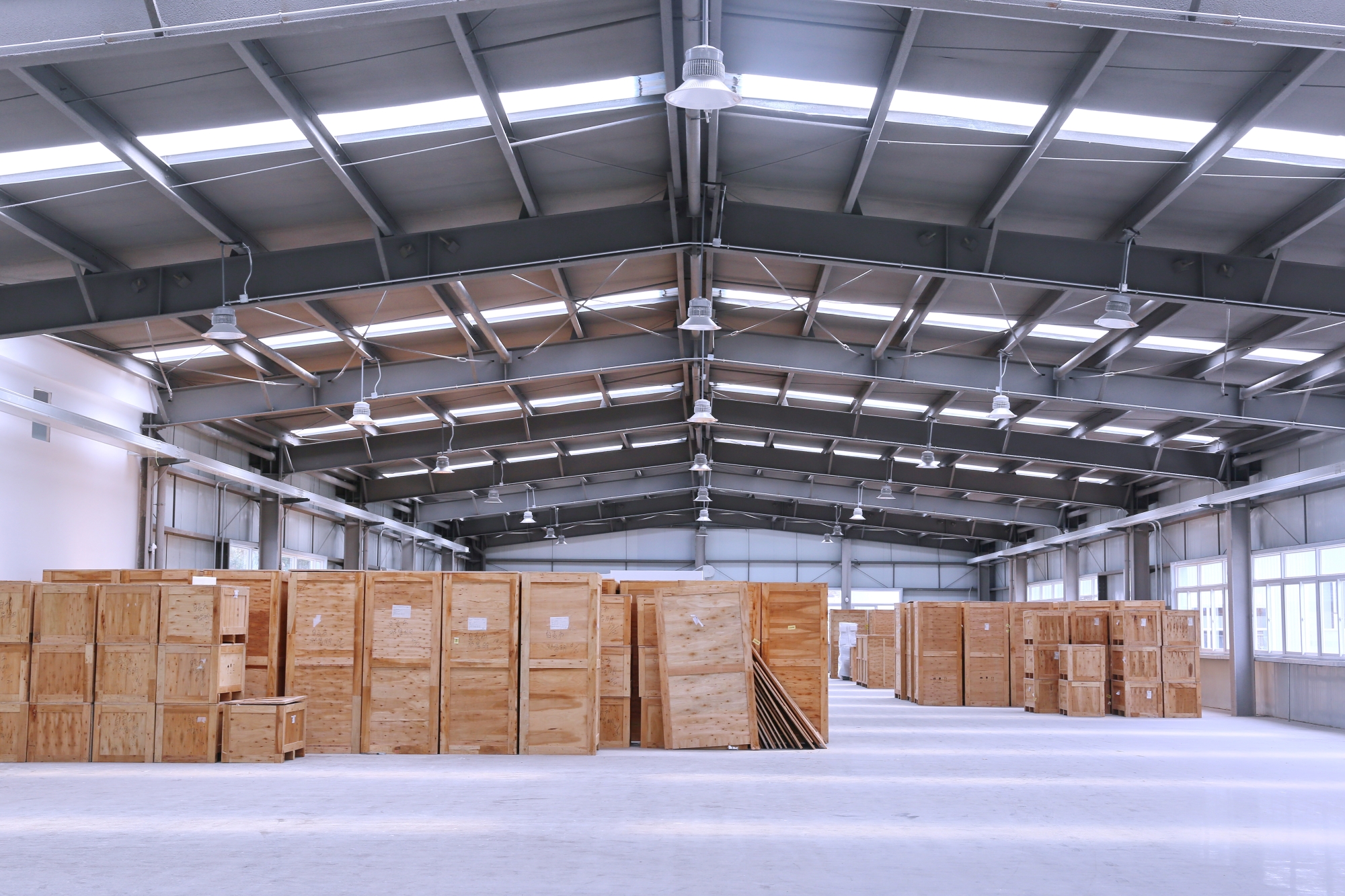

Our company specializes in the residential energy storage market across Europe and Africa. With an annual production capacity of 1 GWh and an 8,000-square-meter factory, we house advanced production workshops, packaging facilities, and a laboratory. Our monthly production capacity reaches 6,000 to 10,000 batteries.
Our products utilize A+-grade lithium iron phosphate (LiFePO4) cells and incorporate proprietary EMS and BMS components, ensuring long life, high safety, and reliability. Our systems are compatible with most global inverter brands.
