| Charge | Charging characteristics | CCCV/IU |
| Charging voltage | 14.6V | |
| Recommended charge current | 20A | |
| Maximum charge current | 50A | |

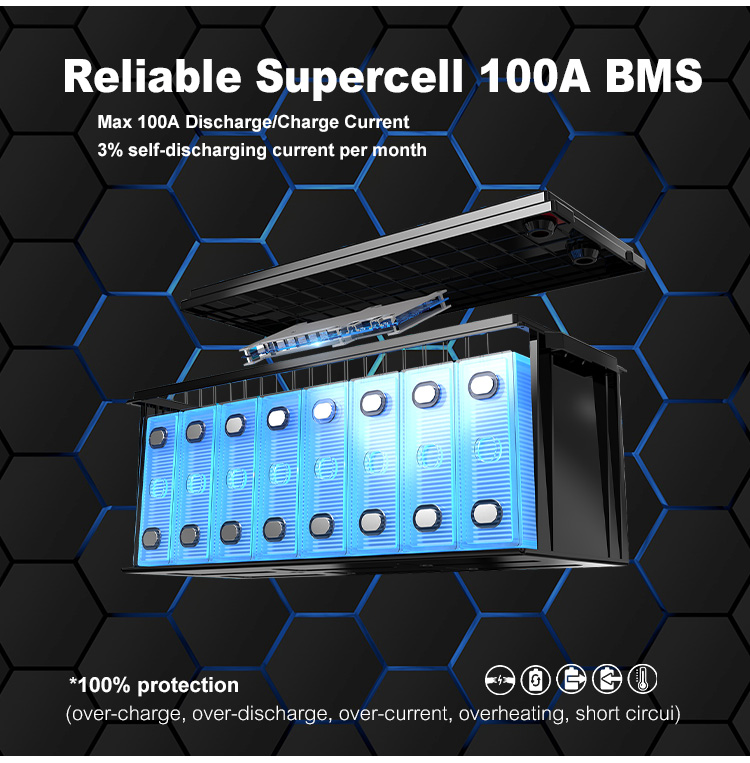

| Discharge | Maximum discharge current | 100A |
| Discharge cut-off current maximum(200~500ms)(A) | 310A | |

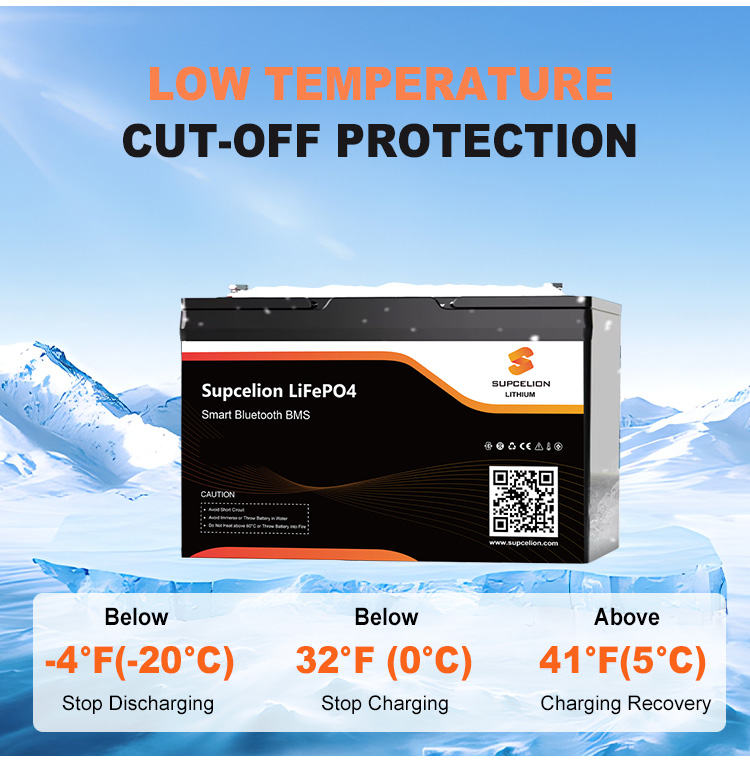

| Temperature | Temperature range (discharge) | -20 ~ 60 °C |
| Temperature range (charge) | 0 ~ 55 °C | |
| Temperature range (storage) | -5 ~ 35 °C | |

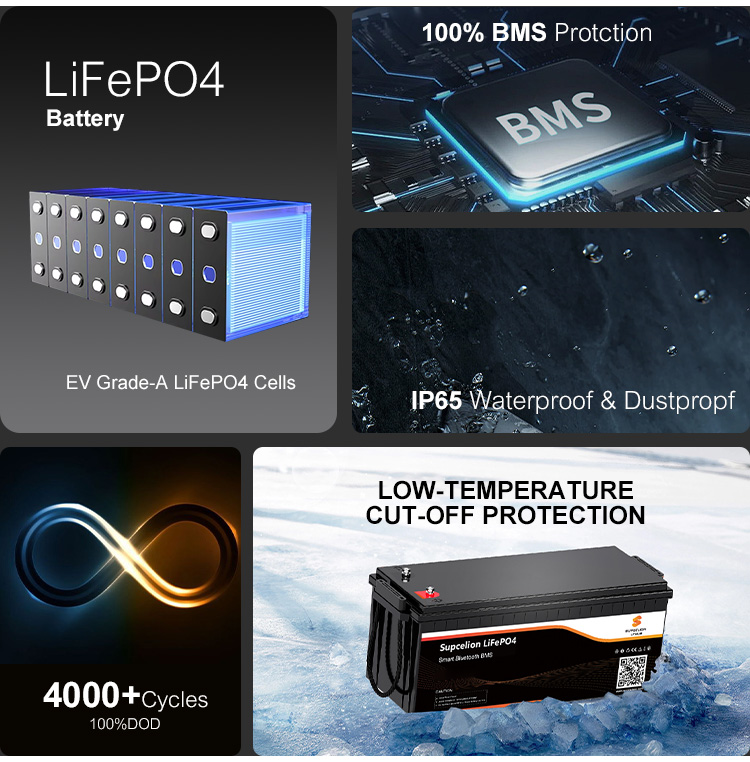

| Ingress protection code | IP65 | |

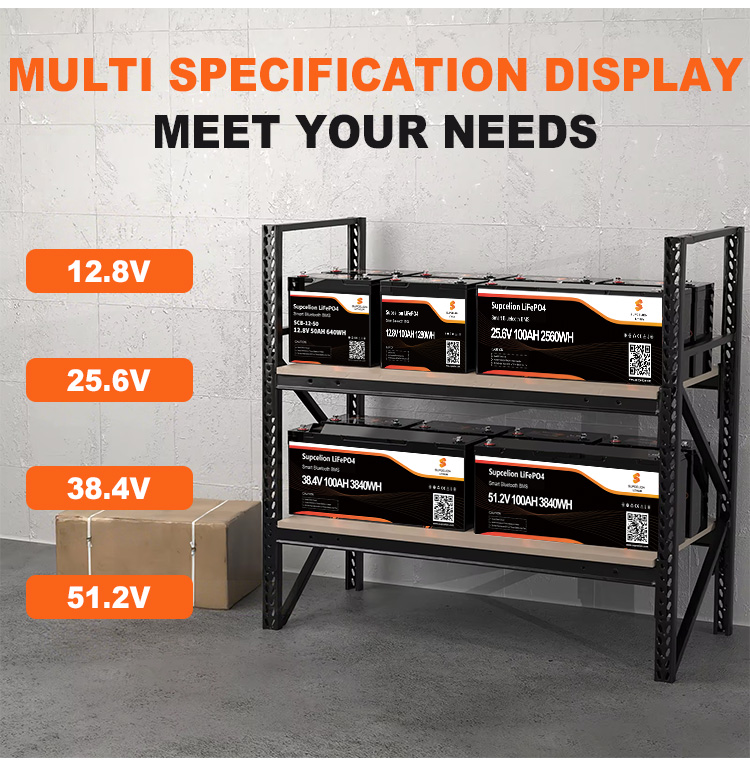

| Application / Interconnection | Series and parallel connection for 12V, 24V, 36V, 48V applications | |
| Material | Material of case | ABS |
| Terminals | M8 | |
| Monitoring | Bluetooth | Bluetooth 4.0 with smartphone app |
| Connection | Can be connected in 4 parallel and 4 series |
