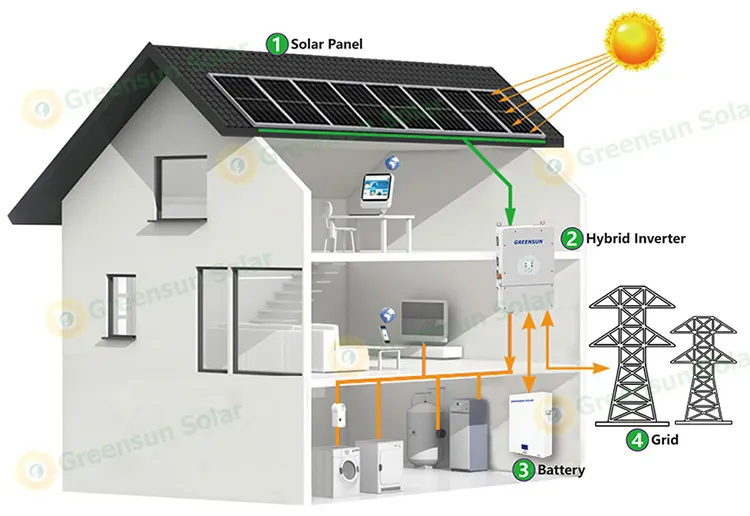

Solar hybrid power systems are hybrid power systems that combine solar power from a photovoltaic system with another power generating energy source. A common type is a photovoltaic diesel hybrid system, combining photovoltaics (PV) and diesel generators, or diesel gensets, as PV has hardly any marginal cost and is treated with priority on the grid. The diesel gensets are used to constantly fill in the gap between the present load and the actual generated power by the PV system.

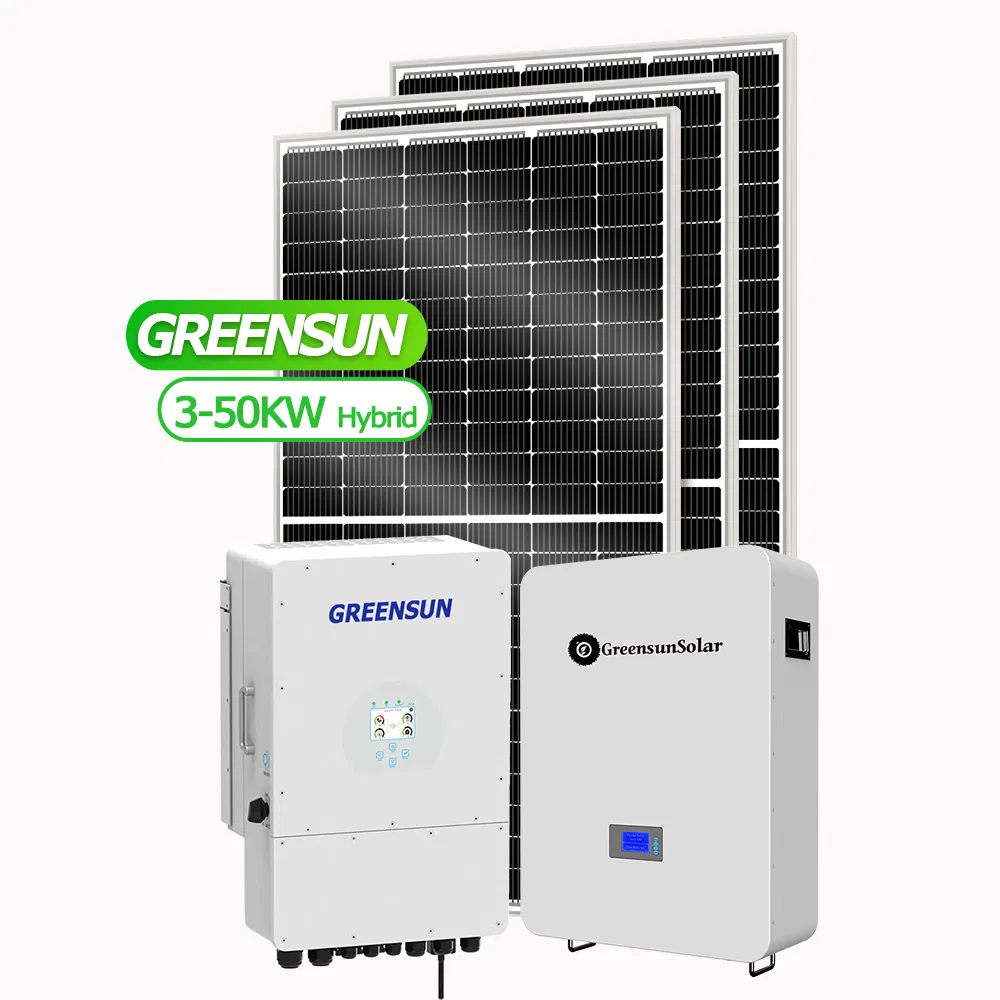

| Hybrid Storage Solar Power System 3-10KW | ||||
|---|---|---|---|---|
| Components | 3KW-HY | 5KW-HY | 8KW-HY | 10KW-HY |
| AC Voltage | 220~240Vac | 120/240Vac | 380/400/415Vac | 380/400/415Vac |
| Mono 460W Panel | 7 pcs | 10 pcs | 16 pcs/18 pcs | 21 pcs/22 pcs |
| Hybrid Inverter | 3KW | 5KW | 8KW | 8KW/10KW |
| Battery | Lithium Battery / Lead Acid Battery Optional | |||
| Hybrid Storage Solar Power System 15-50KW | ||||
|---|---|---|---|---|
| Components | 15KW-HY | 20KW-HY | 30KW-HY | 50KW-HY |
| AC Voltage | Split Phase | 3 Phase (EU) | 3 Phase (EU) | 3 Phase (US/EU) |
| Mono 460W Panel | 32 pcs | 44 pcs | 64 pcs | 108 pcs |
| Hybrid Inverter | 2x 8KW | 2x 10KW | 30KW | 50KW |

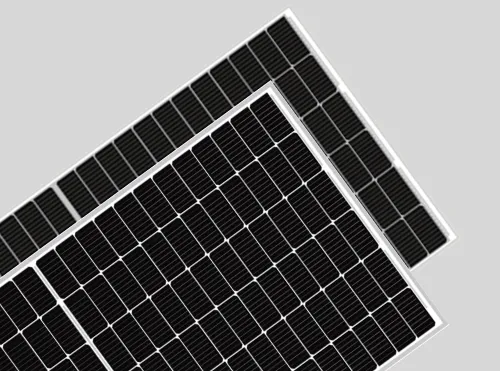

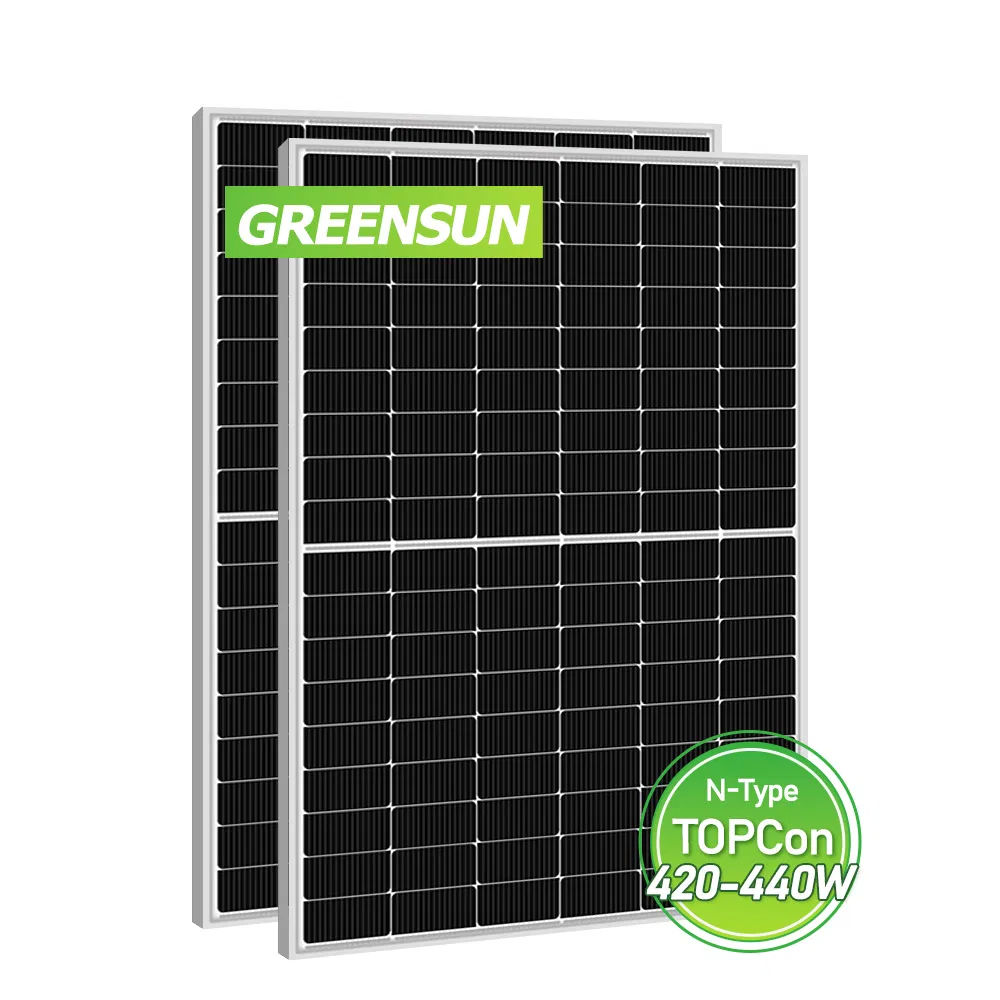

Poly, Mono, PERC/N-type HJT Solar Panels available. PID free PV modules with 0-5W positive power tolerance. 100% EL inspection and 25 years warranty.

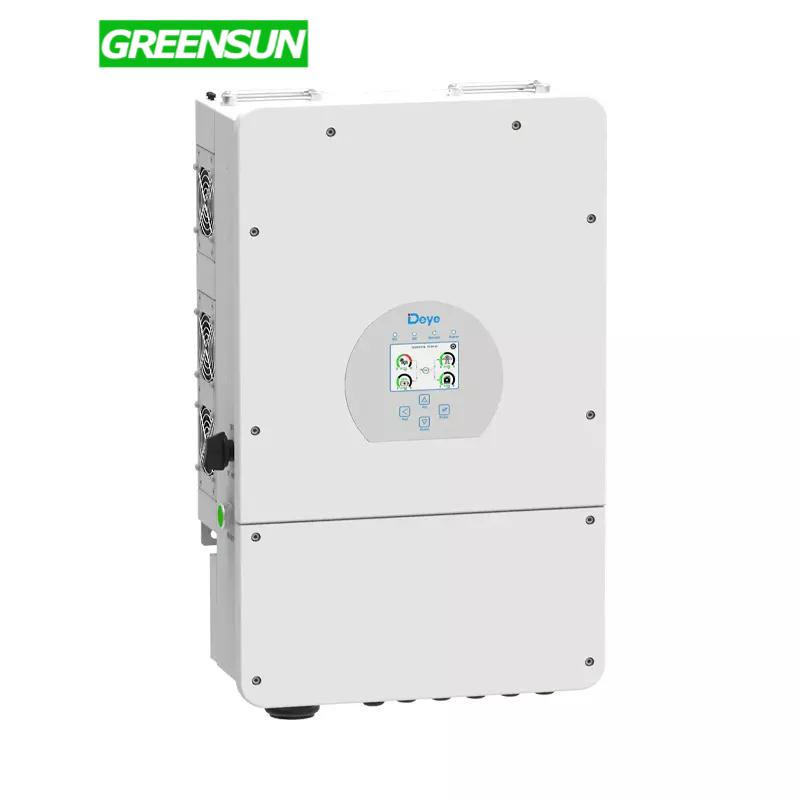

Single/Split/3-Phase Output options. Supports WiFi monitoring and Touch LCD interface. Compatible with Lithium-ion and Lead-acid batteries. 10 years warranty.

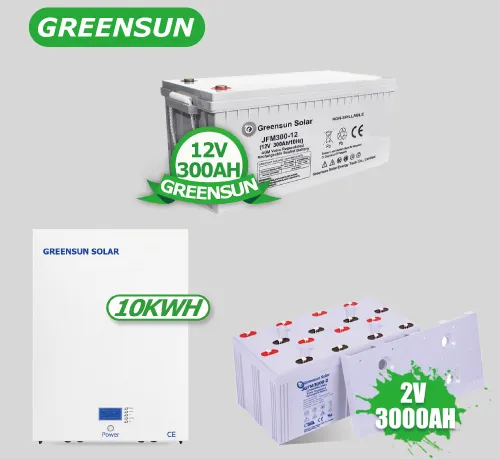

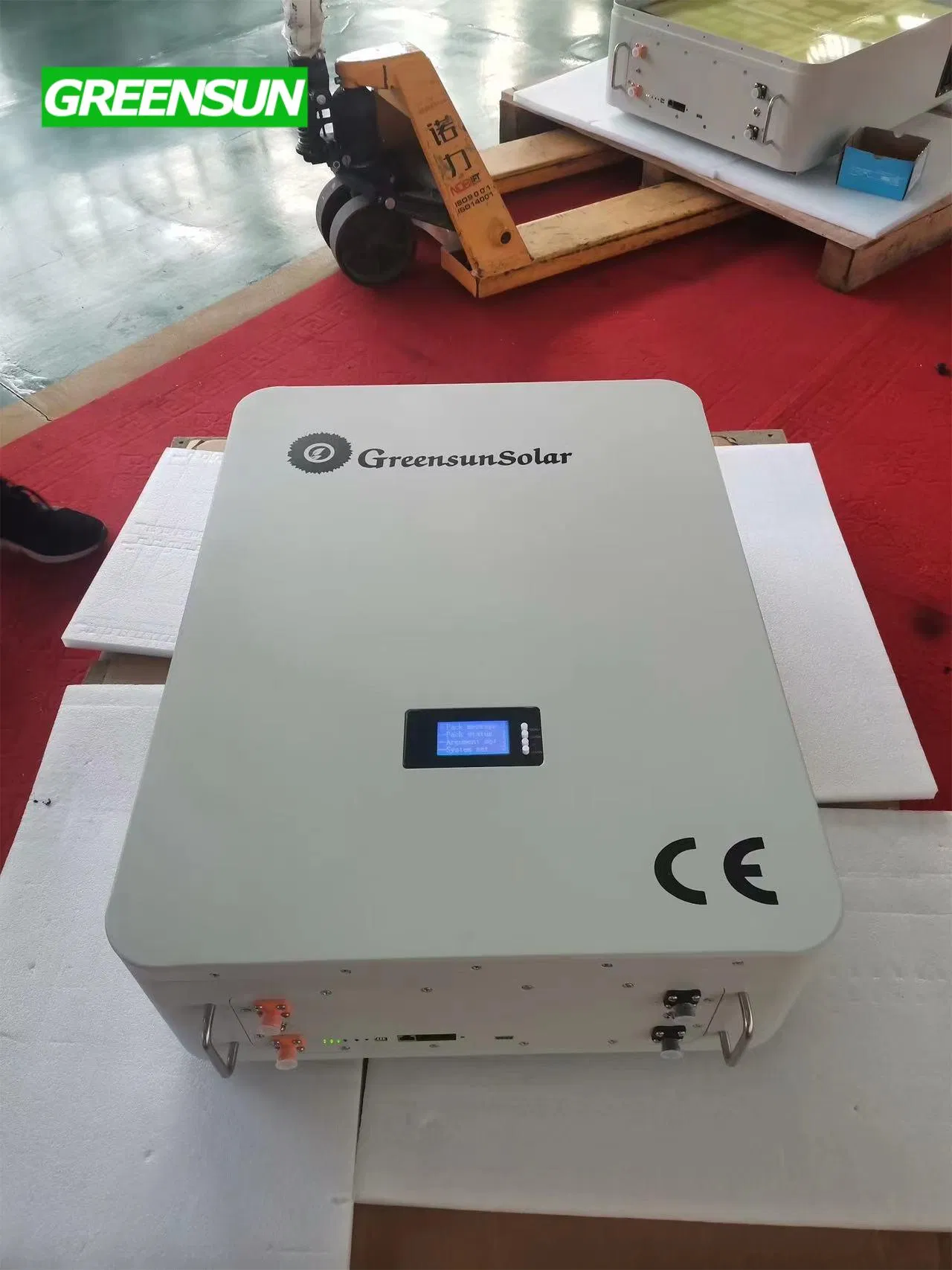

Powerwall or Rack Mount designs. In-built BMS with support for parallel connection. Over 6000 cycles life. AGM/GEL deep cycle options available.

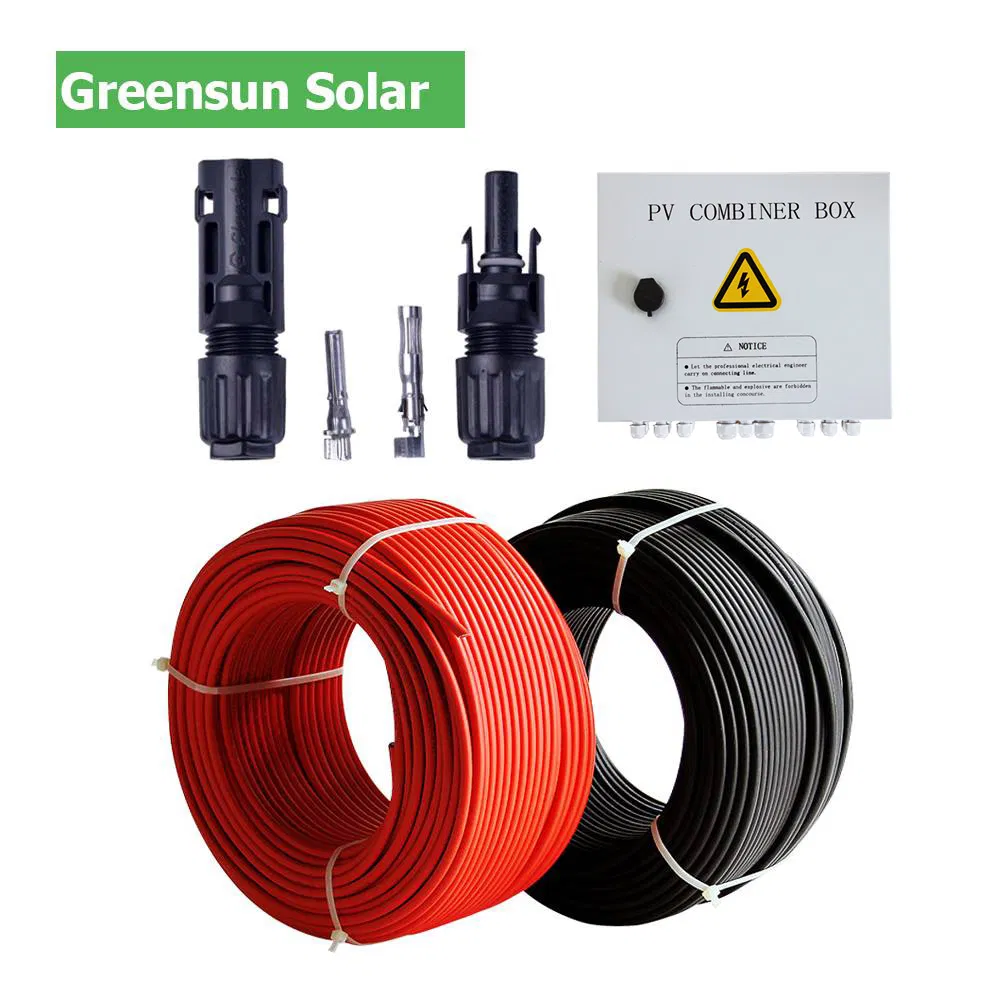

Structures for Pitched roof, Flat roof, Ground, Ballast, and Carports. Includes PV combiner box (IP65) with Lightening Arrester, DC Breaker, and MC4 Connectors.
