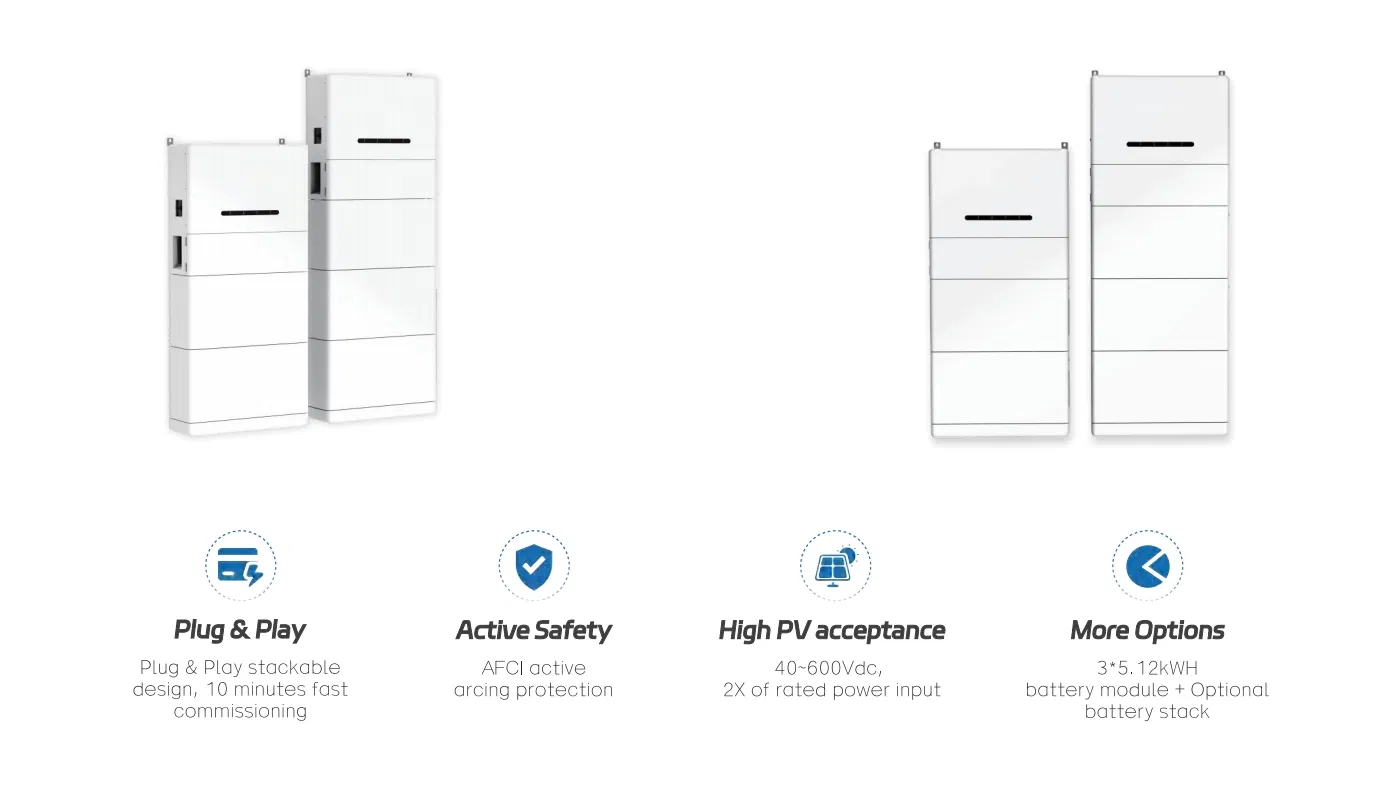

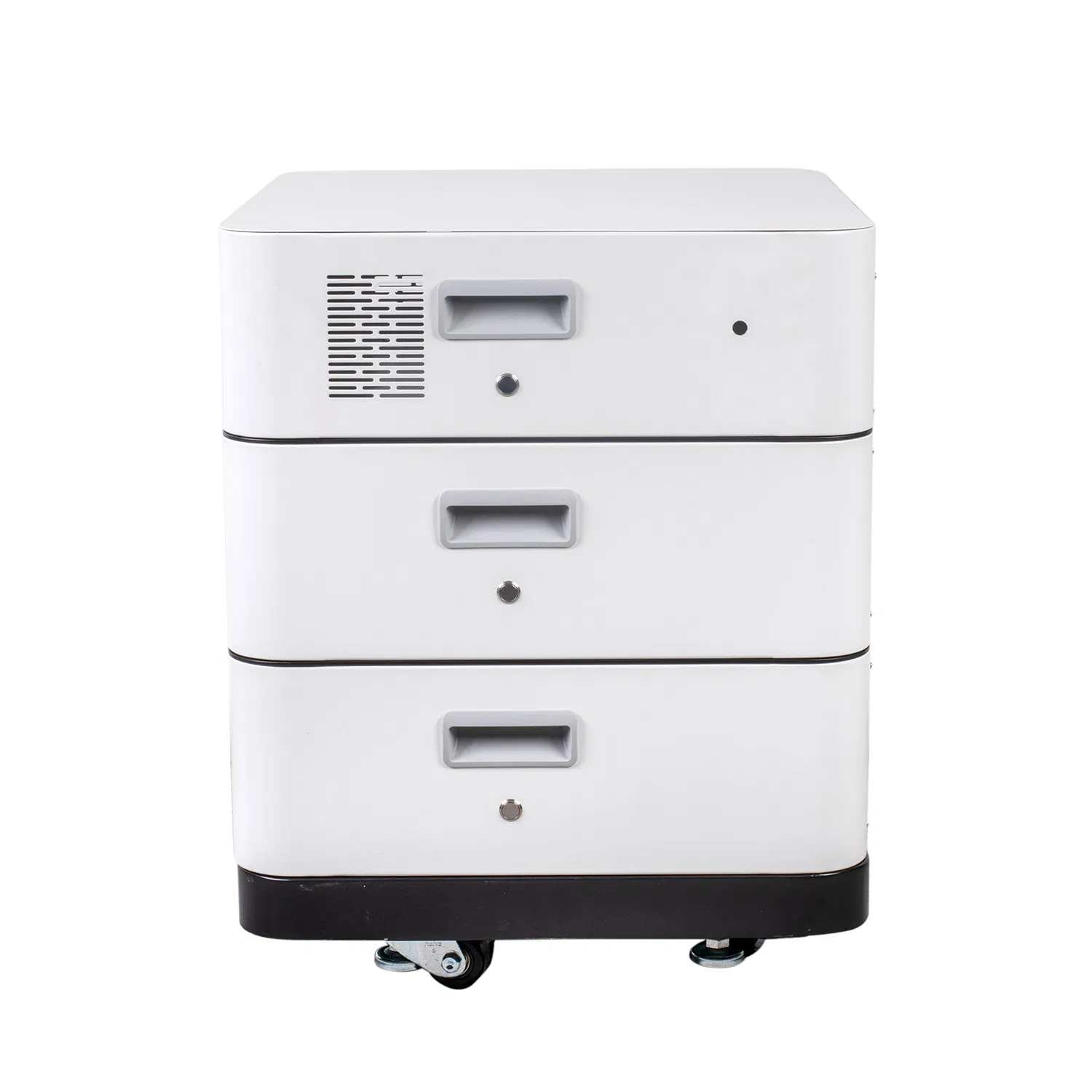

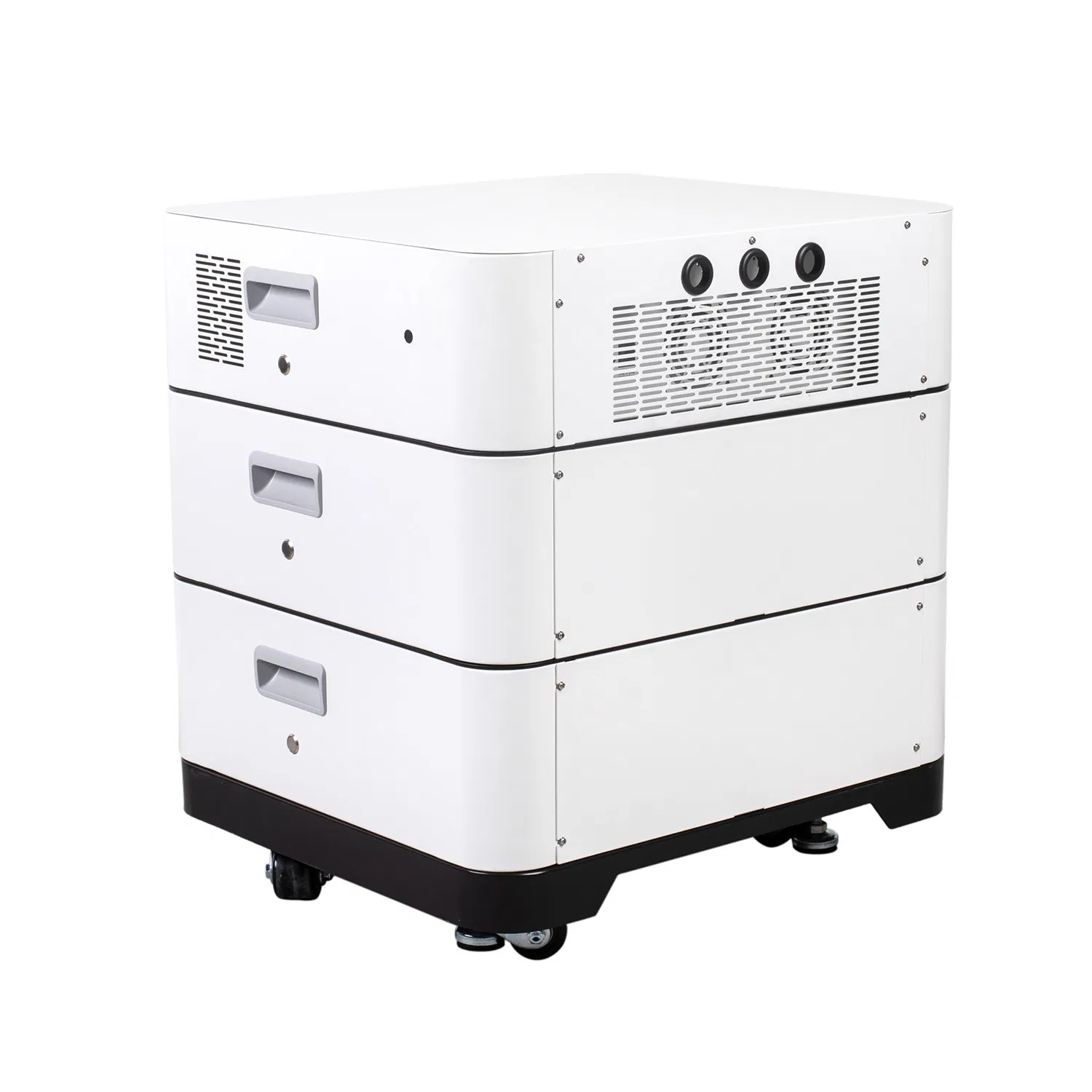

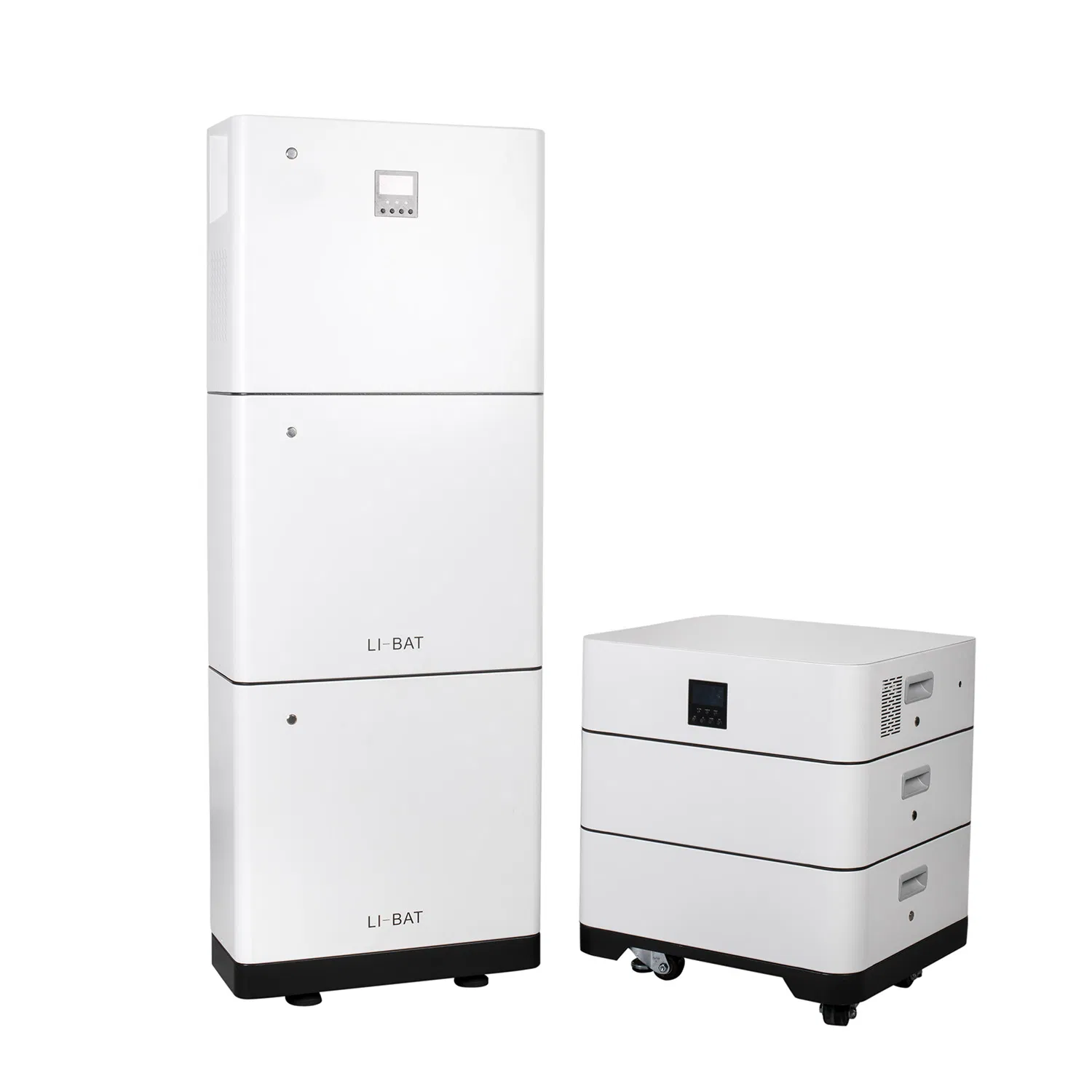

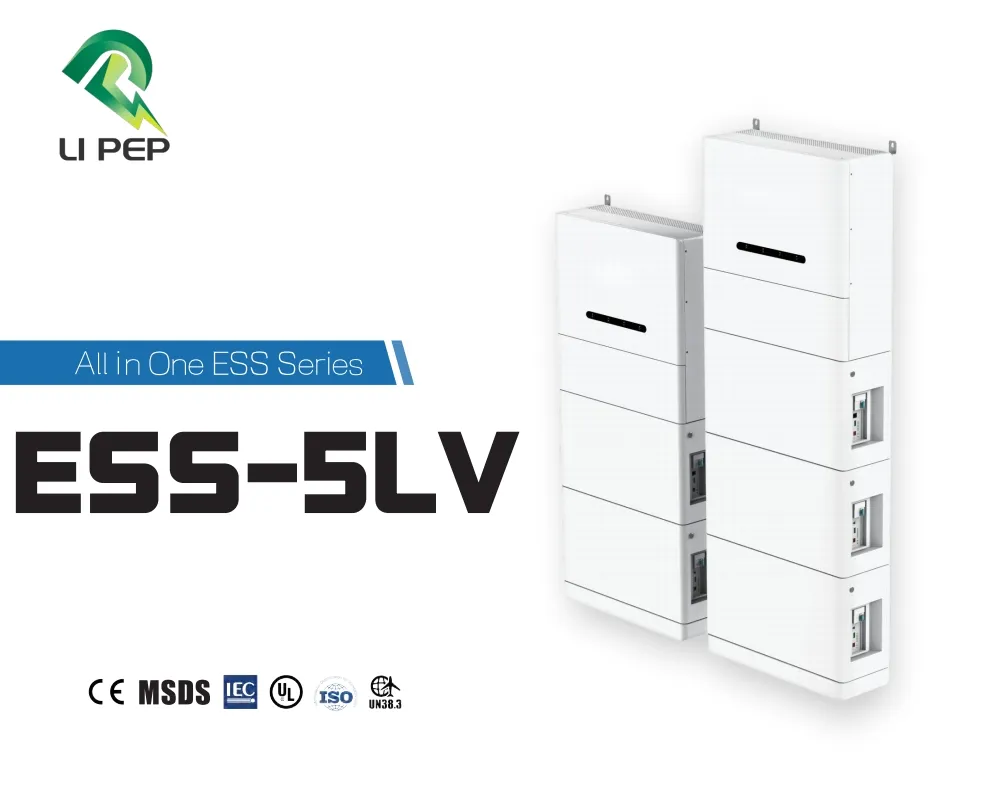

This series of products is a stacked all-in-one machine that integrates a hybrid inverter and an energy storage battery. Multiple application modes, high power density, plug-and-play, and hidden wiring design are widely used in small commercial and home energy storage.

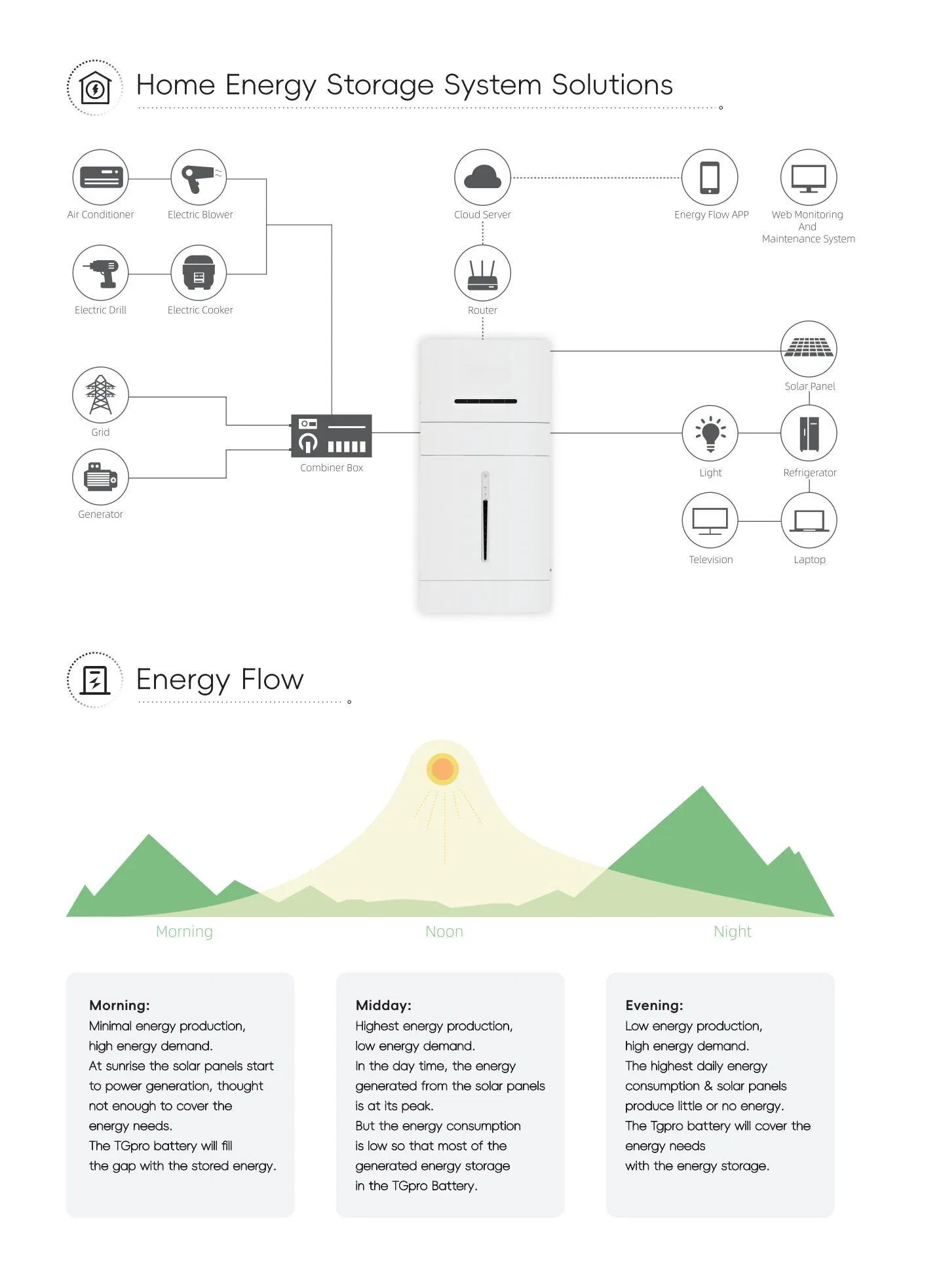

Three output modes and four charging modes to suit various energy needs.

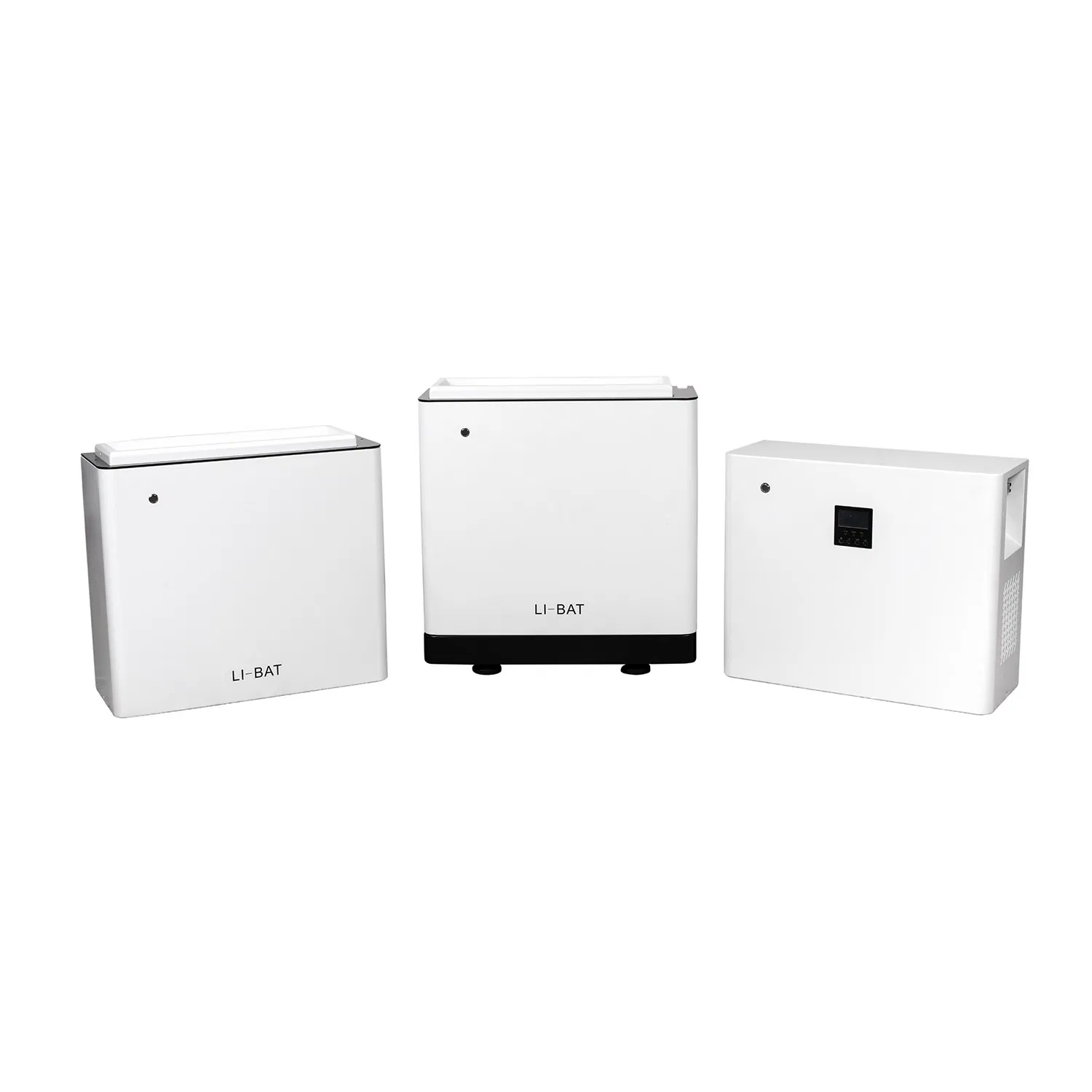

Stacked design allows for battery pack capacity expansion on demand.
Advanced DSP control algorithms with multiple safety warnings and protection.
Intelligent battery management system (BMS) with APP cloud real-time monitoring.
| Parameter | 10kWh System | 20kWh System | 30kWh System |
| Rated Output Power | 5500W | ||
| Maximum Peak Power | 11000W | ||
| AC Output | 230VAC (50/60Hz) | ||
| Energy Capacity | 10 kWh | 20 kWh | 30 kWh |
| Battery Modules | 1 Unit | 2 Units | 3 Units |
| Max. PV Array Power | 5500W | ||
| Max. MPPT Charging | 100A | ||
| Dimensions (mm) | 250*690*850 | 250*690*1310 | 250*690*1770 |
| Weight (kg) | 125 | 225 | 325 |
For standard shipments, we adopt high-quality corrugated cartons as our primary packaging option. These cartons are selected for their durability and shock resistance. Beyond standard packaging, we offer flexible customization services including wooden crates or reinforced packaging for fragile items.
