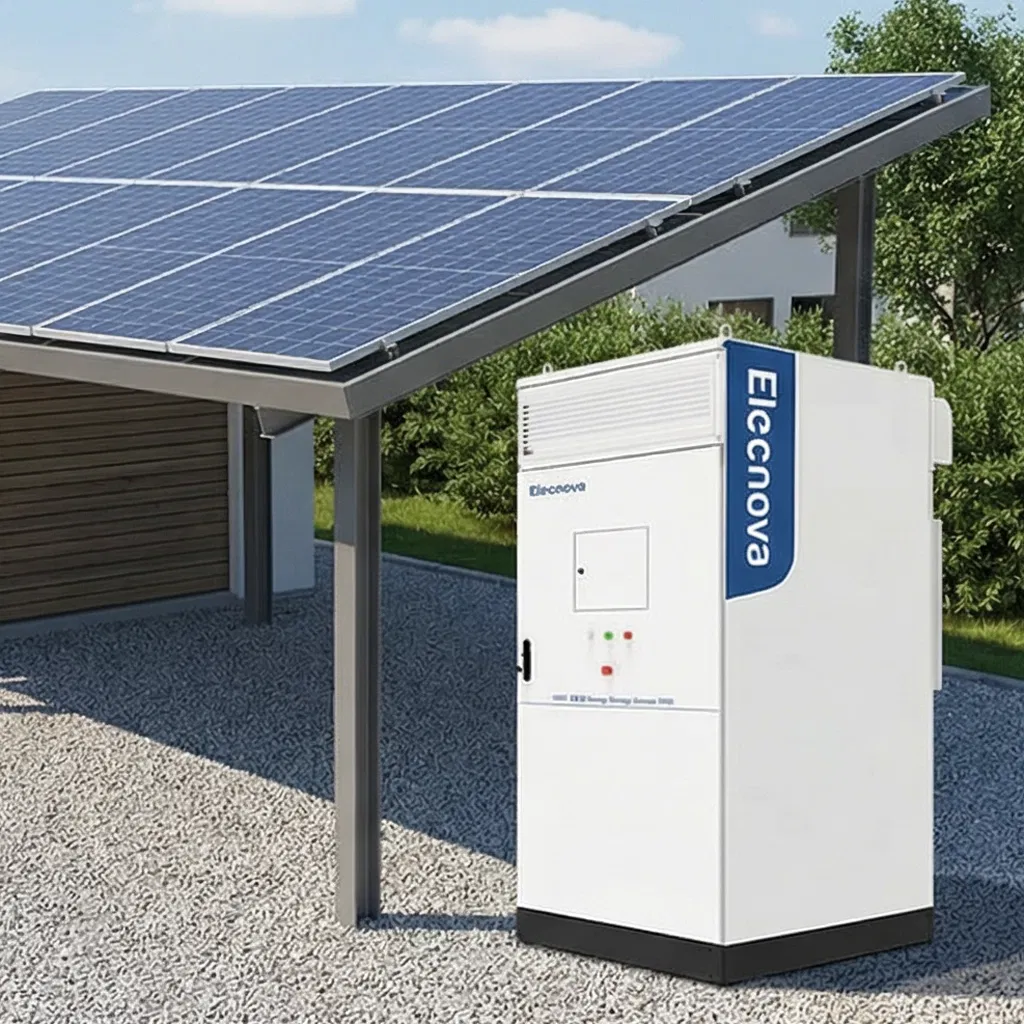

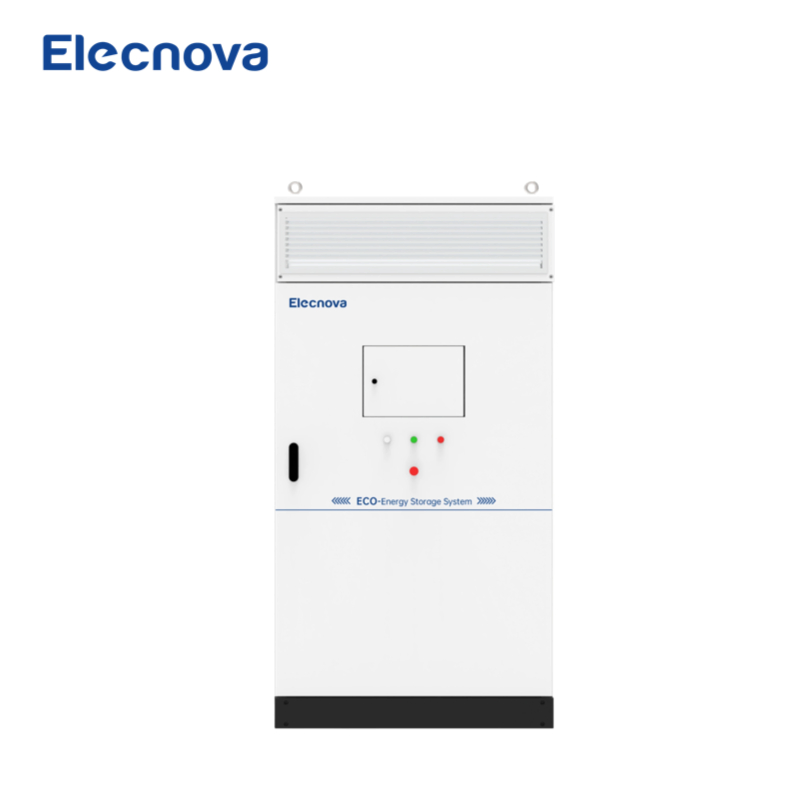

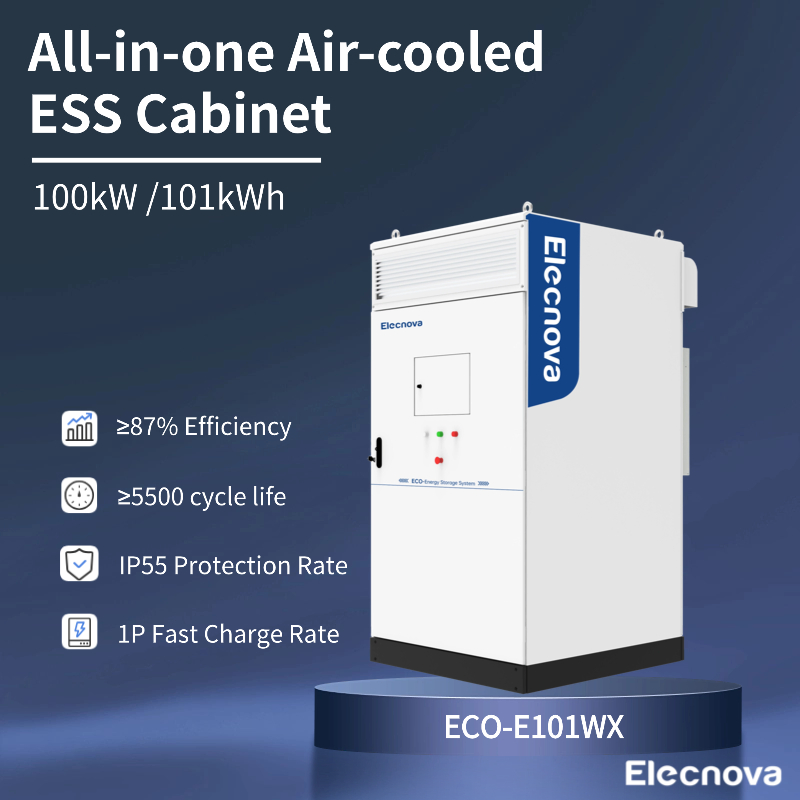

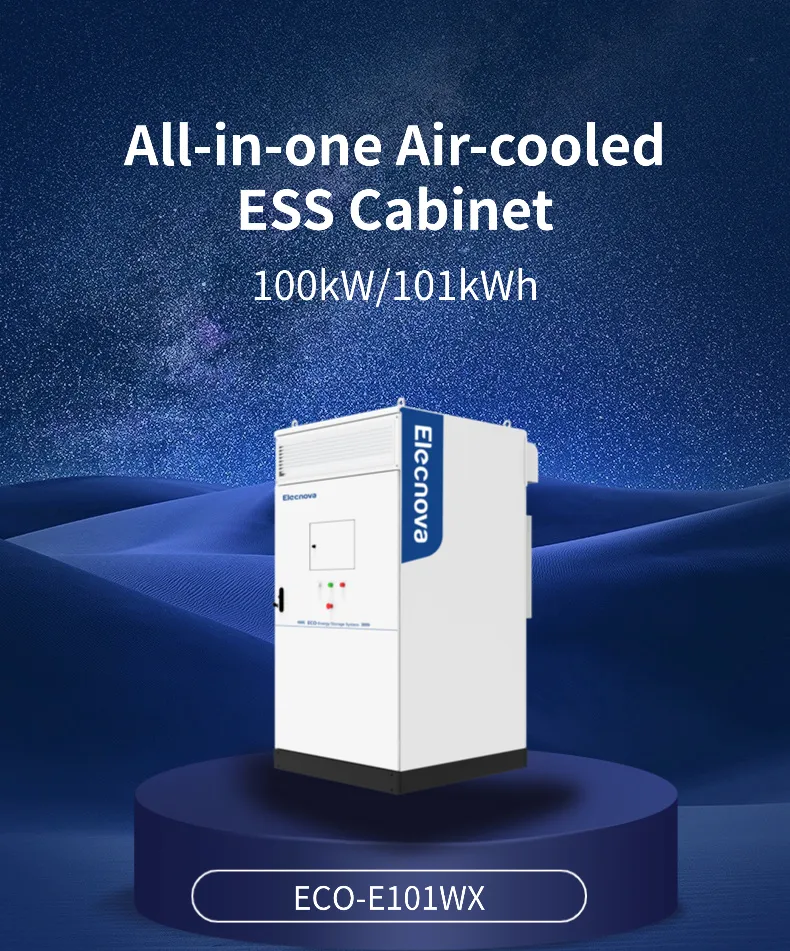

ECO-E101WX is a high-performance energy storage solution ideal for EV charging stations. Featuring 1P charge/discharge rate, ≥87% efficiency, and ≥5500 cycles.
| DC Side | |
|---|---|
| Cell Type | LFP / 120 Ah |
| PACK Configuration | 9.2 kWh / 1P24S |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| DC Voltage Range | 739.2 ~ 950.4 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| General | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |
| Certification | UN38.3, IEC62477-1, IEC61000, IEC62619, EN50549 |

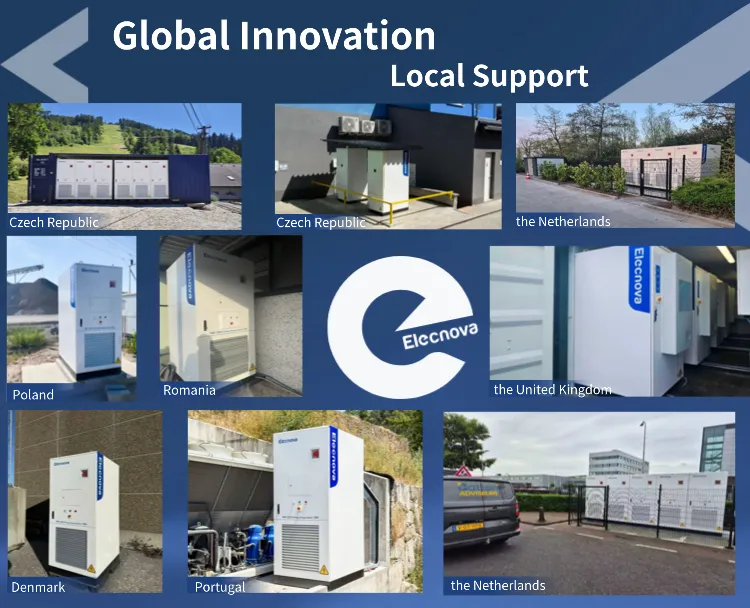

From Europe (Italy, Netherlands, Belgium, Czech Republic, Poland) to Ukraine, Southeast Asia, Africa, and the Middle East, our energy storage solutions are transforming energy landscapes worldwide. We deliver reliable, scalable BESS to empower energy security everywhere.
With 28 years of industry experience, we are a leading player in the energy storage sector. We dedicate 10% of revenue to R&D and maintain a production capacity of 2GWh with automated Module and PACK production lines. Our facility holds CNAS laboratory certification, ensuring rigorous quality control.
