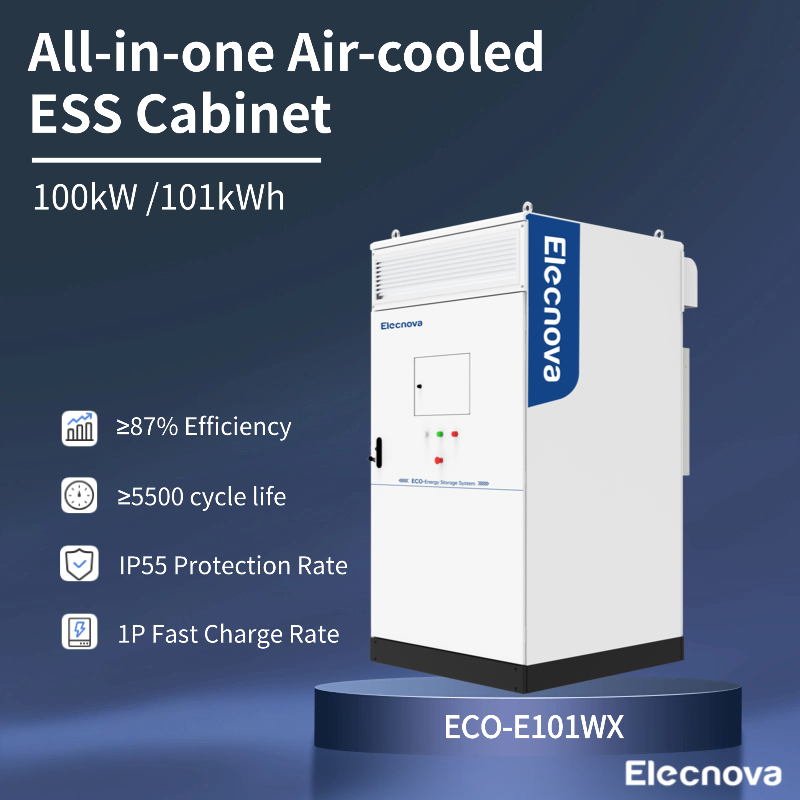

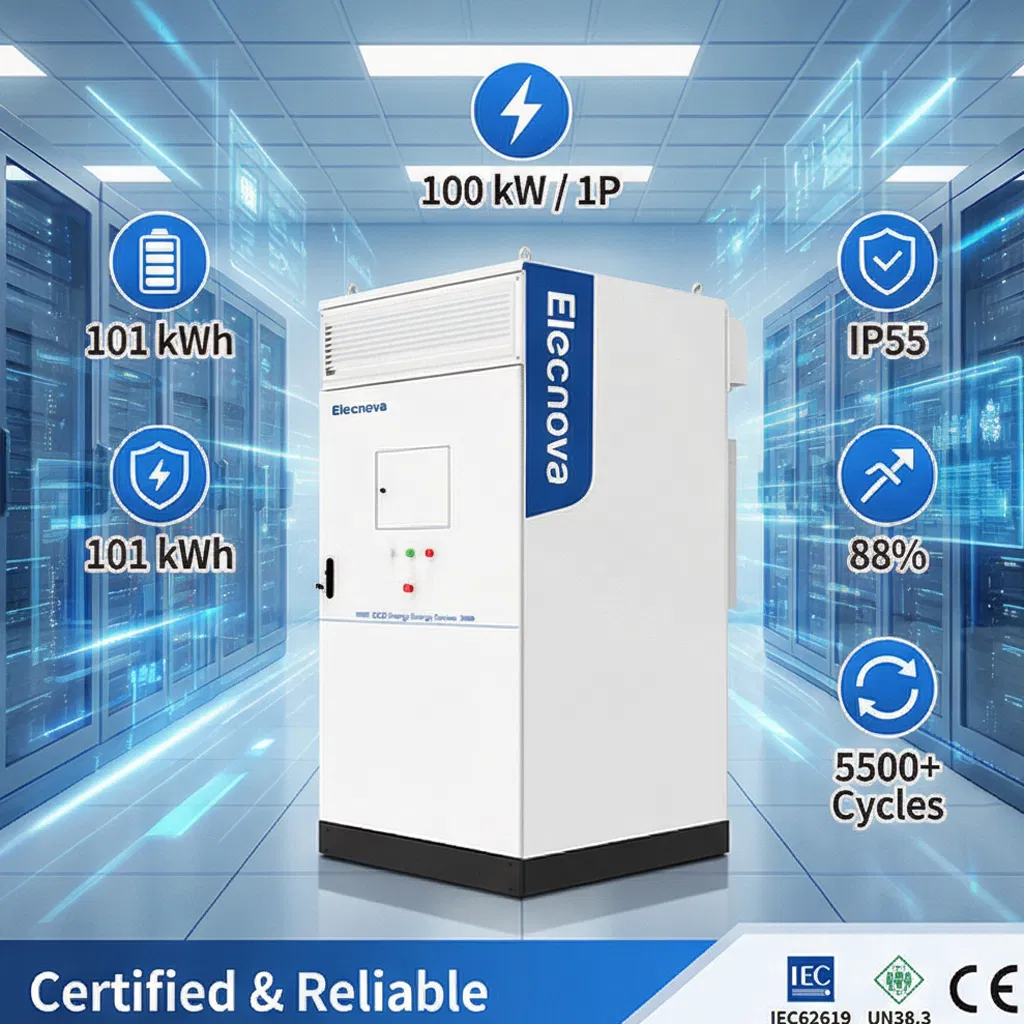

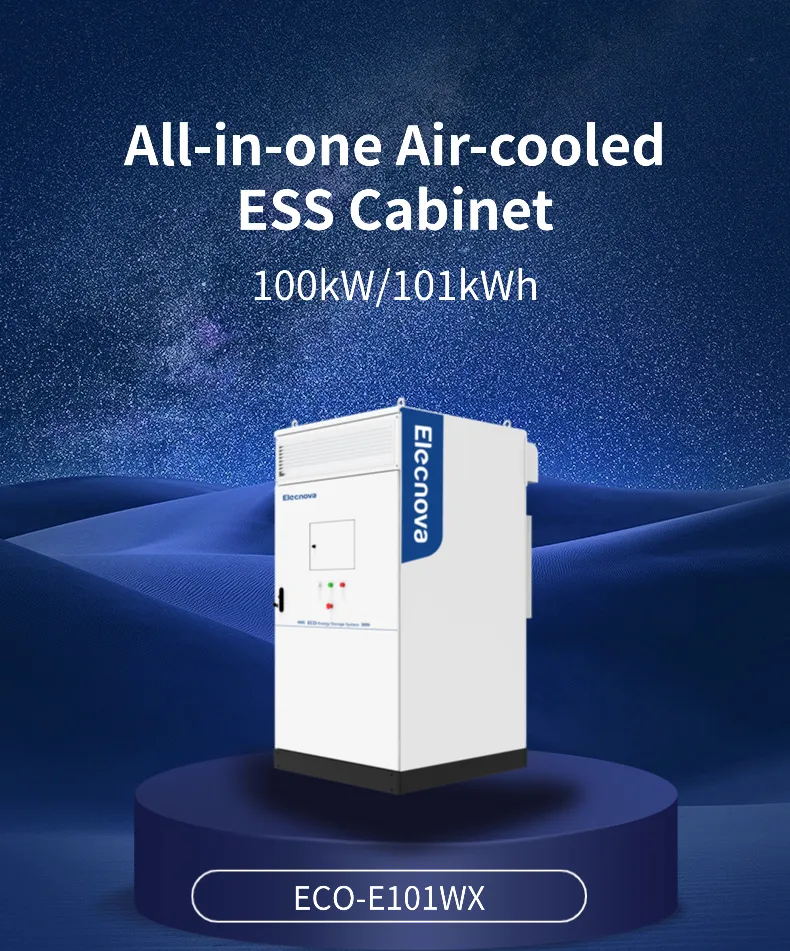

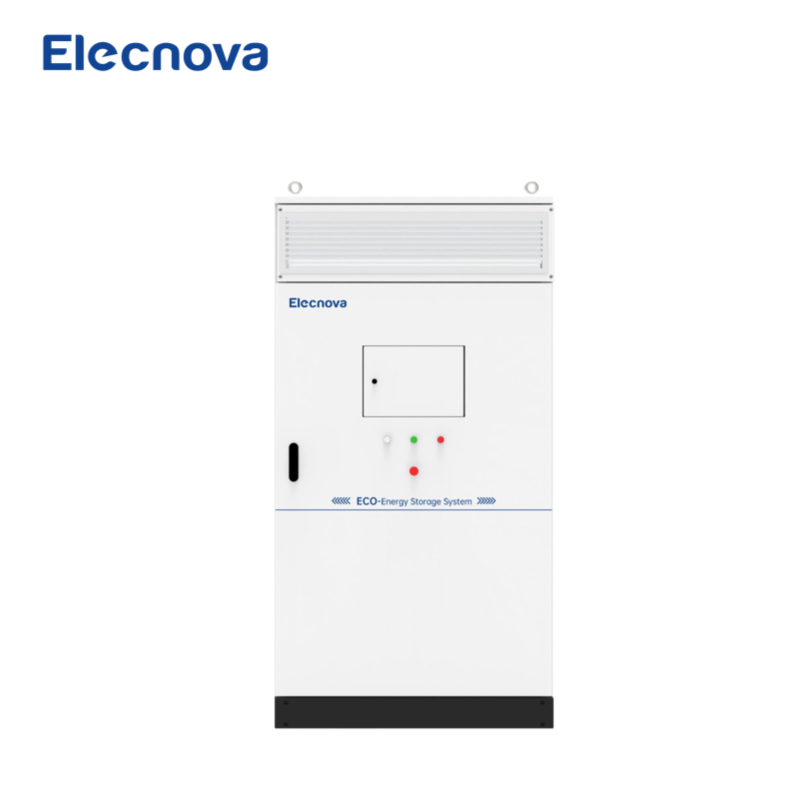

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
Comprehensive international certifications: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, IEC 61000, CEI 0-16, CEI 0-21, UL 9540A, and RoHS. Offering industry-leading warranty options and 24/7 technical support including on-site training and maintenance guidance.
