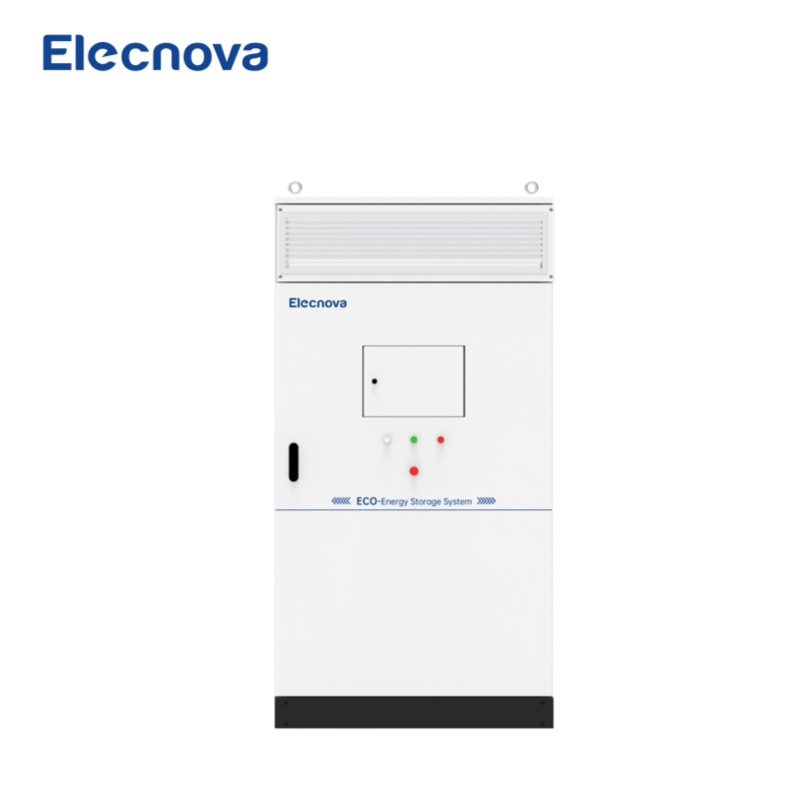

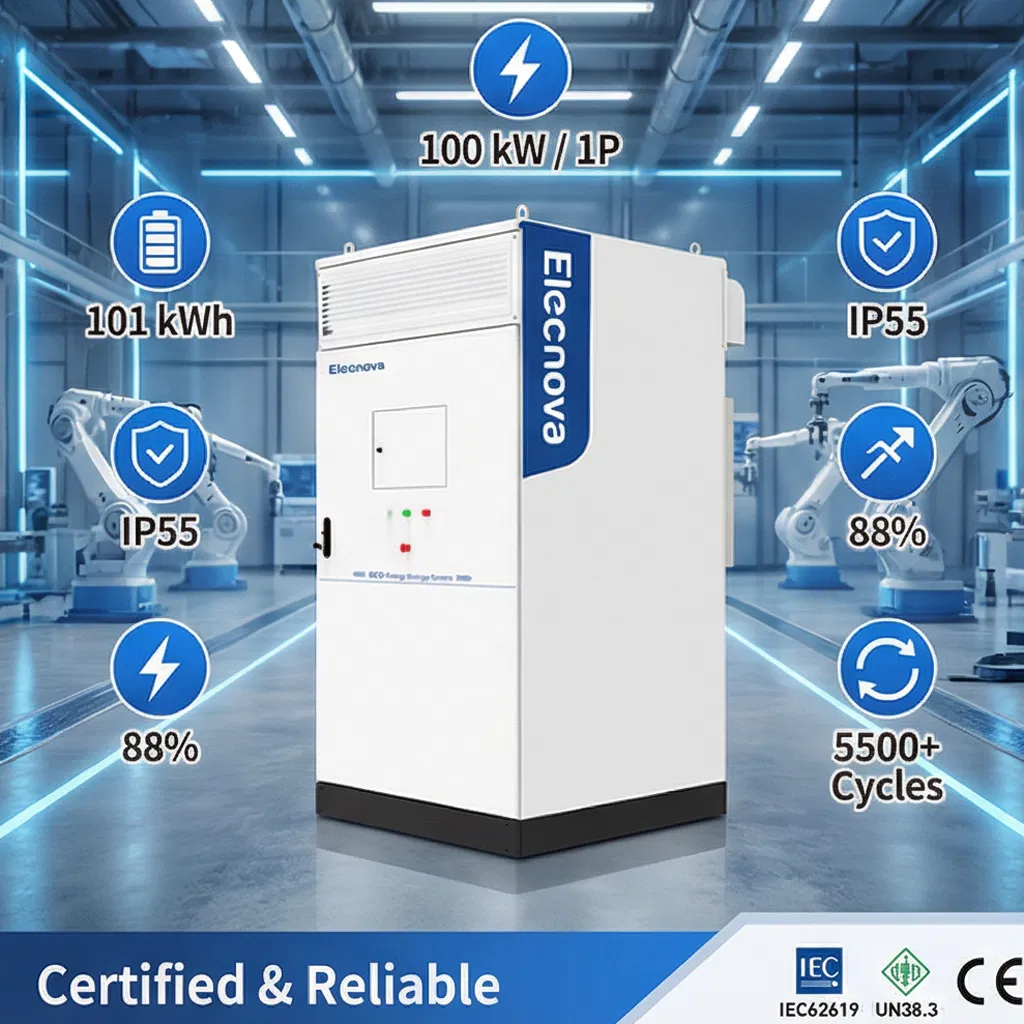

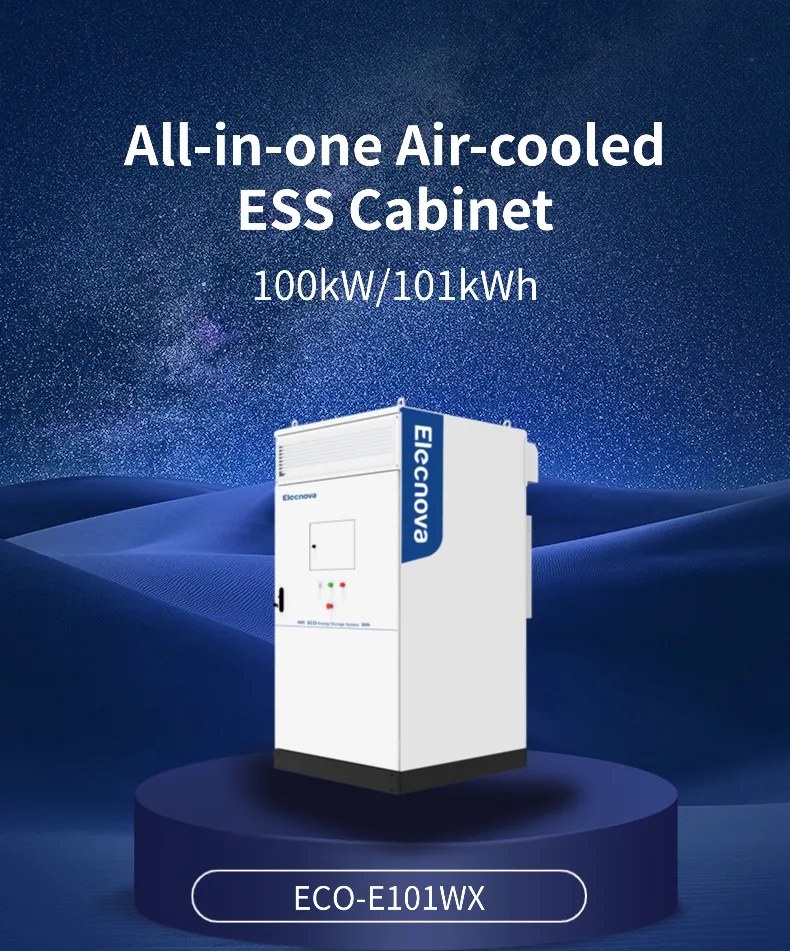

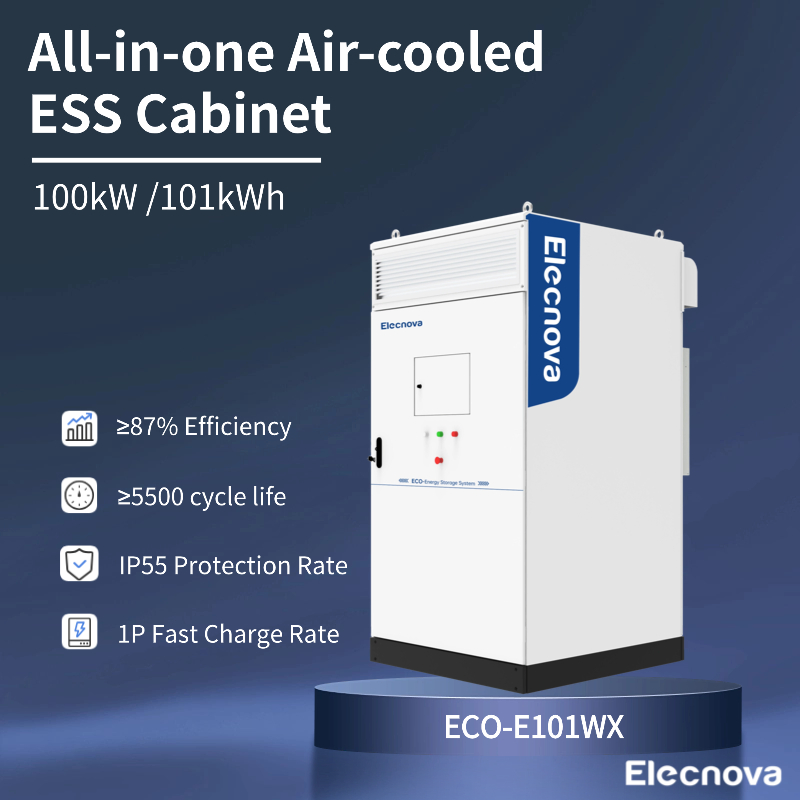

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

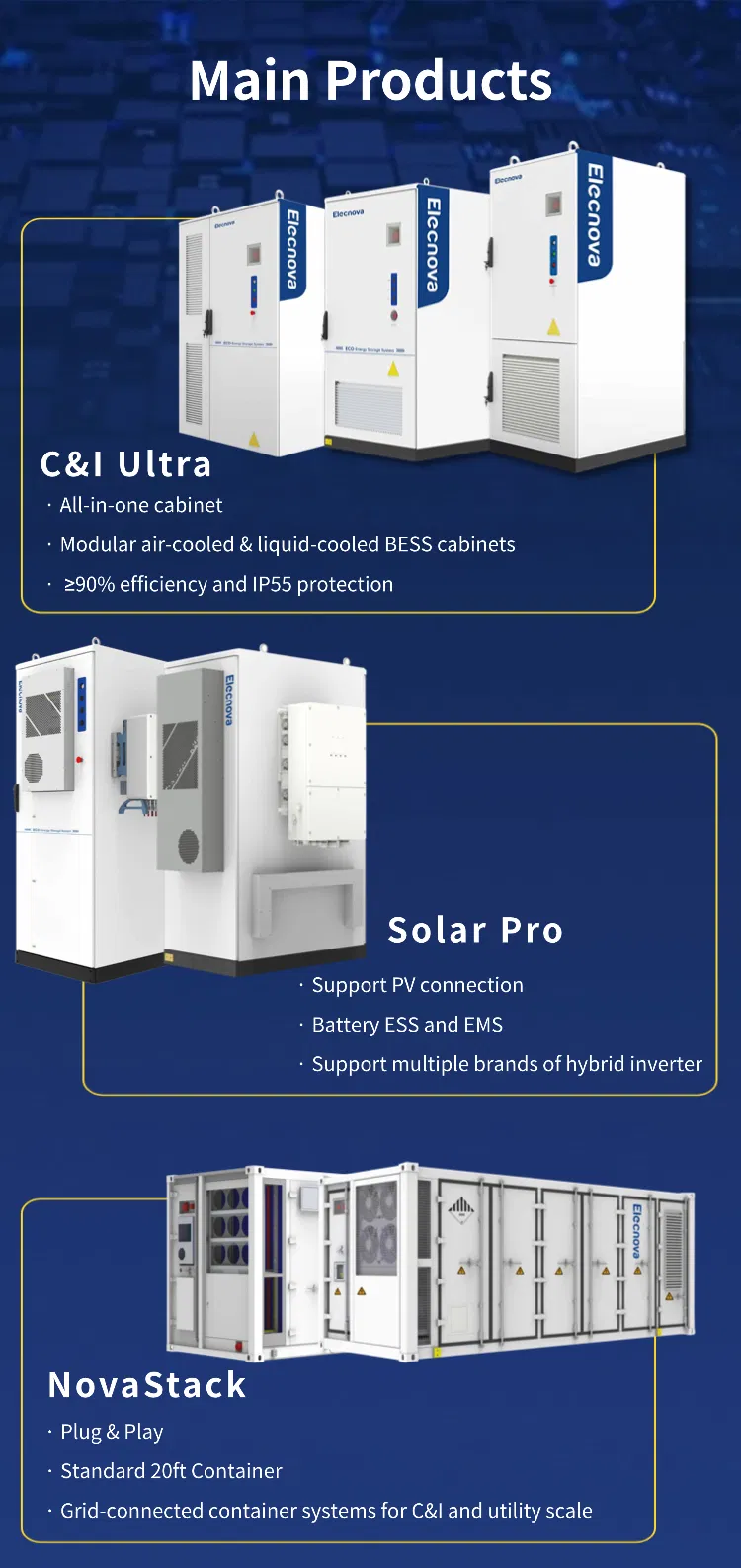

C&I Ultra: All-in-one modular BESS cabinets (air-cooled/liquid-cooled) with ≥90% efficiency and IP55 protection.
Solar Pro: Seamlessly integrates with PV systems, featuring battery ESS and EMS compatibility.
NovaStack: Plug-and-play 20ft container systems, designed for utility-scale energy storage projects.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

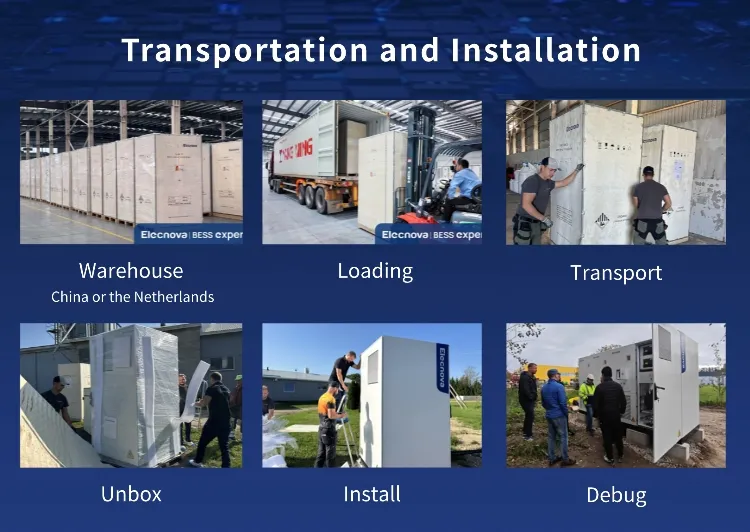

From warehouse to installation, we ensure a professional process:

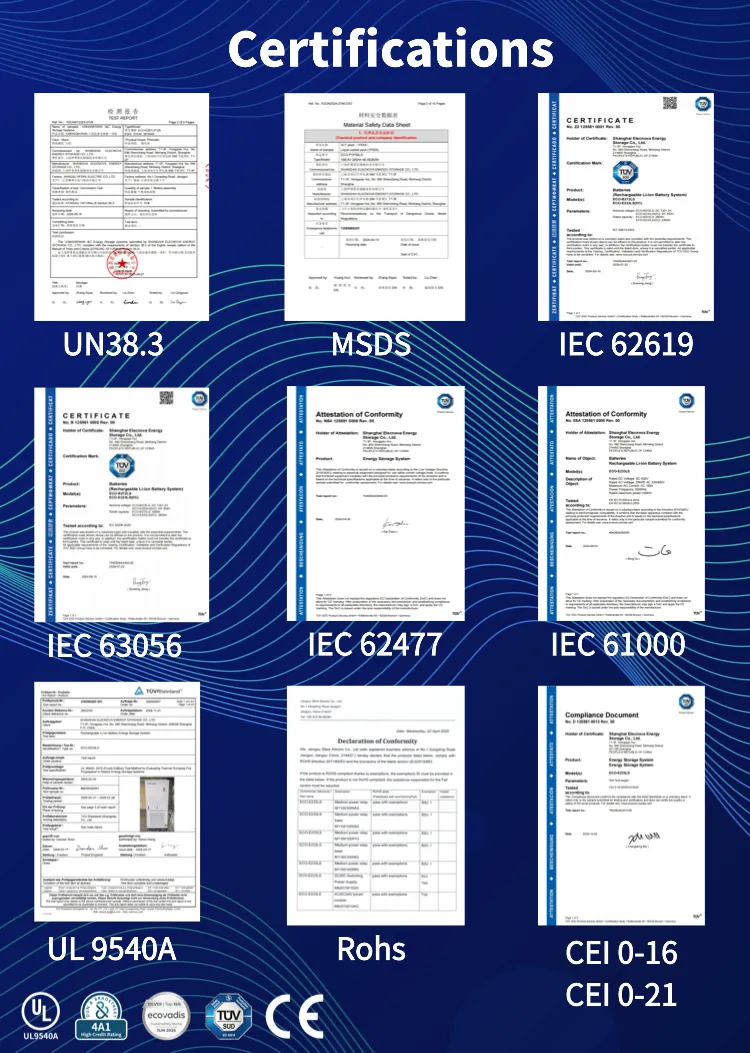

Our energy storage solutions are backed by international certifications: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, IEC 61000, and UL 9540A.
