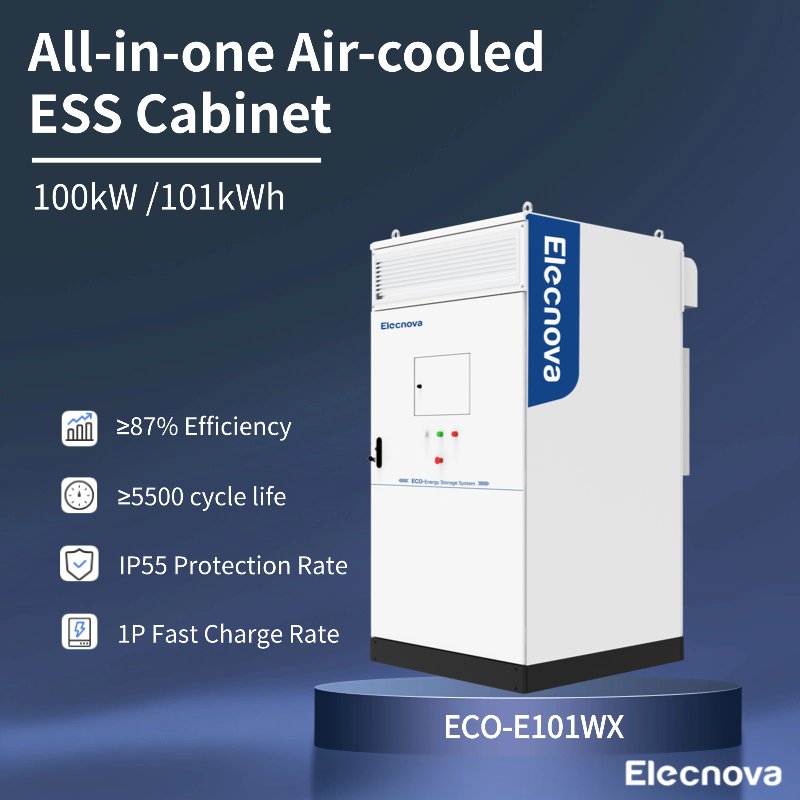

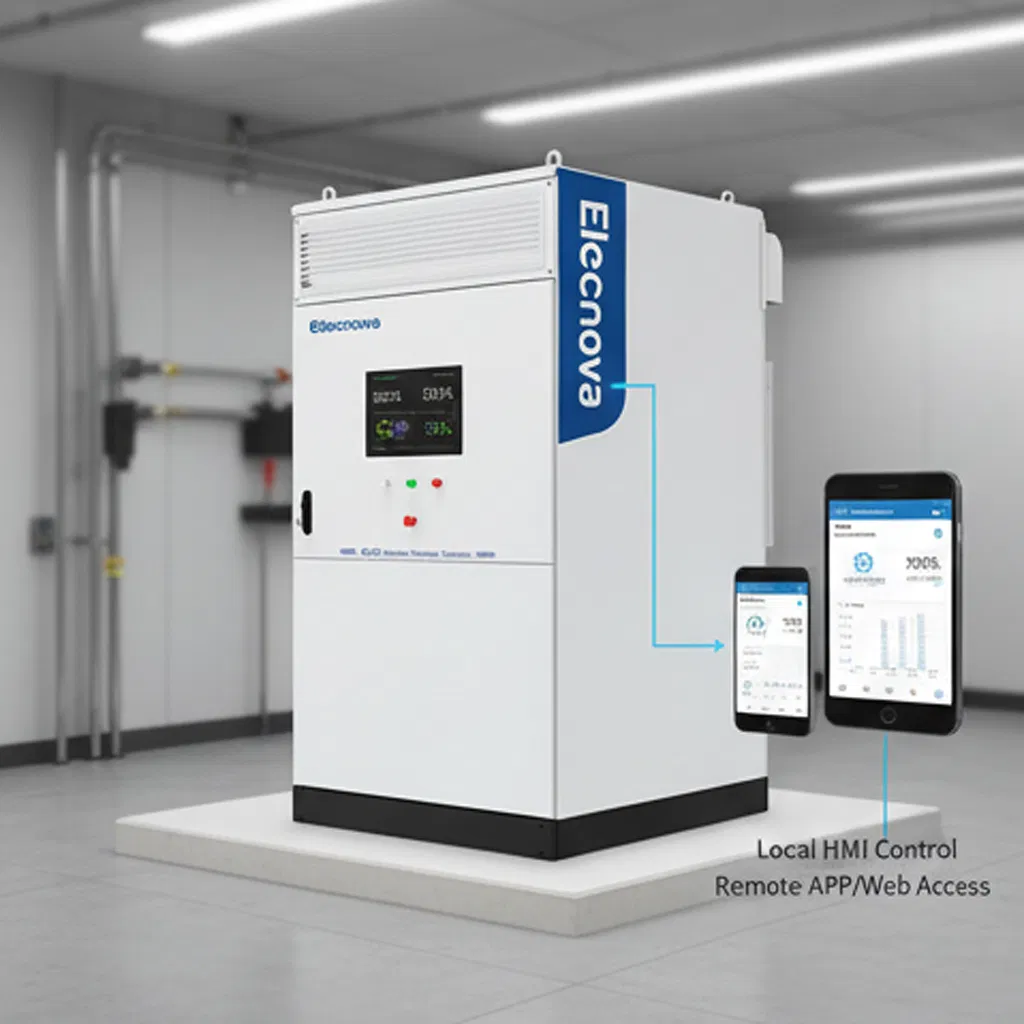

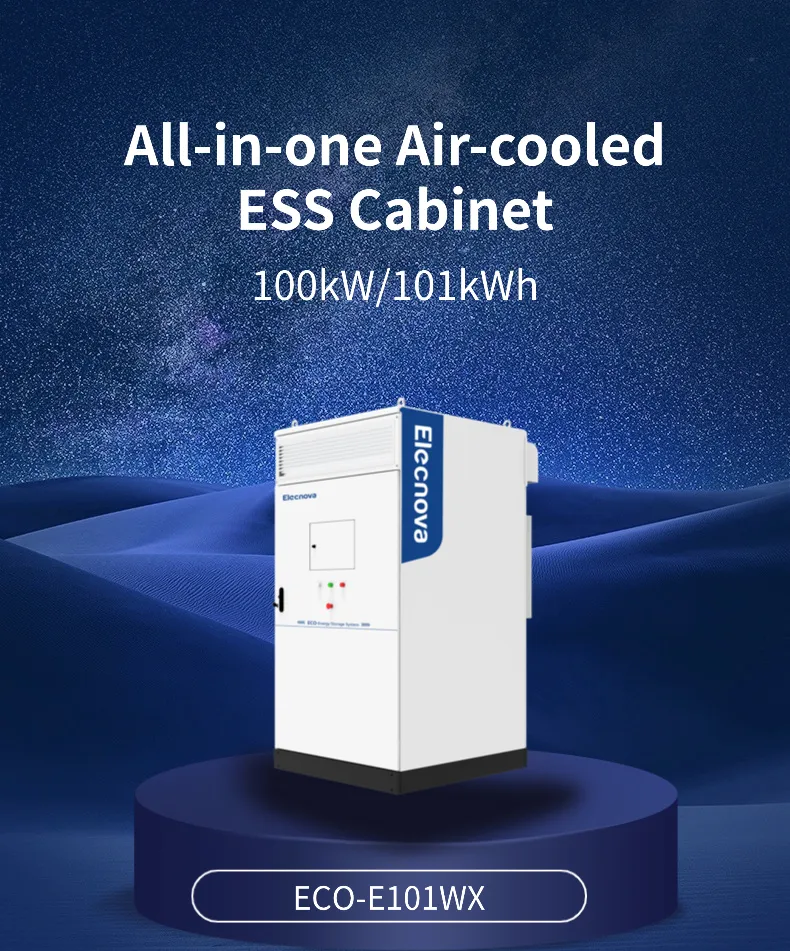

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

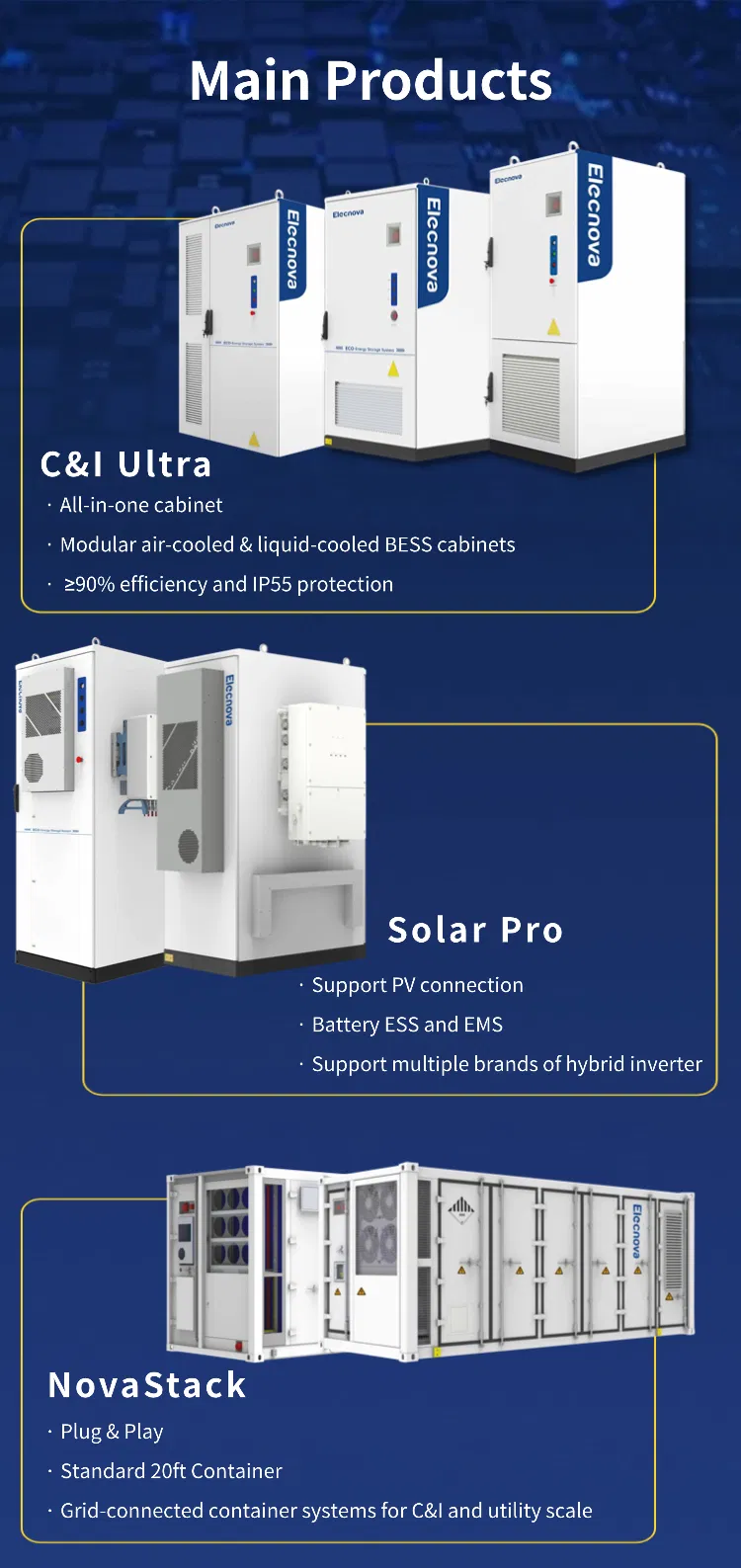

Providing three flagship product lines to meet diverse energy storage demands:
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| THDi | ≤3% |
| Grid Type | 3W+PE / 3W+N+PE |
| General Information | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling Method | Forced air cooling |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

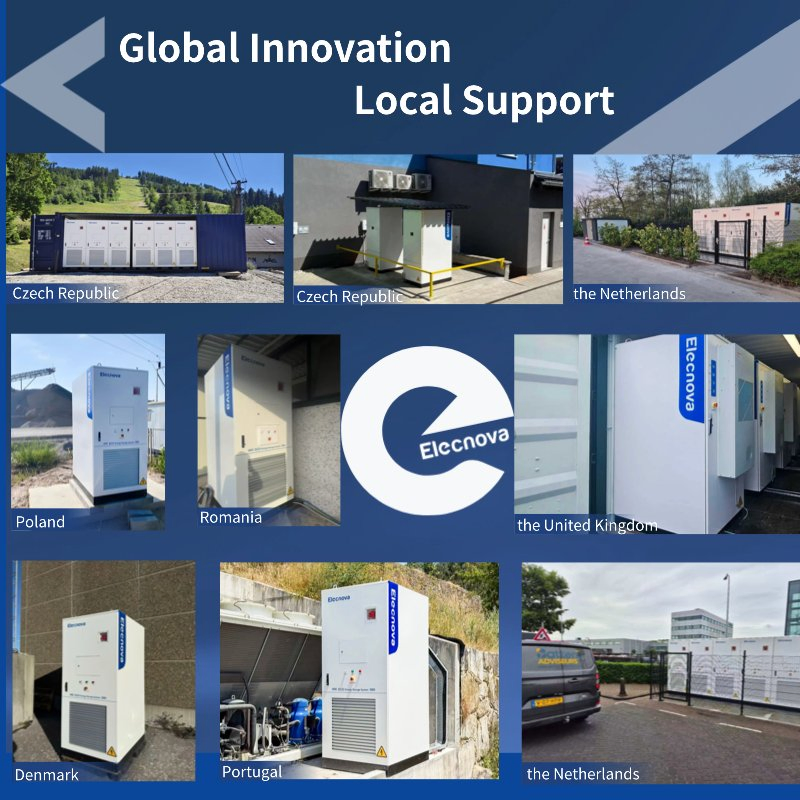

Localized support is provided through dedicated service partners and warehouses stocked with ample spare parts. We offer an industry-leading max 5+5 years warranty, coupled with a cells performance warranty of up to 8000 cycles at 75% SOH. Our services include on-site/online training, technical guidance, and 3rd party EMS testing.
Compliant with major international standards:
With 28 years of industry experience, the manufacturer operates with a production capacity of 2GWh across two specialized factories. Equipped with automated Module and PACK production lines, the facilities hold CNAS laboratory certification to ensure rigorous quality control and standardized manufacturing.
