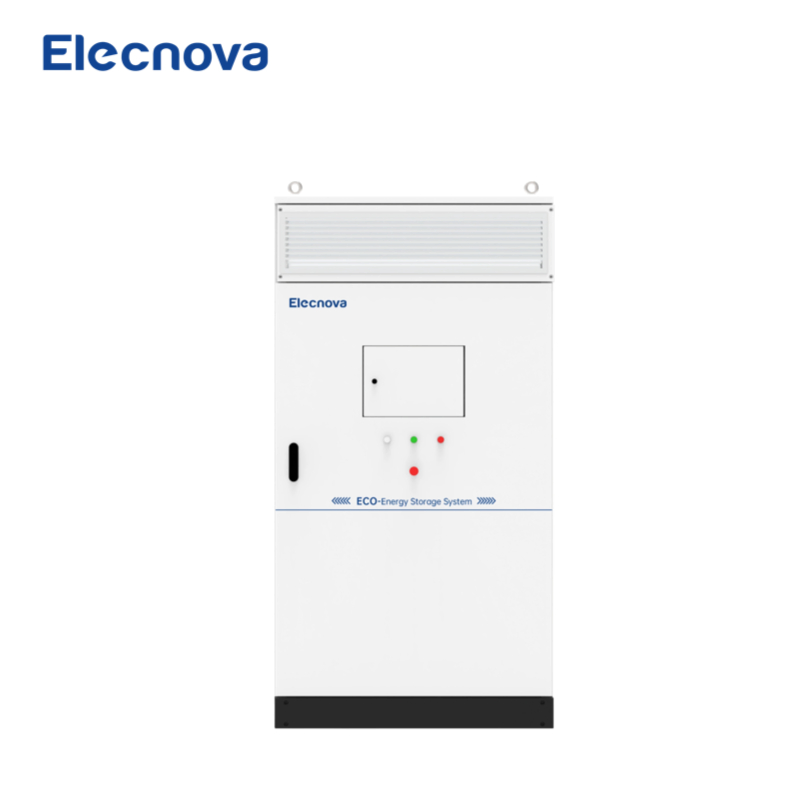

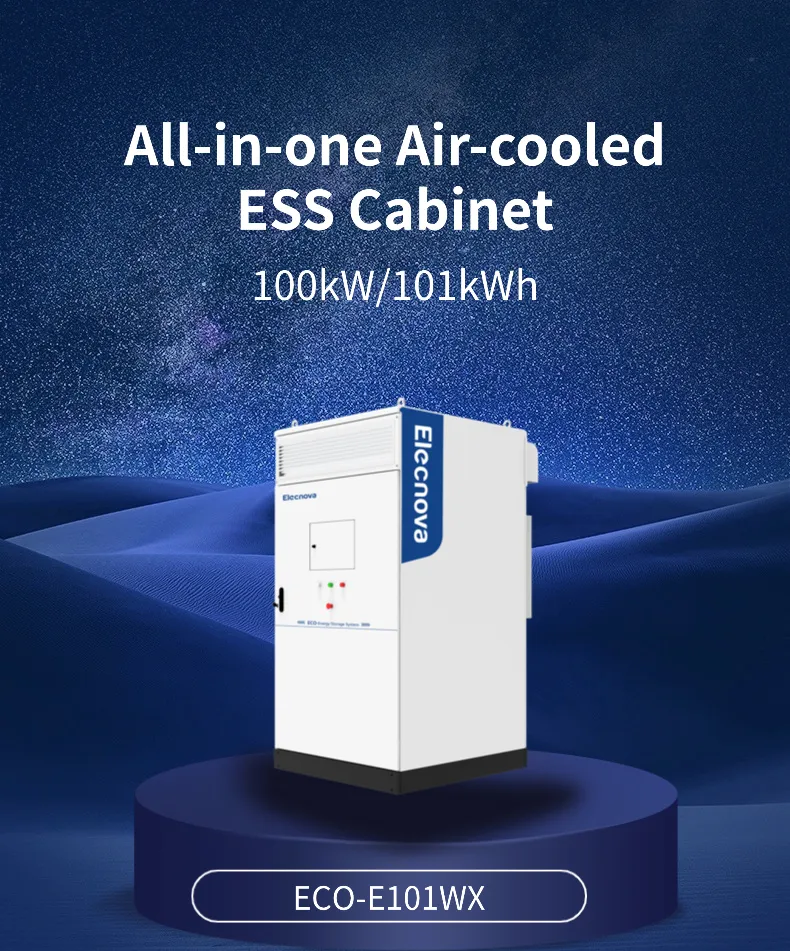

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99 / -1 ~ +1 |
| General Data | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

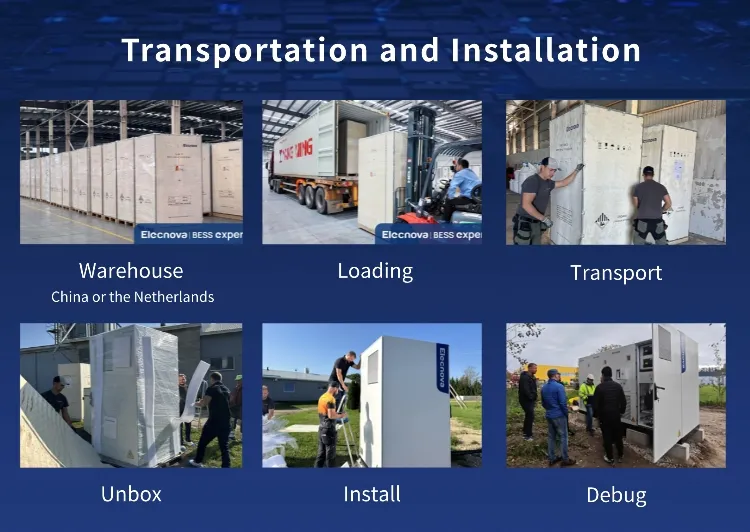

We deliver a full-cycle service designed for project efficiency:

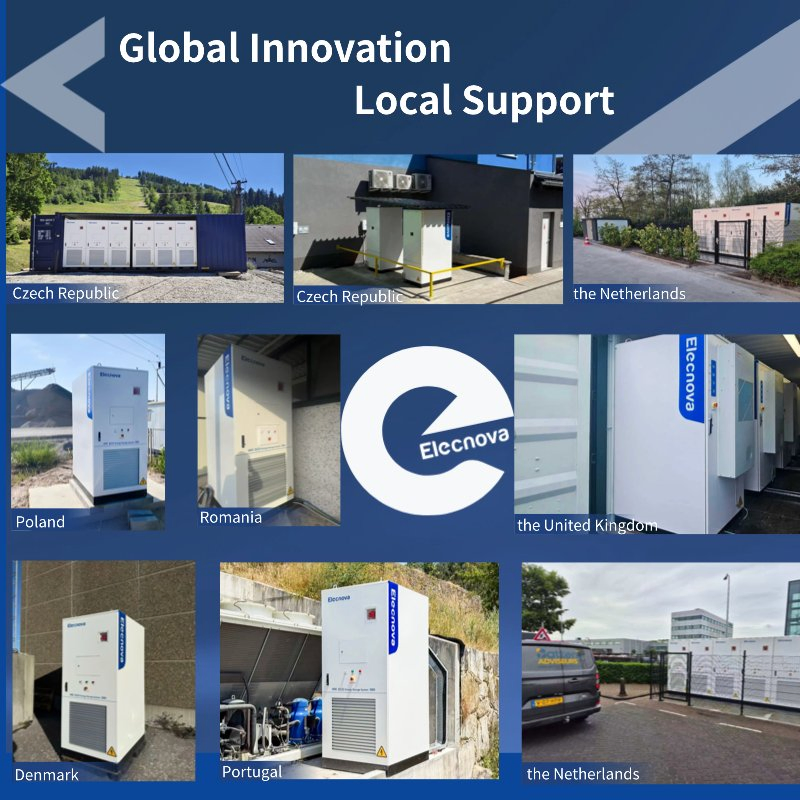

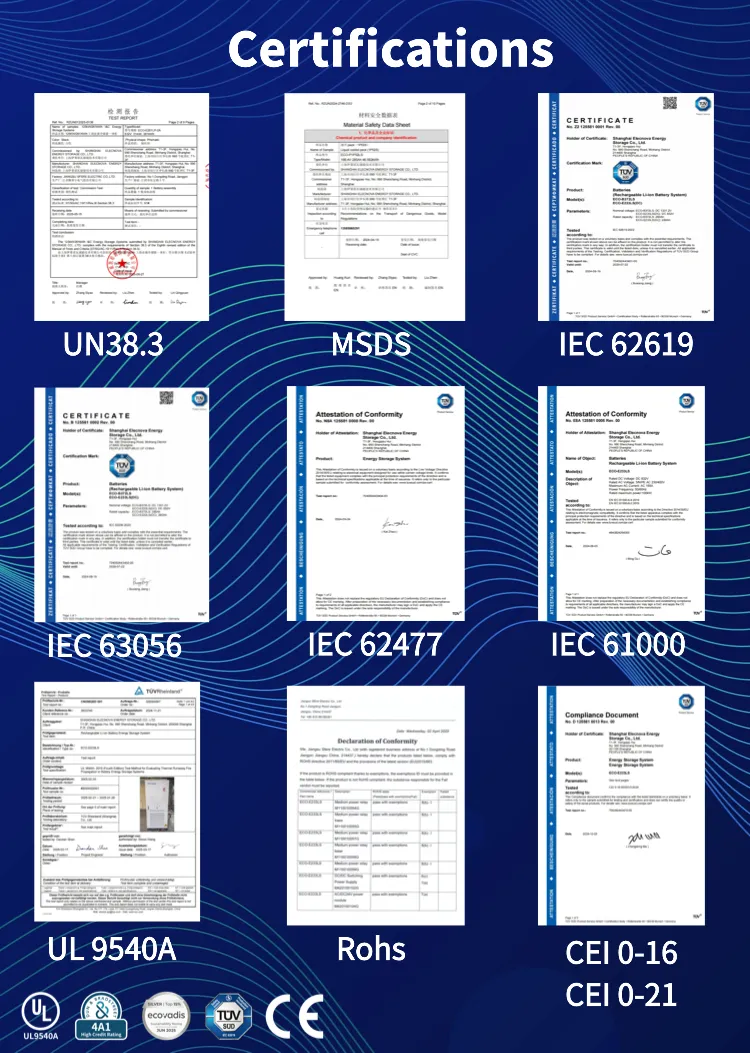

Our solutions are backed by international certifications: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, CE, and UL 9540A, ensuring safety and compliance across global markets including Europe, Southeast Asia, Africa, and the Middle East.
