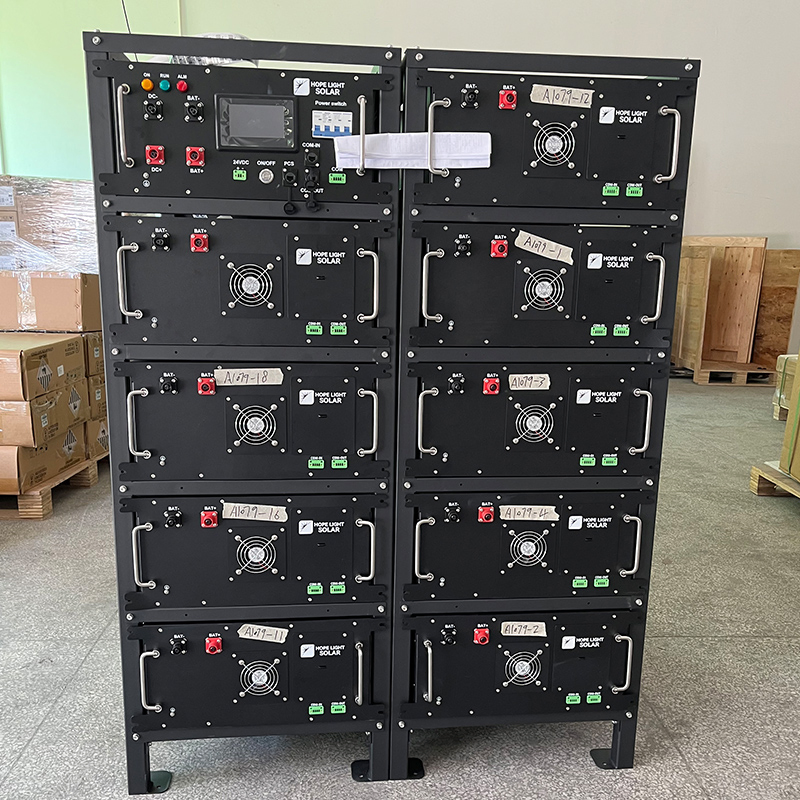

Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
1 / 5
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project
Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project

Energy Power Storage Ess High Voltage 50kwh 100kwh 150kwh 200kwh LiFePO4 Solar Panel Battery Solution for Project

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Product Information
Model NO.
HP-HB100KWH
Rechargeable
Yes
Material
LiFePO4
Rated Voltage
358.4V - 716.8V
Capacity
100kwh - 200kwh
Cycle Life
6000 Times
Warranty
10 Years
IP Rated
IP21
HS Code
8507600090
Origin
China
🔋 Product Description
High Voltage ESS Solution

Performance Specifications:

Model HP-HB100KWH HP-HB129KWH HP-HB143KWH HP-HB172KWH HP-HB200KWH
System nominal voltage(V) 358.4V 460.8V 512V 614.4V 716.8V
System Energy(Kwh) 100.35kwh 129.02kwh 143.36kwh 172.03kwh 200.70kwh
Rated capacity(Ah) 280Ah
Max charge/discharge(A) 140A
Cycle Life 6000 cycles @ 25ºC, 0.5C, 80% DOD
Weight (Approx)(KG) 980kg 1250kg 1400kg 1670kg 1920kg
System Size (mm) 780*1100*1175 780*1100*1430 780*1100*1685 780*1100*1940 780*1650*1430
⚙️ Product Technology

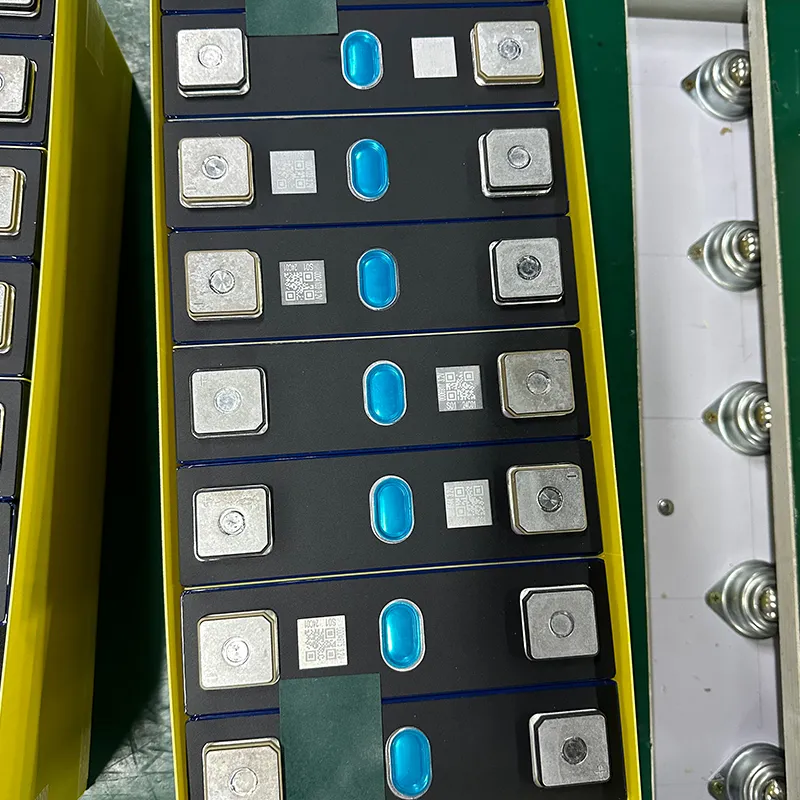

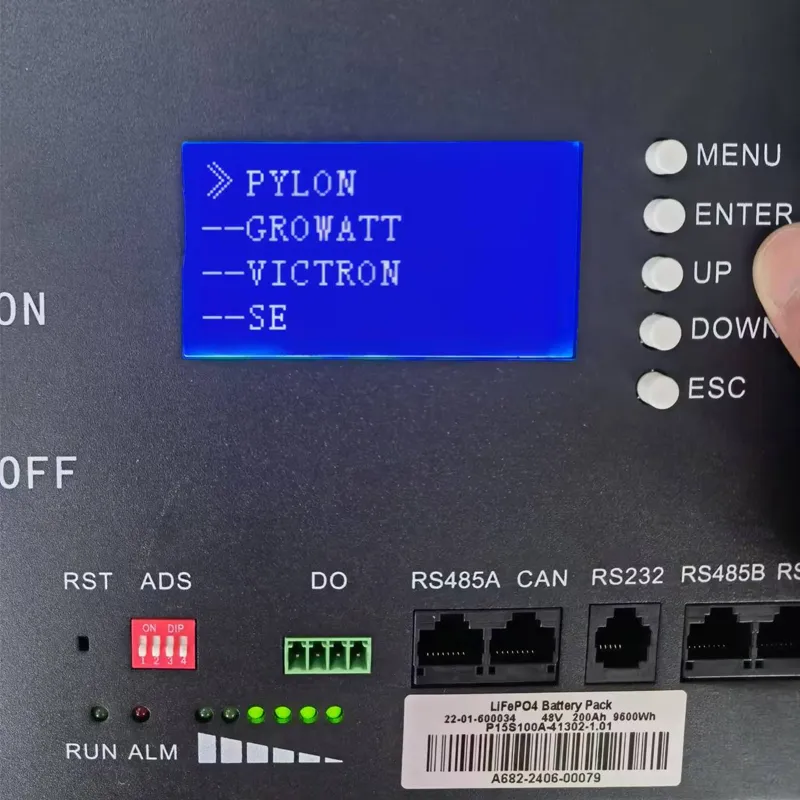

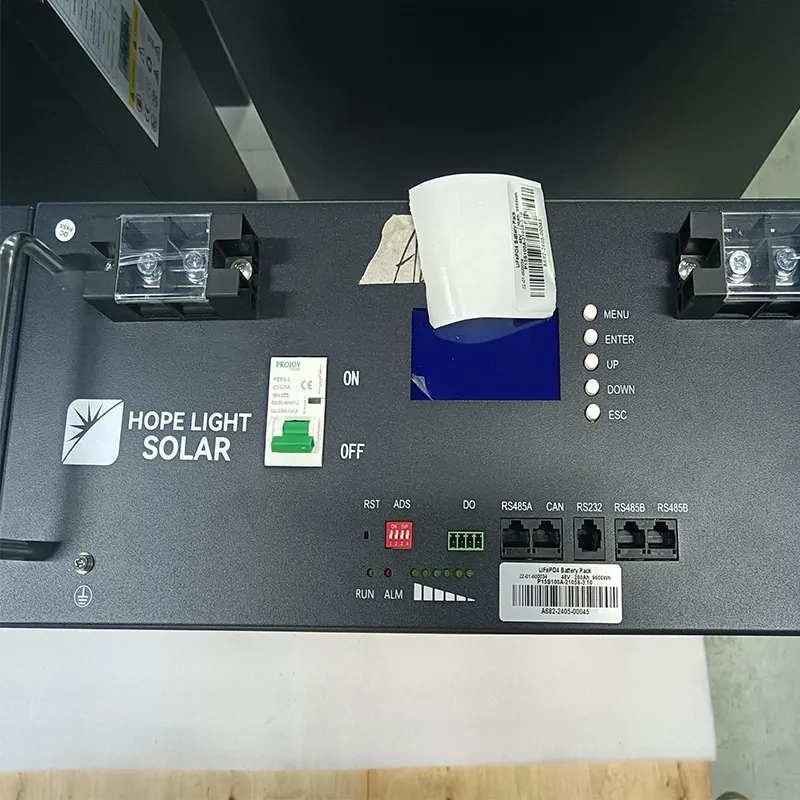

  • Multiple communication interfaces: RS232, RS485, CAN
  • IP21 protection for indoor applications
  • Supporting up to 4 strings parallel configuration
  • Standard 19-inch embedded design for easy installation and maintenance
  • Multiple protection layers: LiFePO4 material, BMS, and breaker
  • Compatible with DEYE, Luxpower, Goodwe, Growatt, SMA, Solis, Voltronic, etc.
Technology 1
Technology 2
Technology 3
Compatibility
✅ Strict Quality Control

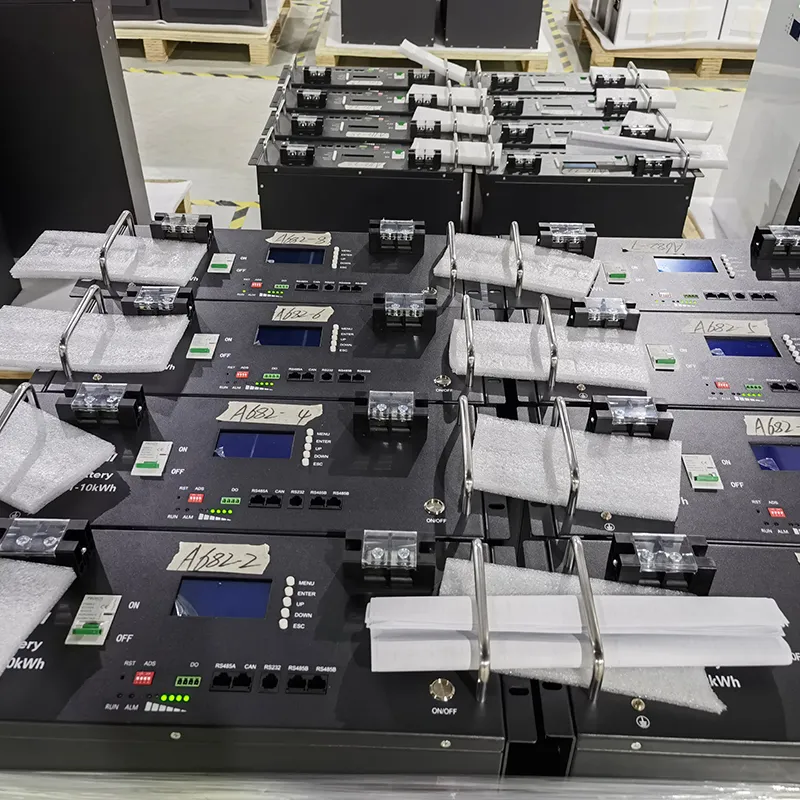

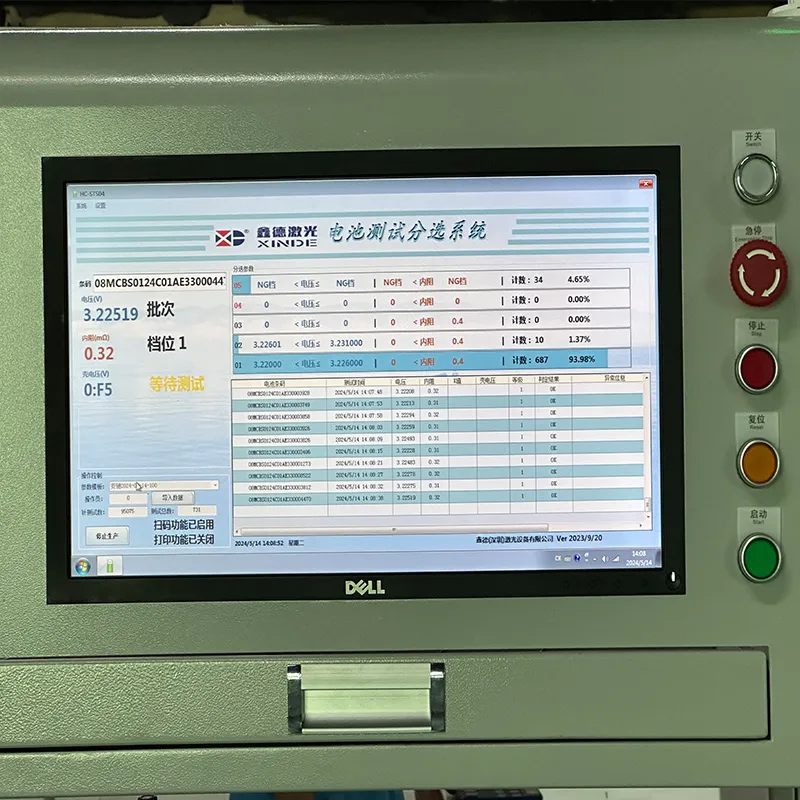

  • Battery cell test and professional classifier

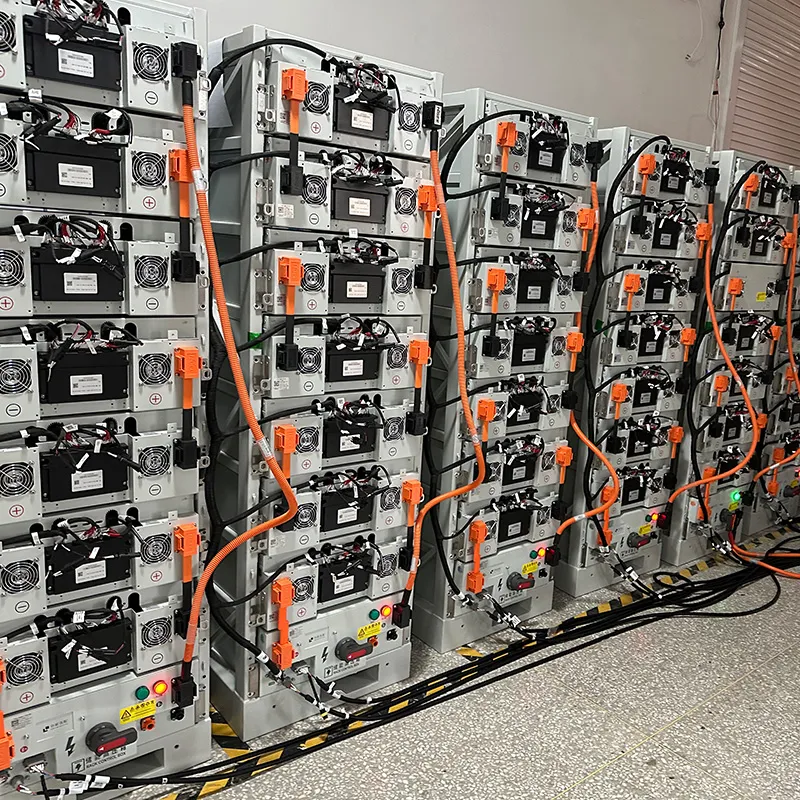

  • Rigorous aging test protocols
  • Extreme environmental testing

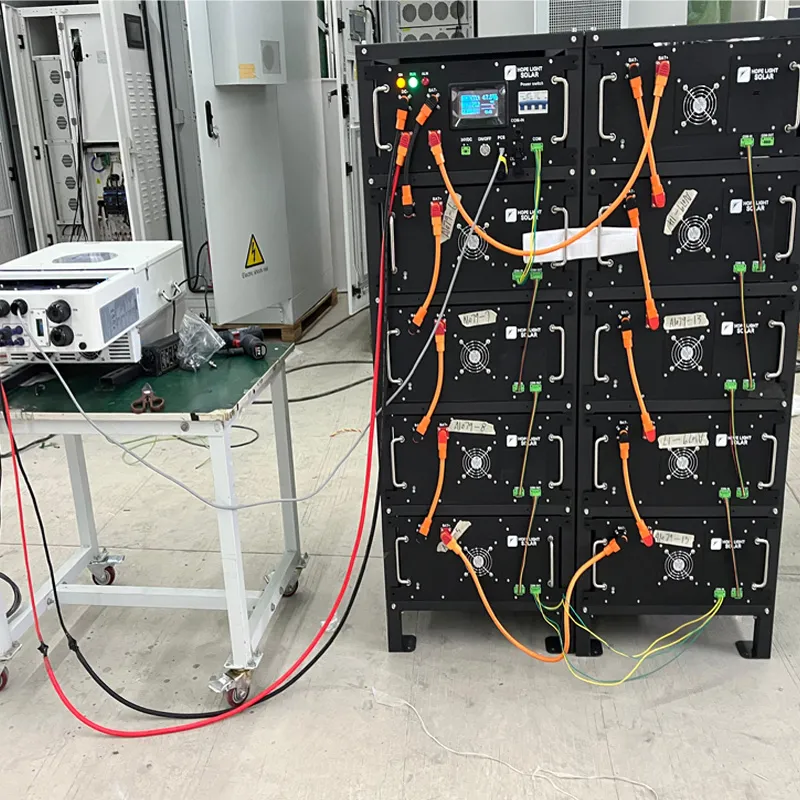

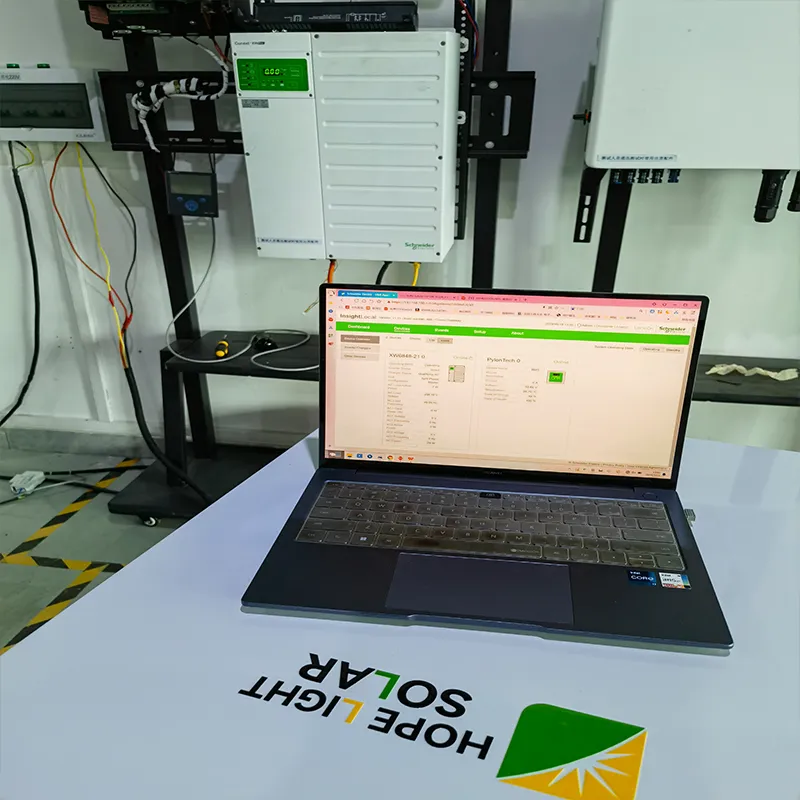

  • Communication protocol compatibility test before delivery
QC 1
QC 2
QC 3
QC 4
QC 5
QC 6
🏭 Production Line & Warehouse

Equipped with the latest automated production facilities ensuring high precision:

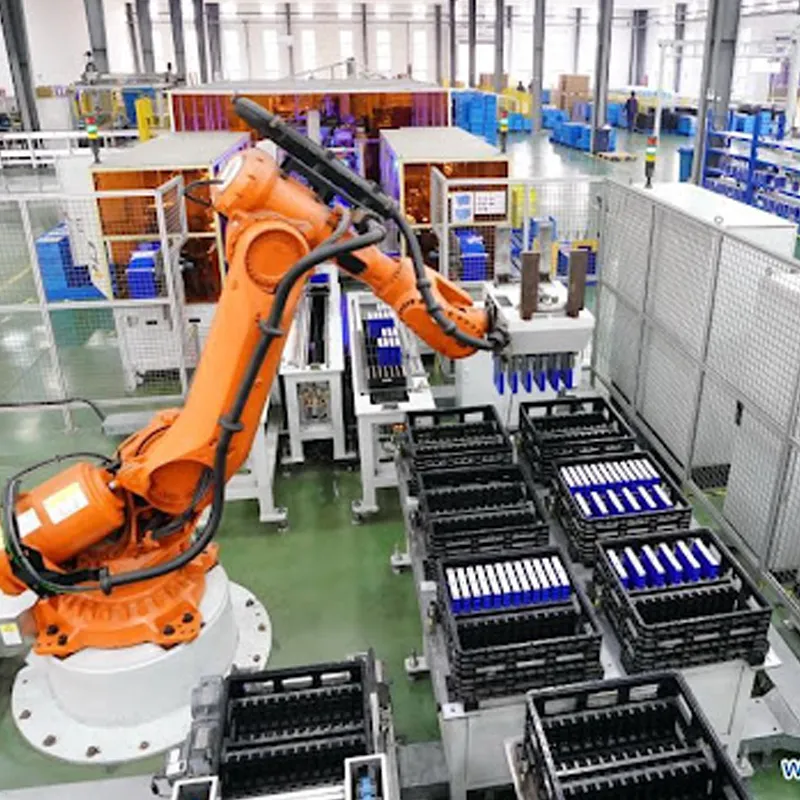

  • Automated cell sorting and pack assembly
  • EOL and OCV detection systems
  • Advanced laser welding and compatible testing
Production 1

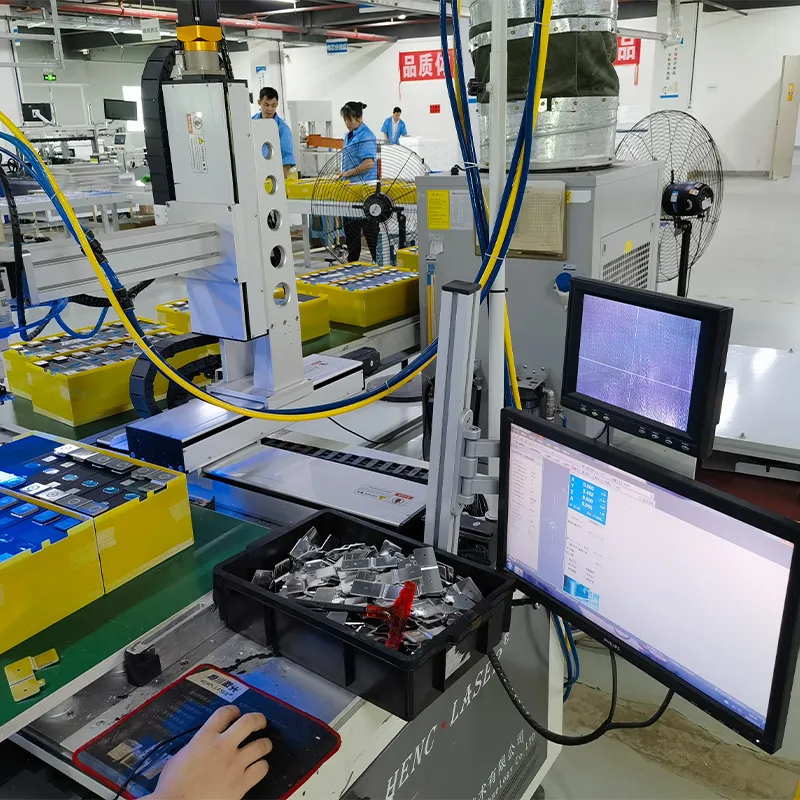

Production 2

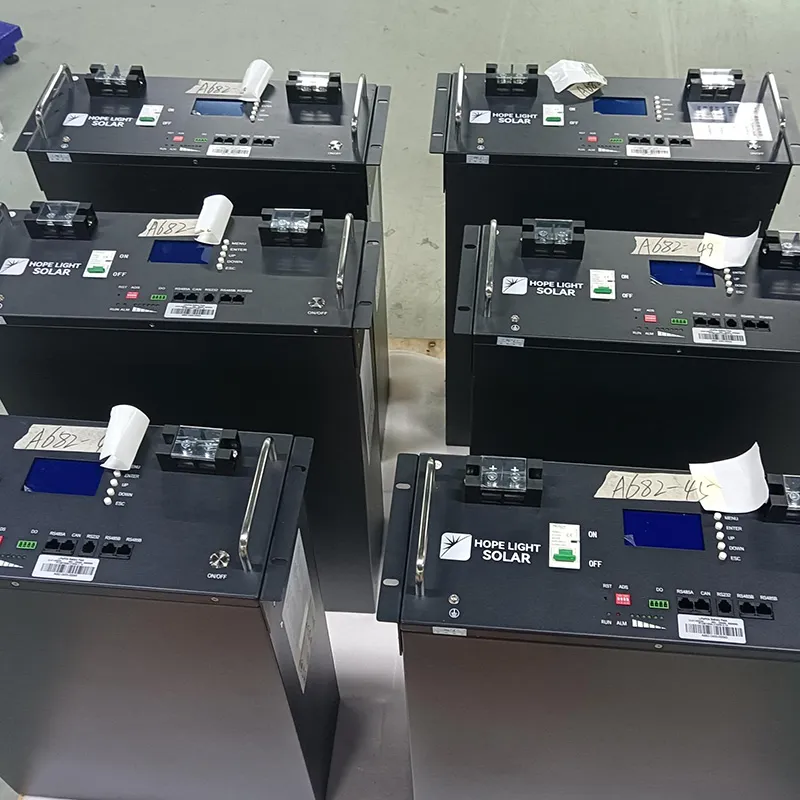

Production 3
🌍 Production Capacity & Projects

Providing one-stop customized lithium battery solutions globally. Our facilities support a production capacity of approximately 10,000 units per month.

  • A-grade battery cells for maximum stability
  • OEM pack customization from 5kWh to 1MWh

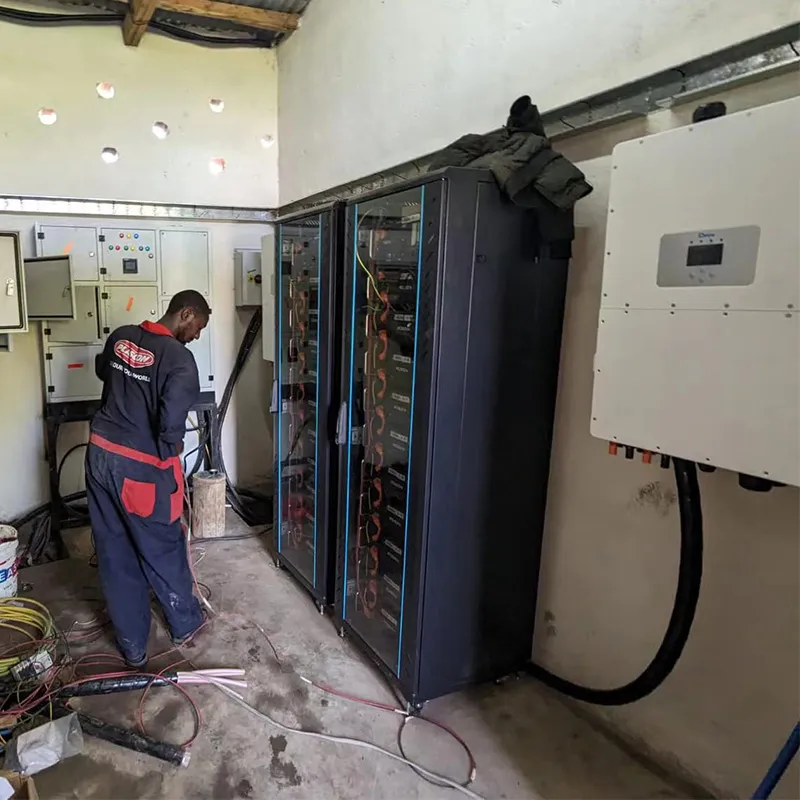

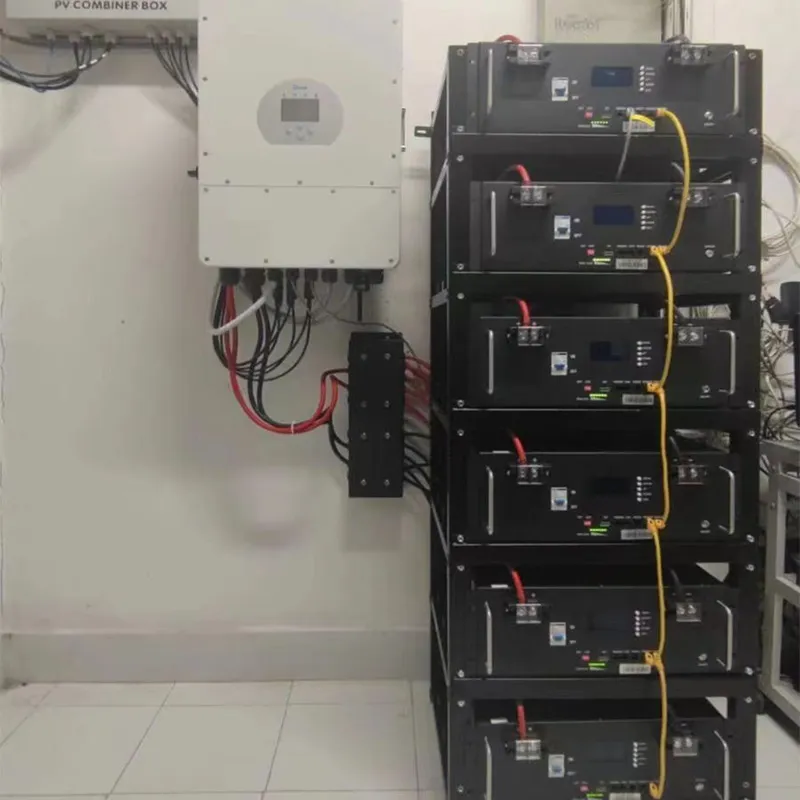

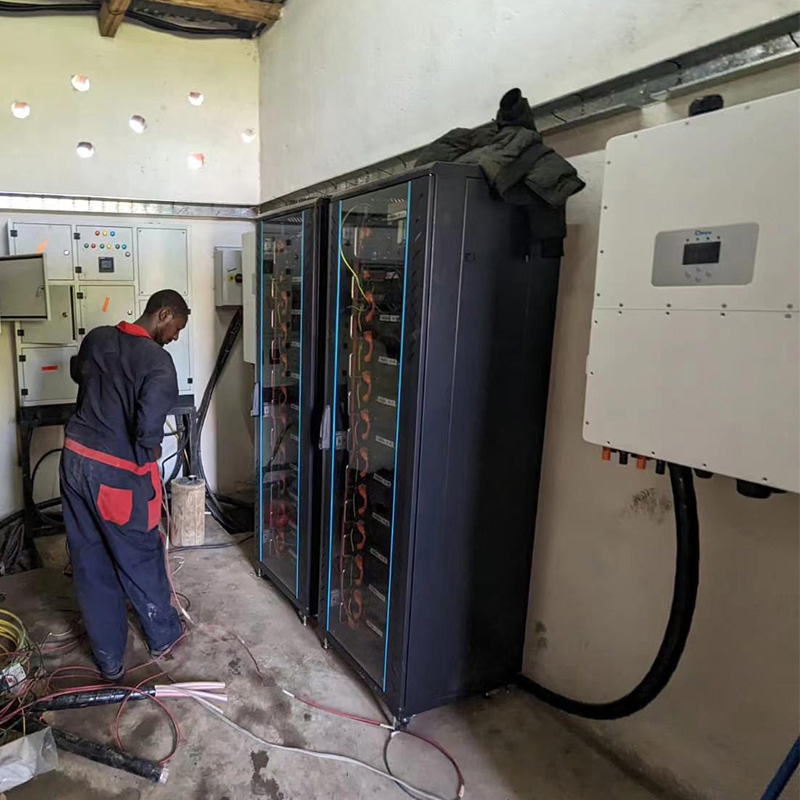

  • Applications: Residential storage, commercial solar stations, and industrial systems

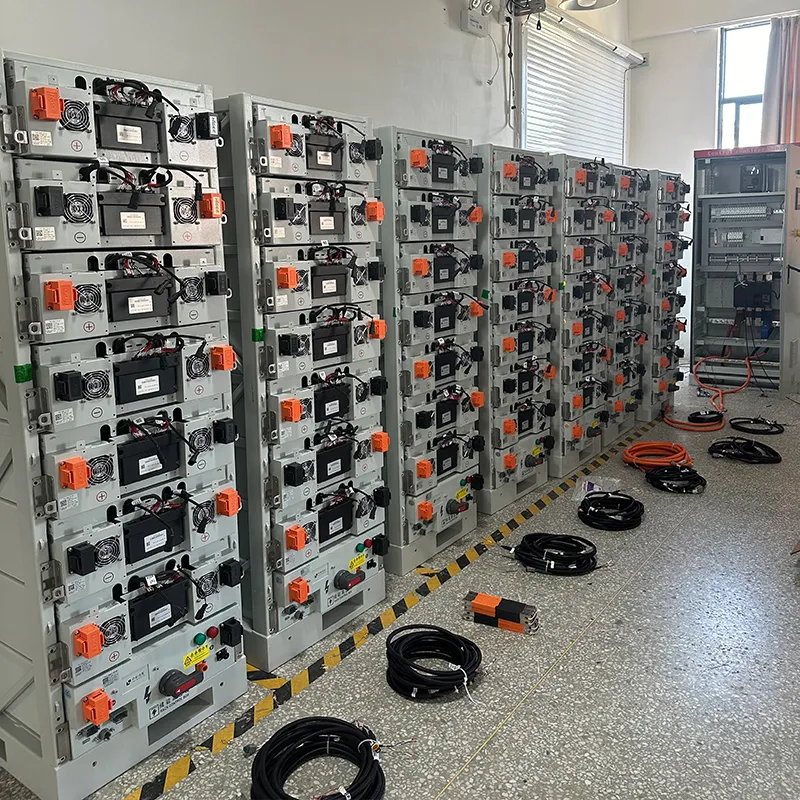

Project 1
Project 2
Project 3
❓ Product FAQ
What are the main products available?
We offer Solar panels, Lithium batteries, Solar inverters, Complete Solar systems, Mounting brackets, BESS containers, and all-in-one solar kits.
What is the typical lead time for orders?
Standard solar panels take 5-7 days; Lithium batteries and complete solar systems typically require 7-15 days depending on the project scale.
How do I choose the correct solar system for my needs?
First, determine your home's energy consumption and available installation area. We will then provide a customized design and shipping plan based on these requirements.
Do you provide OEM services?
Yes, we support appearance and logo customization, as well as targeted design recommendations for various solar system applications.
What kind of warranty is provided?
Solar panels carry a 30-year warranty, lithium batteries are covered for 10 years, and full solar system kits range from 5 to 15 years.
Are the batteries certified for international shipping?
Yes, all products come with MSDS and UN38.3 certifications to ensure safe customs declaration and clearance during sea or road transport.
