| Main Parameters | |
|---|---|

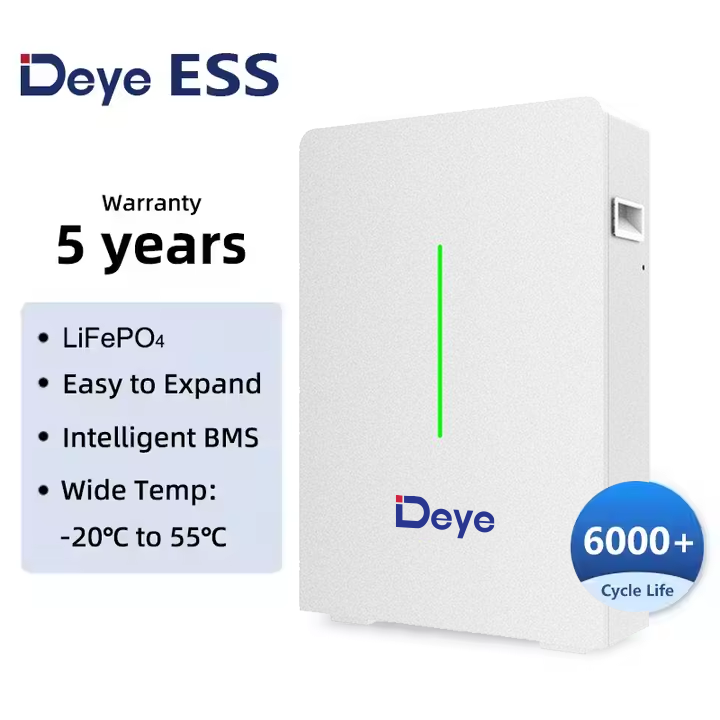

| Battery Chemistry | LiFePO4 |
| Built-in Circuit Breaker | 125A 1P, 60Vdc |
| Capacity (Ah) | 208 |

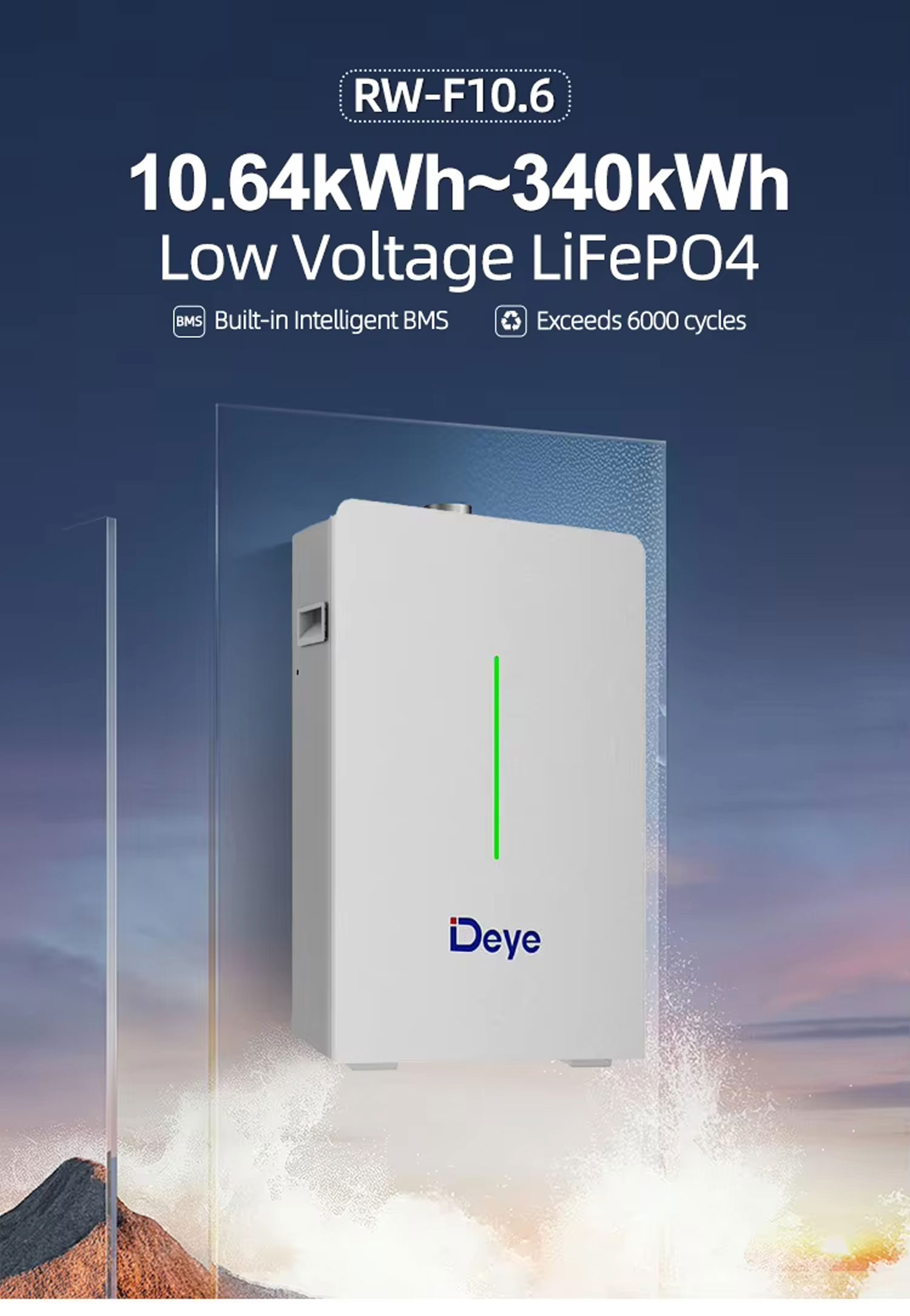

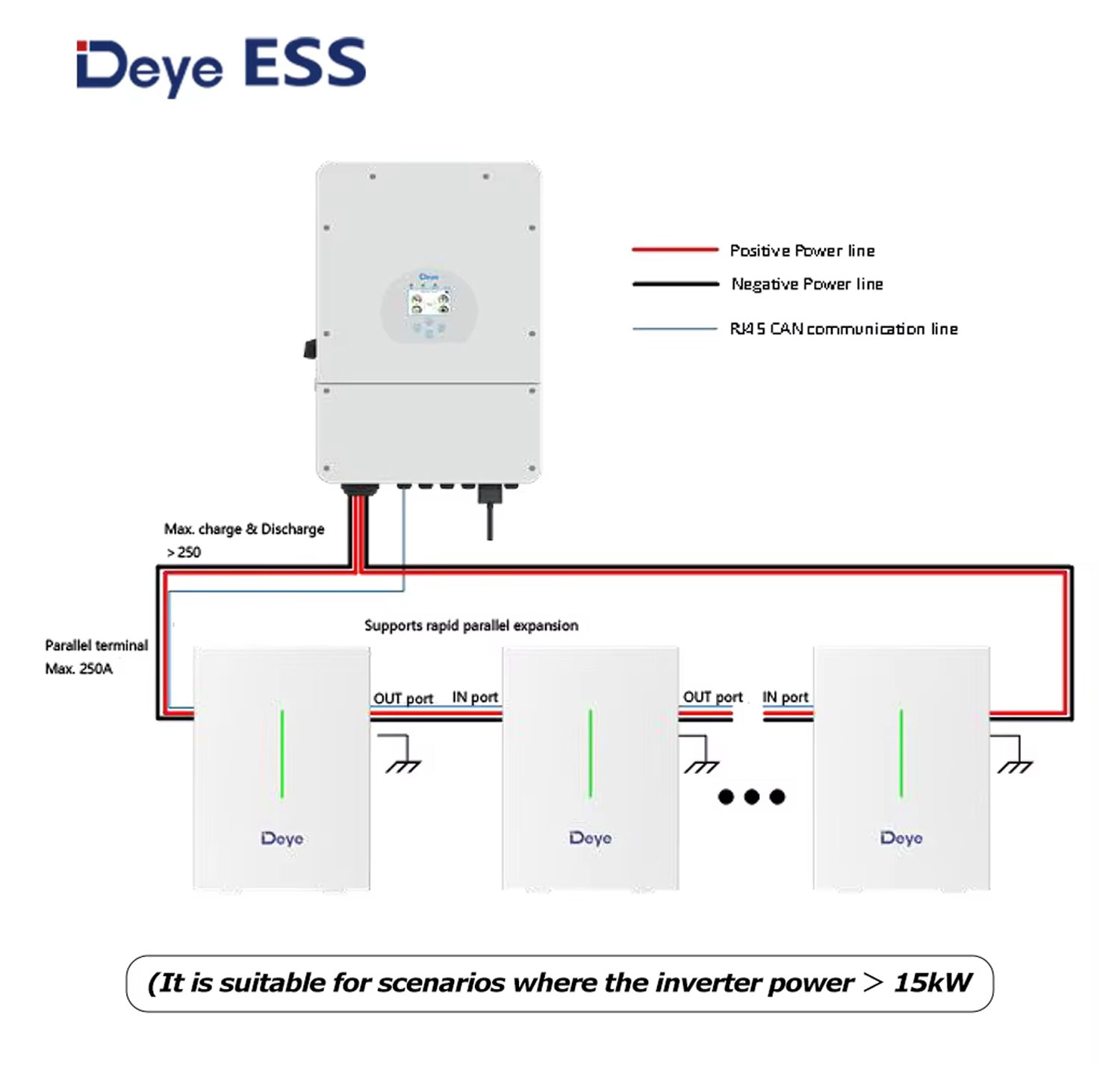

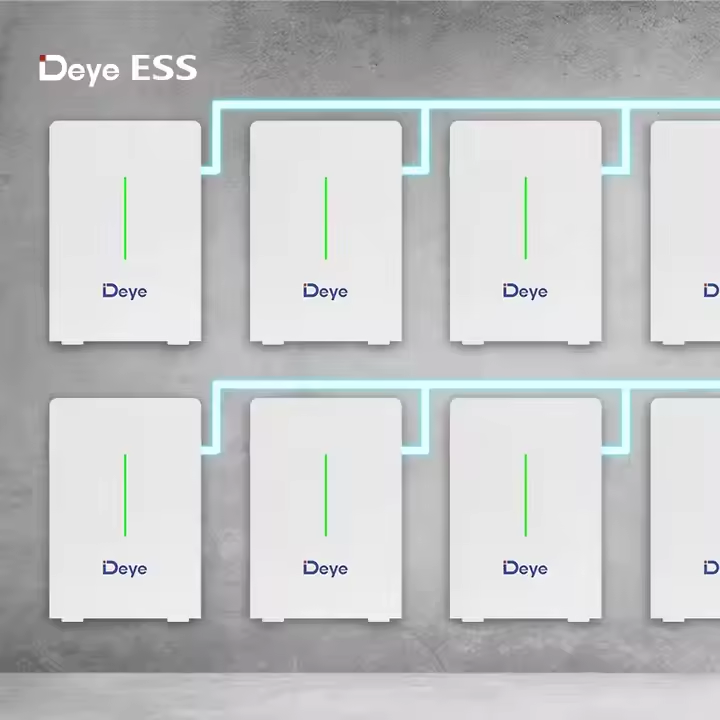

| Scalability | Max. 32 pcs pack (Max. 340kWh) in parallel |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 44.8 ~ 57.6 |
| Nominal Energy (kWh) | 10.64 |
| Usable Energy (kWh) | 9.58 |
| Other Parameters | |
|---|---|
| Recommend Depth of Discharge | 90% |

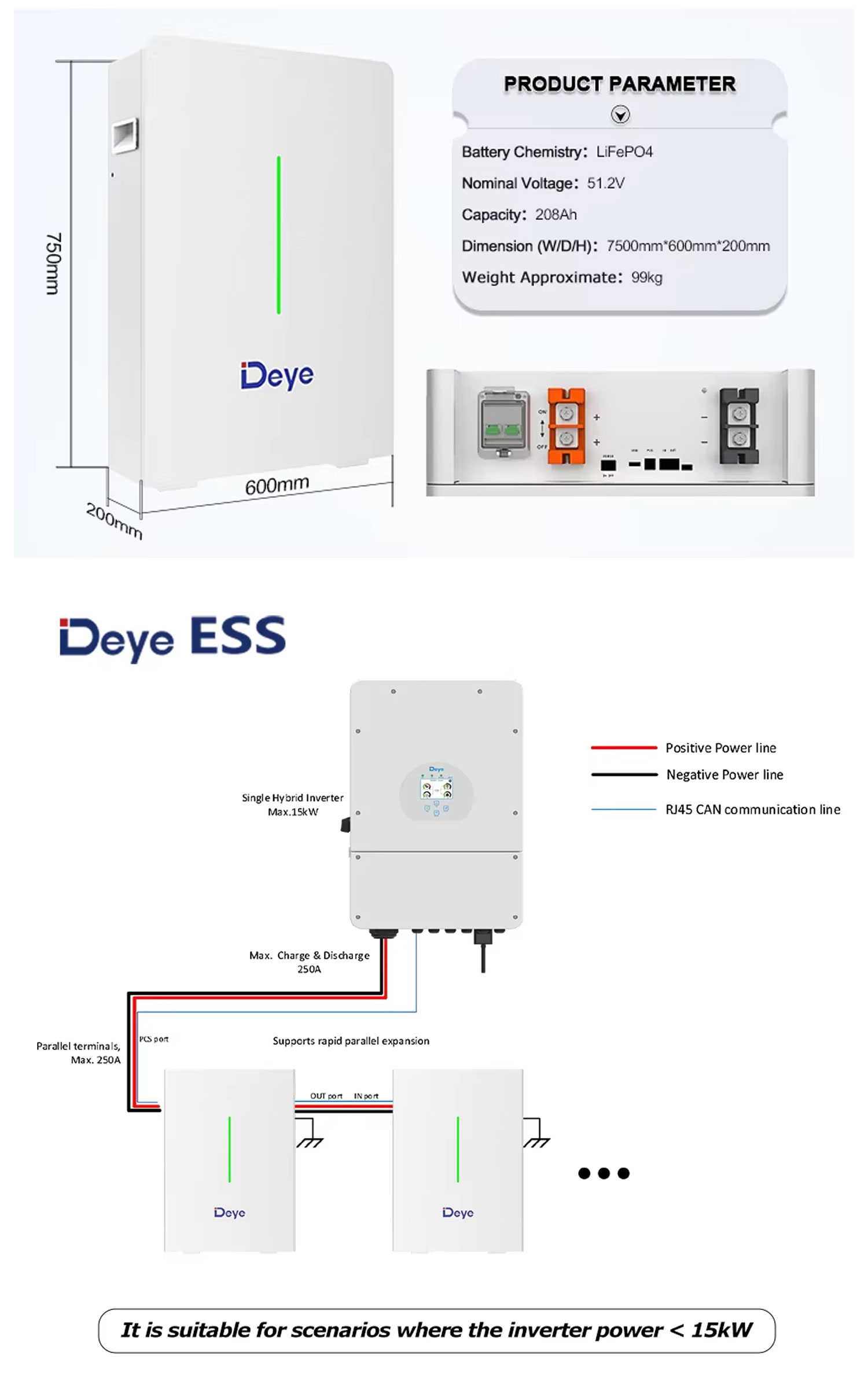

| Dimension (W × H × D, mm) | 600 × 750 × 200 (Without hanging board) |
| Weight Approximate (kg) | 96kg |
| Master LED Indicator | LED (SOC: 20% ~ SOC100% and working state) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge: 0 ~ 55℃ / Discharge: -20℃ ~ 55℃ |
| Recommend Operating Temperature | 15℃ ~ 35℃ |
| Cycle Life | ≥6000 (25℃±2℃, 0.5C / 0.5C, 90%DOD, 70%EOL) |
| Installation | Wall-Mounted, Floor-Mounted |
| Communication Port | CAN2.0, RS485 |
| Warranty Period | 5 years |
| Certification | UN38.3, MSDS |
