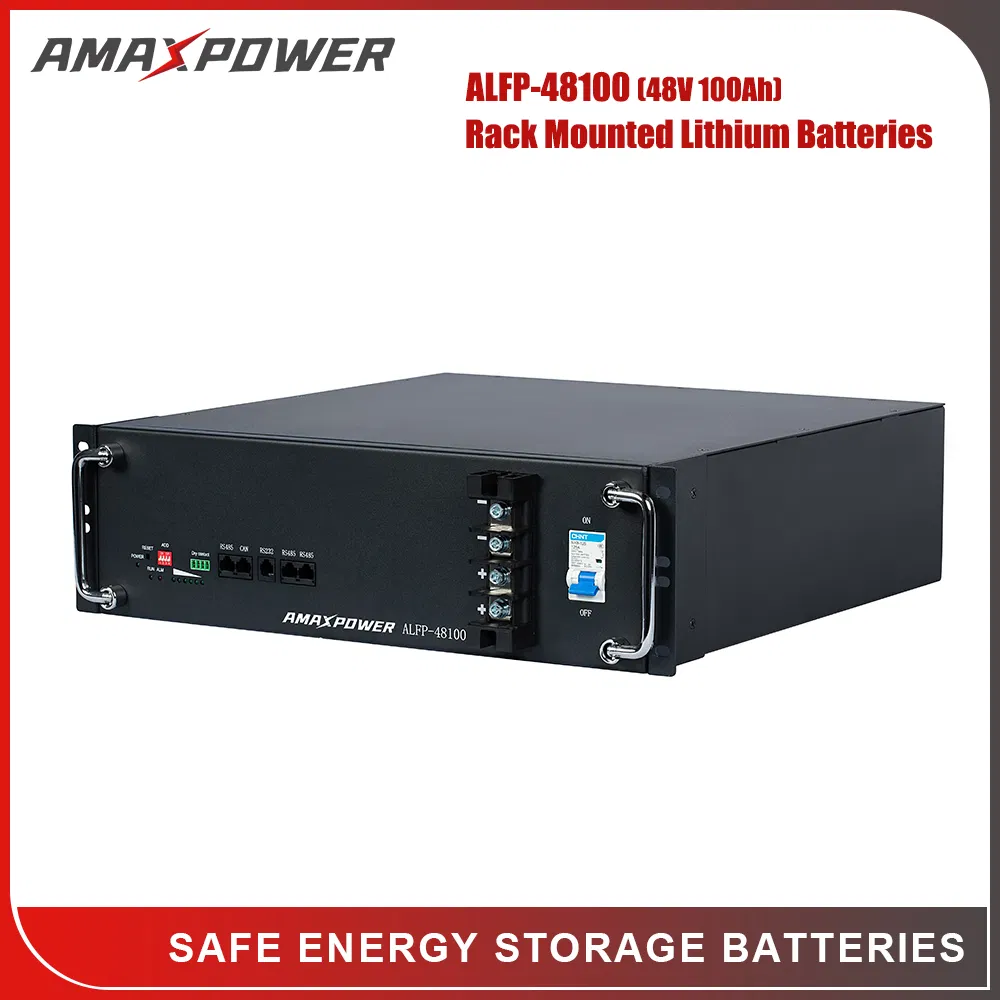

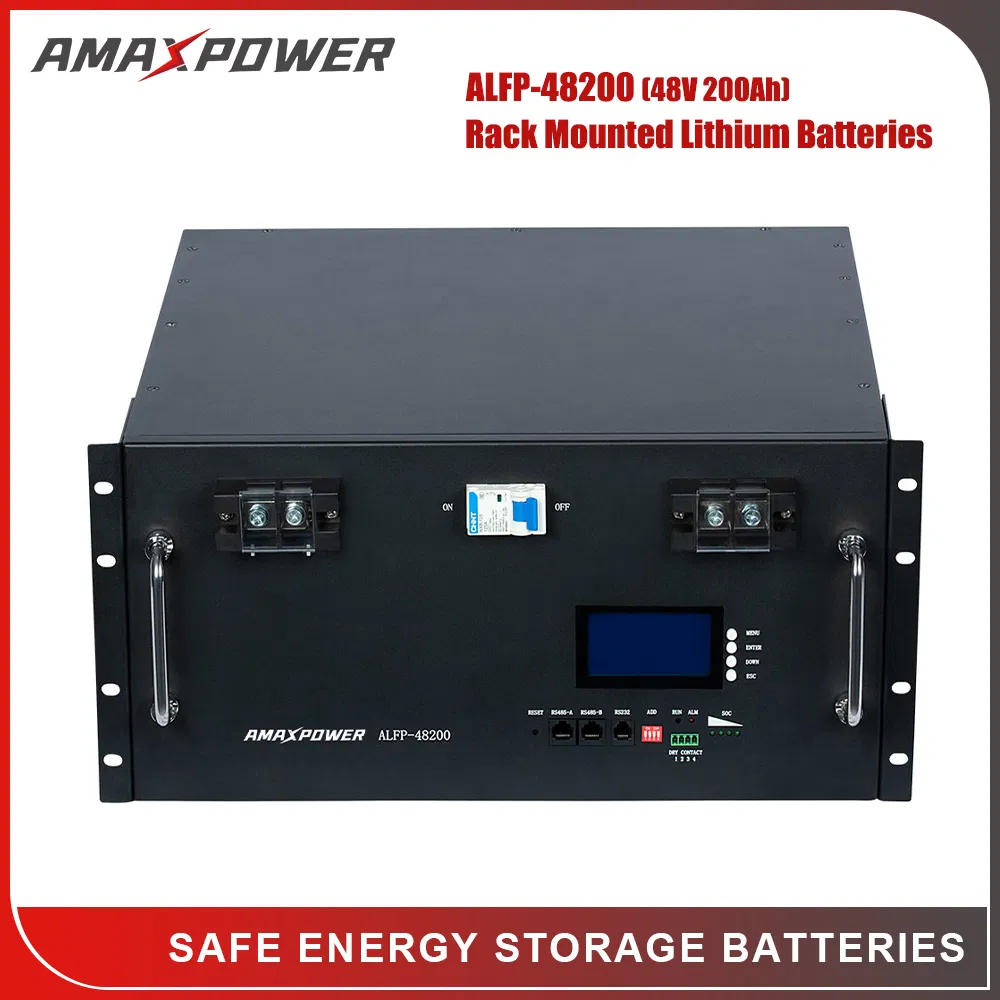

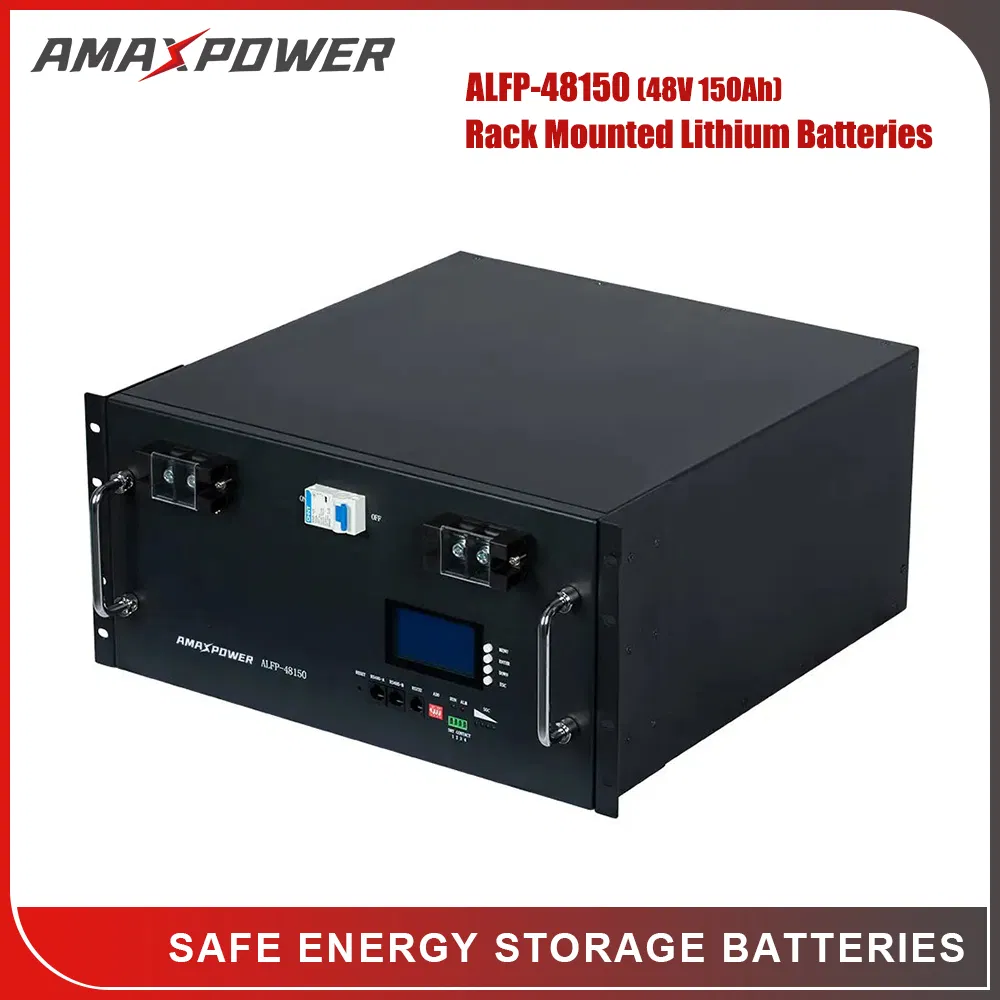

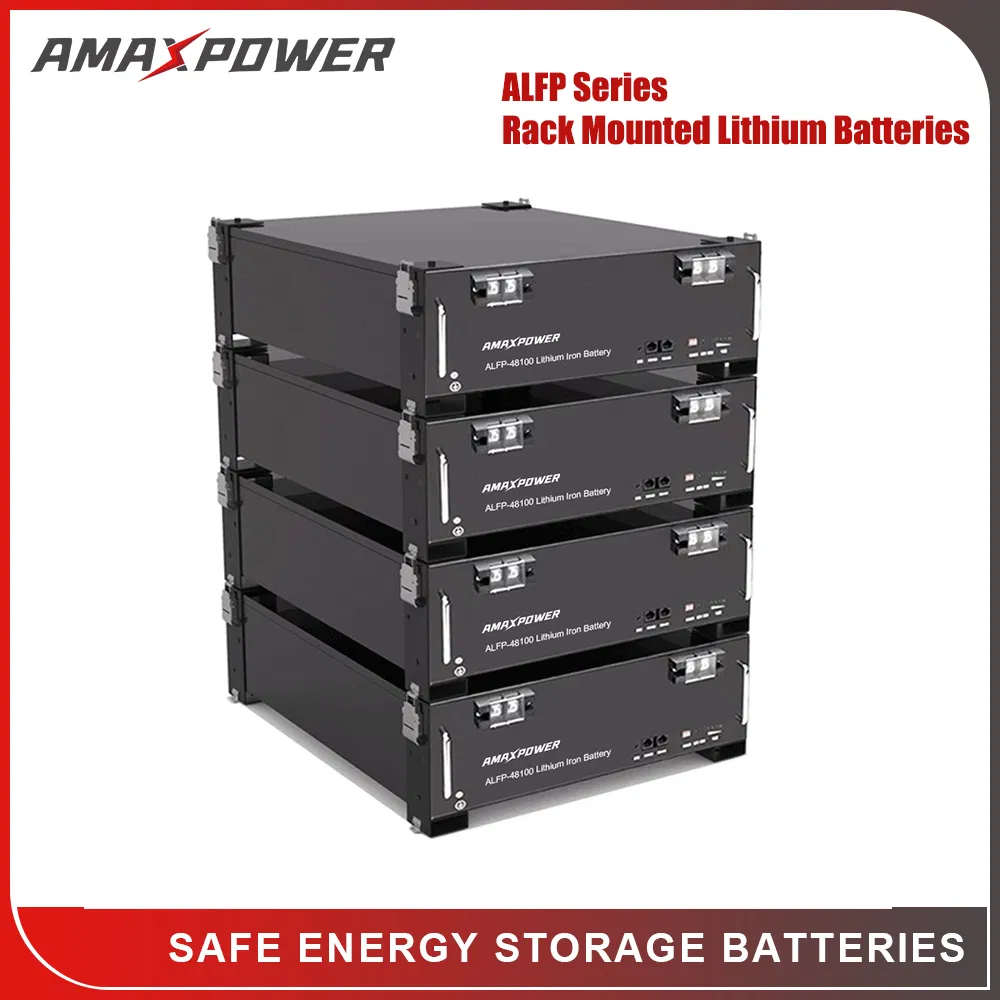

LiFePO4 Lithium Battery Rack Mounted Type: Designed for telecom base stations and communications backup. Utilizes advanced lithium iron phosphate technology for long cycle life, safety, and strong environmental adaptability.

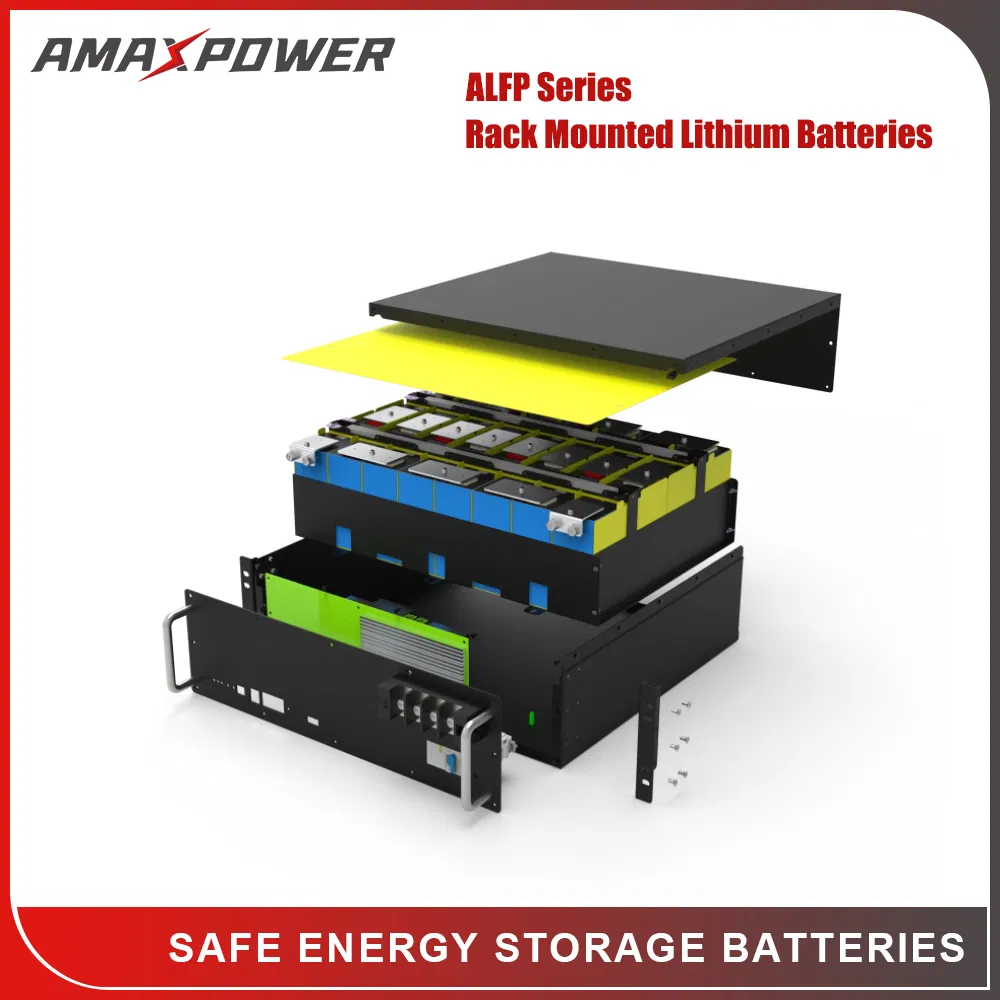

Long life prismatic cells suitable for energy storage. Low voltage system with UN38.3, MSDS, and CE certifications.
Standard 19" rack design for flexible installation. Parallel support for expanded capacity. Maintenance-free operation.

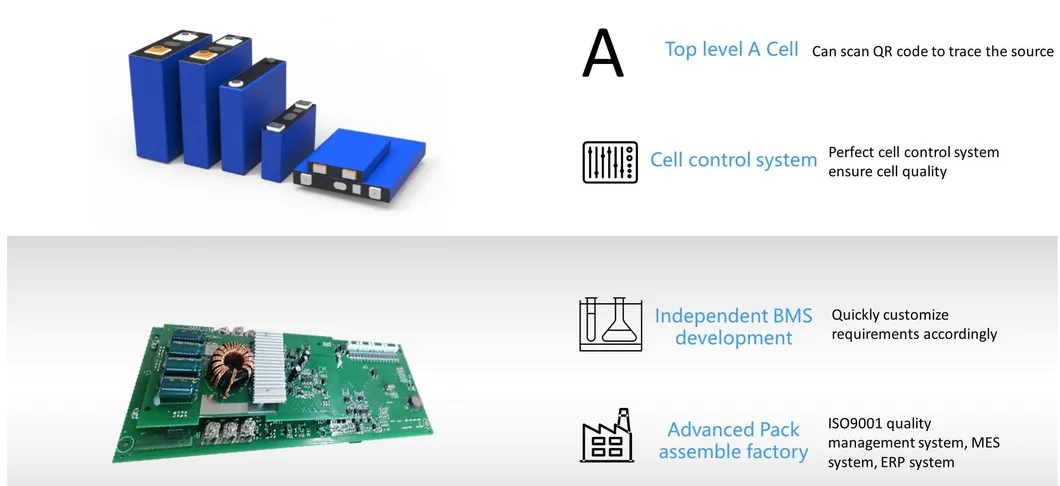

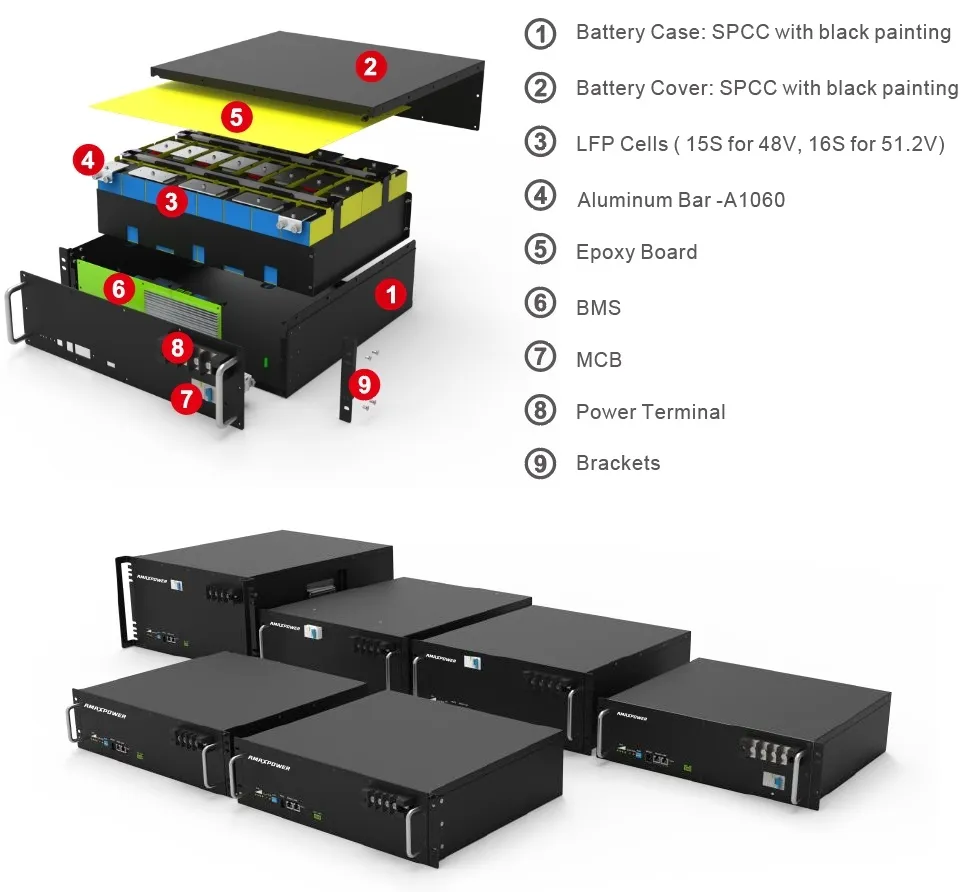

Integrated hardware BMS with independent charge/discharge protection. RS232/RS485/CAN communication ports included.
| Specification | 48V 100Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 9.6KWh | 5.12KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*222*480mm | 442*133*450mm | 442*222*510mm |
| Weight | 43KG | 80KG | 45KG | 84KG |
| Cycle Life | ≥3500 cycles @80%DOD / ≥6000 cycles @80%DOD | |||
| Charge Temp | 0ºC ~ 55ºC | |||
| Discharge Temp | -20ºC ~ 60ºC | |||
| IP Class | IP30 | |||

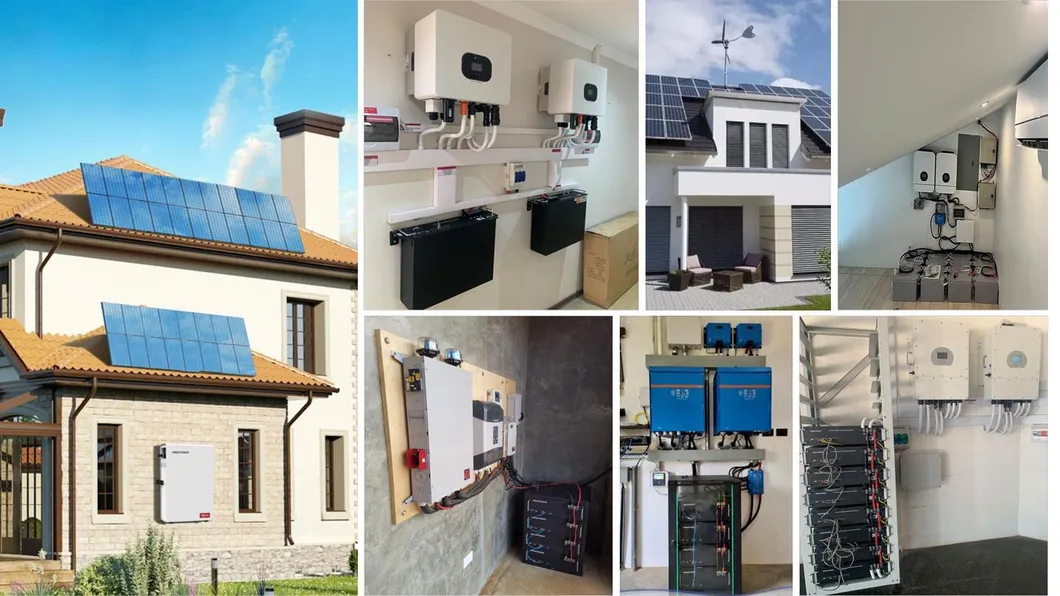

Our solutions are ideal for household solar, RV/Marine storage, low-speed vehicles, solar street lights, telecom base stations, and UPS backup power supply.
