| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model NO. | HTL6-420 | Nominal Voltage | 12V 6V 8V |
| Discharge Rate | 0.2-0.5c | Electrolyte | Gel |
| Installation | Fixed | Rechargeable | Chargeable |

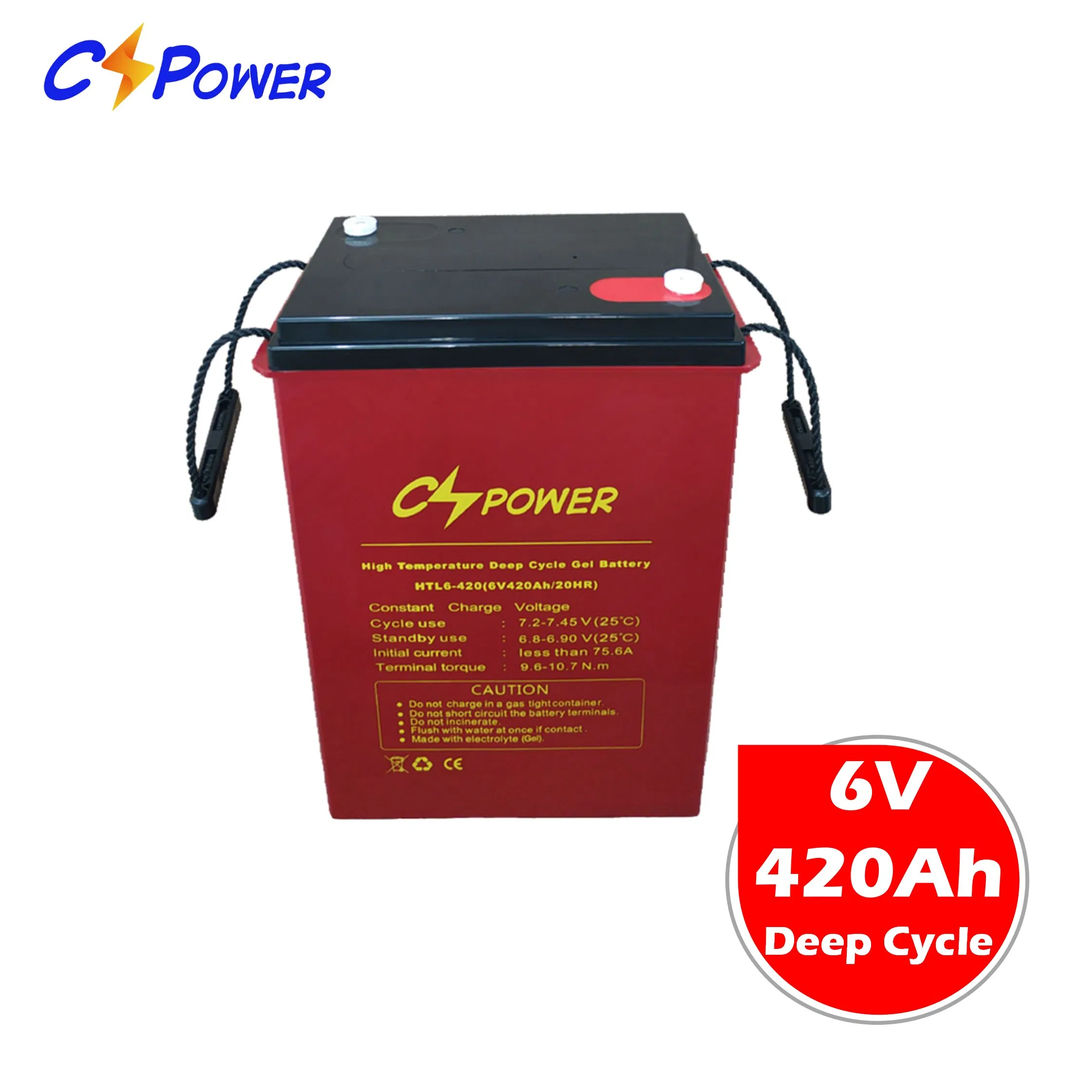

| Product | 6 Volt, 420 Ah Deep Cycle Battery | Weight | 56.8kg (Gel Battery) |
| Warranty | 3 Years | Cycle Life | 1600 Cycles at 50% Dod |
| Design Life | 20 Years | Material | High Pure Lead 99.997% |
| Case Material | ABS | Maintenance Type | Free Maintenance |
Constant Safe Power For You! This series of GEL deep cycle batteries are recognized as the most reliable and high-quality battery systems in the industry. Designed with advanced patented GEL technology, they offer a service life of 15-20 years and are capable of 1500-1600 cycles at 50% DOD. These batteries comply with international standards such as IEC60896-21/22, BS6290-4, and the Eurobat Guide.
| Nominal Capacity @ 25ºC | 420Ah | |
|---|---|---|
| Internal Resistance | Full Charged Battery @ 25ºC | ≤1.5mΩ |
| Max. Discharge Current | @ 25ºC | 1260A(5s) |
| Self-Discharge | @ 25ºC per Month | 3% |
| Dimensions | L*W*H (mm) | 295*178*404 (Total Height 424) |
| Weight | Net Weight | 57kg ±3% |

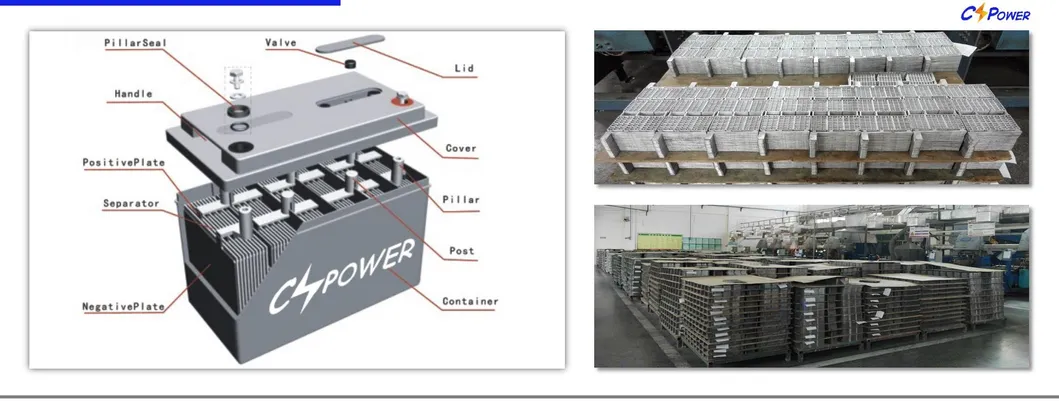

| Component | Positive Plate | Negative Plate | Container/Cover | Electrolyte |
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Nano Silicon Gel |
