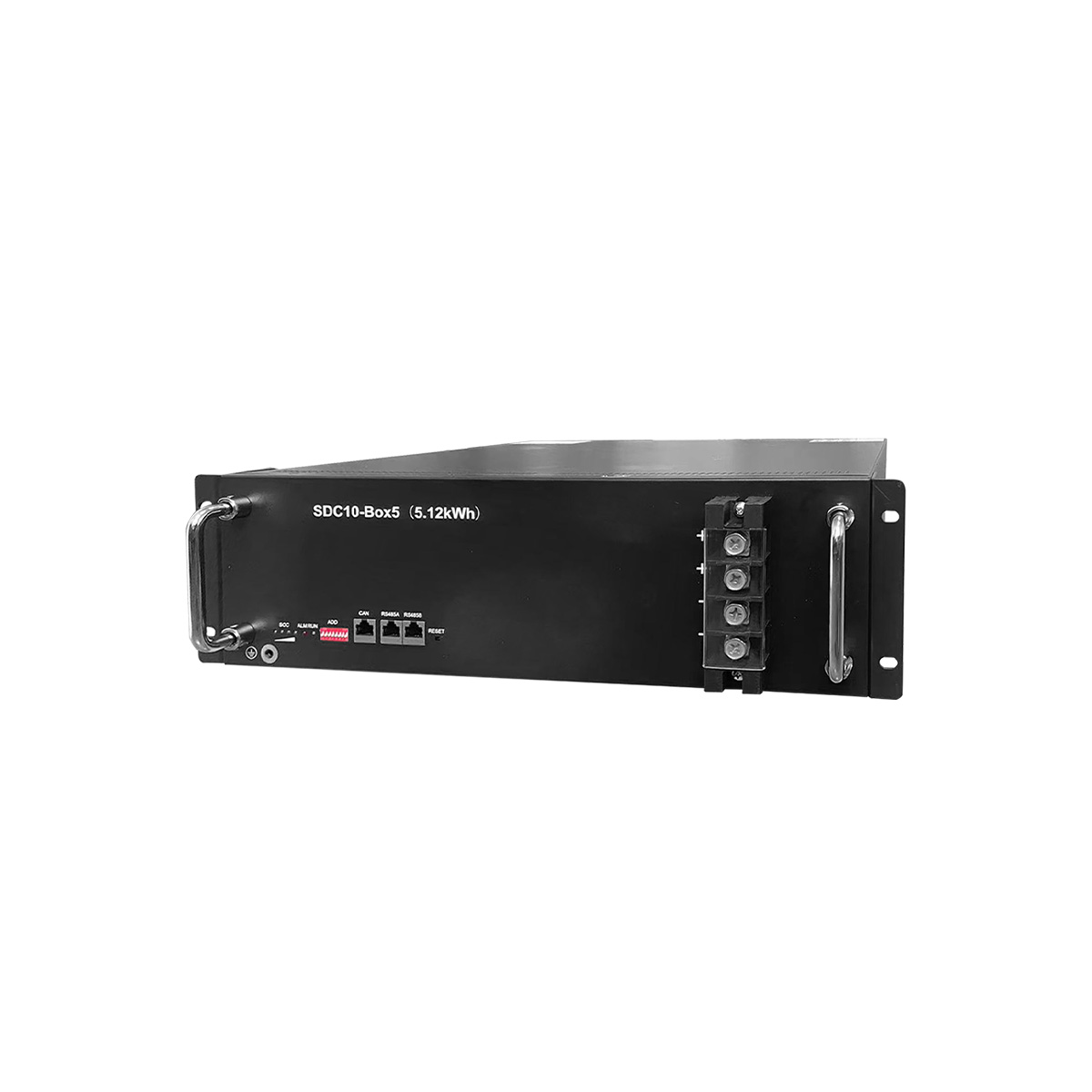

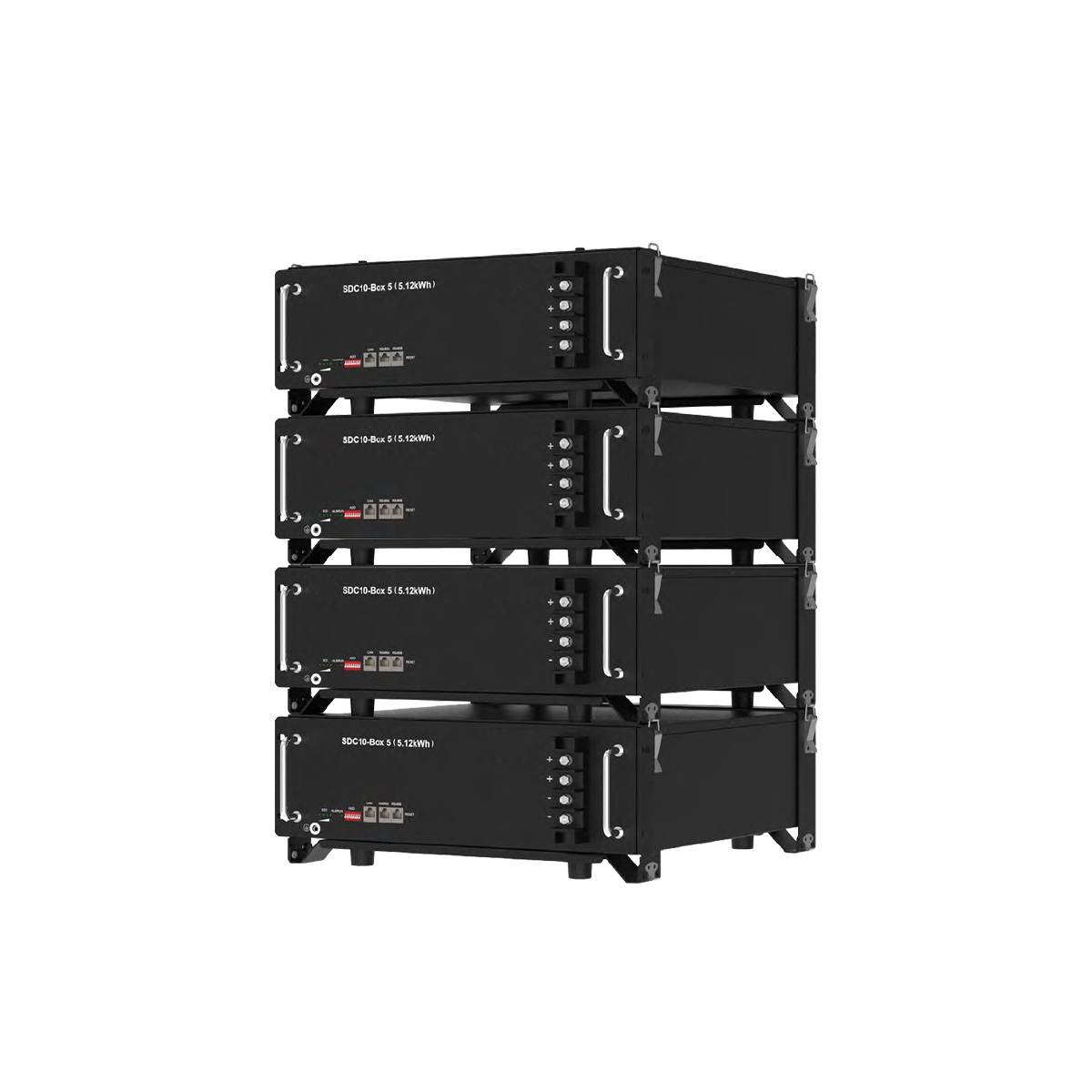

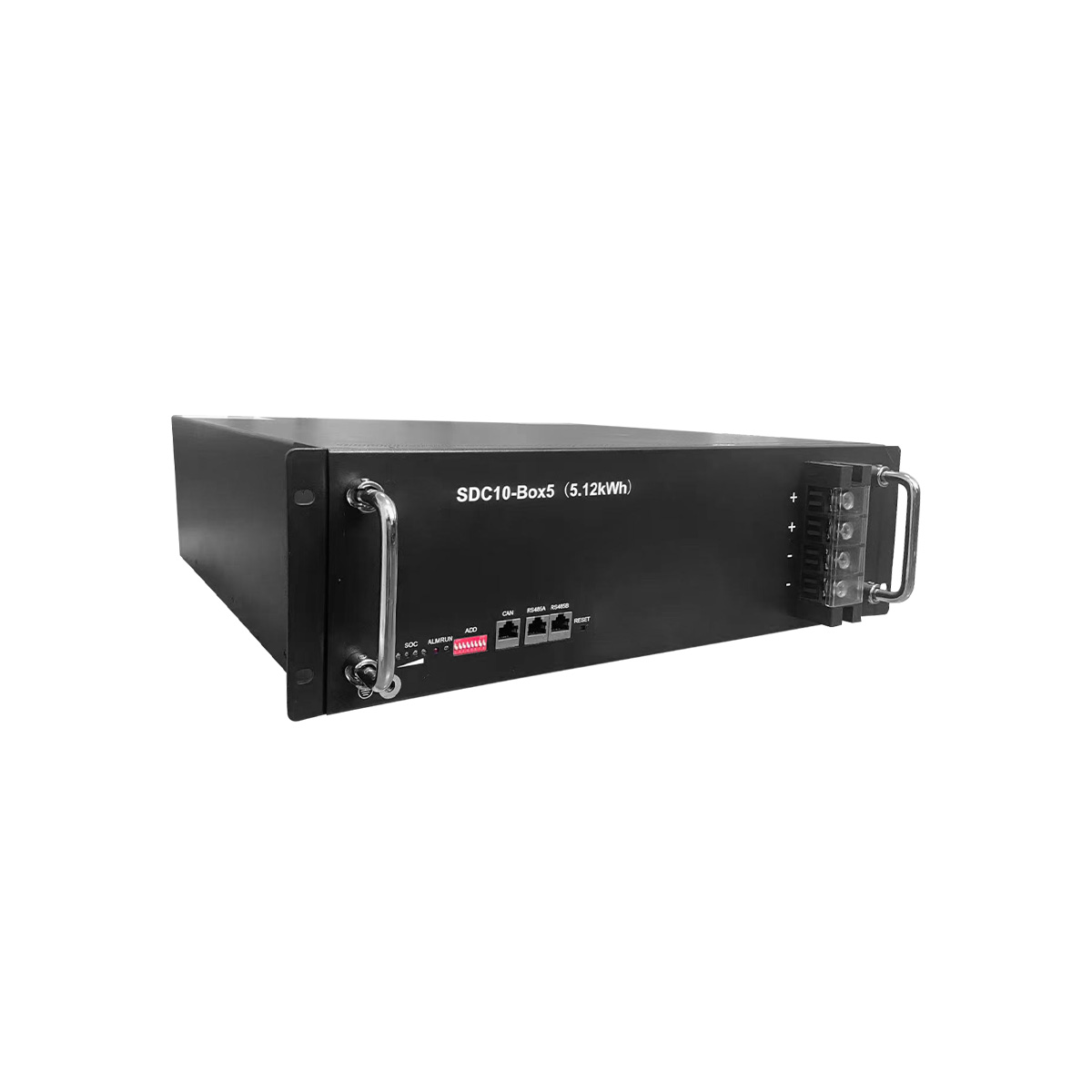

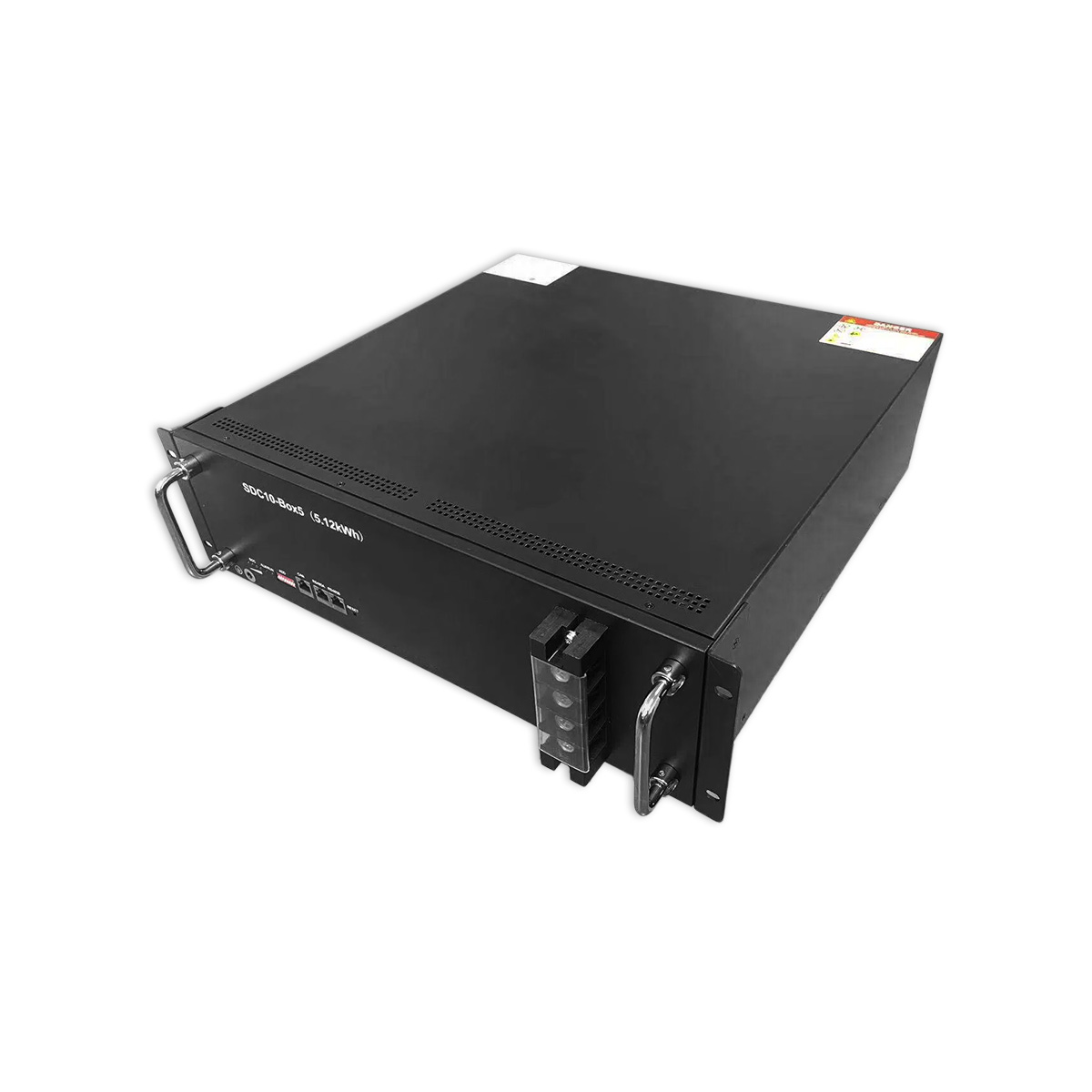

| Module Type | LFP 5.12kWh / LV |
| Cell Model | 100AH |
| Mount Type | Rack-mounted |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 45~56.4V |
| Nominal Capacity | 100Ah |
| Nominal Energy (at 25°C) | 5.12kWh |
| DOD | 90% |
| Nominal Charge/Discharge Current | 50/100A |
| Max Charge/Discharge Current | 50/100A |
| Charge Temperature | -5~45°C |
| Discharge Temperature | -20~50°C |
| Relative Humidity | 5% - 95% |
| Communication Interface | CAN / RS485 |
| Enclosure Protection Rating | IP 20 |
| Cooling Type | Natural cooling |
| Cycle Life | ≥3000 |
| Warranty | 10 years |
| Life Span | 15+ Years (25°C) |
| Certificates | UL1973/IEC61000/CE/IEC62619/IEC62477/UN38.3/MSDS/VDE2510-50/CE10-20/UKCA |
| Max. Pieces of Parallel | 20 |
| Dimension (L*W*H) | 443*440*135mm |
| Net Weight(Kg) | 40kg |
