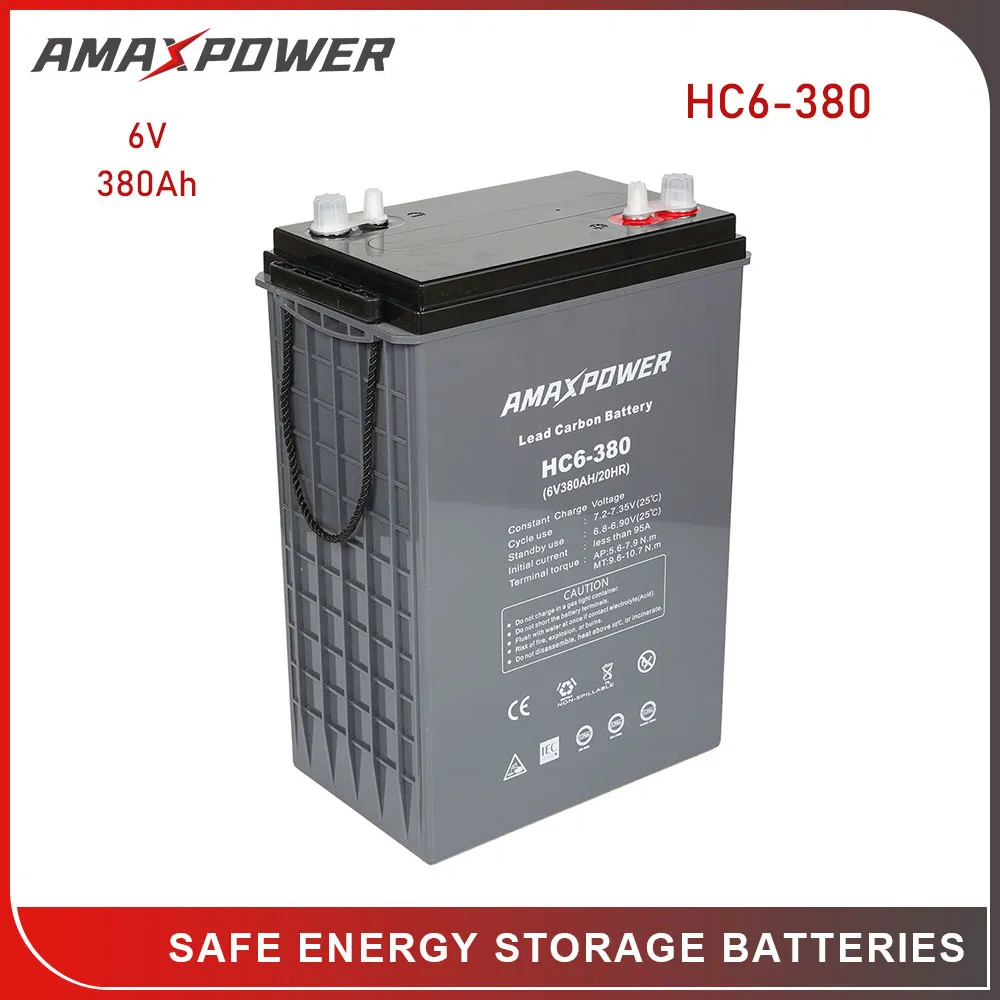

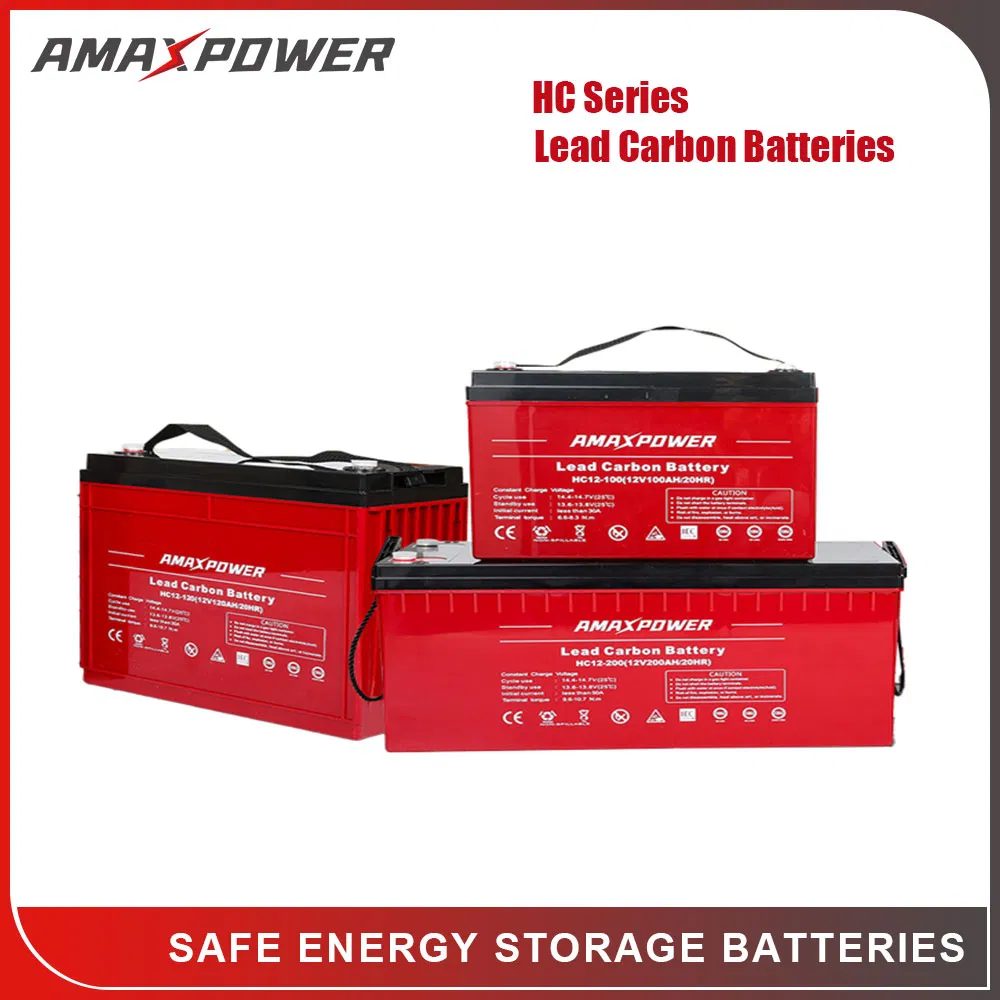

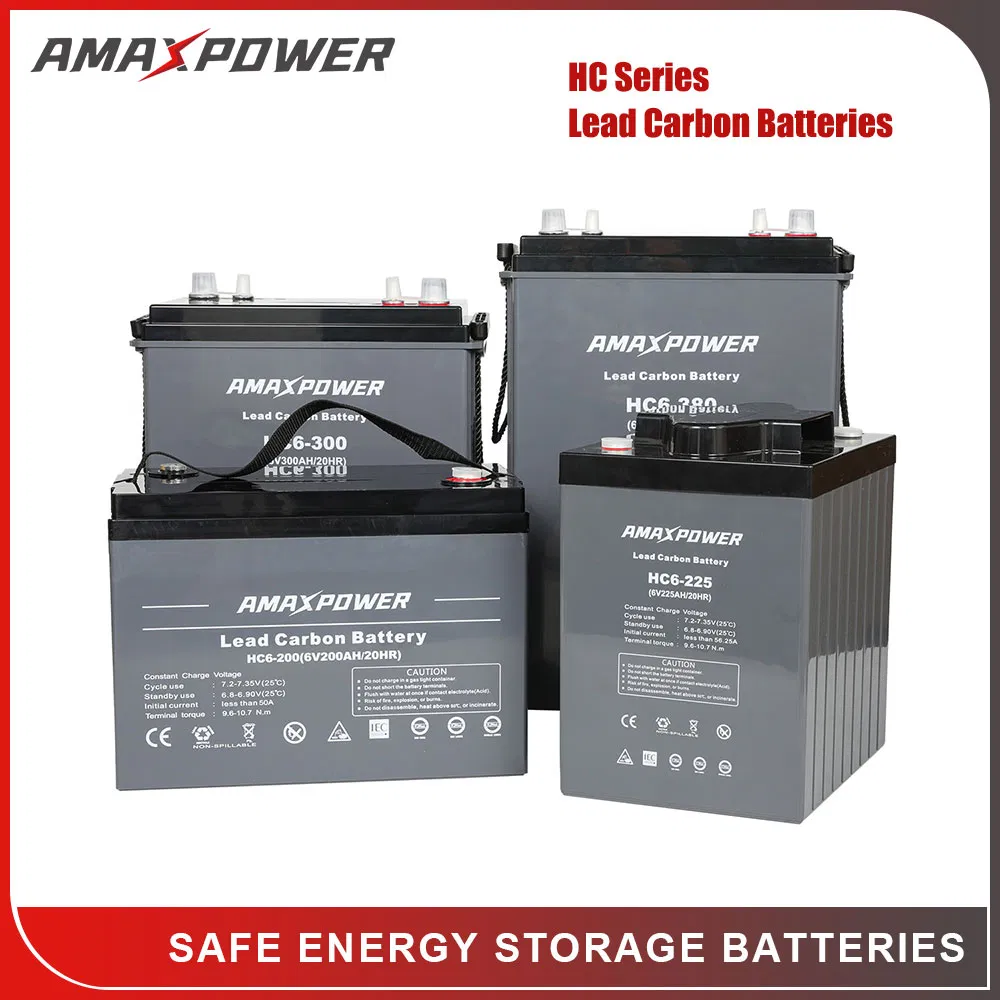

Fast Charge Long Life Lead Carbon Battery For Renewable Energy Storage
The HC Series Lead Carbon battery uses functional activated carbon and graphene as carbon materials, which is added to the negative plate of the battery to make the battery with the advantages and super capacitance. Meanwhile, it is adopted the technology of nano Silica GEL and one-time Gel filling technology & formation, which improves the ability of rapid charge/discharge, also greatly extends the cyclic life of the battery, like 80% DOD with the cyclic number of 2000 times. It widely used for the application of PSOC.
Features and Advantages
- Designed life is over 15 years @25ºC.
- Excellent recharge acceptance and super fast charge/discharge performance.
- Extreme temperature tolerance for various environments.
- Adopt super carbon technology combined with deep cycle technology.
- Outstanding PSOC (Partial State of Charge) cycle performance.
- Integrating Gel and AGM technology with no liquid electrolyte.
| Series name |
Nominal Voltage (V) |
Nominal Capacity (Ah) |
Capacity Range (Ah) |
Design Life (25ºC) |
| HC |
12V |
C20 |
75~240 |
15 years |
| 6V |
C20 |
200 ~ 380 |
20 years |
| 2V |
C20 |
200~3000 |
20 years |
Application Scope
- Solar & Wind energy storage
- Solar street lights
- Off-grid energy storage
- Telecom backup system
- UPS & Emergency backup
- Electric vehicles & Forklifts
- Marine & Medical equipment
- Golf carts and Buggies
Manufacturing Excellence & Quality Control
Advanced production facilities and an annual production capacity of approximately 2,000,000kVAh. Every battery undergoes a rigorous quality control process to ensure reliability.

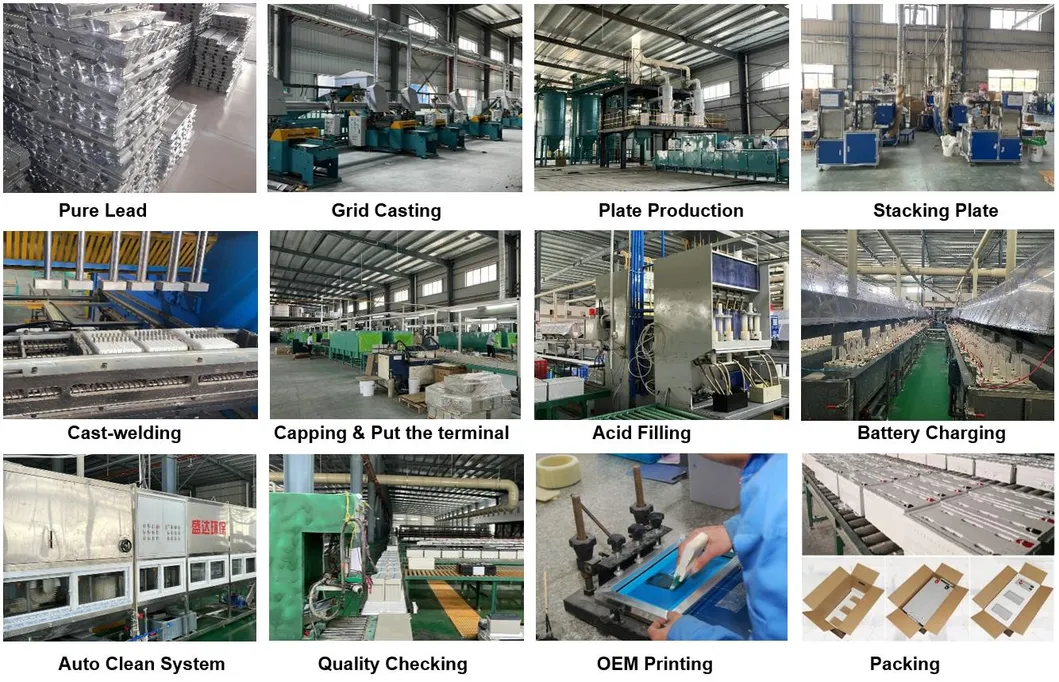

Production Process

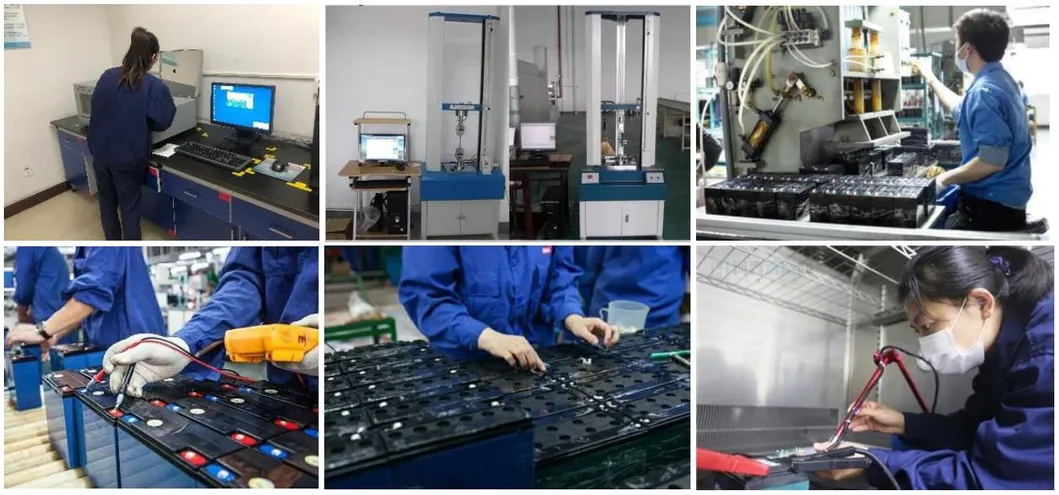

QC Standards
- Lead plates must pass 99.9999% purity test.
- Anti-impact and burst-prevention case testing.
- Precise acid filling measurement for consistency.
- Online monitoring and deep cycle testing.
- 100% pass rate guarantee before shipment.
Product Specifications and Models
| Model No. |
Voltage (V) |
Capacity (AH) |
Weight (Kg) |
Dimensions (LxWxH mm) |
Terminal |

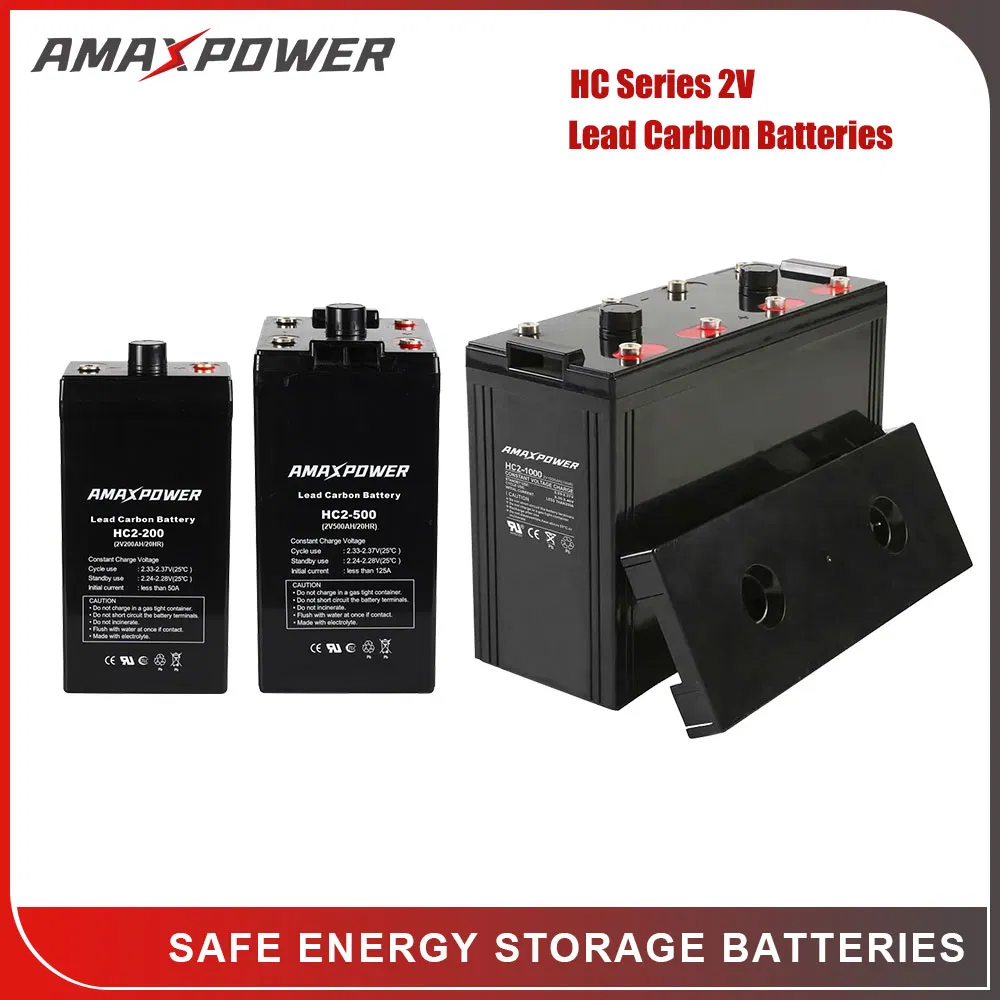

| HC2-200 | 2 | 200/10HR | 11.2 | 170x106x330 | T5 |
| HC2-500 | 2 | 500/10HR | 26 | 241x171x330 | T5 |
| HC2-1000 | 2 | 1000/10HR | 52 | 471x171x330 | T5 |
| HC6-200 | 6 | 200/20HR | 31 | 306x168x220 | T5 |
| HC12-100 | 12 | 100/20HR | 33 | 328x172x218 | T4 |

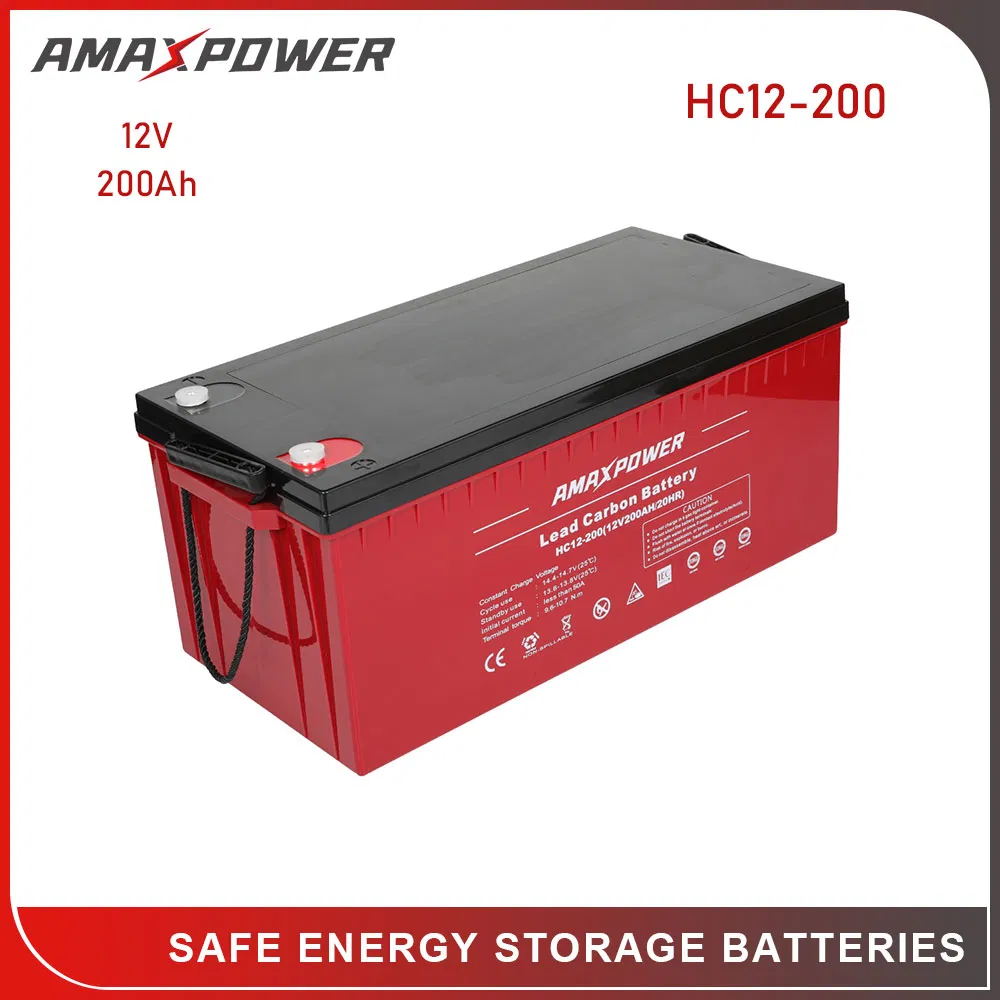

| HC12-200 | 12 | 200/20HR | 64.8 | 522x240x219 | T5 |
Frequently Asked Questions
Are you a professional battery manufacturer?
Yes, we are a professional battery manufacturer with over 17 years of experience. We produce our own lead plates to ensure the highest quality from the source.
What is the typical delivery time for orders?
Delivery takes about 7 days for stock products, 20 days for partial containers, and approximately 30 days for full 20ft container orders.
Can these batteries be shipped safely by sea or air?
Absolutely. Our batteries have MSDS and test reports for safe transport as non-dangerous goods, allowing for both sea and air delivery.
How do you manage quality control in your factory?
We follow the ISO 9001 system rigorously, featuring Incoming Quality Control (IQC), In-process Quality Control (PQC), and Outgoing Quality Control (OQC) to ensure zero defects.
What is the shelf life and maintenance requirement for VRLA batteries?
VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without a recharge. In hotter climates, recharging every 3 months is recommended.
What happens if a battery is damaged or faces issues?
In case of any issues, we analyze the usage conditions and photos. If it is a manufacturing defect, we provide replacement units in the subsequent shipment.
