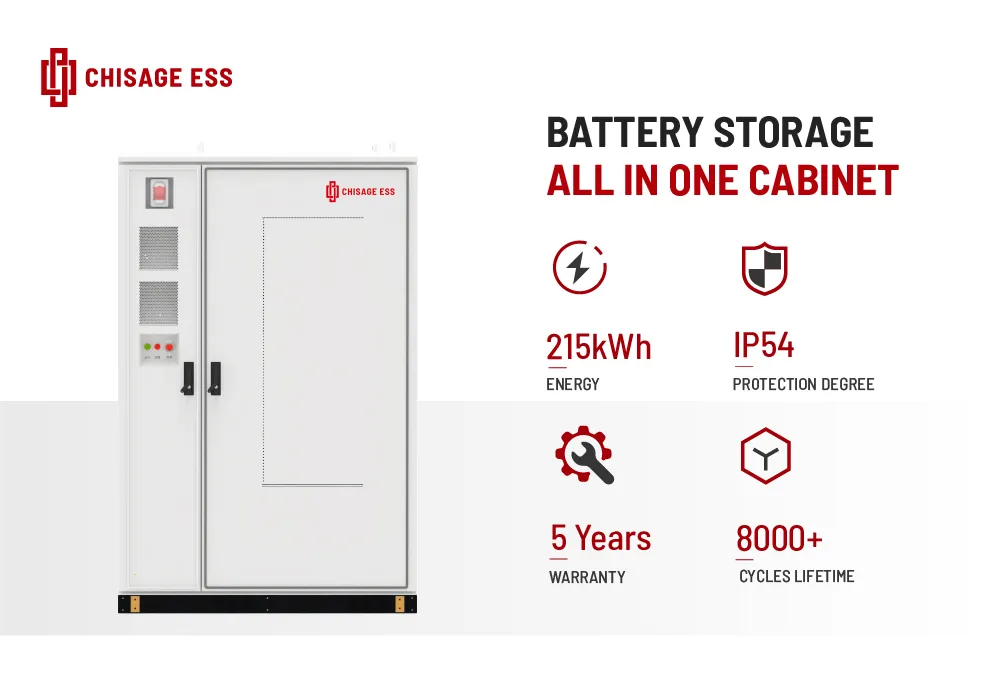

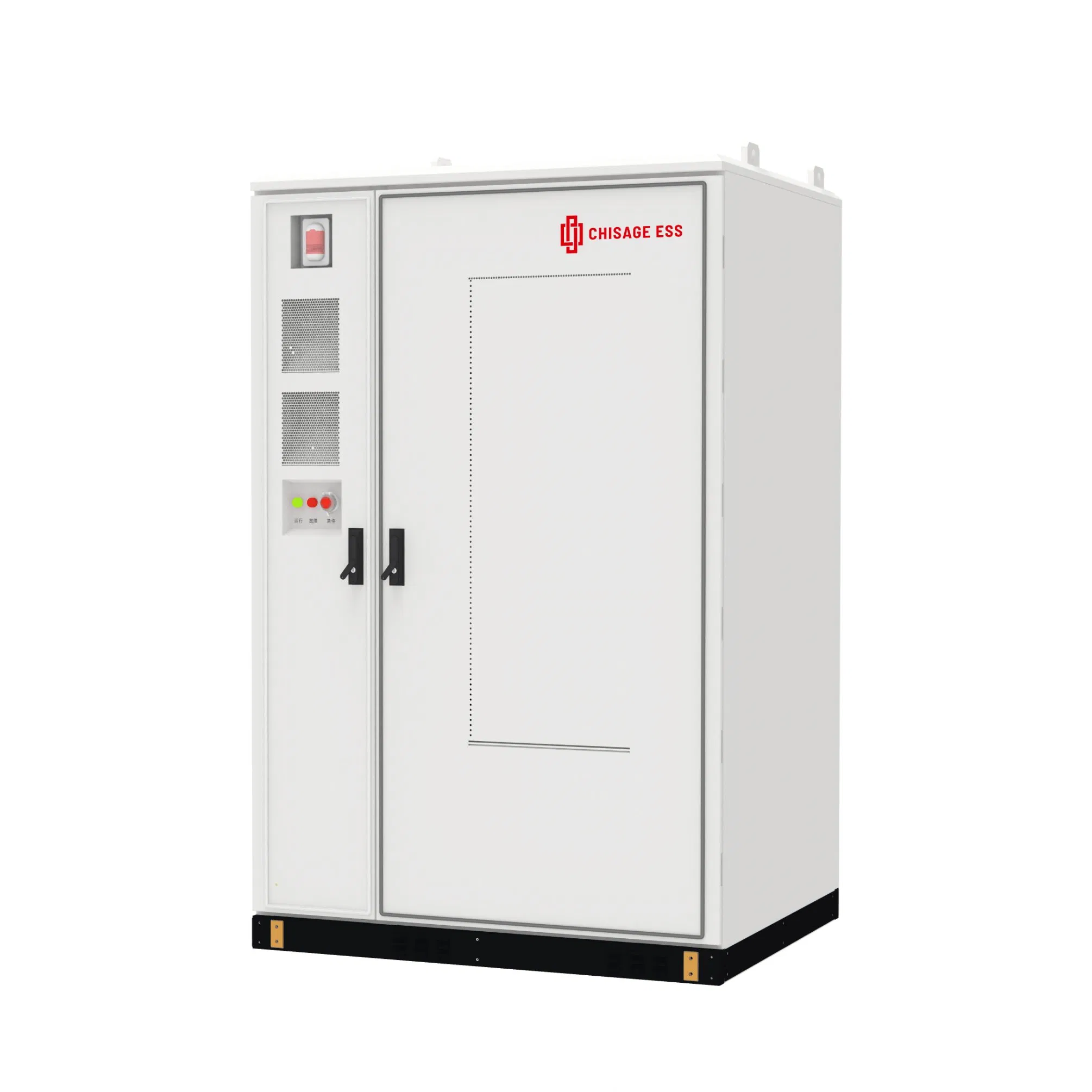

| Technical Data | |
|---|---|
| Model | CE100215-B |
| DC Parameter (Battery) | |
| Battery Type | LFP/280Ah |
| Series and Parallel | 1P240S |
| Rated Capacity (Ah) | 280 |
| Rated Voltage (V) | 768 |
| Rated Energy (kWh) | 215 |
| Continuous Charge/Discharge Current (A) | 0.5C |
| Cycle life | 8000 cycles, 70%Eol @25°C 0.5C |
| AC Parameter | |
| Rated Voltage (V) | 400, 3 phase |
| Voltage Range (V) | 320~460 |
| Frequency (Hz) | 50 |
| THD | < 3% (rated power) |
| Rated Charging Power (kW) | 100 |
| Rated Discharge Power (kW) | 100 |
| Efficiency & Protection | |
| Max. Charging/Discharge Efficiency | 94.00% |
| DC/AC Overcurrent Protection | Yes |
| General Data | |
| Operation Temperature Range (°C) | -25~+55 |
| Protection Degree | IP54 |
| Cooling | Air conditioner + air cooling |

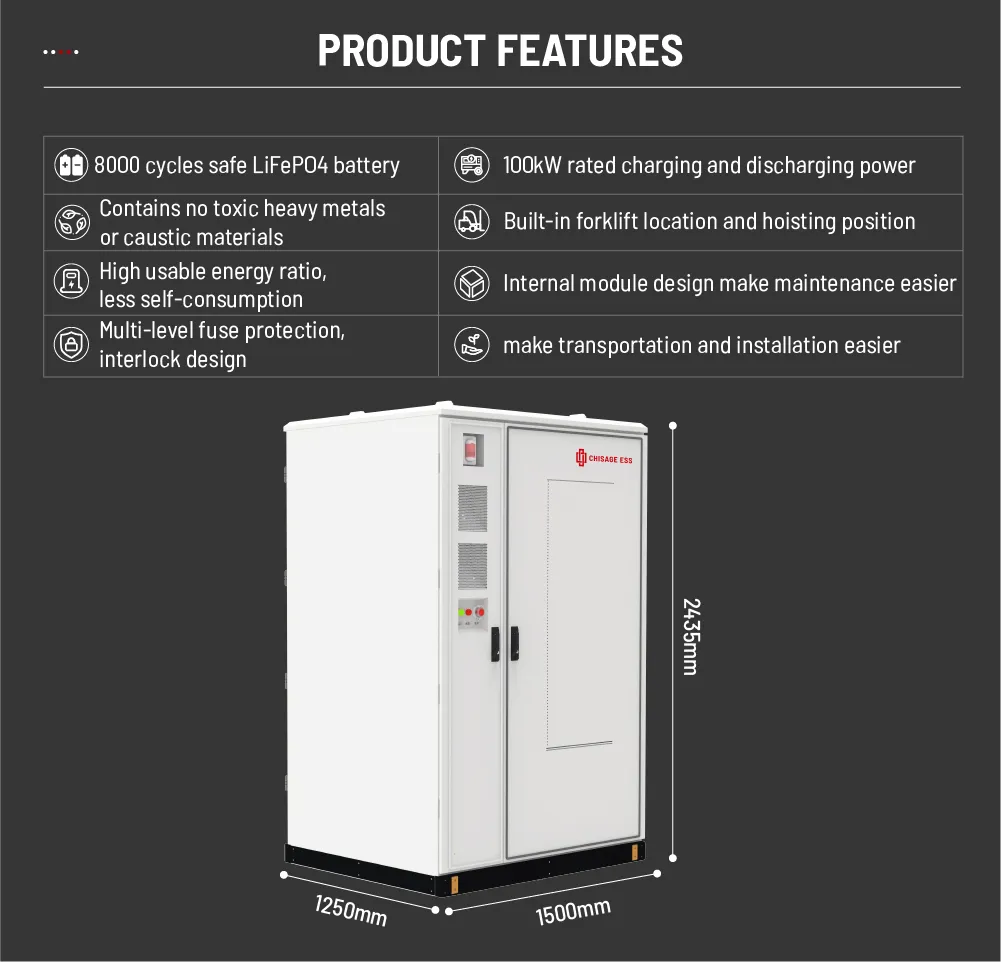

| Dimension (mm) | 1500W*1250D*2435H |
| Weight (kg) | about 3000kg |
| Firefighting | Perfluorohexanone/Aerosol |
