| Model | 51.2V 100AH | 51.2V 200AH |
|---|---|---|
| Nominal voltage | 51.2V | |
| Battery voltage range | 43.2-57.6V | |
| Nominal capacity | 100Ah, 25ºC | 200Ah, 25ºC |
| Rated energy | 5.12kWh, 25ºC | 10.24kWh, 25ºC |
| Standard Charge/Discharge current | 20A @ 25ºC | 40A @ 25ºC |
| Max. Charge/Discharge current | 100Ah @ 25ºC | 200Ah @ 25ºC |
| Communication | CAN / RS485 | |
| Expandable capability | 15P | |
| Self-discharge | ≤ 3% / month | |
| Protection | Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc. | |
| IP rating | IP20 | |
| Cooling | Natural | |
| Cycles | ≥ 6000 cycles (80% DOD @ 25ºC) | |
| Operating temperature range | Charging: 0~+60°C | Discharging: -20~+60ºC | |
| Altitude | 0~4000m (Derating over 2000m) | |
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Life span, high efficiency and high-Power density. Intelligent BMS, providing complete protection.
Support high discharge power. IP65, natural cooling, wide temperature range: -20°C to 55ºC.
Modular design, easy to expand. Suited to residential and commercial applications for increasing the self-consumption ratio.
Battery module auto networking, Automatic IP addressing, Easy maintenance, remotely monitoring and upgrade, Support USB drive upgrade the firmware.
Use environmental protection materials, the whole module non-toxic, pollution-free.
Flat and stackable design, floor or wall mount, no wiring and extra fixing screws, quick and easy installation.

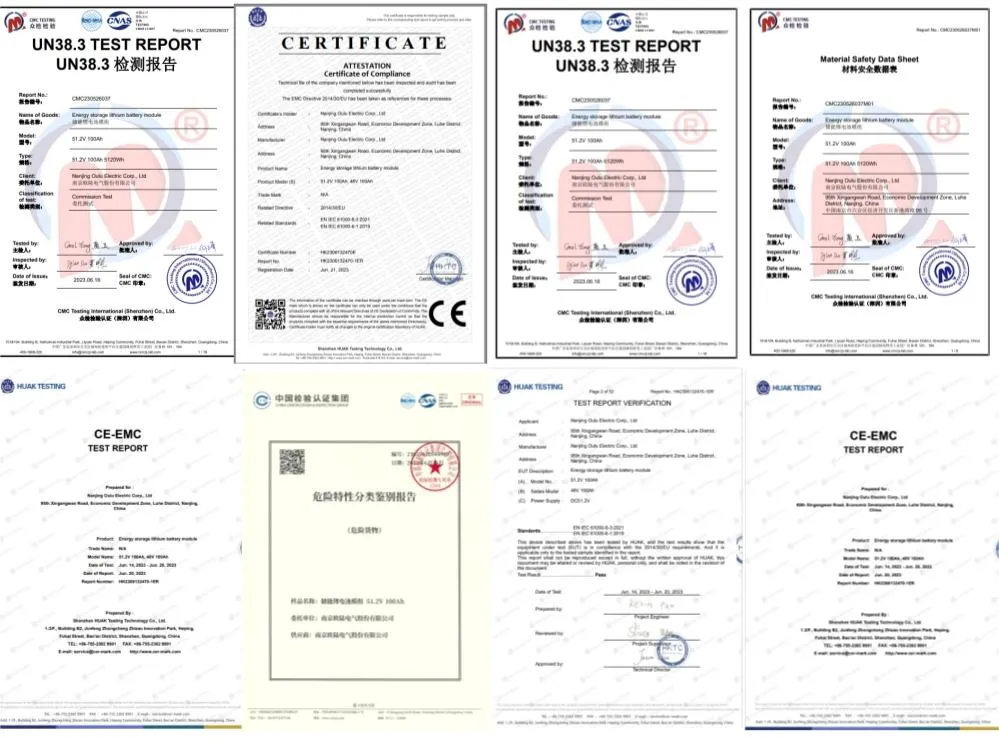

CE certificate, UN38.3 Test report, and safety transport approval.
Yes, we are a factory, and we have been producing solar inverters and storage batteries for more than 13 years.
Before purchasing, please contact us to confirm the model No. and specifications to avoid any misunderstanding.

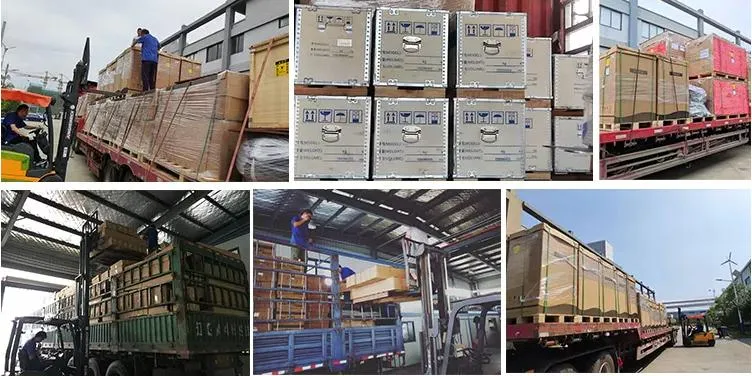

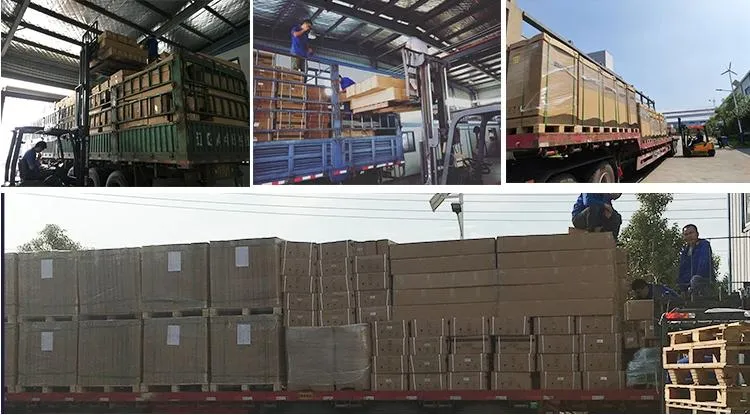

We normally ship goods by sea, by express (DHL/UPS/FEDEX/EMS), and by air. We also accept customer-appointed shipping agents.
Yes, samples can be offered for testing purposes.
Yes, welcome. We will fully support you as our partner.
Yes, we have an R&D department and accept OEM and ODM service requests.
