Technical Specifications
Discharge Rate
Low Discharge Rate
Certificate
CE/IEC60623/ISO9001/ISO18001/14001
Transport Package
Plywood Case
Specification
167*162*345mm
Capacity
8000 Pieces/Month
Product Introduction

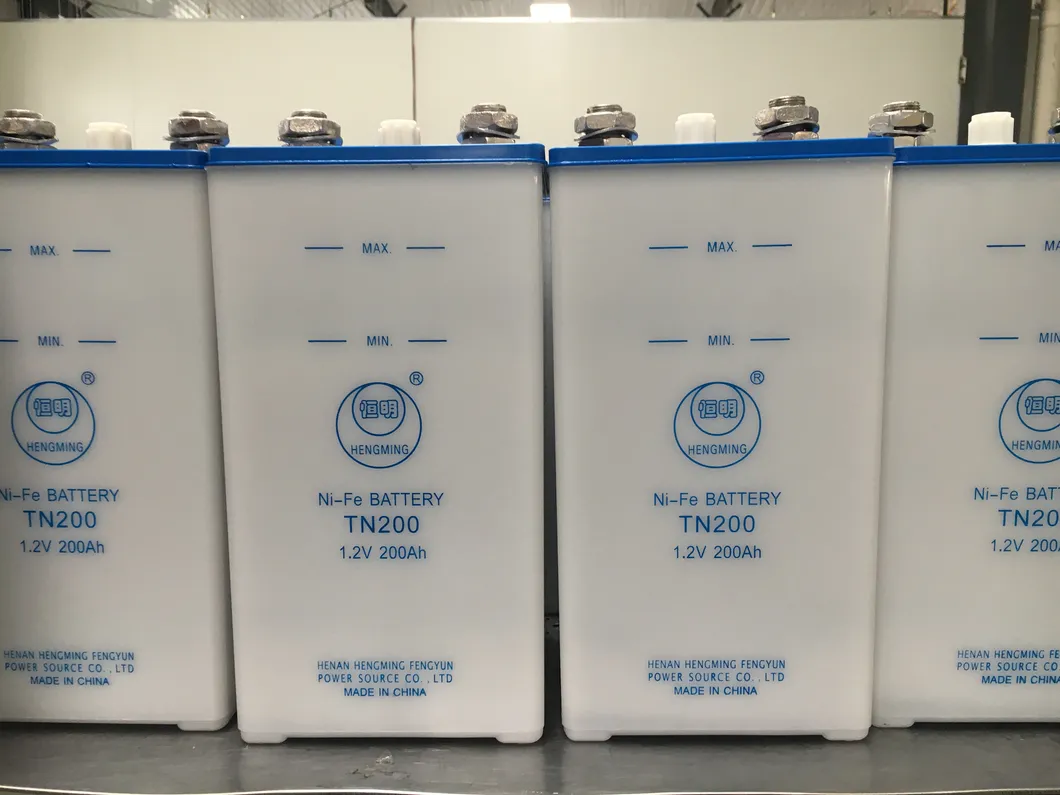

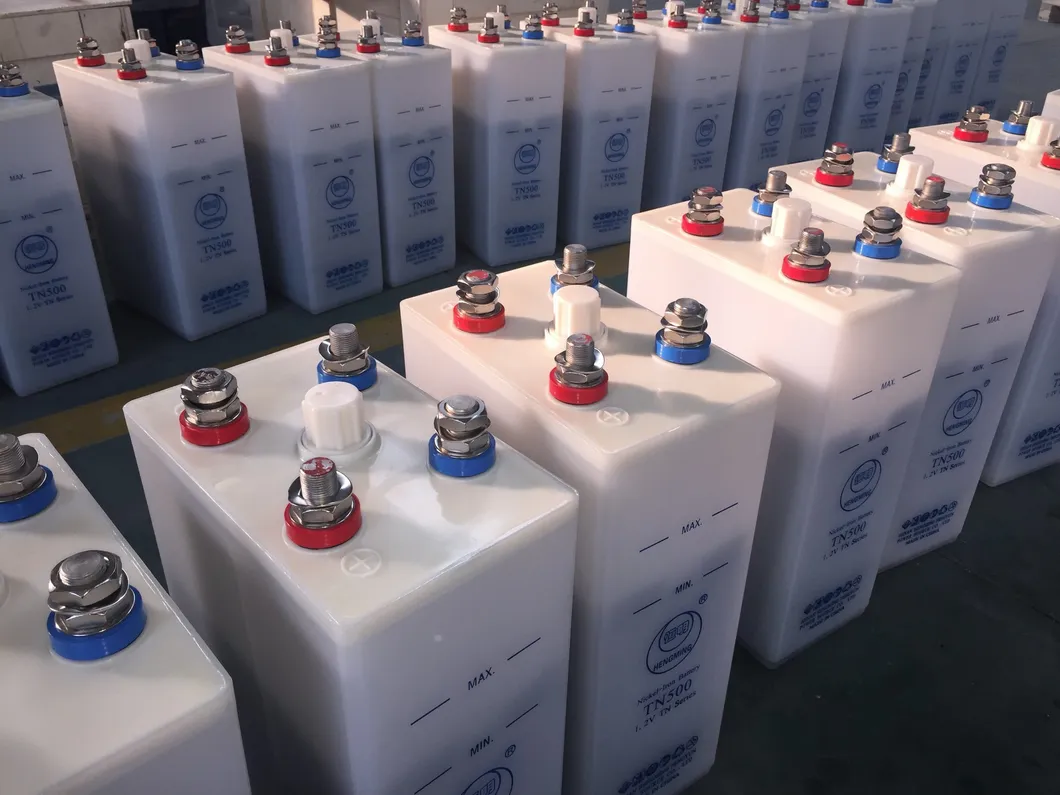

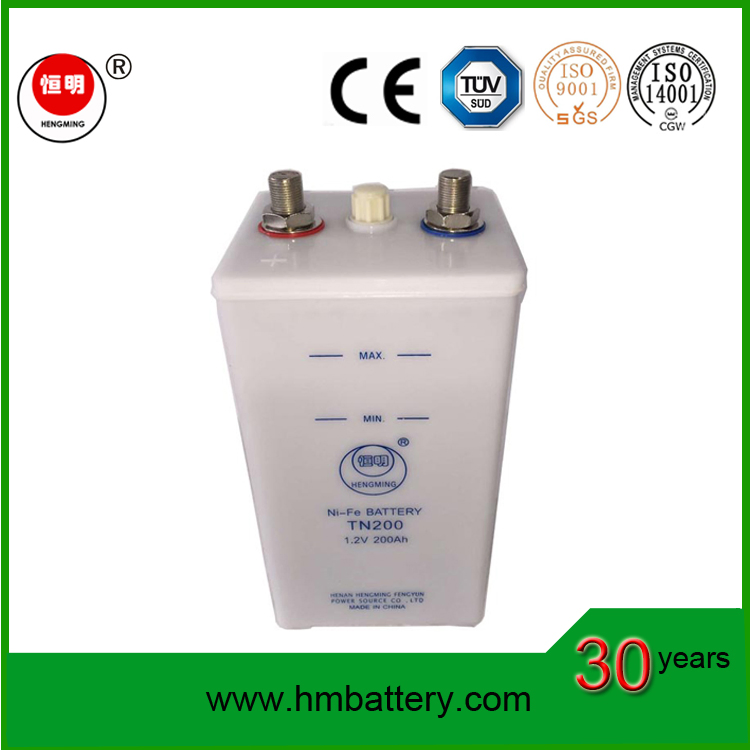

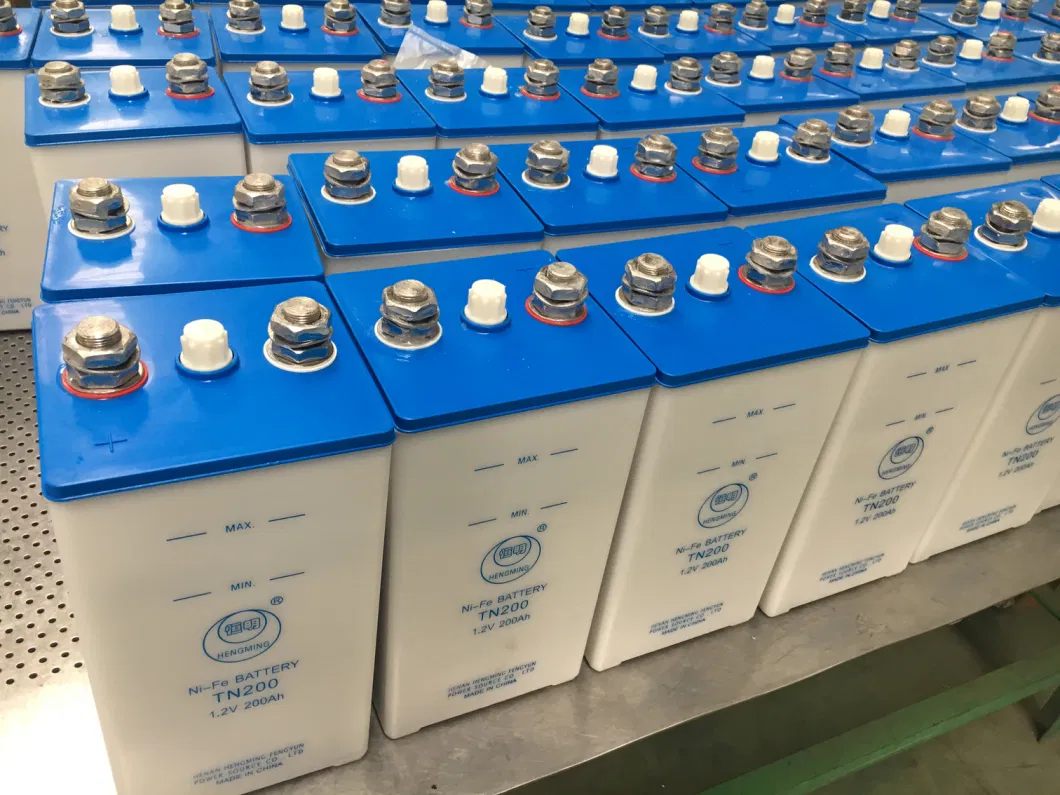

Max Life Batteries NI-FE Battery 12V 24V 48V 110V 220V Solar Batteries (10AH-1300Ah)

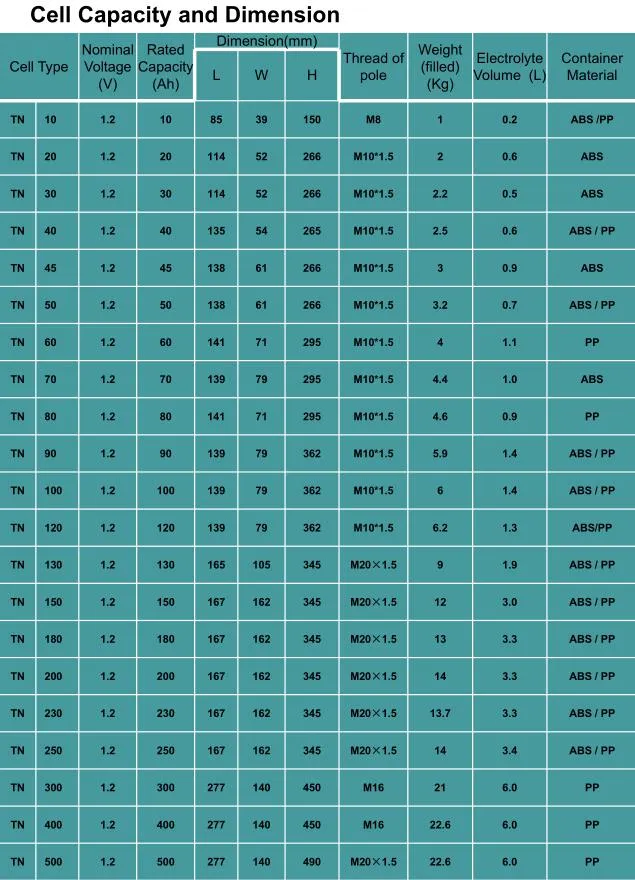

Model Parameters & Type List
| Model |
Nominal Voltage(V) |
Rated Capacity (Ah) |
Max. Dimension (mm) |
Pole |
Weight (Kg) |
Electrolyte (L) |
Container |
| L |
W |
H |
| TN10 | 1.2 | 10 | 85 | 39 | 156 | M8 | 0.8 | 0.3 | PP |
| TN 20 | 1.2 | 20 | 82 | 43 | 258 | M10 | 1.3 | 0.3 | ABS |
| TN 30 | 1.2 | 30 | 135 | 54 | 265 | M10 | 2 | 0.5 | PP |
| TN 50 | 1.2 | 50 | 138 | 61 | 266 | M10 | 3.2 | 0.7 | PP |
| TN 100 | 1.2 | 100 | 139 | 79 | 362 | M10 | 6 | 1.4 | PP |

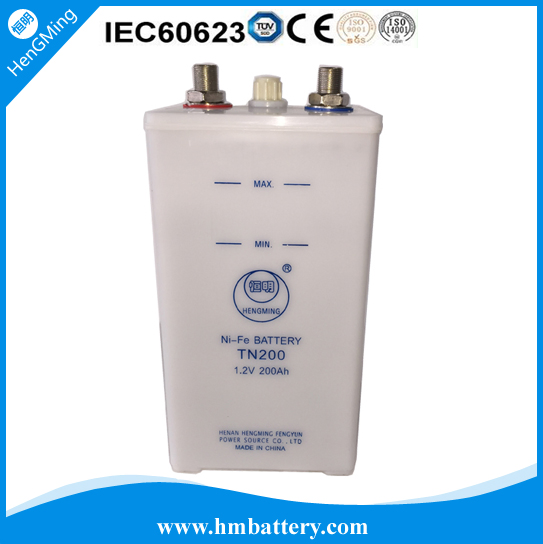

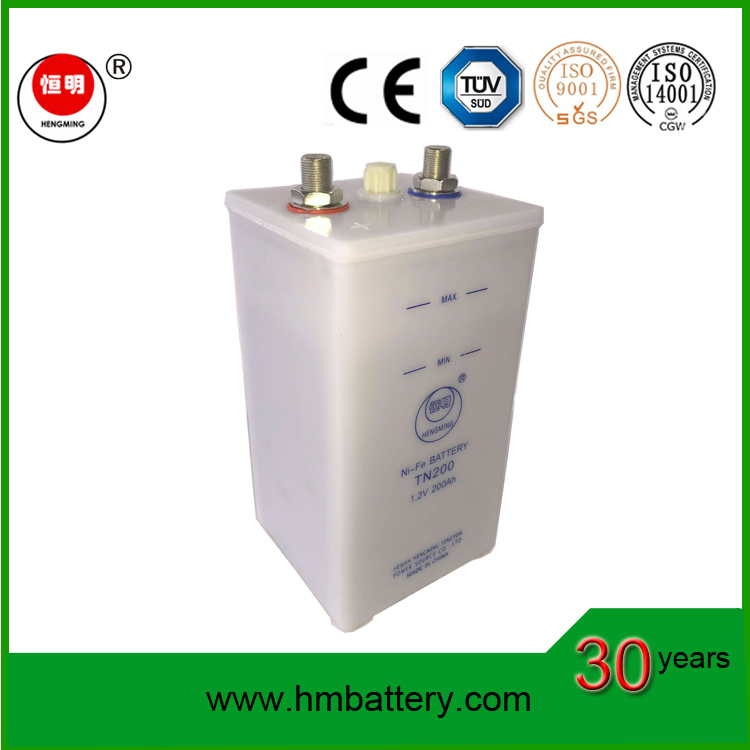

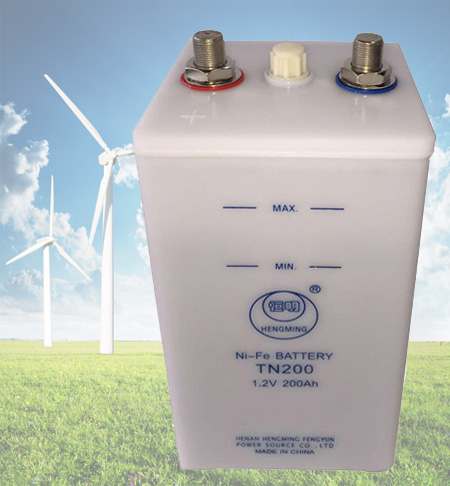

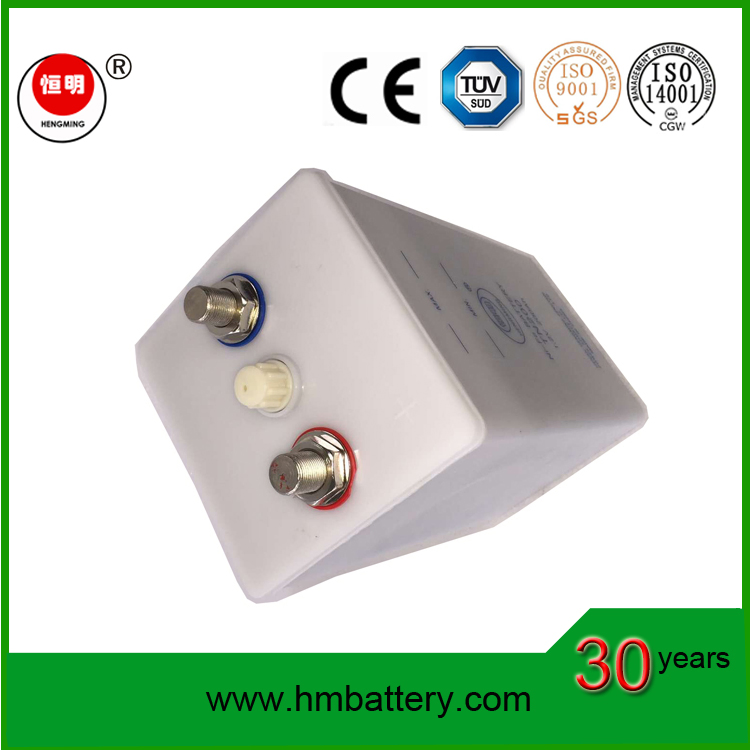

| TN 200 | 1.2 | 200 | 167 | 162 | 345 | M20 | 14 | 3.3 | PP |
| TN 500 | 1.2 | 500 | 285 | 172 | 490 | M20 | 33.6 | 7.8 | ABS |
| TN 1000 | 1.2 | 1000 | 395 | 185 | 560 | M20 | - | - | ABS |

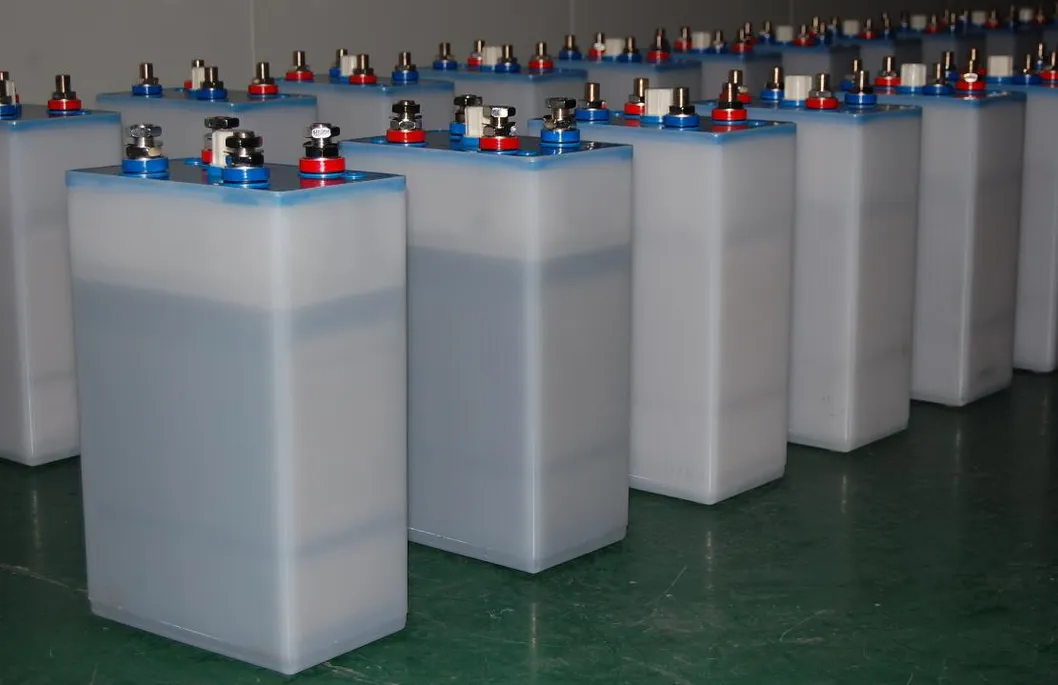

Benefits of Nickel Iron Battery
- Excellent charging efficiency and smooth discharge voltage
- High reliability without sudden death
- Ability to withstand ultra-high and ultra-low environmental temperatures
- Withstand physical and mechanical abuses
- Exceptionally long & reliable service life (up to 30-35 years)
- Pollution-free, total green energy
- Low self-discharging rate
- No emission of corrosive gases, safe from flame & explosion
- Convenient for installation and low maintenance
Core Advantages
- Cycle life of up to 3000-4000 times under standard maintenance.
- Float charging life exceeds 15 years.
- Available in PP/ABS durable containers.
- Widely used for DC back-up in railway, solar PV, and renewable power applications.

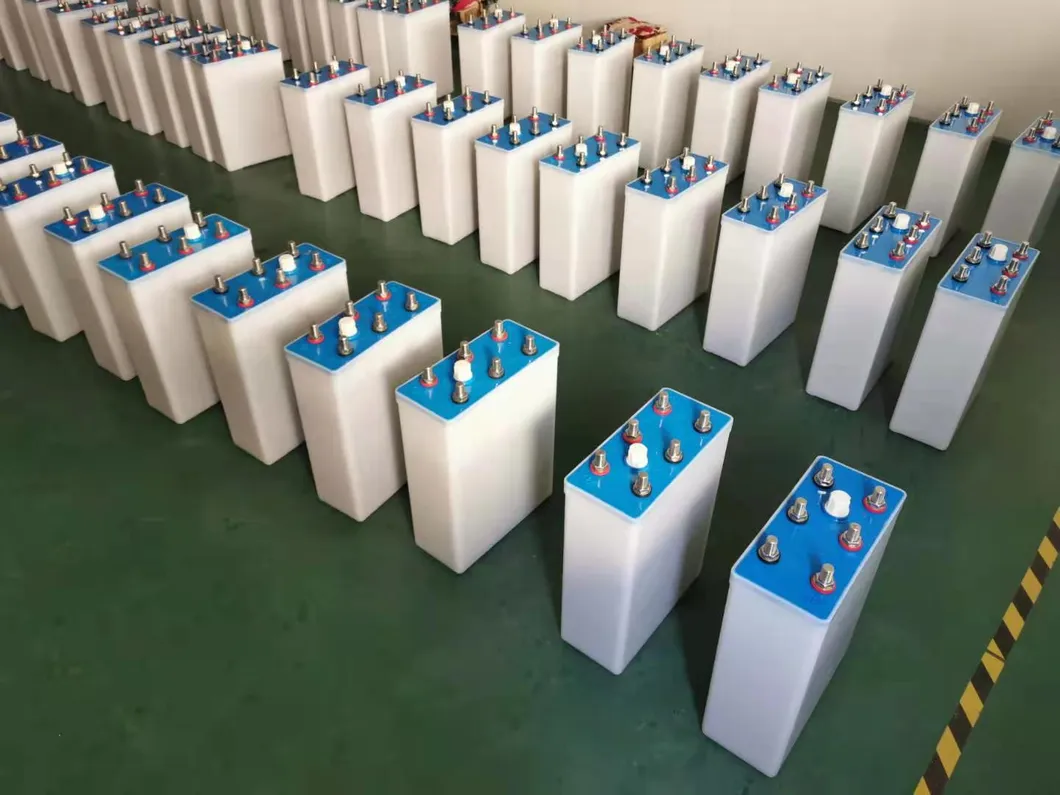

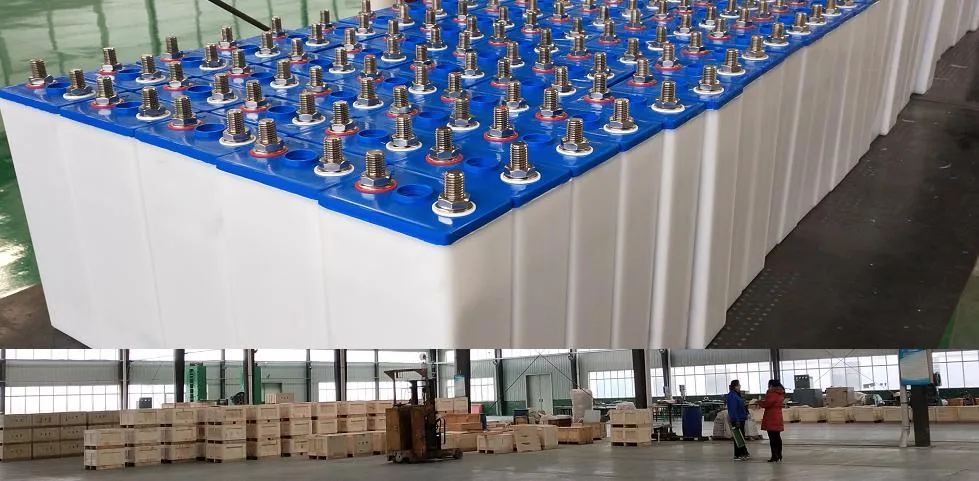

Packing & Quality Assurance
Our Professional Services
1. Design Service: Customization and development of battery models based on specific project requirements.
2. OEM Service: Private branding and logo printing options available for global partners.

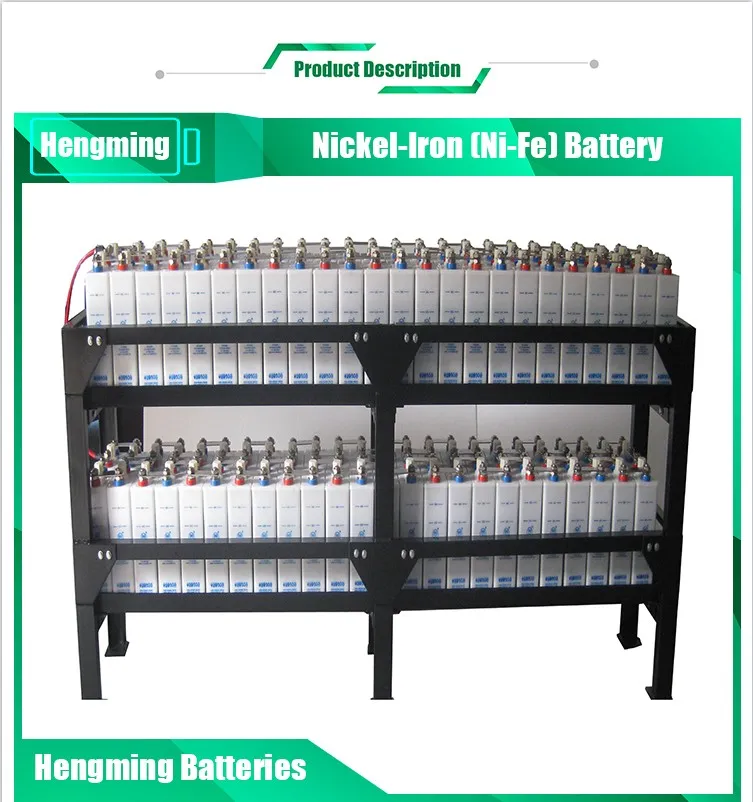

3. Complete Solutions: Supply of related components including battery racks, cabinets, and professional chargers.
Frequently Asked Questions
Q1: What is the average service life of a Ni-Fe battery?
A1: Nickel-Iron batteries are known for their extreme durability, often lasting over 30 to 35 years with proper maintenance.
Q2: Can these batteries handle extreme weather conditions?
A2: Yes, they are designed to withstand both ultra-high and ultra-low environmental temperatures without compromising performance.
Q3: Are Ni-Fe batteries environmentally friendly?
A3: Absolutely. They are considered total green energy as they do not contain lead or cadmium and produce no corrosive gas emissions.
Q4: What are the main applications for these batteries?
A4: They are widely used in solar PV systems, railway signaling, telecommunications, and as backup power for industrial utilities.
Q5: Is it possible to get a custom battery rack?
A5: Yes, we provide a complete set service which includes designing and supplying battery racks, cabinets, and compatible chargers.
Q6: How are the batteries protected during shipping?
A6: All batteries are securely packed in heavy-duty plywood cases to ensure safe transport via sea or land.
