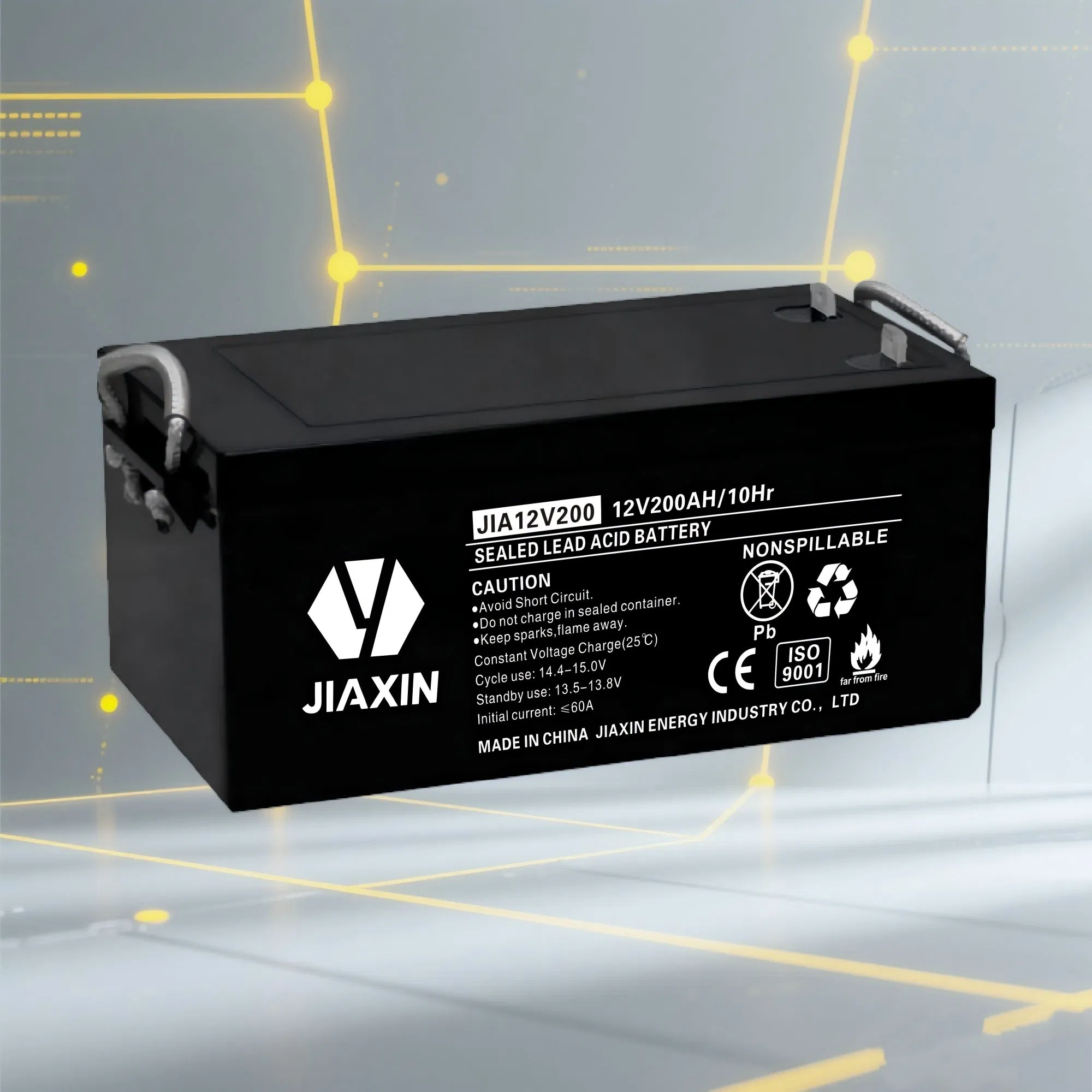

Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
1 / 5
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System
Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System

Long Usage 12V 200ah Rechargeable Lead Acid Battery for UPS, Power Backup Supply, Electric Tools, Power Stations, Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model
JIA-12V200
Nominal Voltage
12V
Capacity
200.0ah
Discharge Rate
High Discharge Rate
Electrolyte
Acid
Cycle Use Voltage
14.4-15.0V
Standby Use
13.5-13.8V
Initial Current
Below 30A
Weight
About 59.5kgs

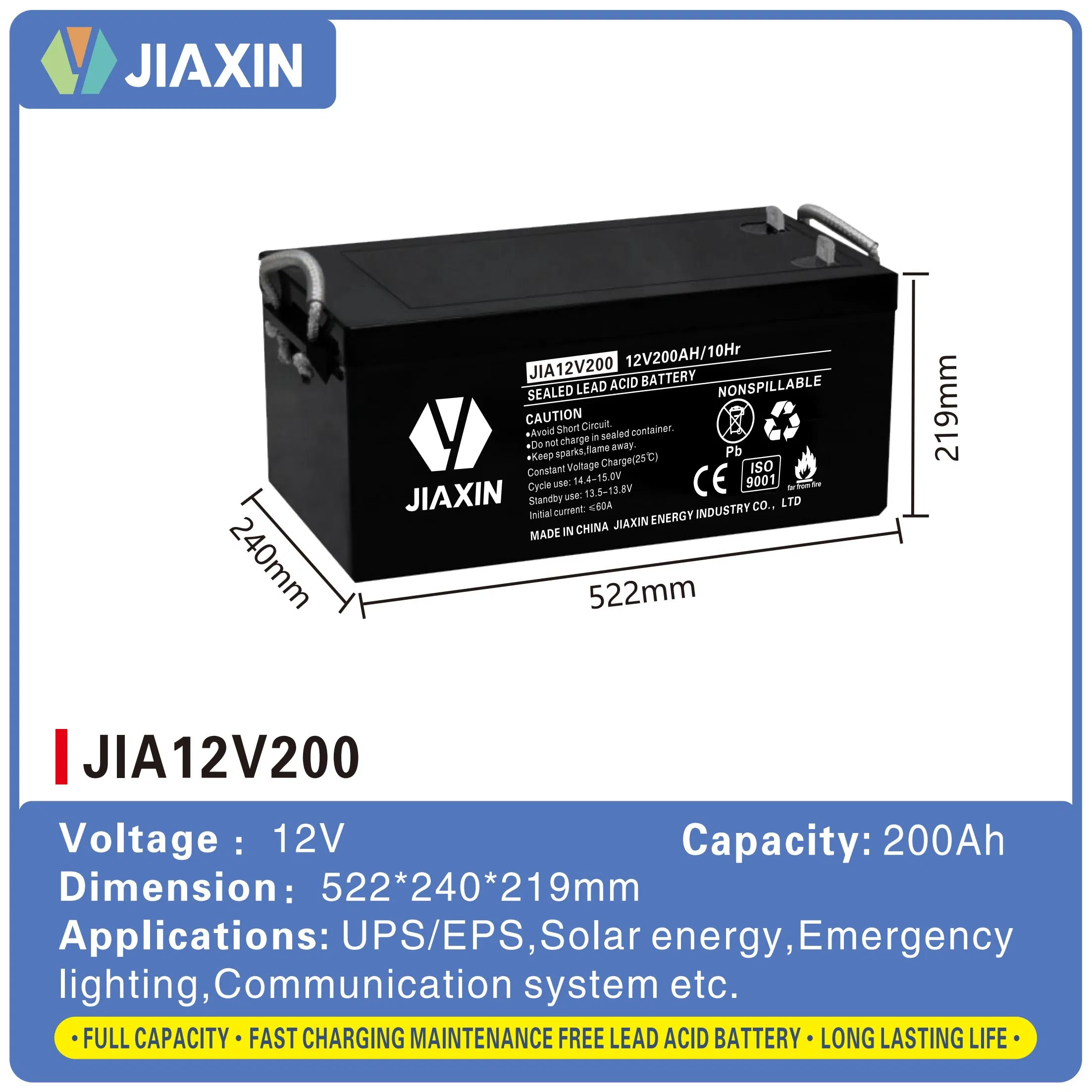

Dimensions
522x240x219mm (LxHxW)
Product Features
  • Superior high rate discharge performance and cycle character.
  • More and faster starting power over conventional batteries.
  • Low Self-discharge with a large 200Ah capacity.
  • High-quality material with lead purity reaching 0.99996.
  • Lead-Calcium six alloy sheet grating for long service life.
  • Lead-Tin multiple alloy bus bars for corrosion resistance.
  • Advanced AGM septum: Absorbs electrolyte without liquid leakage.
  • Firm and weather-resistant ABS Engineering plastics shell.
  • Safe and flameproof Silicon-Fluorine rubber sealed safety cap.
  • Copper Plating Silver terminals for small contact resistance.
  • Maintenance-free construction with no need for distilled water.
  • Non-spillable and economical design.

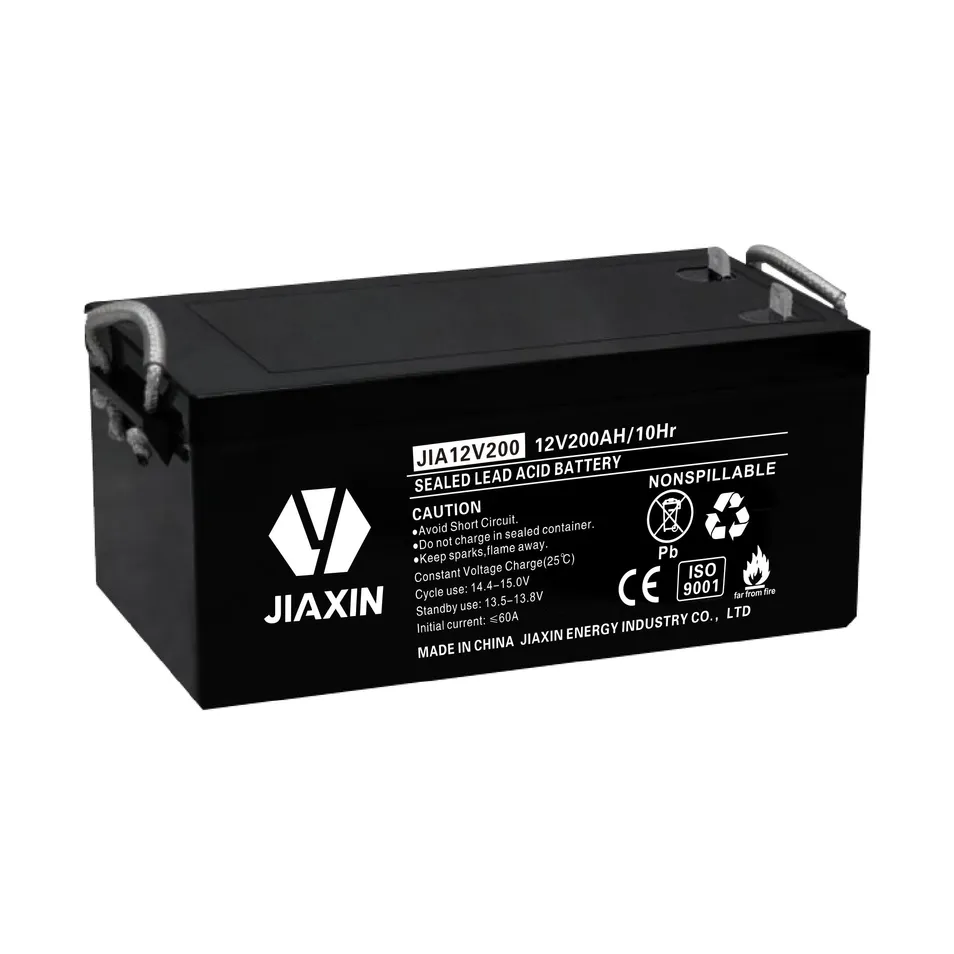

12V 200ah Battery View 1
12V 200ah Battery View 2
Charging & Discharge Characteristics
Introducing the Long Usage 12V 200ah Rechargeable Lead Acid Battery, a reliable power solution for UPS systems, power backup units, electric tools, power stations, and solar systems. It provides long-lasting power ensures uninterrupted performance during emergencies.

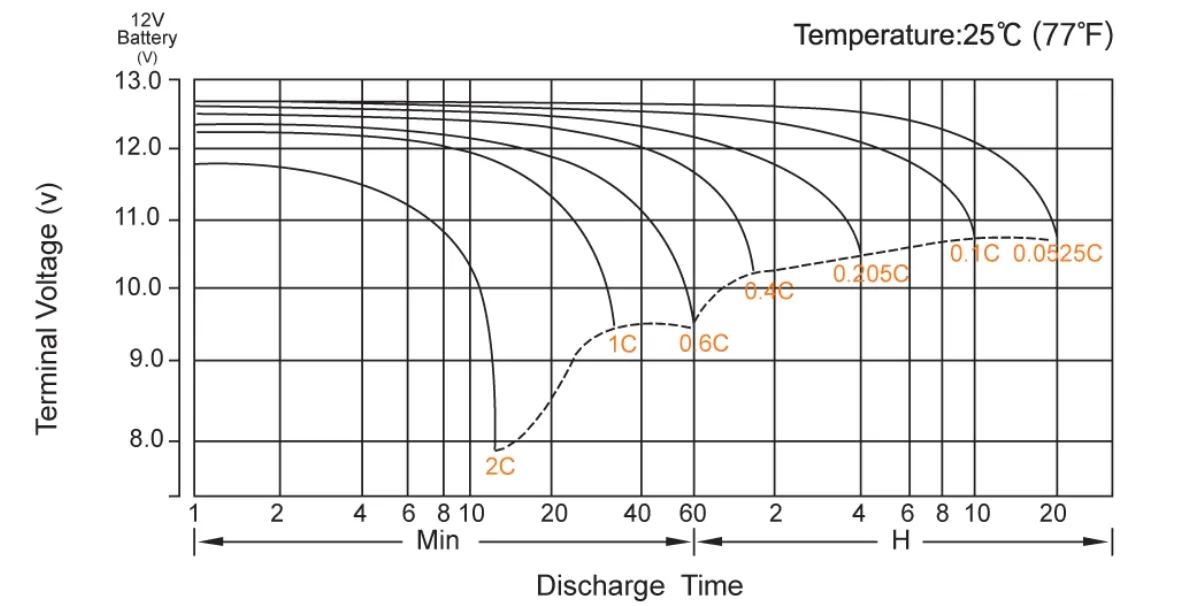

Discharge Characteristics Chart

Discharge Characteristics

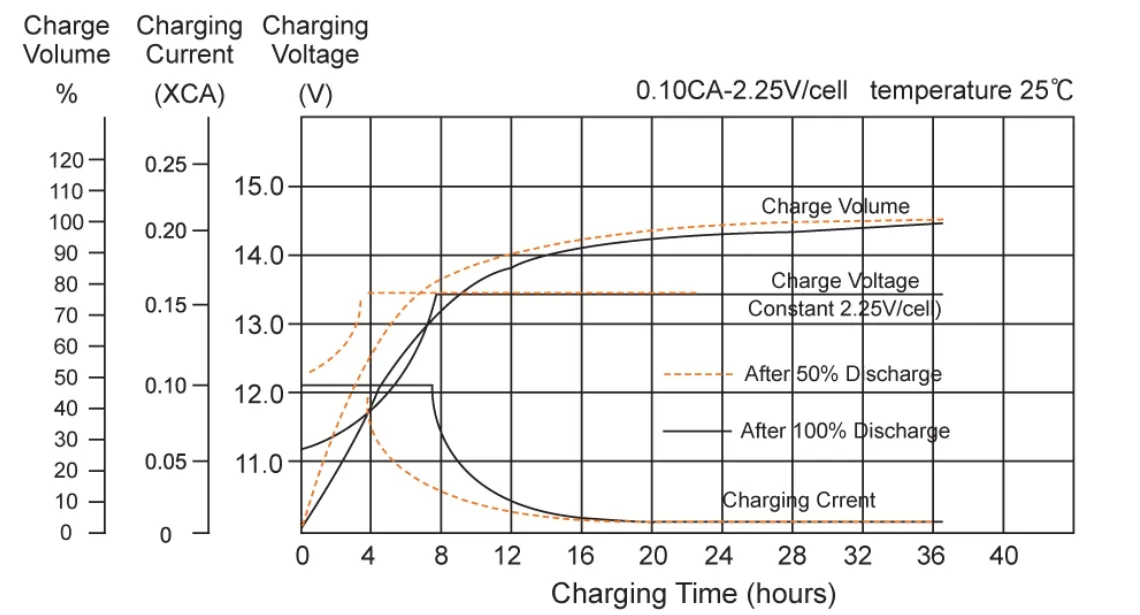

Float Charging Characteristics Chart

Float Charging Characteristics

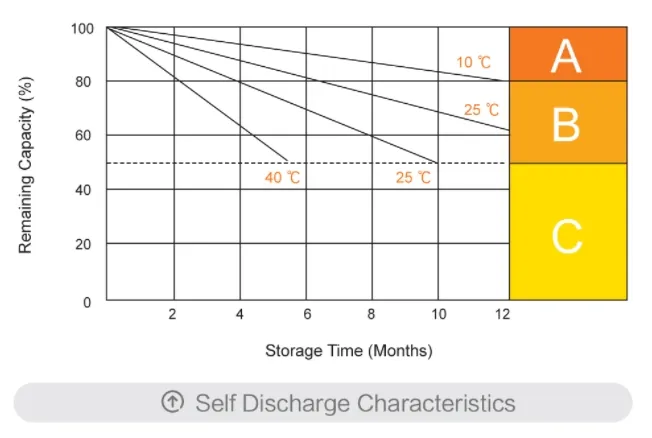

Self Discharge Characteristics

Self Discharge Characteristics

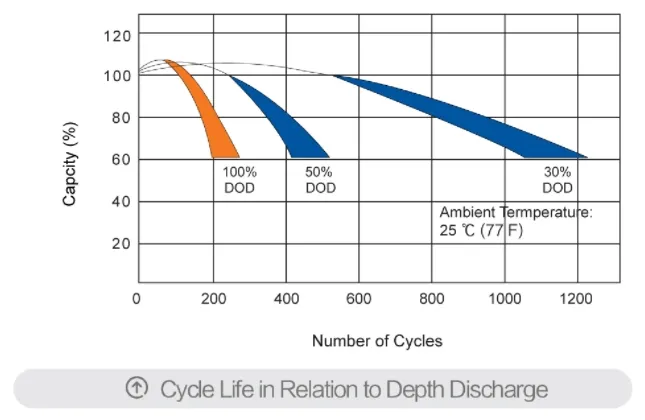

Cycle Life vs Depth of Discharge

Cycle Life Relation to Discharge

Wide Range of Applications
Battery Application Scenarios

This SLA Battery supplies power for UPS, Emergency lighting, Electric tools, Power stations, Kids' cars, Electronic scales, Transportation, and Security/Network communication systems.

Model Selection Guide
Model Voltage (V) Rated Capacity (AH) Length (mm) Width (mm) Height (mm) Weight (kgs)
JIA-12-7.012715165942.1
JIA-12-2412241661751257.4
JIA-12-65126535116517820.08
JIA-12-1001210032817221429.5
JIA-12-1501215048317124141.6
JIA-12-2001220052224021959.5
Manufacturing and Quality
OEM ODM Capacity
Certifications

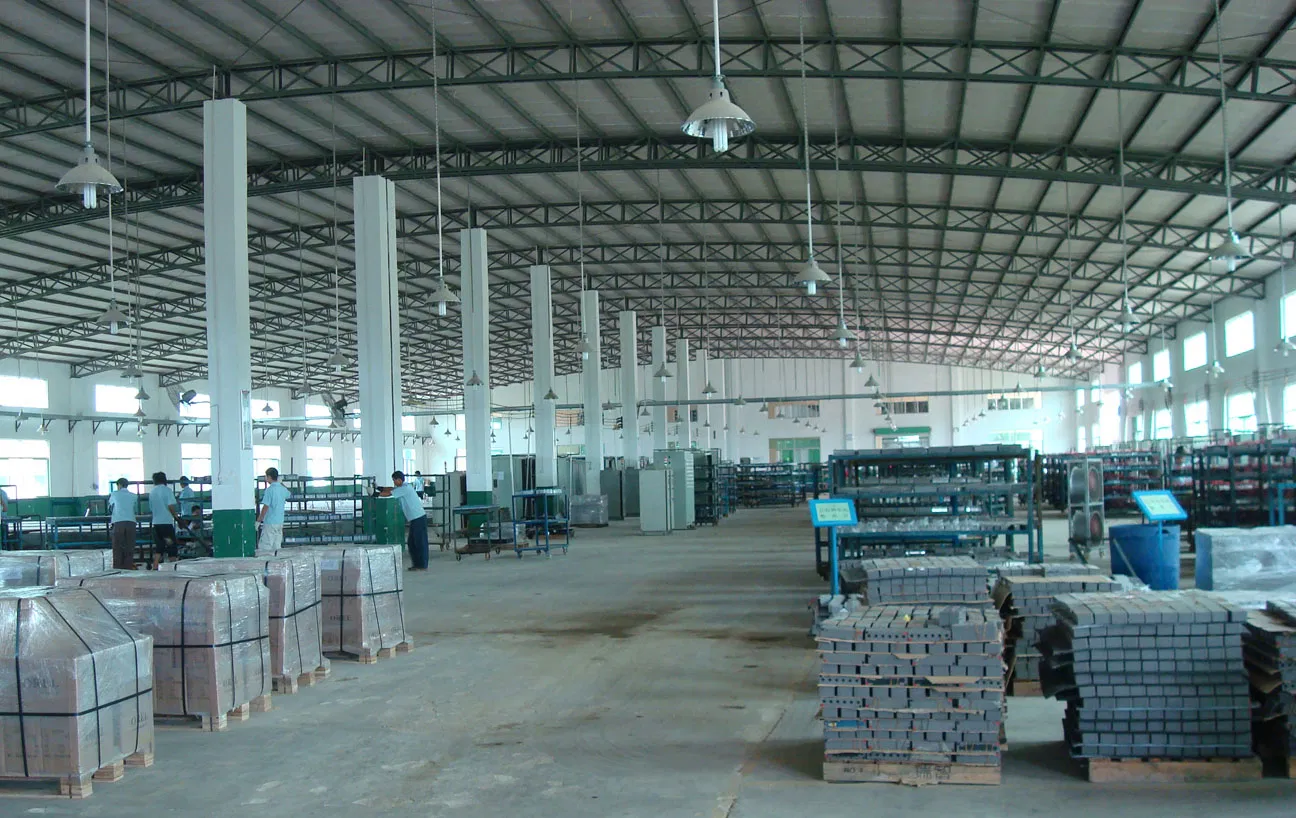

Established in 2013, covering an area of 19,980 square meters, our facility is a High and New Technology Enterprise owning more than 30 patents. We specialize in the research, development, and production of Lithium and Lead Acid batteries, serving over 90 countries worldwide.
Packing & Delivery
Packing and Shipping Process
Frequently Asked Questions
Is this 12V 200Ah battery maintenance-free?
Yes, it features a negative absorption type hermetically-sealed construction, which means there is no need to add distilled water or electrolyte throughout its service life.
What are the primary applications for this battery?
It is ideal for UPS systems, solar power storage, emergency lighting, power backup supplies, electric tools, and network communication systems.
How should the battery be stored when not in use?
It should be stored in a cool, dry place (10~35℃). Since lead-acid batteries naturally self-discharge, it is recommended to recharge the series every 6 months during storage.
What is the advantage of the AGM technology used?
Advanced AGM (Absorbent Glass Mat) separators absorb the electrolyte fully, preventing spills and allowing the battery to be placed in any position without leakage.
Does this battery handle high current discharge well?
Yes, it is specifically designed with low internal resistance and high-purity lead plates to support superior high-rate discharge performance and cycle characteristics.
What kind of outer casing does the battery use?
The battery utilizes a firm and weather-resistant ABS Engineering plastics shell, which provides excellent protection and durability in various environments.
