Product Description

Basic Information

Model NO.

SUN500KW3-ESS

Nominal Voltage

208/220/400/480V 3phase

Warranty

10 Years

Nominal Capacity

500kwh - 3mwh (Customizable)

Cycle Life

8000+ Times Lithium Battery

Certification

ISO, CB, CE, TUV, UN38.3

Protection Degree

IP65 / IP54

Application

Industrial / Commercial / Factory

⚙

Product Description

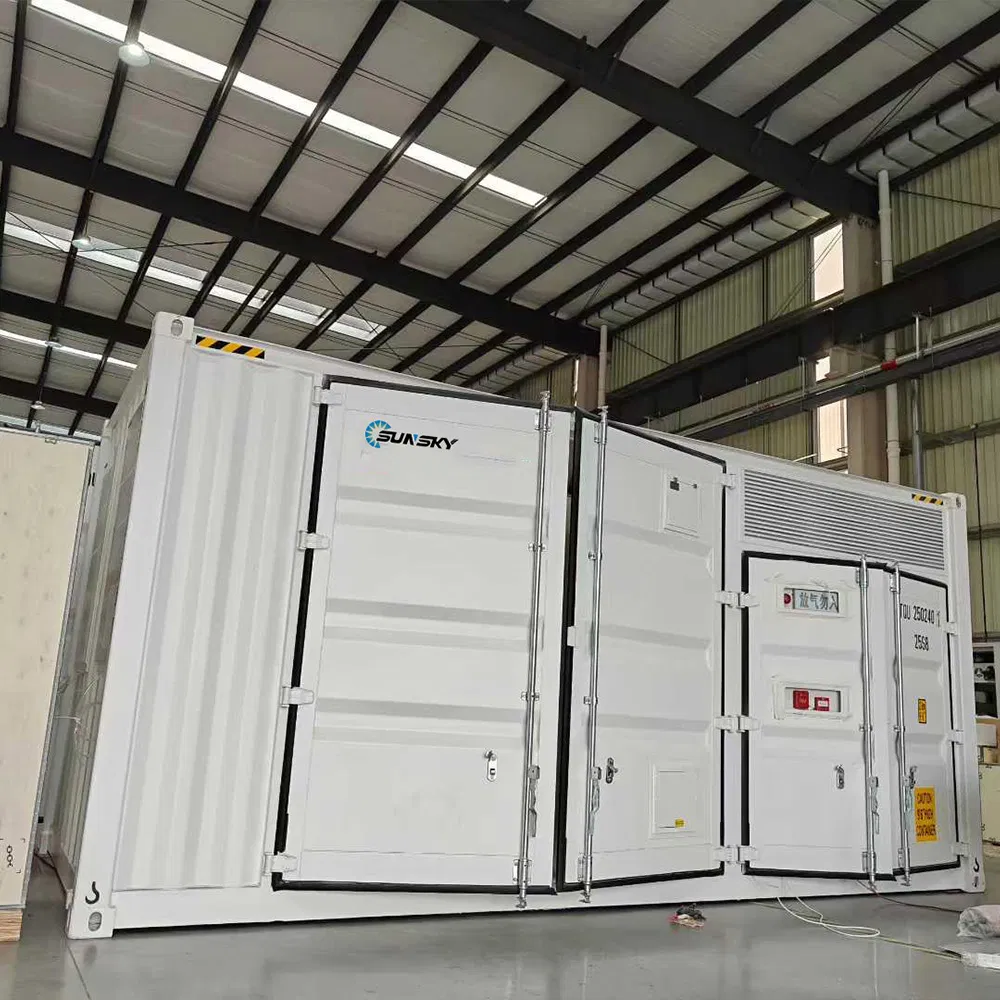

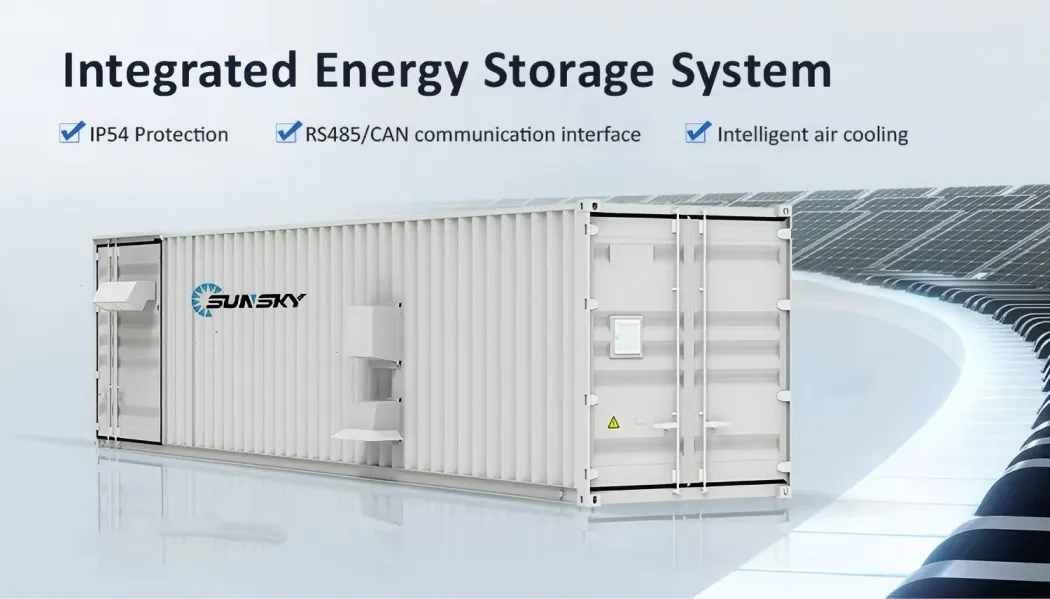

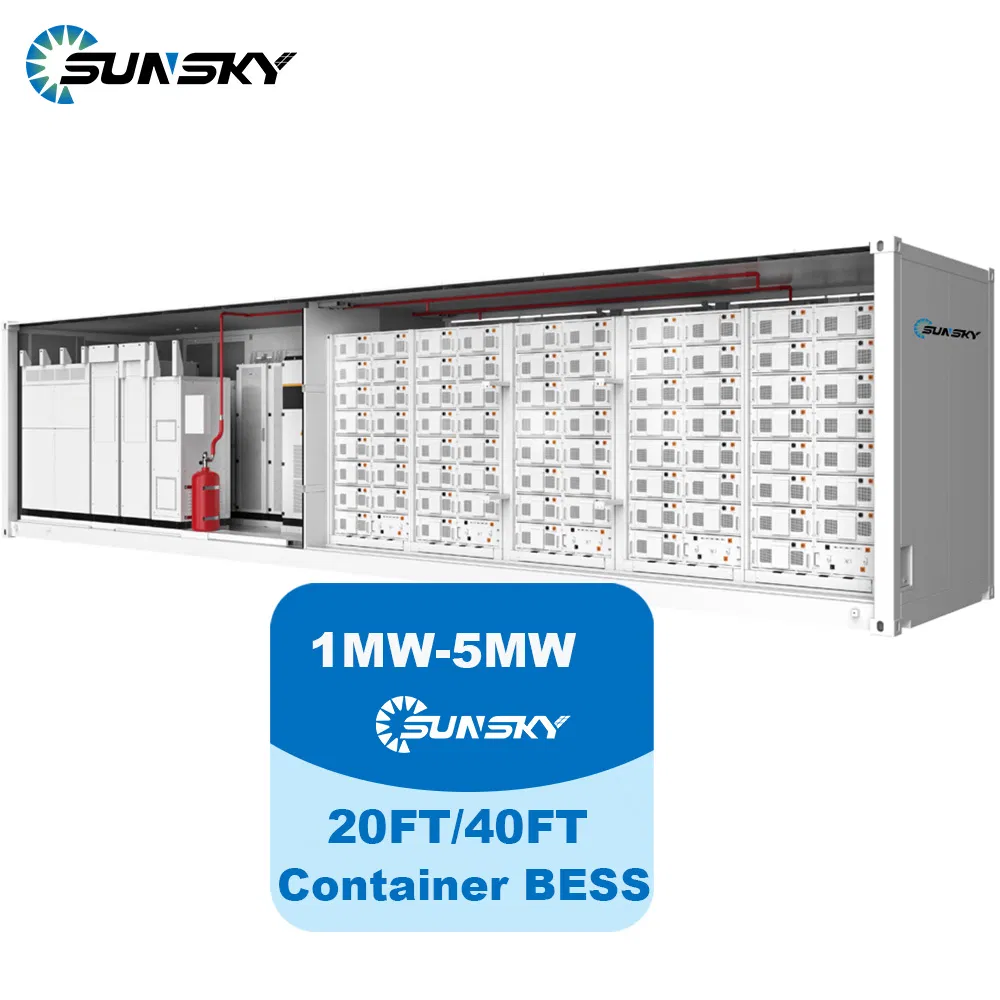

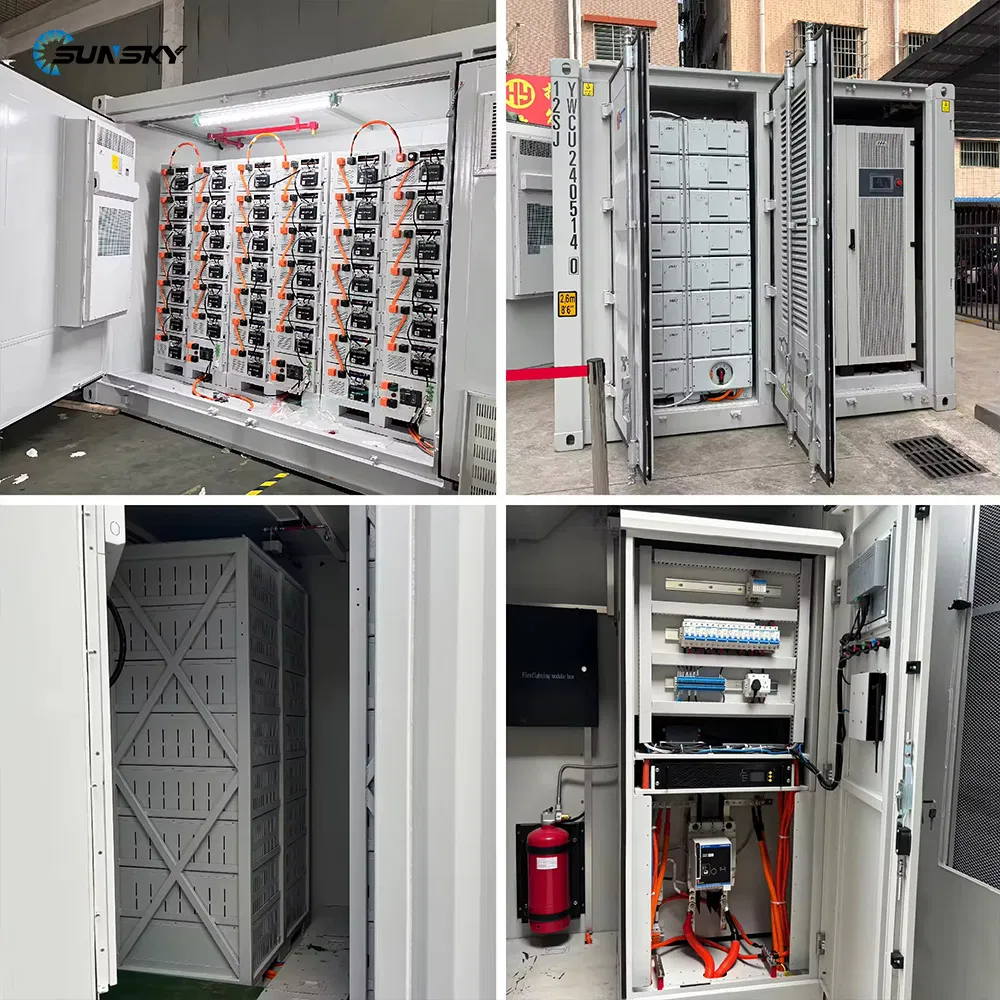

Our 20-ft and 40HQ liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire safety systems into one robust cabinet. Liquid cooling empowers higher power density and ensures a temperature difference between cells within 3ºC, effectively extending battery life and improving energy efficiency. This system is suitable for power generation, grid-side stability, and large-scale commercial storage.

📊

Product Parameters

Specifications	0.5MW/1MWh (20FT)	1MW/2MWh (40FT)
Cell Type	3.2V/280Ah/LFP
Cell Life Cycle	>8,000 Cycles @ 25°C
Total Rated Energy	1003.52kWh	2007.04kWh
Rated AC Power	1*500kW	2*500kW
Max. PV Power	1*600kW	2*600kW
Rated AC Voltage	380V / 400V / 220V / 480V
Isolation Method	3 Phase 4 Line Transformer
Dimension (LWH)	605825912438mm	1211624382896mm
Operating Temp.	-20~65°C
Fire Extinguisher	HFC bottle group

✔

Key Features

High Efficiency Solar Panels

Efficiency up to 22.84%. SMBB + Half-cell technology reduces internal current loss and minimizes micro-crack impacts. Lower temperature coefficient (-0.29%/ºC) for better performance in hot climates.

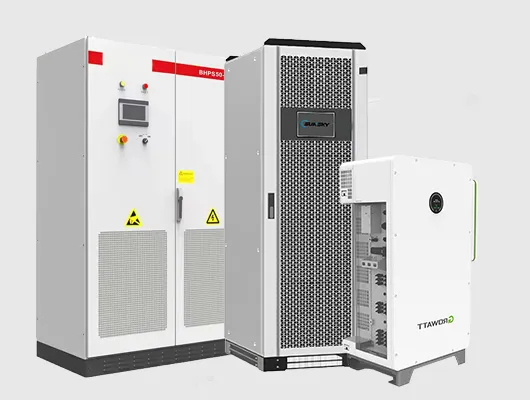

All-In-One Hybrid Inverter

Intelligent IC control with multiple protection functions. Pure sine wave output. Integrated aluminum alloy shell for durability. Includes 10-year warranty coverage.

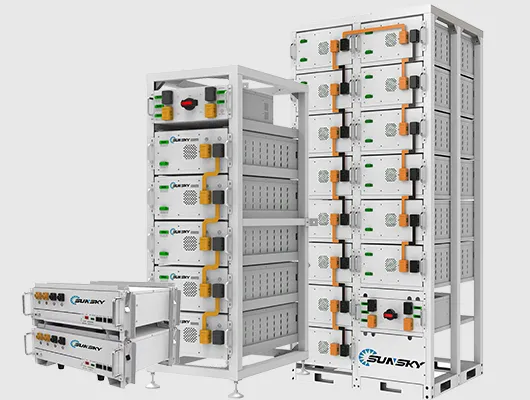

Standardized Battery Bank

Modular design consisting of 16 units of 3.2V cells. Custom energy storage ranging from kWh to MWh scales. 80% DOD ensures long-term operational stability.

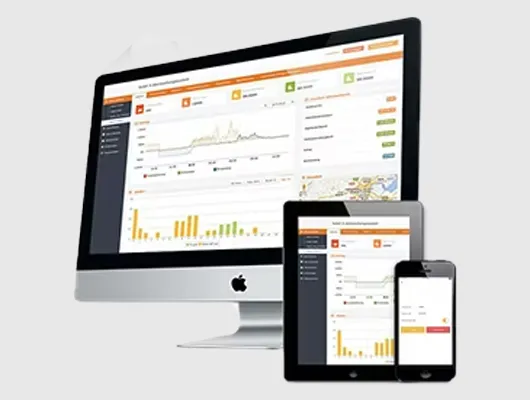

Online Monitoring System

Supports one-click installation and registration. Real-time data storage ensures security and reliability with traceable logs for the full system lifecycle.

🏭

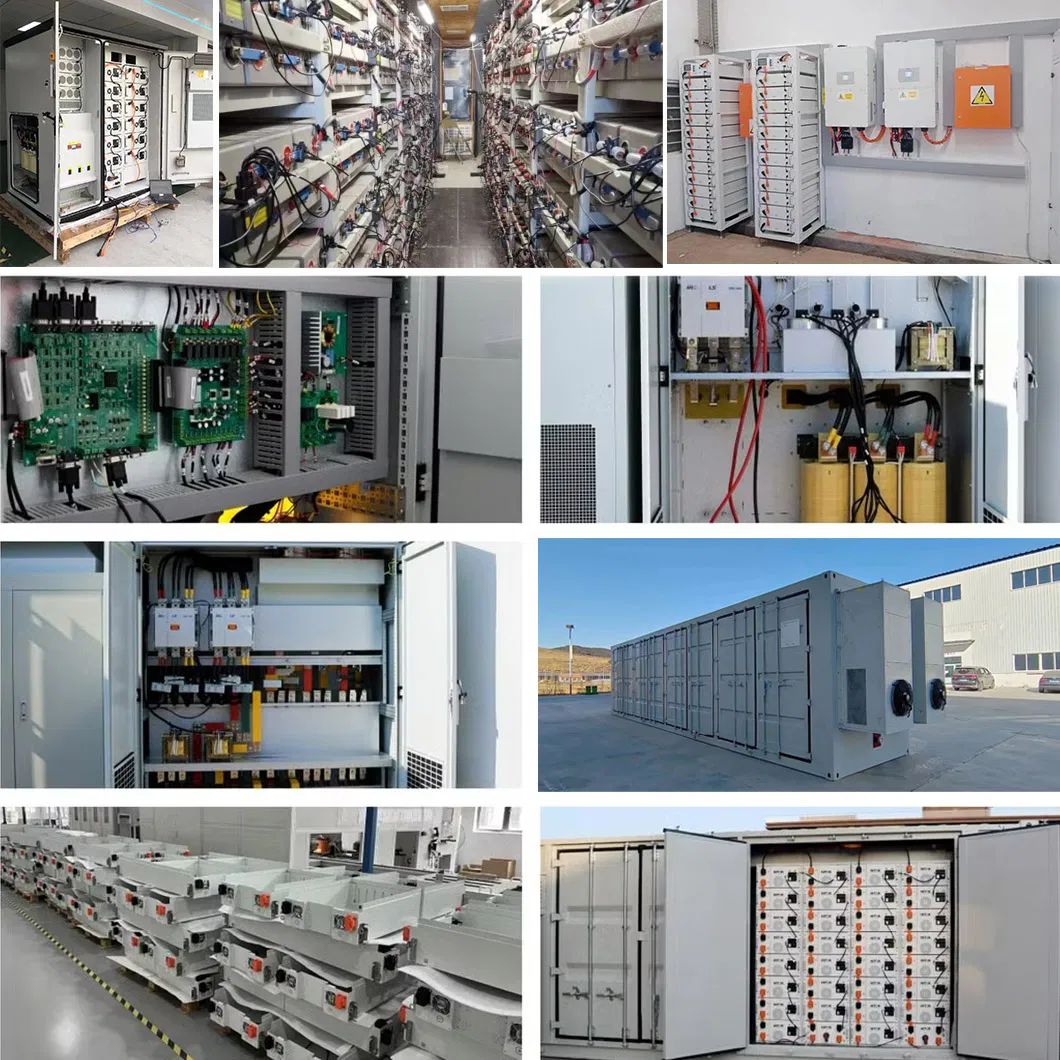

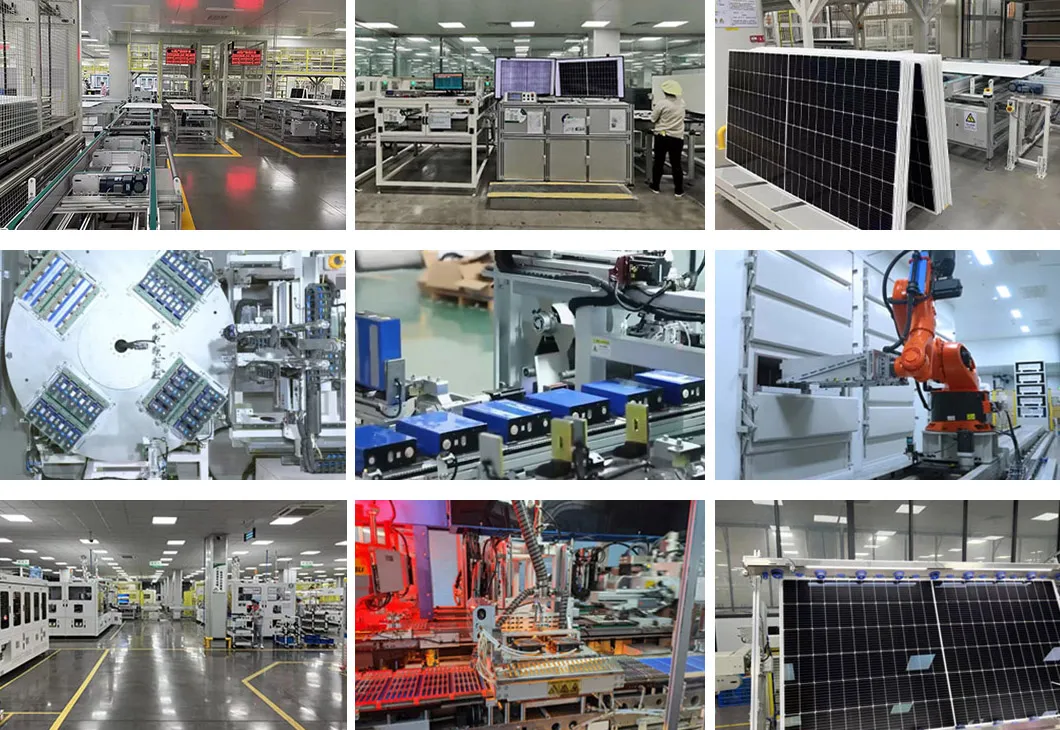

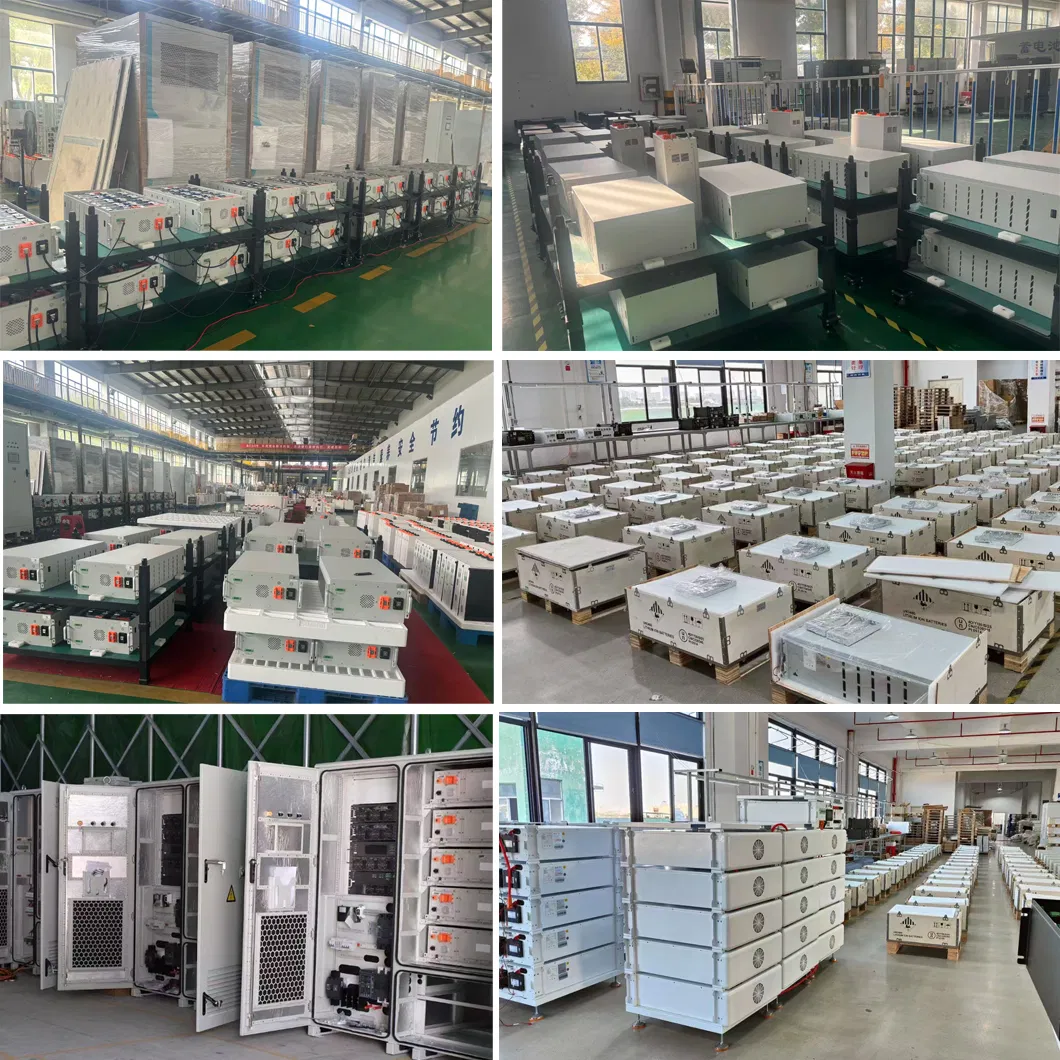

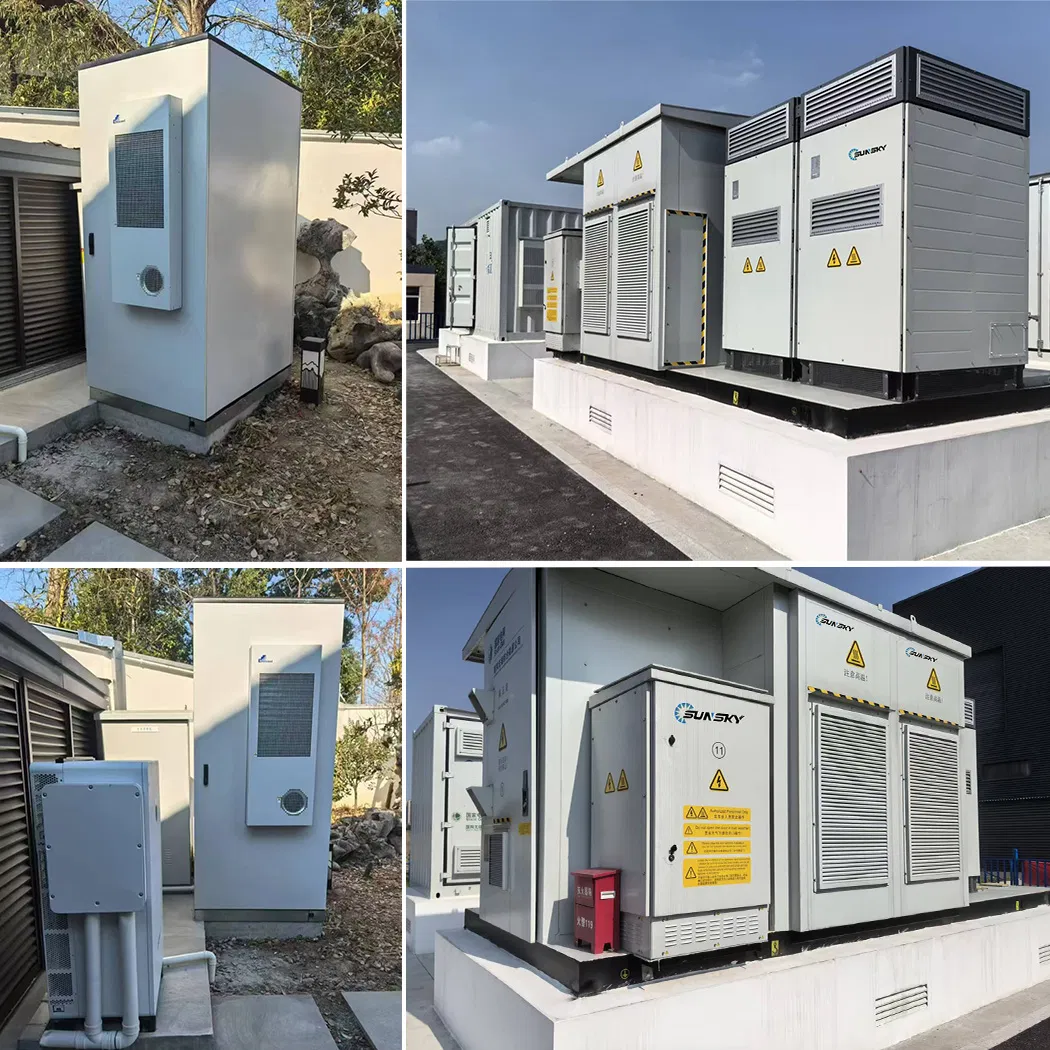

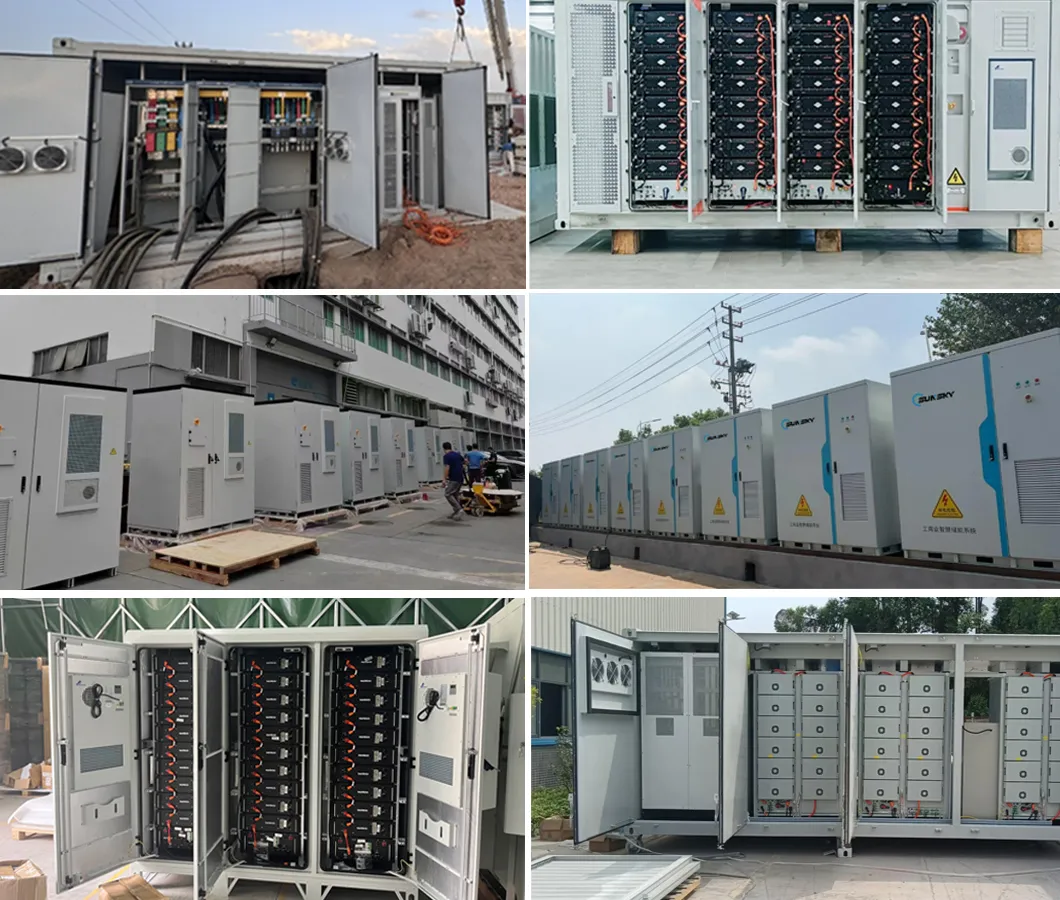

Factory & Projects

⭐

Our Advantages

Factory Direct: Competitive pricing from our own manufacturing facilities.
Expert Support: Professional technical team for optimized system design.
Service Excellence: 24-hour online technical guidance and dedicated after-sales support.
Quality Assurance: 10 to 30 years of quality guarantee on core components.

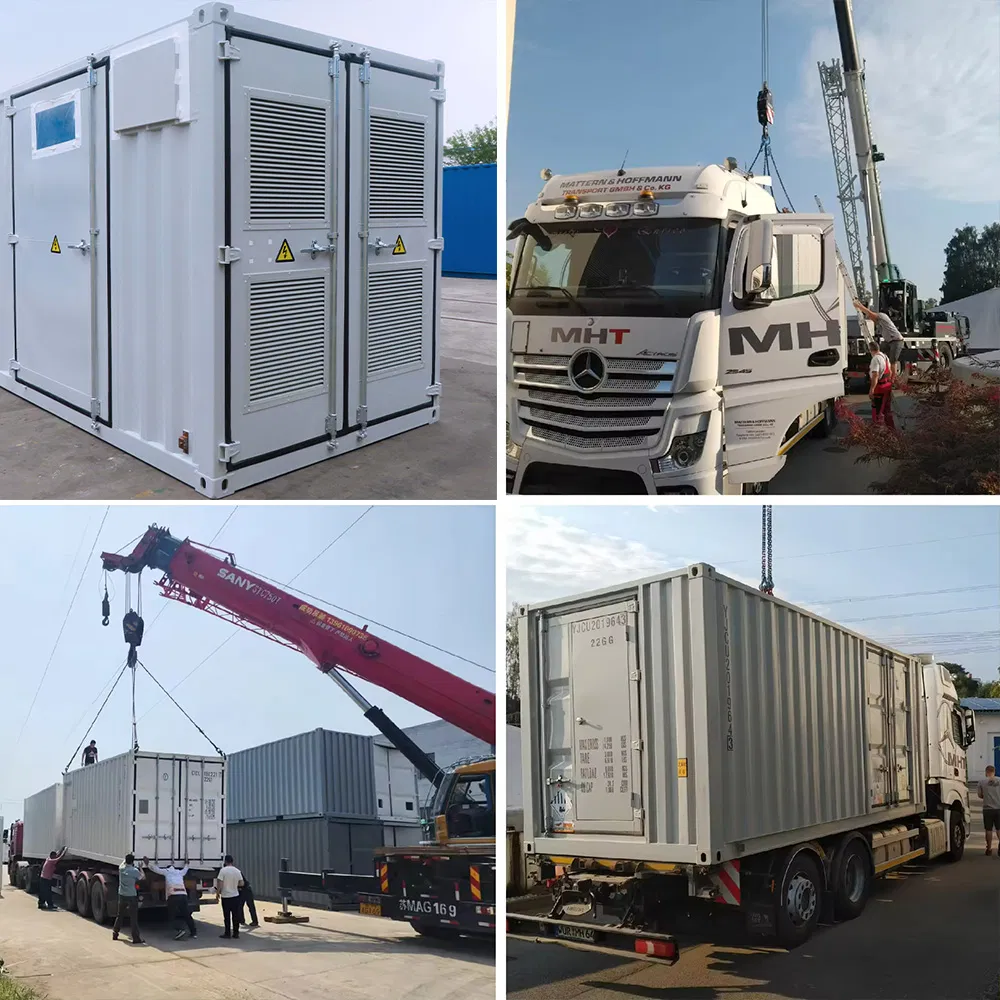

Integrated Design: Easy to transport, install, and deploy flexibly for various scenarios.

Frequently Asked Questions

How does DC coupling optimize large-scale renewable energy systems?

DC coupling allows captured solar energy to be stored directly with minimal conversion losses. This ensures a greater portion of power is available for on-site use or grid dispatch, enhancing overall sustainability and ROI.

What role does the Power Conversion System (PCS) play in the container?

The PCS acts as a high-power, bidirectional inverter. it converts DC from solar panels and batteries into AC for use, replacing the need for separate inverters and streamlining the entire infrastructure.

Why is DC coupling more efficient for energy storage projects?

It avoids multiple DC-AC-DC conversion steps. Since solar energy can directly charge the batteries in DC form, energy losses are significantly reduced compared to AC-coupled systems.

What are the main benefits of on/off-grid large-scale storage?

Key benefits include a simplified system layout, fewer components, reduced balance of system (BOS) costs, and seamless integration for both grid-tied and remote off-grid applications.

What safety measures are integrated into the ESS container?

The containers feature separated electrical and battery compartments to prevent thermal runaway spread, integrated HVAC for thermal management, and HFC-based fire suppression systems.

Can the capacity of the storage system be customized?

Yes, the system is highly modular. We offer standard 20FT and 40FT containers, but the total energy capacity can be customized from kWh up to GWh scales based on client requirements.
