| Model NO. | HT-1000/2150-EC |
| Nominal Voltage | 380/400/415/480V 3 Phase |
| Warranty | 5 Years |
| Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Cycle Life | 6000+Cycles |
| System Application | Ess Solar Storage Container |
| Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
| Battery Type | LiFePO4/Lithium Battery/Gel Battery |
| Dod | 0.5/1c@80% |
| BMS | Integrated Battery Management System |
| Rated Capacity | 250kw/500kwh, 500kw/1mwh |
| Output Voltage | 380V/400/480V, 208V/230V/240V 3phase |
| Output Frequency | 50/60Hz |
| Feature | Industrial Storage System |
| Product Name | Inverter Solar Containerized Battery Energy Storage |
| Package Size | 232.00cm * 122.00cm * 15.00cm |
| Package Gross Weight | 1255.000kg |
| Transport Package | Container |

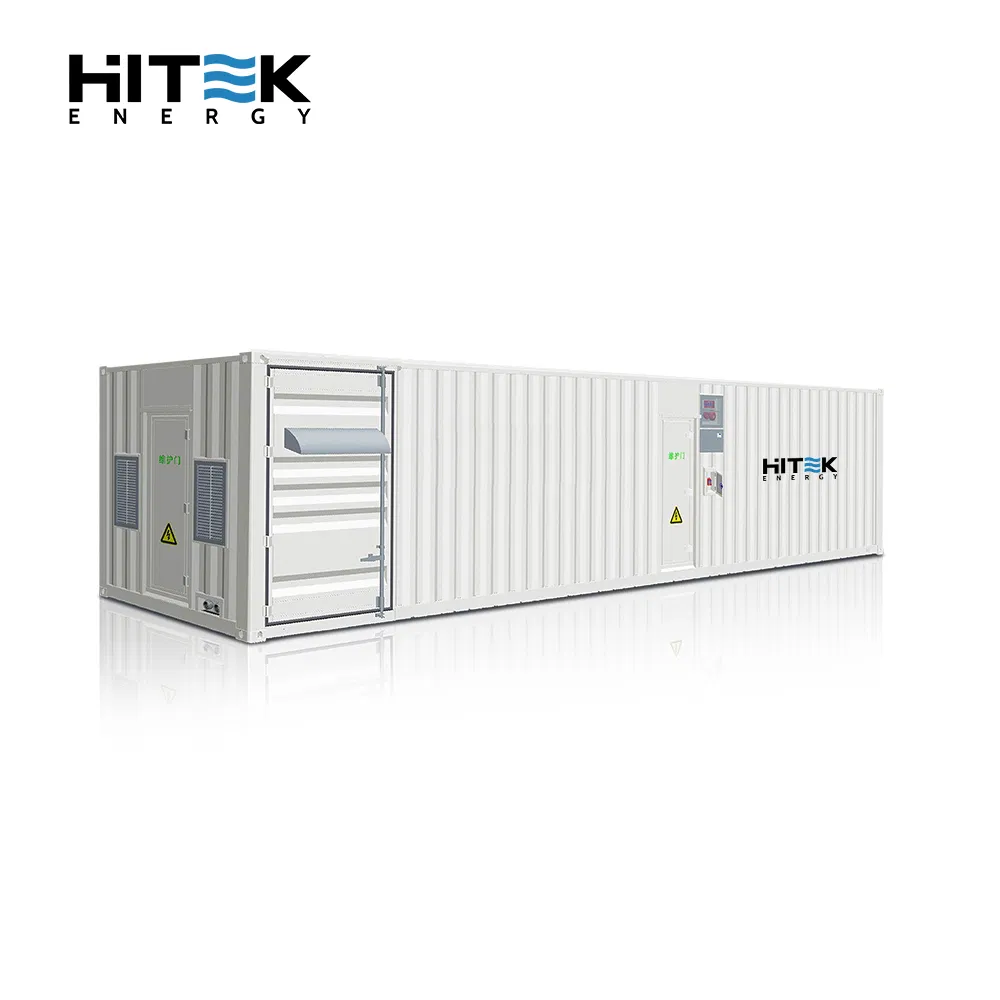

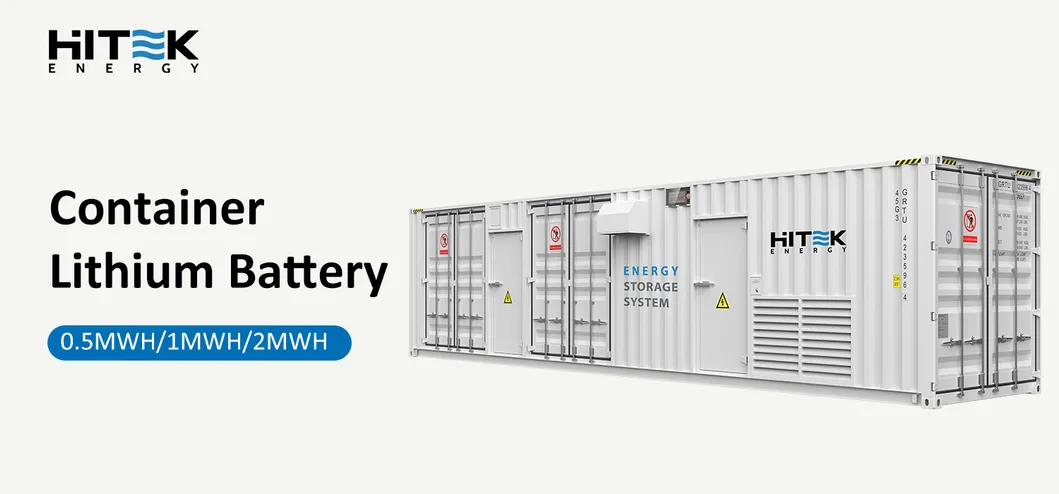

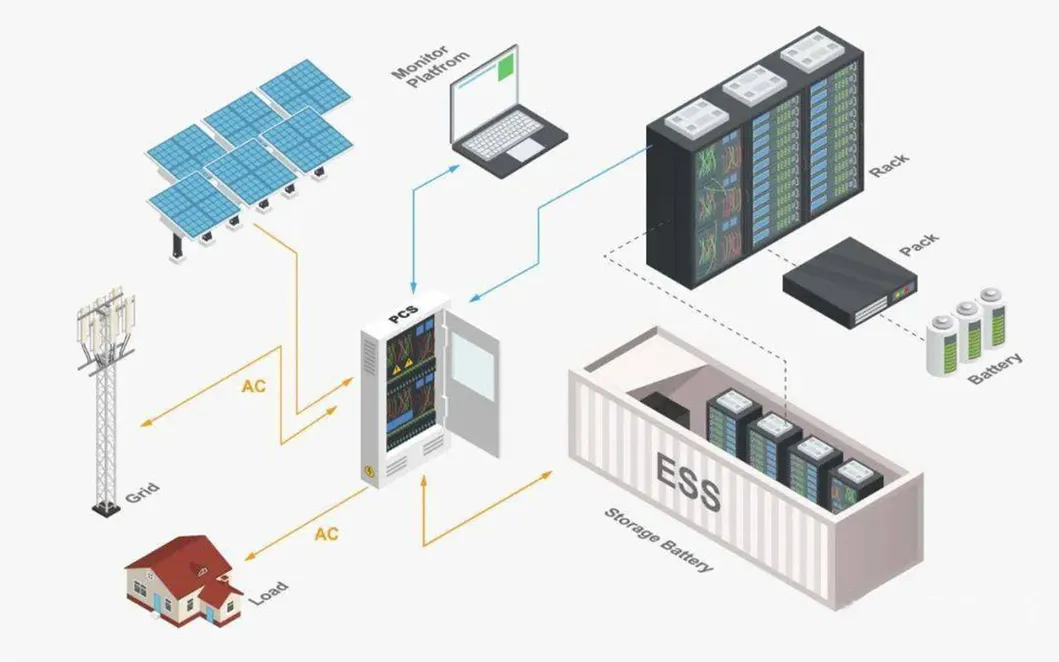

Main Features of Energy Storage Container System
Supports Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving), Offgrid Mode, and optional Generator Connection.
Comprehensive battery status monitoring: Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing, and Protection Alarms.
Wide DC input voltage range, suitable for indoor/outdoor installation, and ultra-short conversion time from charge to discharge.
Integrated Fire Protection System and intelligent Air Conditioning System for thermal management.

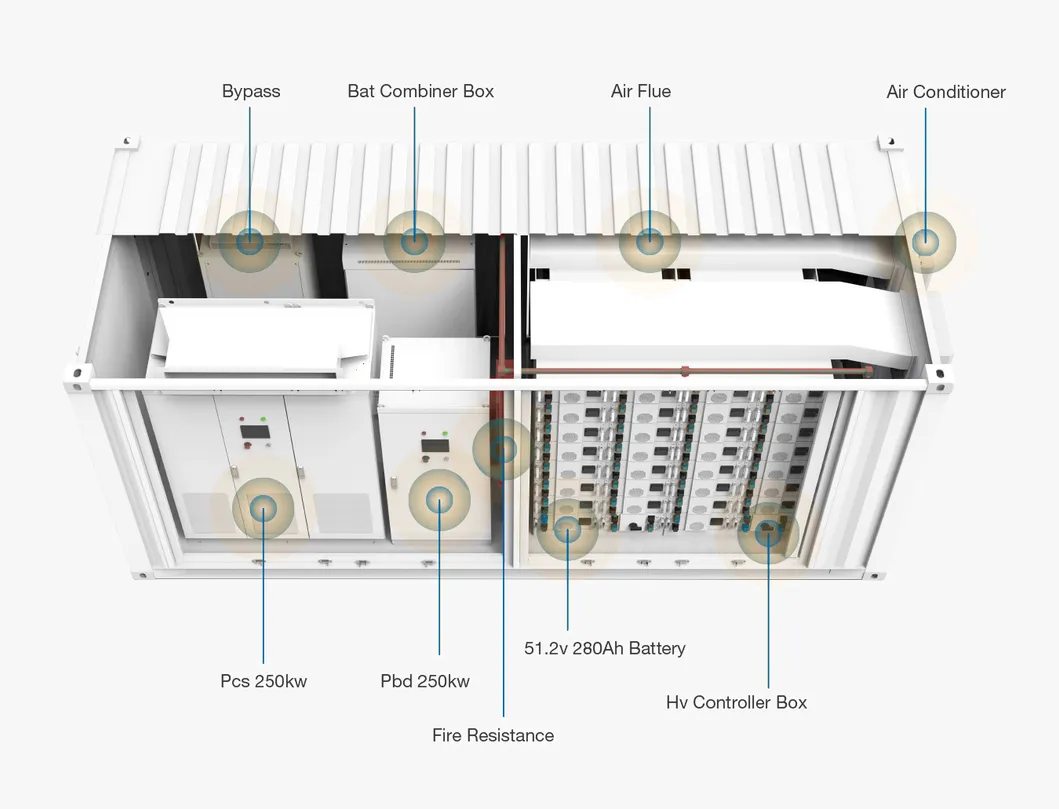

| ESS Lithium Energy Storage Container Specification | |||
|---|---|---|---|
| Item | Description | Qty (pcs) | Remarks |
| PV Solar Panel | HT560M-72H | 960 | 537.6KW total (12 pcs/string) |
| Battery Backup | 280Ah Lithium Module | 150 | 51.2V 280AH (14.3kWh per module) |
| Combiner Box | 1500V-1500A | 1 | For multiple battery racks |
| Controller | 1500V 300A | 15 | High Voltage Controller Box |
| PCS500 | Inverter | 1 | 250kW battery inverter |

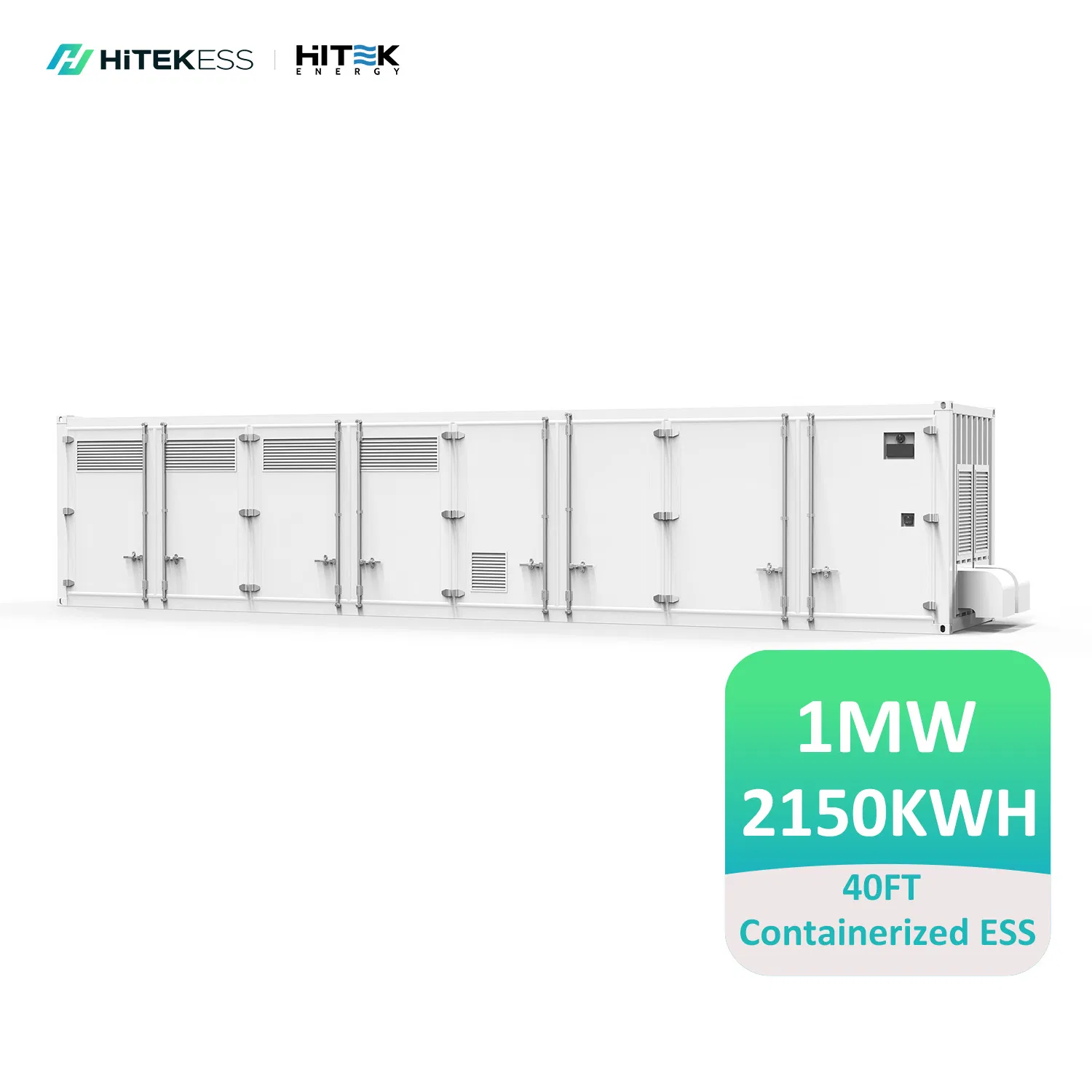

| Container | 20FT / 40FT | 1 | IP54, Lighting, Fire-resistance, AC |
PERC Mono Solar Panel
Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

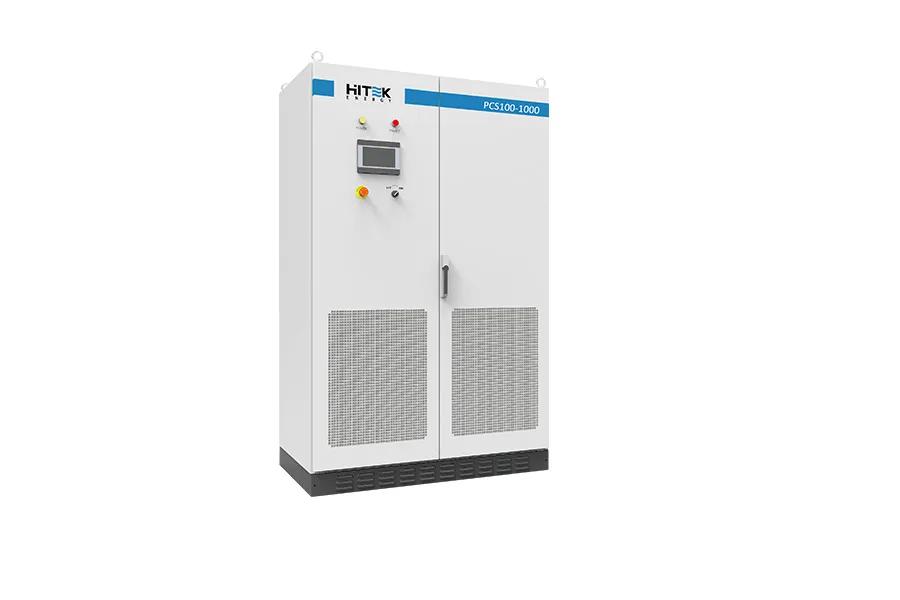

Bidirectional PCS (100-1000KW)
Flexible configuration with programmable working modes. Supports remote control and features a touchscreen LCD. Can be used alone or in parallel.

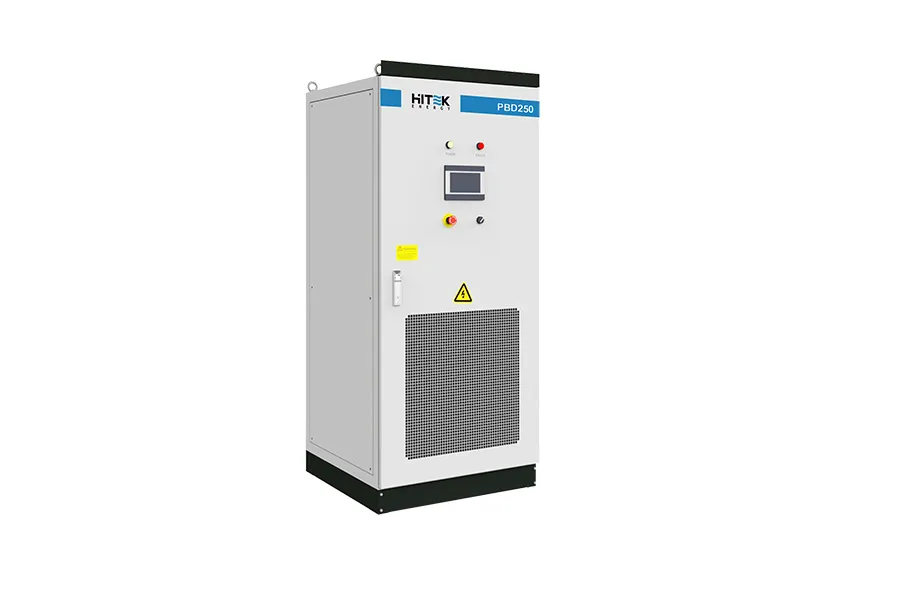

PBD 250KW Solar Charge Controller
1000V level DC to DC controller. Modular design with up to 5 MPPTs. Parallelable for large-scale solar projects.

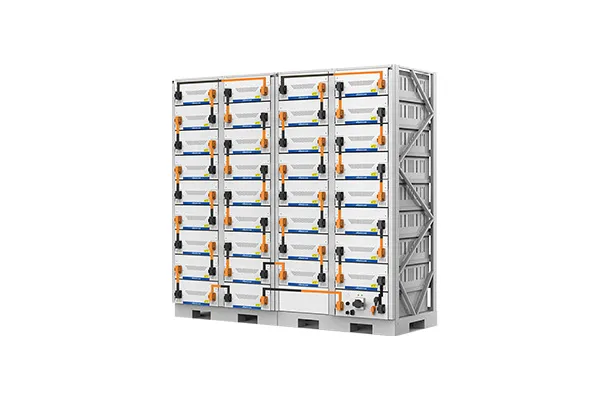

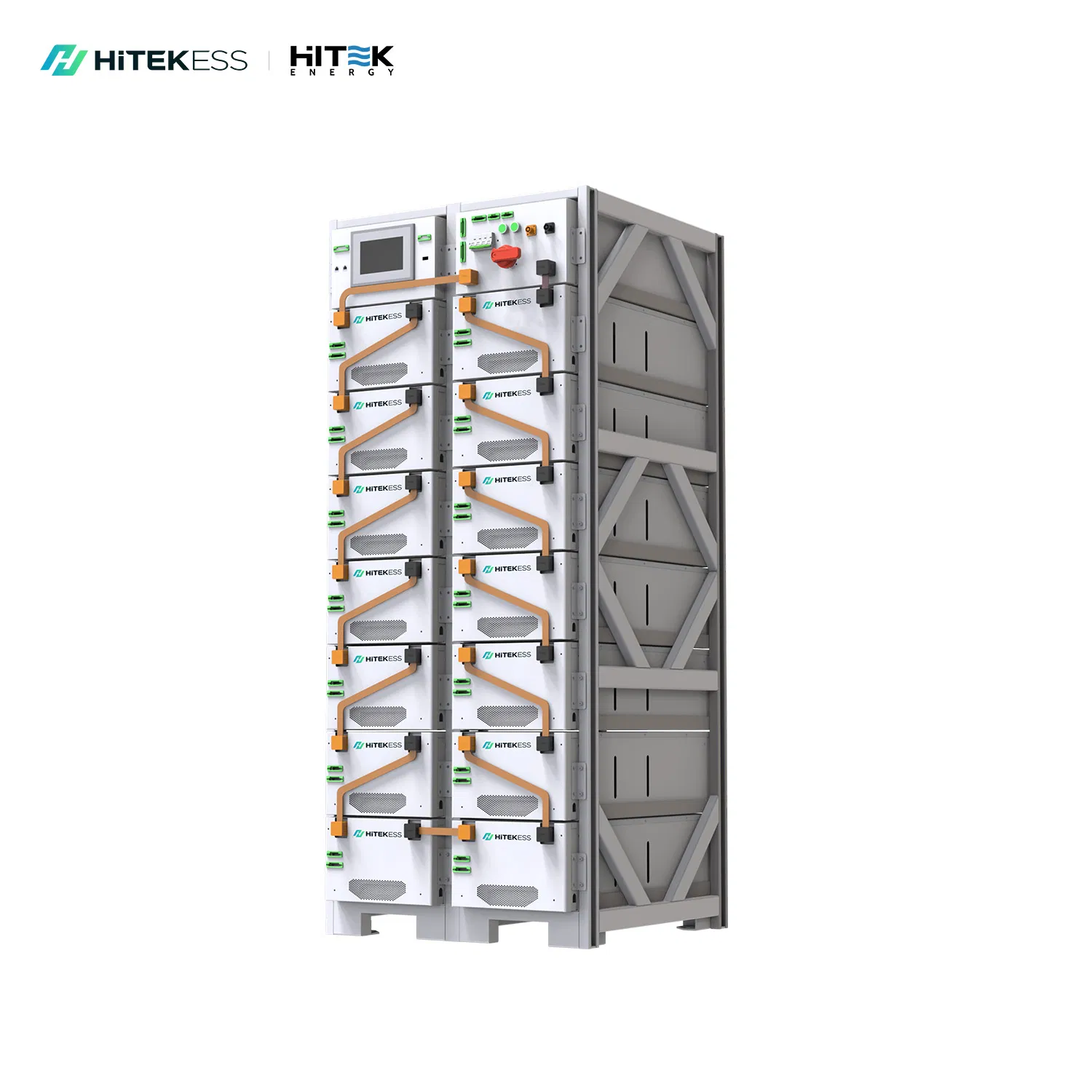

Storage Battery Bank
Standard modules consisting of 150 single cells. 51.2V nominal voltage, delivering 1720kWh at 80% DOD.
