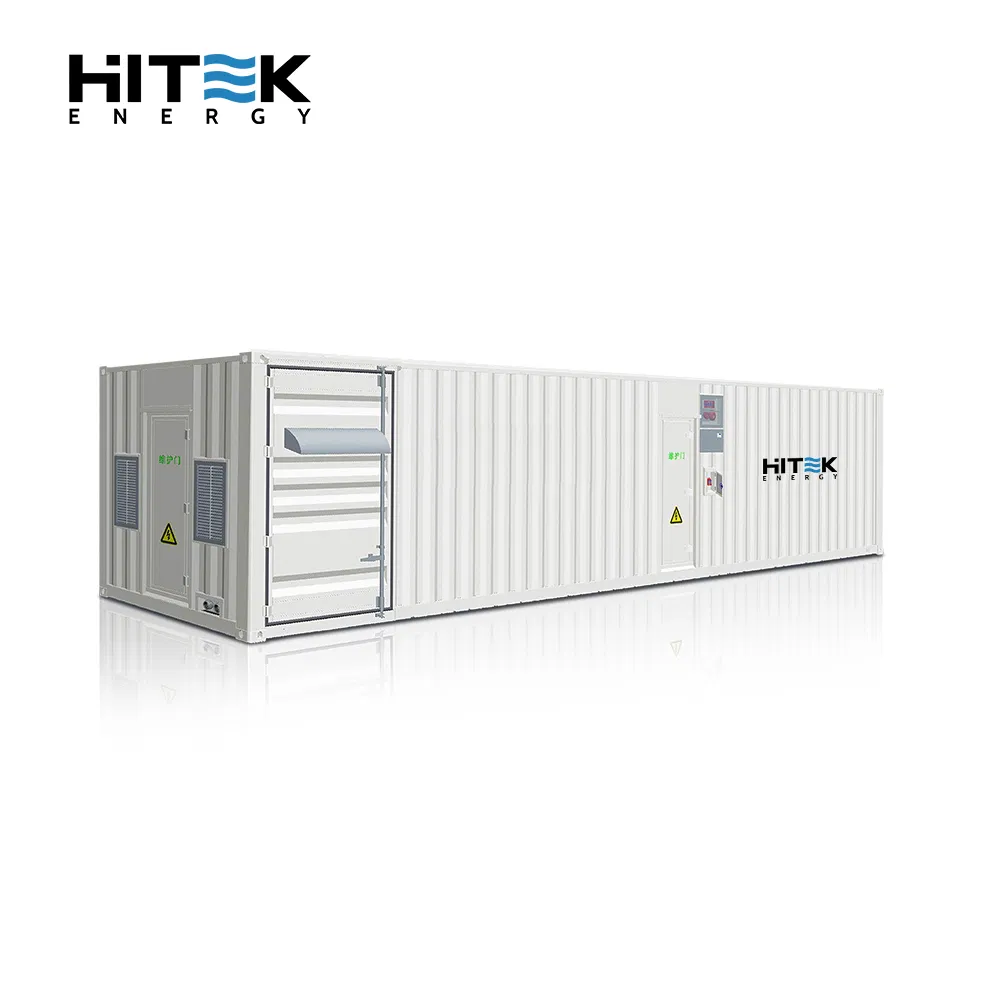

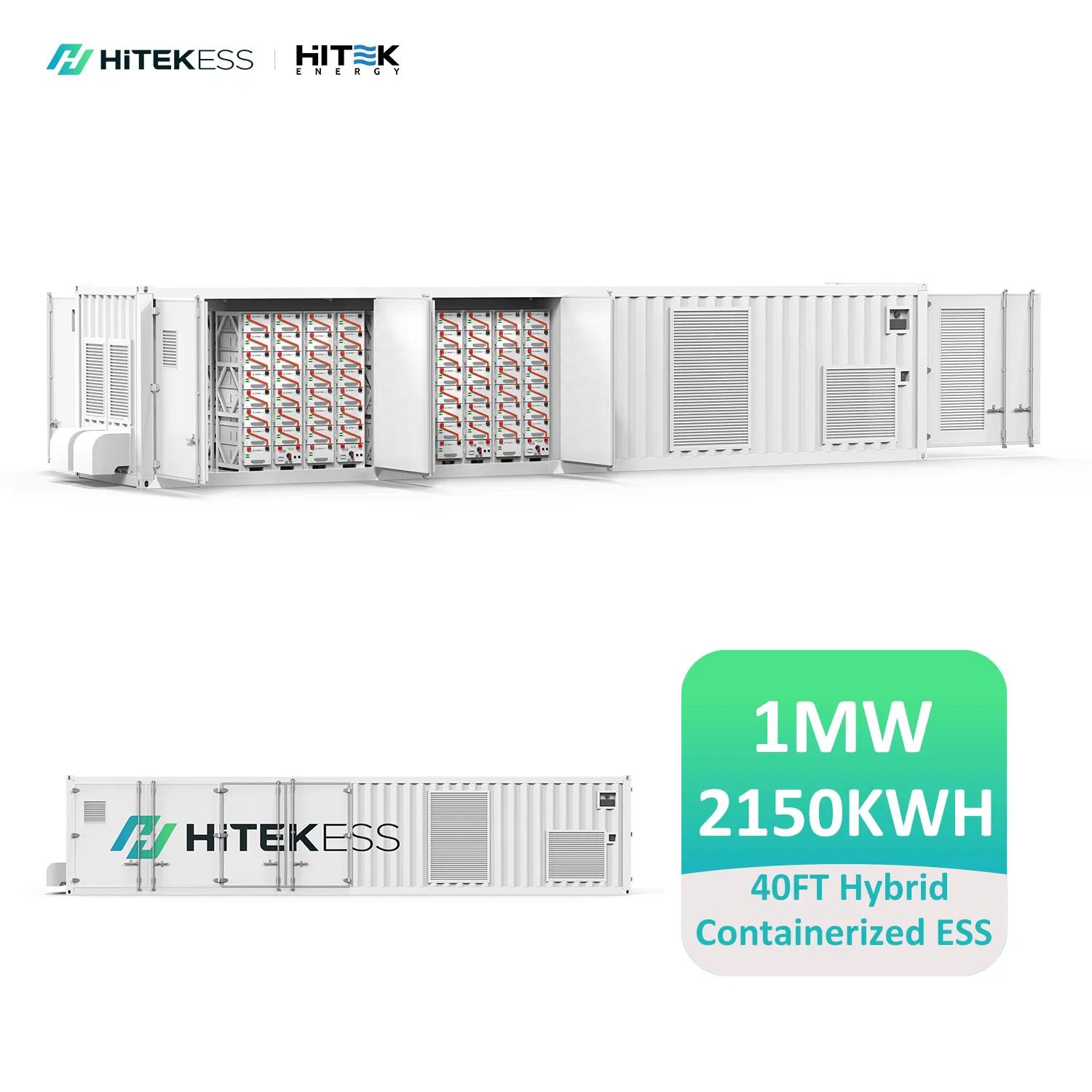

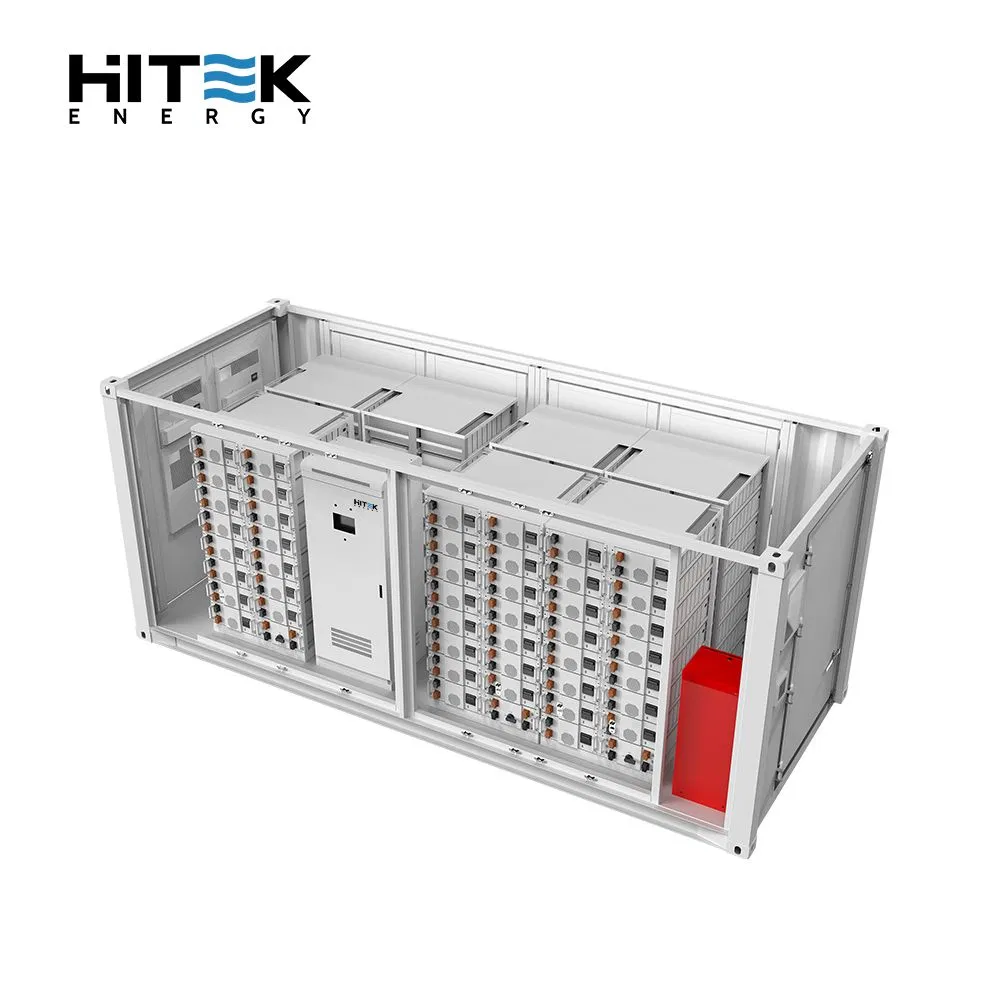

Hitek Energy 1MW-10MW Smart Industrial Commercial Energy Storage System Smart EMS PCS 40FT on & off Grid Hybrid 500kw 1MW 2mwh Solar System Connection

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

Basic Information Overview

Model NO.:HT-500/2000-EC

Nominal Voltage:380/400/415/480V 3 Phase

Warranty:5 Years

Nominal Capacity:250kwh, 500kwh, 1mwh, 2mwh

Cycle Life:6000+ Cycles

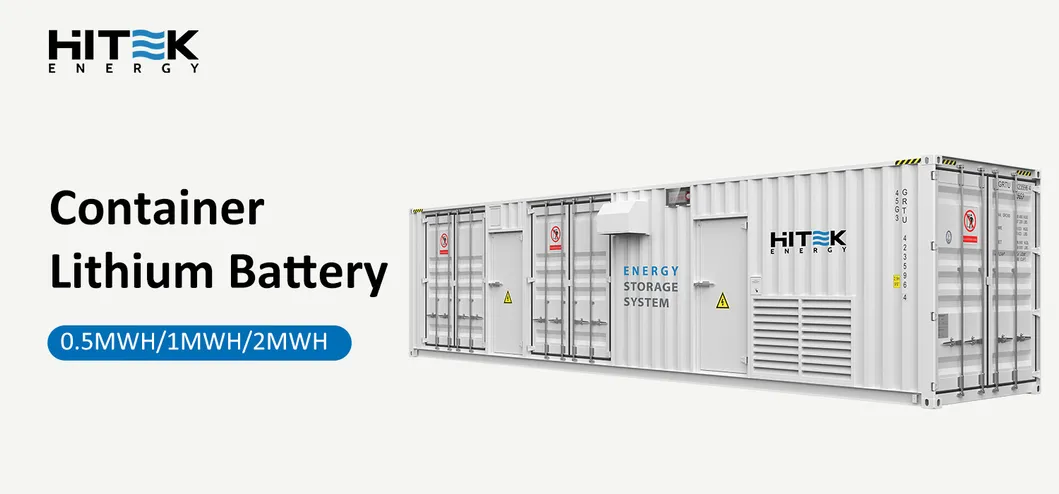

System Application:ESS Solar Storage Container

Battery Type:LiFePO4/Lithium Battery/Gel Battery

BMS:Integrated Battery Management System

20FT Container:Outdoor Installation, IP54

Production Capacity:100 sets/Week

Product Description

Key Features of the Energy Storage System:

Working Mode: On-grid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Off-grid Mode; Generator Connection (Optional).
BMS Features: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing Management, Protection Alarms, Communication).
PCS Features: Wide Range of DC Input Voltage, Indoor/Outdoor Installation, Short Conversion Time of full Power from Charge to Discharge.
Safety: Integrated Fire Protection System.
Climate Control: Dedicated Air Conditioning System for optimal temperature management.

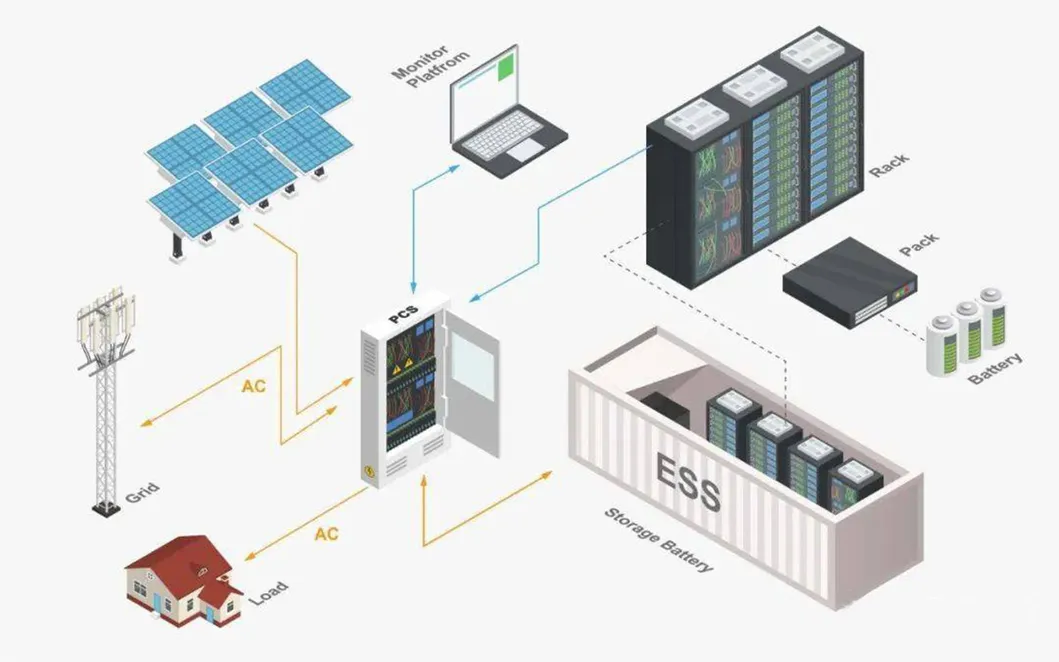

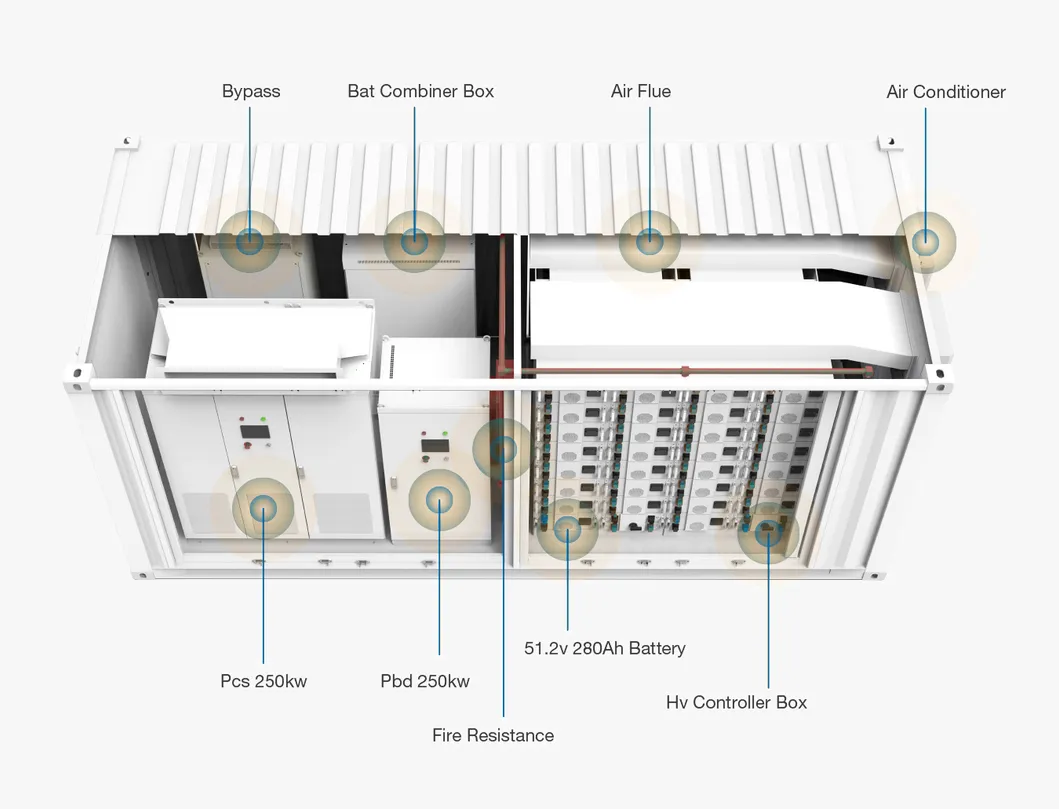

System Configuration

Item	Description	Quantity (pcs)	Remarks
PV Solar Panel	HT560M-72H	960	537.6KW total
Battery Backup	2150.4KWH	150 Modules	280Ah Lithium Modules
Combiner Box	1500V-1500A	1	For multiple racks
PBD250	Charge Controller	2	250kW solar charge controller
PCS500	Battery Inverter	1	250kW battery inverter
Bypass 500	Switching Gear	1	On-grid/off-grid transfer
20FT Container	IP54 Outdoor	1	Fire system, AC, racks included

Note: Systems can be configured according to specific energy needs. Custom solutions are available for industrial and commercial applications.

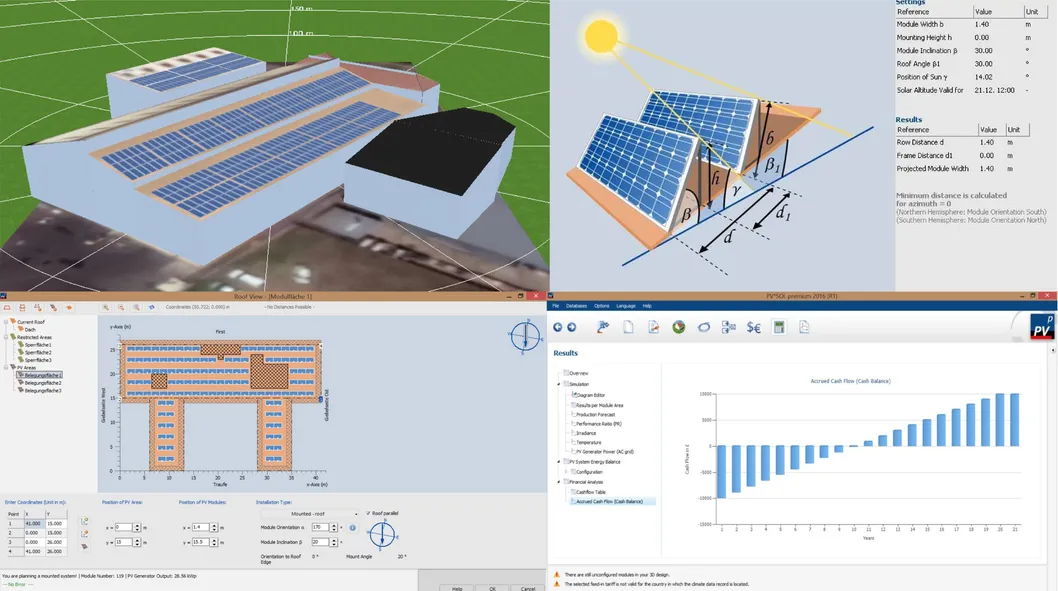

Complete Technical Support

Product Parameters

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84v | Isc: 14.14A
Vmp: 41.08v | Imp: 13.64A
Dimensions: 2279*1134*35mm
Weight: 28kg

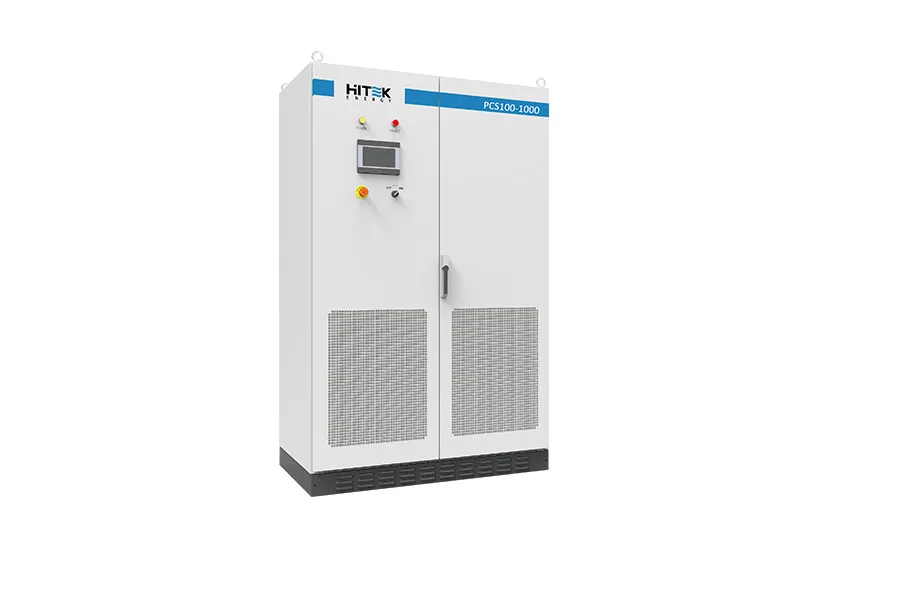

Bidirectional Inverter (PCS)

Range: 100-1000KW
Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen LCD interface for easy management.

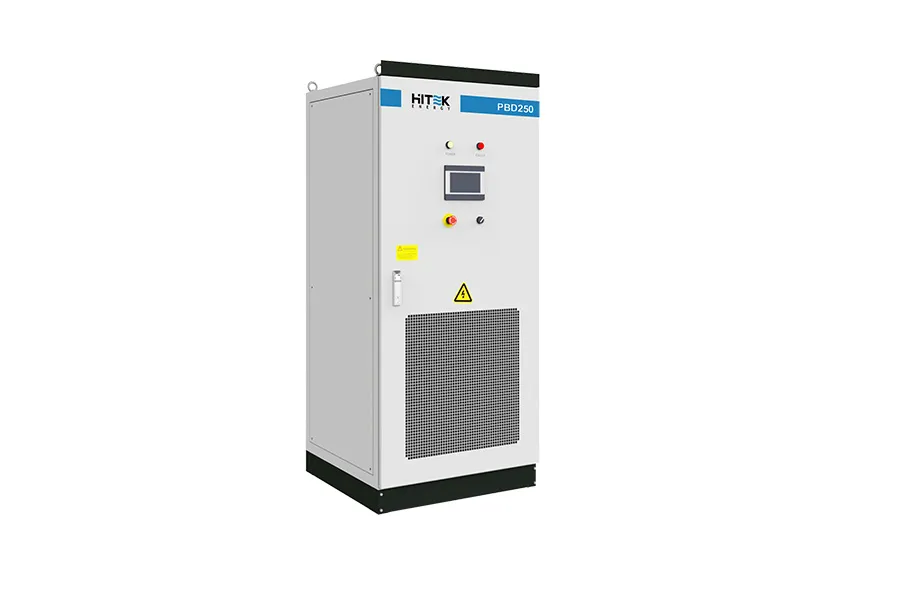

PBD 250KW Solar Charge Controller

1000V level DC to DC controller for large scale projects. Includes up to 5 MPPTs and a transformerless modular design.

Bypass Cabinet

Designed for seamless transfer between on-grid and off-grid modes automatically, ensuring continuous power supply.

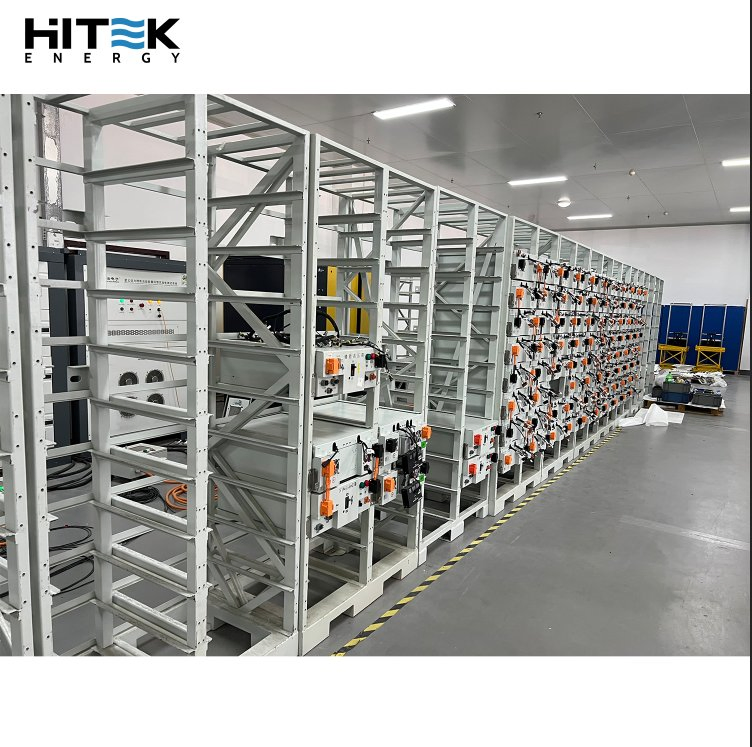

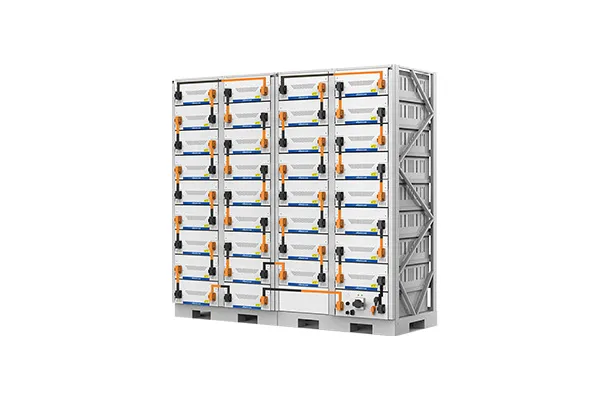

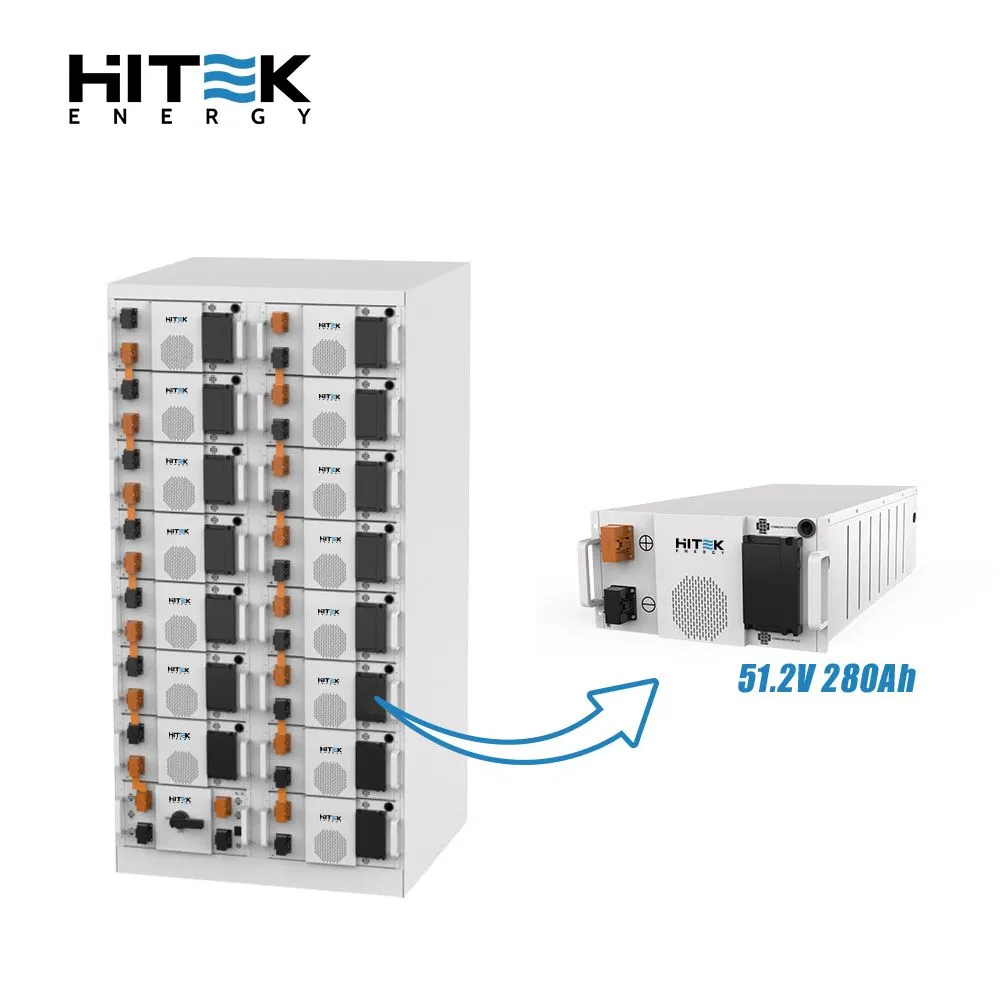

Storage Battery Bank

14.3kWh per unit, nominal voltage 51.2V. Total bank capacity reaches 1720kWh @ 80% DOD using high-efficiency cells.

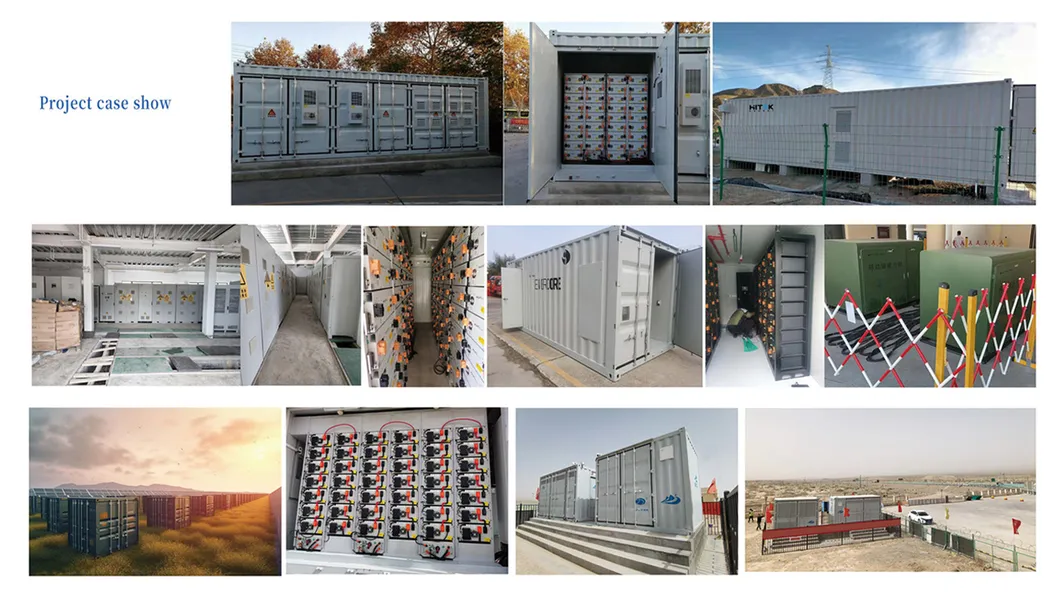

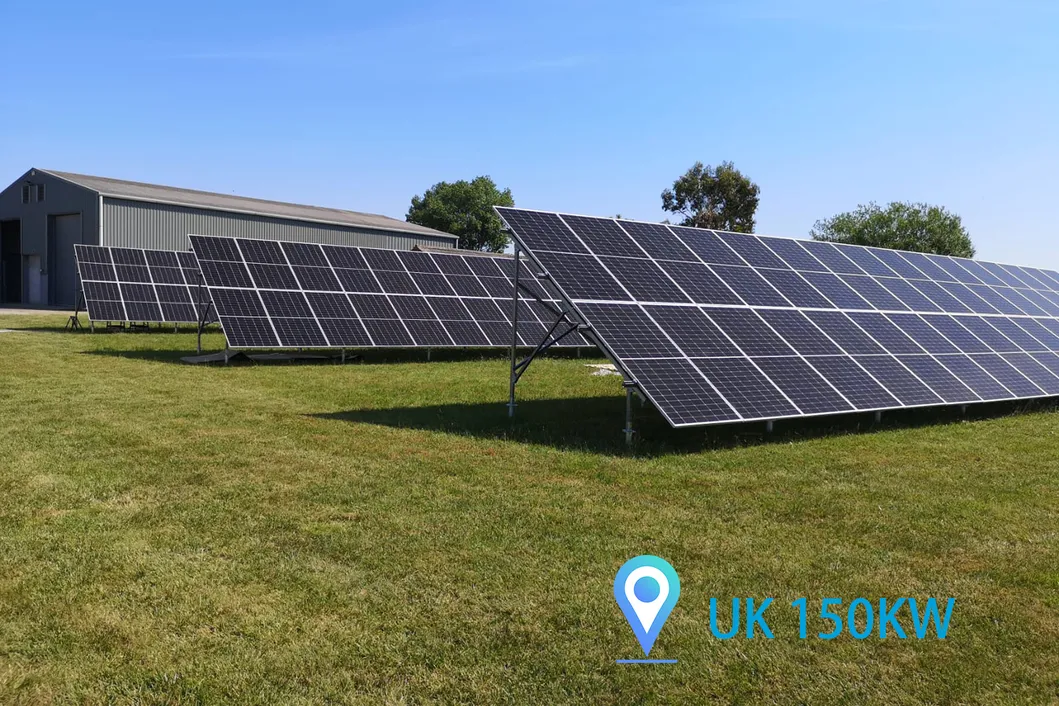

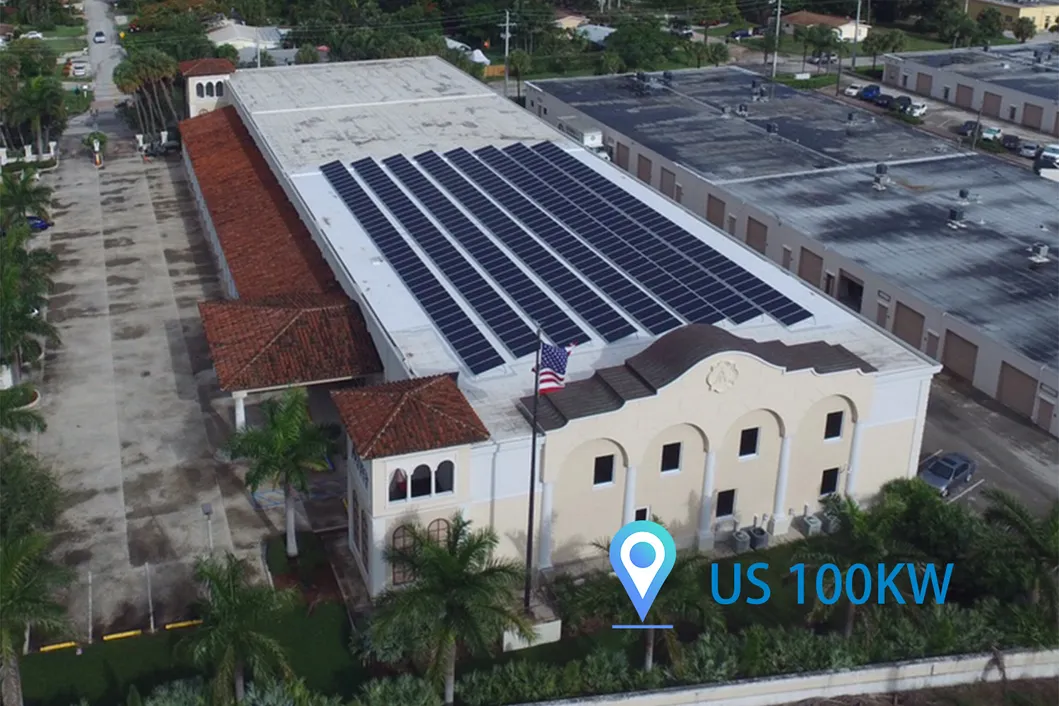

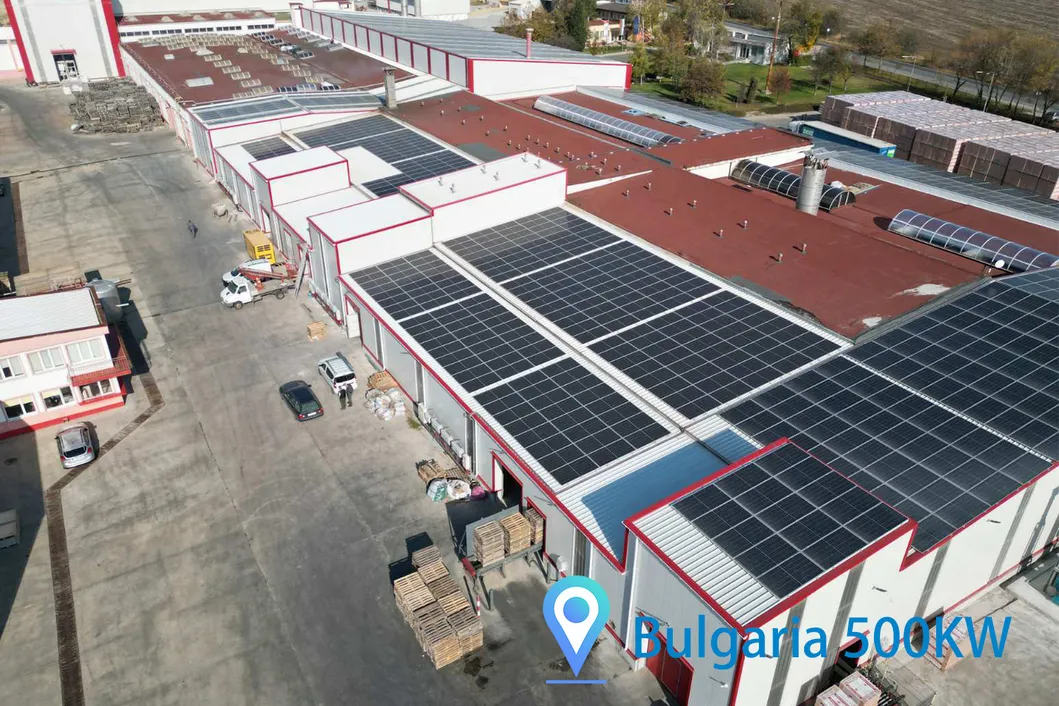

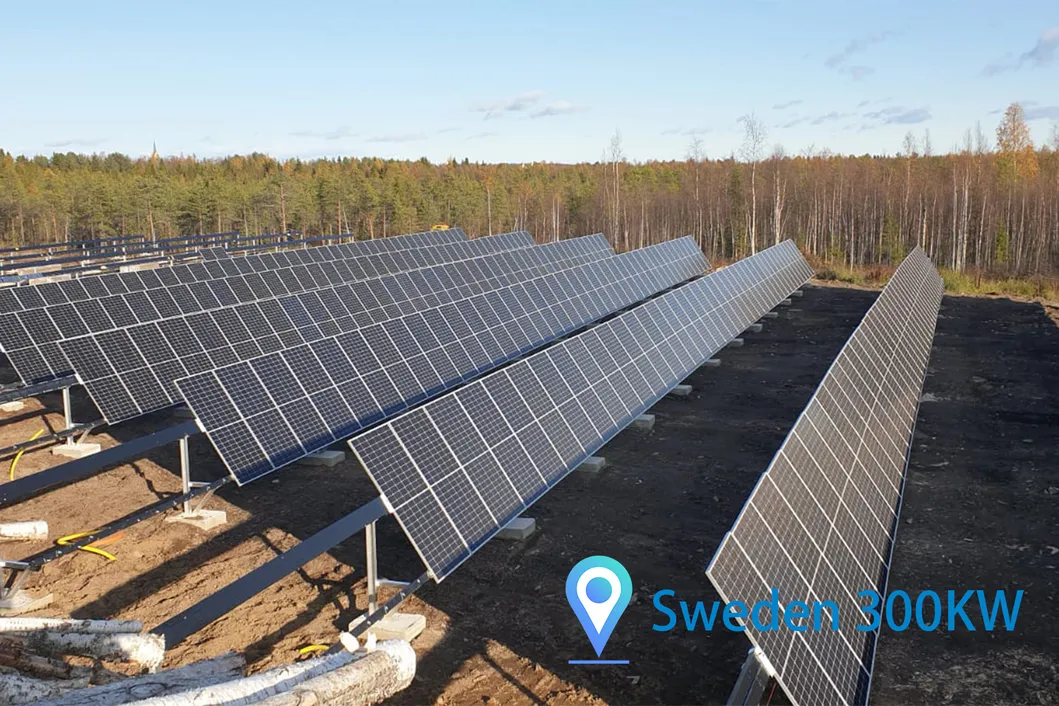

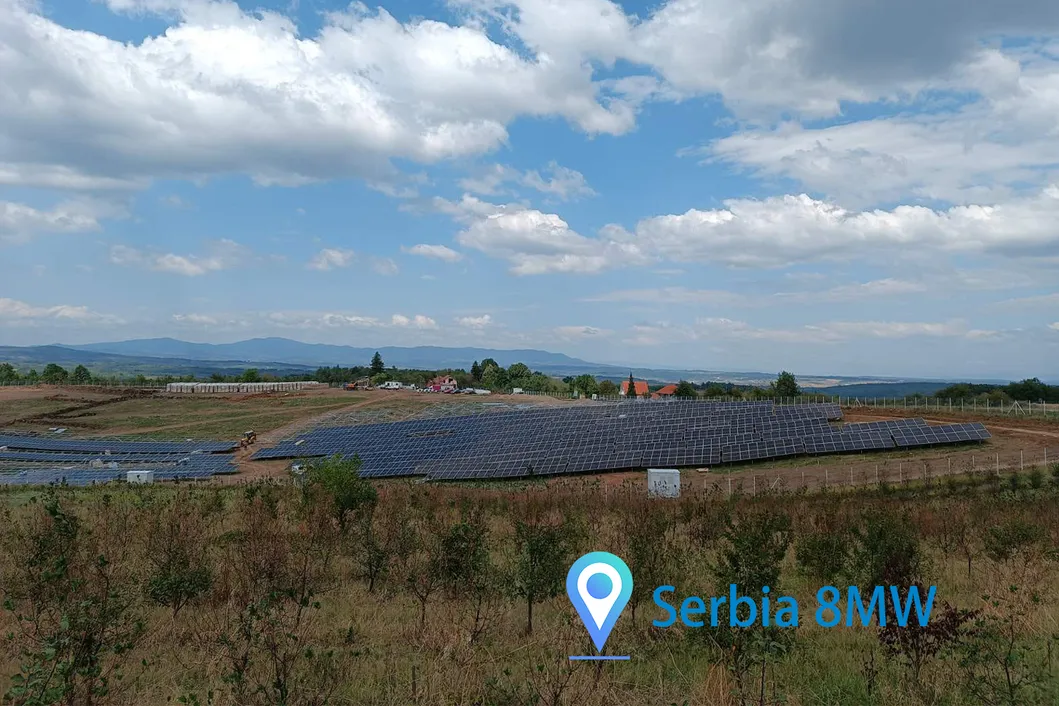

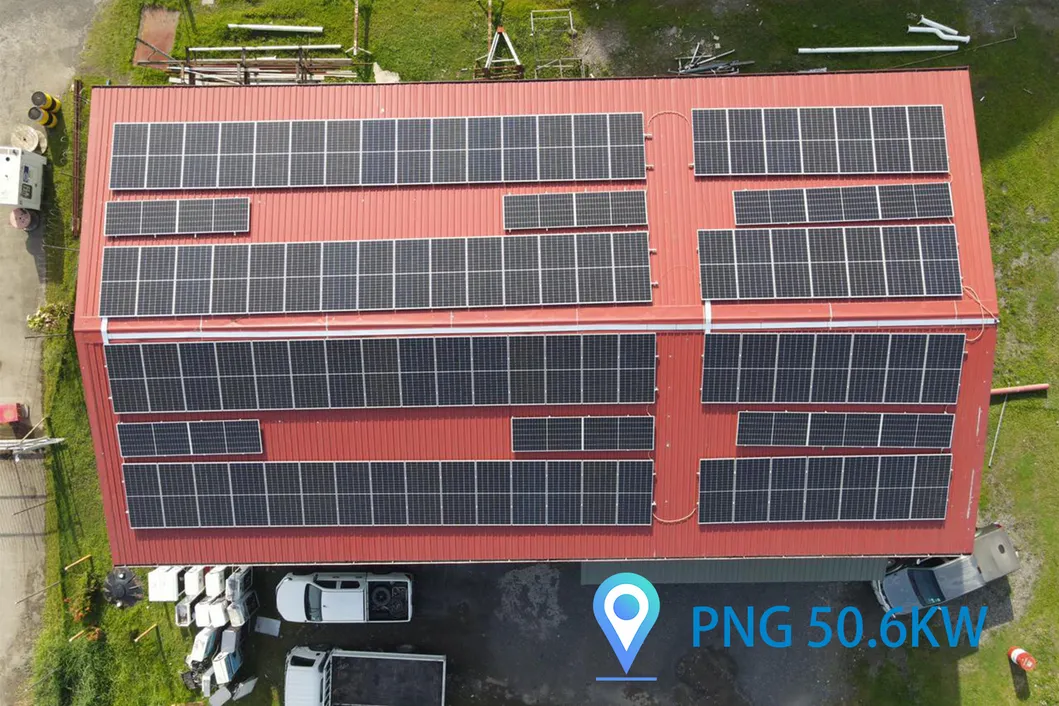

Global Projects

Our Advantages

Dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories since 2018. We use only reliable, approved equipment to ensure system stability and performance.

Let's work together for a better, brighter and greener future.

Frequently Asked Questions

What is the cycle life of the battery system?

The system features high-quality LiFePO4 cells with a cycle life of over 6000 cycles, ensuring long-term reliability for industrial use.

Does the container include fire protection and cooling?

Yes, each 20FT/40FT container is equipped with an integrated fire protection system and a dedicated air conditioning system for climate control.

Can the system work in both on-grid and off-grid modes?

Absolutely. The system supports multiple modes including On-grid (Zero Export, Peak Shaving) and Off-grid modes with seamless transfer capabilities via the Bypass cabinet.

What kind of monitoring is provided?

The system includes an integrated BMS and EnerLog datalogger for real-time monitoring of battery status, operation control, and insulation detection.

Is technical support available for installation?

Yes, we provide comprehensive technical support, including pre-sales project design and installation support to ensure the system is optimized for your needs.

What is the warranty period for this energy storage system?

The standard warranty for the energy storage system is 5 years, covering the core components and battery performance.
