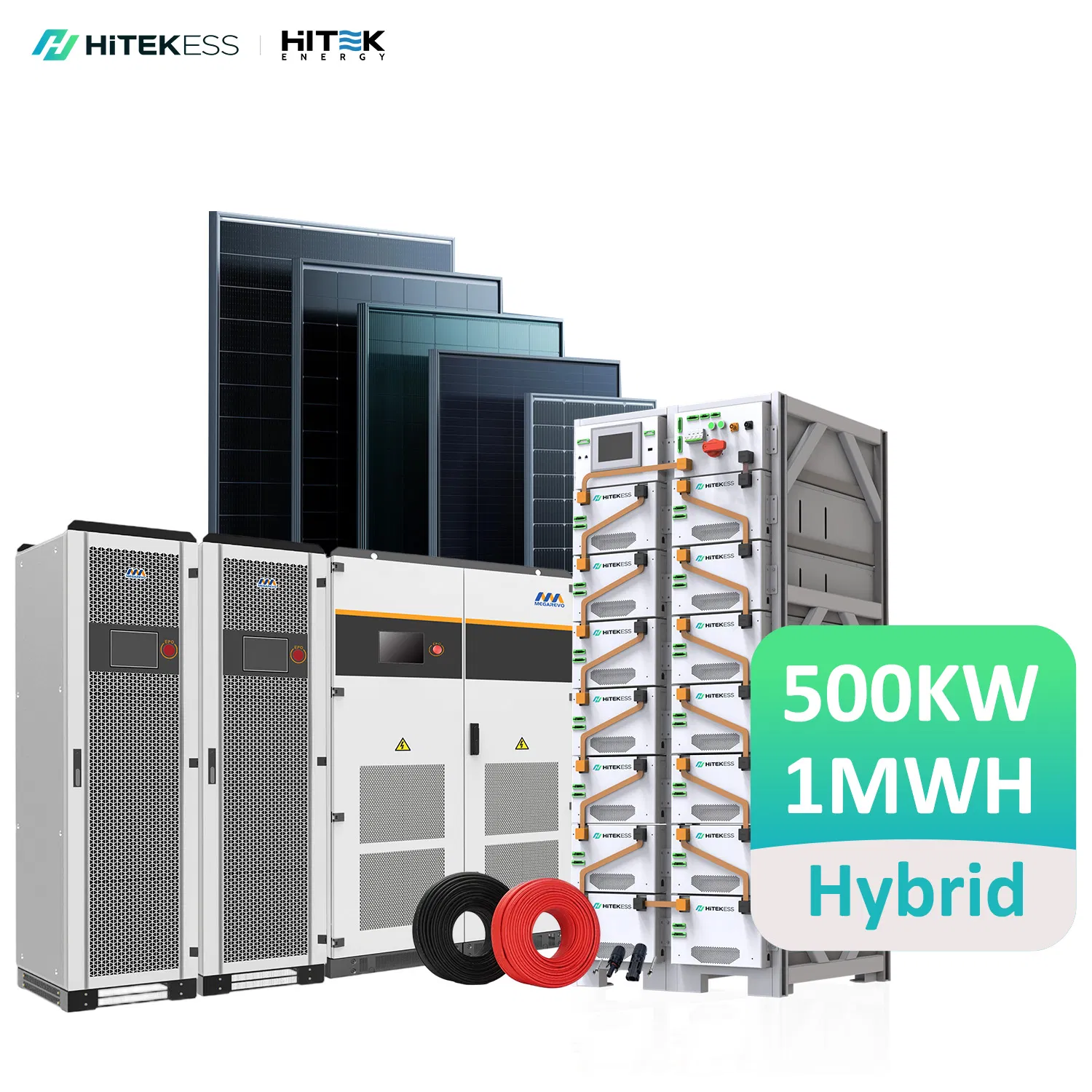

Hitek Containerized Solar System 100kw 250kw 500kw Hybrid Solar System with 500kwh 1mwh Lithium Battery 500kw 1MW Solar Battery Energy Storage System Price

Customization:	Available
After-sales Service:	Available
Warranty:	10 Years

Overview & Basic Info

Model NO.HT500KW-HY

ConditionNew

CertificationISO, CE, Un38.3 MSDS

ApplicationHome, Industrial, Commercial, Microgrid

Product Name1mwh 500kwh Battery Energy Storage System

System TypeHybrid Solar System

Battery TypeLiFePO4 Battery

Cycle Life8000+ Times

Output Voltage380V/400V/415V/480VAC

Product Features

🚀

High Power & Scalability: Modular design supports large-scale energy storage needs, allowing flexible expansion for growing business demands.

💰

Cost Savings: Reduces peak demand charges and optimizes energy consumption through intelligent load management.

🛡️

Stable & Reliable: Advanced battery management system (BMS) ensures consistent power supply and minimizes downtime.

📈

Fast ROI: Efficient energy arbitrage and participation in demand response programs accelerate payback periods.

🧠

Smart Management: AI-driven monitoring and remote control enable real-time optimization for maximum efficiency.

How It Works

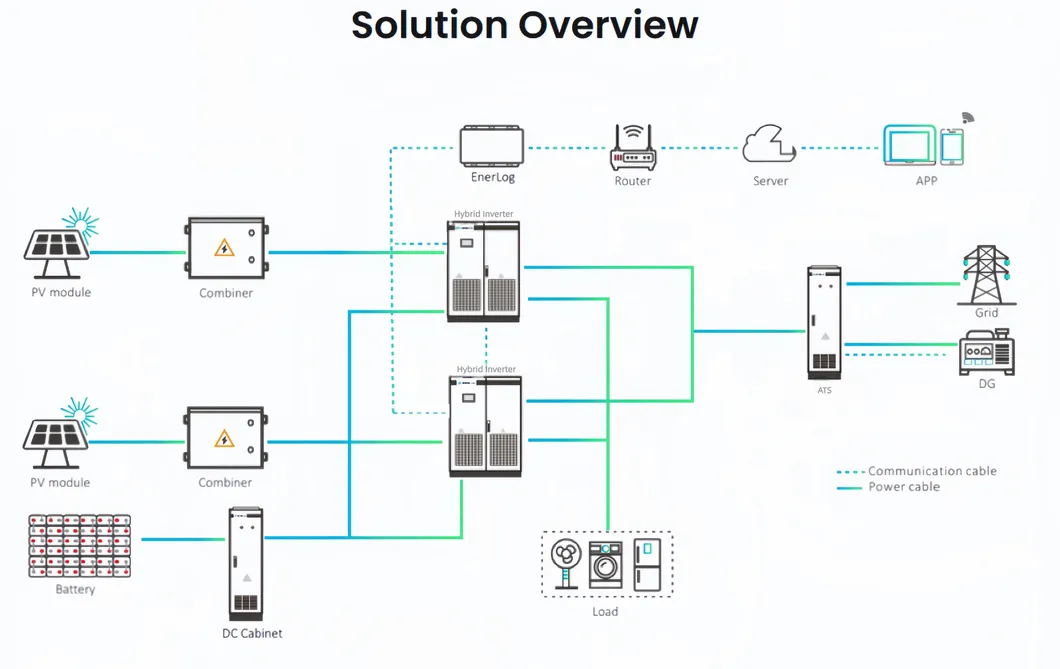

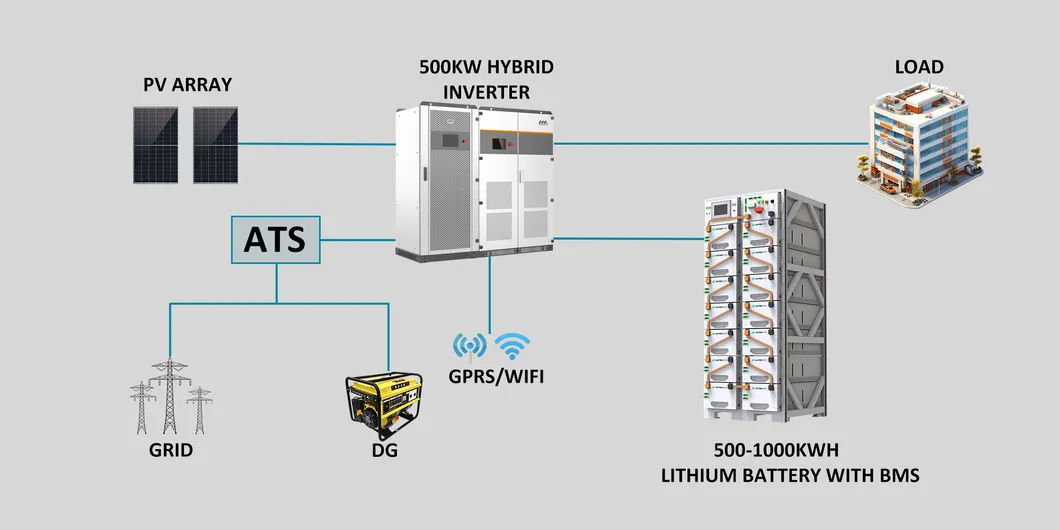

The hybrid solar system is a grid-tied renewable energy solution that includes integrated battery storage. It uses solar panels to generate power during the day, storing excess energy in batteries for use at night or during grid outages. This provides both on-grid and off-grid capabilities for continuous operations.

System Configuration Data

Model No.	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT150KW-HY	HT250KW-HY	HT500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Solar Panel Qty	54PCS	85PCS	170PCS	255PCS	425PCS	850PCS
Total PV Power	32.4kW	51kW	102kW	153kW	255kW	510kW
Battery Capacity	40.96KWH	100.35KWH	200.7KWH	315.3KWH	401.4KWH	1003.5KWH
Container	/	/	10ft Opt.	10ft Opt.	20ft Opt.	20ft Opt.

Key System Components

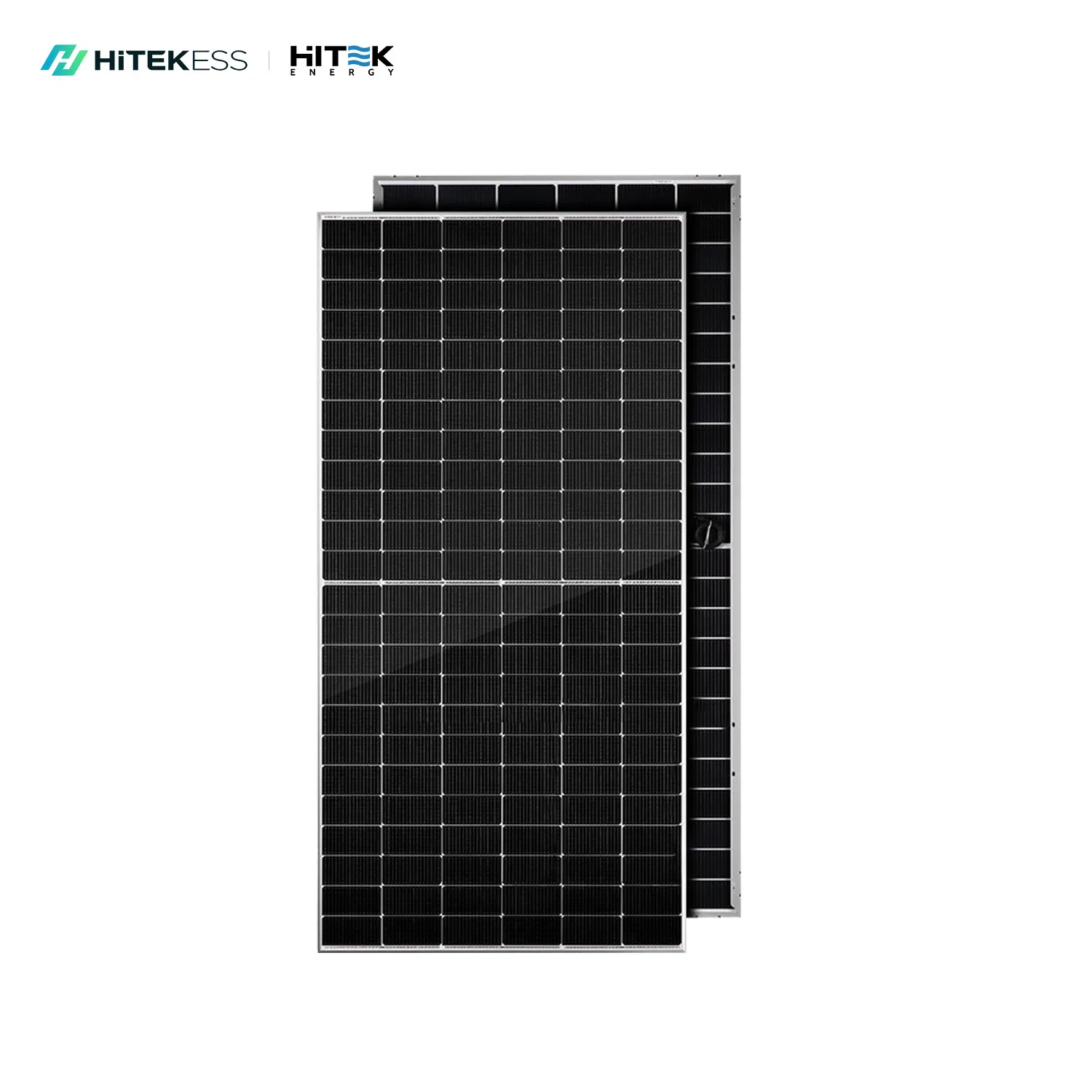

N-Type TOPCon Mono Solar Panel

Model: HT600M-72HNB | Peak Power: 600Wp
High efficiency cells with superior low-light performance.

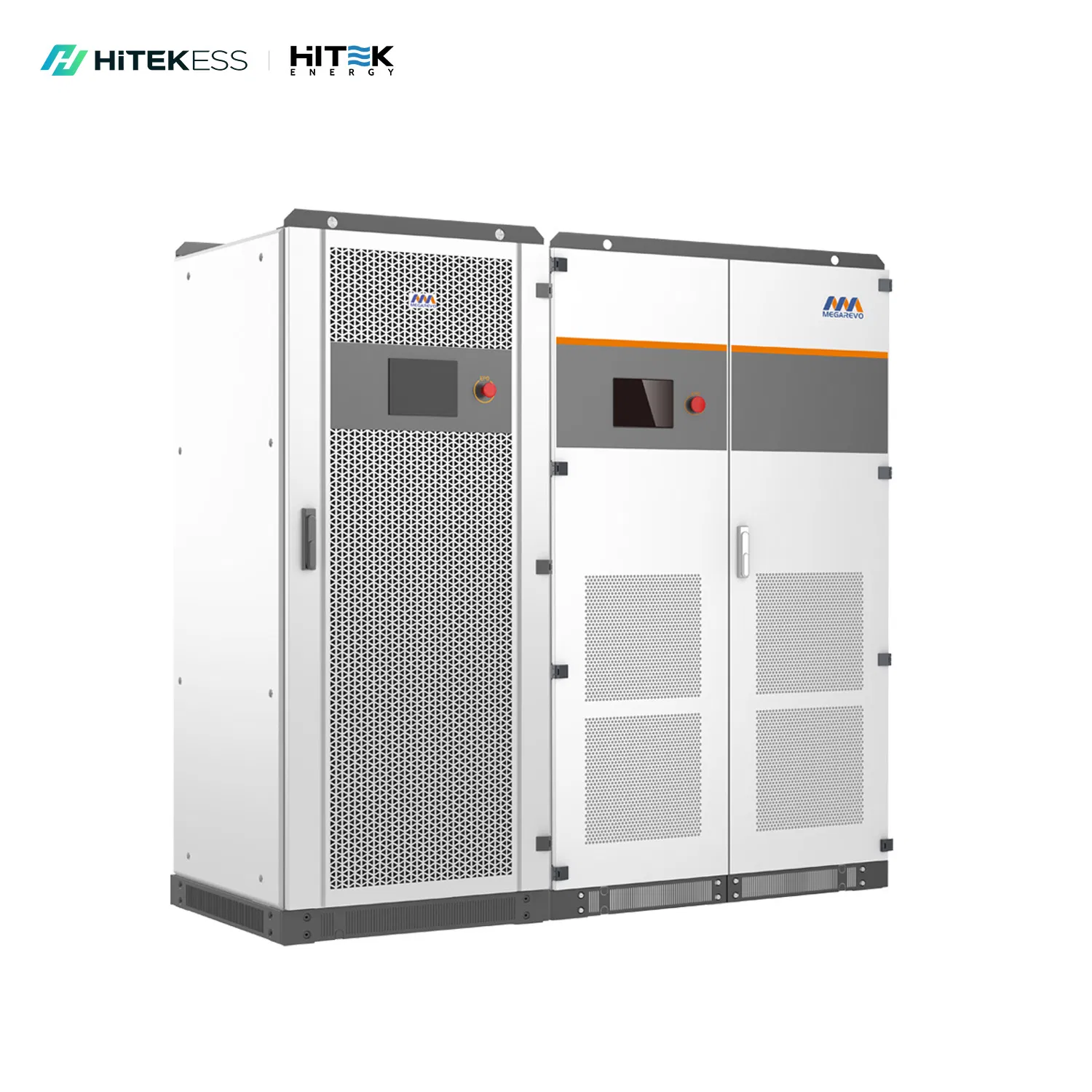

All-in-one Hybrid Inverter

Programmable working modes, touchscreen LCD, and seamless transfer between grid and battery power.

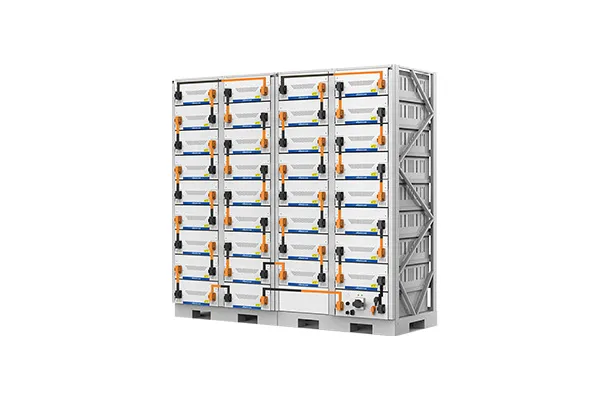

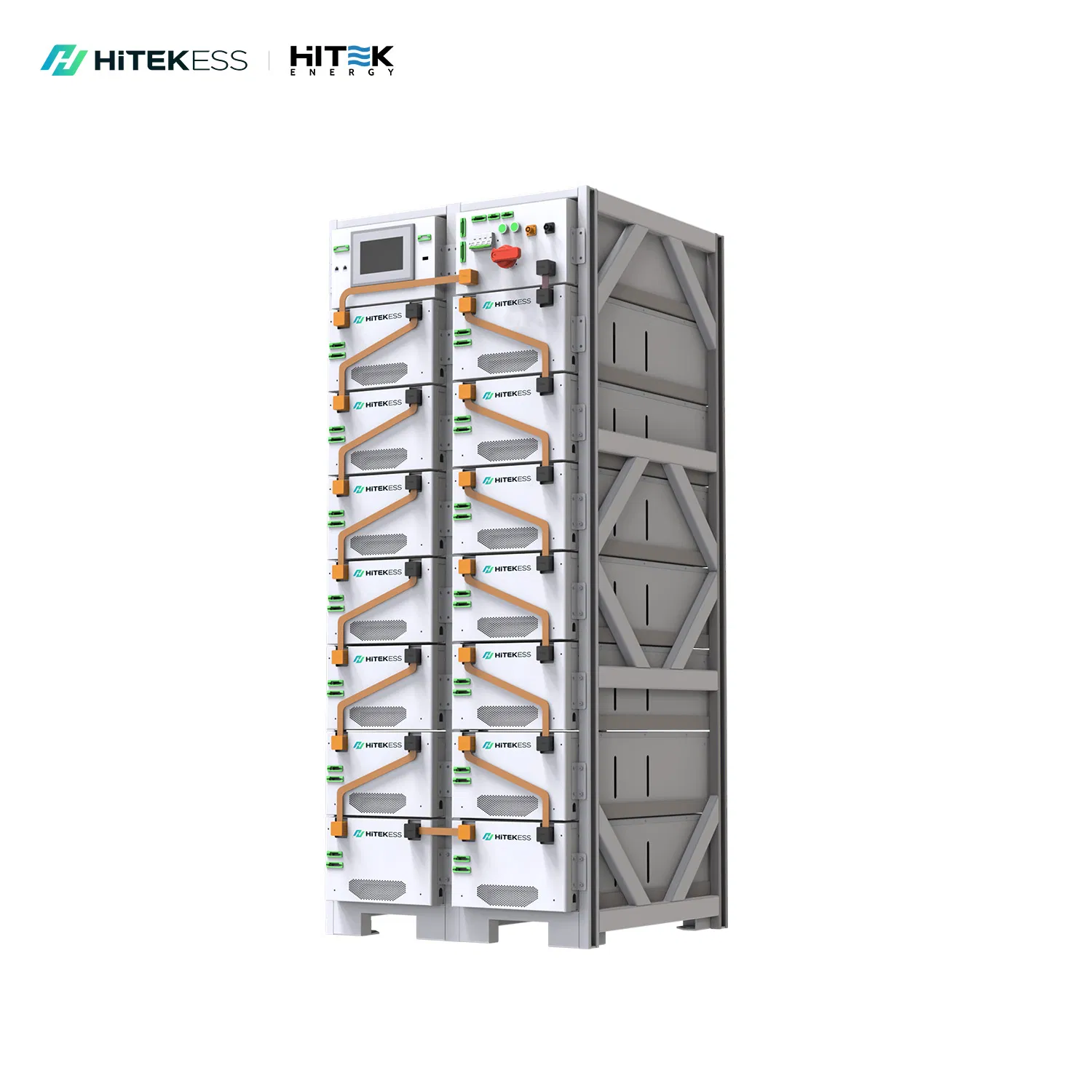

LiFePO4 Lithium Battery Packs

Rack-mounted design, 6000+ cycle life, 90% Depth of Discharge (DOD). Maintenance-free energy storage.

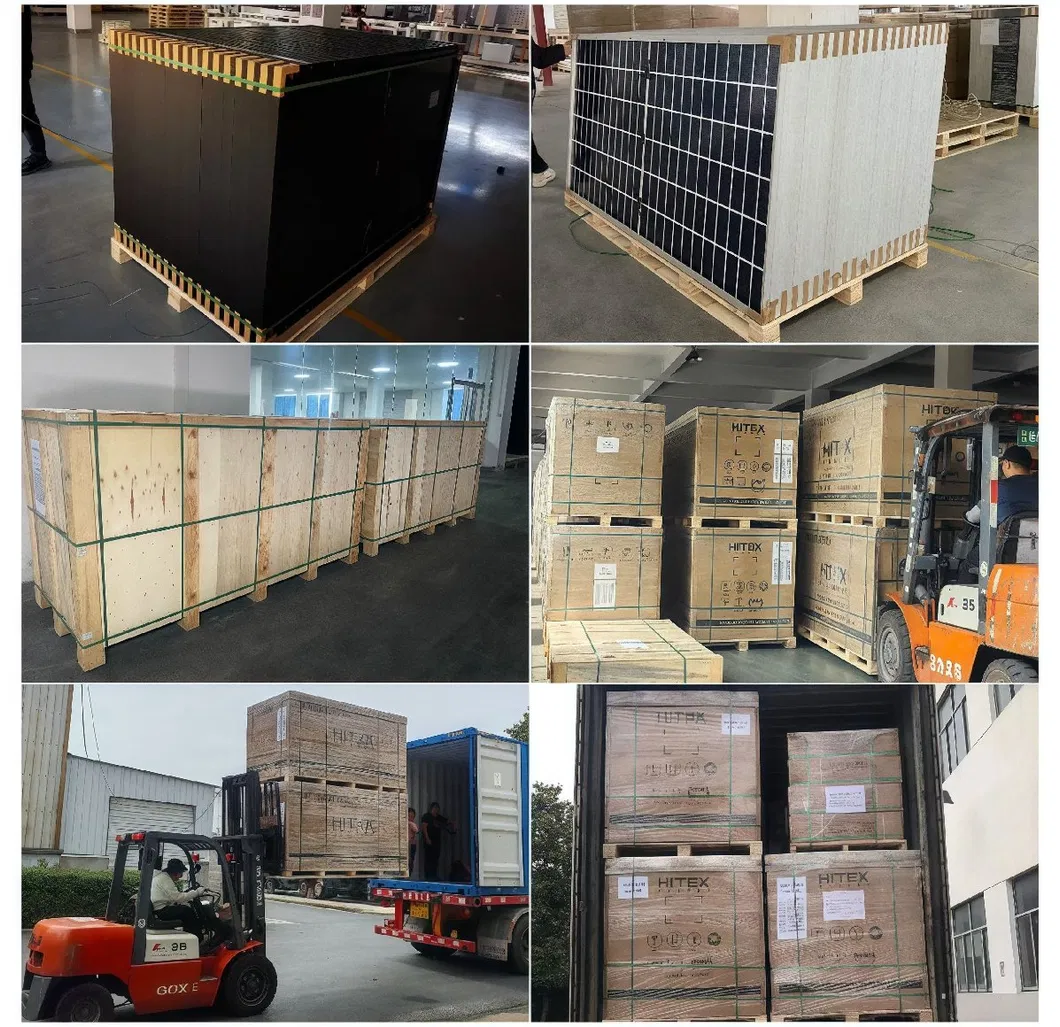

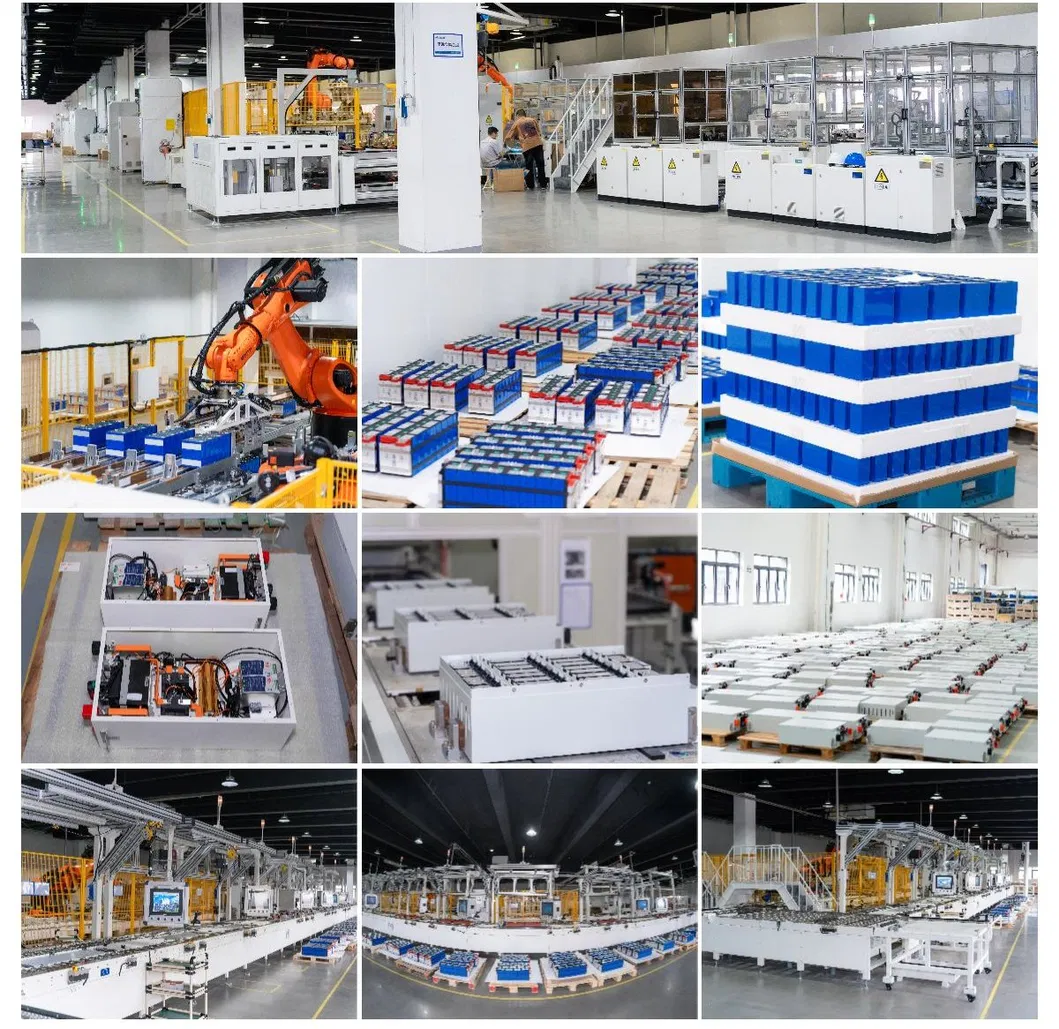

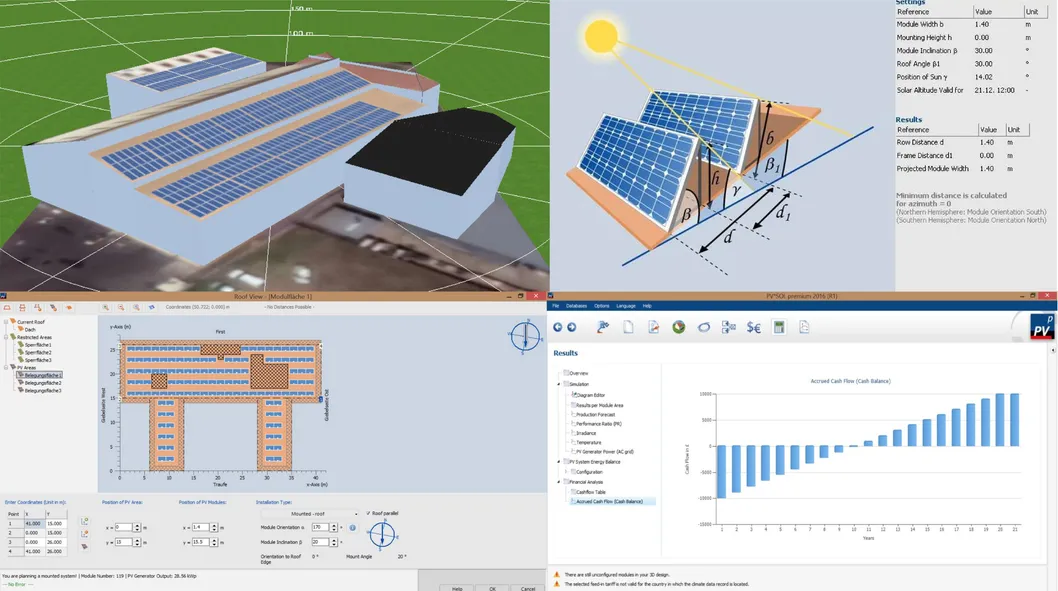

Technical Support & Manufacturing

Frequently Asked Questions

What is the lifespan of the lithium batteries?

The LiFePO4 batteries are designed for over 8000 cycles, which typically equates to 15-20 years of service depending on usage patterns.

Can the system operate completely off-grid?

Yes, the hybrid system features off-grid capabilities, allowing it to provide power during grid failures or in remote locations without utility access.

Is the system scalable for future energy needs?

Absolutely. The modular design allows you to add more solar panels or battery packs as your energy requirements grow.

What kind of maintenance does the system require?

The system is largely maintenance-free. We recommend periodic cleaning of the solar panels and occasional checks of the electrical connections.

How can I monitor the system's performance?

The system includes a WiFi/LAN/GPRS monitoring module that allows you to track energy production and consumption in real-time via a smartphone app or web portal.

Does the system support industrial voltage standards?

Yes, the system supports standard industrial voltages including 380V, 400V, 415V, and 480VAC.
