Efficient 100kw 210kwh Outdoor Energy Storage System Solution for Solar Power Systems All in One Containerized Design with Long Lifespan and Easy Maintenance

1 / 5

Efficient 100kw 210kwh Outdoor Energy Storage System Solution for Solar Power Systems All in One Containerized Design with Long Lifespan and Easy Maintenance

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TG-eBank-215FS2

Nominal Voltage

768V

Warranty

5 Years

Nominal Capacity

215kwh

Cycle Life

6000 Times

Cooling System

Air Cooling

Charge/Discharge Rate

0.5c Rated

DOD

95%

MPPT Efficiency

99%

Storage Temperature

-40 ~ 75°C

Specification

Inbuilt BMS

Packaging & Delivery

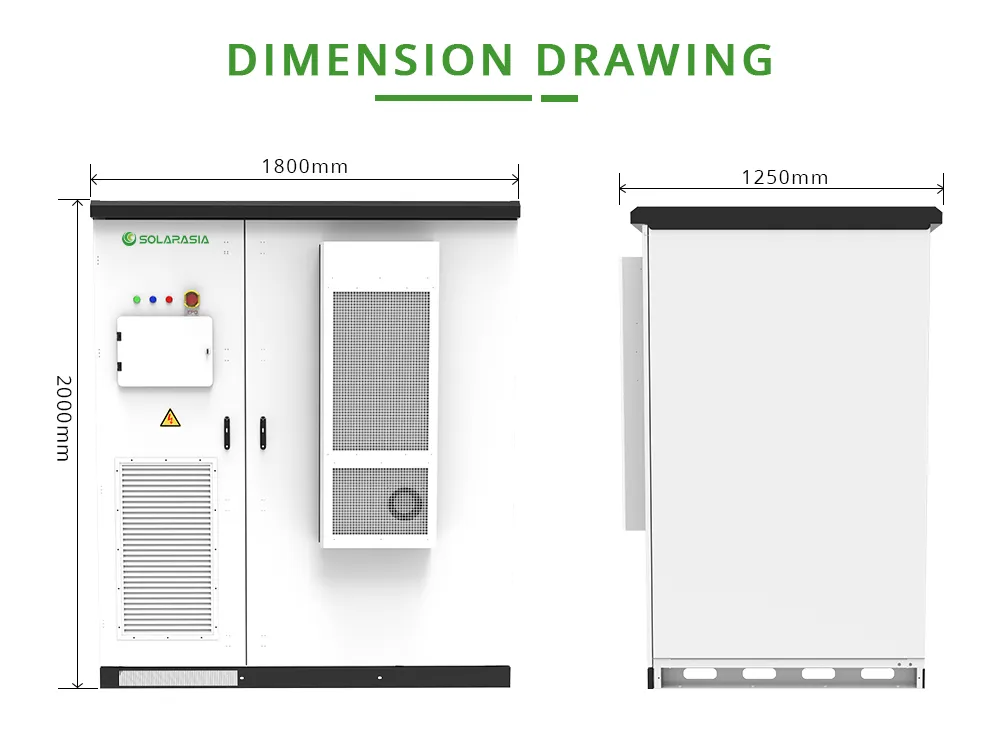

Package Size

200.00cm * 130.00cm * 200.00cm

Package Gross Weight

2602.000kg

Transport Package

Iron Frame + Plywood Case

Product Description

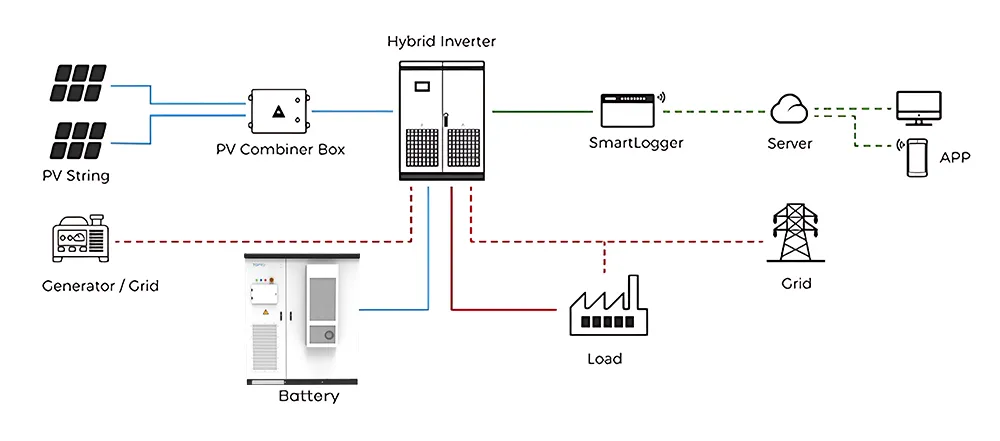

Working Principle

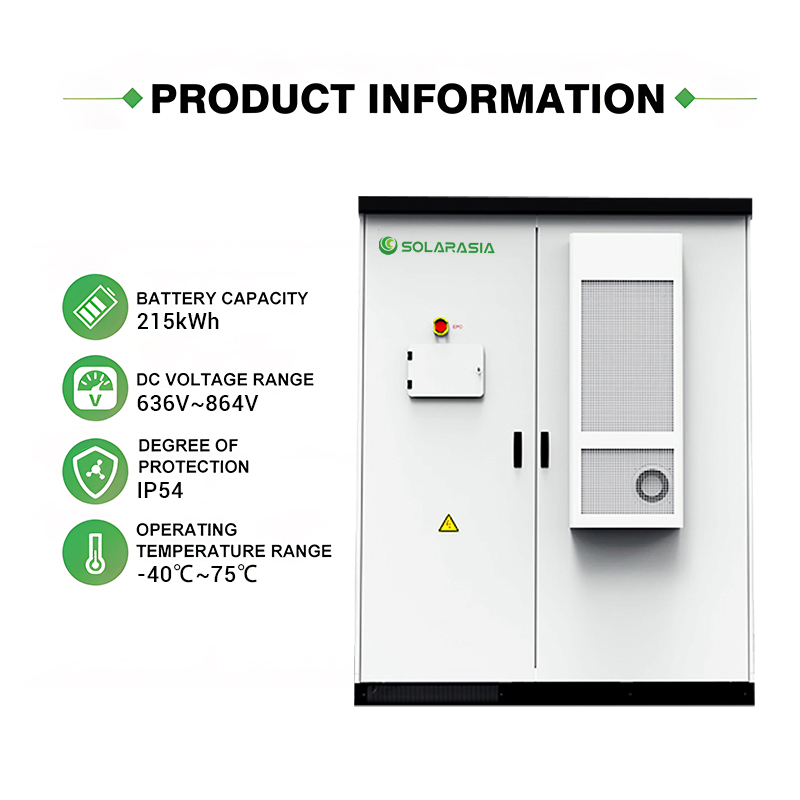

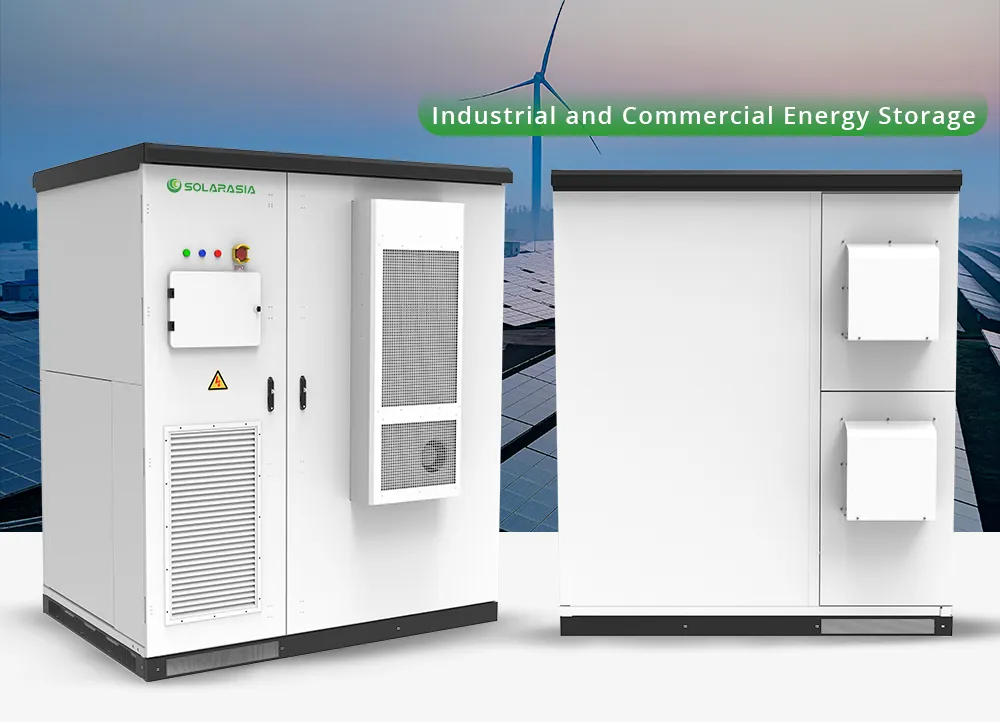

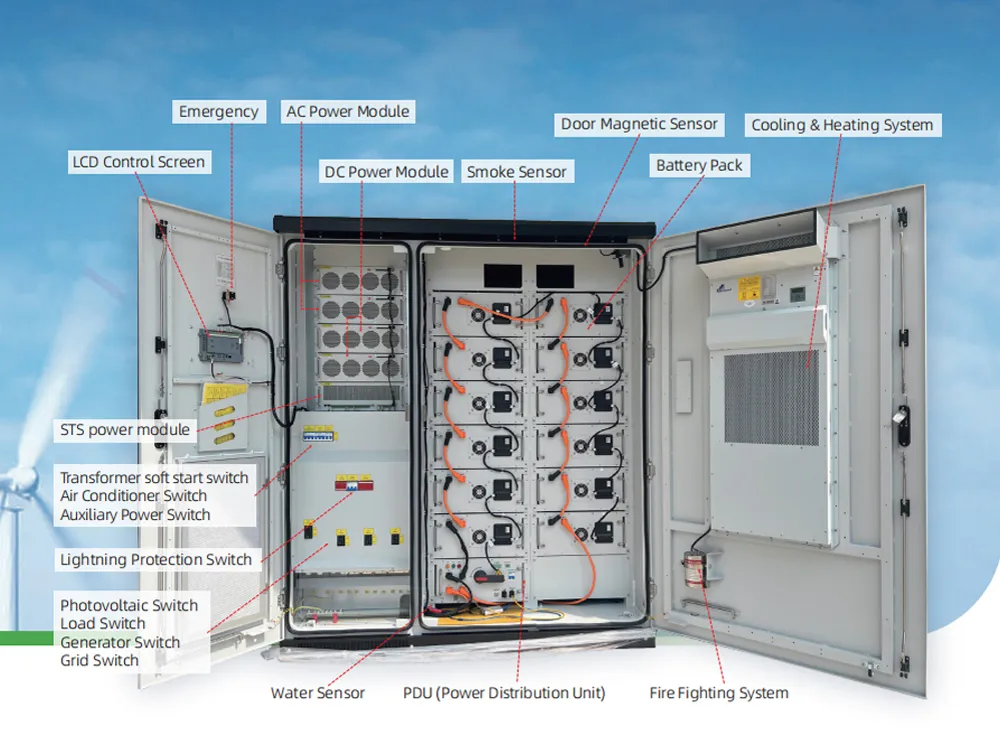

Product Details

Product Parameters

MODEL	TG-eBank-215FS2
Battery Specification
Battery type	LFP (Lithium Iron Phosphate)
Cell capacity	3.2V/280Ah
PACK configuration	1P20S (12 Packs Total)
Rated capacity	215kWh
Rated voltage	768V
Voltage range	636-864Vdc
Charge/Discharge rate	0.5C Rated
DOD	95%
Fire fighting system	Aerosol/HFC-227ea (Two Level Protection)
AC Specifications
Rated voltage	400Vac (3P+N+PE)
Peak power	110kW
Rated current	144A
Transfer time (On-off Grid)	<20ms
PV Specification
Max. PV input power	110kW
MPPT voltage range	350-1000V
MPPT efficiency	99%

Our Advantages & Certifications

Global Cooperation

Frequently Asked Questions

1. What is the capacity of this BESS system?

This system offers 215kWh of usable energy storage, specifically designed for medium- to large-scale commercial and industrial applications.

2. Can this system be used outdoors in harsh weather?

Yes. The cabinet is IP54/IP65 rated and designed for all-weather outdoor use, featuring integrated temperature and humidity control systems for stability.

3. What battery type is used in the TG-eBank?

We utilize safe, long-life LiFePO4 (Lithium Iron Phosphate) battery cells, known for high thermal stability and a long lifespan of over 6000 cycles at 80% DoD.

4. Can the capacity be customized or expanded?

Yes. We offer customized capacities ranging from 100kWh to 500kWh. The system is modular and scalable to meet your specific energy requirements.

5. What is the expected cycle life of the battery system?

The system is designed for high durability, offering a cycle life of approximately 6000 times under standard operating conditions.

6. What fire safety features are integrated?

Safety is a priority. The system includes a two-level fire protection system with Aerosol (Standard) or HFC-227ea / PERFLUORO options to ensure maximum security.

Product Detail

Efficient 100kw 210kwh Outdoor Energy Storage System Solution for Solar Power Systems All in One Containerized Design with Long Lifespan and Easy Maintenance

Product Description

Basic Information

Packaging & Delivery

Product Description

Working Principle

Product Details

Product Parameters

Our Advantages & Certifications

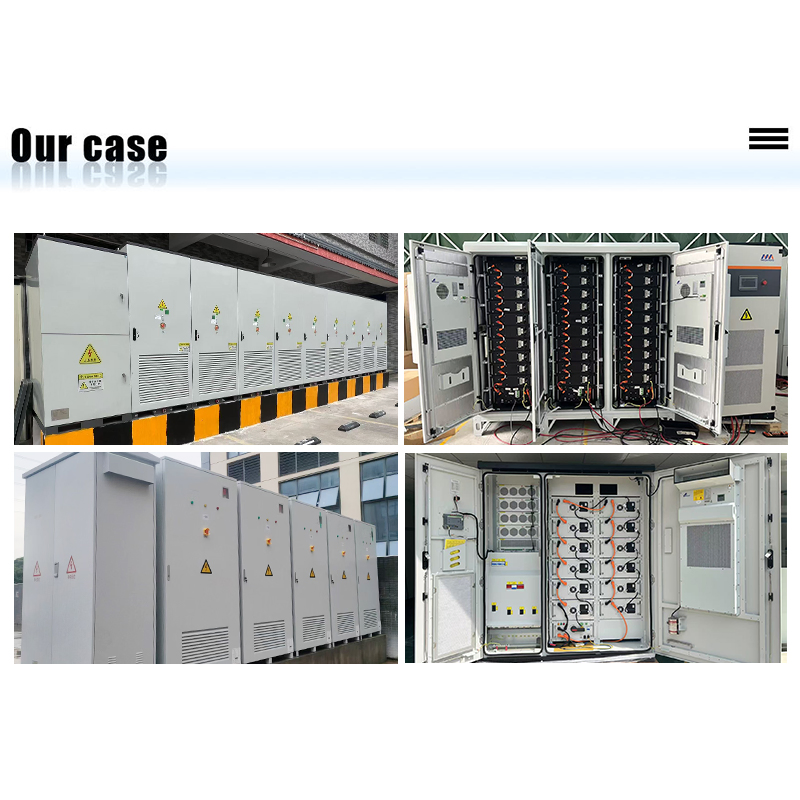

Global Cooperation
