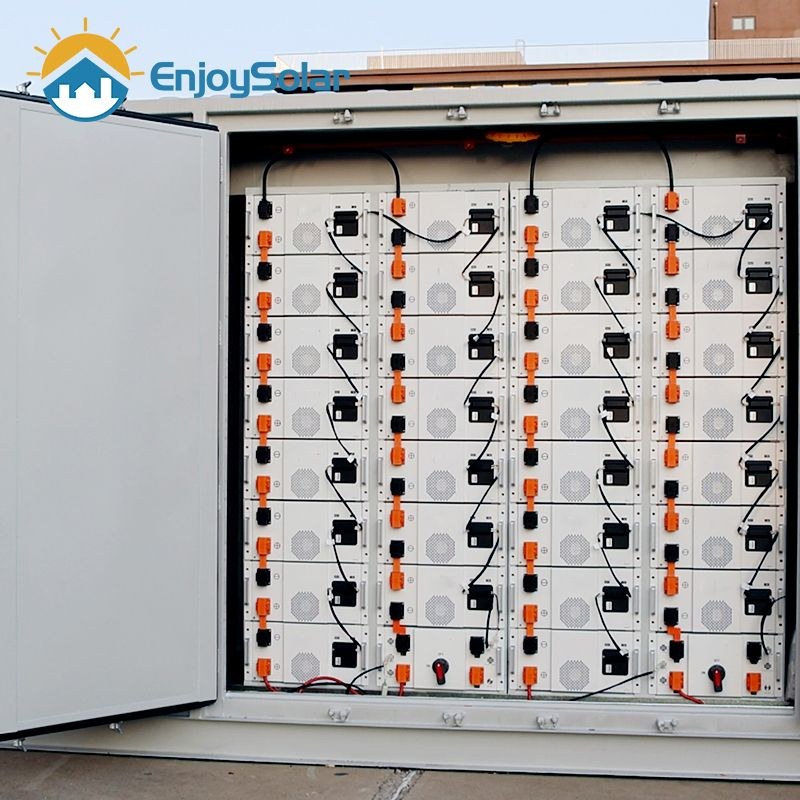

New Three Phase 380V 200kw 250kw 300kw 20FT 40FT Containerized PV Solar Energy Storage System Price

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Overview - Basic Information
Model NO.
ES-ESS-20FT
Nominal Voltage
400V/380V 3phase
Warranty
10 Years
Nominal Capacity
800kWh
Cycle Life
6000 Times
Battery Type
Lithium Ion Battery
Communication
Can, RS485
Grid Connection
Hybrid Grid, On Grid, Off Grid
Cooling
Air Cooling or Liquid Cooling
Product Name
Integrated Energy Storage System Bess
PCS Power
250kw/500kw/1MW
BMS
3 Levels Active BMS
Application
Peak Shaving, Energy Storage, etc
Certification
CE, Un38.3, En50549, G99, VDE4105
Safety
Built-in Fire Protection System
Work Mode
On Grid, Off Grid or Hybrid
📦 Packaging & Delivery
Package Size
50.00cm * 30.00cm * 12.00cm
Gross Weight
45.000kg
Transport Package
Wooden Box
Production Capacity
2gw/Years
📍 Product Description

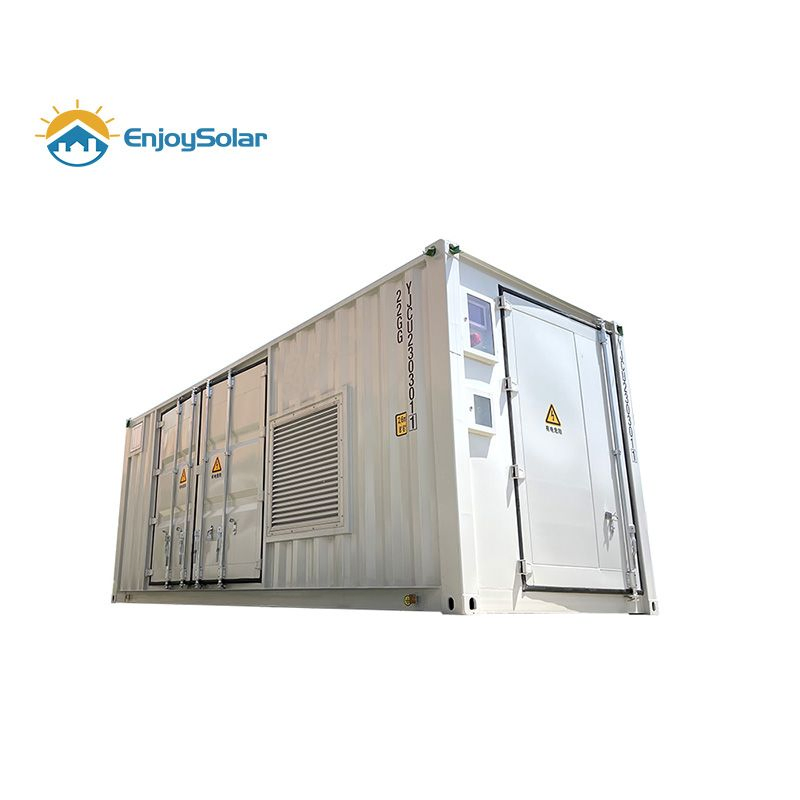

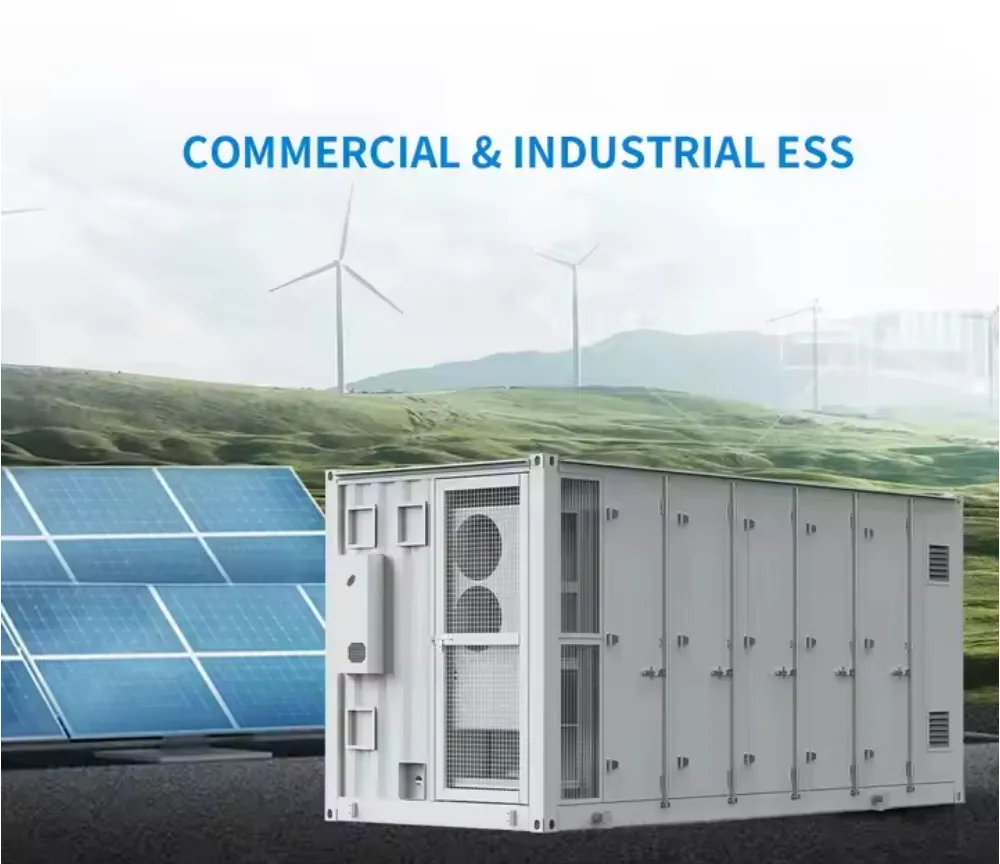

Containerized PV Solar Energy Storage System

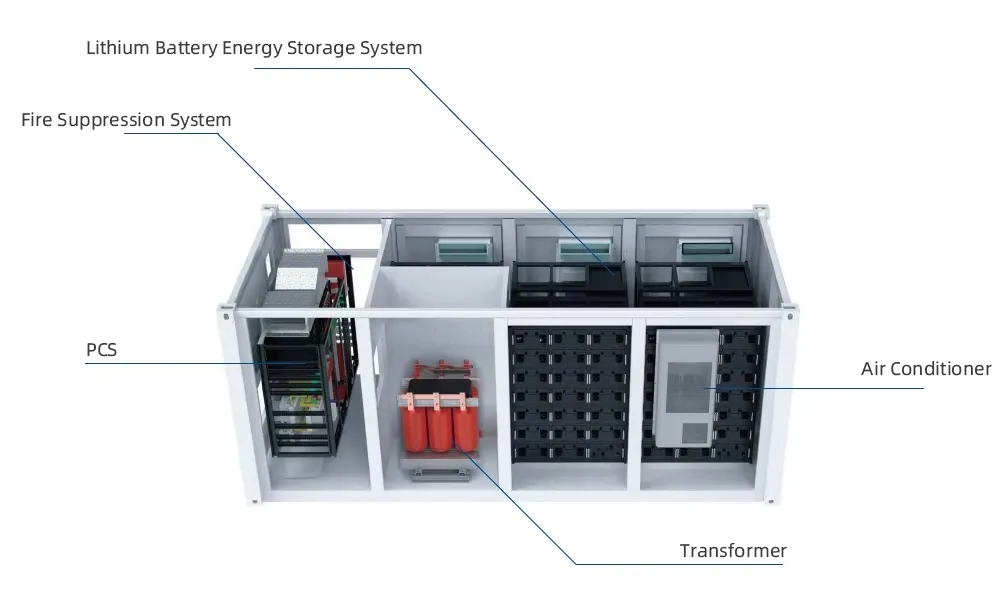

380V Energy Storage System
⚙ 20FT System Configuration
Item Sub-item Quantity Description
PV Panel 600W Panel 420 12 pieces/string, total 35 strings. Capacity: 252kw
Combiner Box PV Combiner Box 5 7 inputs 1 output; For multiple strings
Inverter System PBD250 1 250kW solar charge controller
PCS250 1 250kW battery inverter
Bypass 250 1 Switch Between On-grid and Off-grid
Battery Module 51.2V 280AH 60 Capacity 14.3kWh per module

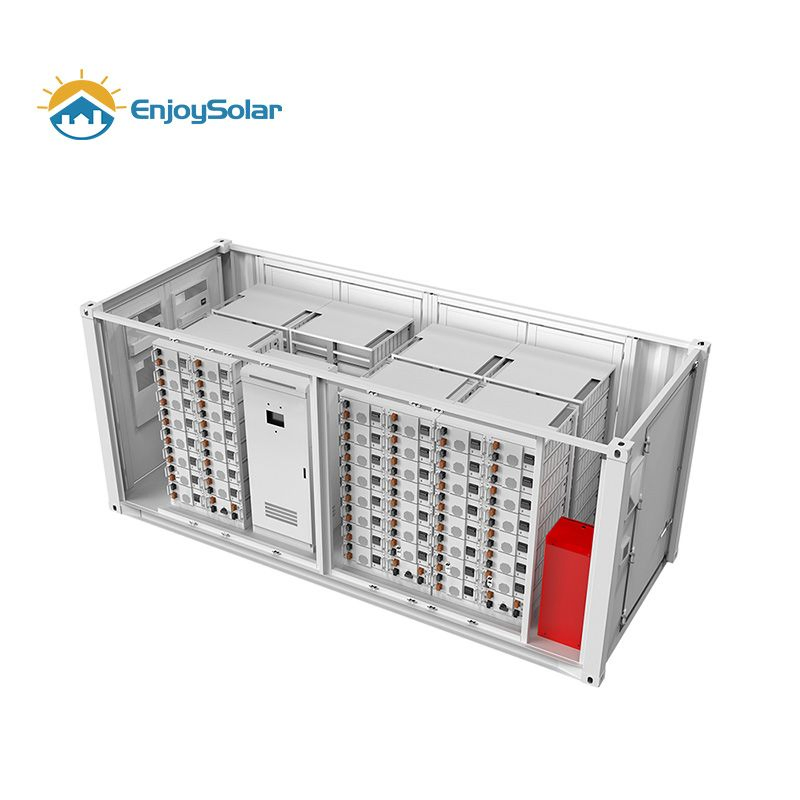

Container 20ft Container 1 IP54, Fire-resistance system, AC included

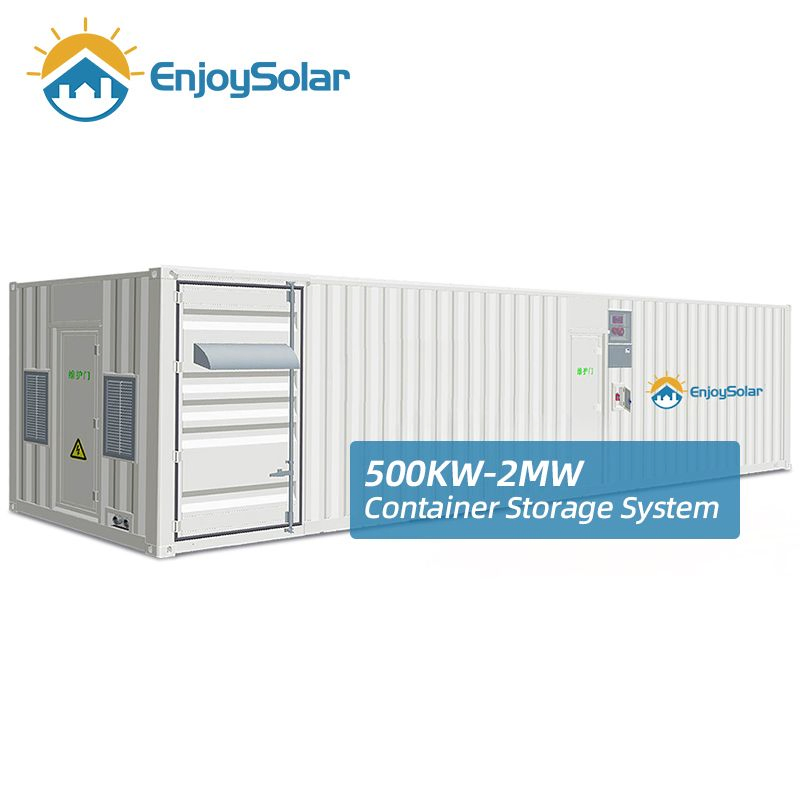

⚙ 40FT System Configuration
Item Sub-item Quantity Description
PV Panel 600W Panel 840 Capacity: 504kw
Combiner Box PV Combiner Box 10 7 inputs 1 output
Inverter System PCS500 1 500kW battery inverter
Transformer 1 500KVA Isolation Transformer
Battery Module 51.2V 280AH 150 High density energy storage modules

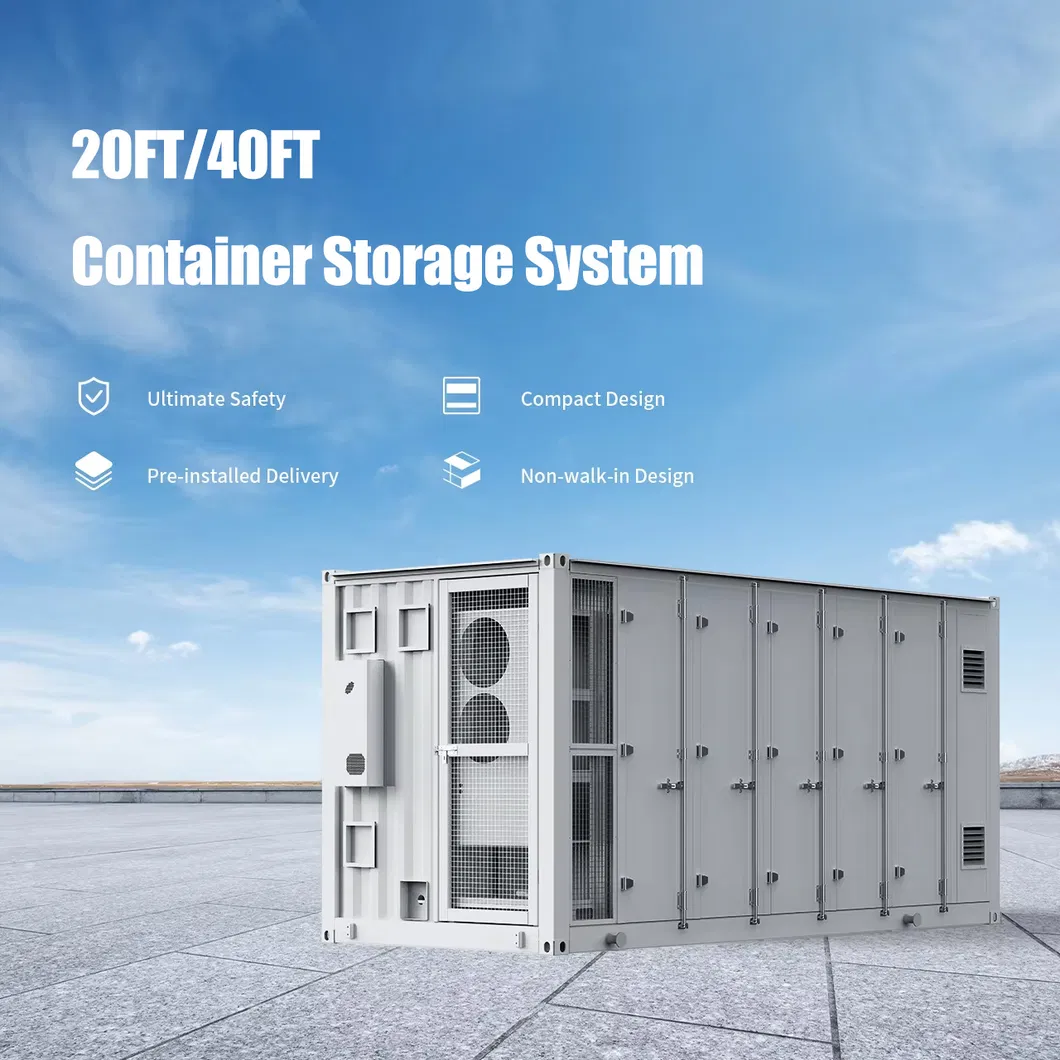

Energy Storage Detail

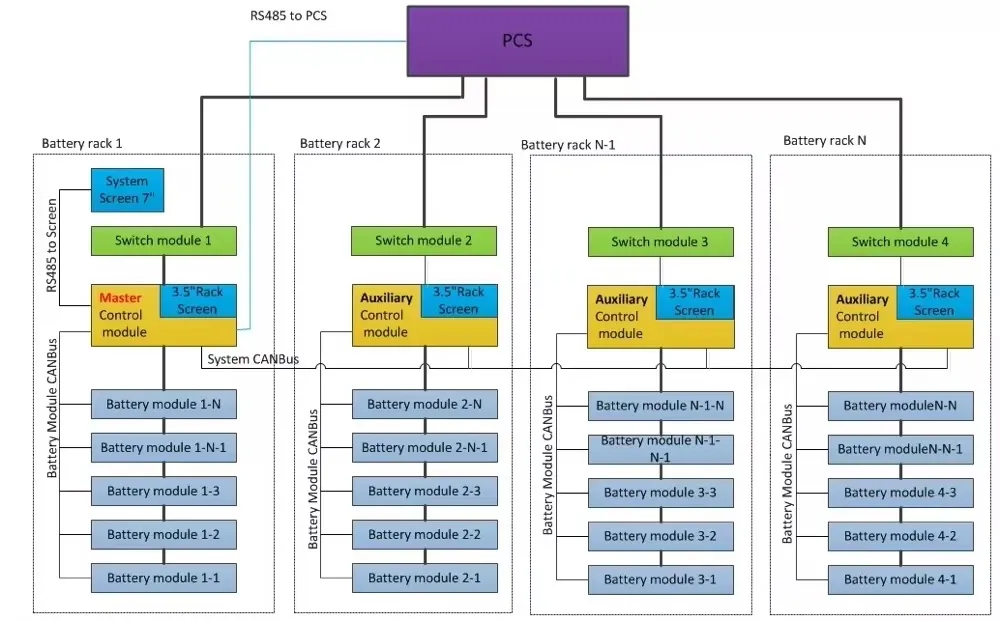

Energy Storage Detail 2
🏭 Our Factory
Factory View 1

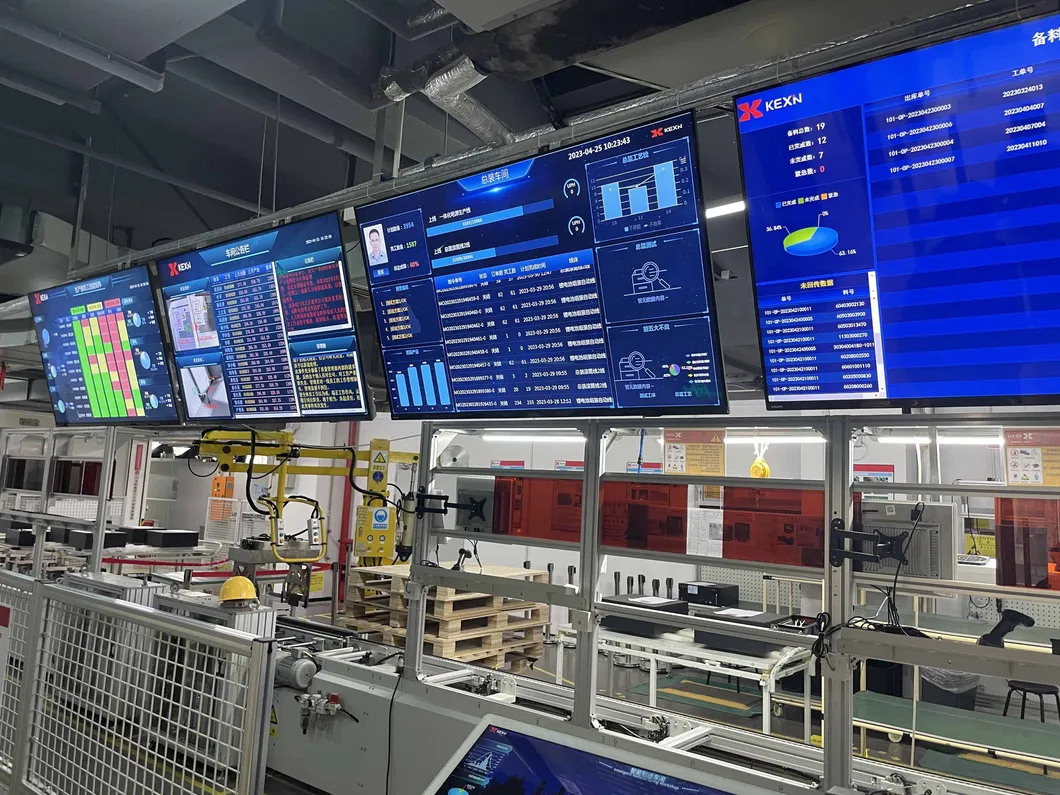

Factory View 2

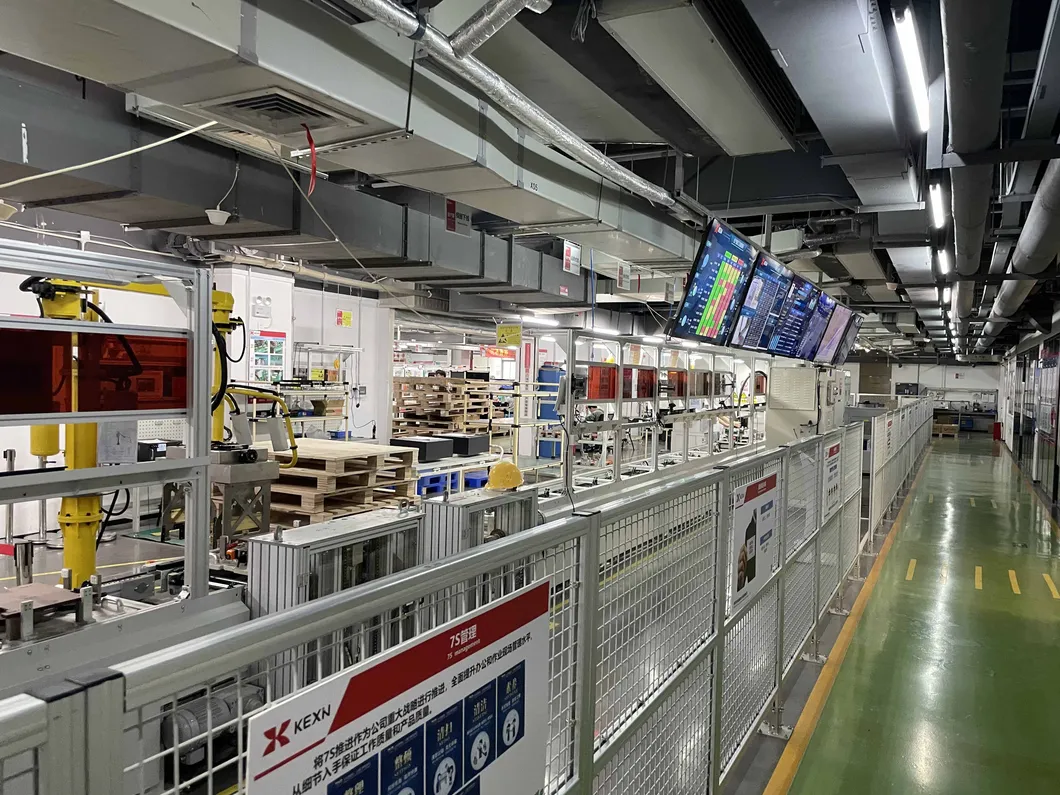

Factory View 3
🏗 Projects

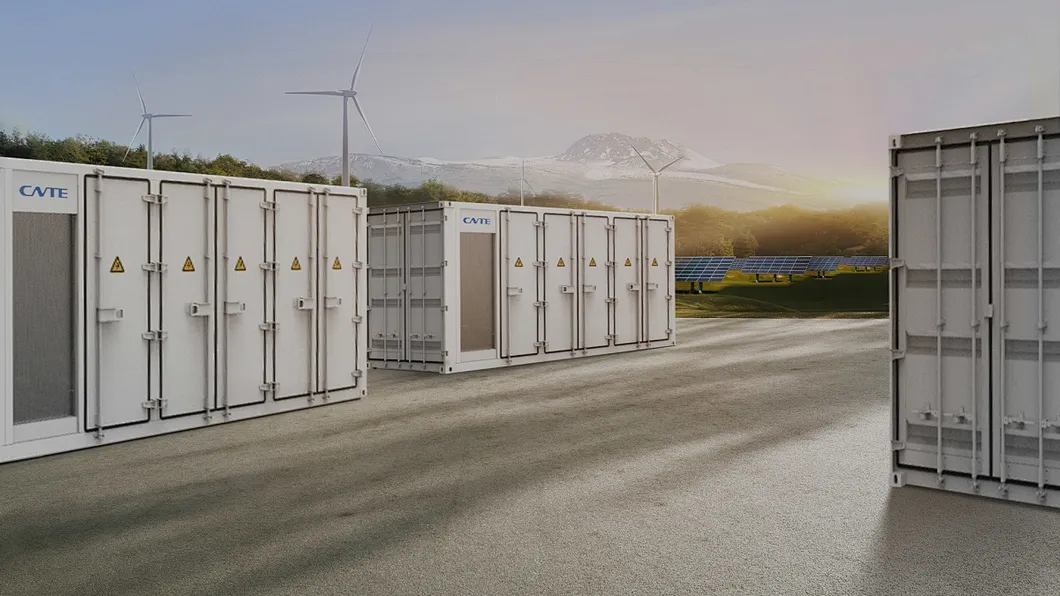

Project Case 1

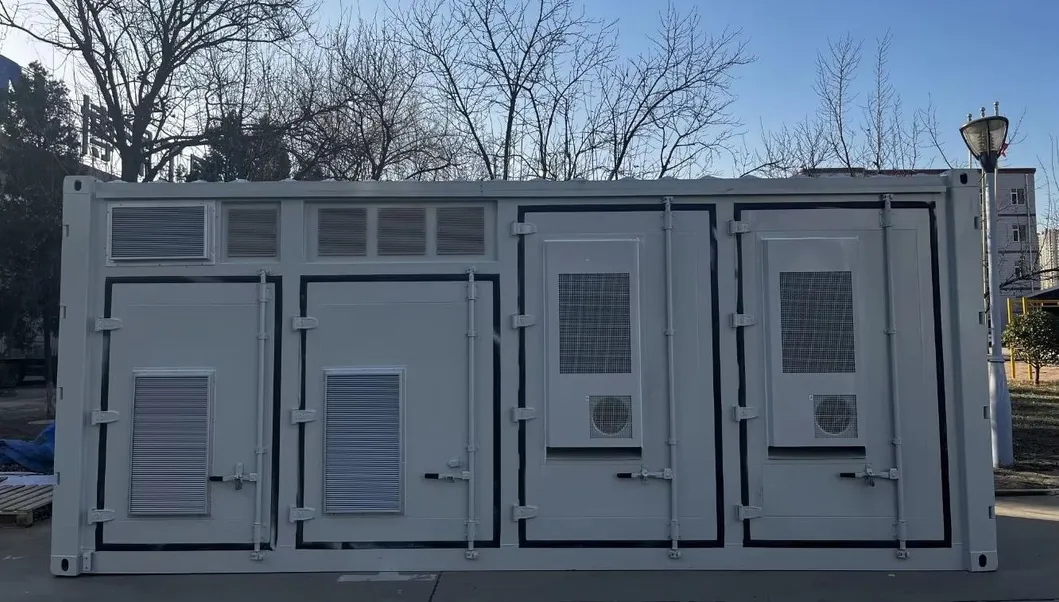

Project Case 2
🔥 Other Hotsale Products
Hotsale 1
Hotsale 2
❓ Frequently Asked Questions
What is the expected lifespan of the battery system?
The system features high-quality Lithium Ion batteries with a cycle life of over 6,000 times and comes with a 10-year warranty.
Can this system work without a power grid?
Yes, the system supports Hybrid, On-grid, and Off-grid modes, making it ideal for remote areas or backup power.
What kind of safety features are integrated?
The containerized system includes a built-in professional fire protection system and a 3-level active BMS for maximum safety.
How is the temperature regulated inside the container?
Depending on the specific requirements and environment, we offer both air cooling and liquid cooling solutions to maintain optimal performance.
What certifications does the product hold?
The system is fully certified with CE, UN38.3, EN50549, G99, and VDE4105, ensuring compliance with international standards.
Is the system customizable for different power needs?
Absolutely. PCS power can range from 250kw to 1MW, and battery capacities are available in 500kwh, 1mwh, 2mwh, or customized configurations.
