Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
1 / 5
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels
Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels

Good Quality Solar System 500kw Containerized Battery Energy Storage System with A Grade Solar Panels

Send Inquiry

Product Description

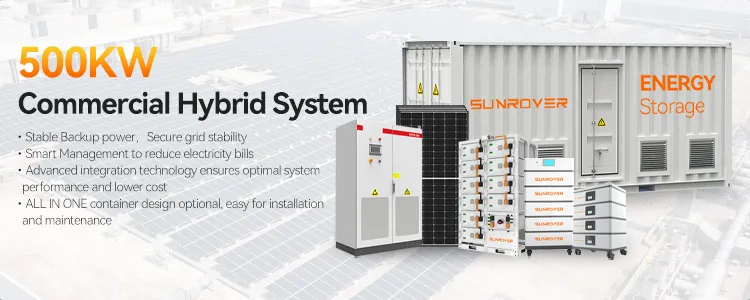

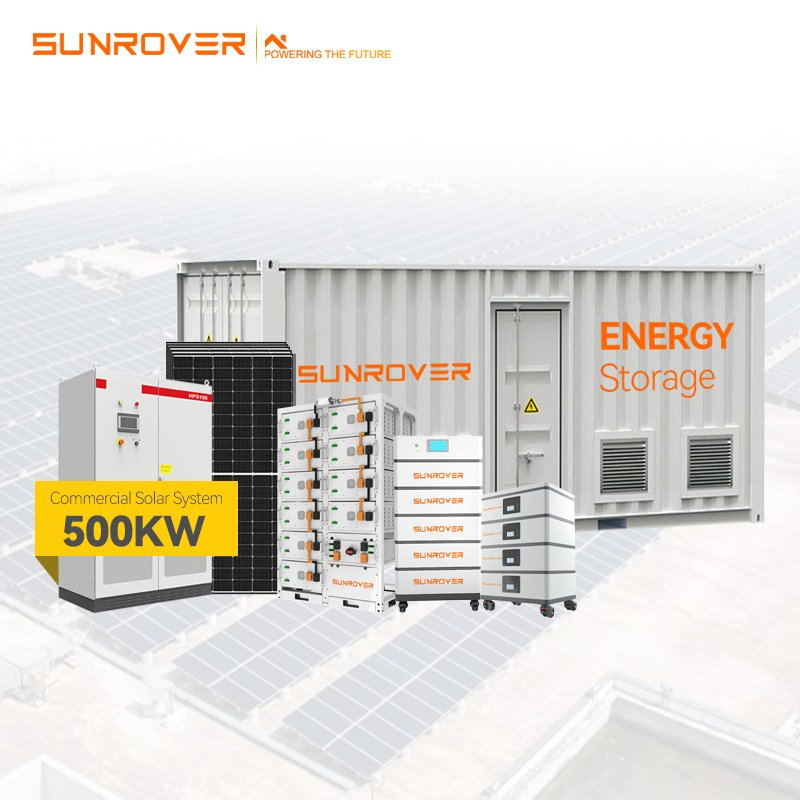

500kw Containerized Battery Energy Storage System
📊 System Configuration
500KW Hybrid Commercial Storage System Configuration
Item Model Description Quantity
1 Solar Panel Half cut mono sliver frame 560w solar panel 900 pcs
2 Combiner Box 10 In 1 Output 10 pcs
3 Lithium Battery 51.2V 280Ah Rack Mounted Battery 70pcs
4 Hybrid Inverter 500KW 2 pc

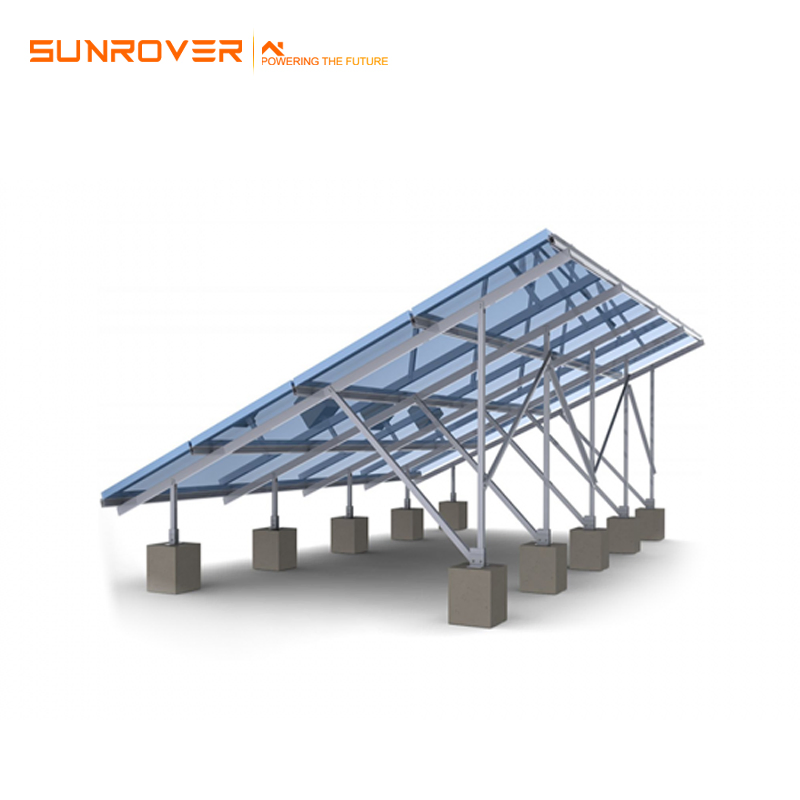

5 Mounting Support Roof/Ground 1 set
6 Cable 4mm² PV cable 3000m

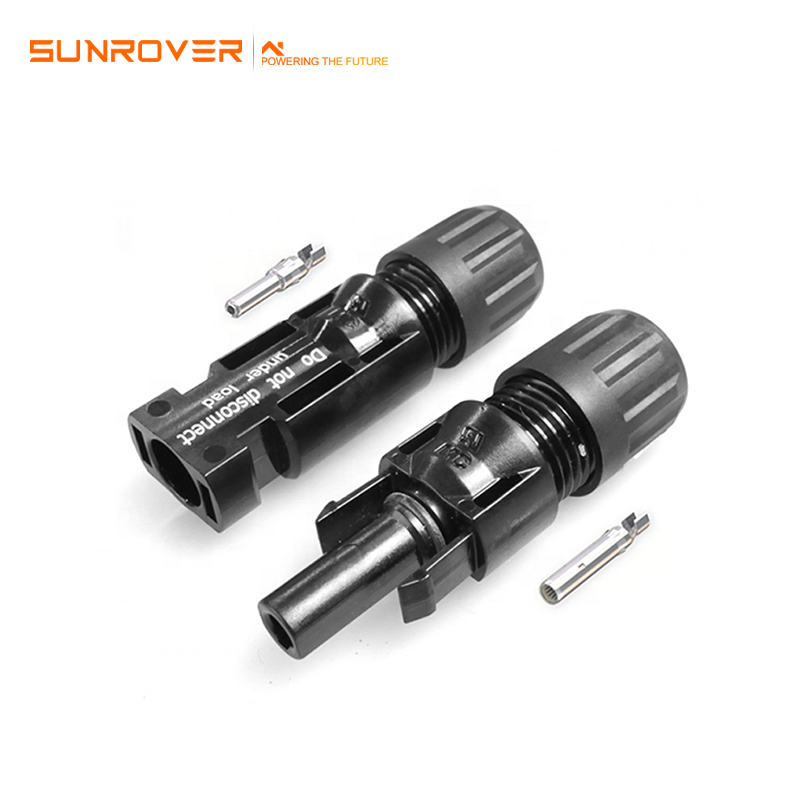

7 Connector Solar Connector 100 pairs
⚙️ System Diagram

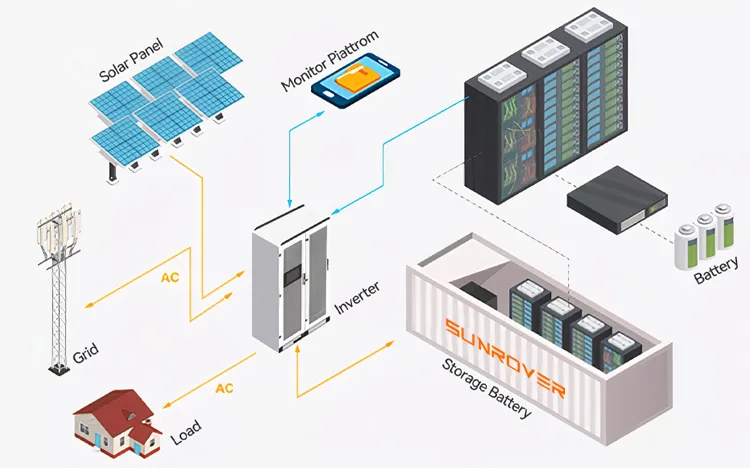

System Diagram 1
System Diagram 2
System Diagram 3
🏗️ Project Case

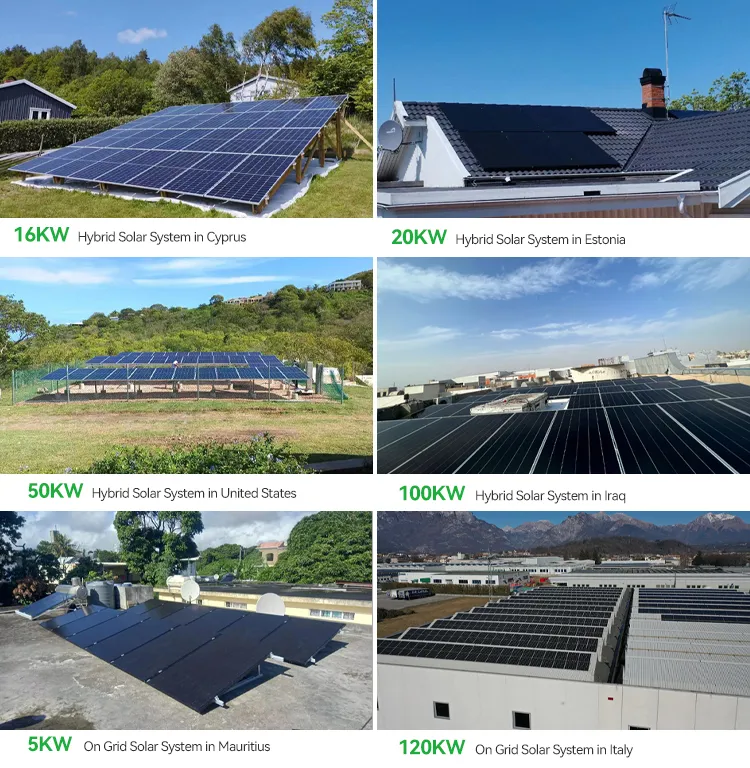

Project Case 1

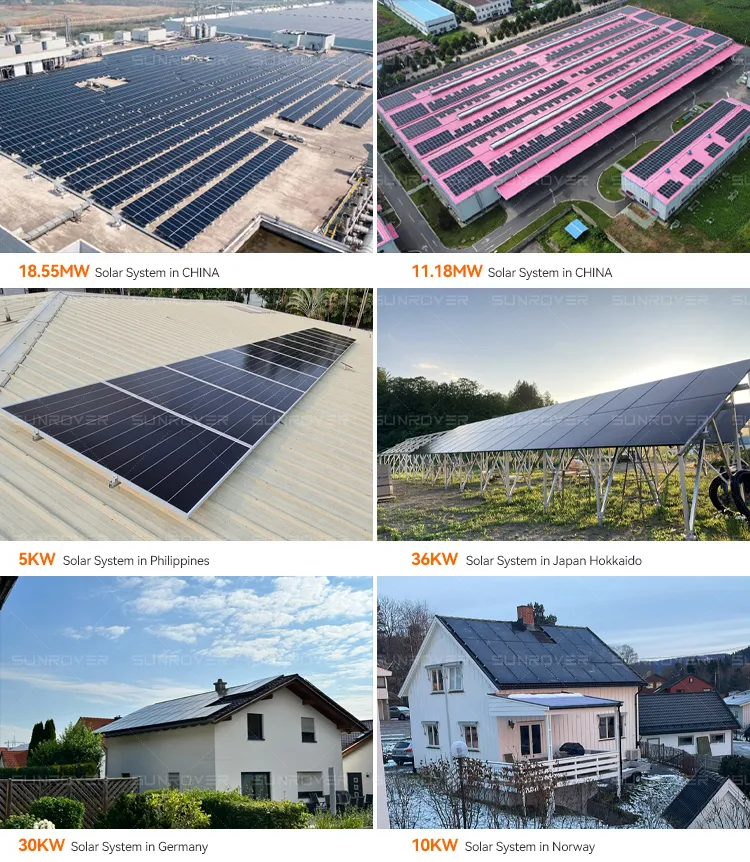

Project Case 2
Project Case 3

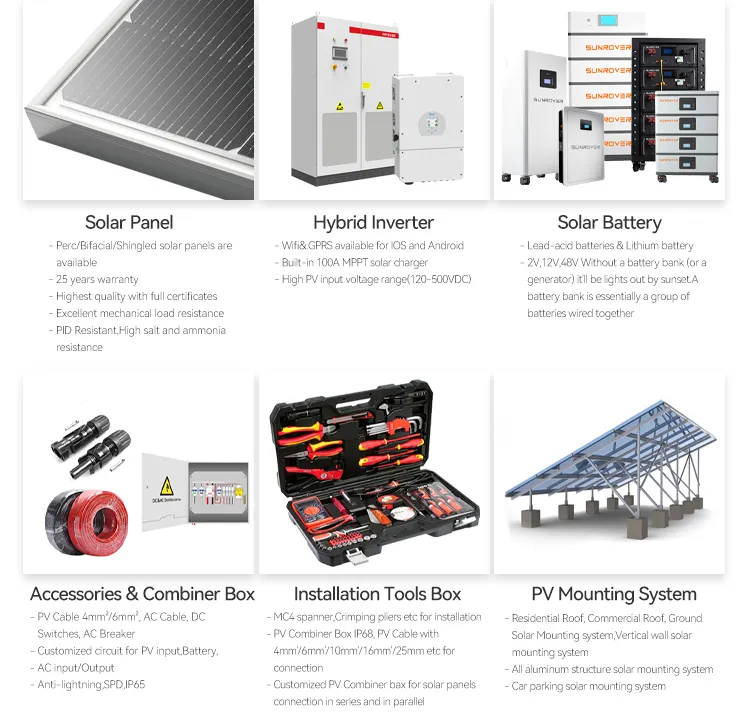

Project Case 4
❓ Frequently Asked Questions
What are the main components of the 500KW Hybrid Storage System?
The system includes high-efficiency 560W mono solar panels, 500KW hybrid inverters, rack-mounted lithium batteries (51.2V 280Ah), combiner boxes, mounting supports, and necessary PV cables and connectors.
Can this system be installed on both roofs and ground?
Yes, the included mounting support is versatile and designed to be compatible with both rooftop and ground-based installations.
What is the advantage of using Half-Cut Mono solar panels?
Half-cut mono solar panels offer higher efficiency, better performance under shaded conditions, and improved durability compared to traditional full-cell panels.
Is the lithium battery storage expandable?
Yes, the system utilizes a rack-mounted battery design, which allows for modular expansion depending on your energy storage requirements.
What is the purpose of the 10-in-1 output combiner box?
The combiner box consolidates the input from multiple solar strings into a single output, simplifying the wiring and providing essential overcurrent and surge protection for the system.
Is this system suitable for commercial applications?
Absolutely. With a 500KW capacity, this hybrid containerized system is specifically engineered for large-scale commercial and industrial energy storage and power management.
